MAX 10w 20w steel sheet cnc fiber laser engraver

$14,257.89

100 in stock

SKU: 32822834484 Category:

Description

  • Model Number: JPF-20
  • Condition: New
  • Brand Name: Precision
  • CNC or Not: CNC
  • Product name: fiber laser engraver
  • Marking scope: 110*110mm/200*200mm/300*300mm
  • Marking Depth: 0.01-5mm
  • Marking Speed: 12000mm/s
  • Work Voltage: 220v/50HZ
  • Laser wavelength: 1064nm
  • certification: CE
  • Operating system: WinXP/Win7
  • Cooling system: Air cooling system
  • Applicable Material: Metal Plastic etc

MAX 10w 20w steel sheet cnc fiber laser engraver

Kindly note:

You can’t place order in Aliexpress, because Aliexpress is in favor of Air transporting only. Because this machine size is bigger than the Aliexpress rule 20*20*20cm. So need choose sea transport, pls send me your email, I will send the payment way and order steps to you.

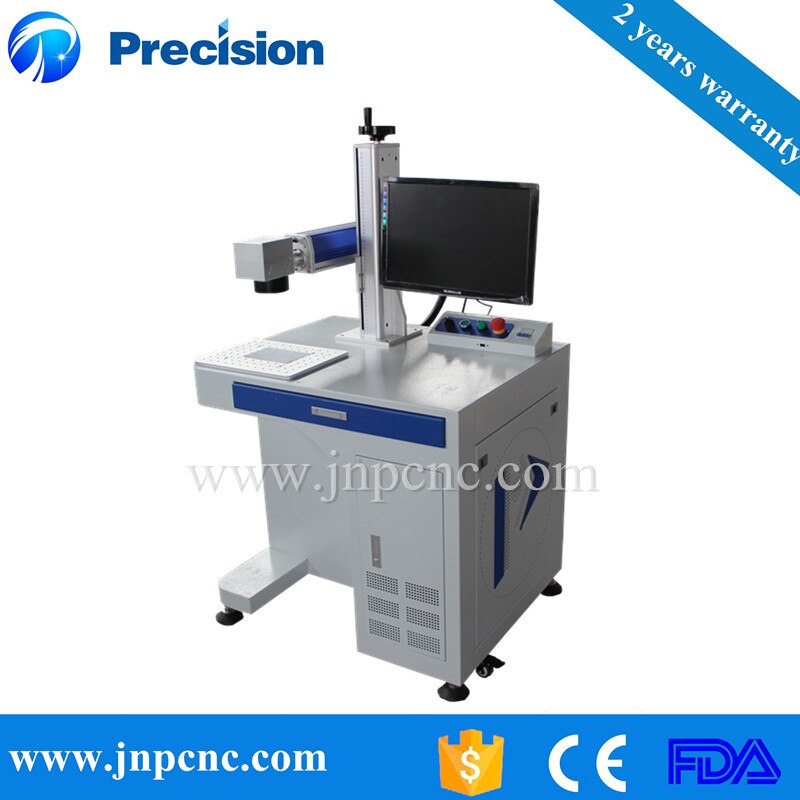

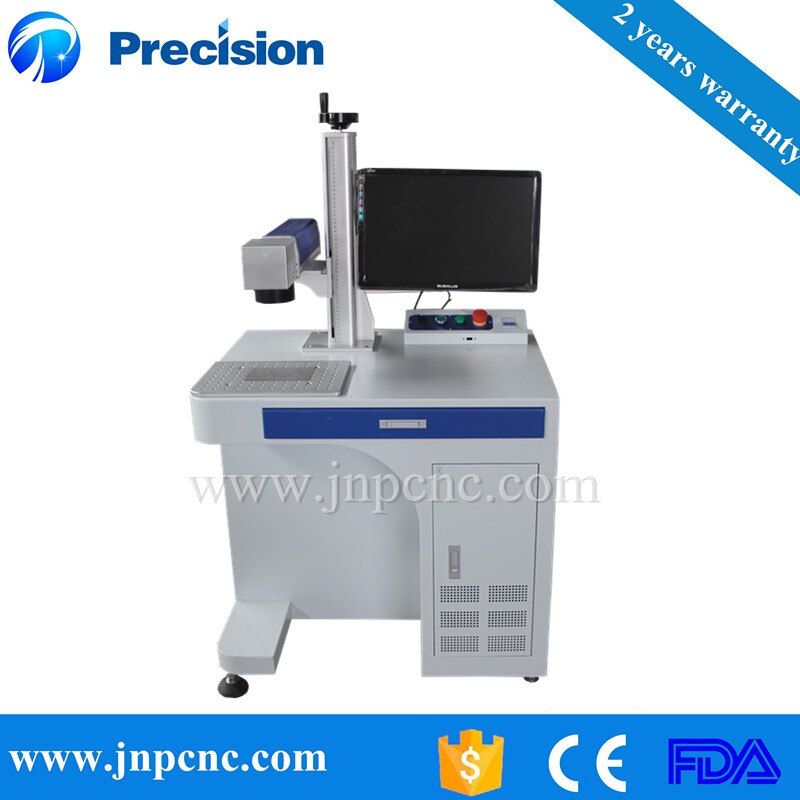

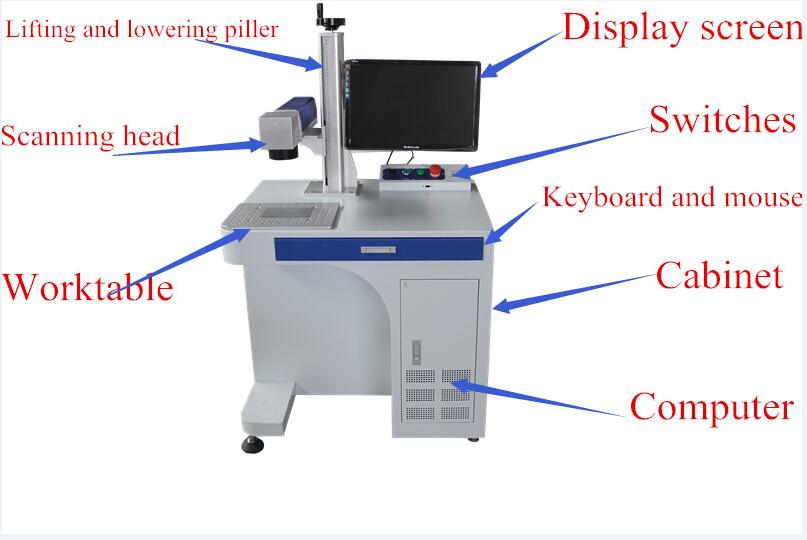

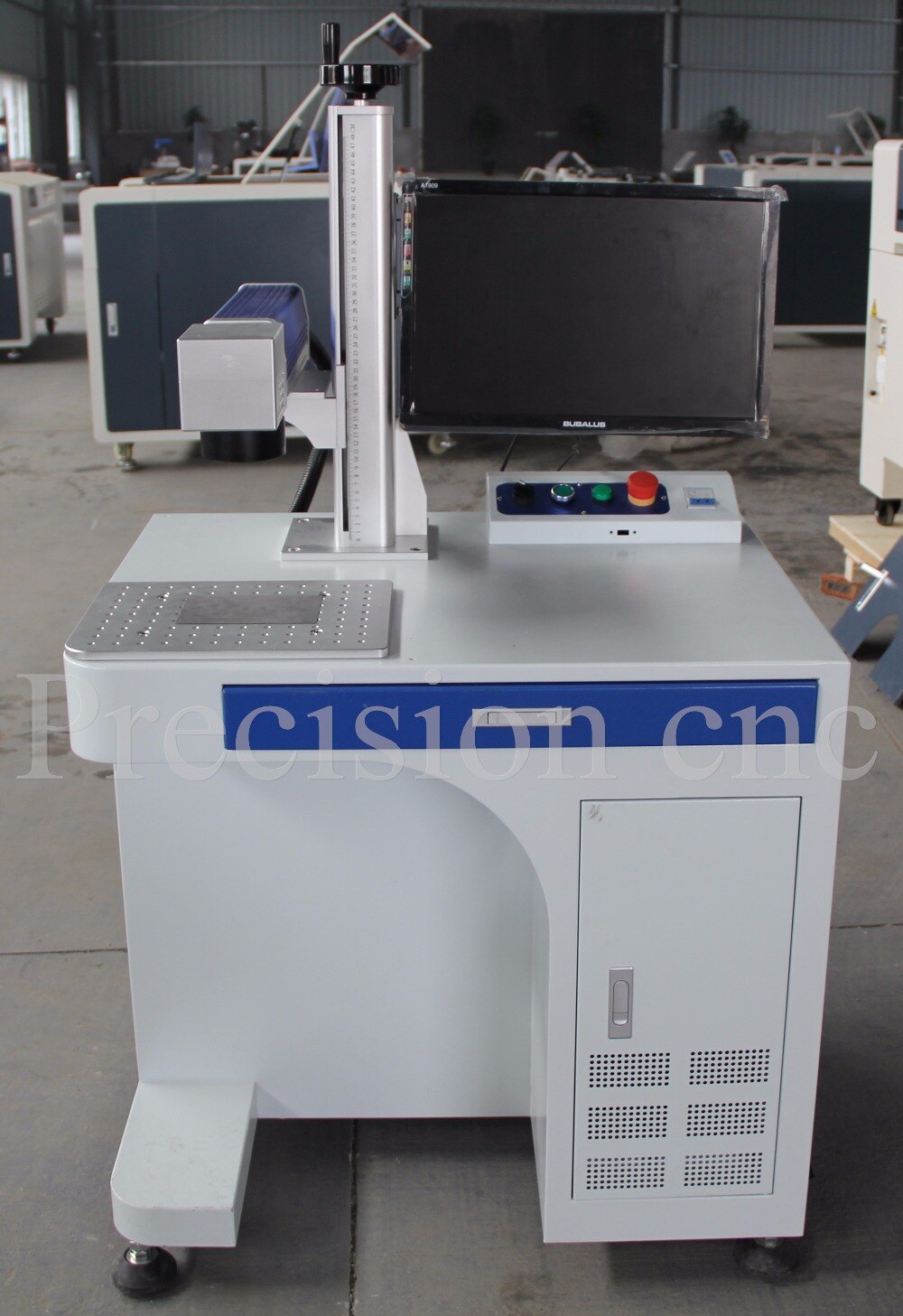

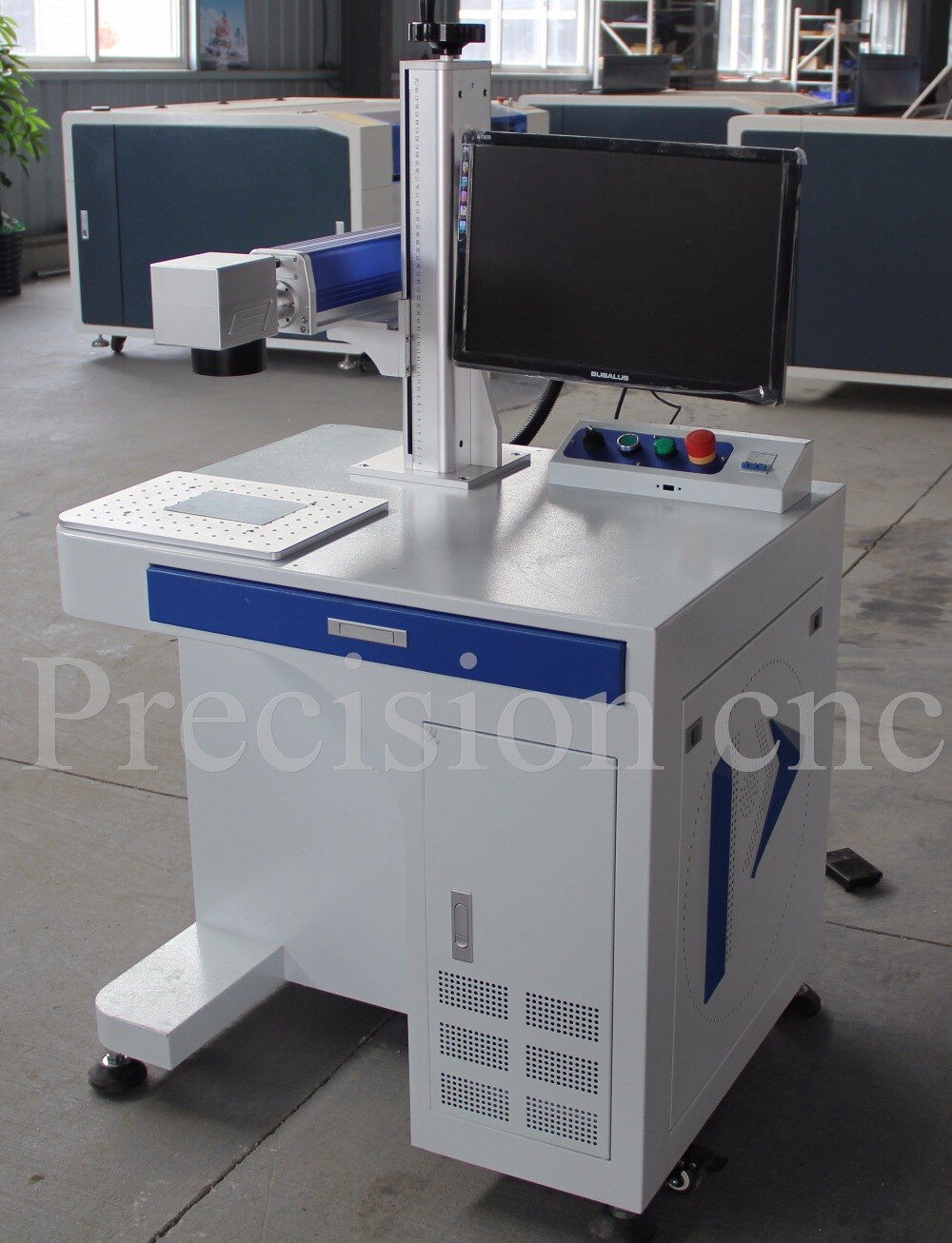

1.  Equipment Picture







1





12





z1 (2)



2.  Application of fiber laser marking machine

Applicable industries:

Mainly applied to the higher marking precision such as mobile phones buttons, plastic translucet keys,

electronic components, integrated circuits (IC), electrical appliances, communication

products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts,

luggage buckle, cooking utensils, stainless steel products and other industries.





Applicable Materials:

Metals (including rare metals), engineering plastics, electroplating materials, coating materials,

plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and

other materials.



3.  Main parts of fiber laser marking machine



QQ20170711165856

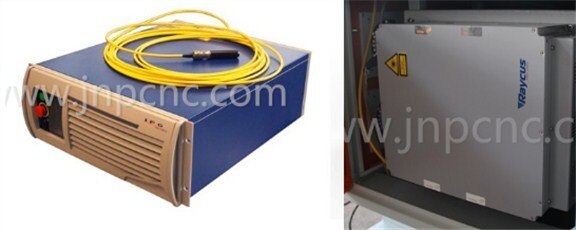

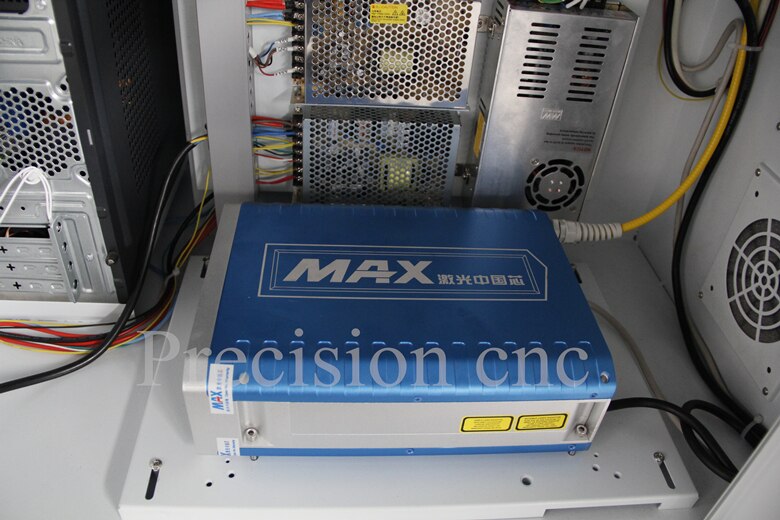

MAX laser generator (IPG or Raycus optional)

Using the most advanced laser source in china,the life time can up to 4-6 years.

z

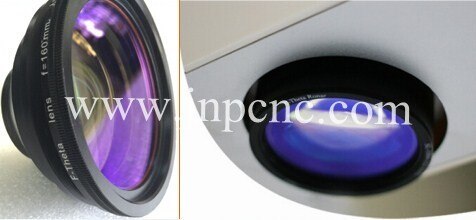

High Speed field lens

improve the ability of edge beam incident to the detector makes the probe on the surface of the

photosensitive non-uniform illumination uniformity

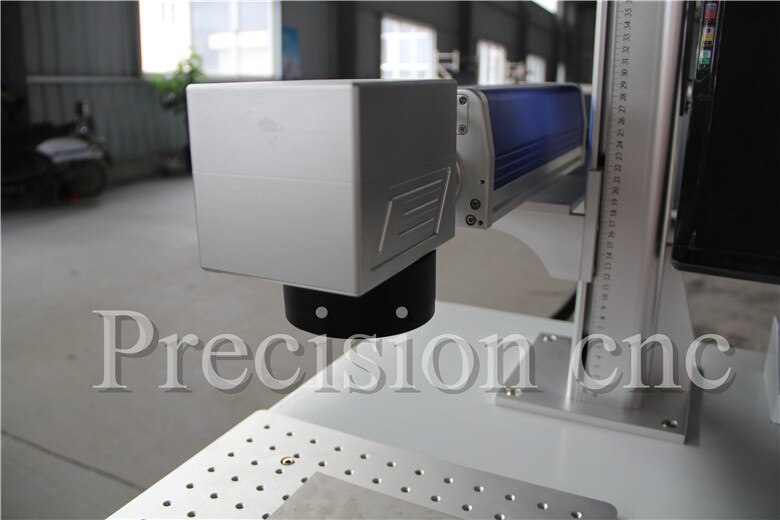

Beijing Sheng Secco’s laser head

using computer graphics software in the handing of graphics,drawing with high efficienty, greatly

improve the quality of a laser mark and speed

IMG_5015_1

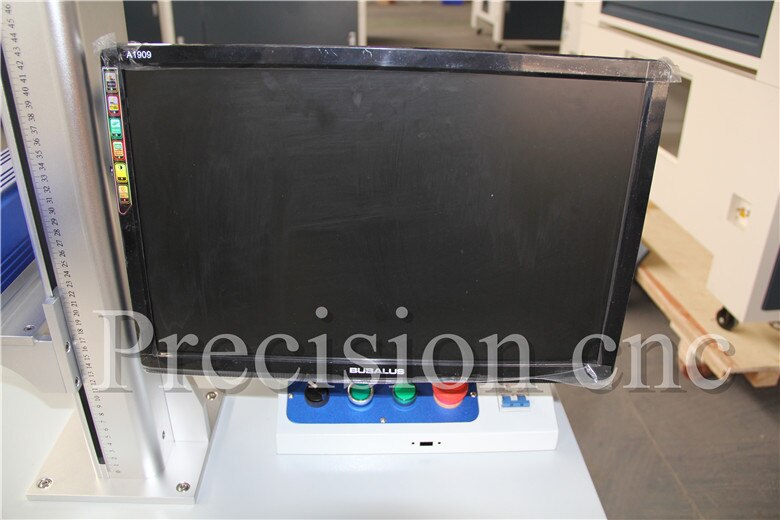

Scaleplate and Aluminum alloy buttons

IMG_5019_1

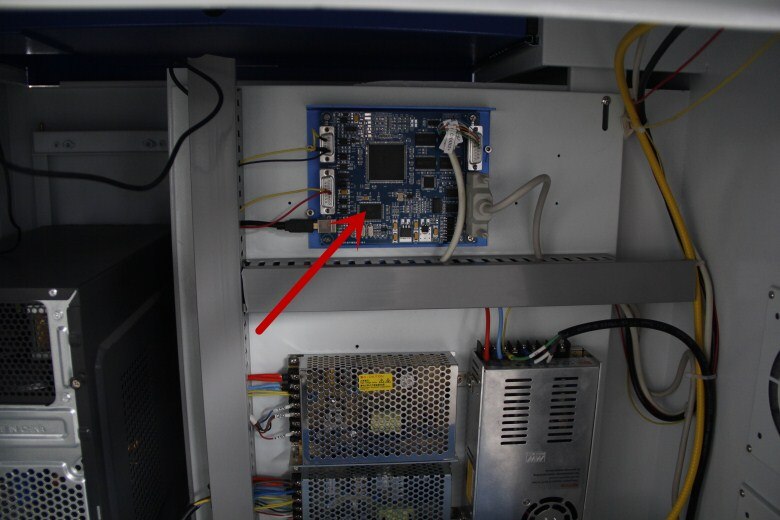

China famous EZCAD controller

 _MG_5023_





4.  Specification of fiber laser marking machine



Laser Source Fiber Laser
Output Power 30w/20w/ 10w
Wavelength 1064nm
Beam Quality <2
Repeat Frequency 10khz— 100khz
Pulse Energy 2mJ
Beam Divergence -0.3 to +0.3mrad
Laser Class IV
Resolution

18μ

Repeatablility

50μ

Marking Scope 110mmx 110mm/ 200mm x 200mm (optional)
Linear Speed 800 character/ s
Marking Linear Speed

≤12,000mm/s

Marking Depth Max. 1.0- 1.5mm (hard steel)
Min. Line Width 0.012mm
Min. Character Size 0.15mm
Repeat Accuracy

±0.003mm

Input Power 0.5kw
Electrical Source

220V / Single-Phase Circuit / 50/60Hz /4A



5.  Sample of fiber laser marking machine







6.  Advantage of fiber laser marking machine

1. Fast processing speed:Its processing speed is 2-3 times of traditional laser marking machine

2. Good Stability and Free Maintenance: No need maintenance for laser device, also not need adjust or clean the lens.

3. Long Using Time: the average using time more than 100000 hours.

4. Large Marking/Engraving Range: the max rang can be made to 300X300mm.

5. Applicable to a variety of materials such as metal and nonmetal.



7. Payment terms



1. T/T: 30% as deposit, and the rest 70% is paid off before delivery.

2.Alibaba trade assurance (Recommended): It is more safe. Pls click here to find the detailed introduction.

Trade Assurance Introduction

8. Contact

HTB1CPRjJFXXXXXtXXXXq6xXFXXX4 (1)_
