Mateksys Matek Systems OPTICAL FLOW & LIDAR SENSOR 3901-L0X INAV Module F4 F7 F405 Flight Controller FPV Racing Drone Long Range

$192.50

SKU: 1005004787946333 Category:

Description

  • Brand Name: Foxeer
  • Control Channels: 12 Channels & Up
  • Controller Mode: MODE2,MODE1
  • Operator Skill Level: Beginner,Intermediate,Expert
  • Package Includes: Original Box
  • Remote Control: Yes
  • Features: FPV Capable,Wi-Fi
  • Indoor/Outdoor Use: Indoor-Outdoor
  • Video Capture Resolution: Other
  • Camera Mount Type: Other
  • Origin: Mainland China
  • Recommend Age: 12 y,14 y
  • Model Number: 3901-L0X

Specifications

  • Optical Flow: PMW3901

  • Lidar: VL53L0X

  • Interface UART

  • Protocol: MSP

  • Working Range: 8cm~200cm

  • Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)

  • Minimum Illumination >60Lux

  • Input voltage: 4.5~5.5V

  • Power Consumption: 40mA

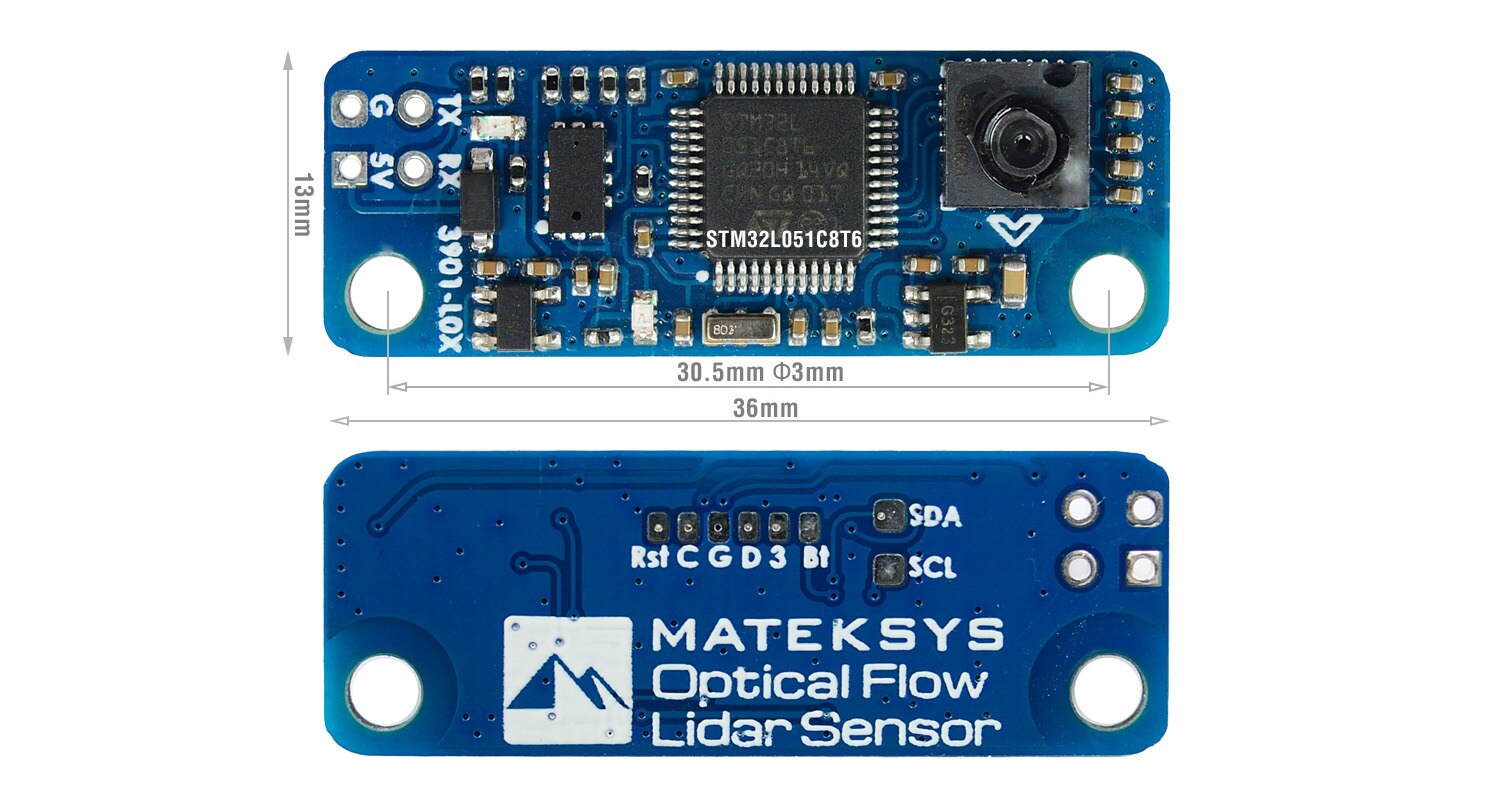

  • Size: 36*12mm (F051 version),  2g

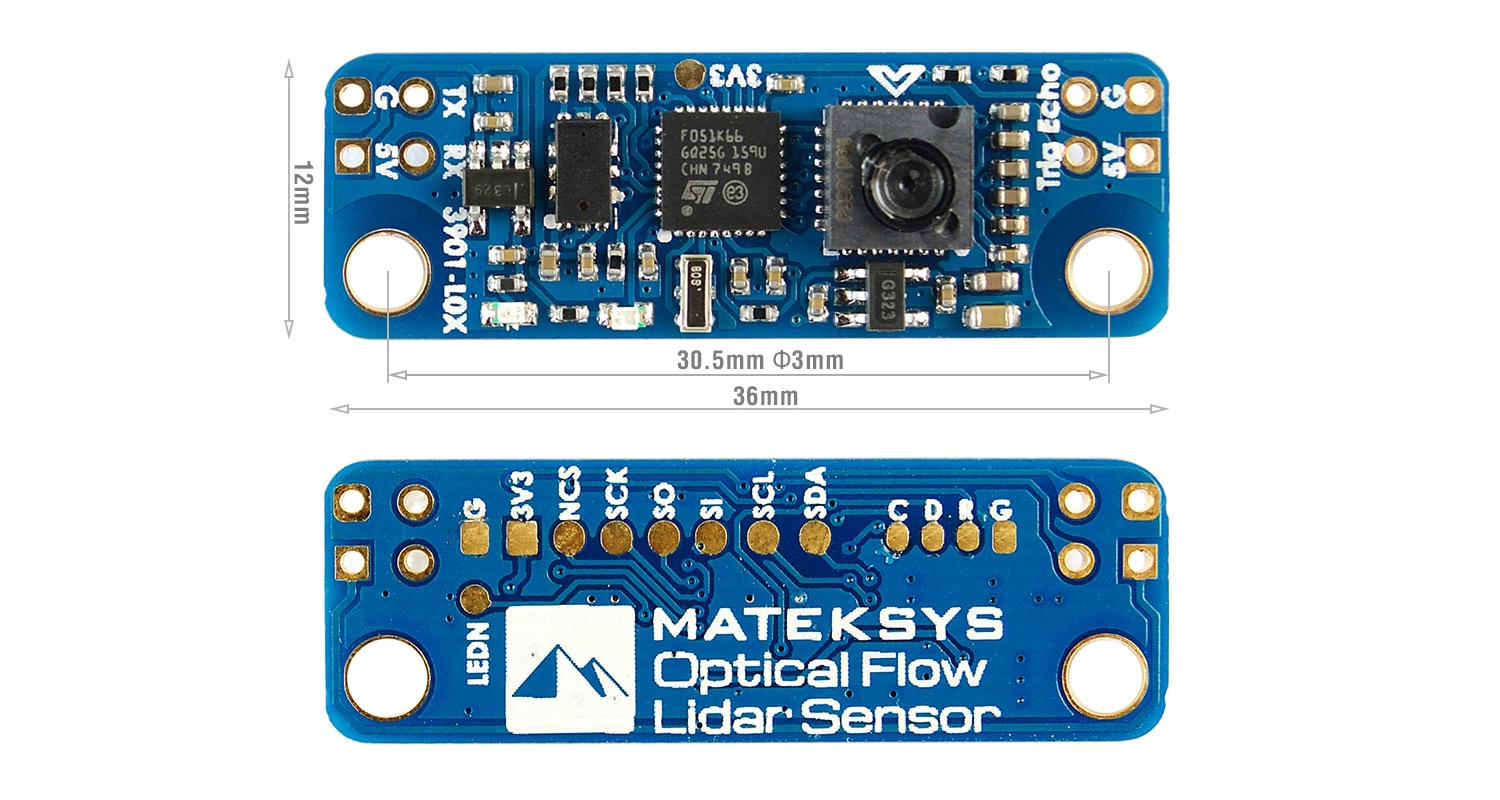

  • Size: 36*13mm (L051 version)  2g

Packing

  • Module 3901-L0X,  1pc

Tips

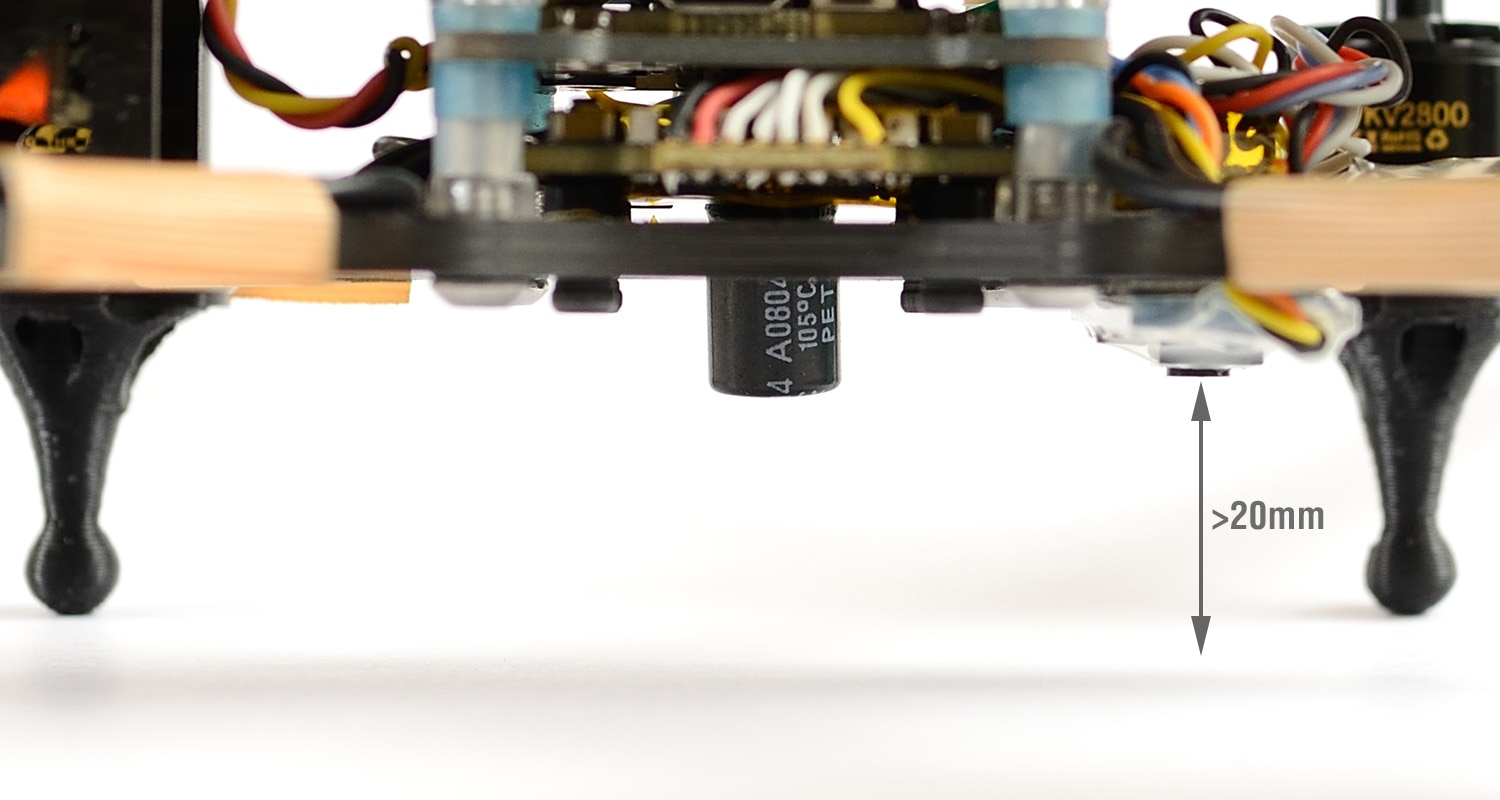

  • Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.

  • Maximum range of VL53L0X is 2m,   Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

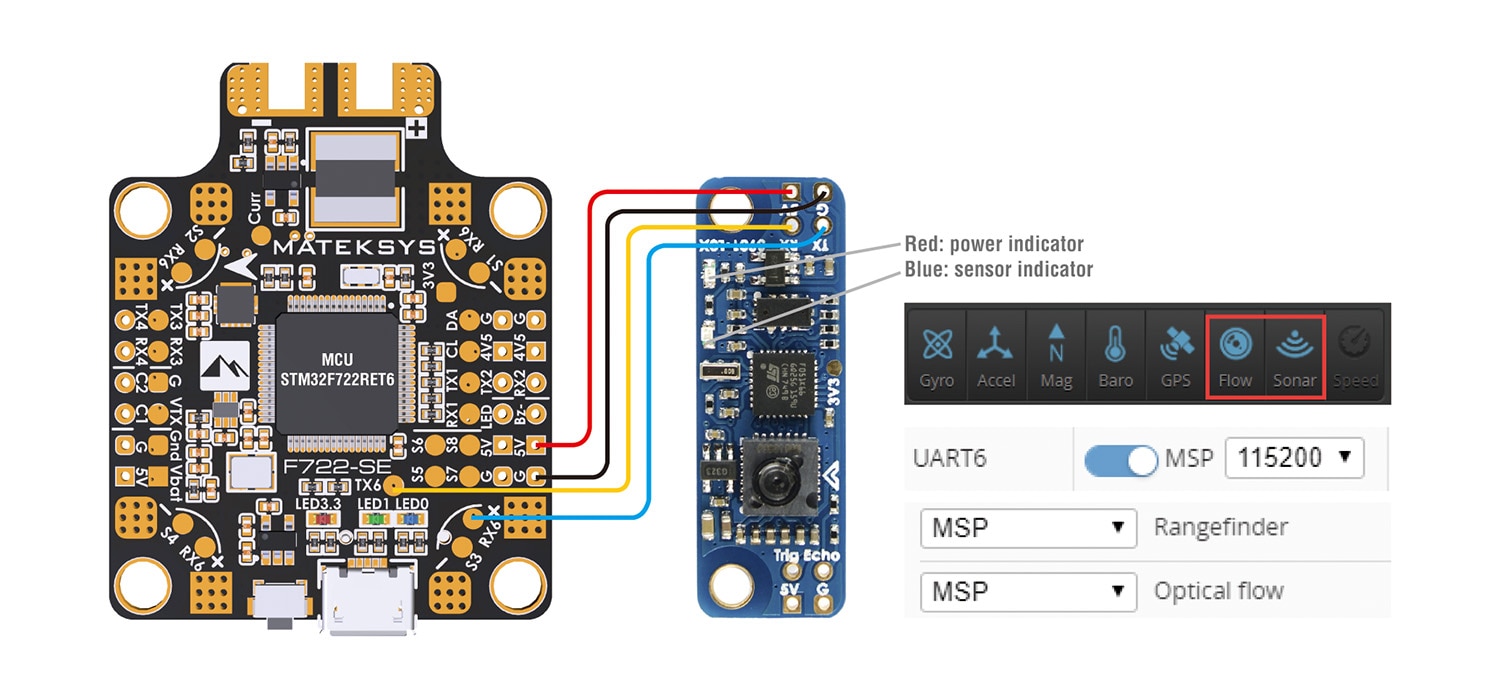

  • Any unused UART of FC supports it

  • Sonar connection (Trig & Echo) has not been implemented

  • If your flight controller doesn’t have a barometer detected, you won’t be able to select “NAV ALTHOLD” in modes tab.
