MATEKSYS Matek OPTICAL FLOW & LIDAR SENSOR 3901-L0X INAV Module F4 F7 F405 Flight Controller for RC FPV Racing Drone

$35.45

SKU: 1005002957288235 Category:

Description

  • Origin: Mainland China
  • Material: Composite Material
  • Recommend Age: 12 y
  • Use: Vehicles & Remote Control Toys

Specifications

Optical Flow: PMW3901

Lidar: VL53L0X

Interface UART

Protocol: MSP

Working Range: 8cm~200cm

Field of view: 42 degree(PMW3901), 27 degree(VL53L0X)

Minimum Illumination >60Lux

Input voltage: 4.5~5.5V

Power Consumption: 40mA

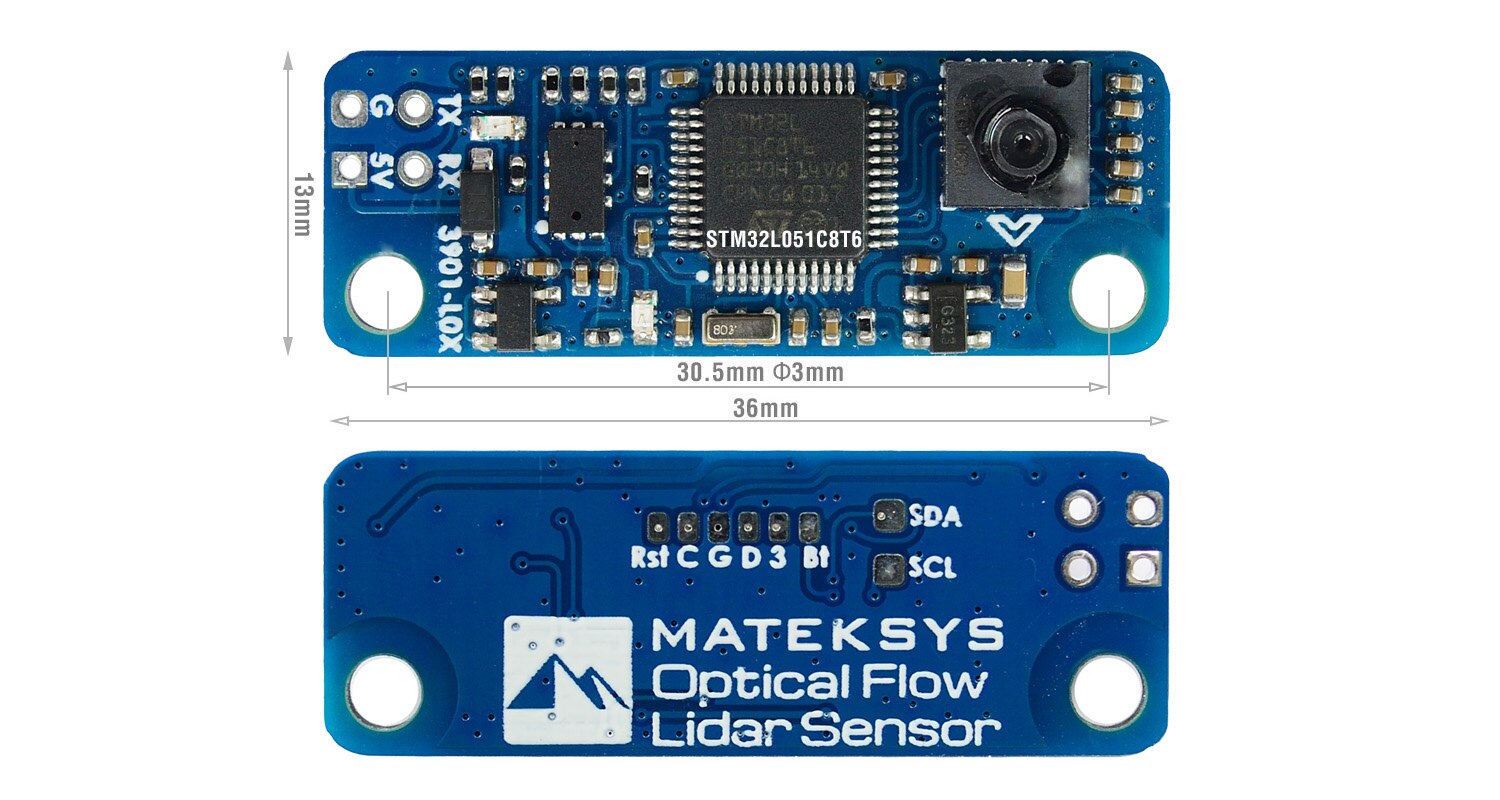

Size: 36*12mm (F051 version), 2g

Size: 36*13mm (L051 version) 2g

Packing

Module 3901-L0X, 1pc

Tips

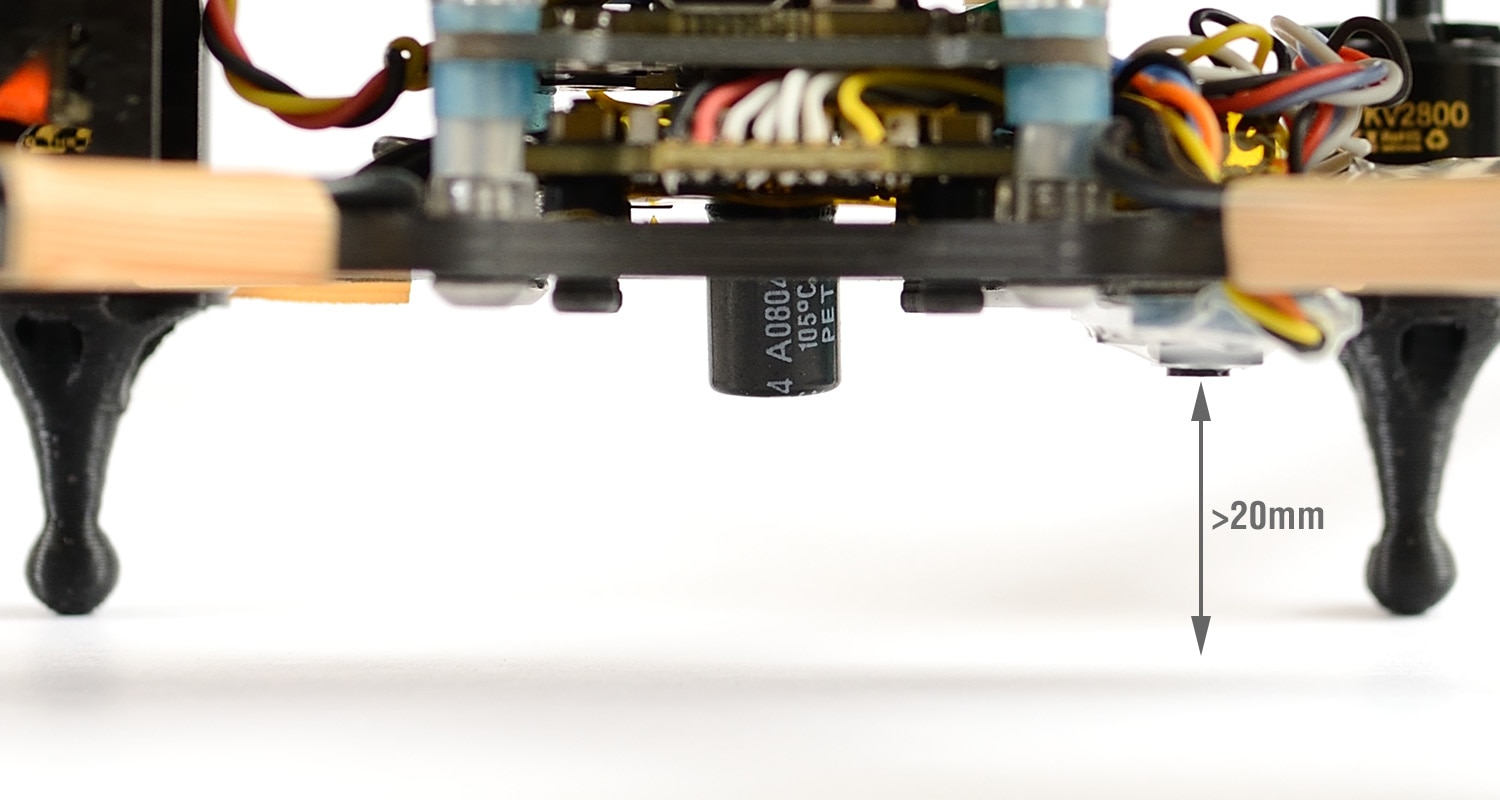

Make sure Optical Flow lens to ground >2cm for opflow initialization while FC starting up.

Maximum range of VL53L0X is 2m, Altitude hold 0~2m @ throttle 0~100% if VL53L0X is enabled.

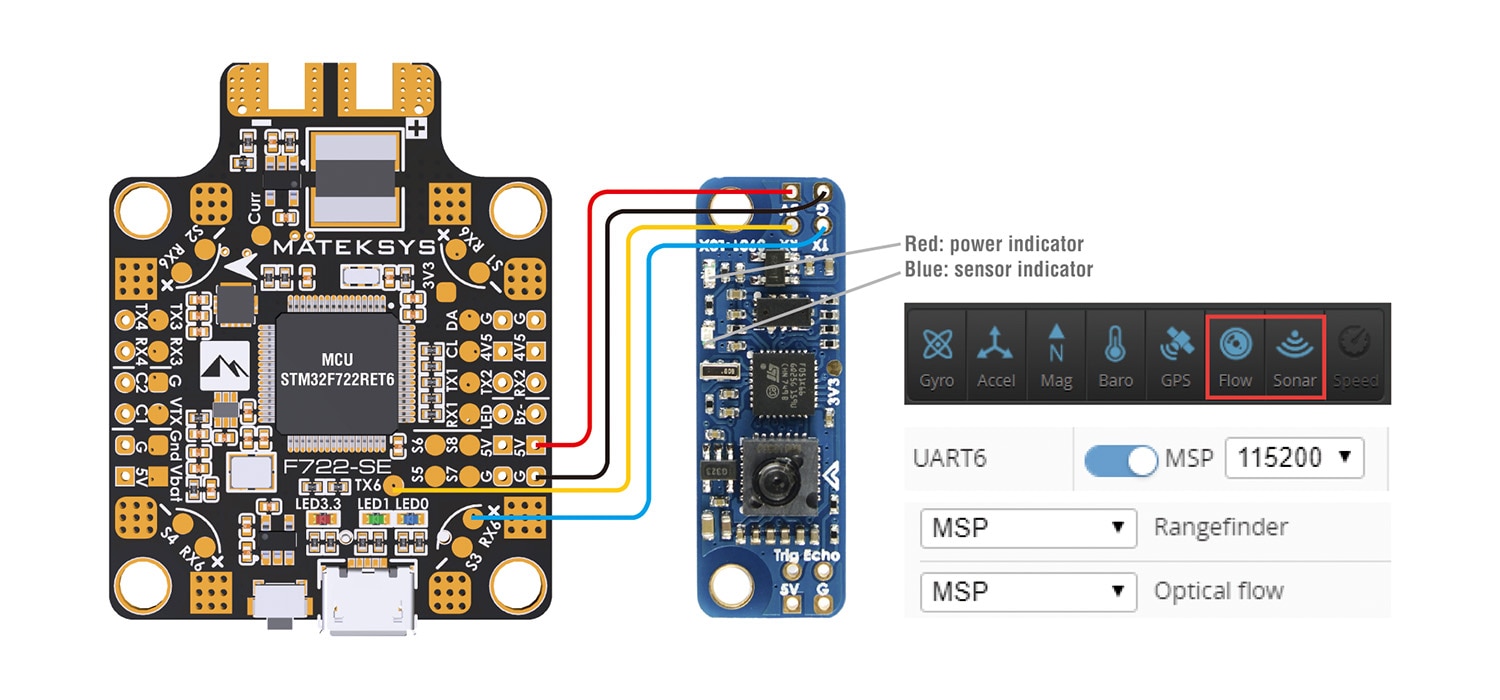

Any unused UART of FC supports it

Sonar connection (Trig & Echo) has not been implemented

If your flight controller doesn’t have a barometer detected, you won’t be able to select “NAV ALTHOLD” in modes tab.
