Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: MOPA Pulse
- CNC or Not: CNC
- Is Smart Device: No
- Laser Output Power: 20W/30W
- Laser Wave Length: 1064nm
- Impulse Waveform: Adjustable
- Impulse Width: Adjustable 2-200ns
- Max Power: High ,adjustable
- Impulse Frequency: 1-2000KHz
- First Impulse: Fast ,adjustable
- Anodized Alumina Blackening: Support
- Deep Carving on Metal: Fine shading
- Color marking on Stainless steel: Support

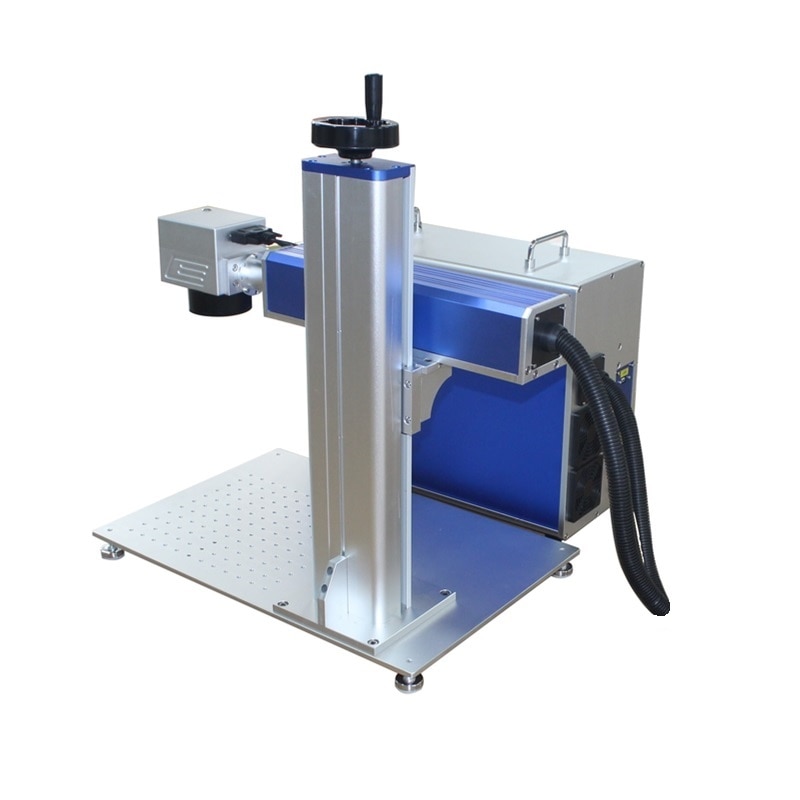

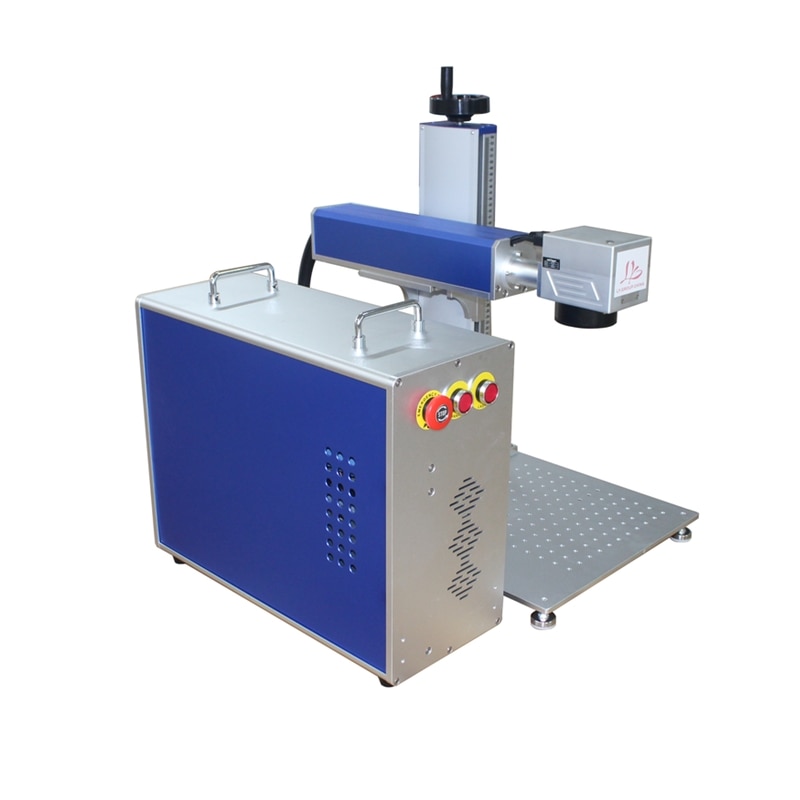

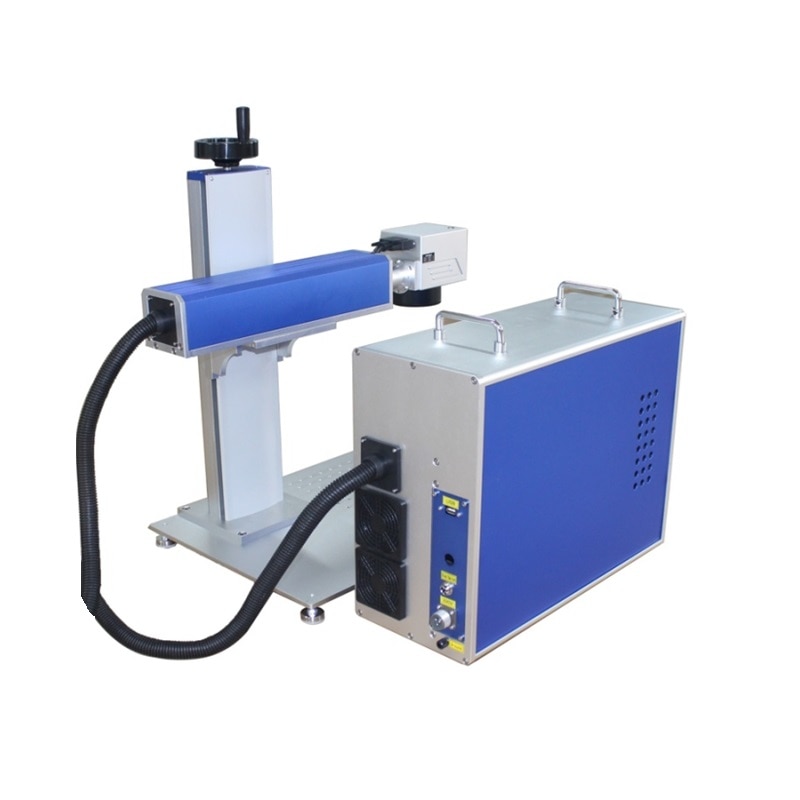

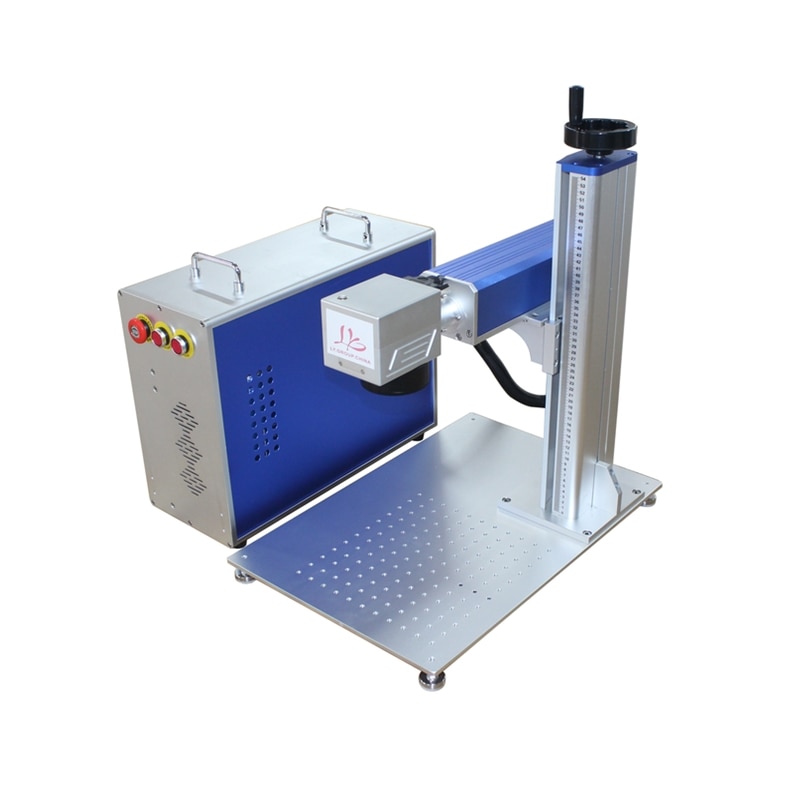

Master Oscillator Power-Amplifier MOPA Separated Fiber Laser Nameplate Color Marking Machine 20W 30W Impulse Frequency 1-2000KHz
MOPA means "Master Oscillator Power-Amplifier", why we say MOPA fiber laser marking machine is the nobility in fiber laser machine series?
Parameter
Fiber Laser Source Comparison |
|||
Fiber Laser Type |
Q-Switch Pulse (Normal Fiber) |
MOPA Pulse |
|
Model |
Q-Switch |
MAX(MFPT-20/30) |
|
Laser Output Power |
20W/30W |
20W/30W |
|
Laser Wave Length |
1064nm |
1064nm |
|
Technology |
By Q-switch |
By electrical signals |
|
Impulse Waveform |
Cannot adjust |
Adjustable |
|
Impulse Width |
Fixed 100ns |
Adjustable 2-200ns |
|
Max Power |
Low ,not adjustable |
High ,adjustable |
|
Impulse Frequency |
20-80KHz |
1-2000KHz |
|
First Impulse |
Slow ,no adjustable |
Fast ,adjustable |
|
Marking Fineness |
Low Quality |
High Quality |
|
Surface stripping of alumina sheet |
Easy to deform, thick shading |
No deformation, fine shading |
|
Anodized Alumina Blackening |
Not Support |
Support |
|
Temperature sensitive materials |
General polymer materials |
High temperature sensitive materials (e.g. certain |
|
Deep Carving on Metal |
Rough shading |
Fine shading |
|
Color marking on Stainless steel |
Not Support |
Support |
|
PC/ABS plastic Stuff |
Easy to mark yellow |
Not easy to mark yellow |
|
Transparent paint plastic button |
Hard to clean |
Easy to clean |
|
Electronics, Semi-conductor, ITO, precision machining |
The pulse and the energy is too strong |
The light spot is fine and the energy is average |
|
Aluminum materials without oxidation treatment |
Cannot be blackened, can only be marked with dark grey |
The motherboard supports win10 and supports 32-bit 64-bit.
1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,
2: Machine configuration:
A;Fiber Laser brand: Max
B; SINO-GALVO field mirror & galvanometer,
C; Taiwan Meanwell (MW) power supply,
D;Original Golden Orange Board (supports genuine software, supports system-wide operation)
E: Double red lights assisted focusing

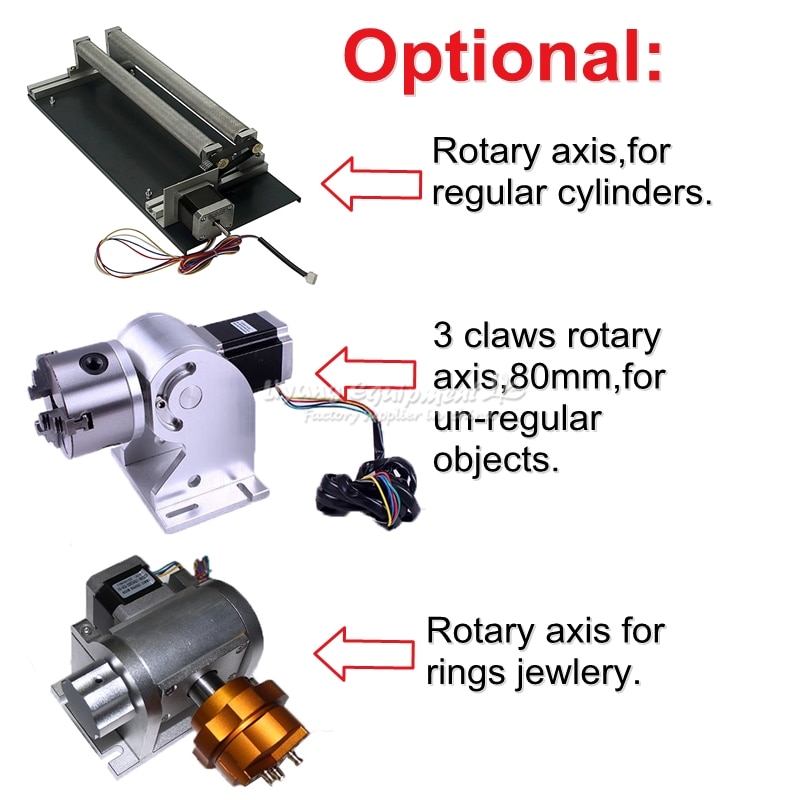

F:Rotary axis (Optoinal)
3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!
4: Never let price become the only guiding factor for the company’s business marketing.
Expand your own marketing ideas and position high-quality markets.
5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!
Item pictures
