MASTECH MS8218 Digital Multimeter 50000 Counts Multifunction True RMS PC USB DMM 5 1/2 Bit Auto Range Tester Ammeter Multitester
- Brand Name: EVERGOOD
- DIY Supplies: ELECTRICAL
- AC Voltage: 50mV/500mV/5V/50V/500/1000V /-0.5%
- Display Type: Digital display
- DC Voltage: 50mV/500mV/5V/50V/500/1000V /-0.5%
- AC Current: 500uA/5000uA/50mA/500mA/5A /-0.75%, 10A /-1.5%
- Measuring Resistance Range: 500/5K/50K/500K/5Mohm /-0.1%, 50Mohm /-0.5%
- Certification: CE
- DC Current: 500uA/5000uA/50mA/500mA/5A /-0.75%, 10A /-1.5%
- Measuring Capacitance Range: 50nF/500nF/5uF/50uF -1%, 500uF/5000uF -2.0%
- Operating Mode: Auto Manual
- Model Number: MS8218
- Measuring Inductance Range: Refer to SPEC
- Dimensions: 200mm * 100 mm * 40 mm
- Operating Temperature: 0 – 40 ℃
MASTECH MS8218 Digital Multimeter 50000 Counts Multifunction True RMS PC USB DMM 5 1/2 Bit Auto Range Tester Ammeter Multitester
Features:
Max Display: 50000 Counts
Auto/Manual Range
ACV/DCV measurement reach up to 1000V
Voltage/Current Linear frequency measurement
Logic frequency/duty cycle measurement
Capacitance measurement/dBm measurement
AC/DC true RMS measurement from 0.01nF to 5000uF
MAX/ MIN/ MAX-MIN and RELATIVE value measurement
Data Hold/Back Light /Auto Off
RS-232C infrared interface and PC Windows Software
Software calibrates automatically
Overload protection
Low Battery Indication
Specifications:
ACV/DCV+ACV: 50mV/500mV/5V/50V/500/1000V ±0.5%
DCV: 50mV/500mV/5V/50V/500V/1000V ±0.03%
AC Current /DC Current + AC Current:
500uA/5000uA/50mA/500mA/5A ±0.75%, 10A ±1.5%
DC Current: 500uA/5000uA/50mA/500mA/5A/10A ±0.15%
Resistance: 500Ω/5KΩ/50KΩ/500KΩ/5MΩ ±0.1%, 50MΩ ±0.5%
Capacitance: 50nF/500nF/5uF/50uF ±1%, 500uF/5000uF ±2.0%
Dide: 2.5V ±1%
Duty Cycle: 5Hz~500KHz, Range: 10%~90%
Logic Frequency: 5Hz~2MHz ±0.006%, Vp2~5V Square Wave
Linear Frequency: 5Hz~200KHz ±0.006%
General Specificatons:
Display: LCD Size 44mm * 70mm
Dimension: 200mm * 100 mm * 40 mm
Power: 6 * 1.5V(AAAType) (not included)
Package Size: 28 * 19 * 9cm / 11 * 8 * 3.2in
Package Weight: 1170g / 2.6lb

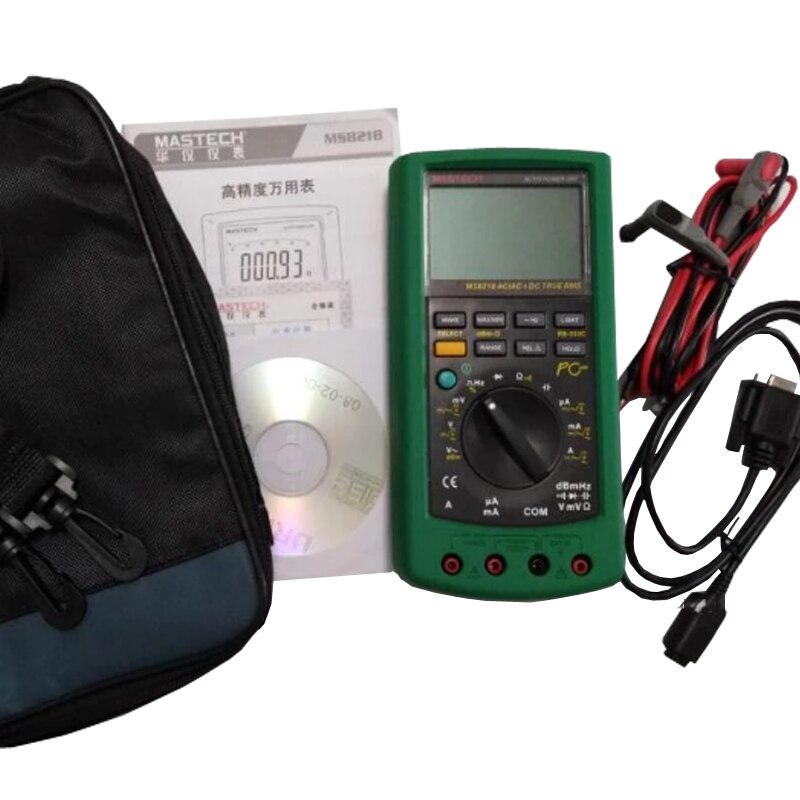

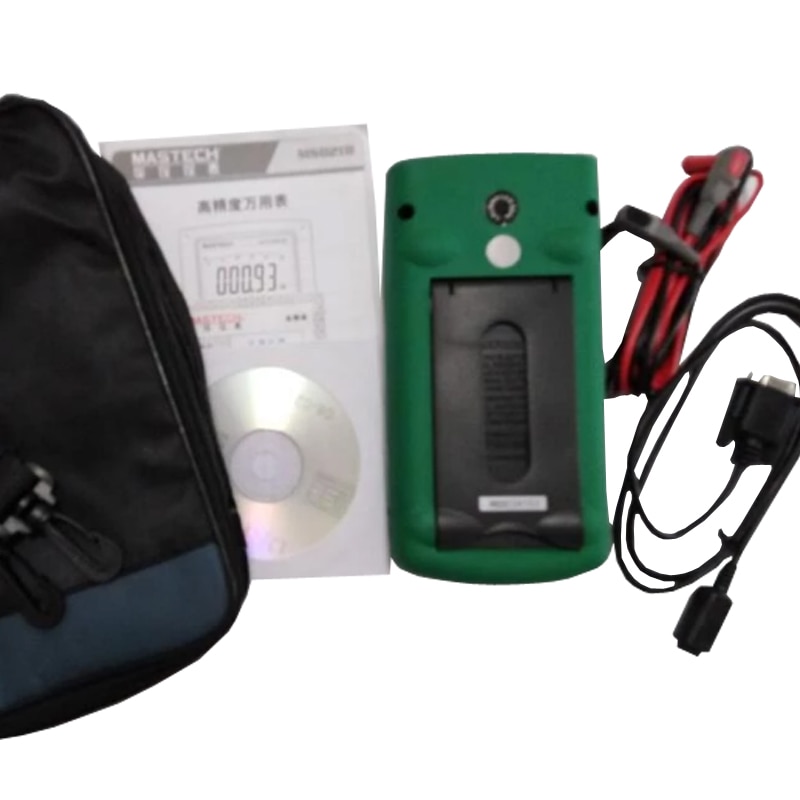

Package Content:

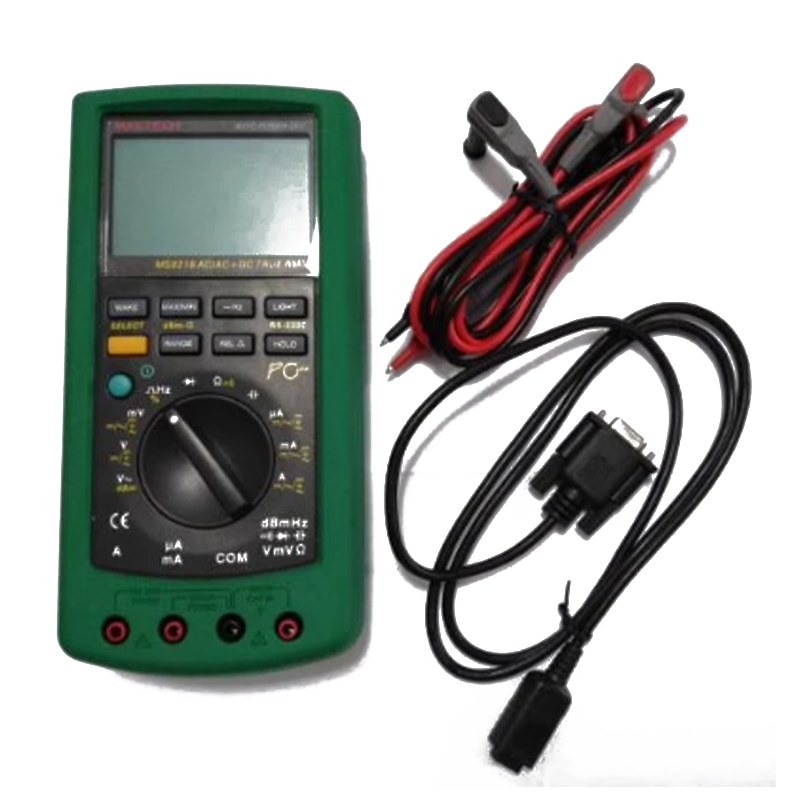

1 * MASTECH MS8218 50000 Counts High Accuracy True RMS DMM Digital Multimeter
1 * Pair Test Lead
1 * RS232 USB Cable
1 * Software CD
1 * English manual
