Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)
- Shape: Candle
- Place of Origin: Zhejiang, China
- Brand Name: Contrastech
- Model Number: Mars4112S-9GM
- Warranty: 1 Year
- Special Features: Gige Vision, Free SDK
- Sensor: CMOS
- Network: SDK
- Function: High Resolution 12mp, Global Shutter
- Video Compression Format: /
- Data Storage Options: Output images to PC via gige cable.
- Application: Indoor, Outdoor
- Format Size: 1.1”
- Image Sensor: Sony IMX304
- Pixel Size: 3.45um
- Frame Rate: 9fps
- Output Color: Color
- Shutter Mode: Global Shutter
- Data Bits: 12bit
- Lens Mount: C Mount
- Interface: Gigabit Ethernet
- Optional Accessory: 6pin I/O cable, Gige cable, Power adapter.
- Certification: ce
- Channels: Industrial Camera
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:324.375px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:11px;margin-left:16px;width:750px;height:324.375px}#detail_decorate_root .magic-4{text-align:center}#detail_decorate_root .magic-5{font-size:24px}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-7{font-family:”Times New Roman”;font-size:18px}#detail_decorate_root .magic-8{font-size:18px;font-family:”Times New Roman”}#detail_decorate_root .magic-9{vertical-align:top}#detail_decorate_root .magic-10{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-11{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-12{width:371px;height:371px;overflow:hidden}#detail_decorate_root .magic-13{position:relative;left:0;top:0;width:371px;height:371px}#detail_decorate_root .magic-14{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-15{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-16{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-18{font-size:16px}#detail_decorate_root .magic-19{font-size:16px;font-family:”Times New Roman”}#detail_decorate_root .magic-20{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px}#detail_decorate_root .magic-21{width:375px;height:332.21079258010116px;overflow:hidden}#detail_decorate_root .magic-22{position:relative;left:-4px;top:42px;width:375px;height:375px}#detail_decorate_root .magic-23{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:0;margin-top:-4px;margin-left:-3px}#detail_decorate_root .magic-24{width:364px;border-collapse:collapse}#detail_decorate_root .magic-25{min-height:18px;padding:5px 10px;width:155px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-26{min-height:18px;padding:5px 10px;width:154px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-27{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-28{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-29{overflow:hidden;width:247.33333333333334px;height:156.14779116465866px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-30{margin-top:-3.004048582995952px;margin-left:-14.018893387314442px;width:271px;height:171px}#detail_decorate_root .magic-31{overflow:hidden;width:247.33333333333334px;height:155.20917678812418px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-32{margin-top:-38.05128205128206px;margin-left:-11.01484480431849px;width:271px;height:247px}#detail_decorate_root .magic-33{margin-top:-21.028340080971663px;margin-left:-7.009446693657221px;width:259px;height:176px}#detail_decorate_root .magic-34{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-35{width:446px}#detail_decorate_root .magic-36{overflow:hidden;width:446px;height:409.98384925975773px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-37{margin-top:0;margin-left:0;width:446px;height:409.98384925975773px}#detail_decorate_root .magic-38{overflow:hidden;width:446px;height:597.3012658227848px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:446px;height:597.3012658227848px}#detail_decorate_root .magic-40{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-41{font-size:16px;color:#ea9924;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-42{font-size:16px;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-43{font-size:16px;font-weight:bold;text-align:center}#detail_decorate_root .magic-44{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-45{vertical-align:top;display:inline-block;padding-right:4px;width:33.333%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-46{white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-47{font-size:18px;font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit}#detail_decorate_root .magic-48{overflow:hidden;width:373px;height:233.61169102296452px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:0;margin-left:0;width:373px;height:233.61169102296452px}#detail_decorate_root .magic-50{overflow:hidden;width:373px;height:233px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-51{overflow:hidden;width:247.33333333333334px;height:329.7777777777778px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-52{margin-top:-1.0013495276653173px;margin-left:45.060728744939276px;width:169px;height:225px}#detail_decorate_root .magic-53{overflow:hidden;width:247.33333333333334px;height:329.44399460188936px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-54{margin-top:-54.07287449392713px;margin-left:-36.04858299595142px;width:247px;height:329px}#detail_decorate_root .magic-55{margin-top:-54.07287449392713px;margin-left:-5.006747638326586px;width:247px;height:329px}#detail_decorate_root .magic-56{width:750px;border-collapse:collapse}#detail_decorate_root .magic-57{min-height:18px;padding:5px 10px;width:710px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-58{display:none}#detail_decorate_root .magic-59{min-height:18px;padding:5px 10px;width:148px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-60{min-height:18px;padding:5px 10px;width:100px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-61{min-height:18px;padding:5px 10px;width:104px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-62{min-height:18px;padding:5px 10px;width:93px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-63{min-height:18px;padding:5px 10px;width:183px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-64{min-height:18px;padding:5px 10px;width:92px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-65{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:247px;height:247px}#detail_decorate_root .magic-67{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-68{margin-top:1.0013495276653173px;margin-left:-9.012145748987855px;width:247px;height:247px}#detail_decorate_root .magic-69{margin-top:-1.0013495276653173px;margin-left:-7.009446693657221px;width:247px;height:247px}#detail_decorate_root .magic-70{text-align:justify}#detail_decorate_root .magic-71{font-style:inherit;font-variant-ligatures:inherit;font-variant-caps:inherit;font-weight:inherit;font-size:18px}#detail_decorate_root .magic-72{overflow:hidden;width:750px;height:600px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-73{margin-top:3px;margin-left:10px;width:712px;height:570px}#detail_decorate_root .magic-74{overflow:hidden;width:750px;height:561.4285714285714px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-75{margin-top:3px;margin-left:13px;width:712px;height:533px}
Brief Introduction

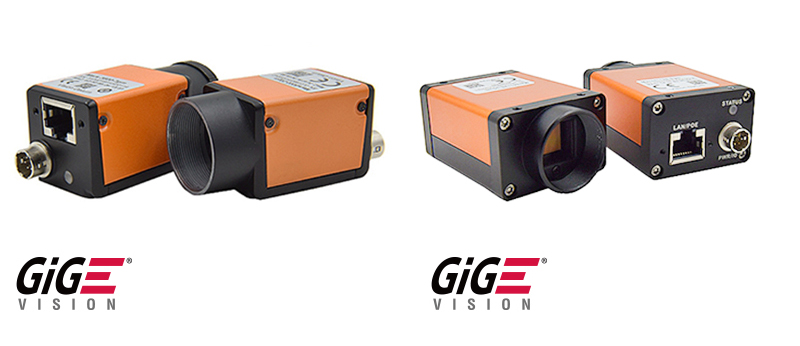

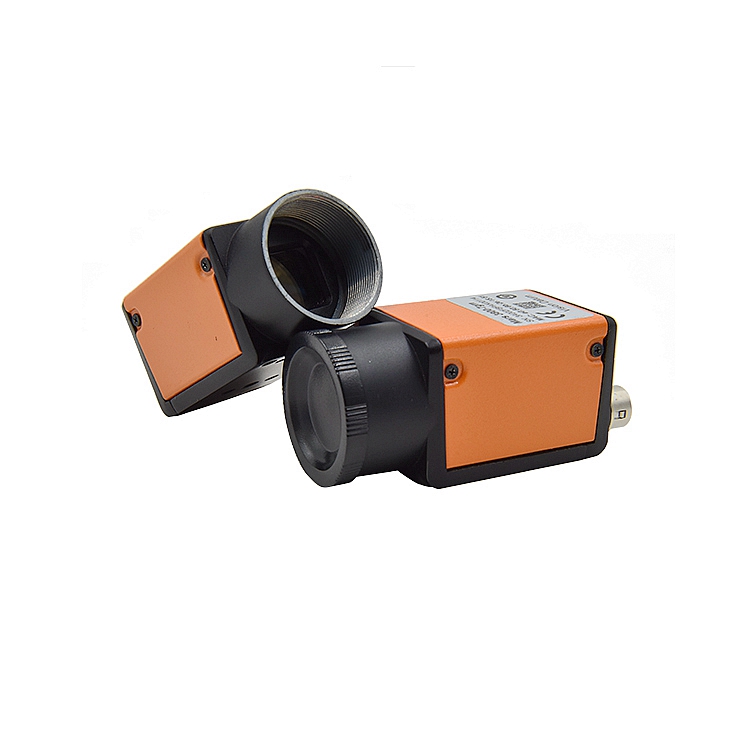

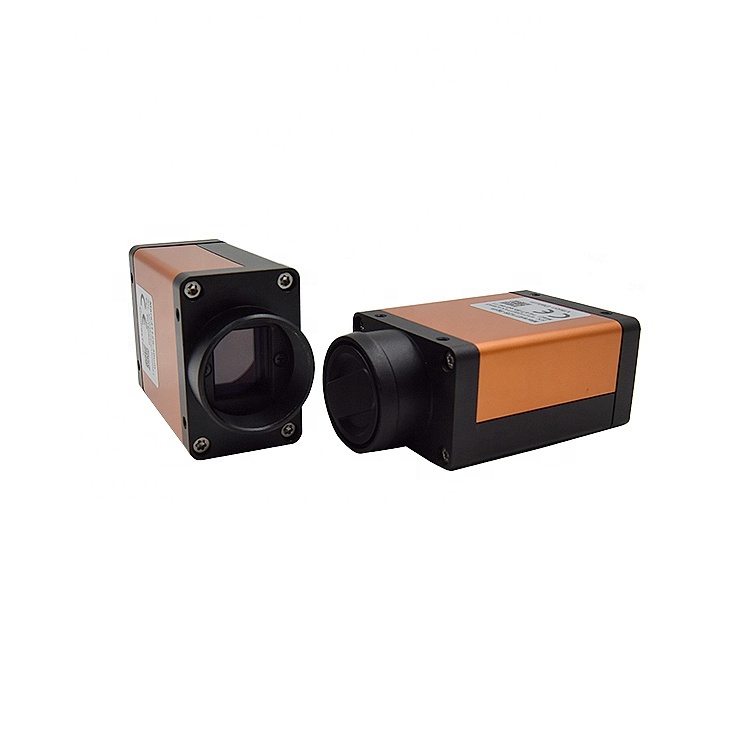

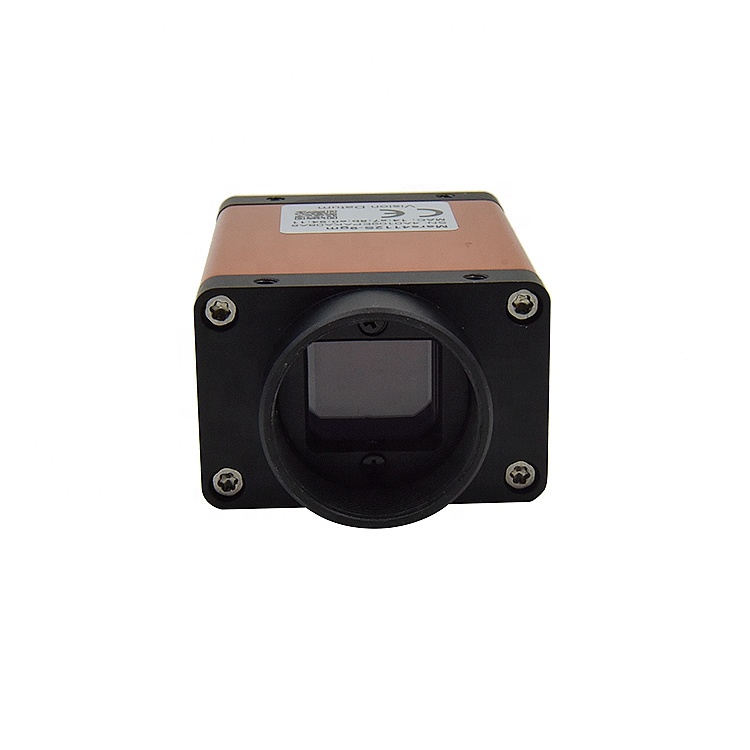

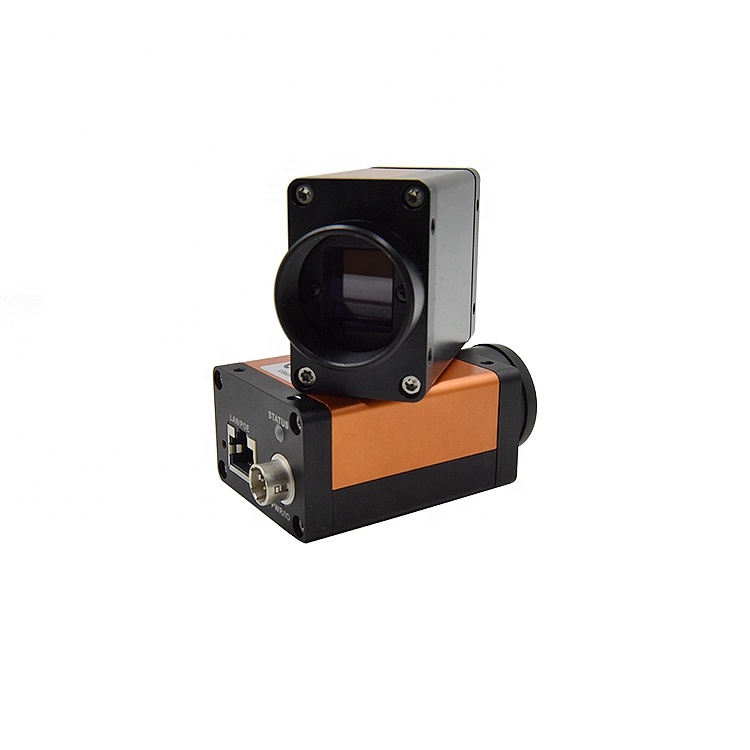

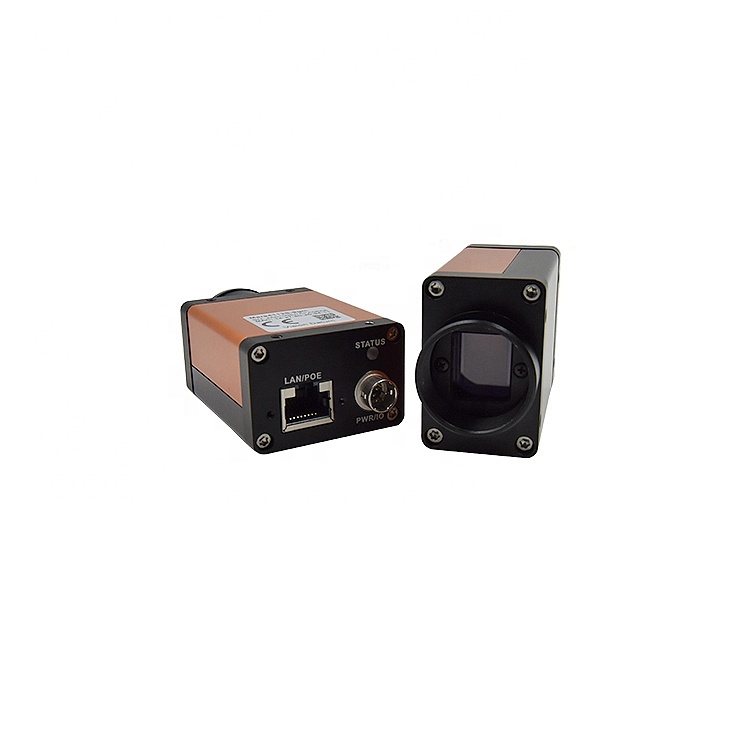

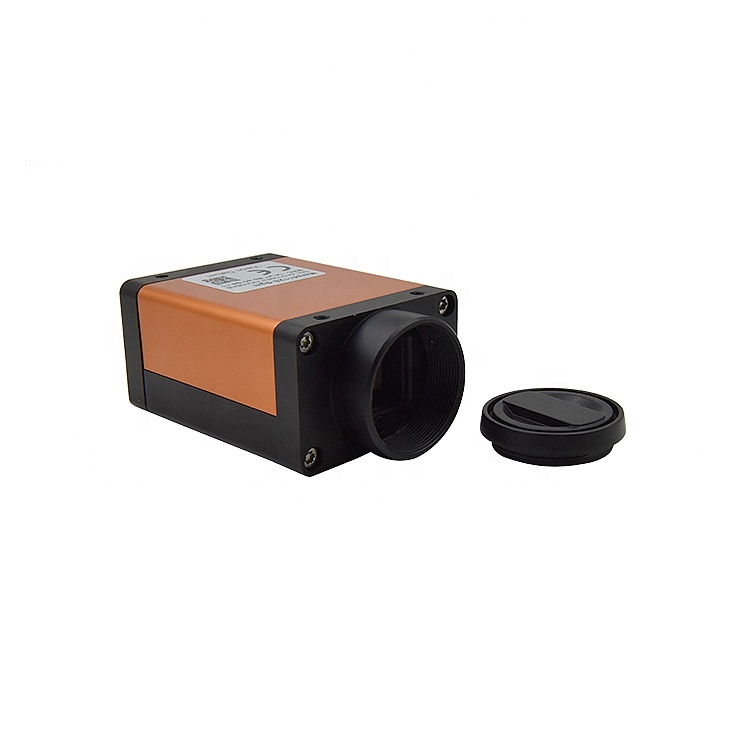

Contrastech Mars Series GigE Area Scan Camera
Mars series GigE area scan cameras, equipped with the advanced high-end image sensors
and its resolution from 0.3MP to 20MP.
Furthermore this series camera with high resolution, high frame rate, low noise and
excellent cost performance. And attached GigE interface–the GigE data interface
with 100m transmission distance and provide 1Gbps bandwidth.
The camera with The fully GenICam compliant SDK package allows the vision system
to be more flexible.
Product Main Features:
1. Wide Range of Resolution.
Resolution from 0.3MP to 20MP.
Resolution from 0.3MP to 20MP.
2. High Quality Sensors.
Lastest Python sensor from On-Semiconductor
Lastest Python sensor from On-Semiconductor
and SONY Pregius CMOS sensors provide high
quality images.
3. Wide Voltage Range .
POE power supply and DC 6V~26V power supply.
4. 128MB RAM.
Internal memory up to 128MB guarantees
Internal memory up to 128MB guarantees
no image loss.
5. One-cable Solutions
Gigabit Ethernet with PoE power supply.
Product Specifications
|
Model Name
|
Mars4112-9GM
|
|
Resolution(H*V pixels)
|
4096×2160
|
|
Pixel Size(μm2)
|
2.4×2.4
|
|
Frame Rate
|
9fps
|
|
Exposure Time
|
28.28µs~1s
|
|
Mono/Color
|
Mono
|
|
Image Foramt
|
Mono: Mono8/10/10packed;
Color: Mono8, BayerRG8/10/10packedRGB8packed, YUV422packed
|
|
Operating Temperature
|
-30~80°C (Storage)
-30~50°C (Working)
|

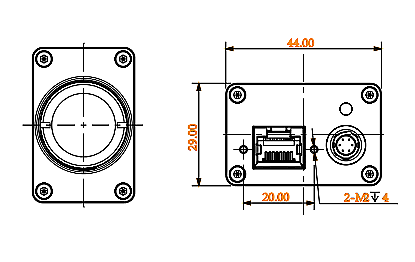

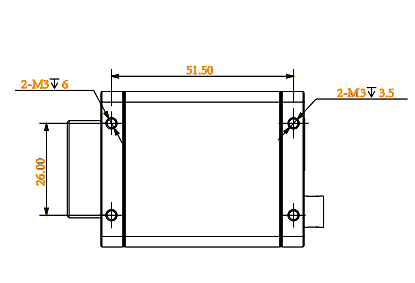

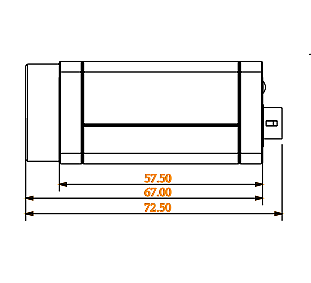

Camera Dimension Drawing:
29.0 mm × 44.0 mm × 58.0 mm

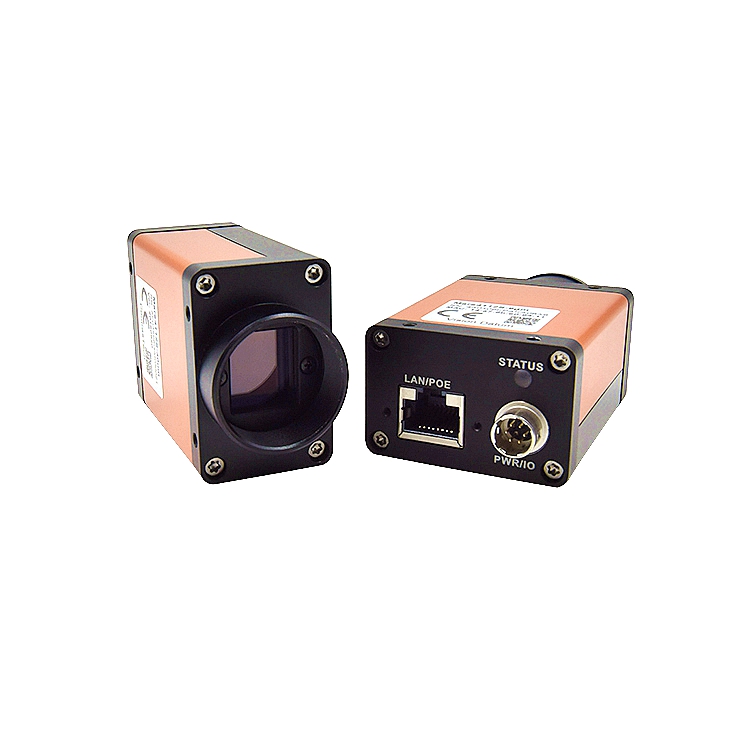

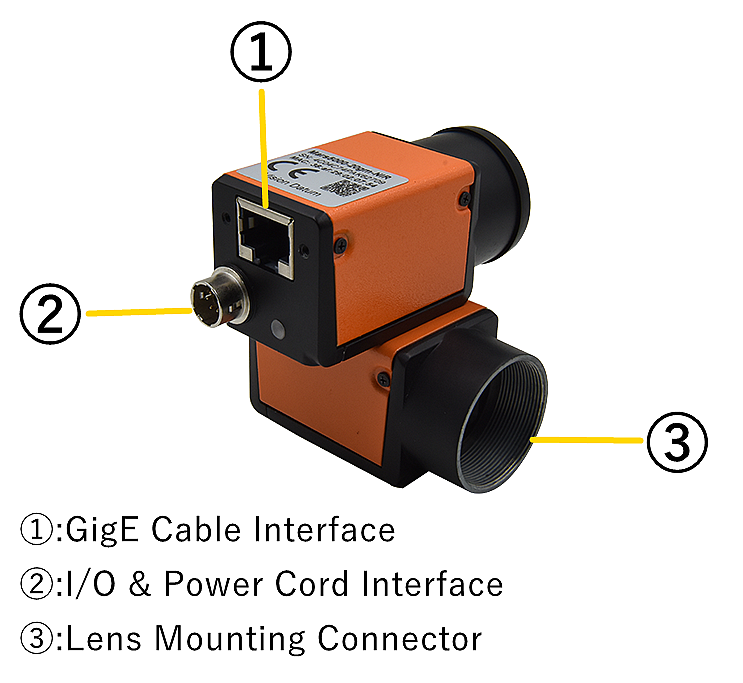

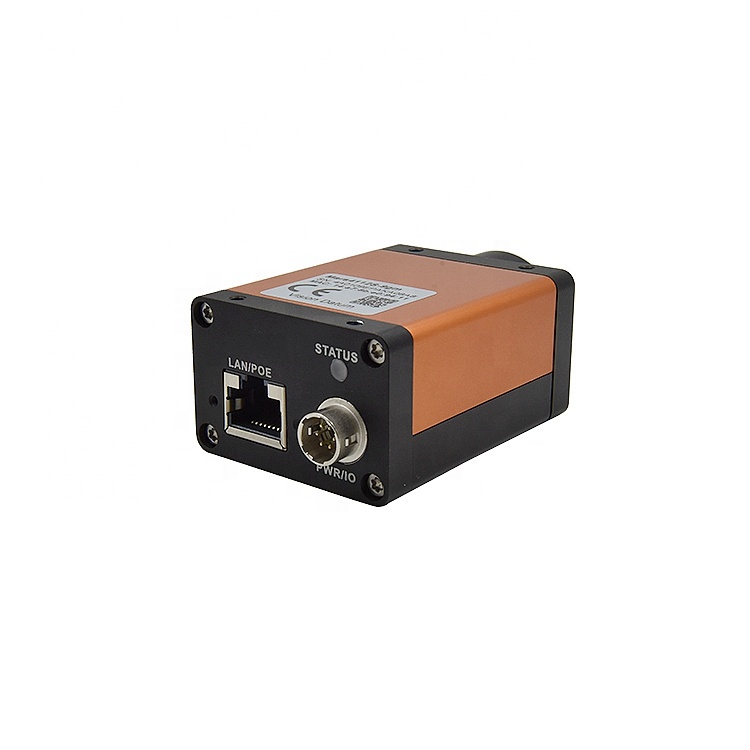

Camera Interface Instruction
Applications & Cases
Major Applications:
Our camera are widely
used in the following fields:
VR/AR;
Defect Inspection;
Vision Localization;
Barcode Reading;
Logistic Industry;
Dimension Measurement;
SMT(Surface Mounted Technology).

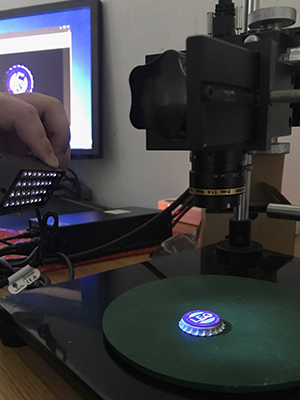

Cases Exhibition

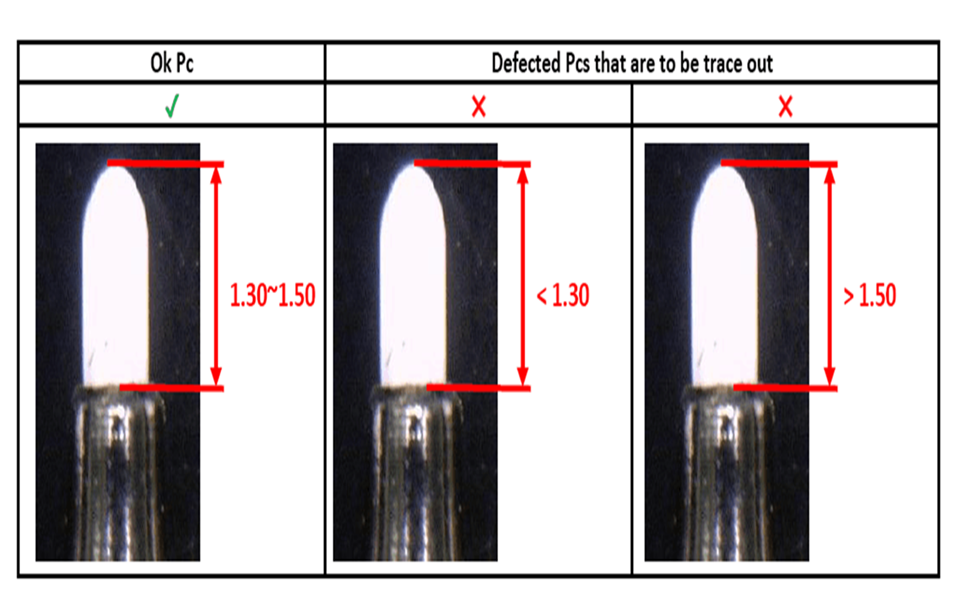

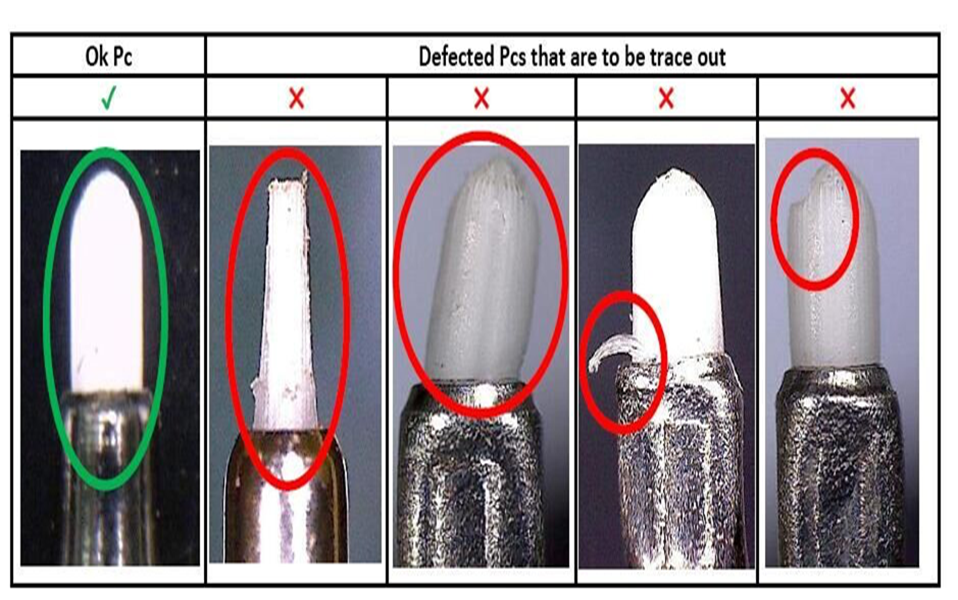

Case1: Penhead Defect Detection

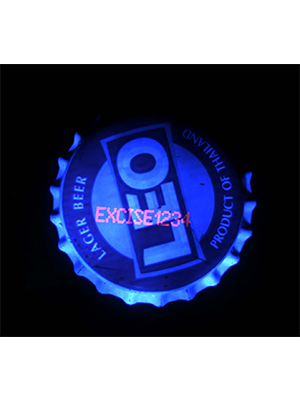

Case2: Cap Spray-code Detection
More Model List
|
LEO Series GigE Area Scan Cameras
|
|
|
|
|
||||
|
Warm Tips: 1. Please click the specific model name for more details.
2. gm: GigE Mono, gc: Gige Color, NIR: Near Infrared. 1/4″: 1/4 inch. |
|
|
|
|
||||
|
Model Name
|
Resolution
(H*V pixels)
|
Frame Rate
(fps)
|
Sensor Size
(inch)
|
Pixel Size
(μm 2)
|
||||
|
640×480
|
300
|
1/4″
|
4.8
|
|||||
|
800×600
|
200
|
1/3.6″
|
4.8
|
|||||
|
800×600
|
120
|
1/3.6″
|
4.8
|
|||||
|
1280×960
|
30
|
1/3″
|
3.75
|
|||||
|
1280×1024
|
75
|
1/2″
|
4.8
|
|||||
|
1280×1024
|
75
|
1/2″
|
4.8
|
|||||
|
1280×1024
|
60
|
1/2″
|
4.8
|
|||||
|
1280×1024
|
60
|
1/2″
|
4.8
|
|||||
|
1920×1200
|
50
|
2/3″
|
4.8
|
|||||
|
1920×1200
|
50
|
2/3″
|
4.8
|
|||||
|
1920×1080
|
50
|
1/2.8″
|
2.9
|
|||||
|
1920×1200
|
40
|
1/1.2″
|
5.86
|
|||||
|
2048×1536
|
30
|
1/1.8″
|
3.45
|
|||||
|
2448×2048
|
20
|
2/3″
|
3.45
|
|||||
|
2592×2048
|
20
|
1″
|
4.8
|
|||||
|
2592×2048
|
20
|
1″
|
4.8
|
|||||
|
3072×2048
|
18
|
1/1.8″
|
2.4
|
|||||
|
3856×2764
|
10
|
1/2.3″
|
1.67
|
|||||
|
4000×3000
|
9
|
1/1.7″
|
1.85
|
|||||
|
4096×2160
|
13
|
1″
|
3.45
|
|||||
|
4096×3000
|
9
|
1.1″
|
3.45
|
|||||
|
5472×3468
|
5
|
1″
|
2.4
|
|||||

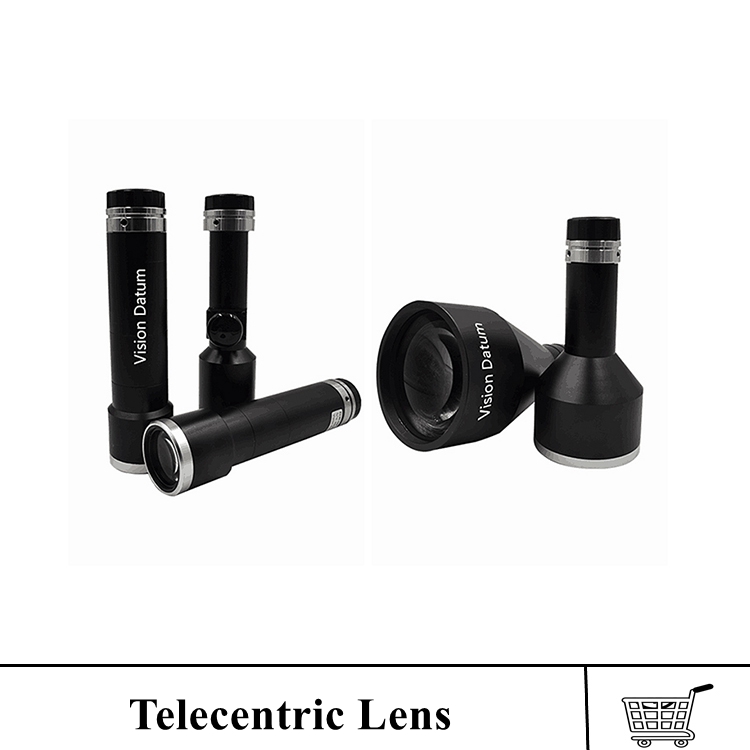

Related Products
