Description

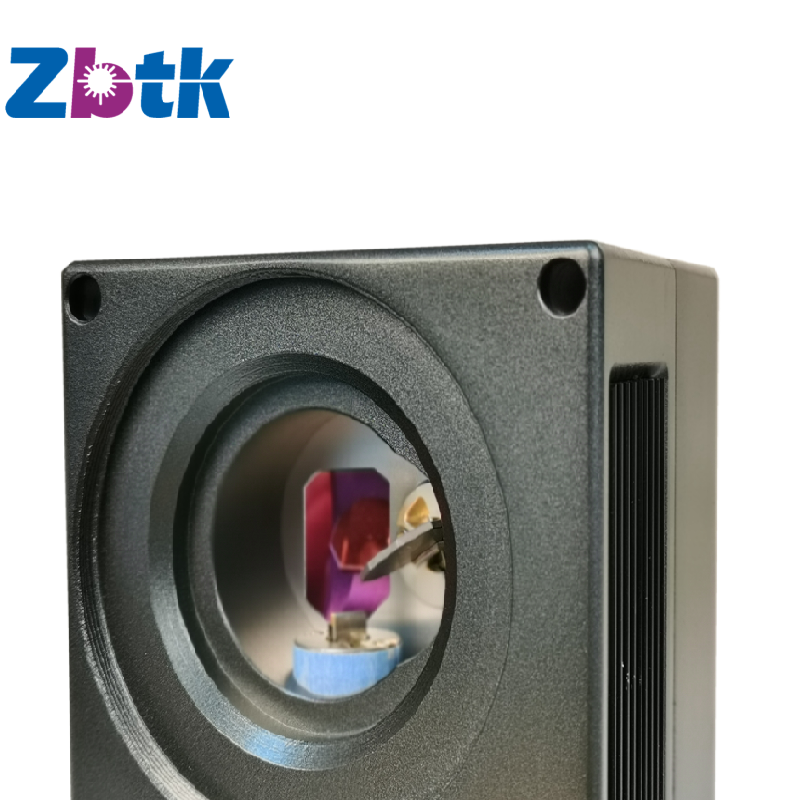

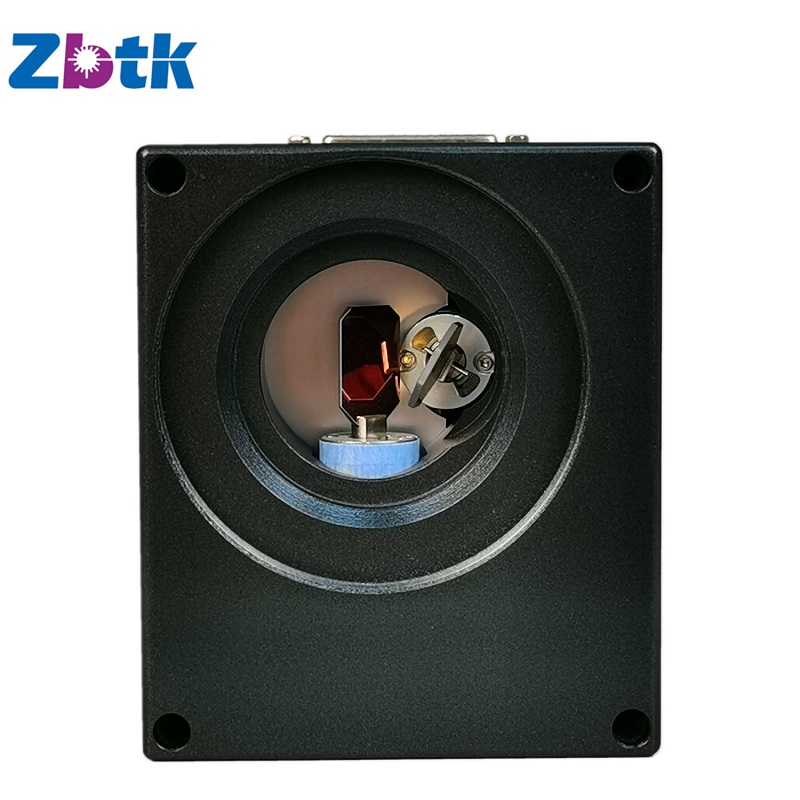

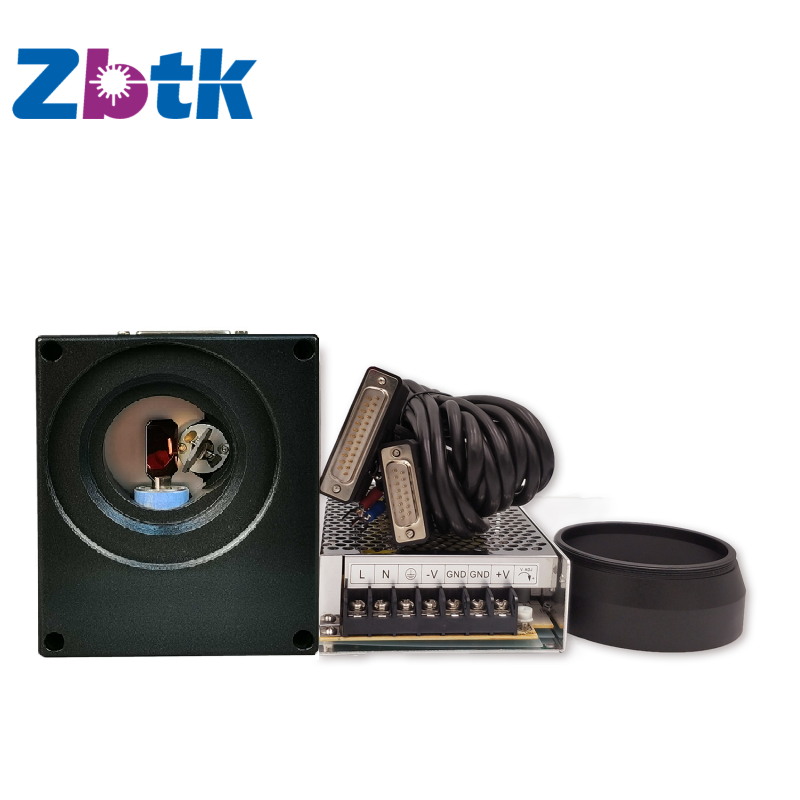

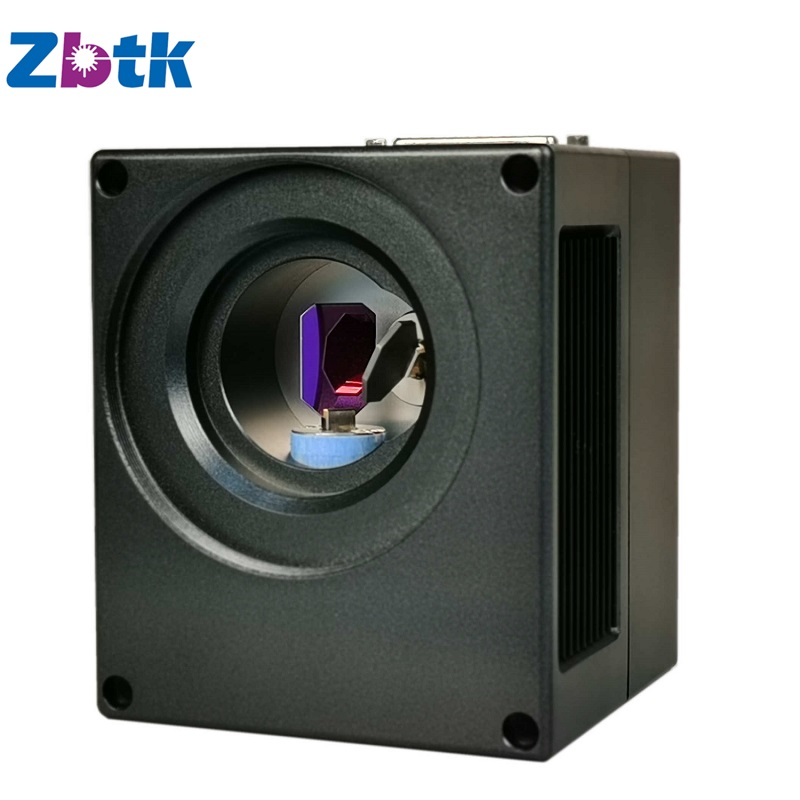

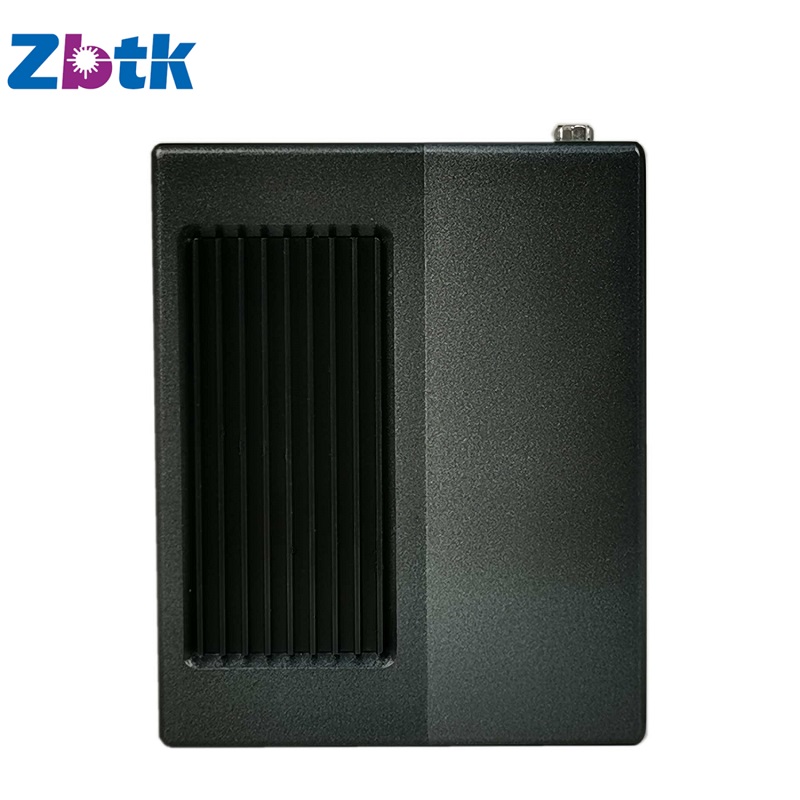

Manufacturers supply Zbtk high performance 10mm aperture galvo scanner for laser marking machine
ZB2D103 series galvanometer scanners are ultra-high cost-effective galvanometer scanners. In addition to competitive prices, it also has good performance, which inherits the outstanding performance of the Zbtk high-end galvanometer scanner series. It has the characteristics of good linearity, small temperature drift, high precision, fast speed, good stability and strong anti-interference ability. It can meet 90% of the requirements of fiber laser applications, is one of the very widely used galvanometer scanners, and enjoys a good reputation and satisfaction among many users.
SPECIFICATIONS FOR ZB2D103 SERIES GALVO SCAN HEAD | ||
Optical Performance | Reflection Wavelength | 1064nm,10600nm,355nm,532nm |
Input Aperture | 10mm | |
Typical Scan Angle | ±0.35rad | |
Nonlinearity | <0.8mrad | |
Dynamic Performance | Tracking Error | 0.2ms |
1% of full Scale Step Response time | 0.4ms | |
Repeatability | <15urad | |
Gain Drift | <50ppm/k | |
Offset Drift | <50urad/k | |
Long-term drift over 8 hours | <0.1mrad | |
Marking Speed | 2m/s | |
Positioning Speed | 10m/s | |
Input Signal | Digital Interface | xy2-100 |
Power Requirements | ±15VDC,≥3A | |
Others | Outline Dimension | LWH(mm):114x96x94 |
Weight | 1510g | |
Operation Temperature | 10℃ ~50℃ |
