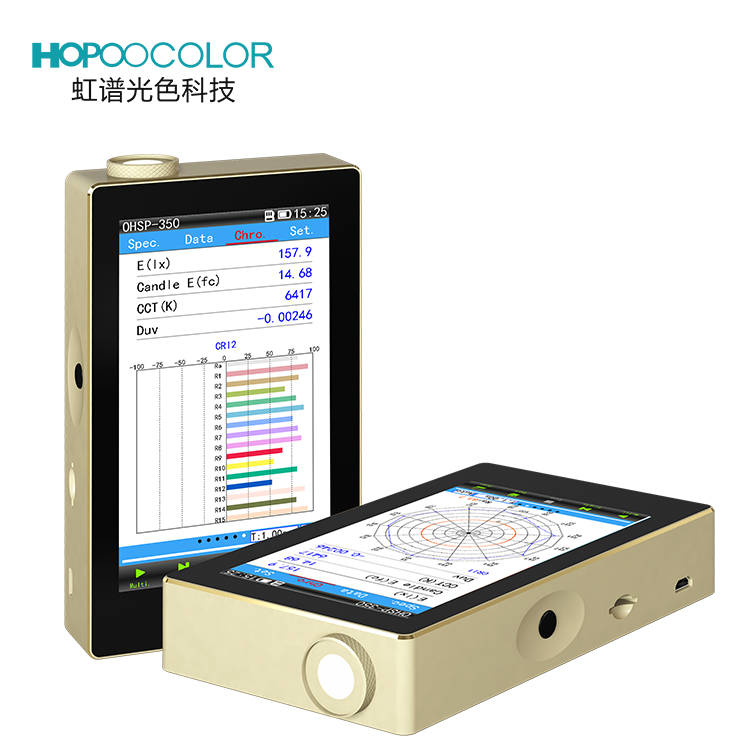

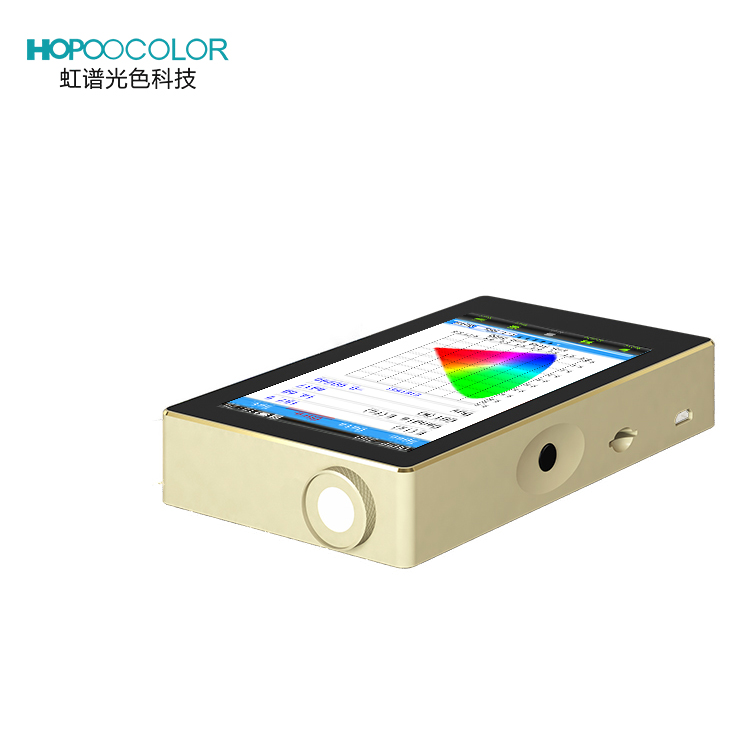

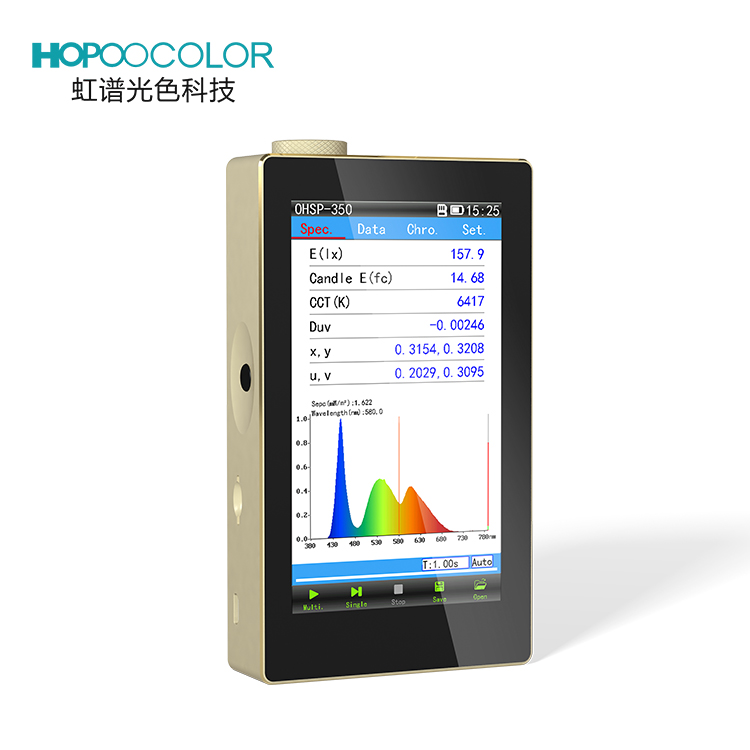

OHSP350C Portable Spectrometer

Application: the illumination and spectrum measurement of light source like LED,OLED,CFL energy saving lamp and HID high low pressure sodium lamp etc.

1. characteristic:

• Long focal length optical system, 2 nm optical resolution
• High performance linear CCD sensor 3648 points;
• Automatic zero and zero compensation technology, boot no manual zero;
• Electronic shutter technology, the minimum integration time 50 us, measurable stronger light signal;
• Quick switch machine, a key test, the use of more convenient
• 5 inch high-definition IPS screen, capacitive touch screen, display more content;
• Bring 4000mAh large-capacity lithium battery, 24 hour long test time;
• Illumination and radiation measurement
•  CCD with long focal length and wide spectrum, intelligent and portable
•  Automatic zero calibration
• Low power consumption large capacity battery
• Wide range of wavelengthscan test various types of light sources
• SD cardcan save a variety of formats Excel data analysis
• Be Suitable for different site test
• A millisecond key switchingmakes it more convenient forusing

2. CHARACTERISTICS AND SPECIFICATIONS

• Correlated color temperature (CCT)               Illumination  candlelight  Spectral Irradiance
• Chromaticity Coordinates                               The Relative Spectral power distribution
• Color Rendering Index                                   Rf,Rg as per IES TM-30
• SDCM  Color Tolerance                                   Dominant Wavelength Peak Wavelength

3. Application:

    Application: Plant growth lamp, LED plant growth light,LED, OLED measurement, CFL energy saving lamp and high and HID low pressure sodium lamps etc
