Product Description
Magnetostrictive Position Sensor, Level Sensor, Magnet Sensor
F model – Flex Sensor Housing

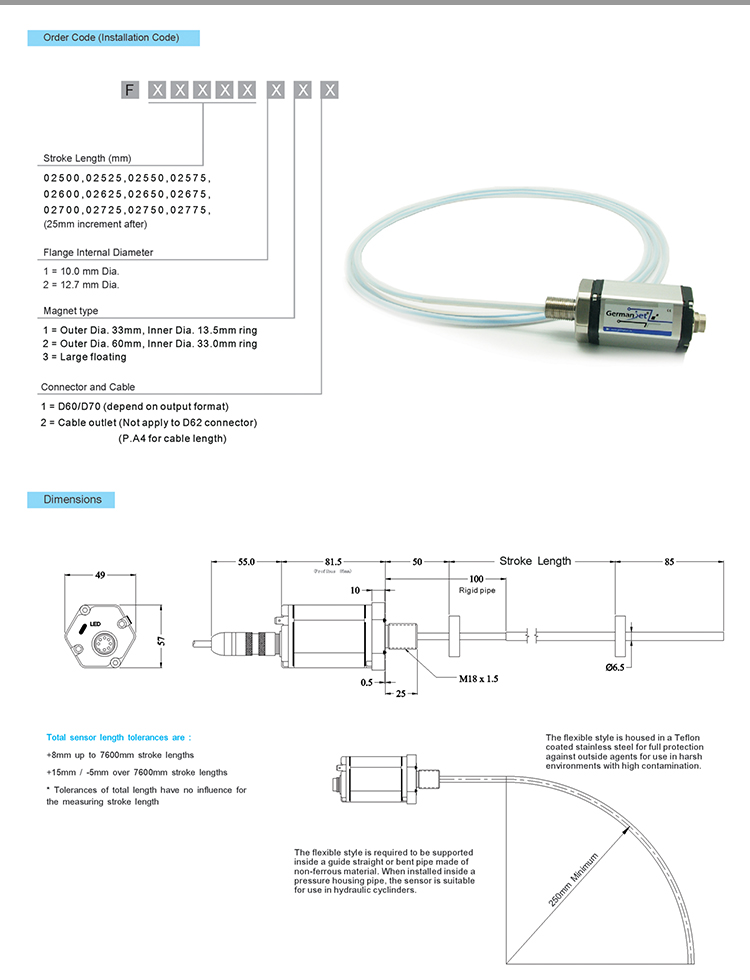

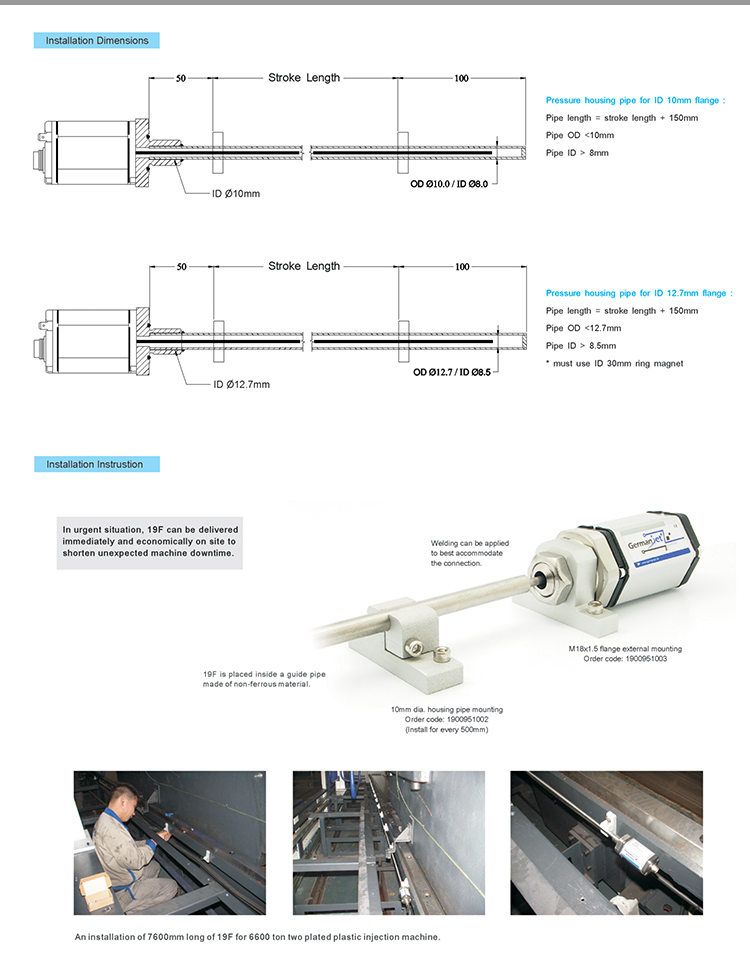

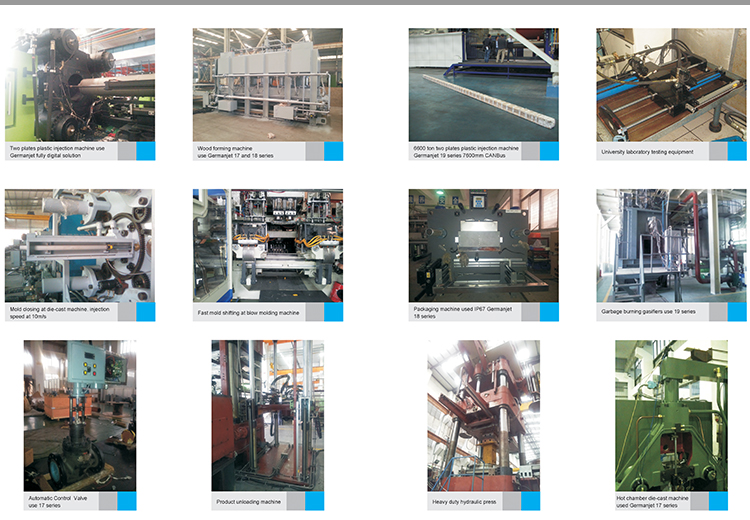

F model is design for very long stroke lengths and linear measurements on an arc. Standard stroke length begins from 2500mm up to 10 meters. And longer lengths are available for special applications. The F model is available with all 19 series outputs including analog, serial digital and fieldbus interfaces.

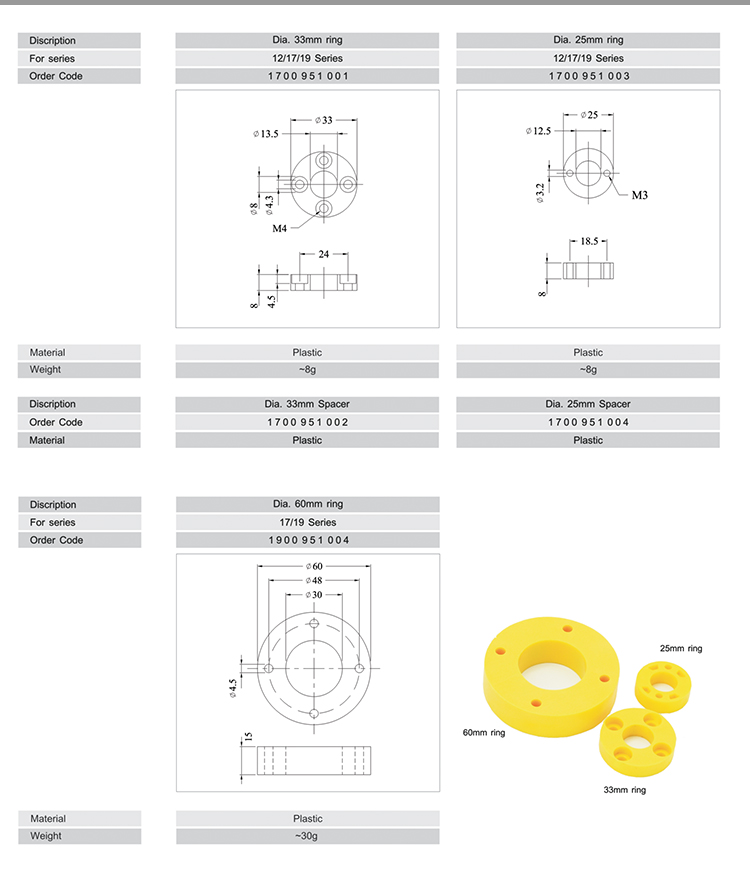

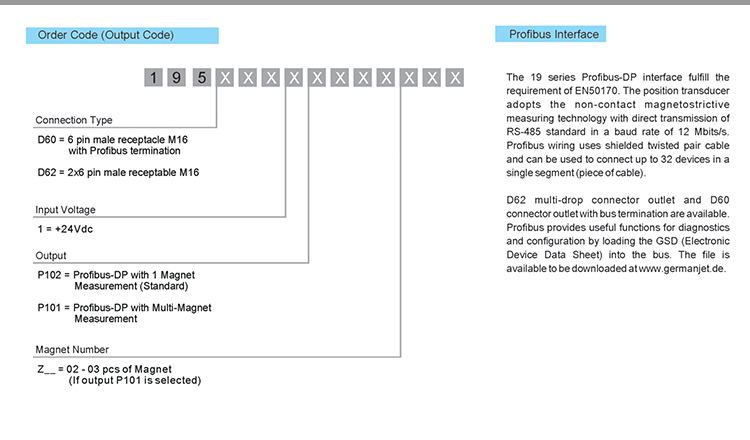

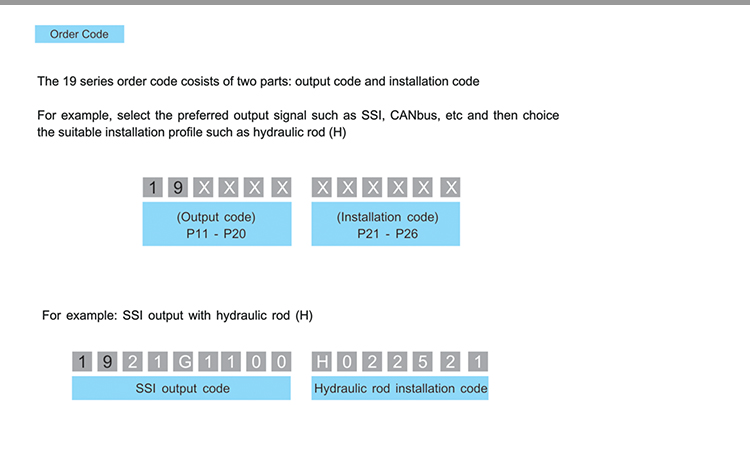

Order Code | 195 |
Output | Profibus |
Measurement Type | Linear displacement |
Data Protocol | Profibus-DP (EN-50 170) |
Output Signal | Profibus-DP System according ISO 74498 |
Baud Rate |
Max 12Mbit/s |

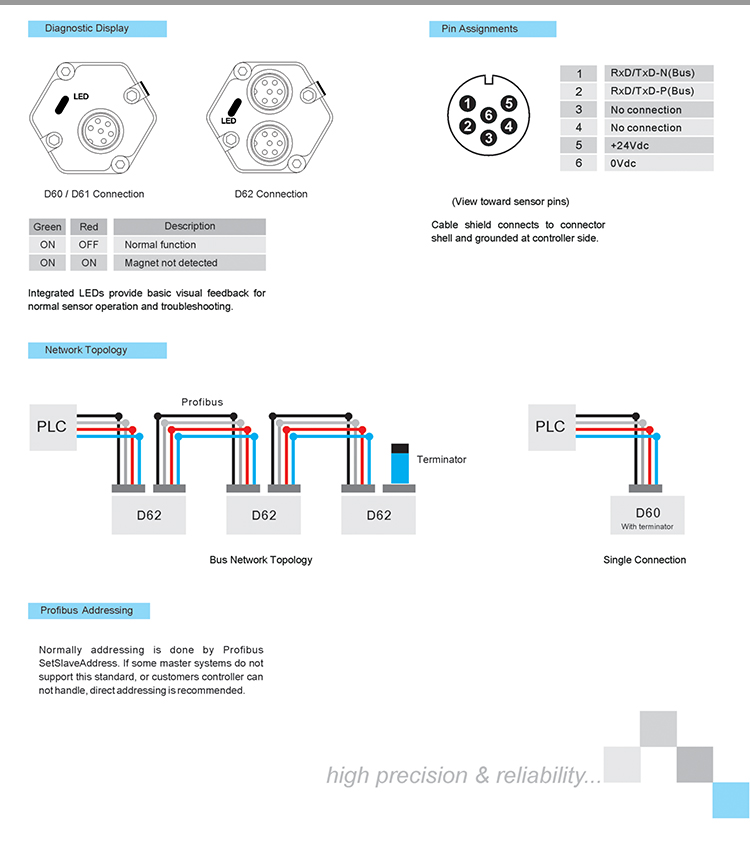

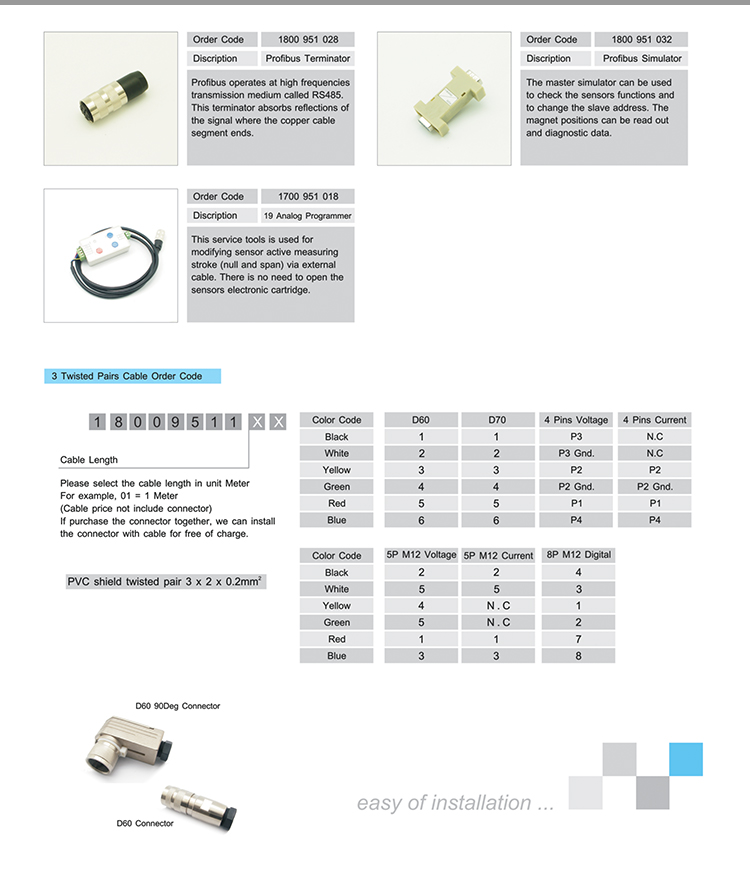

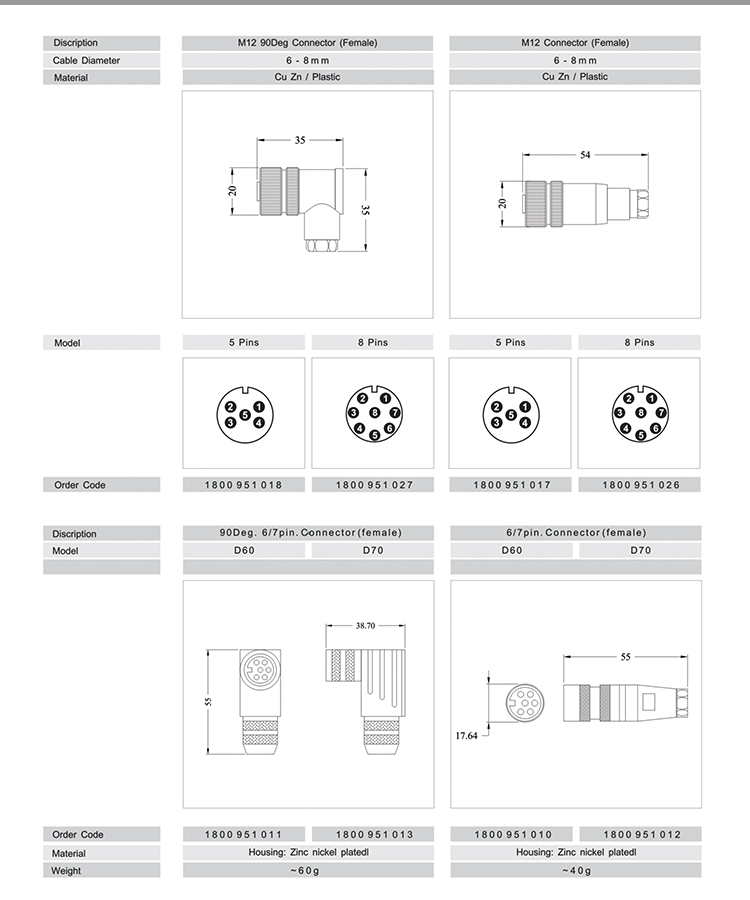

Resolution | Position: 5μm/ other values selectable via GSD file |
Resolution | Displacement : 1 / 2 / 5 / 10 / 20 / 50 / 100 μm |
Repeatability | < +/-0.001% of full scale (minimum +/-2.5μm) |
Non-Linearity | < +/-0.01% of full scale (minimum +/-40μm) |
Update Time | 0.5 ms up to 1200 mm / 1.0 ms up to 2400 mm |
2.0 ms up to 4800 mm / 5.0 ms up to 7600 mm | |
Input Voltage | +24Vdc (20.4 – 28.8Vdc) |
Input Protection | Polarity protection up to -30Vdc, Over voltage protection up to 36Vdc |
Power Consumption | 100mA (stroke range dependent) |
Dielectric Strength | 500Vdc (DC ground to machine ground) |
Connector Type | D60 Male |
Operation Temp. | -40 to 75 °C, Humility 90% non-condensing |
Sealing | IP67 (with connector) |
Shock Rating | 100g single hit per IEC standard 68-2-27 |
EMC | Emission EN 68000-6-3, Immunity EN 61000-6-2, EN 61000-4-2/3/4/6 |
