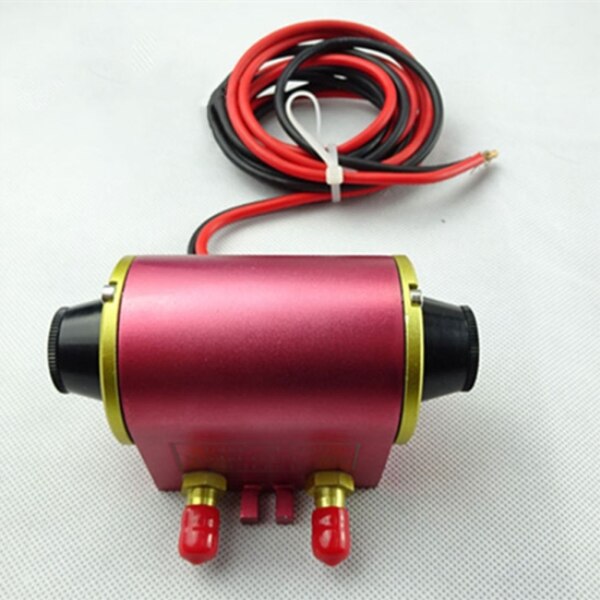

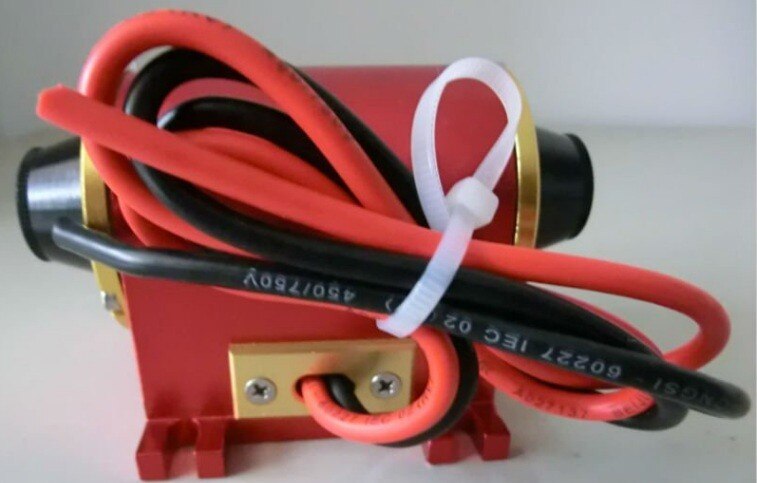

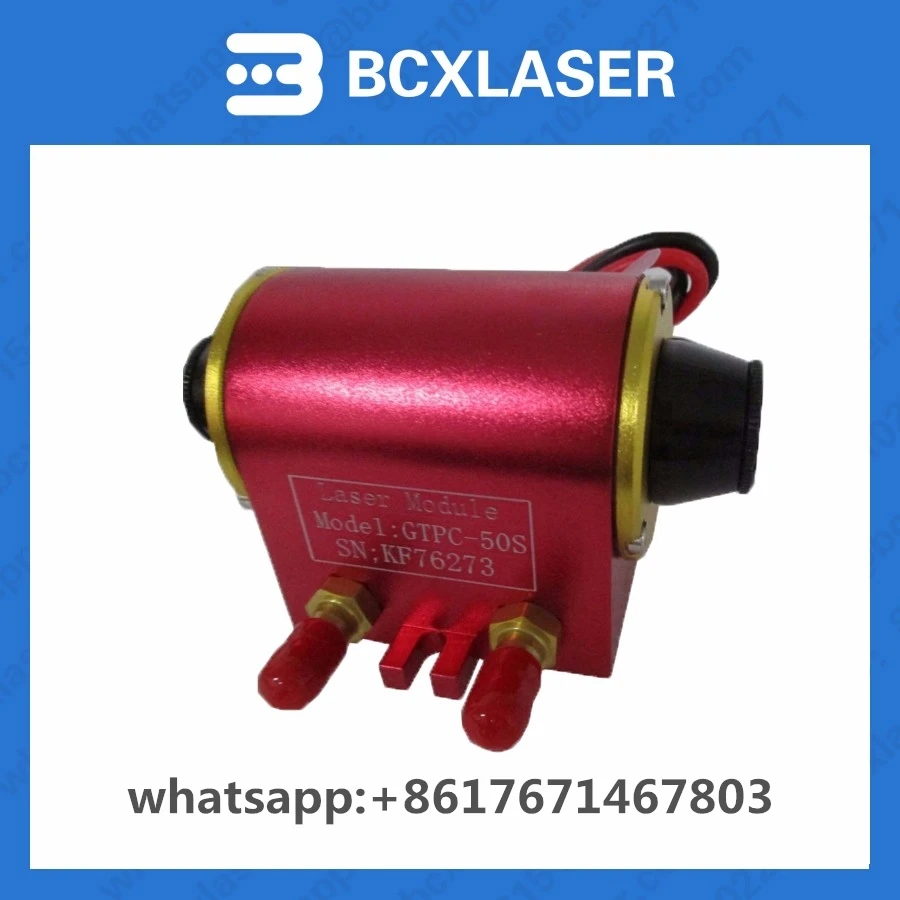

Made in China Laser Marking Machine Laser Diode Pump Module GTPC-50s with good price
Product Introduction
The Diode Pumped Laser Module incorporates a Nd:YAG laser rod that is efficiently pumped by a radial array of long life laser diode bars, and delivers excellent gain uniformity and lensing performance. It is ideally suited
for multimode applications such as laser marking, and can also provide high beam quality for more precise
micro-machining and scientific applications.
The laser module is driven by low voltage electronics. Cooling of the laser is accomplished with a simple recir culating water chiller running on filtered water, eliminating the need for deionized water systems.
Technical Parameters
CW Output Power |
50w |
Threshold Current |
11A |
Operating Current |
29A |
Forward Voltage |
≤18V |
Center Wavelength |
1064nm |
The length of the YAG rod |
65mm |
The Diameter of the YAG rod |
3mm |
YAG Terminal |
Flat/AR at 1064nm/YAG doped 1% |
Weight |
≤1.5kg |
Recommend Case Temperature of chiller |
19-23°C |
Temperature Range (Storage) |
5°C~ 70°C |
Advantages
I. High output power
II. Stable working condition
III. Reliable
IV. Efficient
V. Compact
VI. 10000 hours long lifetime
VII. Easy to operate
