M7 Glass Collimating Lens Molded Aspheric Optical Lens Laser Diode Focusing Lens Laser Module

$39.60

9999 in stock

SKU: 1005001565263859 Category:

Description

  • Type: Other
  • Origin: CN(Origin)

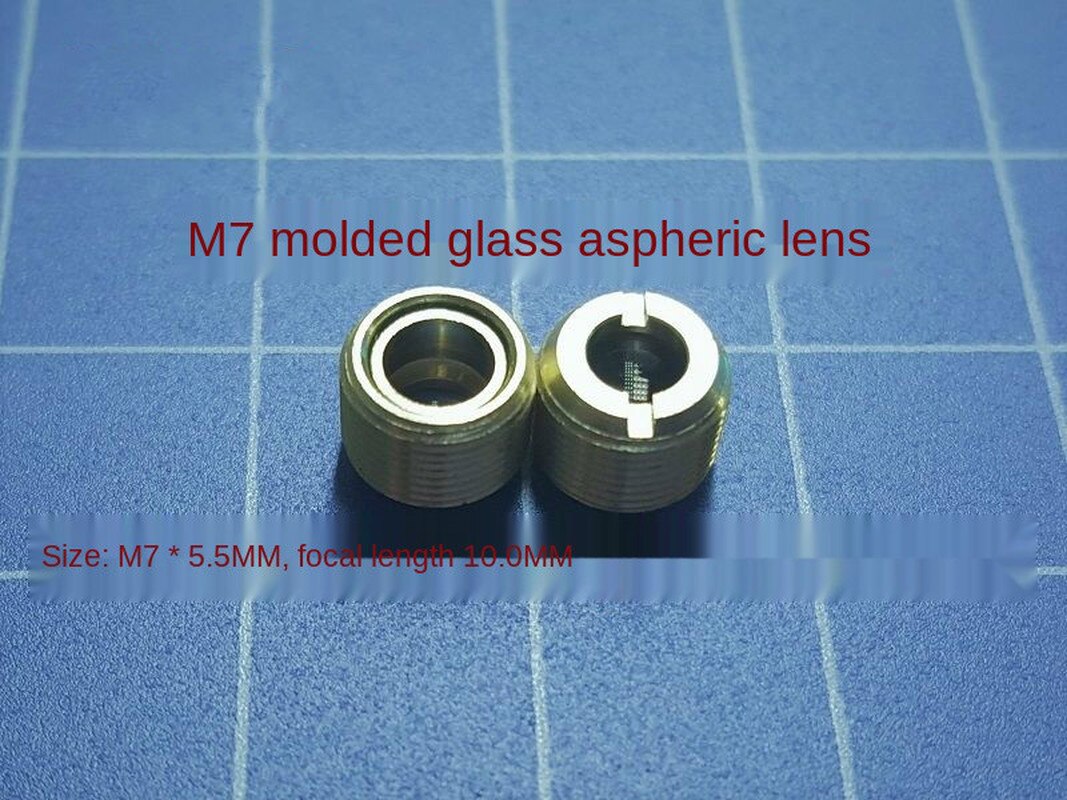

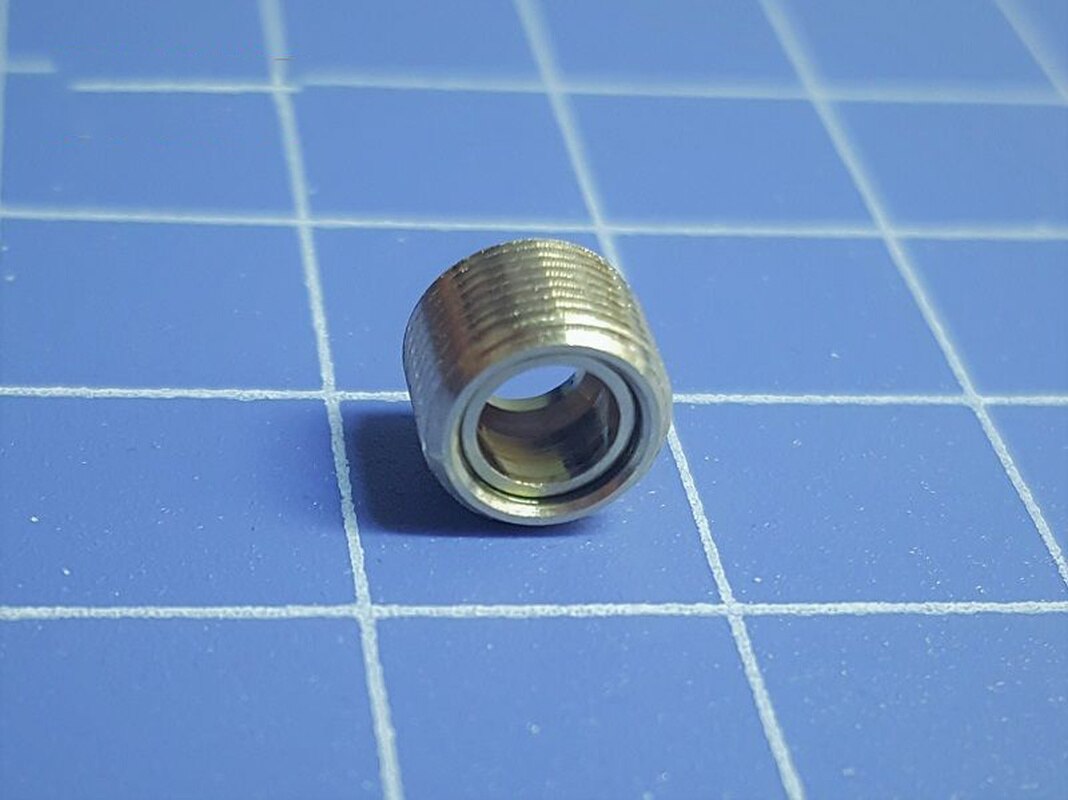

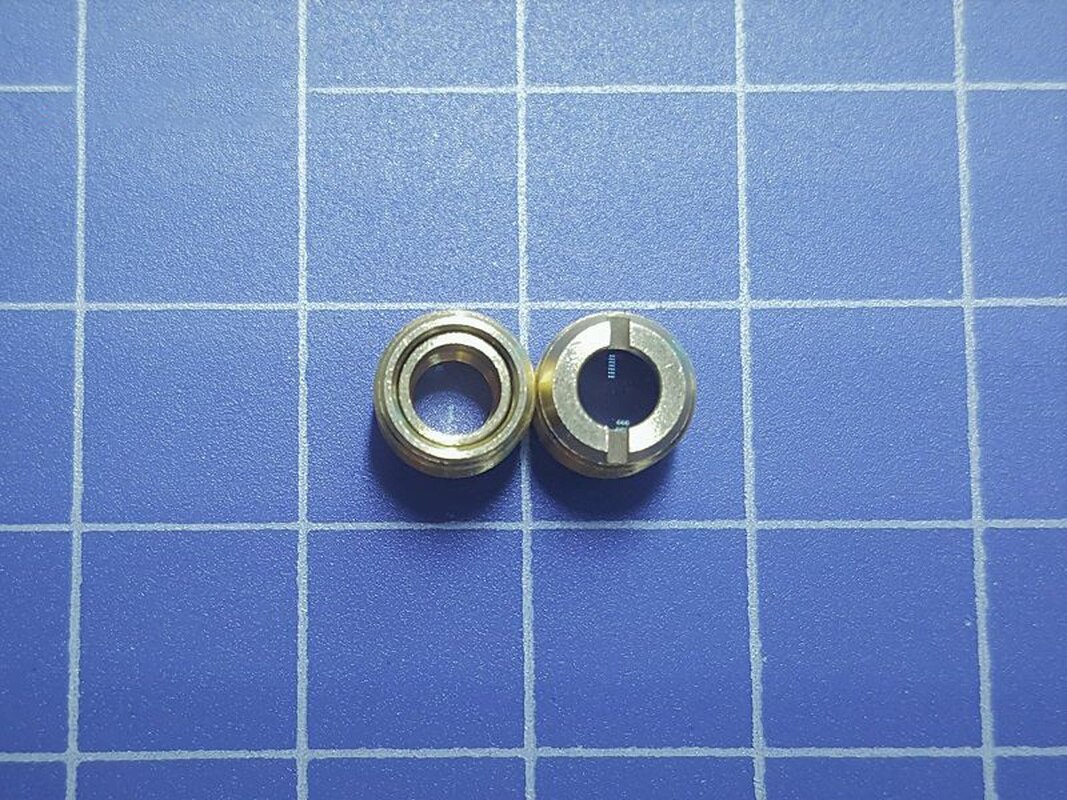

*Product Name: M7 molded glass aspheric lens

:: Product specifications:

1. Size: m7x5.5mm;

2. Material: Eco-friendly copper.Glass as-if mirrors.;

3. Light shape: elliptical spot(about 5mm light spot at 10m);

4. Focal length: 10.0mm;

5. Use: Semiconductor laser light-shaped focus, suitable for red/infrared laser. Threaded to lock and focus directly, production can be done without lens seats. Product assembly.

*The company supplies PMMA (acrylic) and glass materials in large quantitiesLens; welcome to order!

1.PMMA( Acrylic):∮3,∮ 5, ∮ 7, ∮ 6.3 full circle lensesM5 (lens),M7 (lens)M7.5 (full circle lens),M9 (Lens)

2.PMMA( acrylic cross lenses :15 degrees,50 degrees,90 degrees,110 degrees

3. PMMA (acrylic) straight line lens: 5 degrees, 15 degrees, 20 degrees, 3 degrees0度,36.5, 45, 60, 90, 100, 110,120 degrees130 degrees, 160 degrees.

4. Glass cylindrical linear lens: 110 degrees

5. Aspheric surface of high grade molded glass∮2.4MM,∮2.8MM,∮3MM,∮4MM,∮4.5MM,∮4.7MM,∮5MM,∮6MM,∮6.35MM,∮6.5MM,∮7MM,∮8MM,∮9.5MM,∮10MM,∮10.5MM,∮20MM,M5( lens),M7 (Lens), M9( lens)

6. High grade glasssphereGluing/Flat convex / beam expandingLens:∮5.0MM glued mirror,∮ 12MM glue mirror.,∮ 17MM glue mirror.8.0 mm Plano convex lens / beam expander, M7 (glued lens)
