M-type Common-cathode Pin Laser Diode Drive circuit Board PCB Constant Power APC DIY Lab

$22.30

993 in stock

SKU: 1322195392 Category:

Description

  • Item Type: Laser Flashlight
  • Brand Name: Q-BAIHE
  • Model Number: DR-M-TYPE

Features:                                                                           .

Circuit control: APC
Dimensions: 8x6mm (L * W)
Power Supply: 3.0-5.0VDC
Can drive RLD65MPT3, RLD65MPT4 T5 T7,
650nm 5mw 10mw 20mw
780nm 5mw 10mw 20mw
850nm 5mw 10mw 20mw

Details:

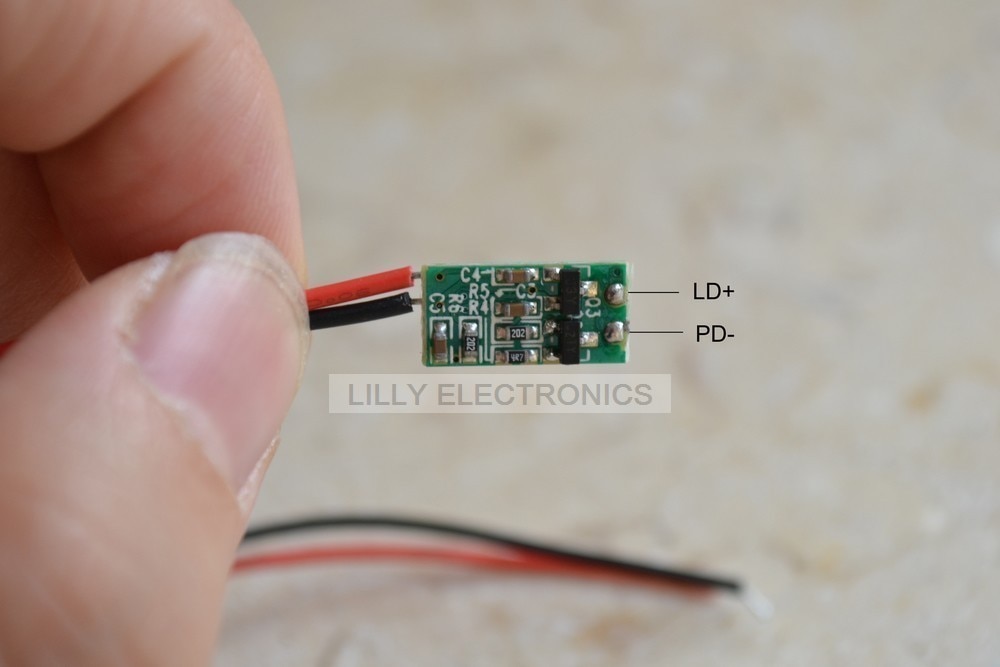

Please weld the 3 pins of LD to the PCB board.

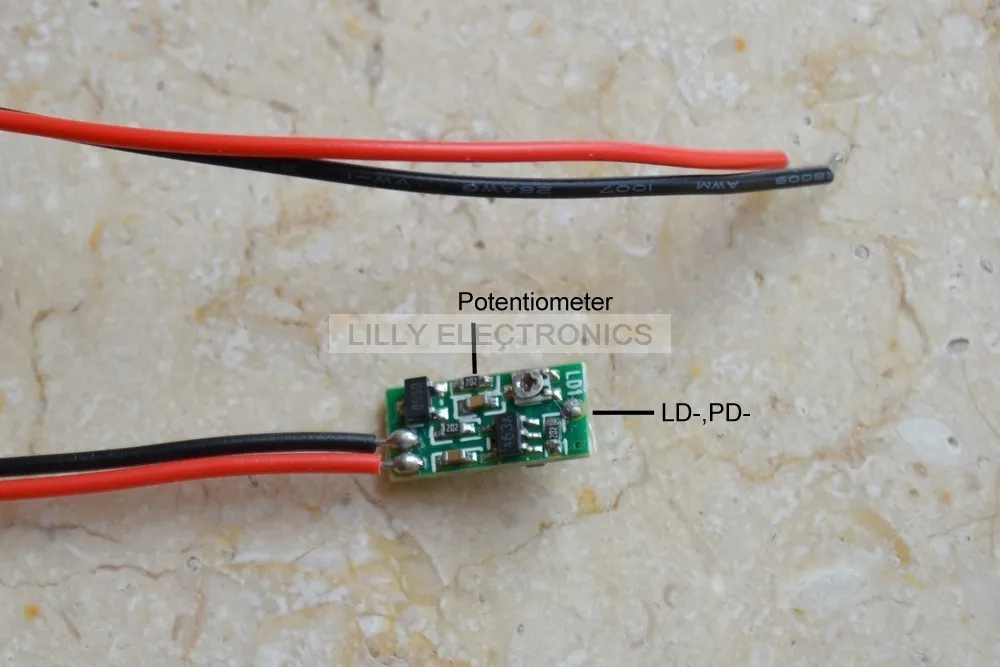

The red wire on the PCB is positive +, black wire on the PCB is negative -, connect both wires to a 3-5V DC power supply, use potentiometer to adjust the output power of the laser diode. The circuit will automatically control the output power of the LD.
If the laser diode's operation current is very small, please first adjust the potentiometer to the smallest current before connecting to the power suply.
Please make sure the you use enough cooling when operating on the Laser diodes.

Package:

1x M-type Common-cathode Pin Laser Diode Driver circuit PCB Constant Power Drive APC
