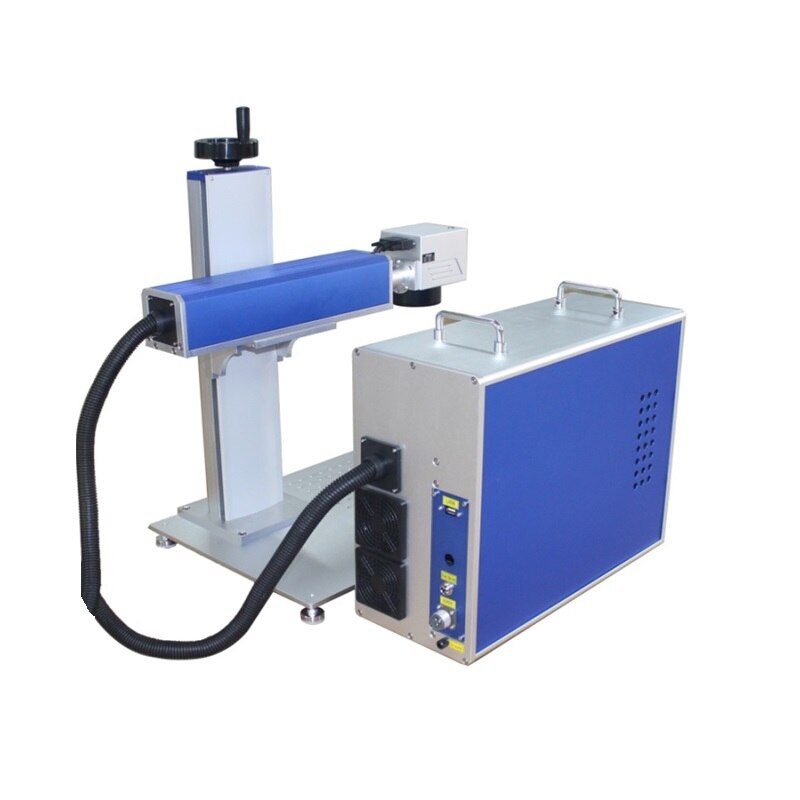

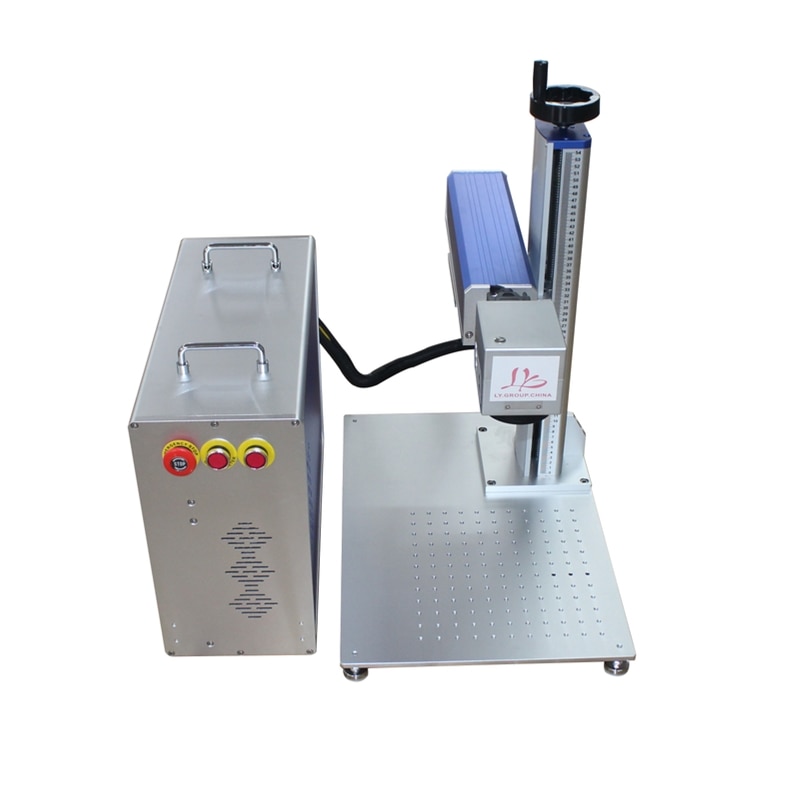

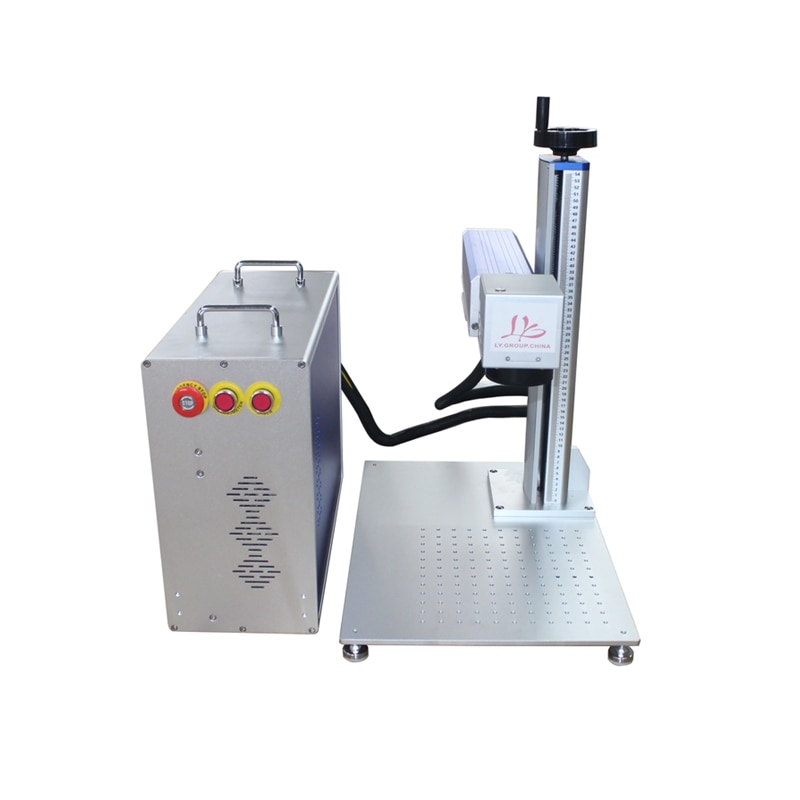

LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz

  • Home
  • LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz

LY Master Oscillator Power-Amplifier MOPA separated Fiber Laser Nameplate Mark Machine 20W 30W Impulse Frequency 1-2000KHz

$16,145.20$19,206.58

SKU: 1005002753204704 Category:

Description

  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: 20W 30W
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Fiber Laser Type: MOPA Pulse
  • Model: MAX(MFPT-20/30)
  • Laser Output Power: 20W/30W
  • Laser Wave Length: 1064nm
  • Technology: By electrical signals
  • Impulse Waveform: Adjustable
  • Impulse Width: Adjustable 2-200ns
  • Max Power: Adjustable 2-200ns

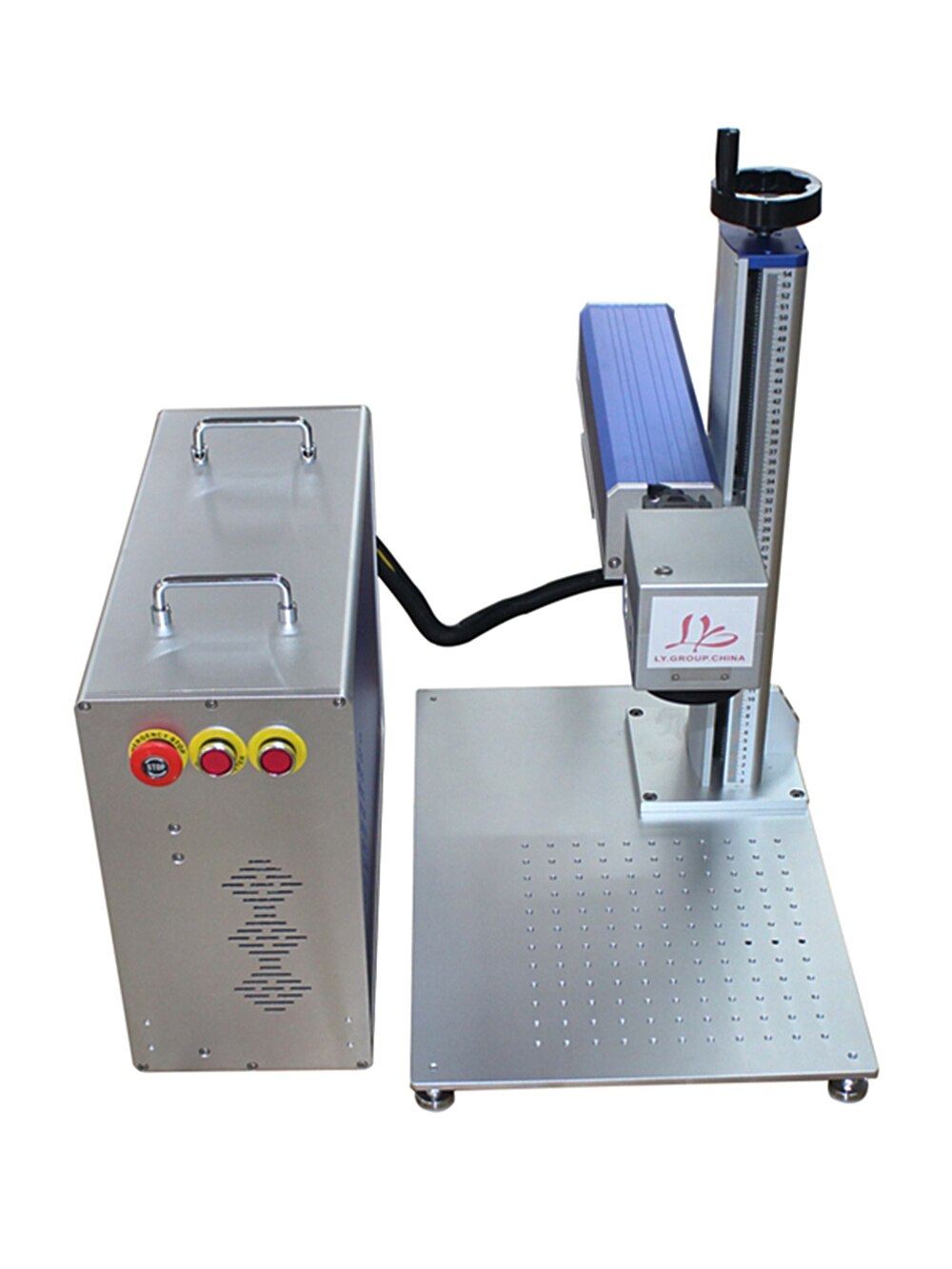

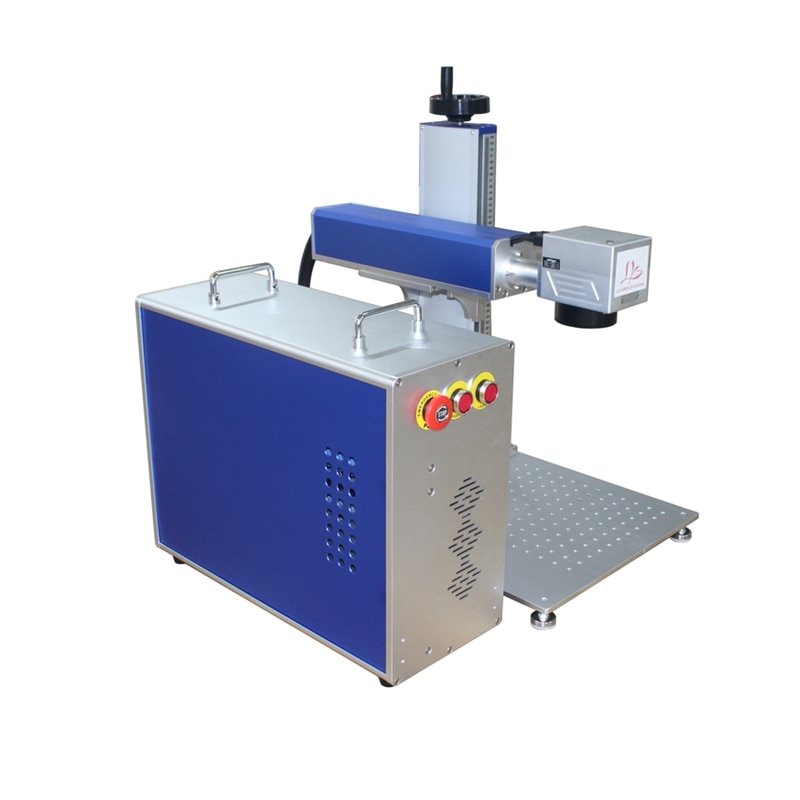

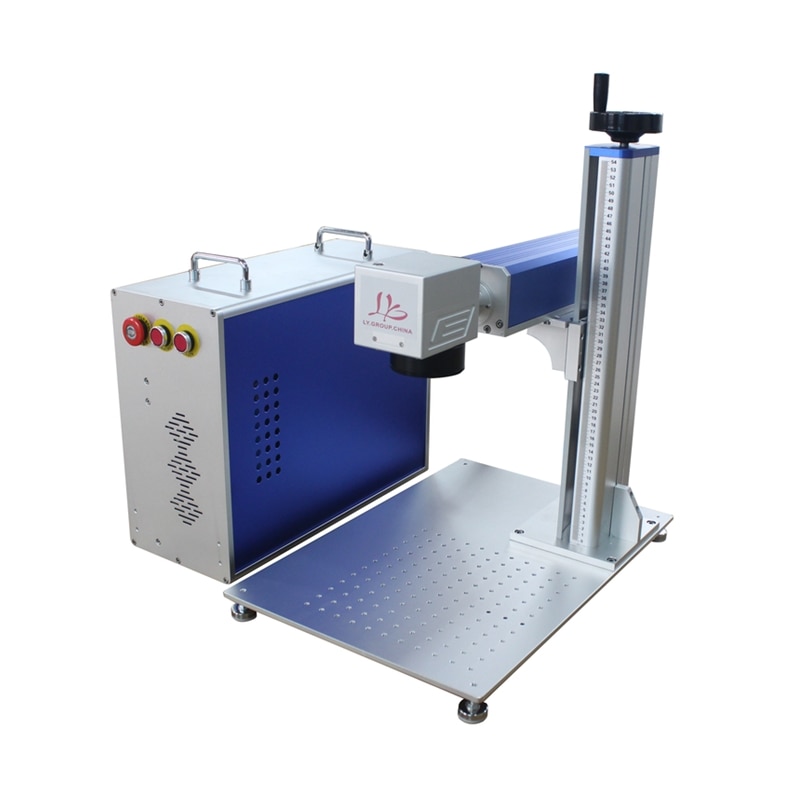

LY Master Oscillator Power-Amplifier MOPA
separatedFiber Laser Nameplate Mark Machine 20W 30W Impulse
Frequency 1-2000KHz for Color marking on Stainless Steel Electronics Semi-conductor ITO precision
machining 220V 110V

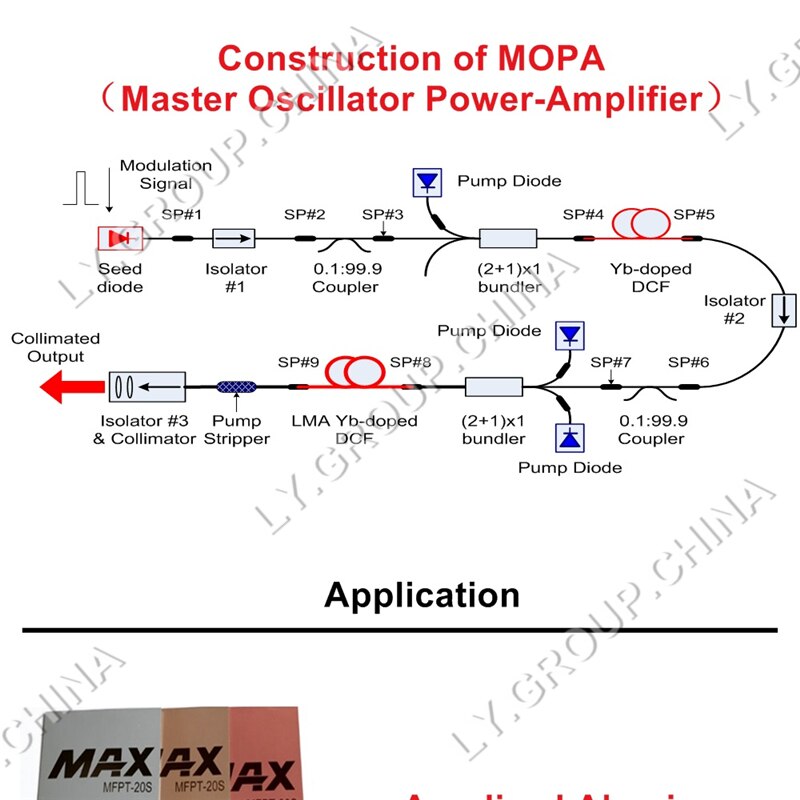

MOPA
means “Master Oscillator Power-Amplifier”, why we say MOPA fiber laser marking
machine is the nobility in fiber laser machine series?

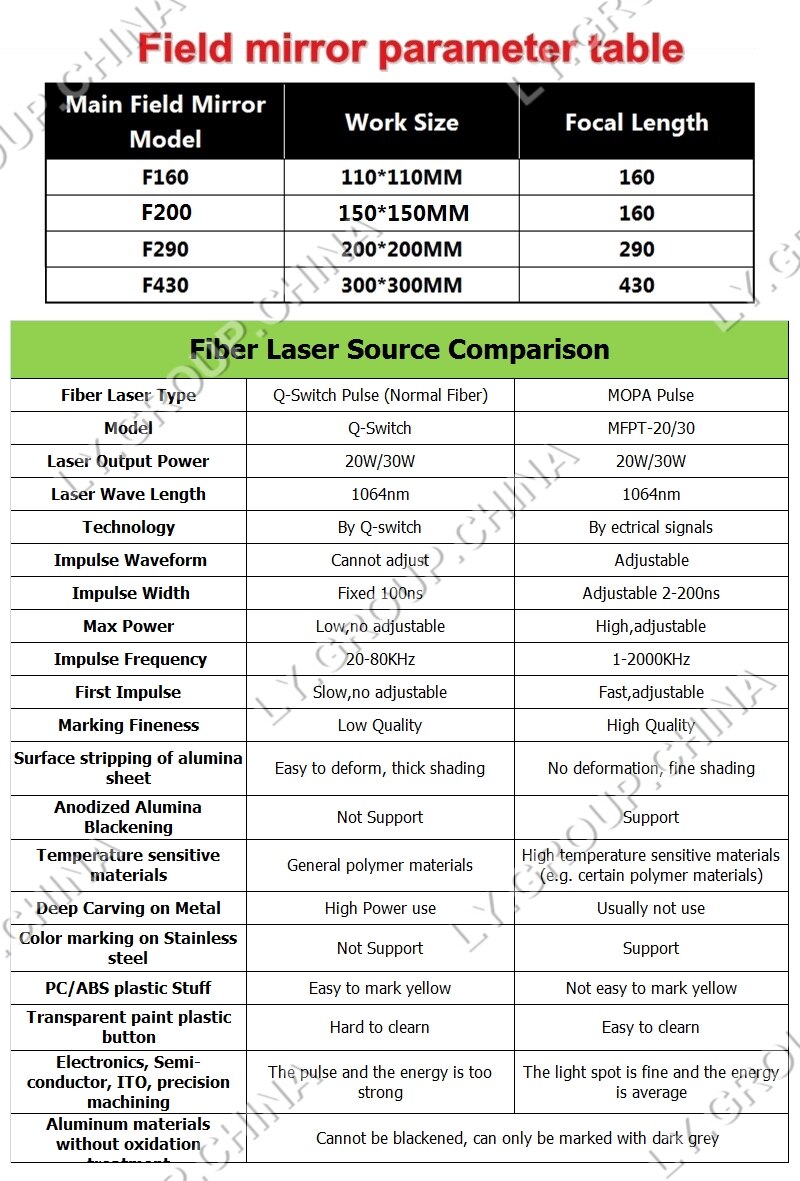

Fiber Laser Source Comparison

Fiber Laser Type

Q-Switch Pulse (Normal Fiber)

MOPA Pulse

Model

Q-Switch

MAX(MFPT-20/30)

Laser Output Power

20W/30W

20W/30W

Laser Wave Length

1064nm

1064nm

Technology

By Q-switch

By electrical signals

Impulse Waveform

Cannot adjust

Adjustable

Impulse Width

Fixed 100ns

Adjustable 2-200ns

Max Power

Low ,not adjustable

High ,adjustable

Impulse Frequency

20-80KHz

1-2000KHz

First Impulse

Slow ,no adjustable

Fast ,adjustable

Marking Fineness

Low Quality

High Quality

Surface stripping of alumina sheet

Easy to deform, thick shading

No deformation, fine shading

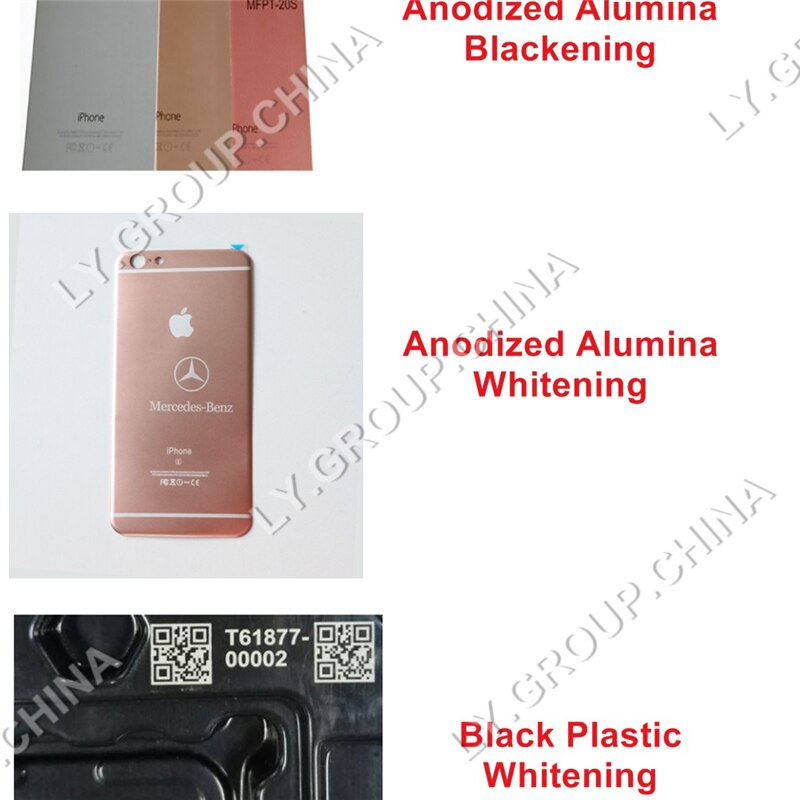

Anodized Alumina Blackening

Not Support

Support

Temperature sensitive materials

General polymer materials

High temperature sensitive materials (e.g. certain
polymer materials)

Deep Carving on Metal

Rough shading

Fine shading

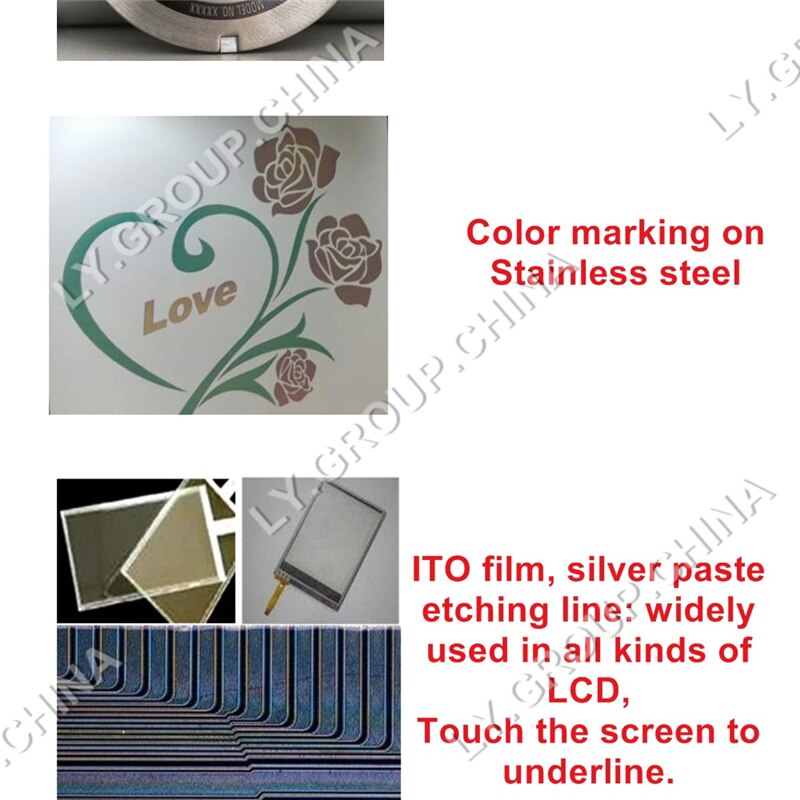

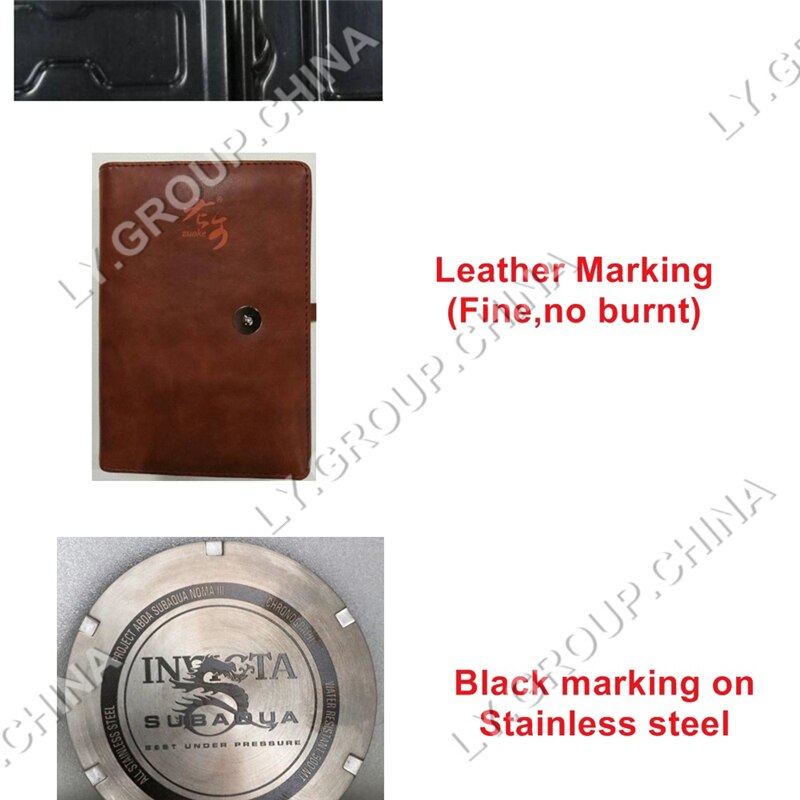

Color marking on Stainless steel

Not Support

Support

PC/ABS plastic Stuff

Easy to mark yellow

Not easy to mark yellow

Transparent paint plastic button

Hard to clean

Easy to clean

Electronics, Semi-conductor, ITO, precision machining

The pulse and the energy is too strong

The light spot is fine and the energy is average

Aluminum materials without oxidation treatment

Cannot be blackened, can only be marked with dark grey

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully
build the platform professional fiber laser marking machine shop, please
customers to patronize, do not just look at the price. To look at the quality
of the machine, use high-quality machine parts to give customers the best price
and quality service! Provide S/N coding for our machines, machine lifetime
service,

2: Machine
configuration:

A;Fiber

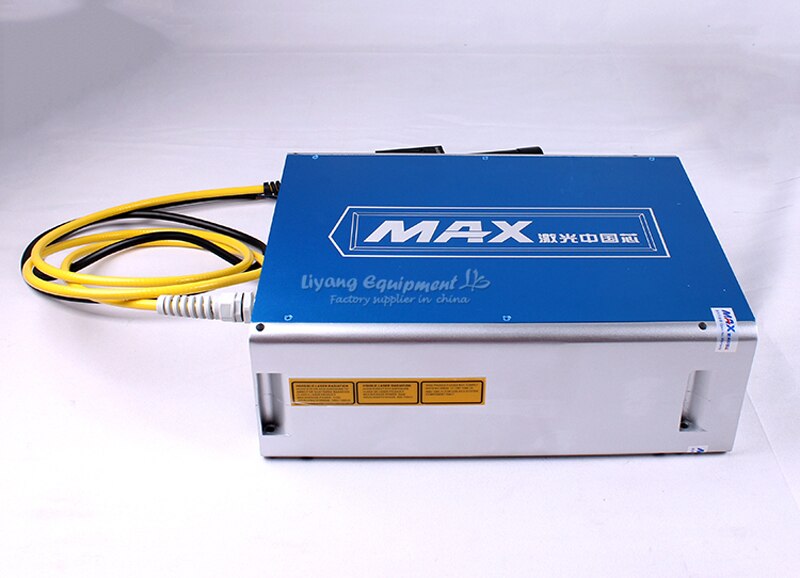

Laser brand: Max

B;

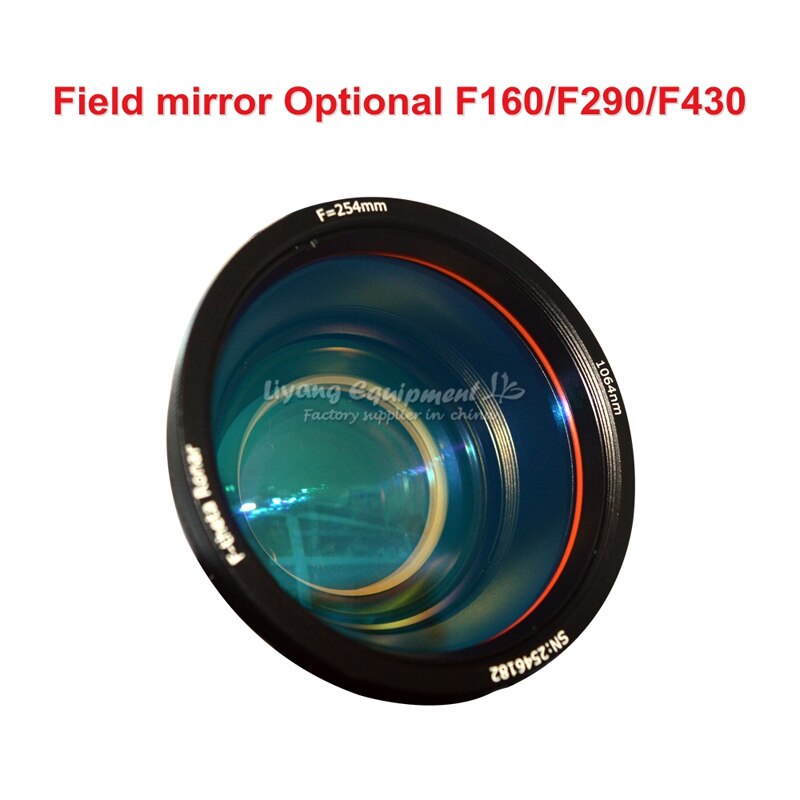

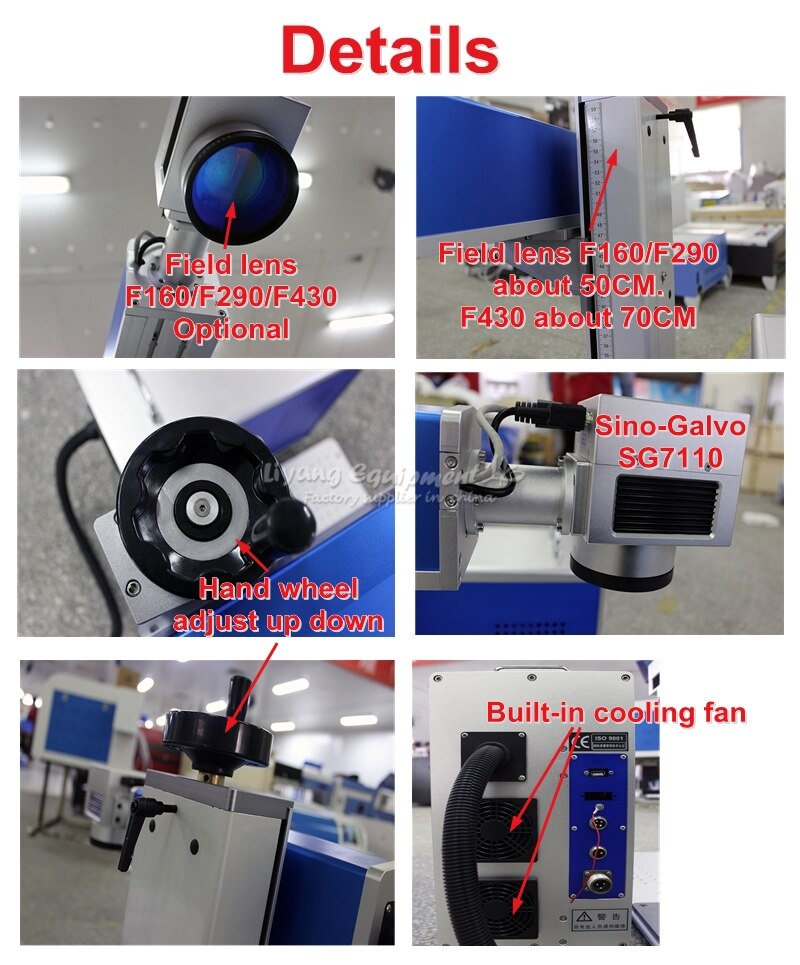

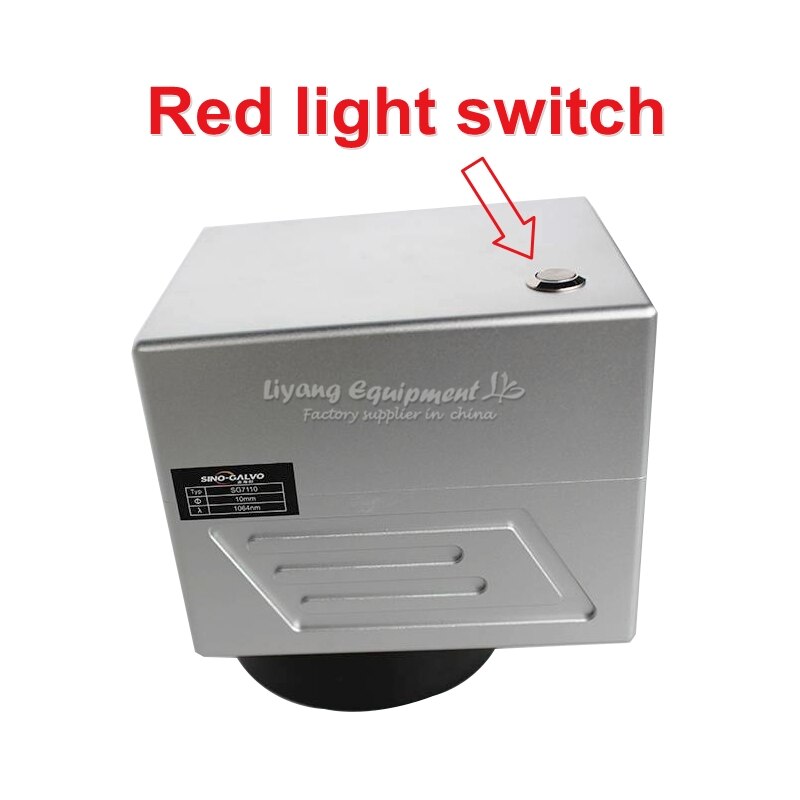

SINO-GALVO field mirror & galvanometer,

C;

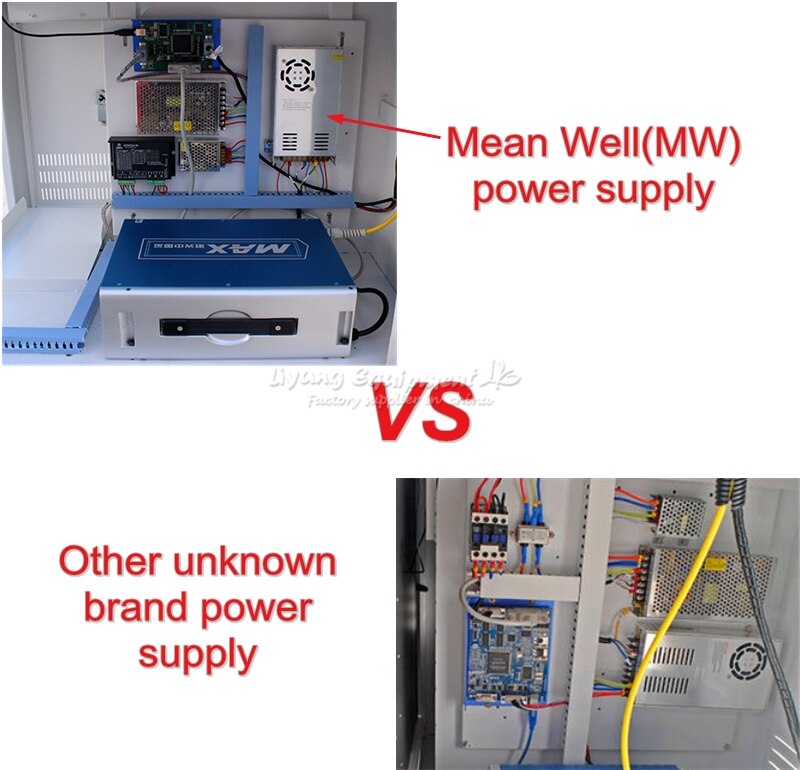

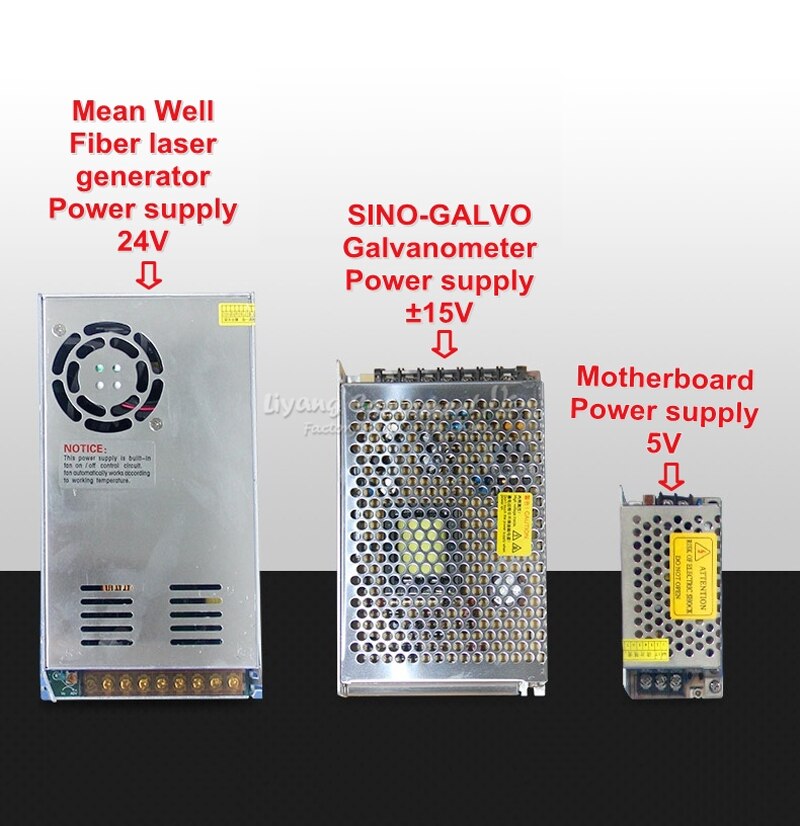

Taiwan Meanwell (MW) power supply,

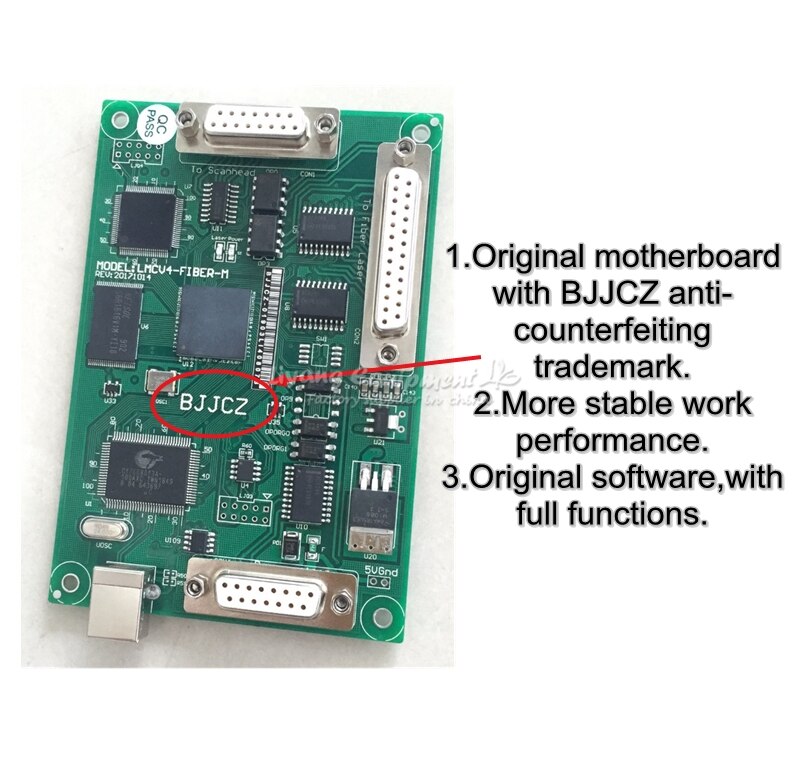

D;Original

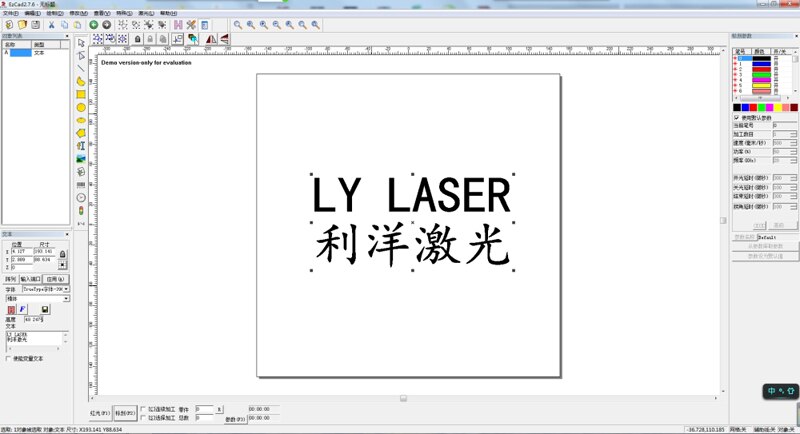

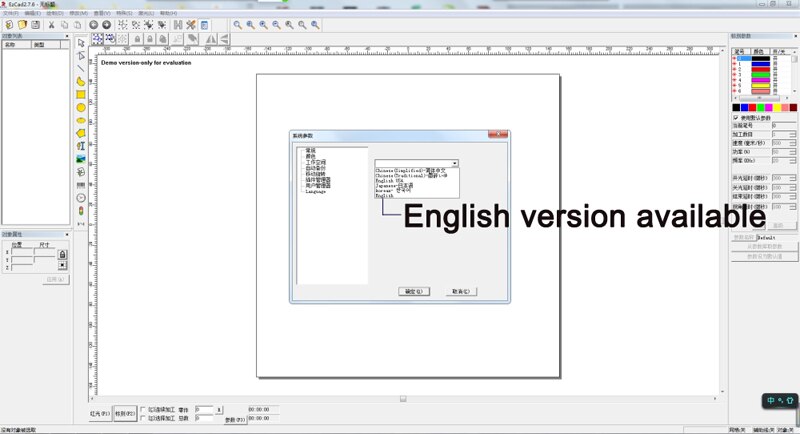

Golden Orange Board (supports genuine software, supports system-wide operation)

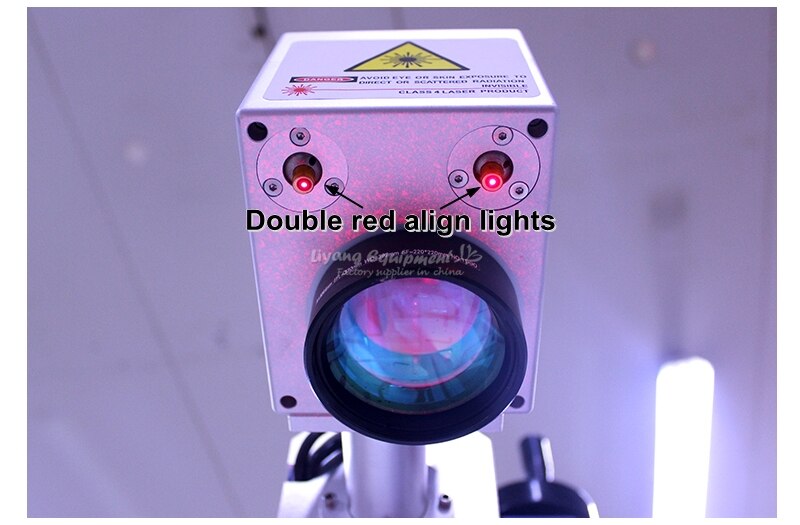

E: Double red
lights assisted focusing

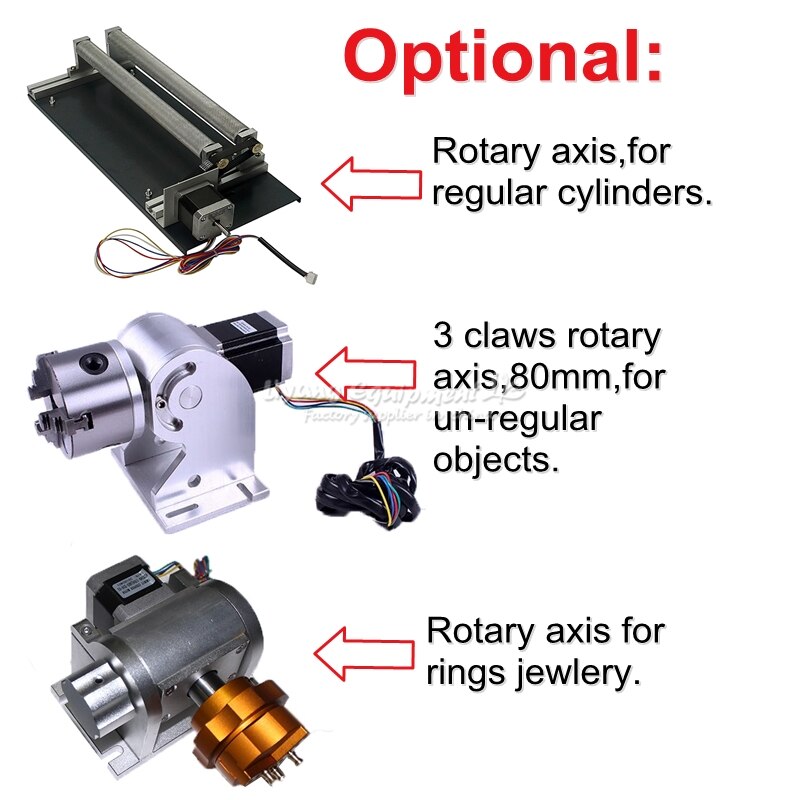

F:Rotary axis (Optoinal)

3: In
addition to these main accessories, we can gain an in-depth understanding of
the machine configuration of the accessories and technical debugging of the
main quality of the machine. It only provides you with a machine that runs
stably and has a low failure rate. Machine accessories are related to the long
life of the machine. In the short term, it is impossible to compare the
stability and failure rate of the machine!

4: Never
let price become the only guiding factor for the company’s business marketing.

Expand your
own marketing ideas and position high-quality markets.

5: Leopard
and cat are similar, but different in quality. If you want a leopard or a cat,
you have the final say, I can provide it. Just the price is different!
