LY Marking Machine Closed Fiber Laser Nameplate 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable

  • Home
  • LY Marking Machine Closed Fiber Laser Nameplate 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable

LY Marking Machine Closed Fiber Laser Nameplate 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable

$9,892.20$10,274.49

SKU: 1005002311048909 Category:

Description

  • Origin: CN(Origin)
  • Certification: CE
  • Certification: NONE
  • Condition: New
  • Model Number: 20W 30W 50W
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Fiber Laser Brand: Super-Laser/MAX/RAYCUS
  • Galvanometer: SG7110 (Double Red light Align Version)
  • Field Mirror: F200(150MM)/Optional:F160(110MM)
  • Power supply: MeanWell (Original)
  • Cooling Mode: Air Cooling
  • Laser Wavelength: 10.64 um
  • Frequency of pulse: 20-100 KHz
  • Marking Depth: 0.3 mm
  • Marking Speed: 8000 mm/s

LY Closed Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser
Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless
Steel Gold Silver Copper With Electrical Lift Function



Technical
Parameter

Model



Fiber Laser power

20W/30W/50W

Fiber Laser Brand

Super-Laser/MAX/RAYCUS

WorkingArea/Length

150*150mm

(Optional 110MM.

RE: Due to machine is
Mini model, so if use bigger field lens, cannot get full work dimension,
recommend Max 150mm )

Galvanometer

SG7110 (Double Red light
Align Version)

Field Mirror

F200(150MM)/Optional:F160(110MM)

Power supply

MeanWell (Original)

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

0.3 mm

Marking Speed

8000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability
Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

Marking Content

Text, pattern, date,
bar code, etc

Operation System

Microsoft Windows XP
or Windows 2000,WIN 7, WIN8, WIN 10

Control Software

EZCAD ENGLISH Control
Software

Graphic Format
Supported

BMP, JPG, GIF, TGA,
Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

90%, no fog

Dimensions(L*W*H)

58 x 86 x 90 cm

Power supply
requirements

220 V or 110V

Net Weight

65KG

Gross Weight

90KG

Warranty

1 year

Rotary Axis

Support (Optional)

Move

Electric up &
down



The
motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional
fiber laser marking machine shop, please customers to patronize, do not just
look at the price. To look at the quality of the machine, use high-quality
machine parts to give customers the best price and quality service! Provide S/N
coding for our machines, machine lifetime service,



2:
Machine configuration:

A;Fiber
Laser brand:Lianpin/Raycus/Max

B;

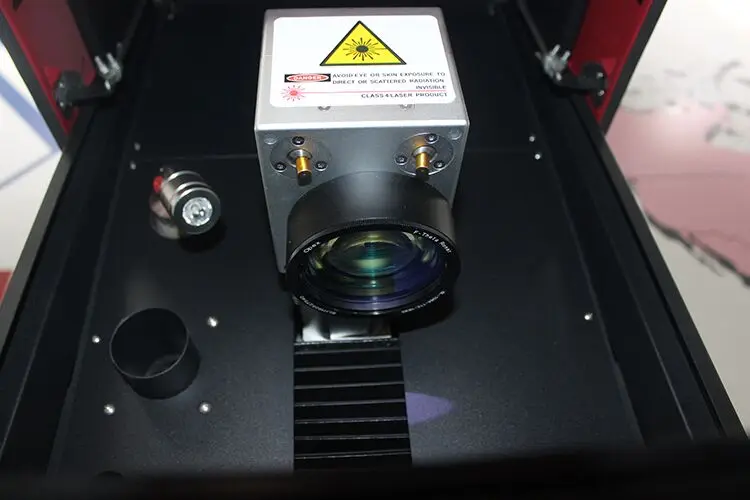

SINO-GALVO field mirror & galvanometer,

C;
Taiwan Mingwell (MW) power supply,

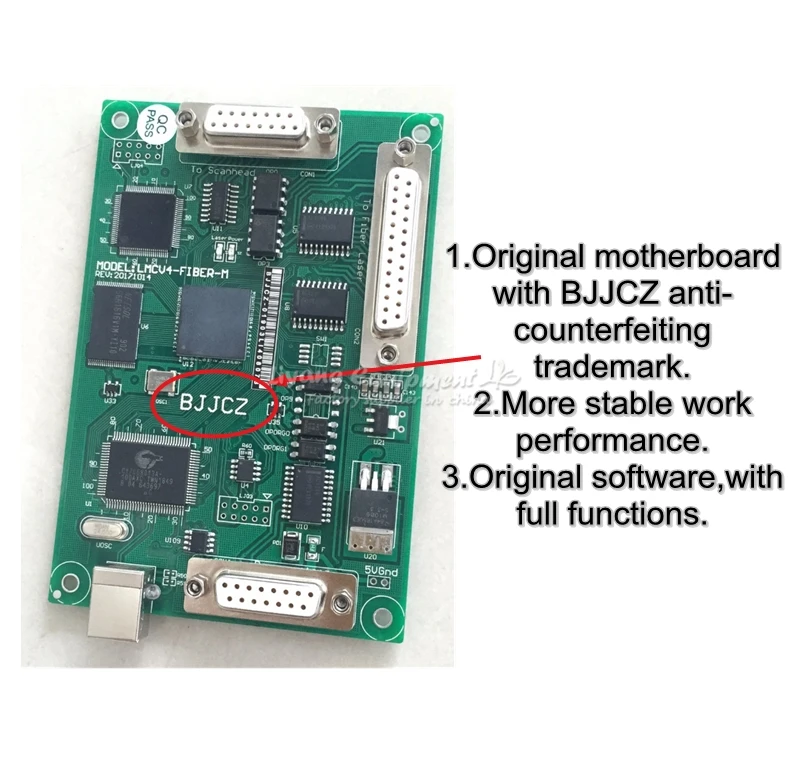

D;Original
Golden Orange Board (supports genuine software, supports system-wide operation)

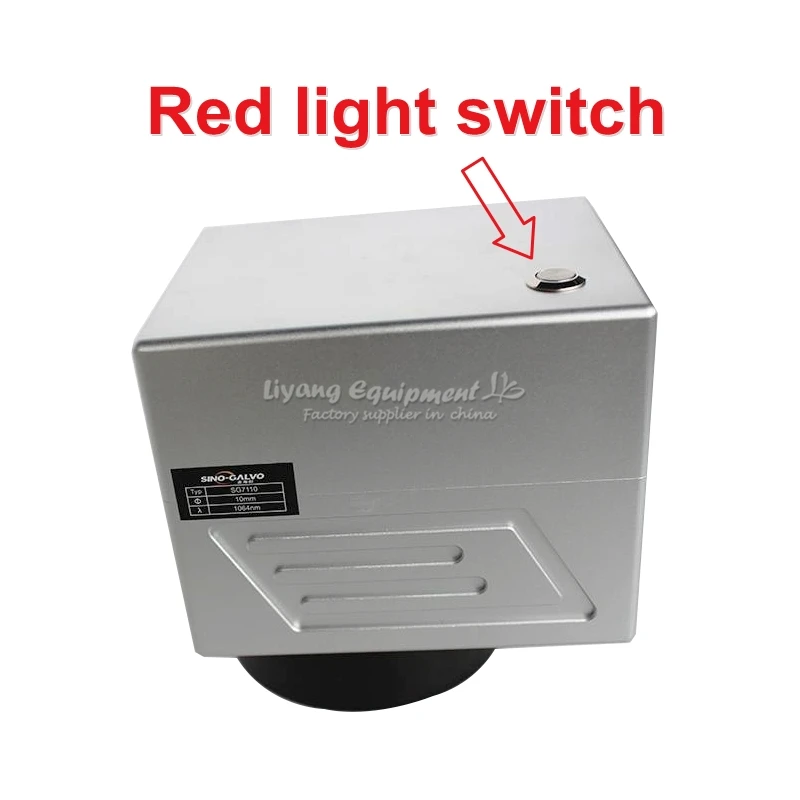

E:
Double red lights assisted focusing

F:Rotary
axis (Optoinal)



3:
In addition to these main accessories, we can gain an in-depth understanding of
the machine configuration of the accessories and technical debugging of the
main quality of the machine. It only provides you with a machine that runs
stably and has a low failure rate. Machine accessories are related to the long
life of the machine. In the short term, it is impossible to compare the
stability and failure rate of the machine!



4:
Never let price become the only guiding factor for the company’s business
marketing.

Expand
your own marketing ideas and position high-quality markets.



5:
Leopard and cat are similar, but different in quality. If you want a leopard or
a cat, you have the final say, I can provide it. Just the price is different!
