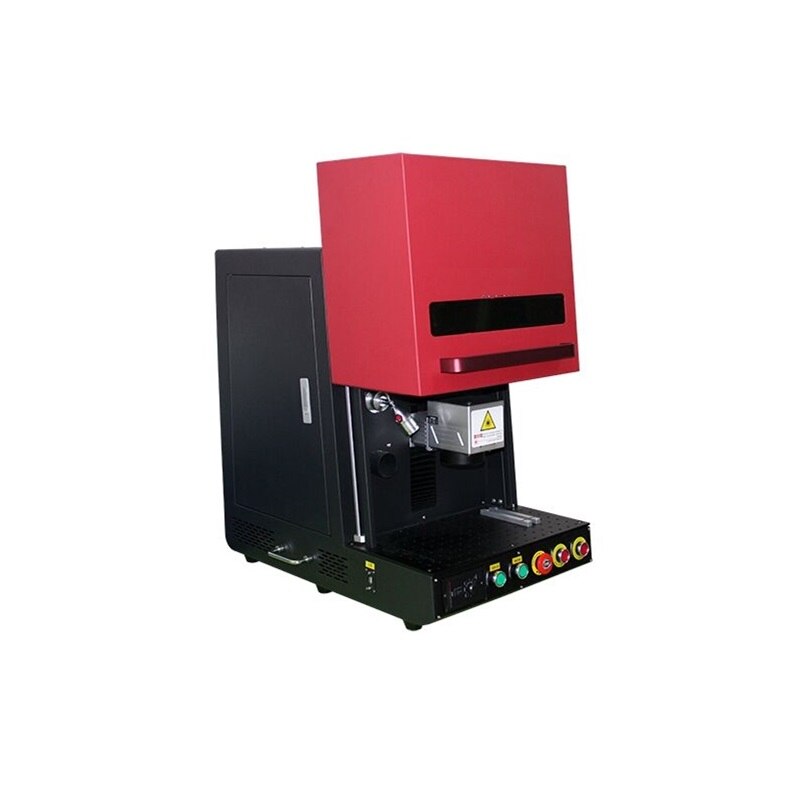

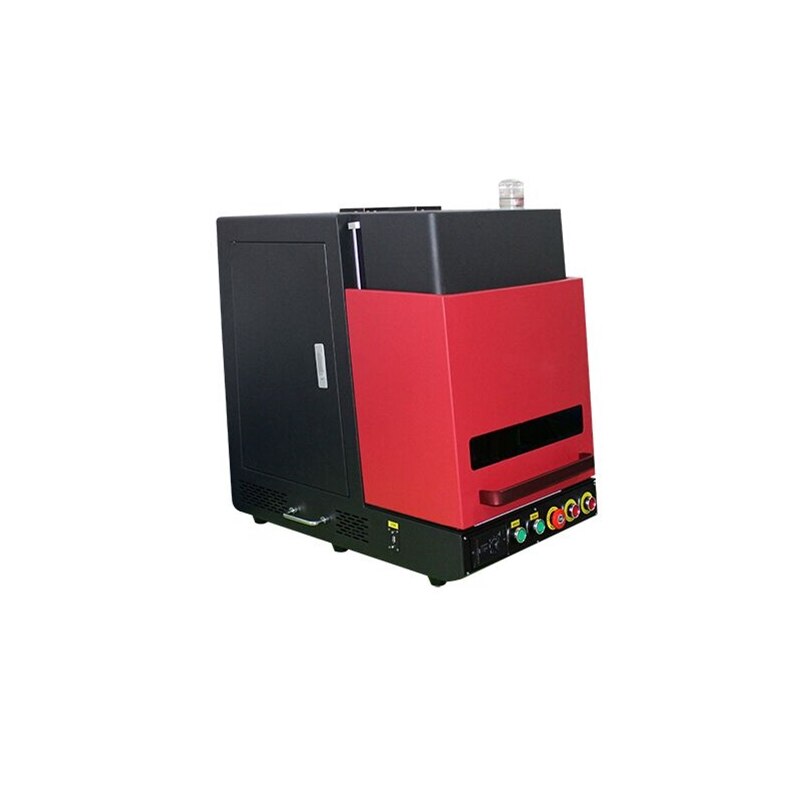

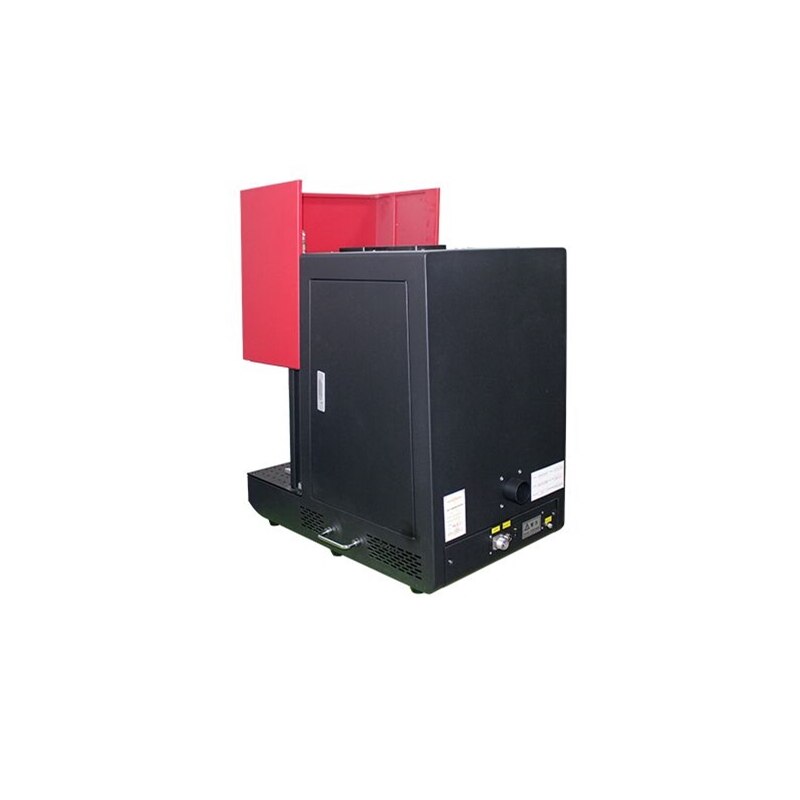

LY Fiber Laser Nameplate Marking Machine Metal Enraving Router 20W 30W 50W Super-Laser Max Raycus Fiber Laser Source Optional

$9,096.84$14,024.34

SKU: 1005002748338136 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: CN(Origin)
  • Certification: CE
  • Condition: New
  • Model Number: Closed Fiber Laser Nameplate Marking Machine
  • CNC or Not: Normal
  • Is Smart Device: YES
  • Fiber Laser power: 20W/30W/50W
  • Fiber Laser Brand: Super-Laser/MAX/RAYCUS
  • Frequency of pulse: 20-100 KHz
  • Marking Depth: MAX 0.3 mm
  • Marking Speed: MAX 8000 mm/s
  • Marking Lines: 1-10 lines
  • Operation System: Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

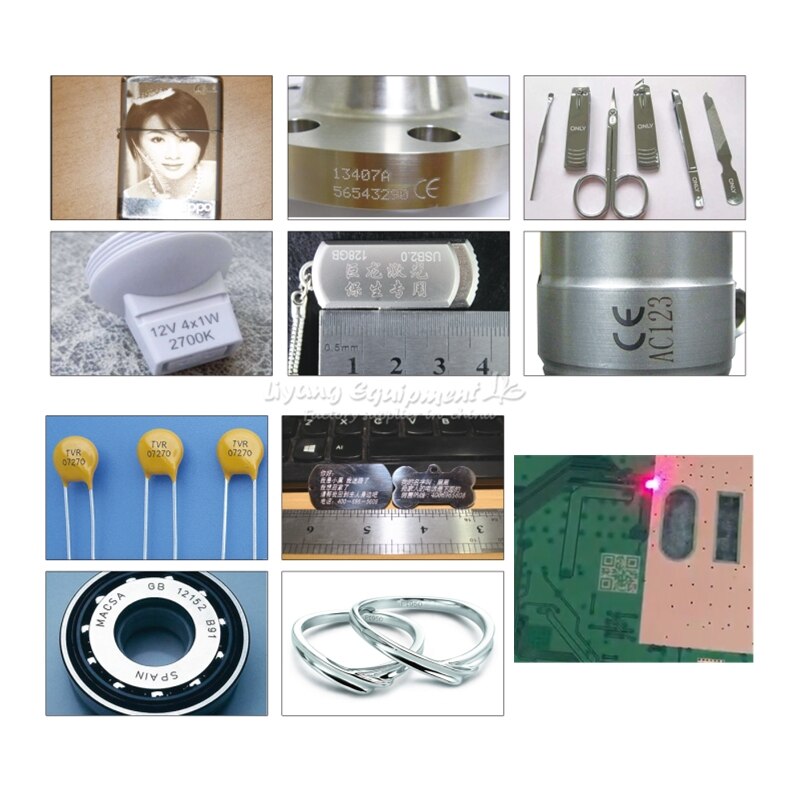

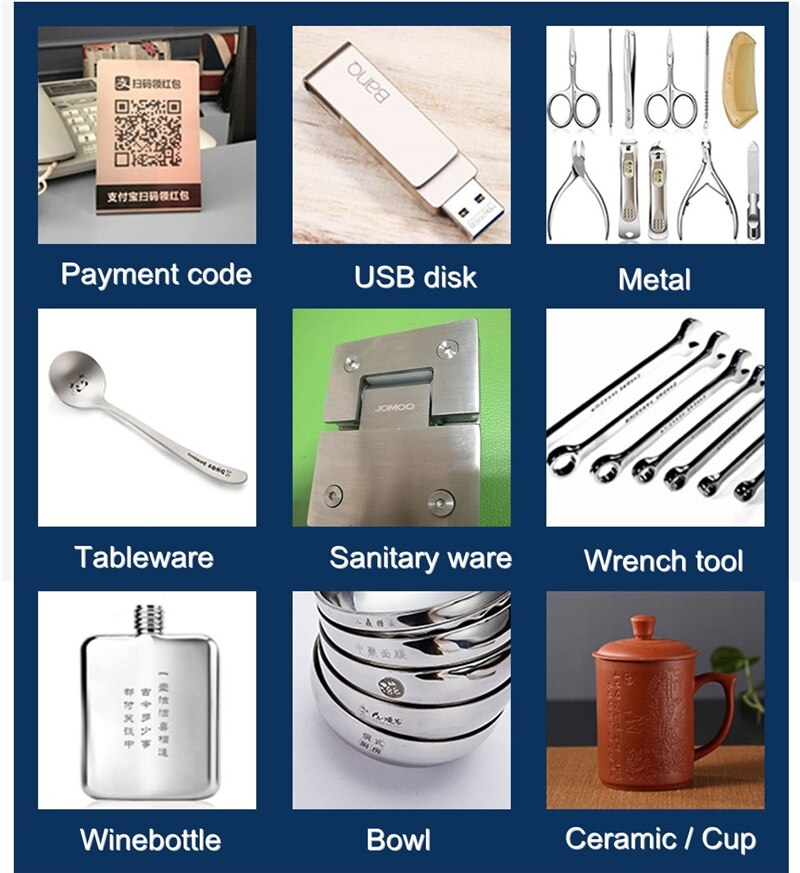

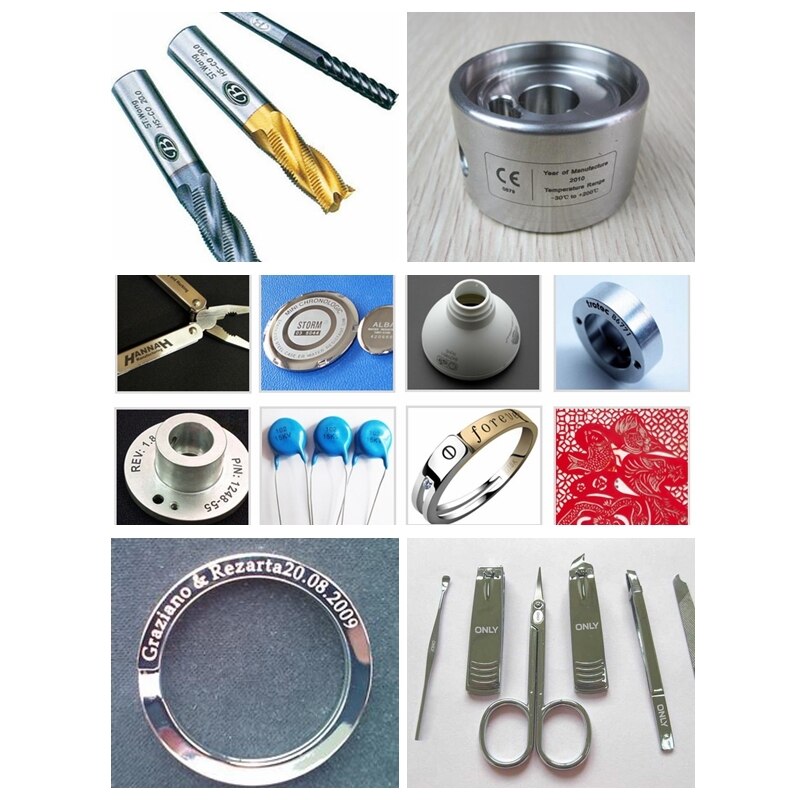

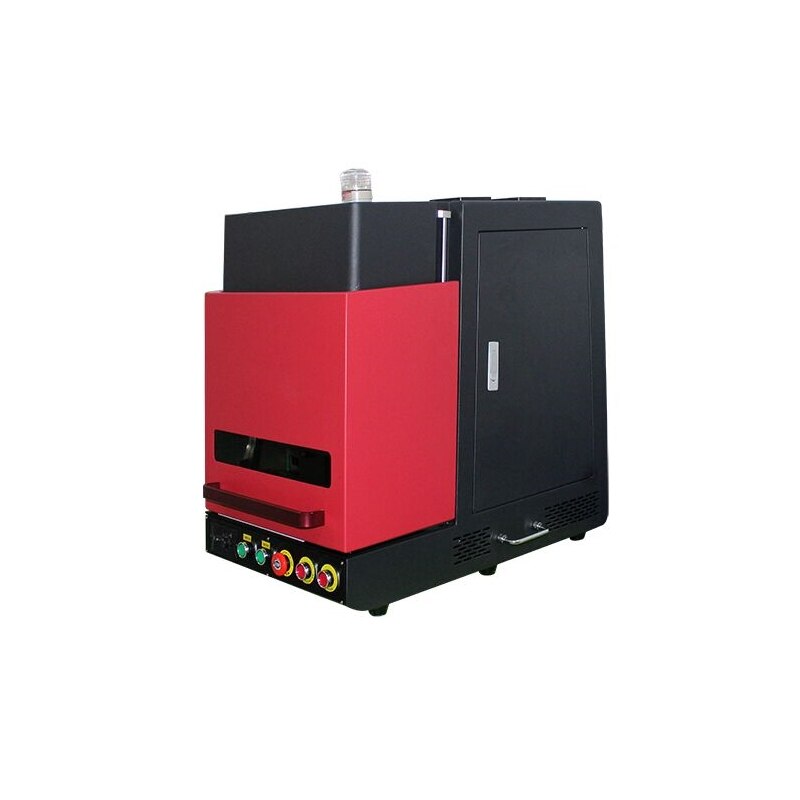

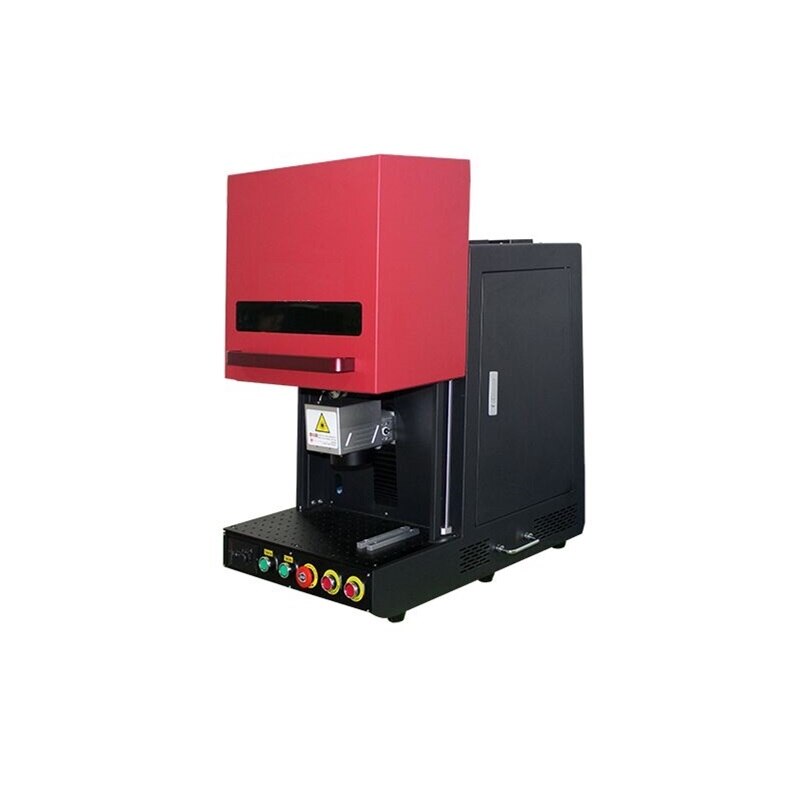

LY Closed Fiber Laser Nameplate Marking Machine 20W 30W 50W Super-laser Max Raycus Fiber Laser Source Optional Suitable For Non-Glare Metal Iron Stainless Steel Gold Silver Copper With Electrical Lift Function


——————————————————————————-

Russia and EU Buyes FREE TAX!!!
We can send Seller’s Shipping Method  land transportation (Train or car) to EU and Russia, DDP terms, we pay the tariffs , but it will take at least 30-40 days, buyers please wait patiently , thanks !

——————————————————————————–

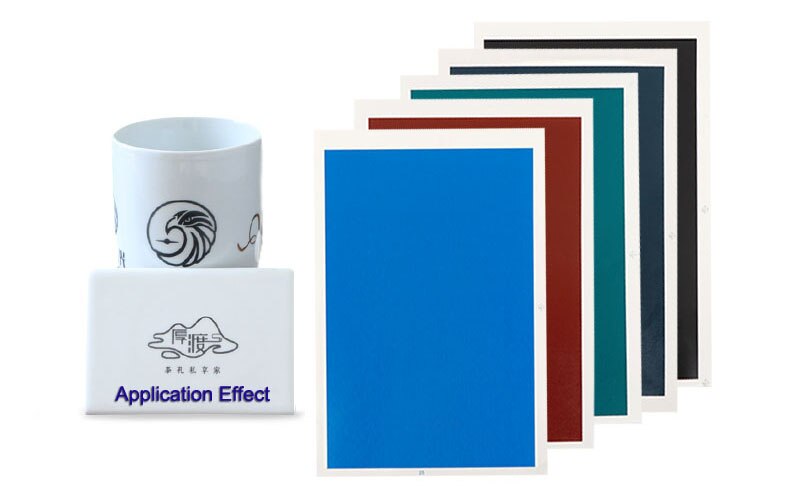

Will free send 10PCS color paper for gift ,this can help you do color marking,

if you need more , please order on this link :




https://www.aliexpress.com/item/1005002745573344.html



Technical Parameter

Model



Fiber Laser power

20W/30W/50W

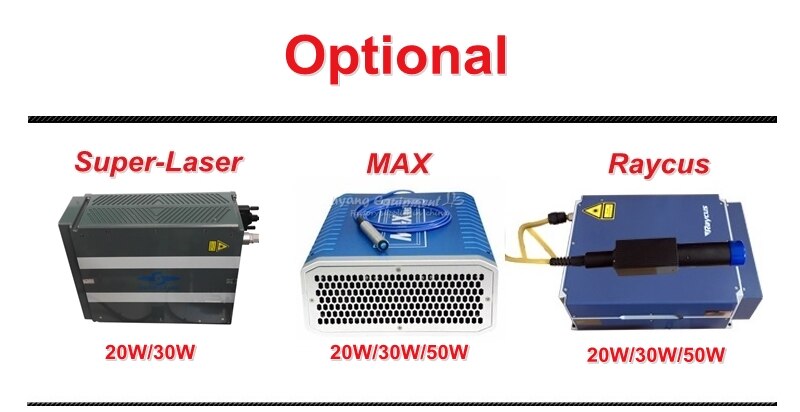

Fiber Laser Brand

Super-Laser/MAX/RAYCUS

WorkingArea/Length

150*150mm

(Optional 110MM.

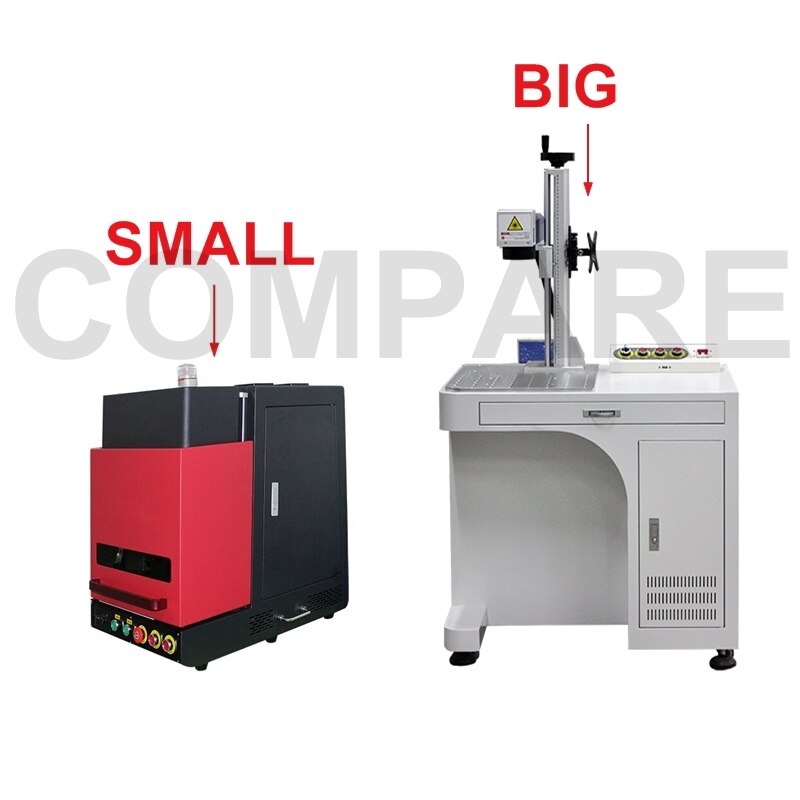

RE: Due to machine is Mini model, so if use bigger field lens, cannot get full work dimension, recommend Max 150mm )

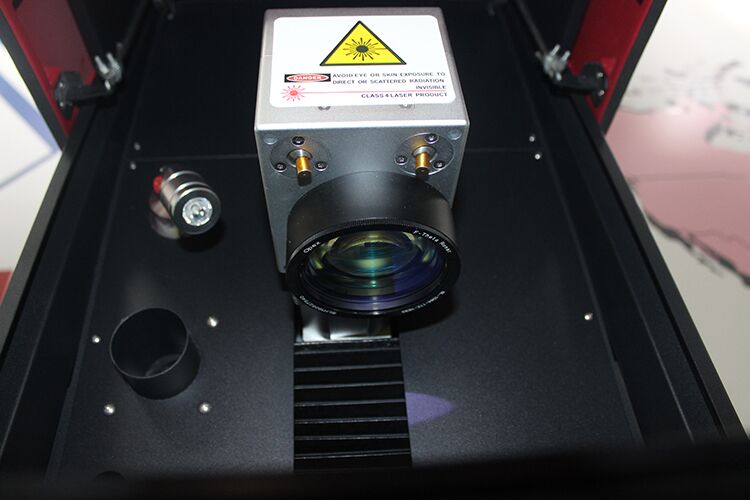

Galvanometer

SG7110 (Double Red light Align Version)

Field Mirror

F200(150MM)/Optional:F160(110MM)

Power supply

MeanWell (Original)

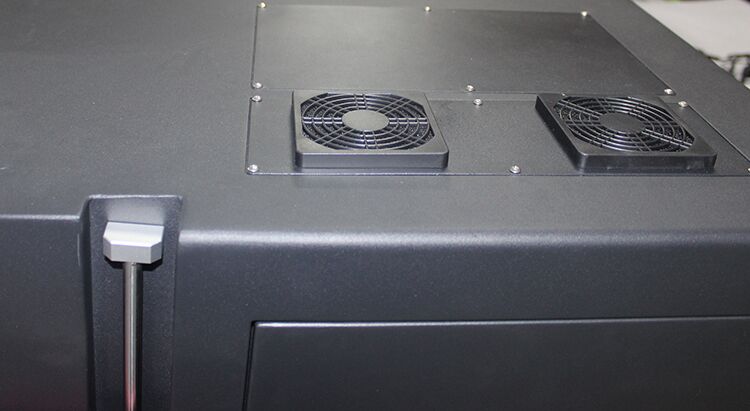

Cooling Mode

Air Cooling

Laser Wavelength

10.64 um

Frequency of pulse

20-100 KHz

Marking Depth

≤0.3 mm

Marking Speed

≤8000 mm/s

Marking Lines

1-10 lines

Minimum Line Width

0.01 mm

Minimum Character

0.15 mm

Repeatability Accuracy

±0.002 mm

Resolution Ratio

0.1 mm

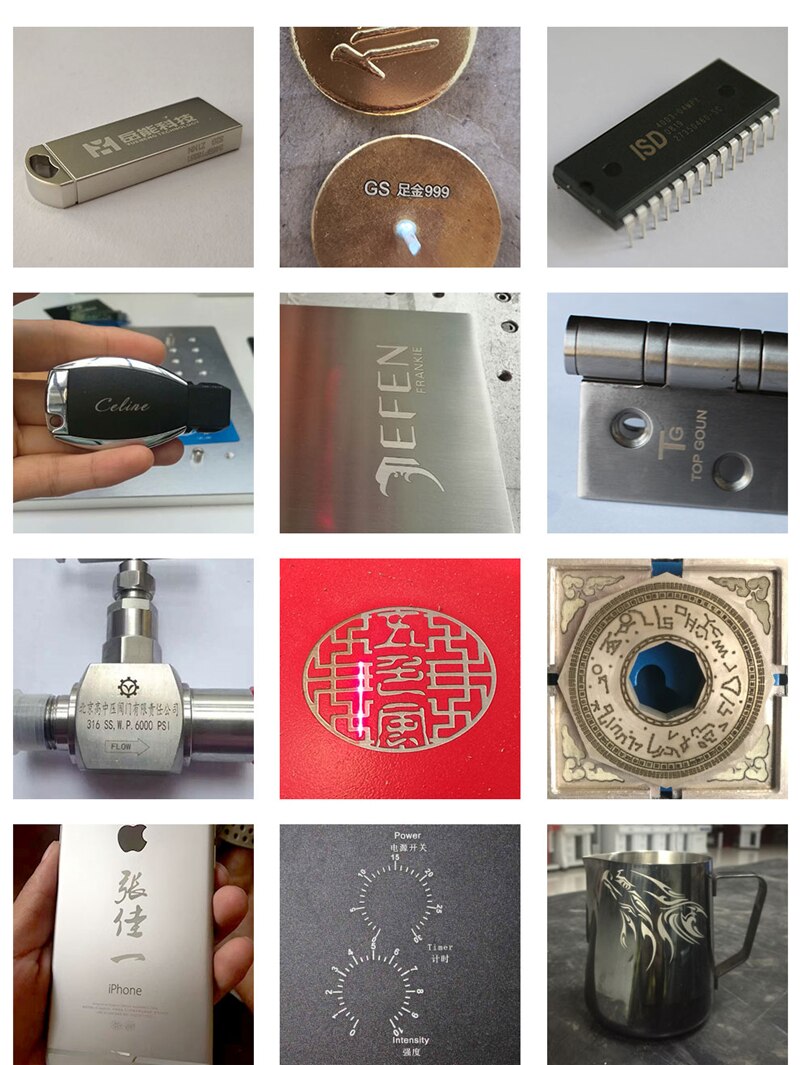

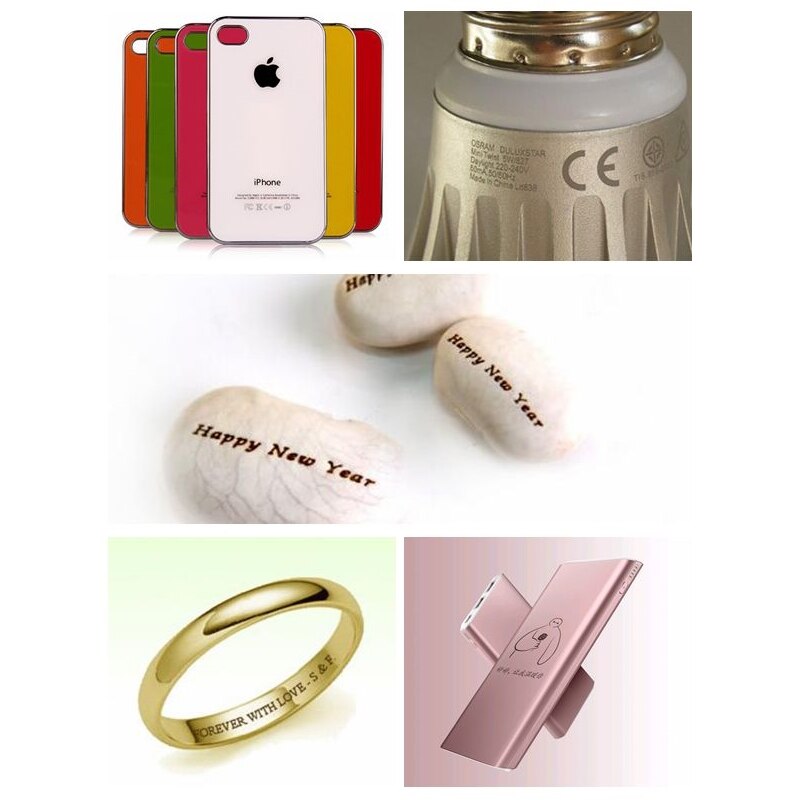

Marking Content

Text, pattern, date, bar code, etc

Operation System

Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10

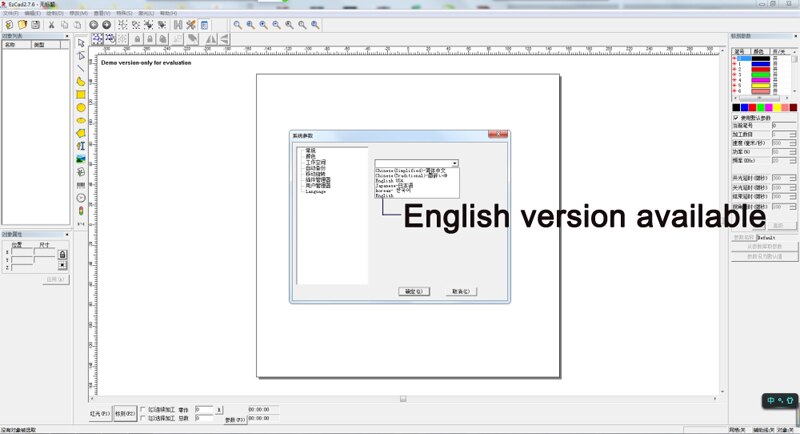

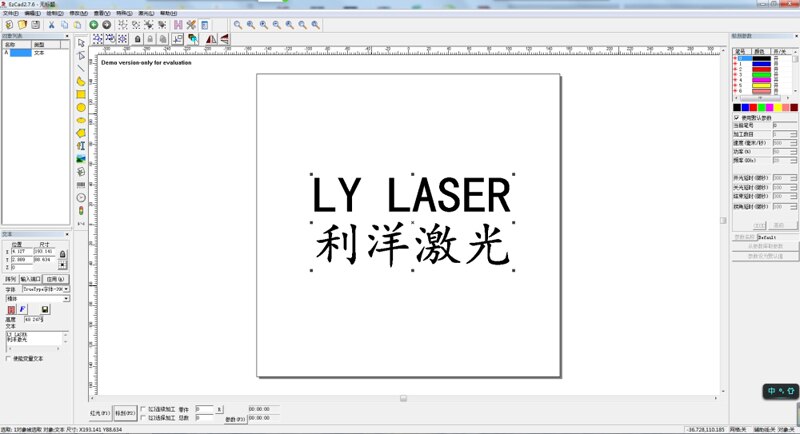

Control Software

EZCAD ENGLISH Control Software

Graphic Format Supported

BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.

Unit Power

≤0.9 KW

Operation Temperature

5°C-40°C

Relative Moisture

≤90%, no fog

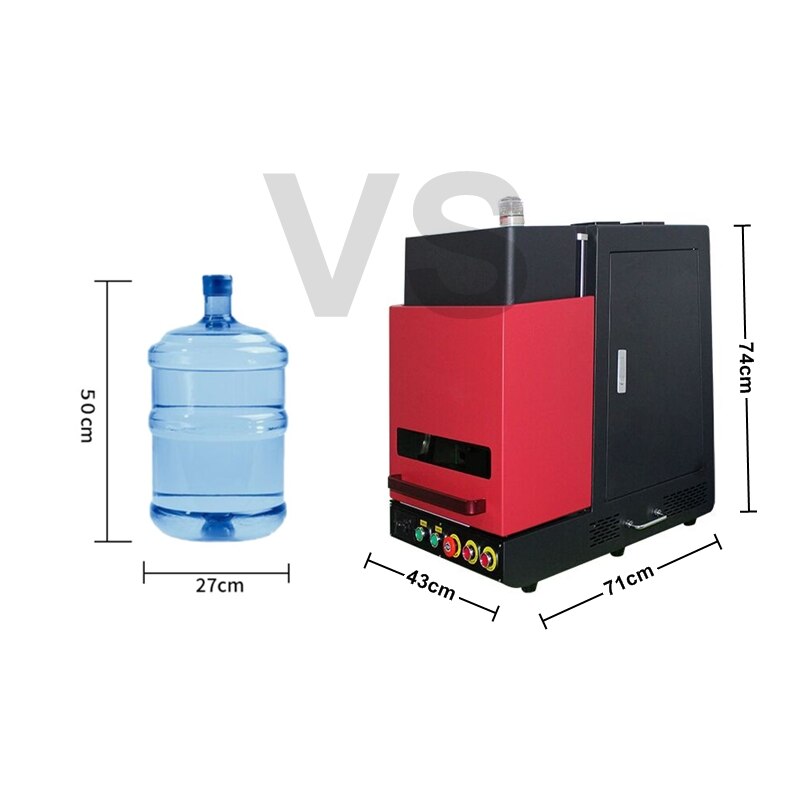

Dimensions(L*W*H)

58 x 86 x 90 cm

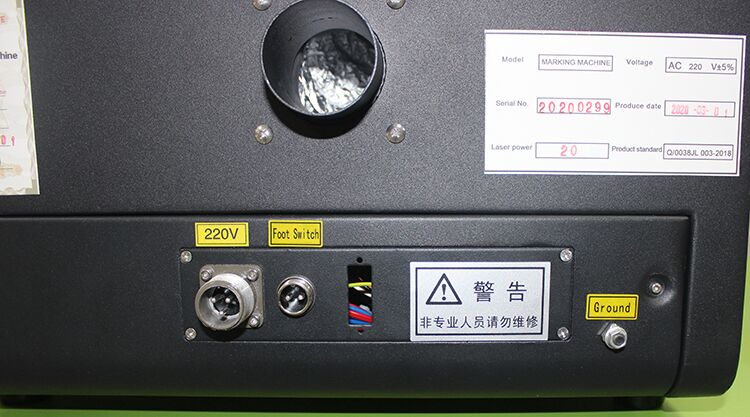

Power supply requirements

220 V or 110V

Net Weight

65KG

Gross Weight

90KG

Warranty

1 year

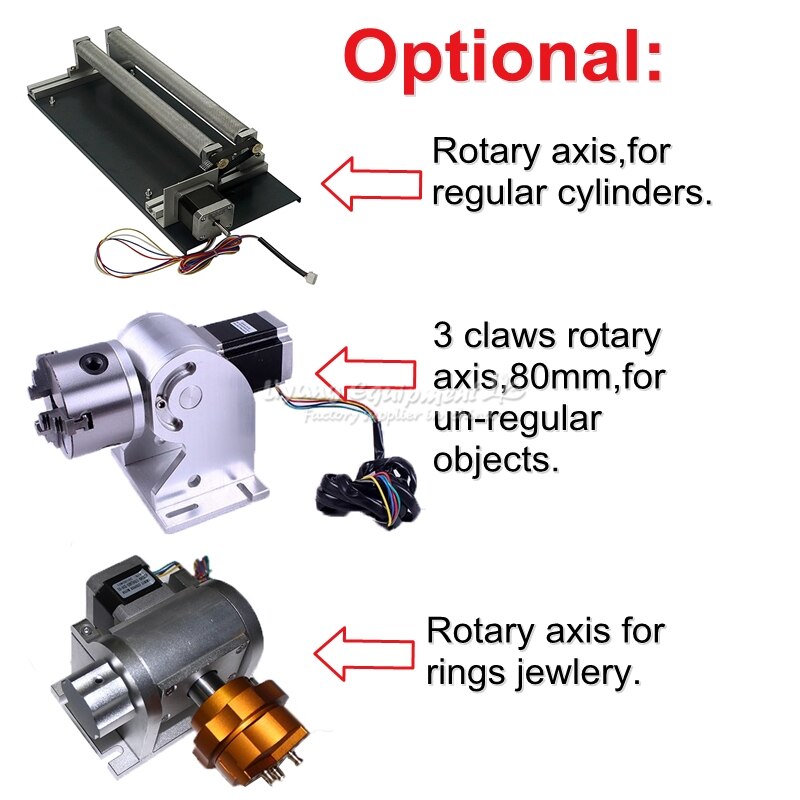

Rotary Axis

Support (Optional)

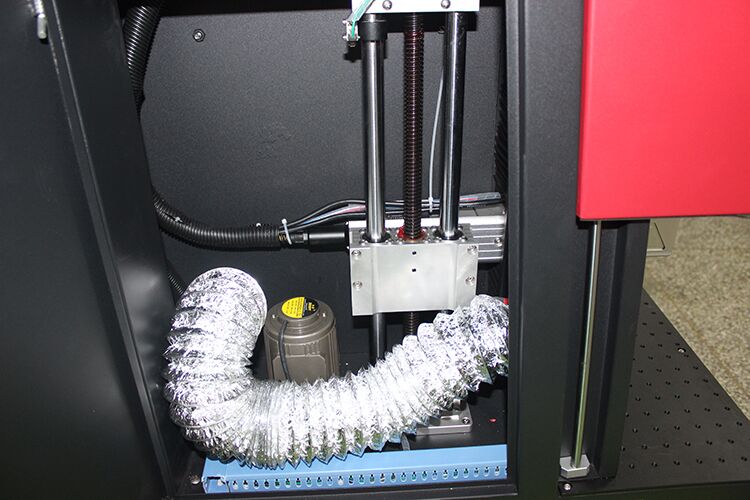

Move

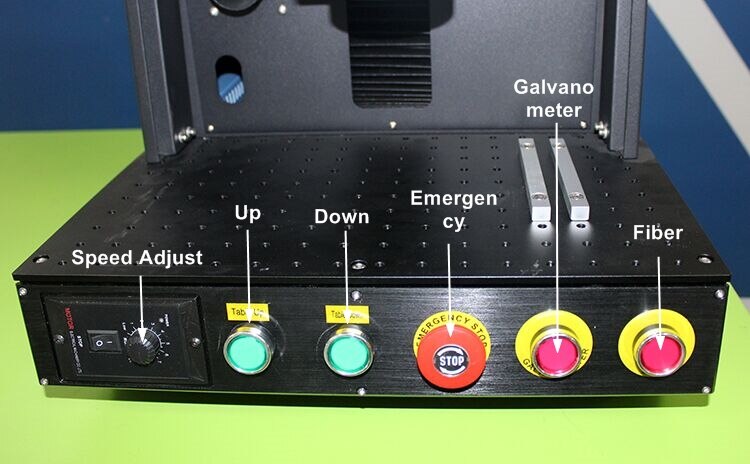

Electric up & down

The motherboard supports win10 and supports 32-bit 64-bit.
1: Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

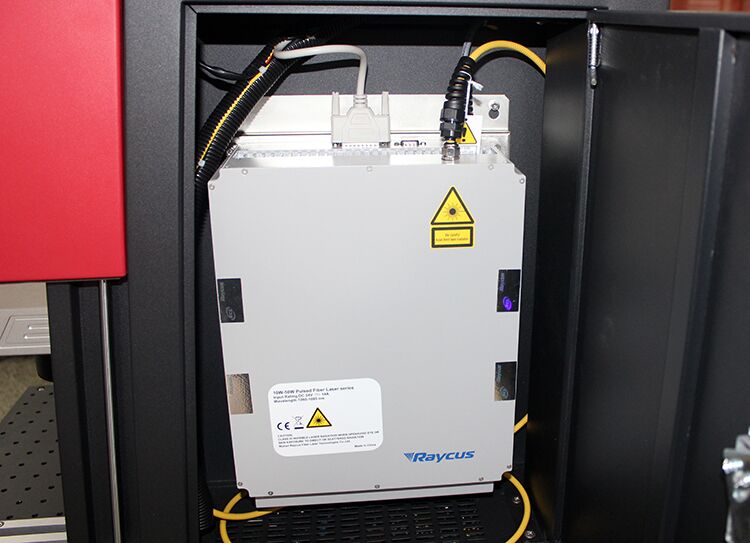

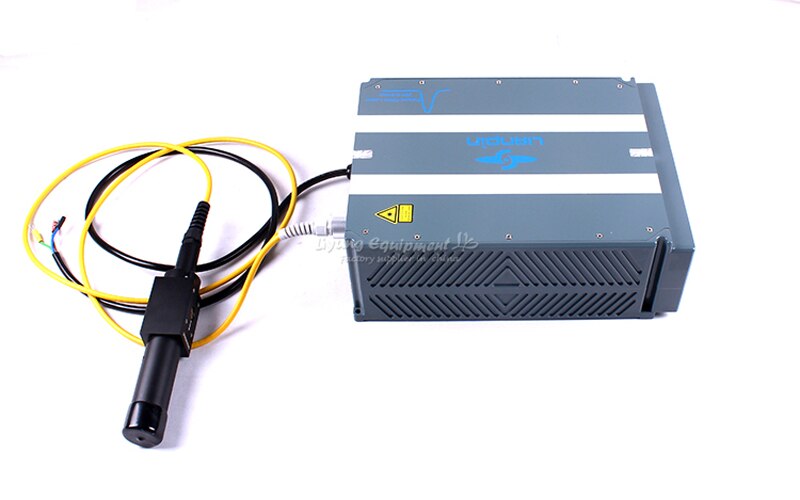

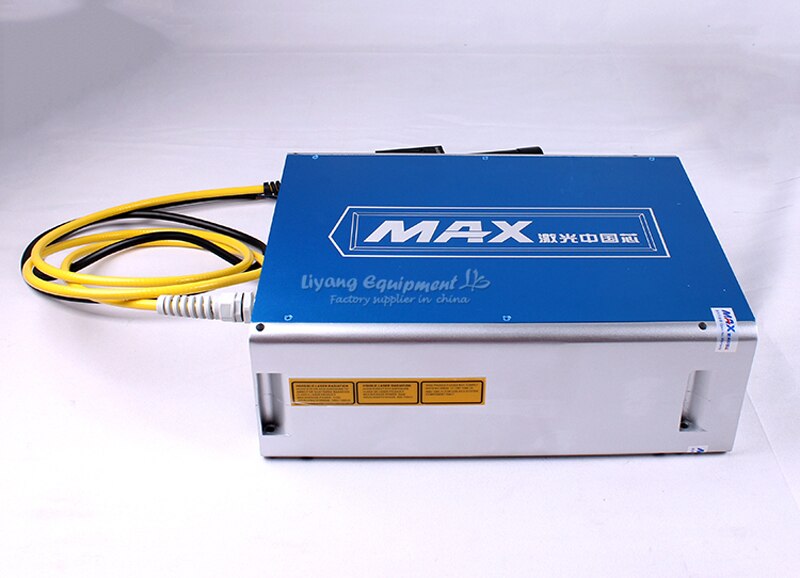

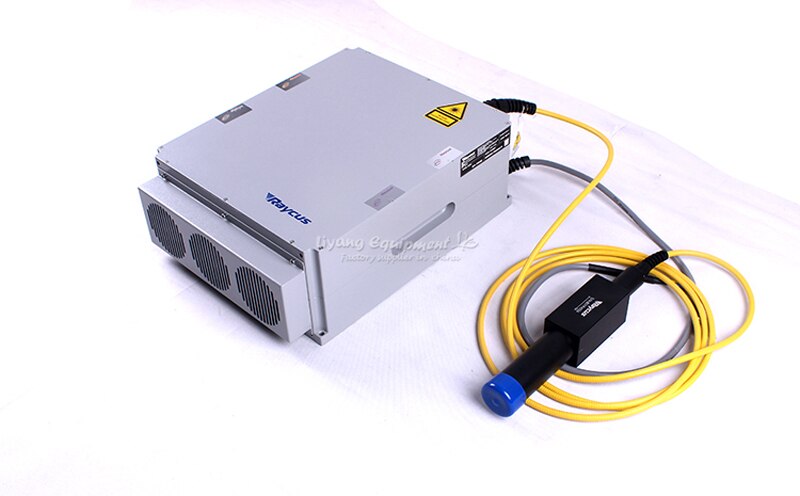

A;Fiber Laser brand:Lianpin/Raycus/Max
B; SINO-GALVO field mirror & galvanometer,

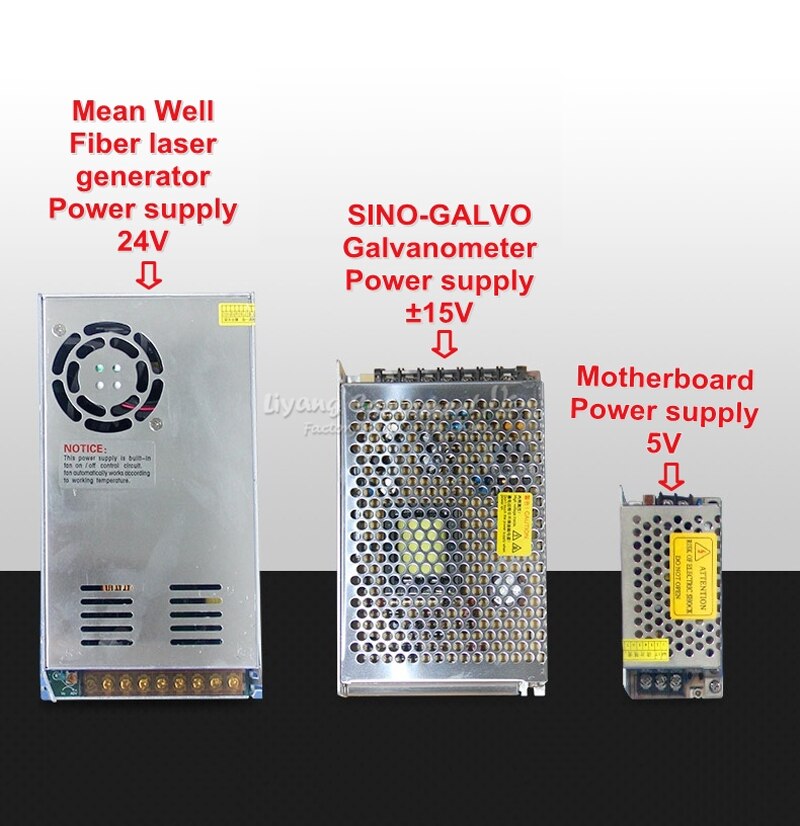

C; Taiwan Mingwell (MW) power supply,

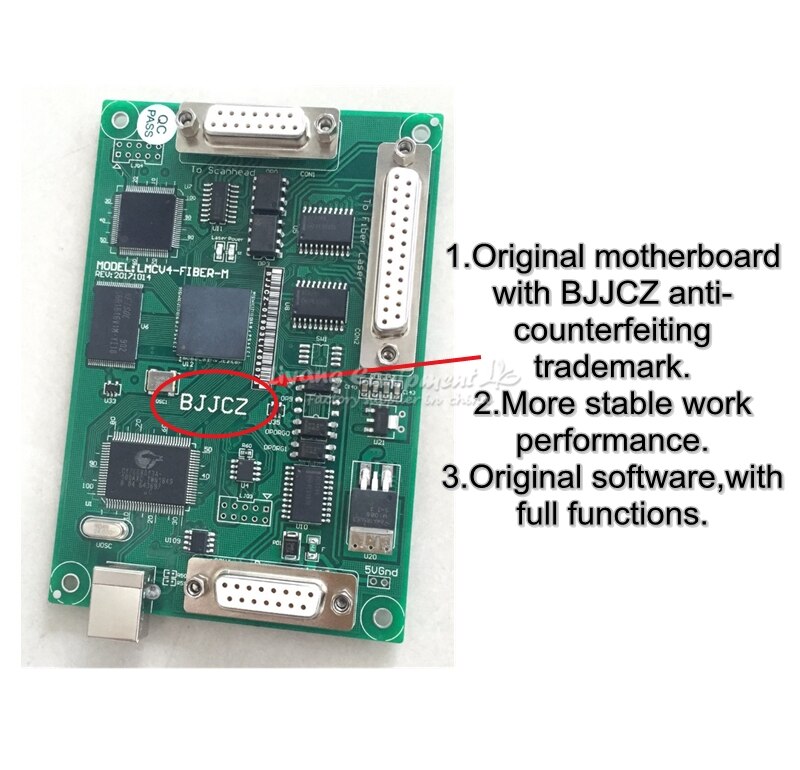

D;Original Golden Orange Board (supports genuine software, supports system-wide operation)

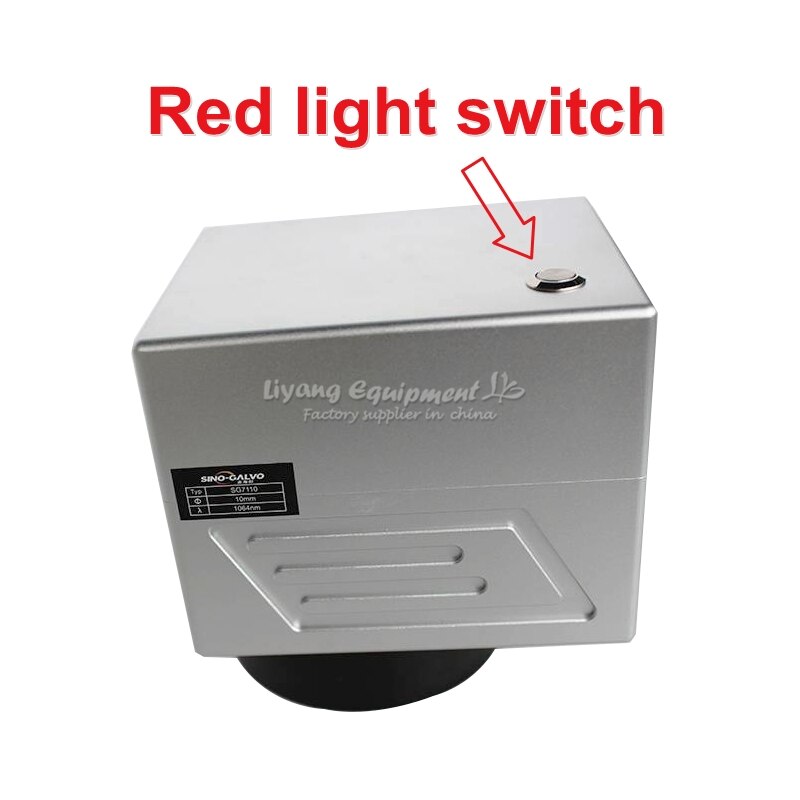

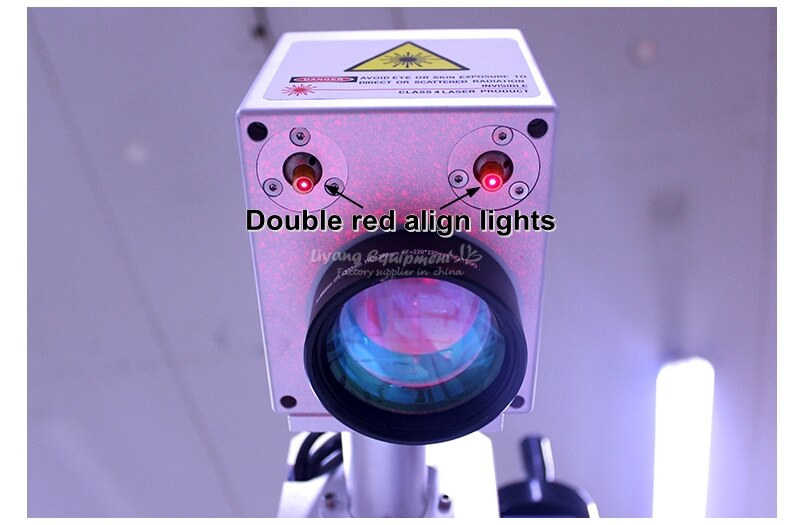

E: Double red lights assisted focusing
F:Rotary axis (Optoinal)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine!

4: Never let price become the only guiding factor for the company’s business marketing.
Expand your own marketing ideas and position high-quality markets.

5: Leopard and cat are similar, but different in quality. If you want a leopard or a cat, you have the final say, I can provide it. Just the price is different!
