Description



Video

https://youtu.be/Y2kkNbap1yY



Functions

    Send NC file in TF card

   Control the Spindle/Laser

   Move axises/Go Home/Probe

   Change necessary Grbl settings

   Support Grbl firmware and Laser Printer firware.

   And more…

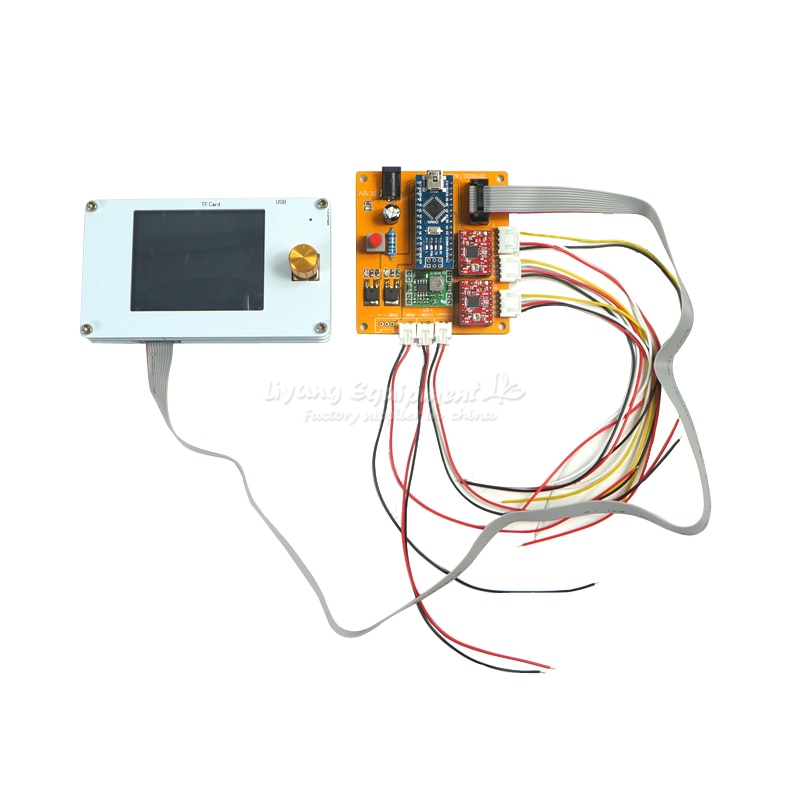

This Display Panel can take the place of Computer most of the time, but files in TF card still need Computer to create it.



Operation

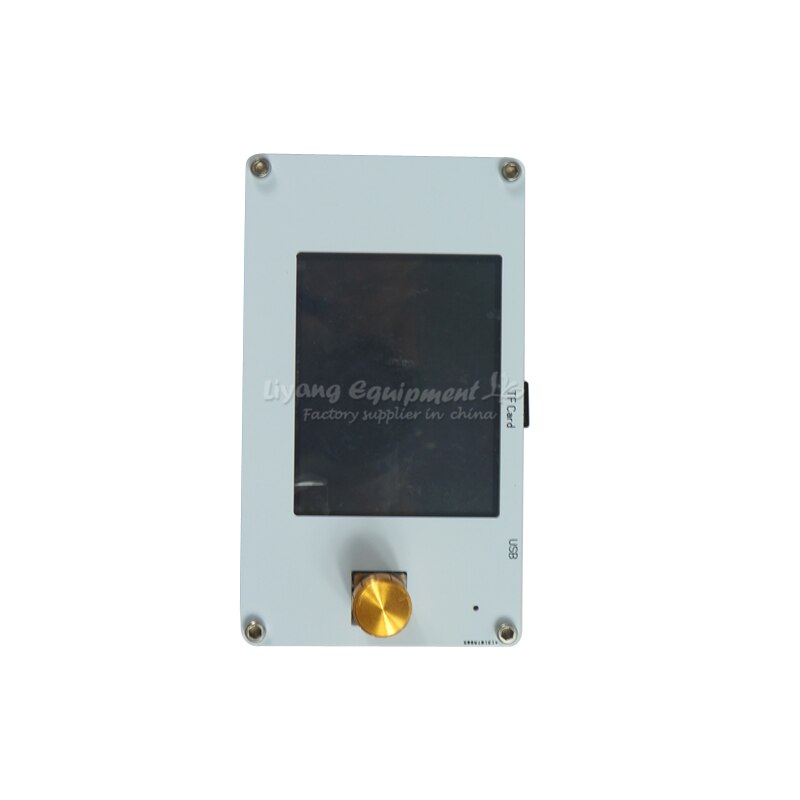

The Display Panel has only one knob, the knob can rotate left and right and press down.

     Rotate: change the menu item to be selected, change values, change engraving speed, etc..

     Press: pop-up menu, confirm the choice.



Upgrade firmware

Just need to download the last firmware file, unzip to the TF card’s root directory.

Example

Notice: The Display software may be updated, the pictures bellow is just for a example.
