Description

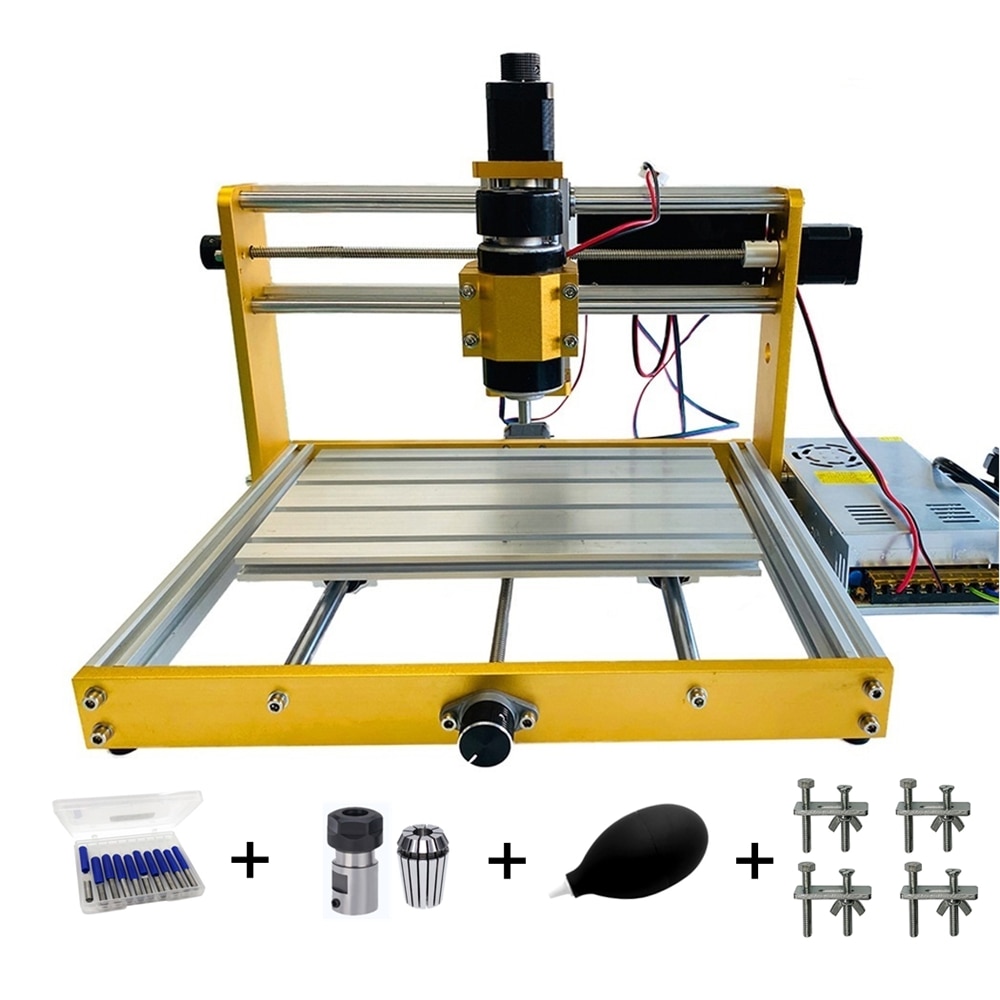

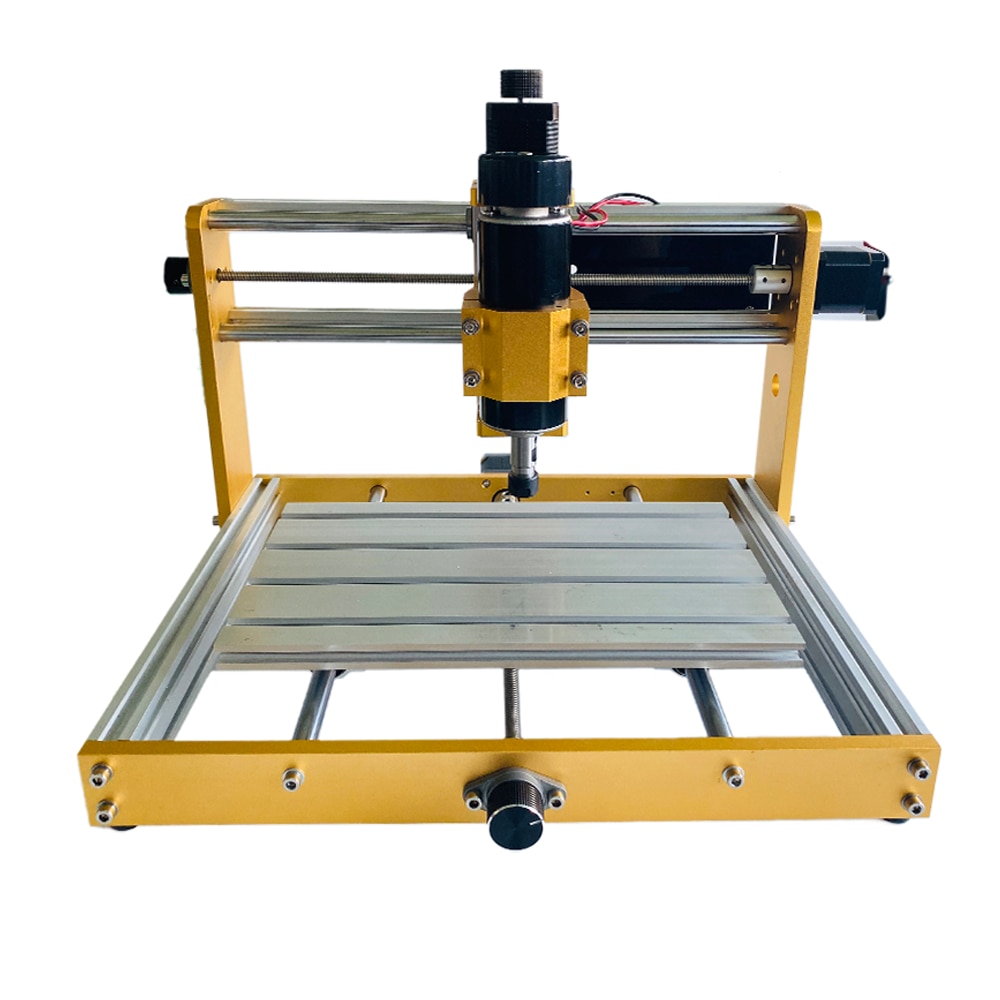

LY CNC 3018 Pro Plus 500W 300W Spindle 5.5W 15W 30W Laser Engraver Wood Router Milling Engraving Machine For Metal

RE:This kit is disassemble, needs the customer DIY assembling,
needs certain electronic and the Mechanical Foundation. Any questions pls feel
free to contact us！

Product Description

Parameter:

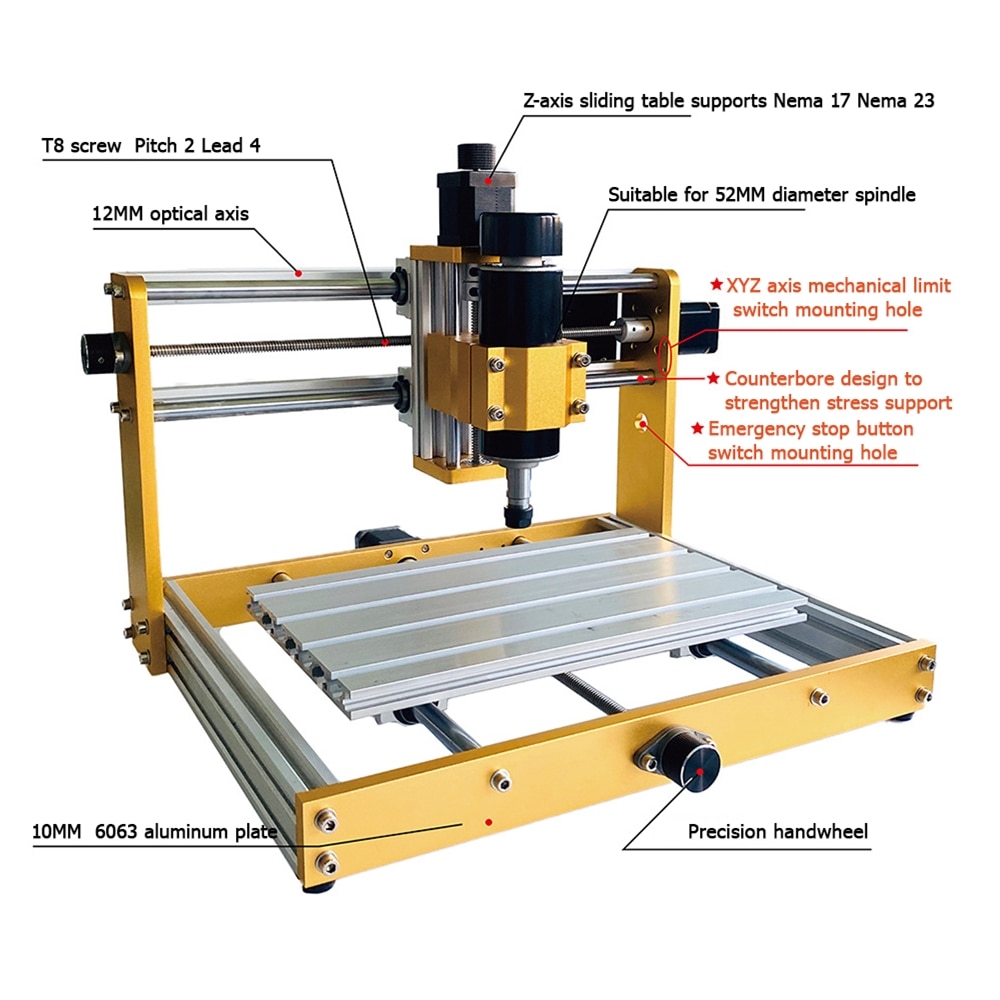

XYZ three-axis actual stroke 300*180*60mm

Aluminum Table Size 300*180mm

Material: Aluminum

Stepper motor: Nema17 Stepper*3

Screw: T8 stainless steel screw, lead 8MM, POM anti-backlash
nut

Spindle hole diameter: 52mm

Laser module diameter:40mm

Control software: GRBL Control

Spindle: 300W/500W Optional

Laser: 5.5W/15W/30W Optional

Power Supply: 24V 5A

Supported System: Windows XP/ Win 7/ Win 8/ Win10

Feature:

1.Foot pads installed at four corners of the machine

2.Screws are equipped with gaskets to protect the machine more

3.Both screws are equipped with knobs, size 8mm

4.Horizontal screw seat, inner diameter 8

5.Full metal oxidation sandblasting

6.12mm optical axis, stable and durable

7.Z axis can be raised and lowered as a whole

PS: Equipped with baffle and emergency stop switch hole

Application:

Laser engraving / CNC drilling

Single Kit Packing List:

Multi-Kits Packing List:

ZH1045	3018 Plus Laser Machine+ 300w	1
	12V Laser mould 5.5W(5500MW)-Diameter 40MM	1
ZH1046	3018 Plus Laser Machine+ 300w	1
	12V Laser mould 15W(15000MW)-Diameter 40MM	1
	10X10CM Lift Platform	1
	GRBL Control Offline Handle	1
ZH1047	3018 Plus Laser Machine+ 300w	1
	12V Laser mould 30W(30000MW)-Diameter 40MM	1
	10X10CM Lift Platform	1
	GRBL Control Offline Handle	1
ZH1048	3018 Plus Laser Machine+ 500w	1
	12V Laser mould 5.5W(5500MW)-Diameter 40MM	1
ZH1049	3018 Plus Laser Machine+ 500w	1
	12V Laser mould 15W(15000MW)-Diameter 40MM	1
	10X10CM Lift Platform	1
	GRBL Control Offline Handle	1
ZH1050	3018 Plus Laser Machine+ 500w	1
	12V Laser mould 30W(30000MW)-Diameter 40MM	1
	110X10CM Lift Platform	1
	GRBL Control Offline Handle	1
