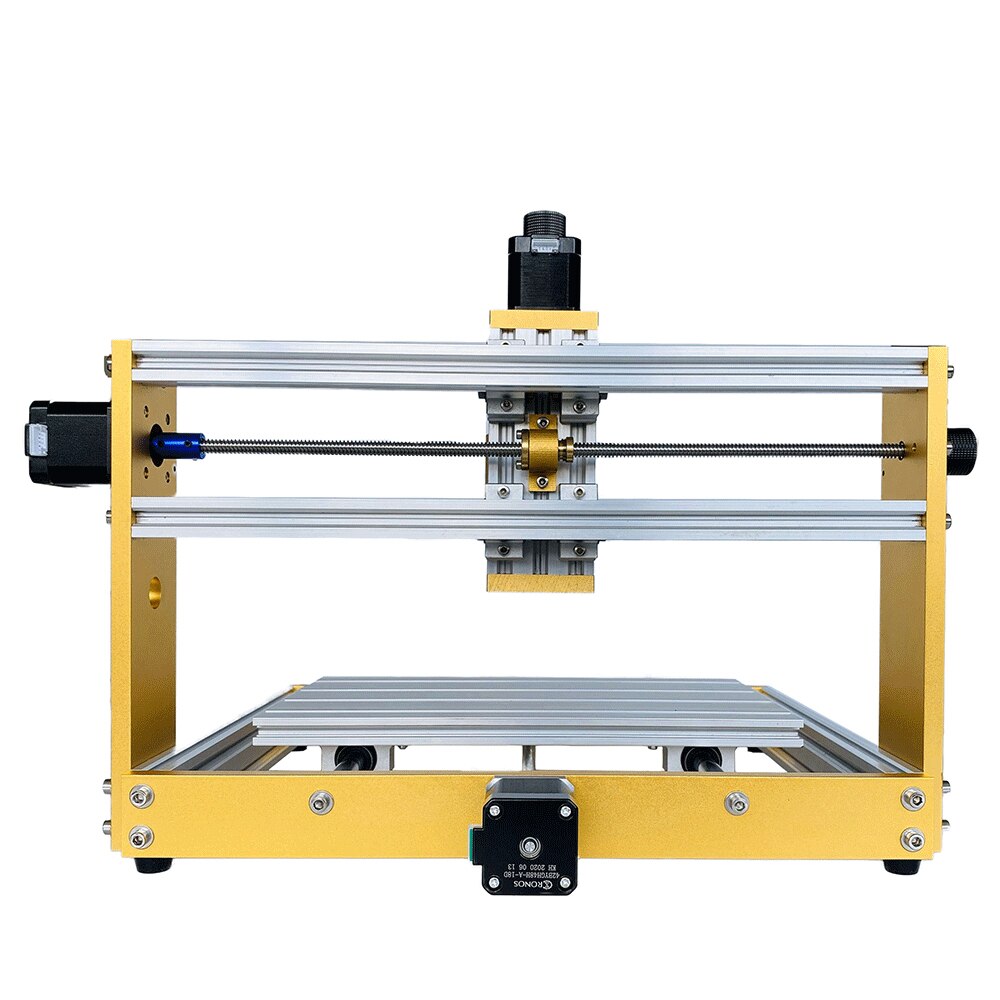

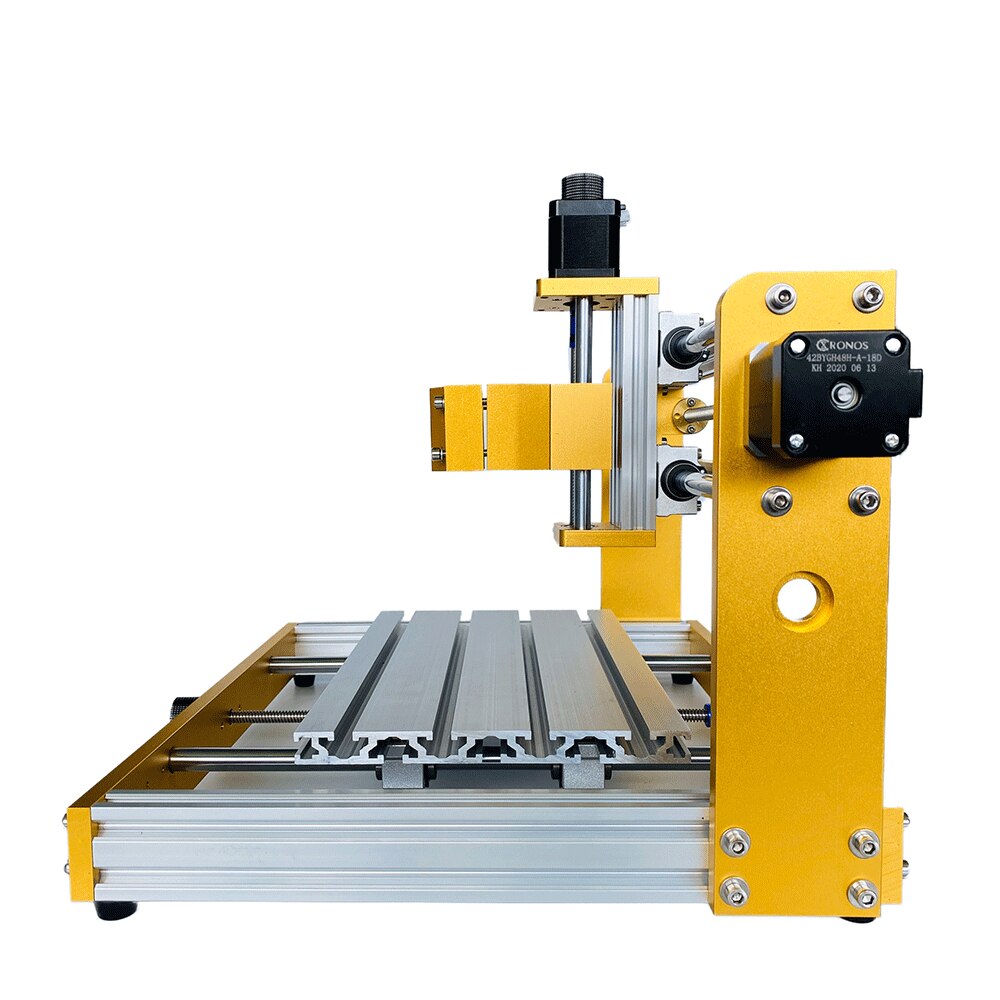

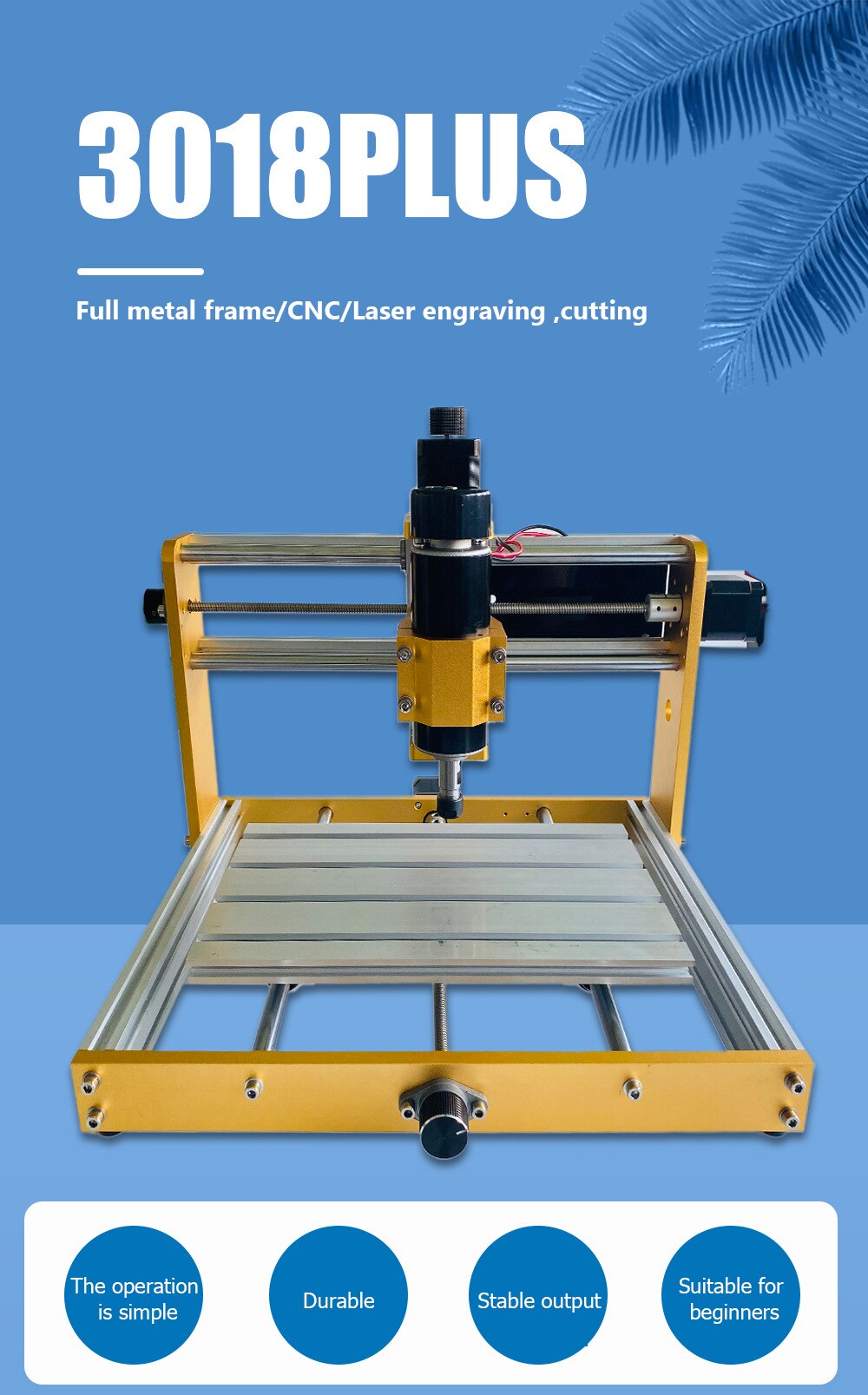

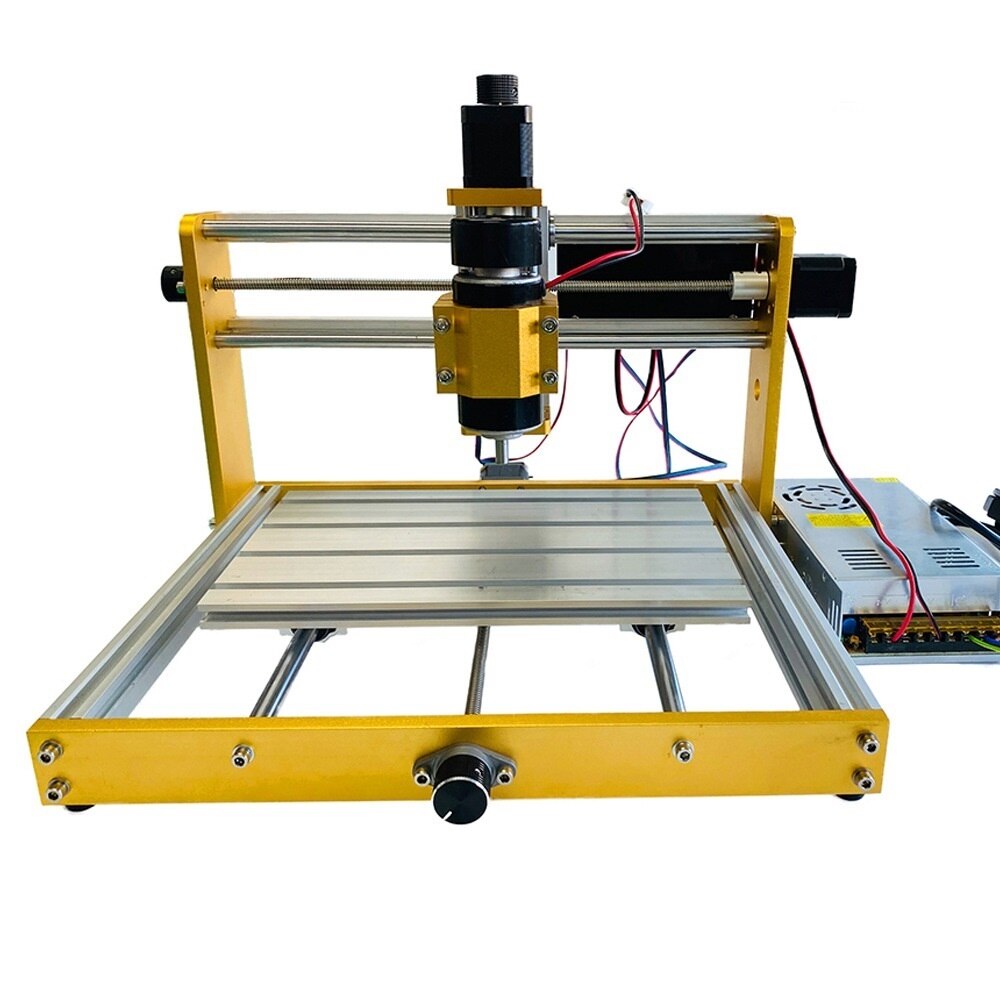

LY CNC 3018 Plus 300W Desktop Wood CNC Router Engraver Kit 52MM Spindle Holder Nema17/23 Stepper Motors with Laser 5.5W 15W

$1,044.17$1,837.28

SKU: 1005002762919895 Category:

Description

  • Origin: CN(Origin)
  • Certification: NONE
  • Condition: New
  • Model Number: LY CNC 3018 Plus
  • CNC or Not: CNC

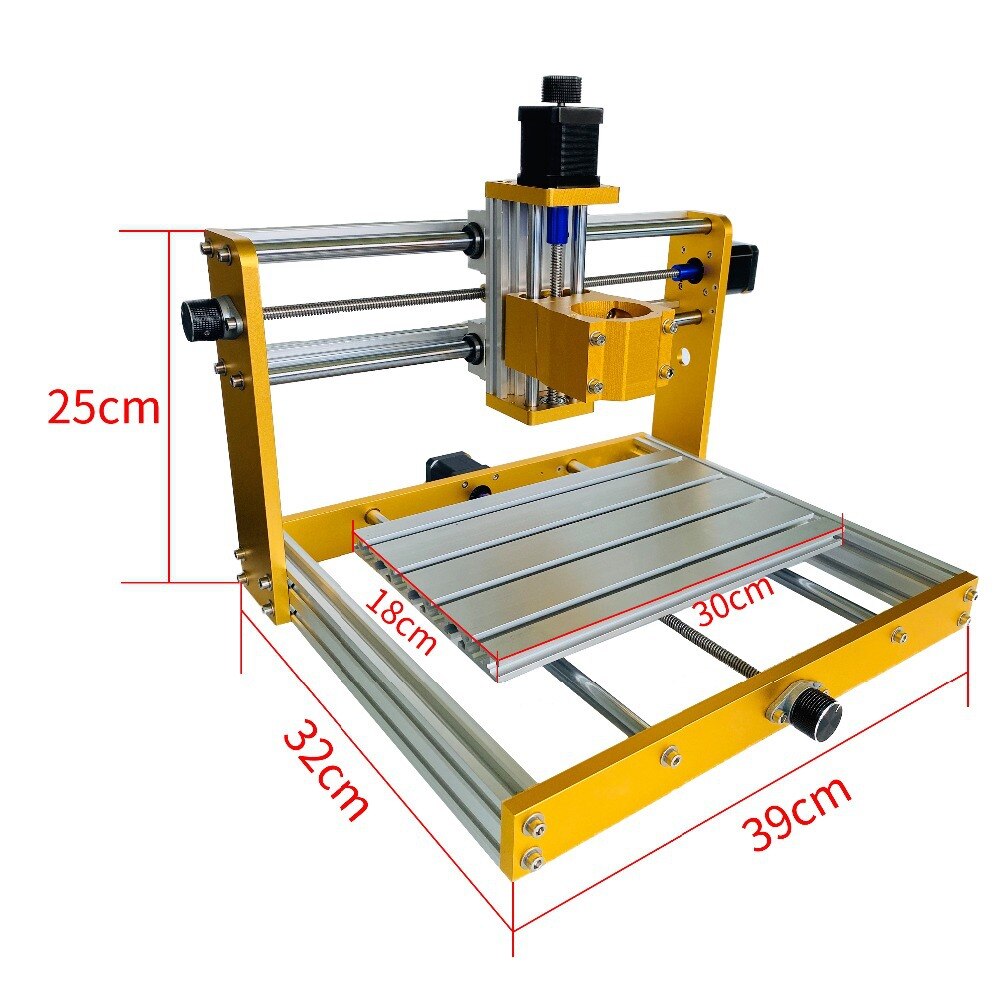

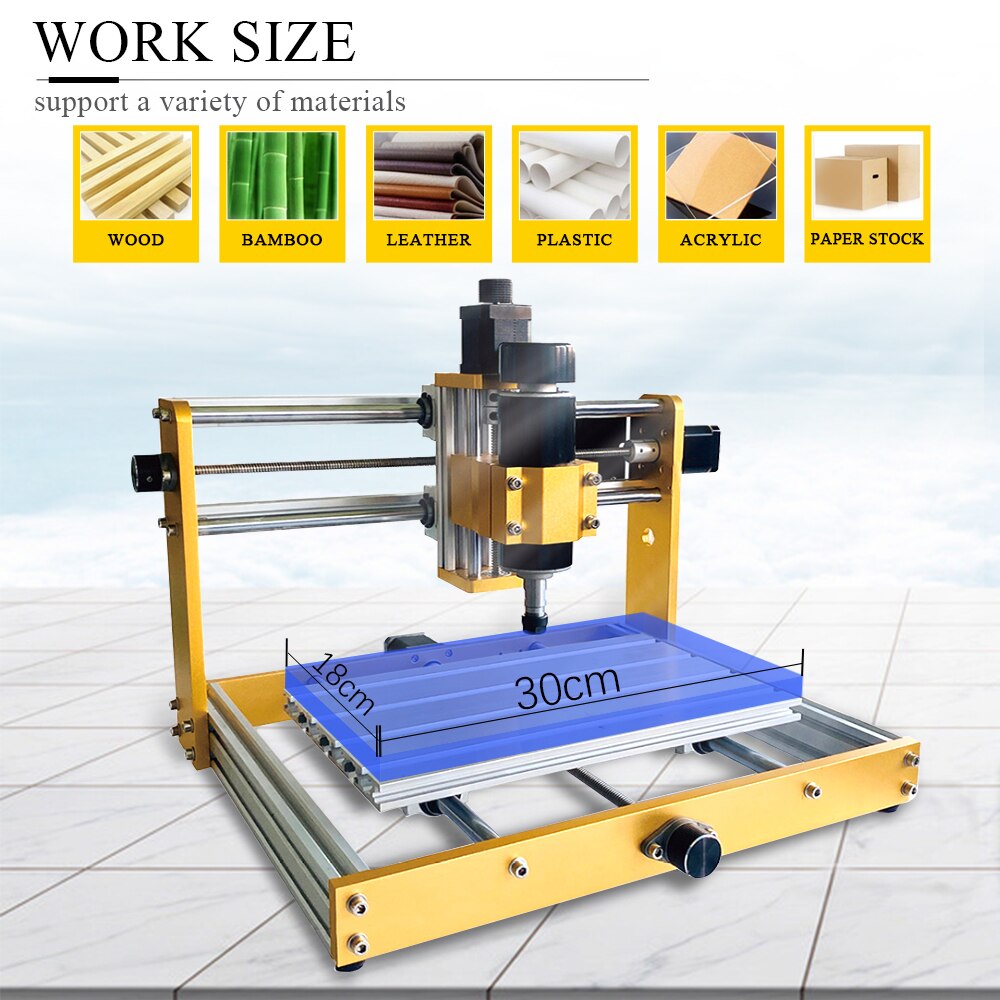

  • XYZ three-axis actual stroke: 300*180*60mm
  • Aluminum Table Size: 300*180mm
  • Material: Aluminum
  • Stepper motor: Nema17 Stepper*3
  • Spindle hole diameter: 52mm
  • Laser module diameter: 40mm
  • Control software: GRBL Control
  • Spindle: 300W
  • Laser: 5.5W/15W/30W Optional
  • Power Supply: 24V 5A
  • Supported System: Windows XP/ Win 7/ Win 8/ Win10

LY CNC 3018 Plus 300W/500W Desktop Wood CNC Router Engraver Kit 52MM Spindle Holder Nema17/23 Stepper Motors With Laser 5.5W 15W 30W Lift platform & Offline Panel optional





LY CNC 3018 Plus 300W/500W Desktop Wood CNC Router Engraver Kit 52MM Spindle Holder Nema17/23 Stepper Motors With Laser 5.5W 15W 30W Lift platform & Offline Panel optional


RE:This kit is disassemble, needs the customer DIY assembling, needs certain electronic and the Mechanical Foundation. Any questions pls feel free to contact us!

Product Description

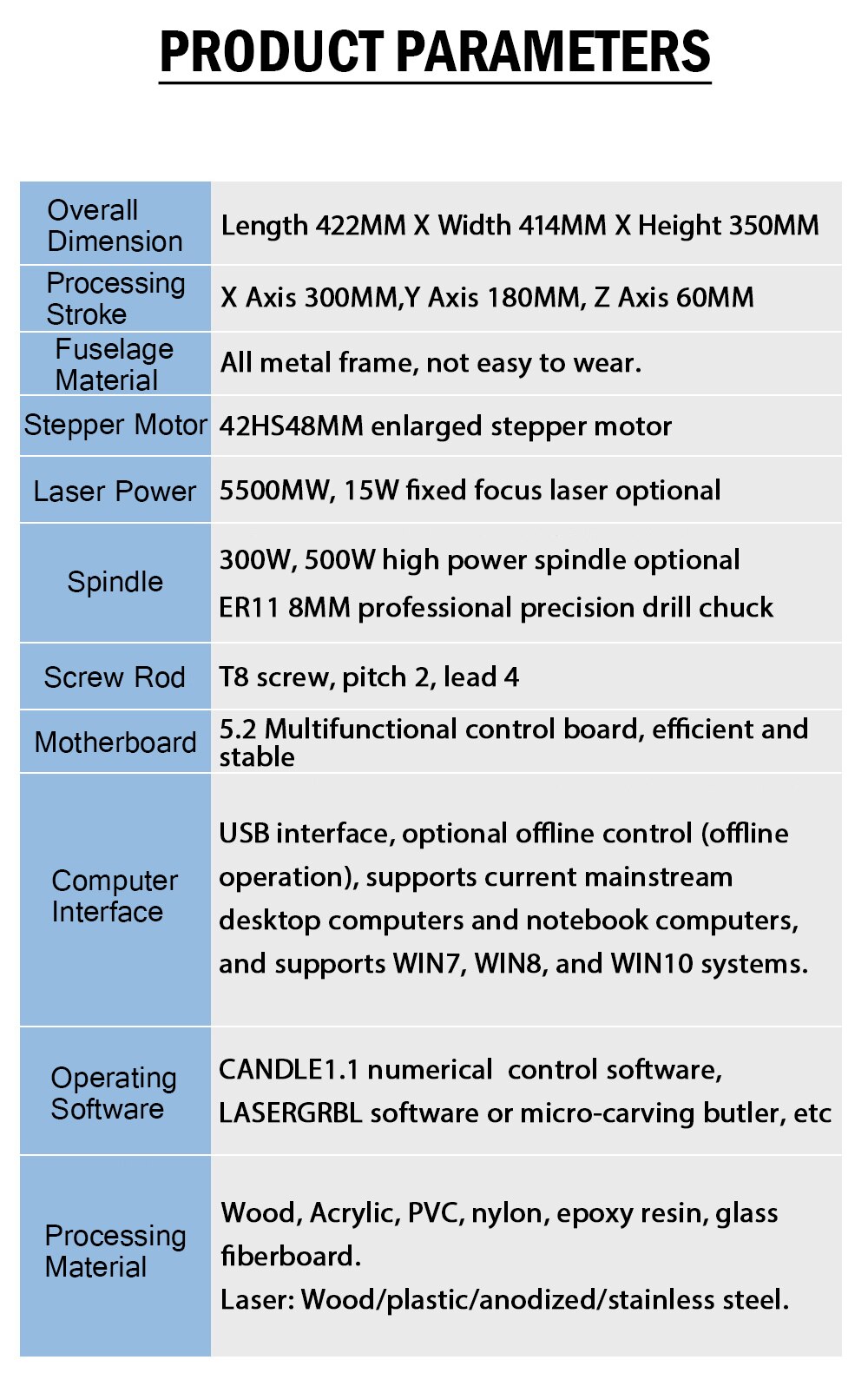

Parameter:

1. XYZ three-axis actual stroke 300*180*60mm

2. Aluminum Table Size 300*180mm

3. Material: Aluminum

4. Stepper motor: Nema17 Stepper*3

5. Screw: T8 stainless steel screw, lead 8MM, POM anti-backlash nut

6. Spindle hole diameter: 52mm

7. Laser module diameter:40mm

8. Control software: GRBL Control

9. Spindle: 300W/500W Optional

10. Laser: 5.5W/15W/30W Optional

11. Power Supply: 24V 5A

12. Supported System: Windows XP/ Win 7/ Win 8/ Win10

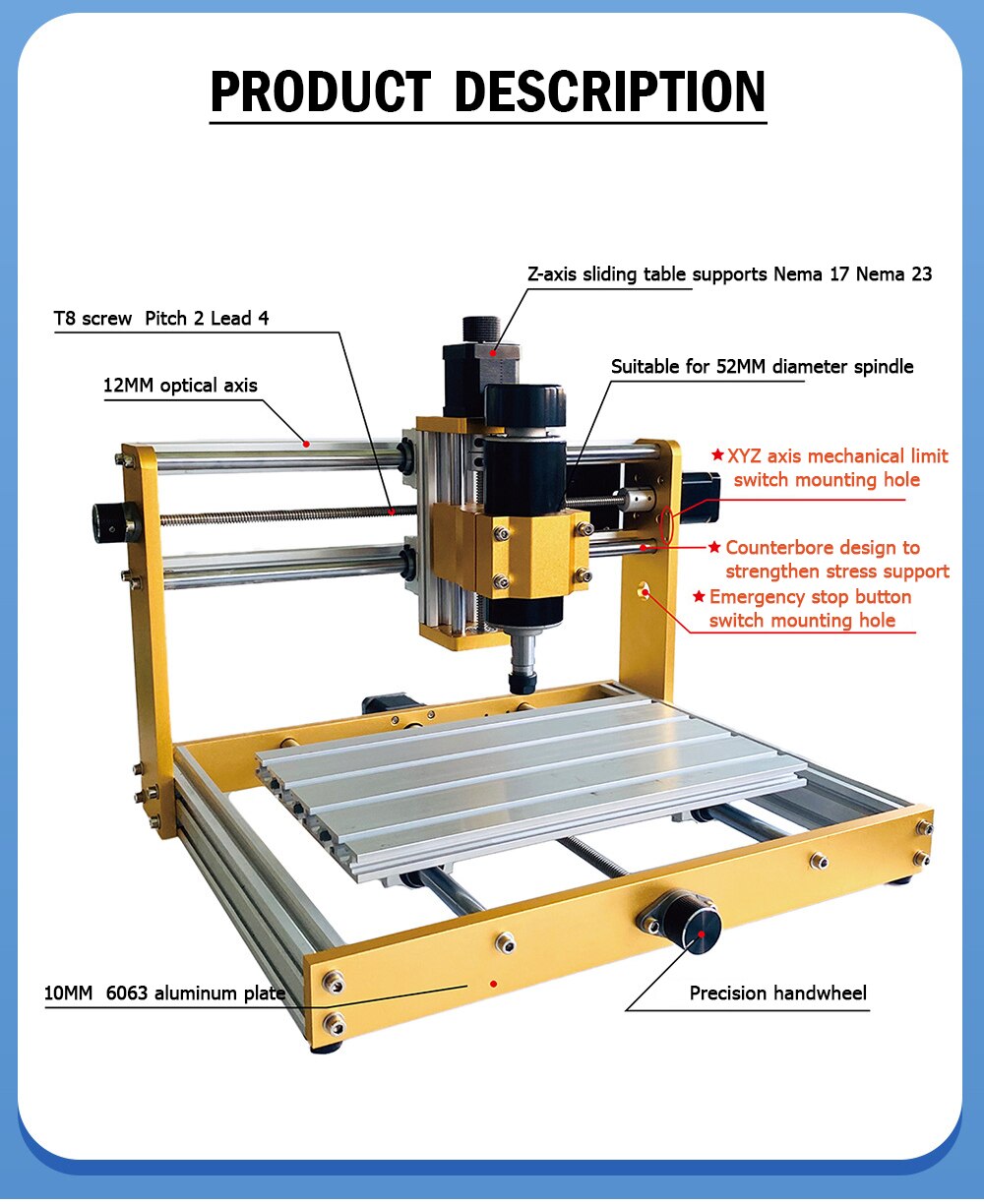

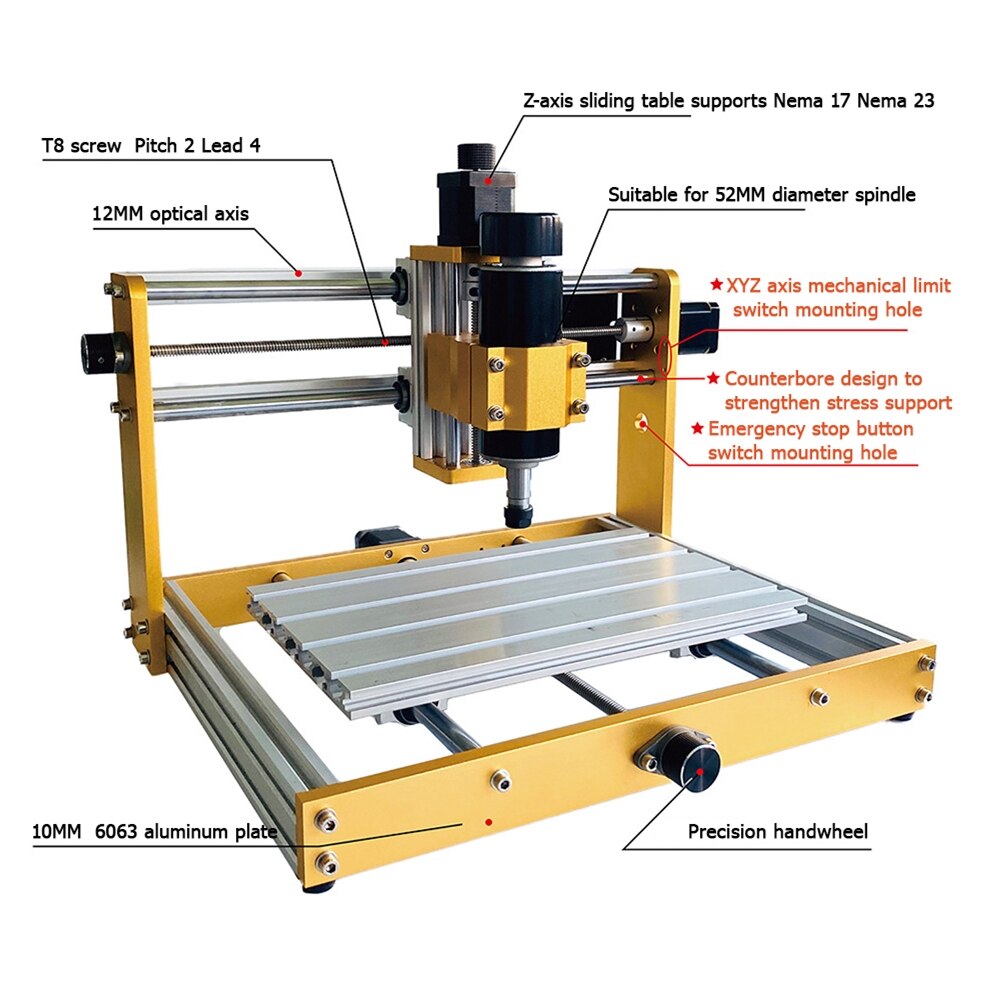

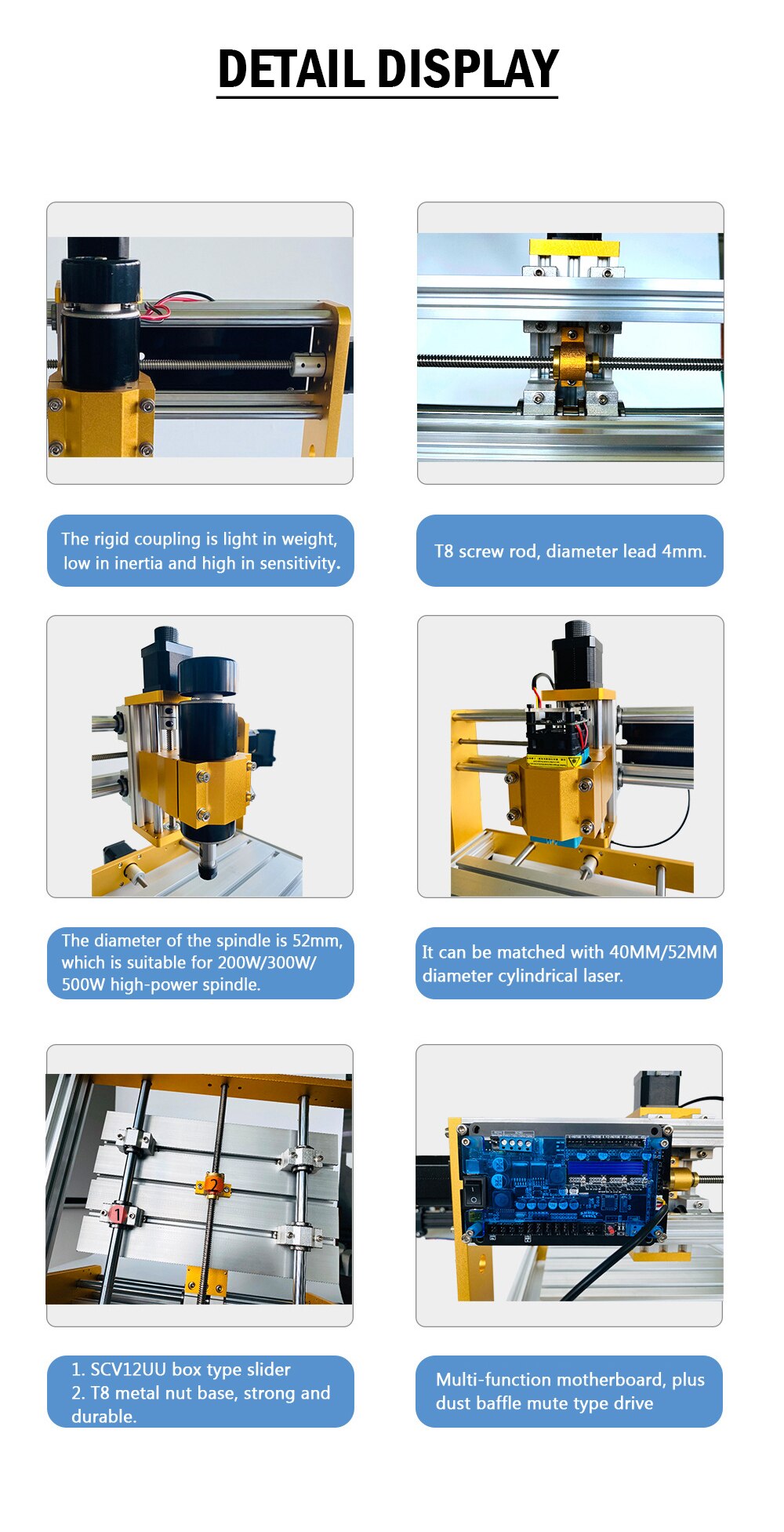

Feature:

1.Foot pads installed at four corners of the machine

2.Screws are equipped with gaskets to protect the machine more

3.Both screws are equipped with knobs, size 8mm

4.Horizontal screw seat, inner diameter 8

5.Full metal oxidation sandblasting

6.12mm optical axis, stable and durable

7.Z axis can be raised and lowered as a whole

PS: Equipped with baffle and emergency stop switch hole


Application:

Laser engraving / CNC drilling

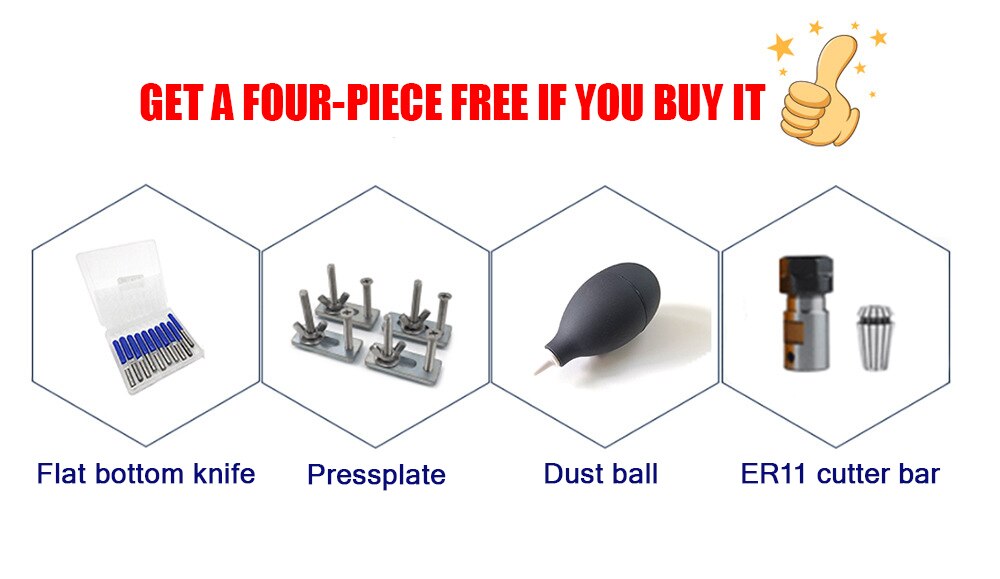

Single Kit Packing List:

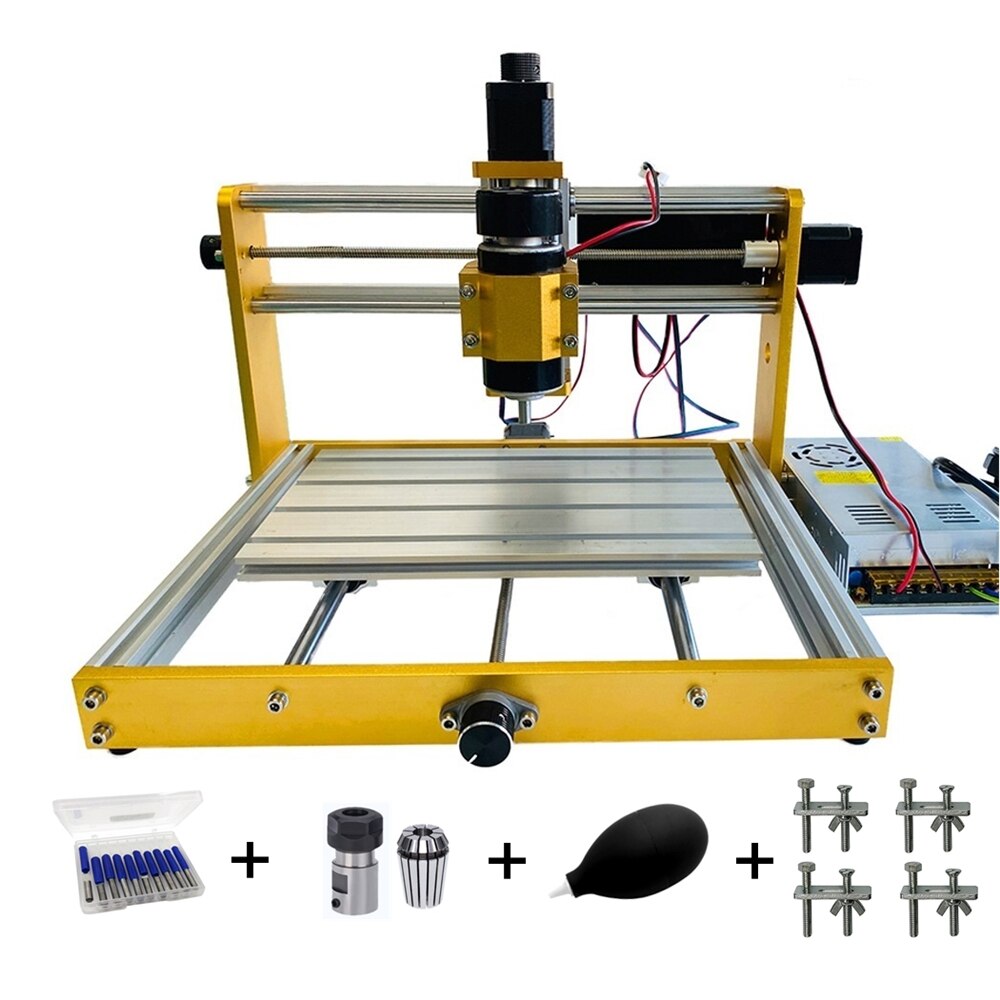

300W Spindle Kit:

  • 3018 Plus Machine Frame*1pc
  • 300W Spindle *1pc
  • 300W Power Supply *1pc

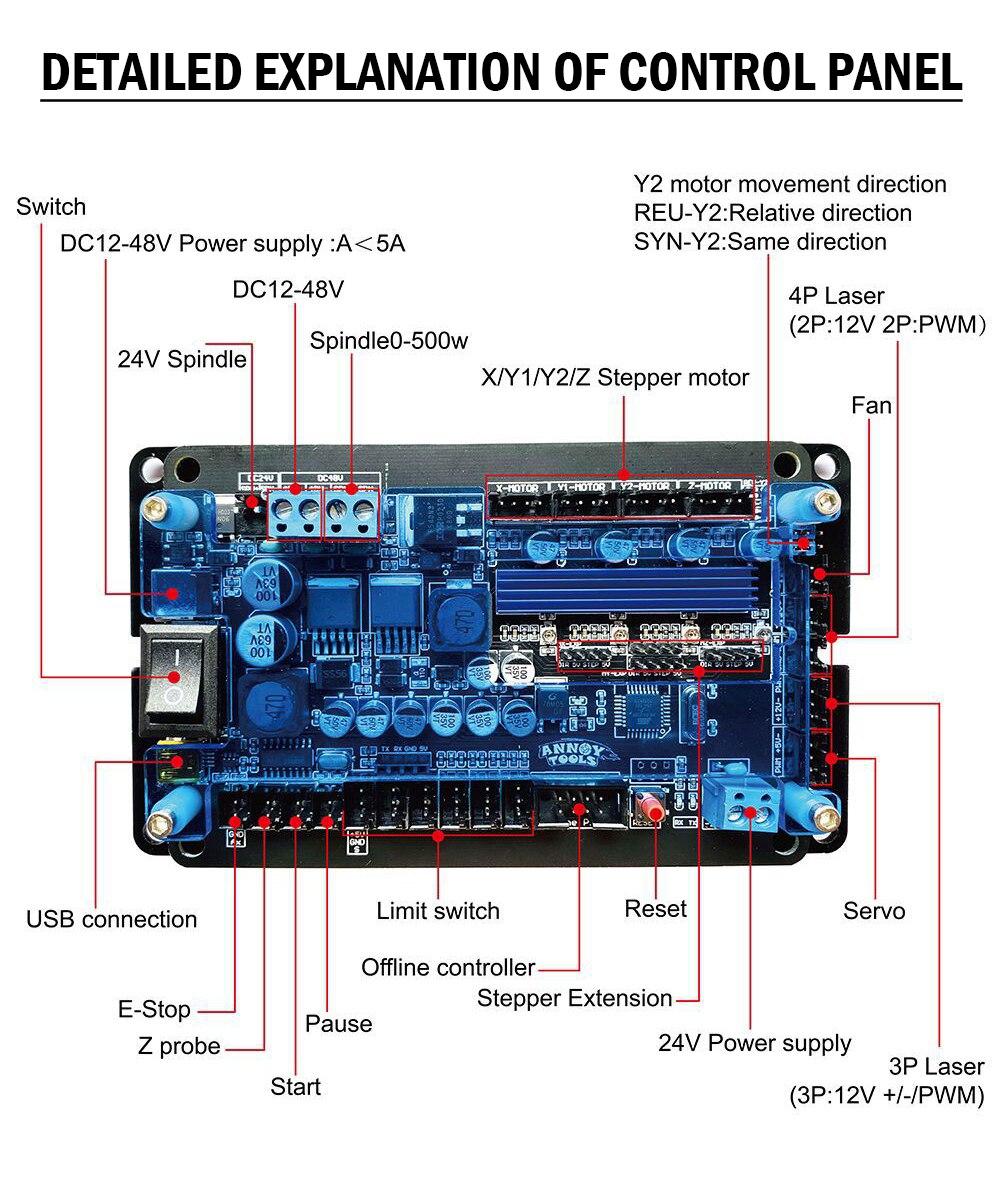

  • 3 Axis Controller *1pc
  • ER11 Chuck 8mm *1pc
  • Collet 3.175mm *1pc
  • Plate * 4Pcs
  • Drill Bit *10pcs
  • Dust Balloon *1


500W Spindle Kit:

  • 3018 Plus Machine Frame*1pc
  • 500W spindle *1pc
  • 500W power supply *1pc
  • 3 axis controller *1pc
  • ER11 chuck 8mm *1pc
  • Collet 3.175mm *1pc
  • Plate * 4Pcs
  • Drill bit *10pcs
  • Dust Balloon *1


Multi-Kits Packing List:

ZH1045

3018 Plus Laser Machine+ 300w

1

12V Laser mould 5.5W(5500MW)-Diameter 40MM

1

ZH1046

3018 Plus Laser Machine+ 300w

1

12V Laser mould 15W(15000MW)-Diameter 40MM

1

10X10CM Lift Platform

1

GRBL Control Offline Handle

1

ZH1047

3018 Plus Laser Machine+ 300w

1

12V Laser mould 30W(30000MW)-Diameter 40MM

1

10X10CM Lift Platform

1

GRBL Control Offline Handle

1

ZH1048

3018 Plus Laser Machine+ 500w

1

12V Laser mould 5.5W(5500MW)-Diameter 40MM

1

ZH1049

3018 Plus Laser Machine+ 500w

1

12V Laser mould 15W(15000MW)-Diameter 40MM

1

10X10CM Lift Platform

1

GRBL Control Offline Handle

1

ZH1050

3018 Plus Laser Machine+ 500w

1

12V Laser mould 30W(30000MW)-Diameter 40MM

1

110X10CM Lift Platform

1

GRBL Control Offline Handle

1
