LY 30W Diode Laser Module 445nm Fixed Focus Laser Engraver size 40mm for Industrial Hobby DIY desktop 3018 Plus Laser CNC Engrav

  • Home
  • LY 30W Diode Laser Module 445nm Fixed Focus Laser Engraver size 40mm for Industrial Hobby DIY desktop 3018 Plus Laser CNC Engrav

LY 30W Diode Laser Module 445nm Fixed Focus Laser Engraver size 40mm for Industrial Hobby DIY desktop 3018 Plus Laser CNC Engrav

$720.65

SKU: 1005001808500904 Category:

Description

  • Type: laser head
  • Origin: CN(Origin)
  • Model Number: for desktop 3018 Plus Laser
  • Material: Copper Aluminum
  • Power: 30W
  • Wave Length: 445nm
  • Input power: 12V 5a
  • Accuracy: 0.02mm
  • Drive Position: Behind

LY 30W Diode Laser Module 445nm Fixed Focus Laser Engraver size 40mm for Industrial Hobby DIY desktop 3018 Plus Laser CNC Engraving Machine Use





Material: Copper + Aluminum

Power: 30W(output power about 10W)

Wave Length: 445nm

Input power:12V 5a

Accuracy: 0.02mm

Drive Position: Behind



  • Is the Power Adjustable: PWM can be adjusted/software can control to adjust
  • Drive Protection: Surge protection, overvoltage protection
  • Control Line Installation Method: Pluggable 3pin (Red: 12V, Black: GND, Yellow: PWM)
  • Focus Range: 2cm
  • Power can be adjusted manually
  • Can display temperature/power
  •
  •
  • Lifetime: 10000-20000 Hours

Warranty Period: 1-year

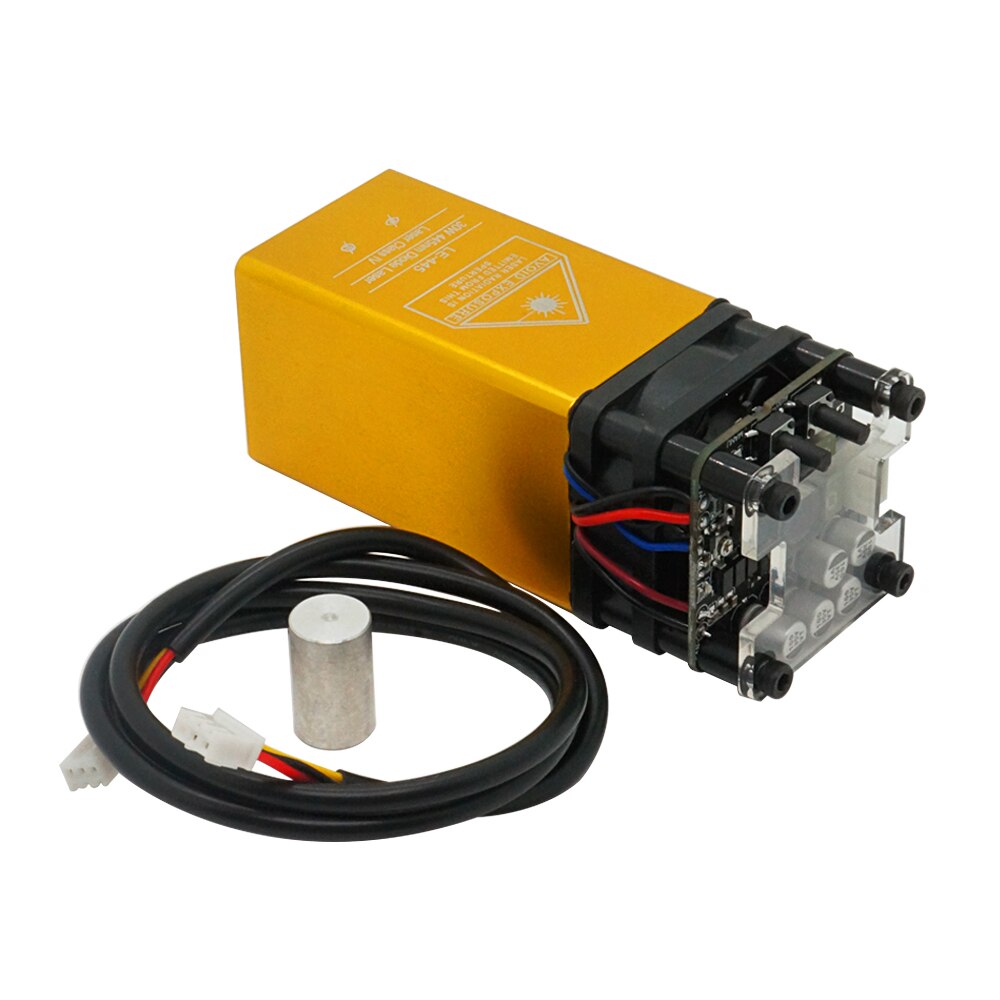

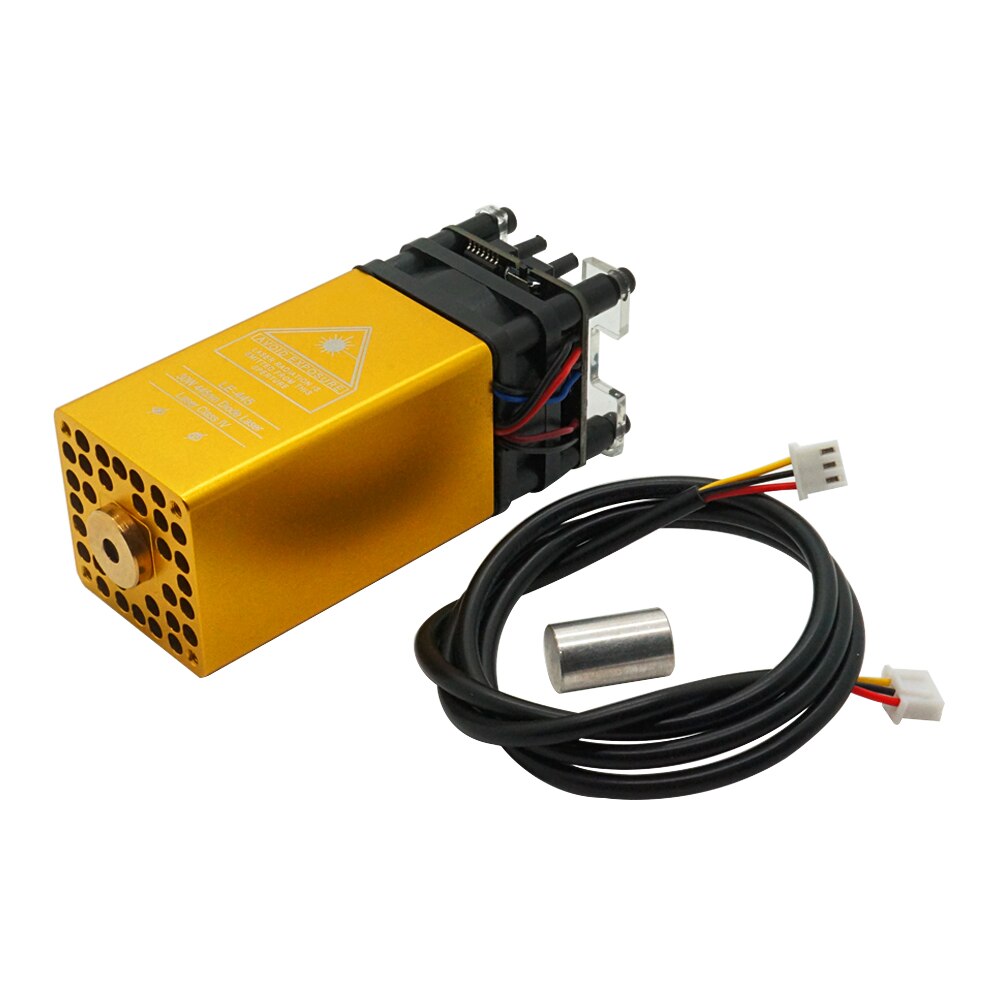

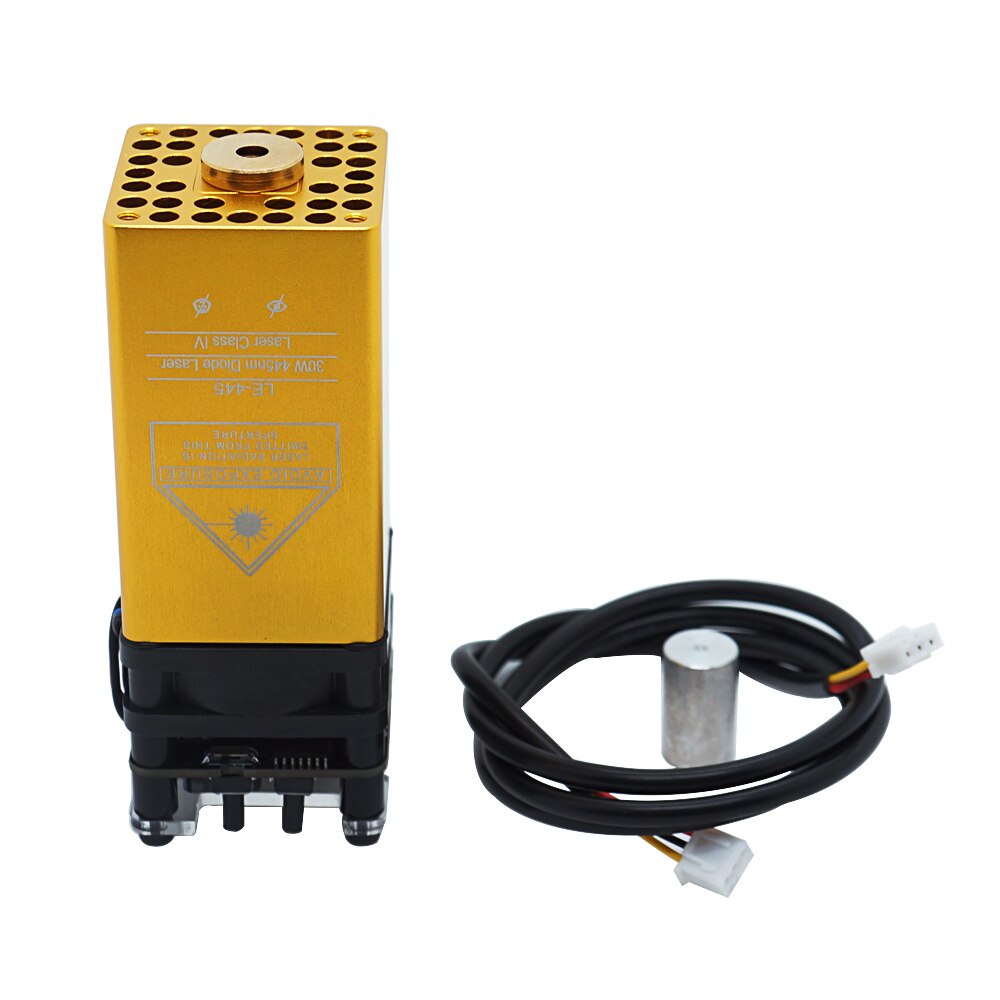

Packing List:

1*30W laser

1*glasses

1* 3pin-3pin cable

1* 3pin-4pin cable

1* Focusing column2cm)
