LV3000U Industrial Barcode Scanner Fixed mount QR Reader for Smart Cabinet Kiosk 1D 2D PCB Datamatrix PDF417 Scanner Module

$210.50

SKU: 3574018018651 Category:

Description

LV3000U Industrial Barcode Scanner Fixed mount QR Reader  for Smart Cabinet Kiosk 1D 2D PCB Datamatrix PDF417  Scanner Module

Product introduction

 1D QR IP54 rated LV3000U barcode scanner description:

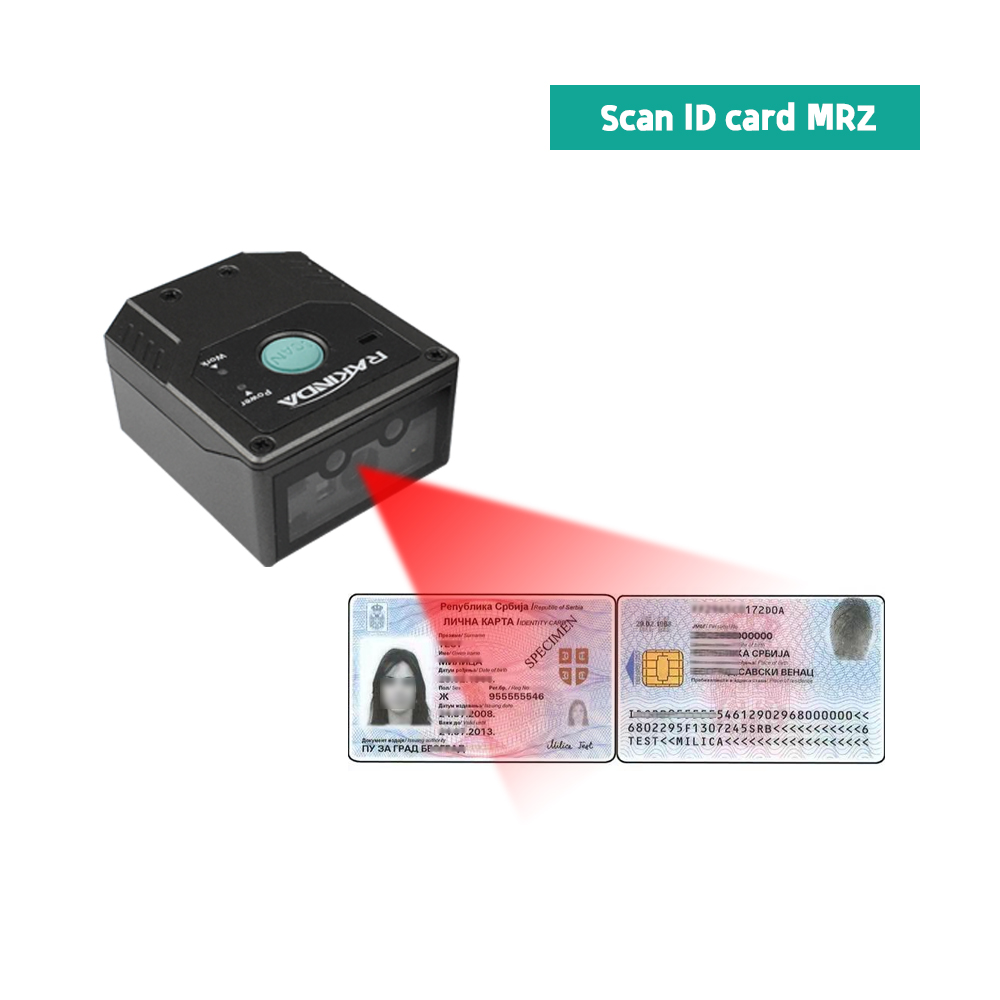

     Rakinda hot fixed mount scanner LV3000U, support USB/RS232 port, Support Sense mode, trigger mode and continuous mode, can fast scan 1d/QR,passport OCR MRZ, Datamatrix, PDF417 AZTEC Barcode, IP rated is IP54, suitable for kiosk or Cabinet or ATM self-service machine or Parcel lockers, and you can fix it on the conveyor belt to scan moving barcode.



USB/RS232 port LV300U Passport OCR reader main features:
1: IR/Light Triggers: The combination of IR sensor and light sensor exhibits an improved sensitivity

in activating the scanner to scan barcodes as they are presented to achieve higher throughput and productivity.



2: Automatic Exposure Control(AEC): The sensors in the LV3000U automatically adjust the brightness

of supplementary lighting based on the light reflected off barcode.



3:IP54-sealed Housing: The LV3000U is environmentally sealed to an IP54 rating to prevent dust,

mositure and other contaminant from entering it.

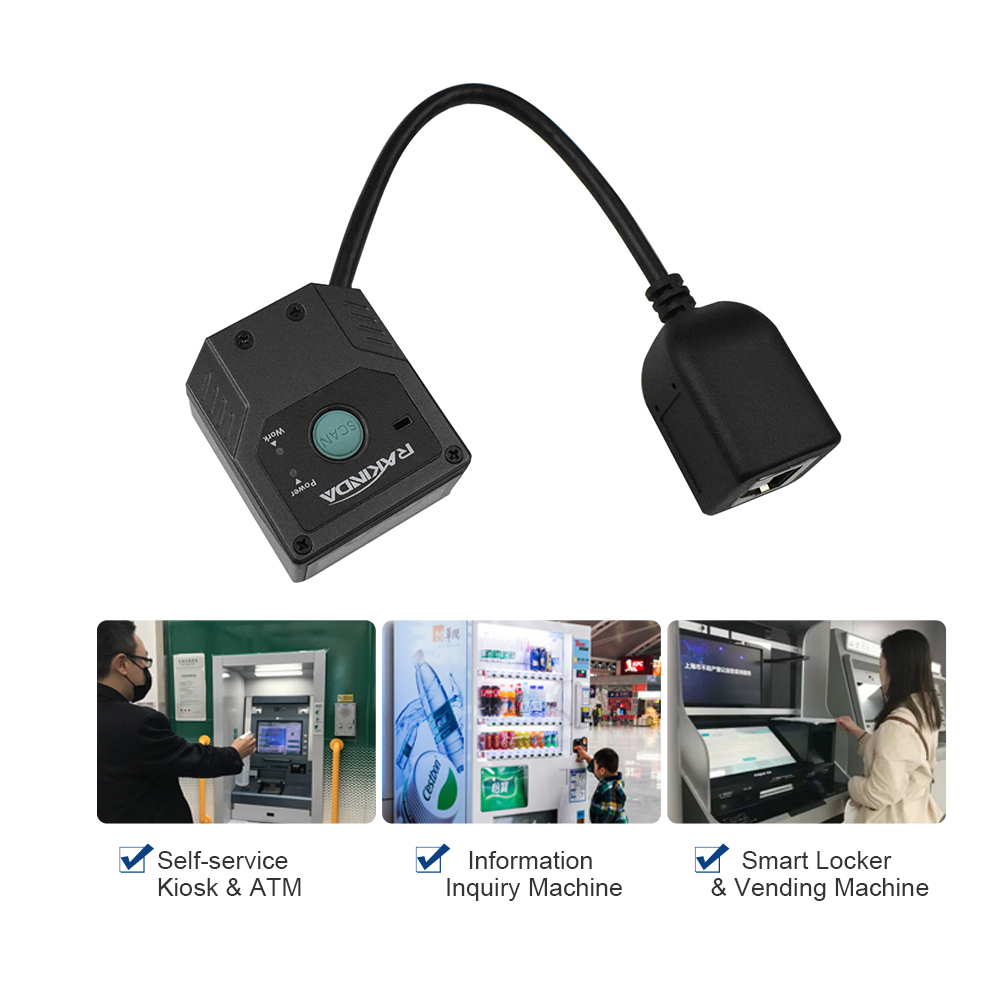

CMOS LV3000U Scanner  Application scenarios:

Self-service cabinets used in e-commerce, express delivery services and smart homes;

ticket validators; kiosks; barrier gates; Parcel lockers, O2O applications.

 Compatible OS: Android, Windows, Linux



Contact me:

Tel/Whatsapp : +86-15173128923

Skype: live:8278c52ce2811302

Wechat: may050123



Parameters:

Product name Fixed Mount 2D Barcode Scanner
Item number LV3000U

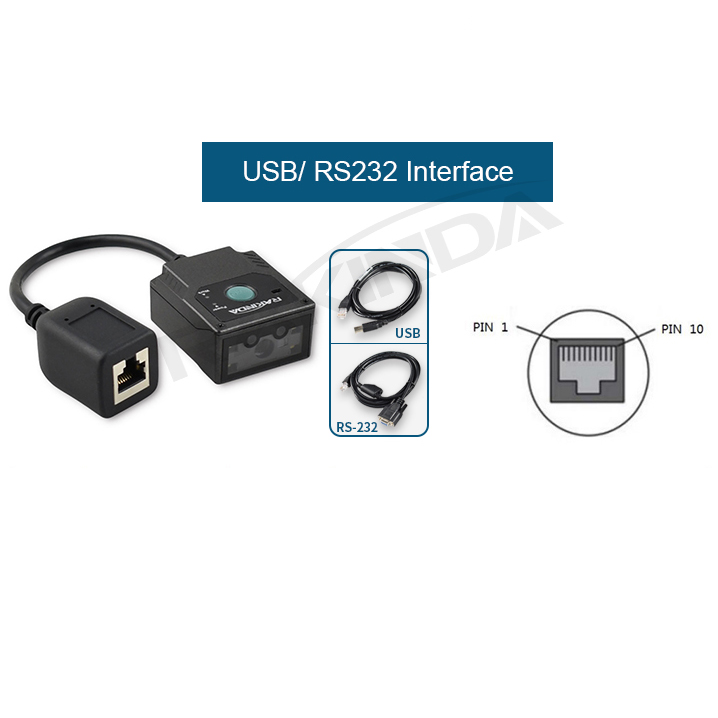

Interface RS232/ USB
Image Sensor 1280x 800CMOS

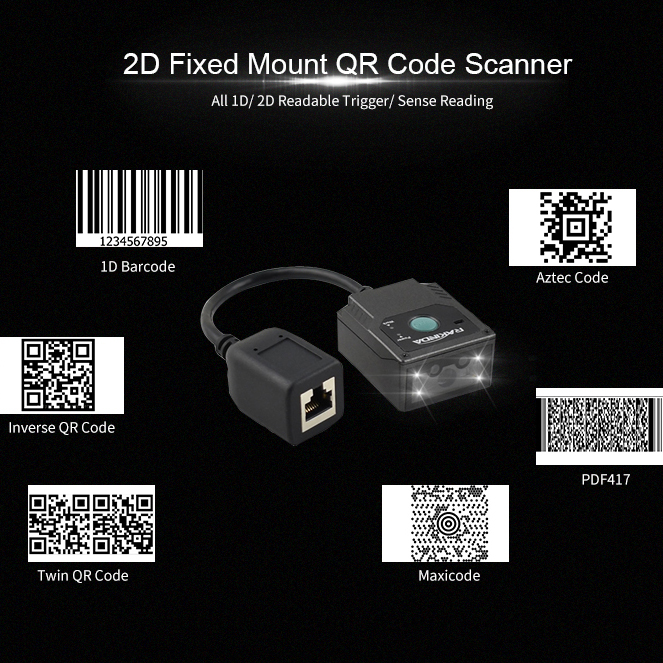

Symbologies

2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc.

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 3 mil
Light Source

White LED

Laser Diode or green LED

Scan Mode Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop 1.5m
Power Consumption 1622mW (Typical)
Weight 75g
Dimensions 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification Beep, LED Indicator
Operating Temperature -20 ℃ to +60 ℃
Storage Temperature -40 ℃ to +70 ℃
Humidity 5% – 95% ( non-condensing )
Sealing IP54
Certification FCC Part15 Class B, CE EMC Class B
