Description
- Brand Name: NoEnName_Null
- Certification: CE
- Origin: CN(Origin)

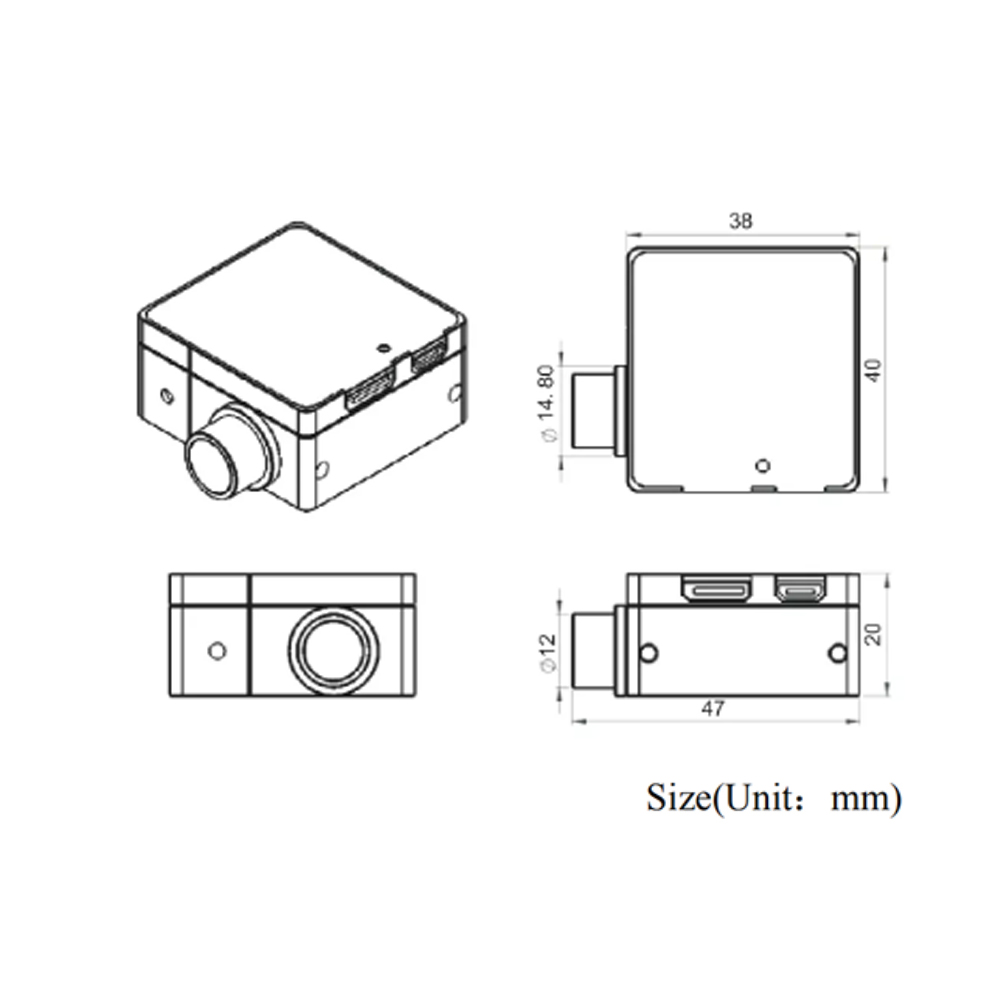

- Size: 138.5*81*23cm

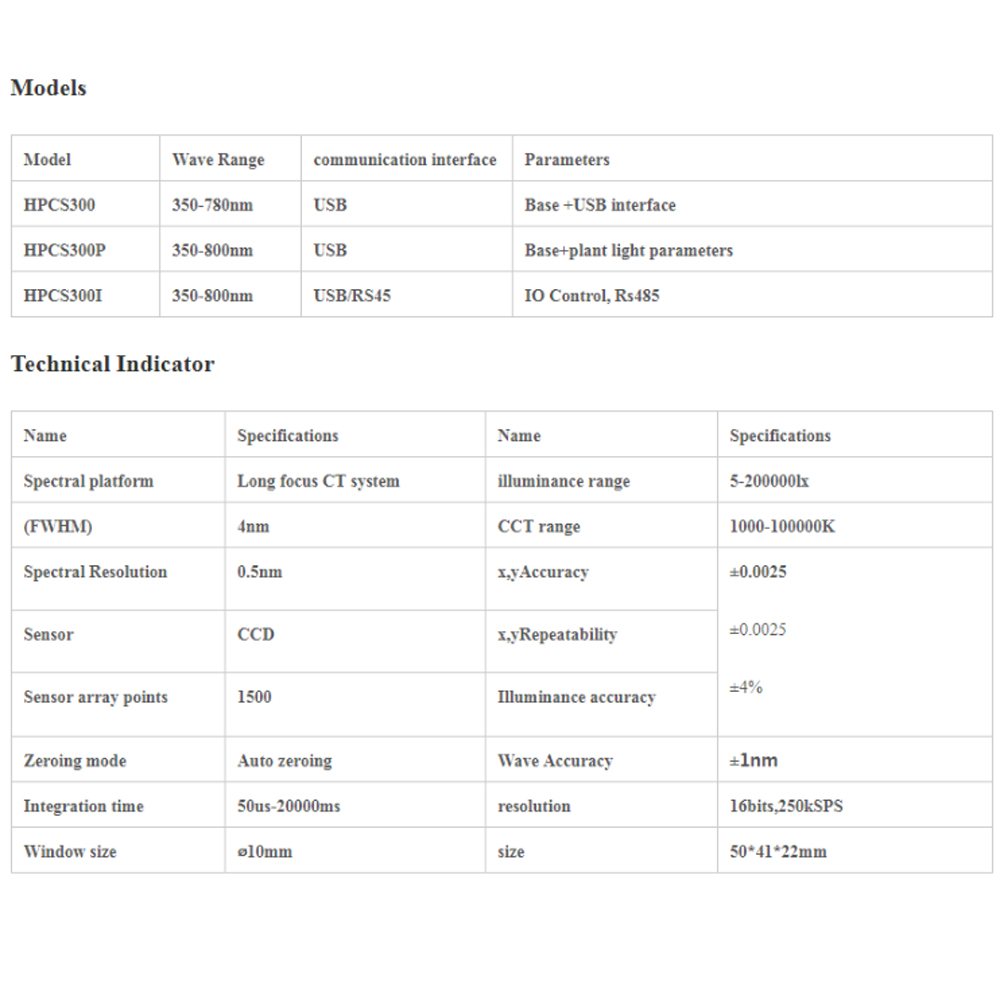

- Model Number: HPCS-300I
- Focal Length: 2mm
- Weight: 430
- Wavelength Range: 380-780nm
- Type: Single Beam Spectrometers
- Measurement Range: 380-780nm

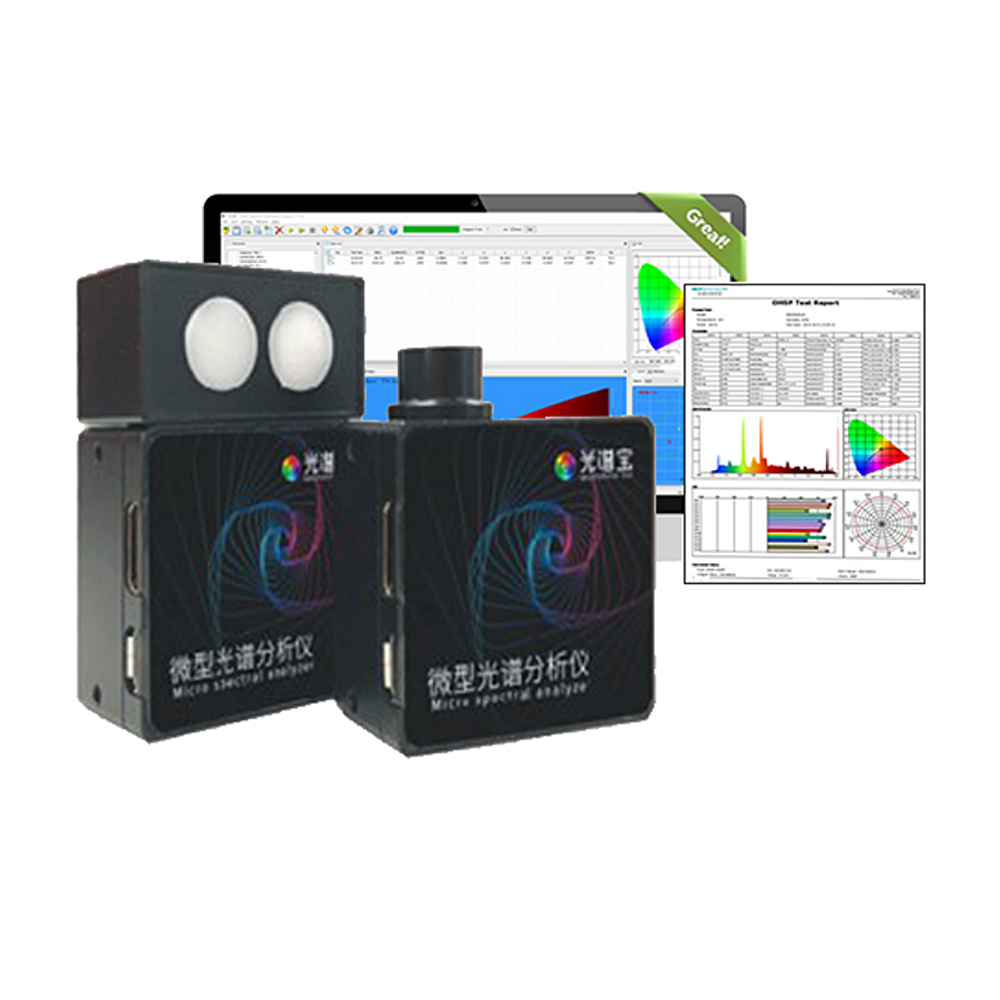

- Product name: LED lux Spectrometer
- Wavelength accuracy: 1nm
- Spectral bandwidth: 4nm
- Stray light: 0.3%
- Detector: CCD
- CCT range: 1000~100000K
- Display: 5 Inches LCD
- Certificate: Certificate
- Application: Led Spectrometer
- Warranty: 2 YEARS
PRODUCT DESCRIPTION
OHSP-350 series external interface description
1、 This description is only valid for OHSP-250X/350X series devices with external interfaces. This interface is added on the
basis of the original OHSP series equipment. The equipment with external interface can have the following functions:
2、 1. External input trigger function; that is, the remote test function can be realized through the external interface.
3、 2. 485 communication function; this external interface supports ultra-long-distance RS485 half-duplex communication.
4、 3. Switch signal output function; this interface can provide two switch signal output.
5、 4. External power supply; this interface can directly supply power to the device, which is convenient for devices without batteries.
Note 1: Mode 1 and Mode 2 can be set on the device. The specific operation is to enter Settings -> Measurement Settings ->
Input and Output Settings and select Mode 1 or Mode 2.
Note 2: The 120R terminal matching resistance is not connected inside the RS485 interface.
