Description
- Brand Name: NoEnName_Null
- Origin: CN(Origin)
- Certification: CE
- Model Number: HPCS320
- Wavelength Range: 380-780nm
- Measurement Range: 380-780nm
- Warranty: 1 year

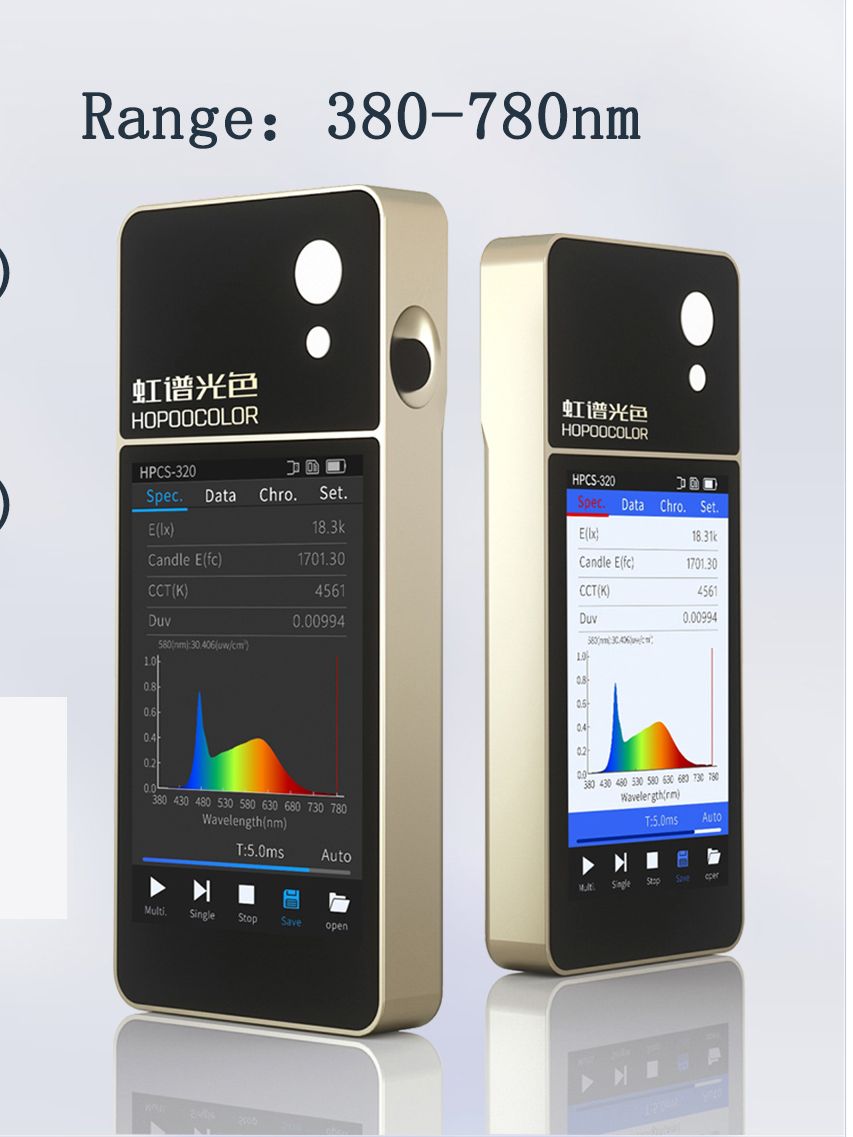

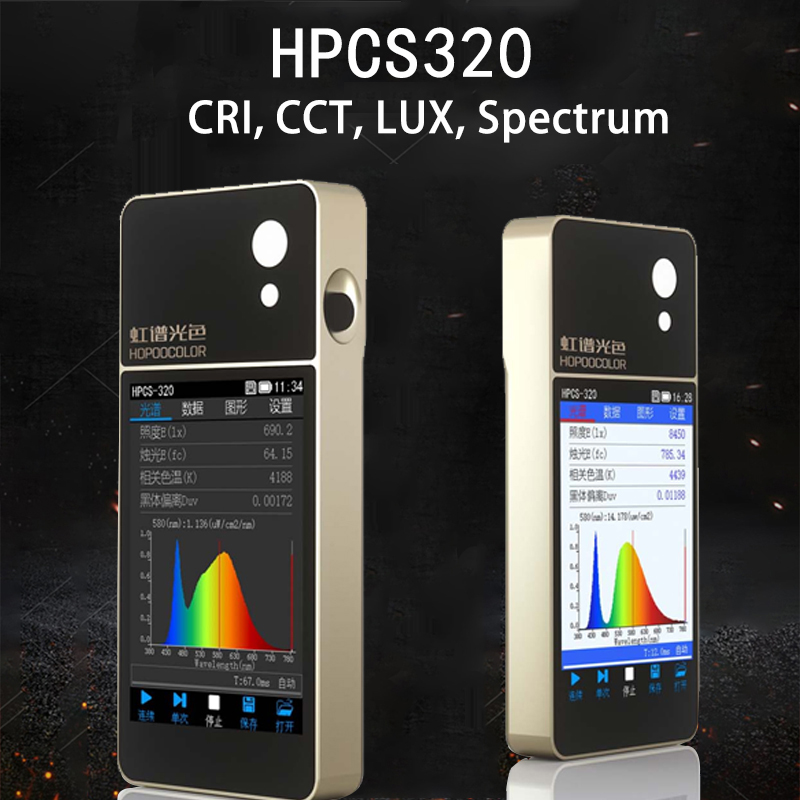

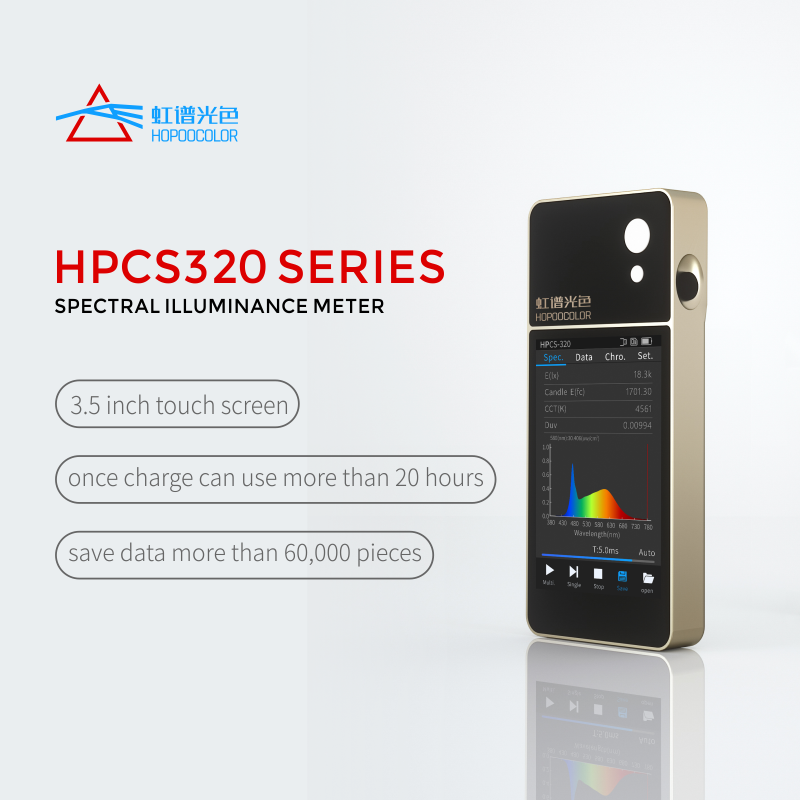

HPCS320 cri meter spectrometer

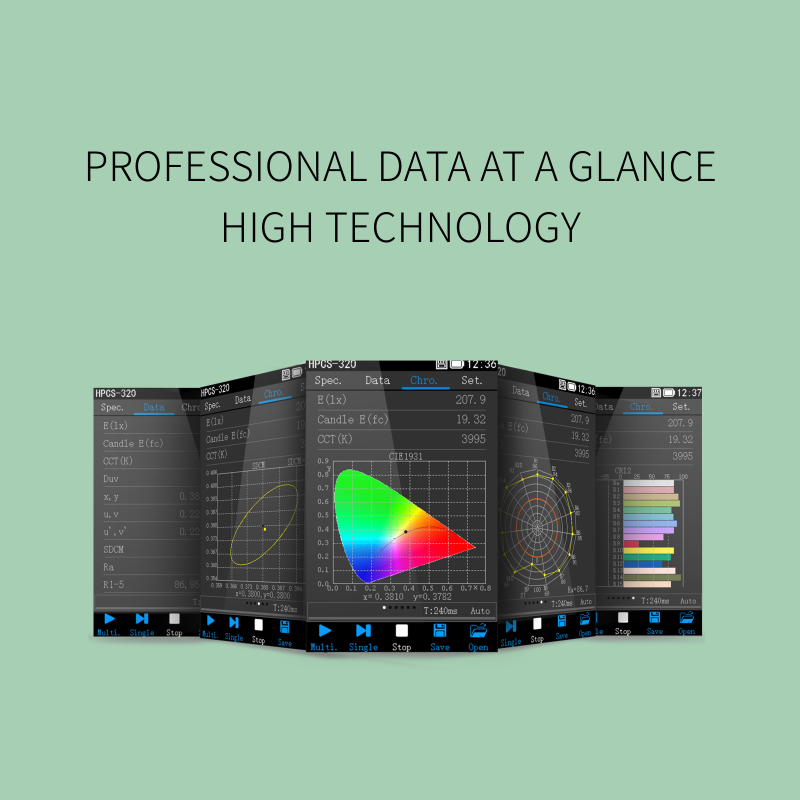

HPCS-320 Spectral irradiancecolorimeter, integrated spectrum,CCT, CRI, Lux etc. parameters in one. With 5 inchtouch screen, Real-time displayof measurement parameters andcurves, use convenient and fast.not only measure LED wide spectrumlight source , but also measure CFL, HID narrow spectrum light
source.
Product parameters
Model
|
HPCS-320
|
Wavelength range
|
380nm ~780nm
|
Light Splitting Mode
|
long focal cross section
|
Sensor
|
High precision CCD
|
Spectral Bandwidth (FWHM)
|
4nm
|
Spectral Resolution
|
0.2nm X, Y repetitive ±0.0005
|
Wavelength Accuracy
|
±0.5nm
|
Illuminantion Accuracy
|
(±4% Reading +1 Digital)
|
Integrating Time
|
50μs~10000ms
|
Chromaticity Coordinate Accuracy
|
±0.0025.
|
CCT Range
|
1,000K~ 100,000K
|
Stray Light
|
≤0.3%
|
Illuminance Range
|
10lx~200klx
|
compare with OHSP350C:
OHSP350C can test irradiance mW/cm2; but HPCS320 cannot
the accuracy of OHSP350C better than HPCS320, and the warranty of OHSP350C is 2 years,
but HPCS320 is 1 year.
for click OHSP350C model
