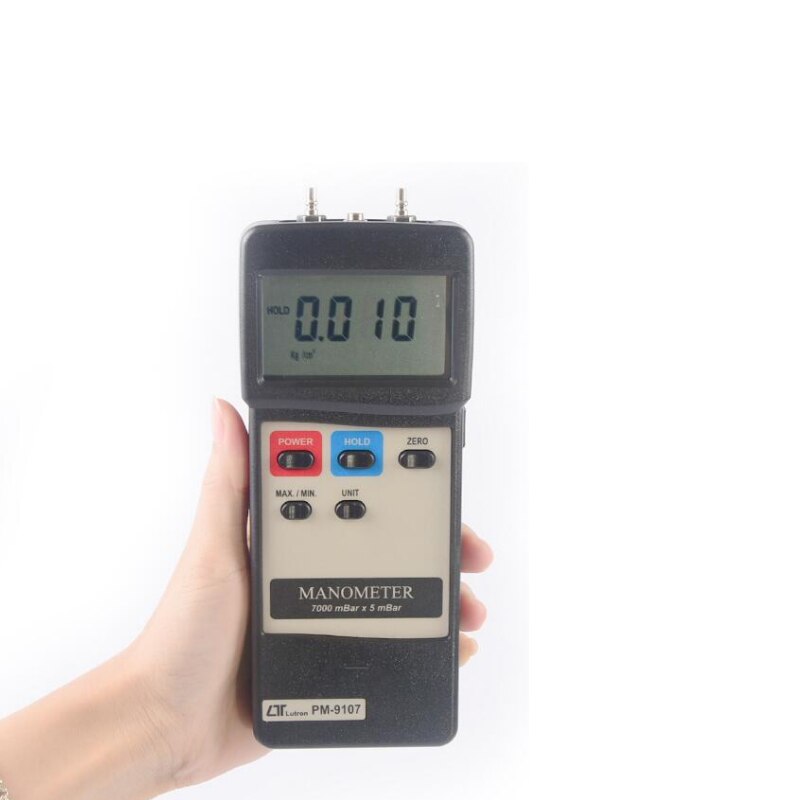

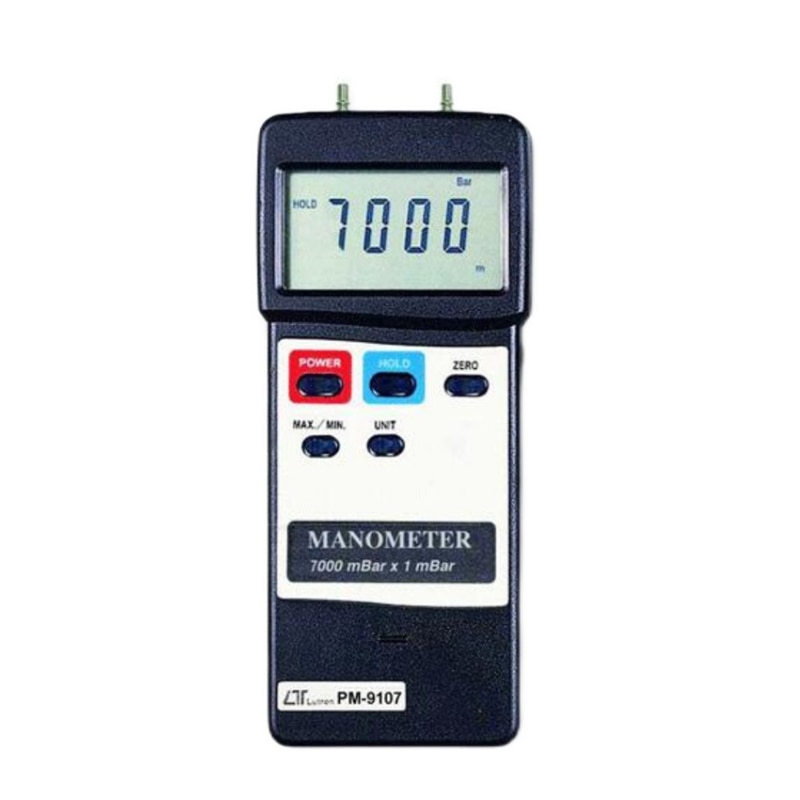

LUTRON PM-9107 PM9107 Handheld High-Precision Digital Manometer Pressure Gauge Pressure Difference Meter

  • Home
  • LUTRON PM-9107 PM9107 Handheld High-Precision Digital Manometer Pressure Gauge Pressure Difference Meter
Sale!

LUTRON PM-9107 PM9107 Handheld High-Precision Digital Manometer Pressure Gauge Pressure Difference Meter

$523.60

SKU: 3256804399759488 Category:

Description

  • Brand Name: NoEnName_Null
  • Origin: Taiwan China
  • Display Type: DIGITAL
  • Model Number: PM-9107
  • Certification: CE
  • Max Measuring Range: 200 PSI & Above
  • Dial Diameter: 2 – 3.9 Inches
  • Package: Yes

LUTRON PM-9107 PM9107 Handheld High-Precision Digital Manometer Pressure Gauge

Pressure Difference Meter

Features:

1. Measuring range:

PM-9107: 0~7000mbar (mbar)

2. Dual pressure sensors, which can measure pressure and differential pressure

3. Accuracy: ±2%

4. Dual pressure sensors, which can measure pressure and differential pressure

5. Eight kinds of unit selection switch:

mbar,psi,Kg/cm?,mm/Hg,inch/Hg

meter/H2O,inch/H2O,Atmosphere

6. Lock the reading and record the maximum/minimum value in the measurement

7. RS-232/USB computer connection (optional)

8. Size: 180×72×32mm


Sepecifications:

Monitor

Character height 15mm (0.6″) 61mm x 34mm LCD screen

Sampling time

about 0.8 seconds

Operating ambient temperature

0 to 50℃ (32 to 122℉)

Operating environment humidity

Below 80%RH

Working power

DC9V~30V

weight

345g/0.76lb

Size

180 x 72 x 32mm(7.1 x 2.8 x 1.3inch)



Unit

Maximum range

Resolution

Accuracy

mbar

7000 mbar

5 mbar

±2% full scale

psi

101.5psi

0.5psi

Kg/cm^2

7.135Kg/cm^2

0.005Kg/cm^2

mm/Hg

5250mm/Hg

5mm/Hg

inch/Hg

206.7inch/Hg

0.1inch/Hg

meter/H2O

71.35meter/H2O

0.05meter/H2O

inch/H2O

2810inch/H2O

2inch/H2O

Atmosphere

6.905Atmosphere

0.005Atmosphere

Notice:

The standard package don’t include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.Thanks for your support!
