Description
- Size: 5 5/16″ * 3 9/16″ * 3 9/16″ (135 x 90 x 90mm)
- Model Number: LS603II
- Measurement Model: 2 lines
- Brand Name: NoEnName_Null
- Wavelength: 635nm
- Type: Line Lasers
- Precision: /-1.5mm/5m

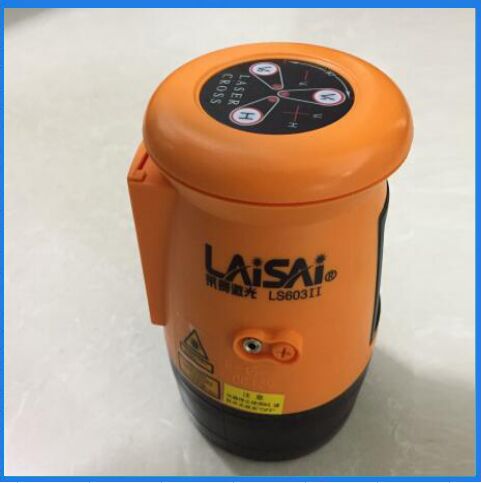

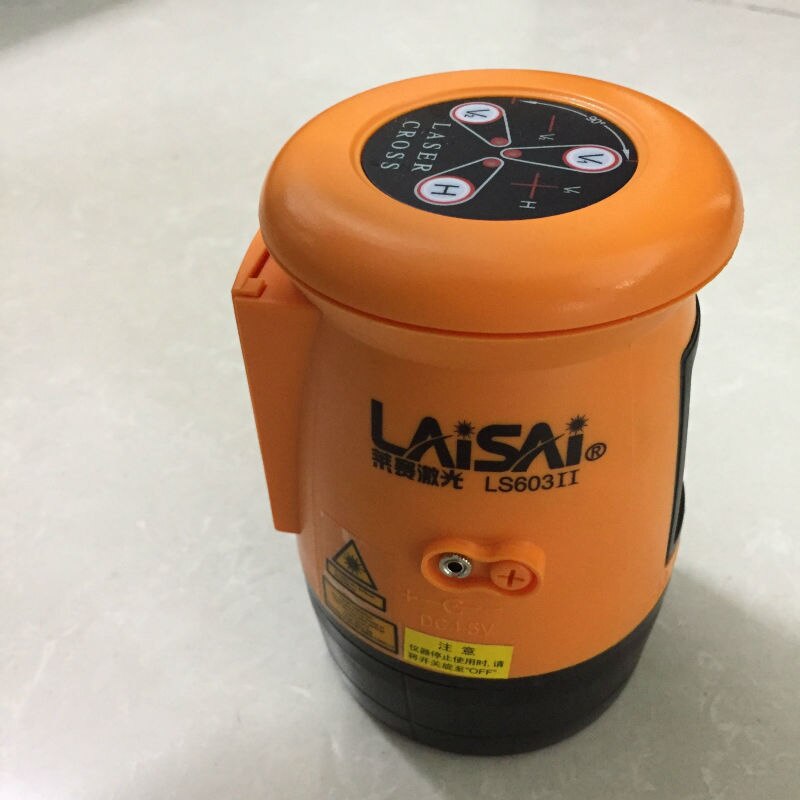

LS603II Seif-Leveling Laser Marker One Cross line & One Vertical Line Free Shipping with LS306 Laser Glasses Magnetic Target
Extended from our early product LS602, LS603II offers additional one more vertical line at 90, improved compensating system for self-leveling speed, beyond-self-leveling indication and warning function, and user calibration function. Power switch on/off can simultaneously unlock/lock compensating system for long-term usage of the instrument. Its small-size, economy and practicability make it become a new modern tool in the field of indoor decoration layout.
Features:
Quickly self-leveling, and laser flashing and audible warning when beyond leveling range
Able to project one laser cross-line in the front and one 90 vertical line
Easy user calibration from outside the housing
Low voltage indication with power LED flashing
Scaled wall mount, which can be easily hung on wall or installed on tripod
Convenient rotary base-type switch can power on or power off the instrument and simultaneously release or lock the compensating system.
Specifications:
Laser wavelength: 635nm
Laser class: Class II
Accuracy: ±3/8″/100ft. (±1.5mm/5m)
Self-leveling range:±3.5
Power: 3 x AA alkaline batteries
Size: 5 5/16″ x 3 9/16″ x 3 9/16″ (135 x 90 x 90mm)
Weight: 1.6 Ibs. (0.73 kg)
Basic Kit:

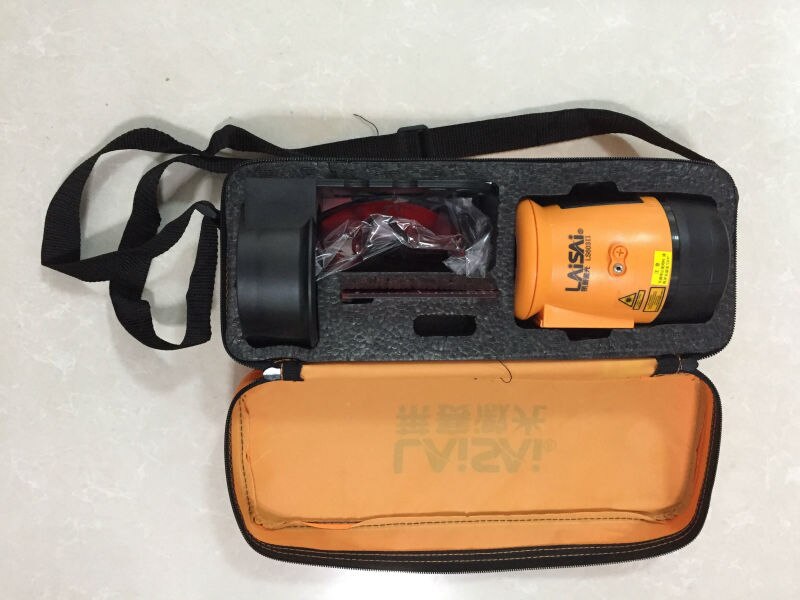

LS603II or LS603III, Wall mount, LS306 Laser glasses, LS307 Magnetic target,Padded soft bag
