Description
- Measurement Range: As show
- Model Number: LS183
- Focal Length: As show
- Wavelength Range: 380nm-760nm
- Brand Name: niusiwen
- Type: Single Beam Spectrometers
- Weight: 590g
- Size: 216mm *134mm *29mm
- Size: 216mm *134mm *29mm
- Testing opening: Wide 47mm * Height 91mm
- Weigh: 590g
- Sample thickness: < 47mm
- Resolution: 0.1%
- Accuracy: -2%
- UV peak wavelength: 365nm
- VL wavelength: 380nm-760nm
- IR Peak wavelength: 940nm
- Power supply: 5V AC/DC Adapter

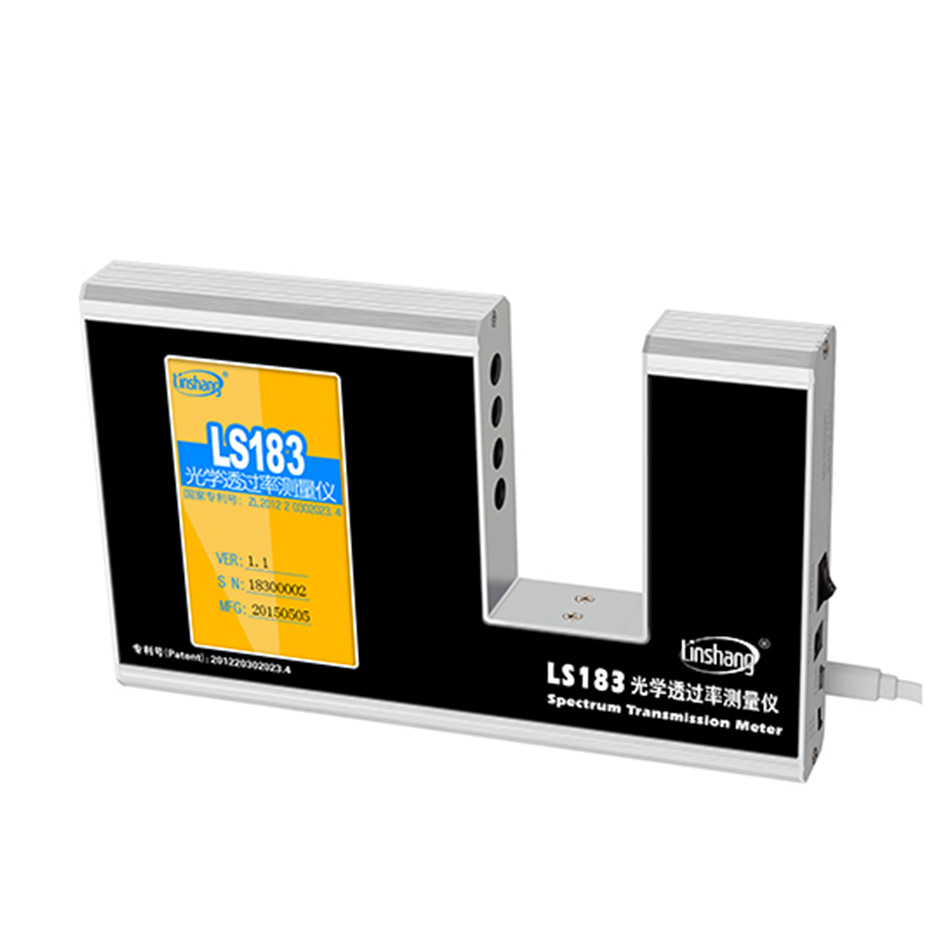

LS183 Spectrum Transmission Meter Measure Display UV VL And IR Transmission Simultaneously Self-contained
LS183 is able to simultaneously measure and display UV, VL and IR transmission
values. This meter is self-contained light sources and self-calibration. No adjustment is
needed. The users only need plug the power supply, turn on the switch and put the
sample in the opening. The resulting performance data appear on the display.
I: LS183 parameter
1. Size: 216mm *134mm *29mm (L*H*W）
2. Testing opening: Wide 47mm * Height 91mm
3. Weigh: 590g
4. Sample thickness: < 47mm
5. Resolution: 0.1%
6. Accuracy: ±2%(Colorless and transparent material)
7. UV peak wavelength: 365nm
8. VL wavelength: 380nm-760nm, ANSI/ISO visual standard
9. IR Peak wavelength : 940nm
10. Power supply: 5V AC/DC Adapter

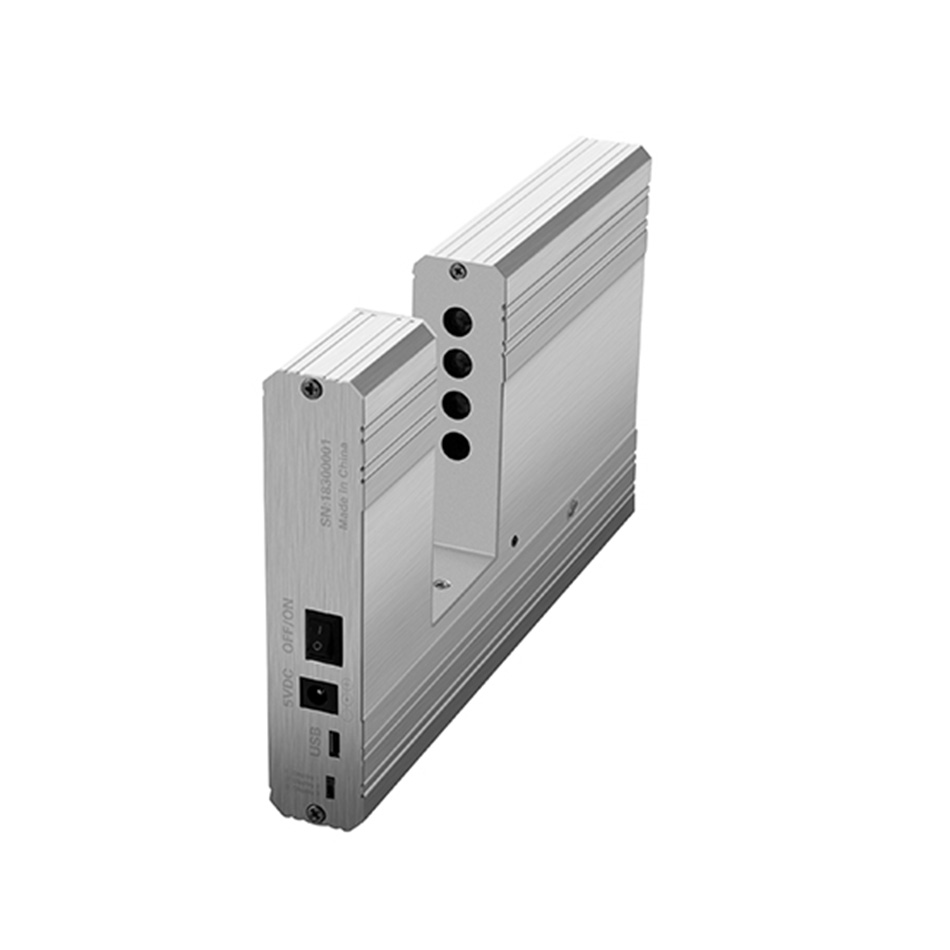

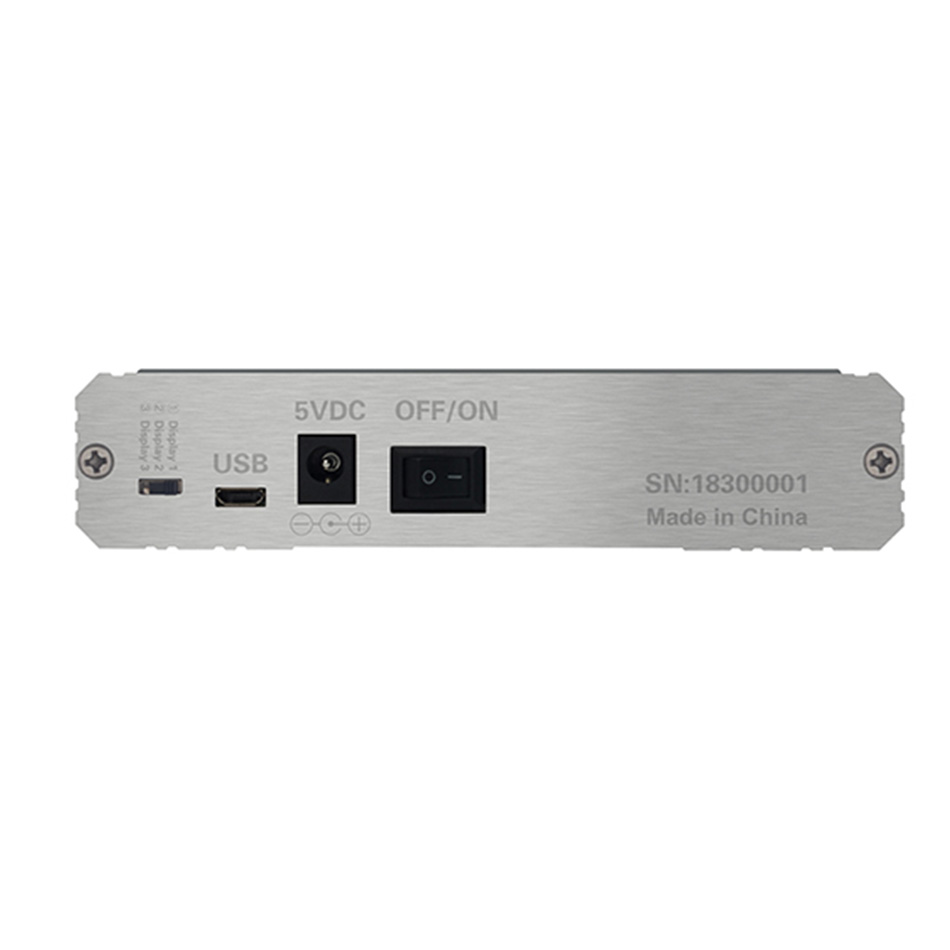

II: LS183 structure
“OFF/ON” Power Switch
“5VDC” The power supply socket
“USB” Micro USB socket，mobile power supply to power the
instrument
“Display1,Display2,Display3”, Dial switch for three different display interface
III: Meter Operation

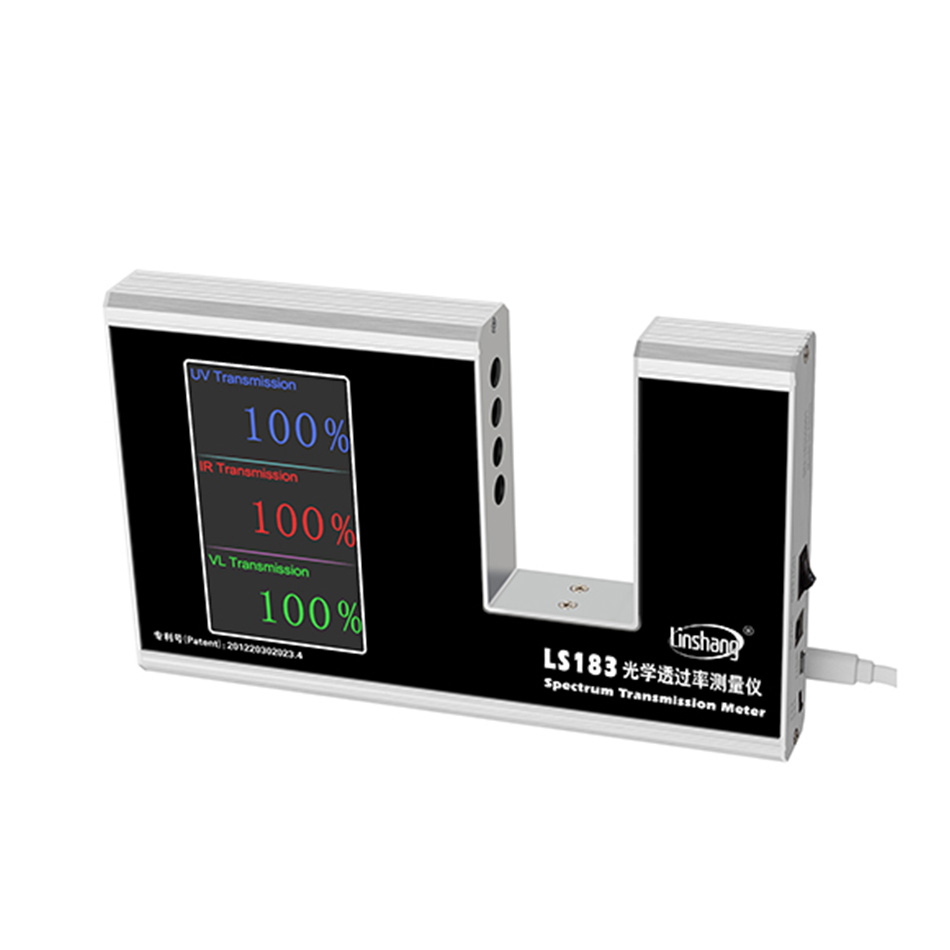

1. Power on self test
Plug the power supply, keep the testing opening is empty, turn on the switch, waits for
the meter to self-test, when self-test is successful, three “100%” will show on the LCD. If
self test failed ,the following reasons for failed “Self-test” :
a) Testing sample in the testing opening during Meter powering on.
b) Ambient Light too strong.
c) Too much dust in the testing hole , please clean the dust with air duster gun.
d) Equipment damage, need to send back to the factory repair
2. Measurement

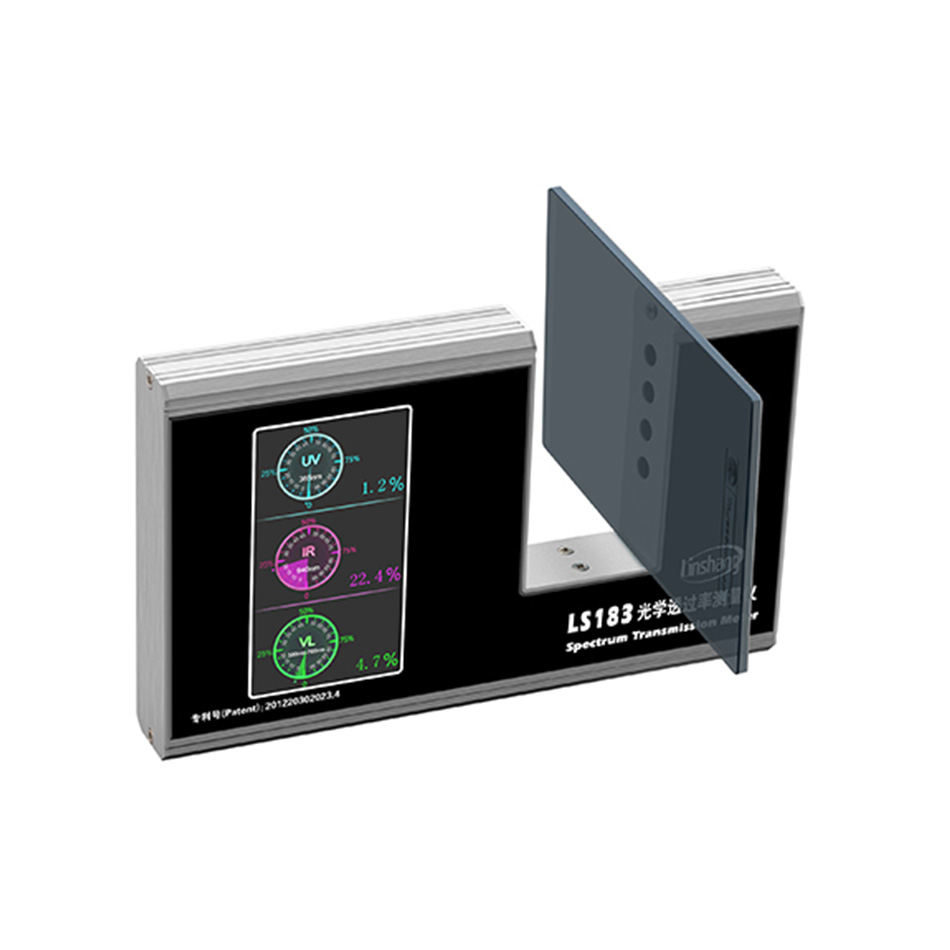

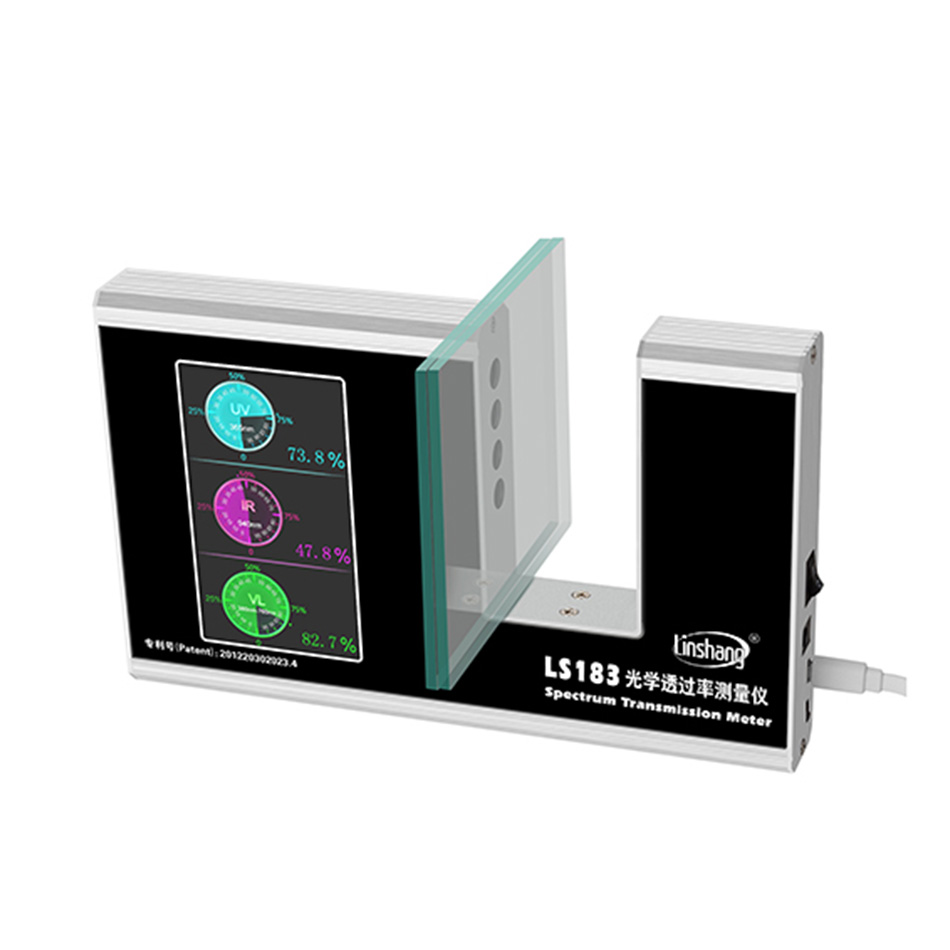

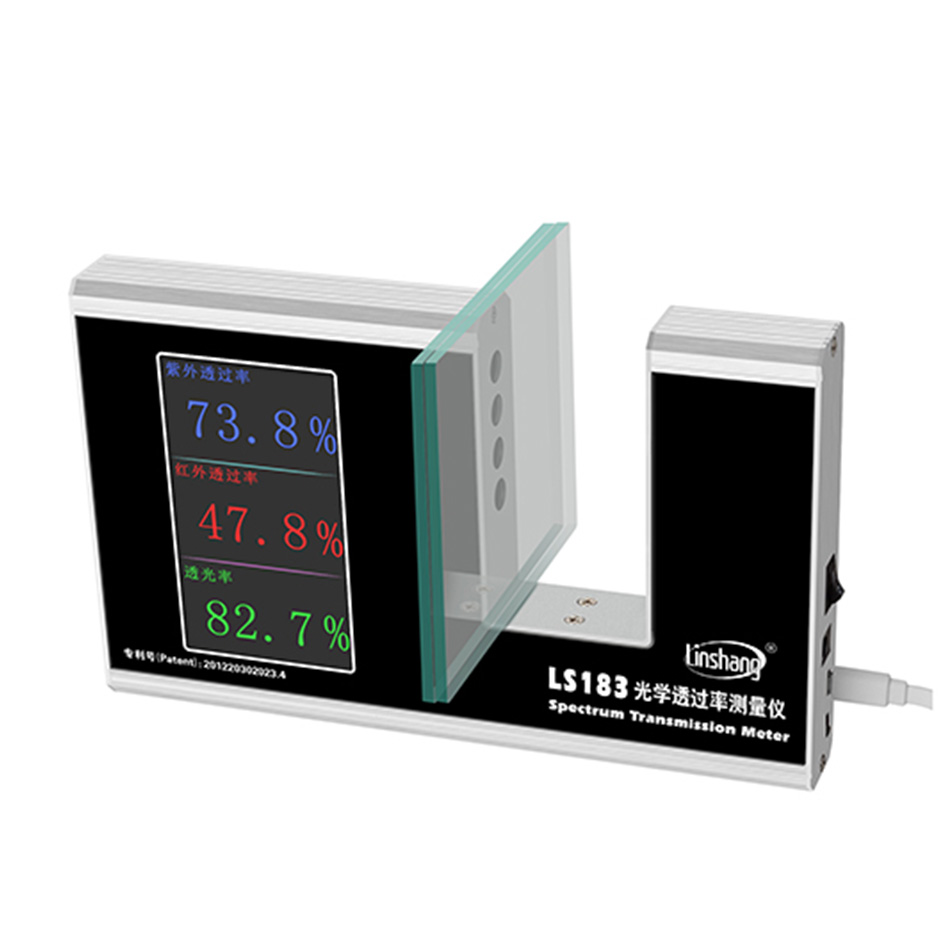

Place sample into the testing opening to measure the performance characteristics.
Refer to the following picture demonstrations.
IV: Feature
1. UV transmission meter, IR transmission meter, Light Transmittance Meter, Three
function in ONE device.
2. Self-calibration and auto-calibration, NO need any manual adjustments.
3. Simple operation, putting the testing sample in the opening, UV, VL and IR
transmission values of the sample will simultaneously display.
V: Standard packing list
No. Description Quantity Unit
1 LS183 Spectrum Transmission Meter 1 pcs
2 DC5V Adapter 1 pcs
3 User Manual 1 pcs
4 Certificate / warranty card 1 pcs
