LS116 is suitable for the light transmittance testing of various regular transmission materials

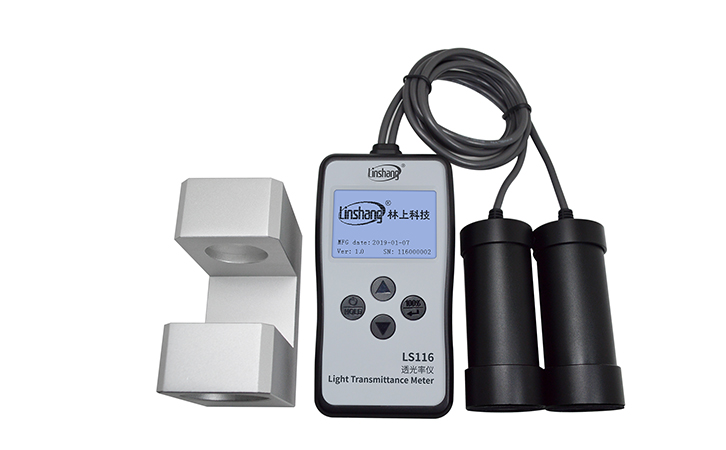

​Light transmittance is an important technical indicator for a wide range of materials, such as glass, solar film, and organic materials. The LS116 light transmittance meter is used for measuring the light transmittance, namely, the ratio of the transmitted light intensity to incident light intensity, expressed as a percentage. LS116 is suitable for the light transmittance testing of various regular transmission materials.

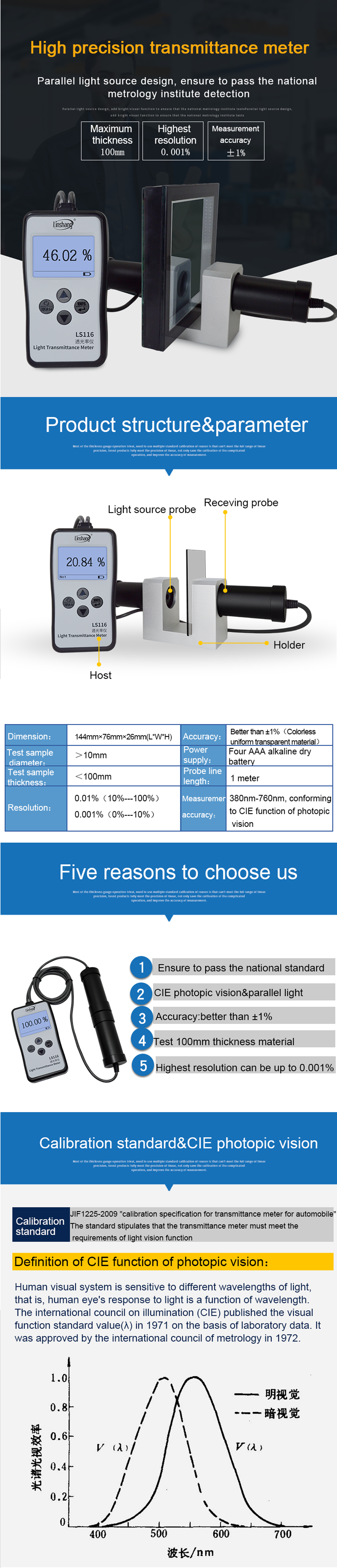

Parameter:

1. Spectral range: 380nm-760nm full wavelength, conforming to the CIE photopic vision function standard

2. Resolution: 0.01% (10% – 100%)   0.001% (0% — 10%)
3. Accuracy: Superior to ±1% (colorless and homogeneous transparent material)
4. Sample diameter: > 10mm
5. Sample thickness: < 100mm
6. Dimension: 148mm * 76mm * 26mm (L*W*H)
7. Probe length: 1m
8. Weight: About 622g (without batteries)
9. Display: 240*160 dot-matrix LCD
10. Power supply: 4 * AAA alkaline dry battery

Feature:

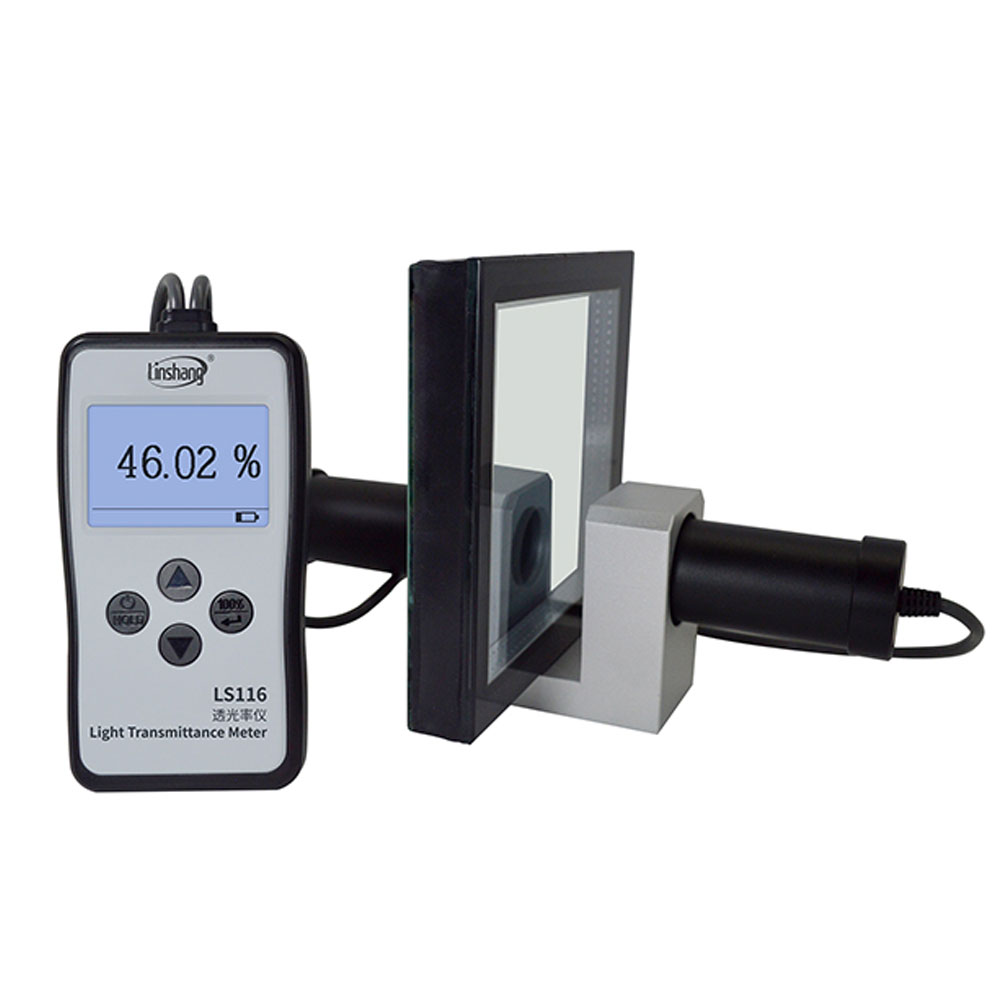

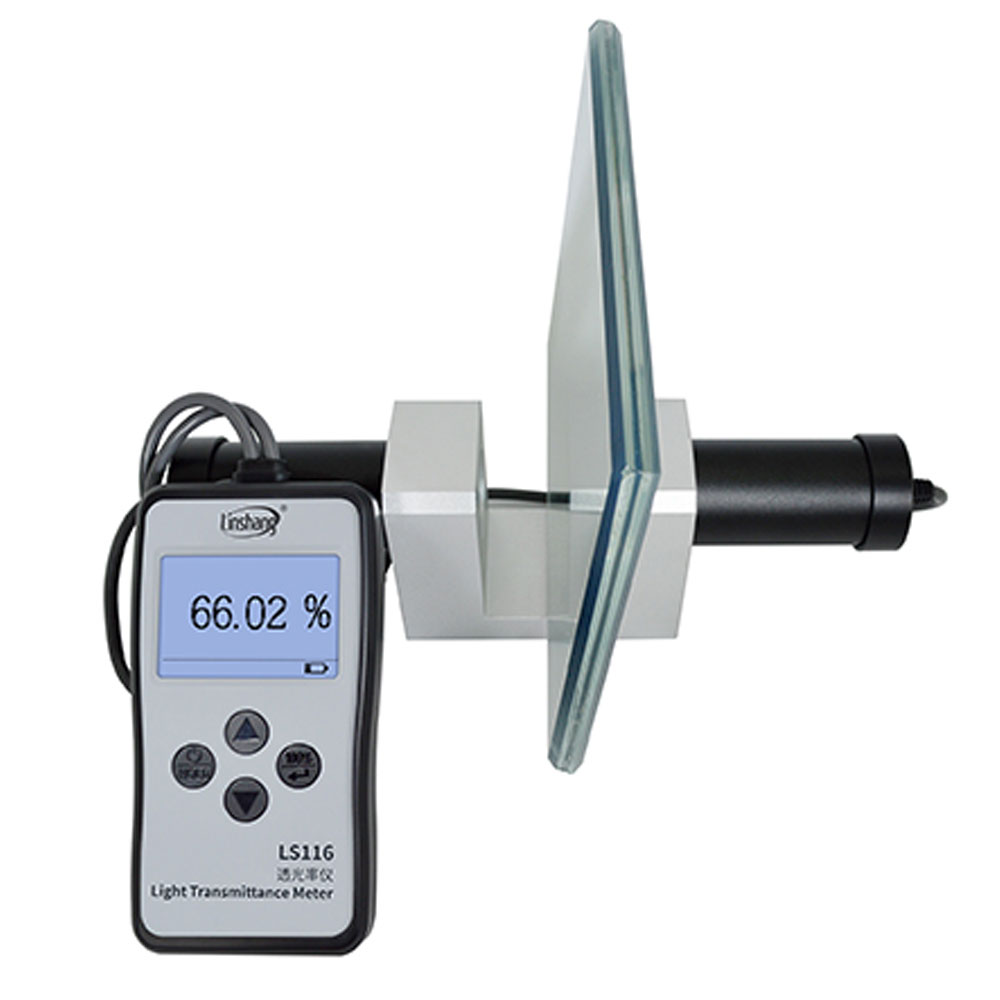

1. With the design of parallel optical path of the light source and condensed light of the receiver, the meter can measure ultra-thick materials.
2. The meter can measure samples with high transmittance. Its measurement range of light transmittance is 0.001%-99.8%, and the resolution is up to 0.001%.

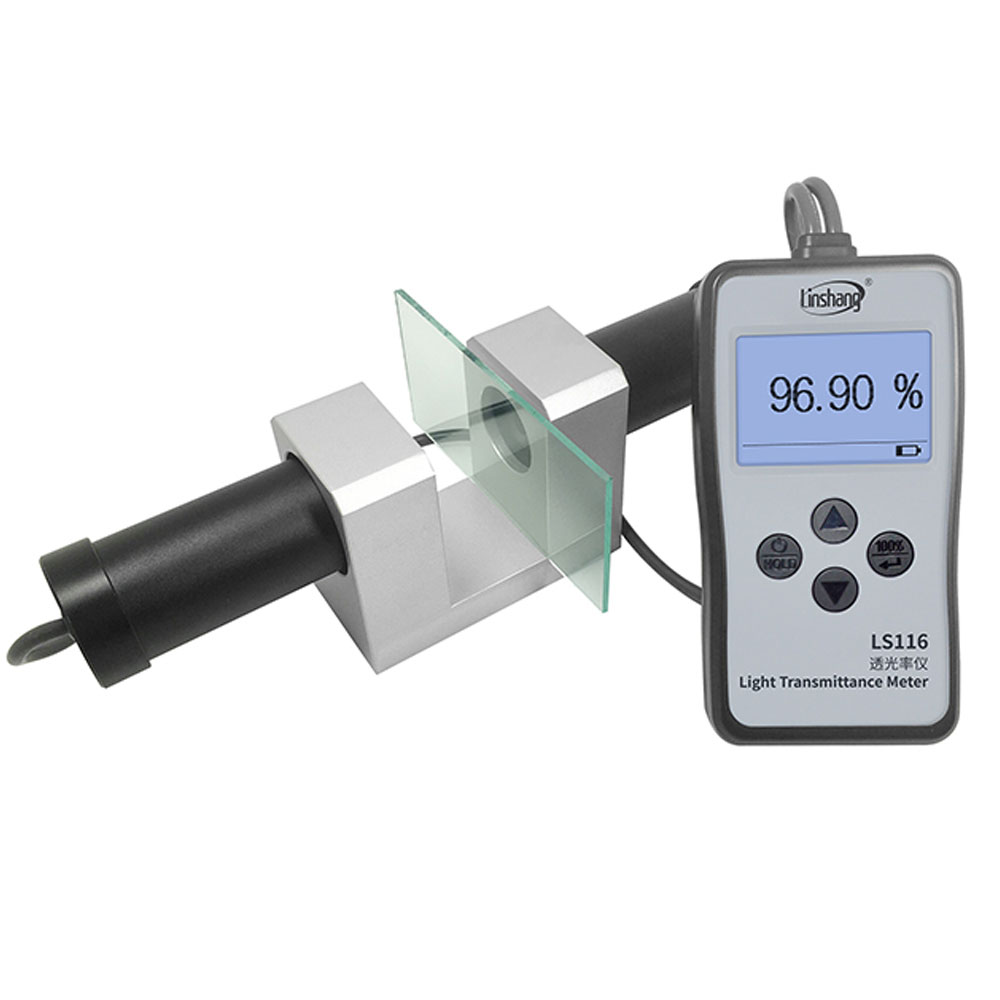

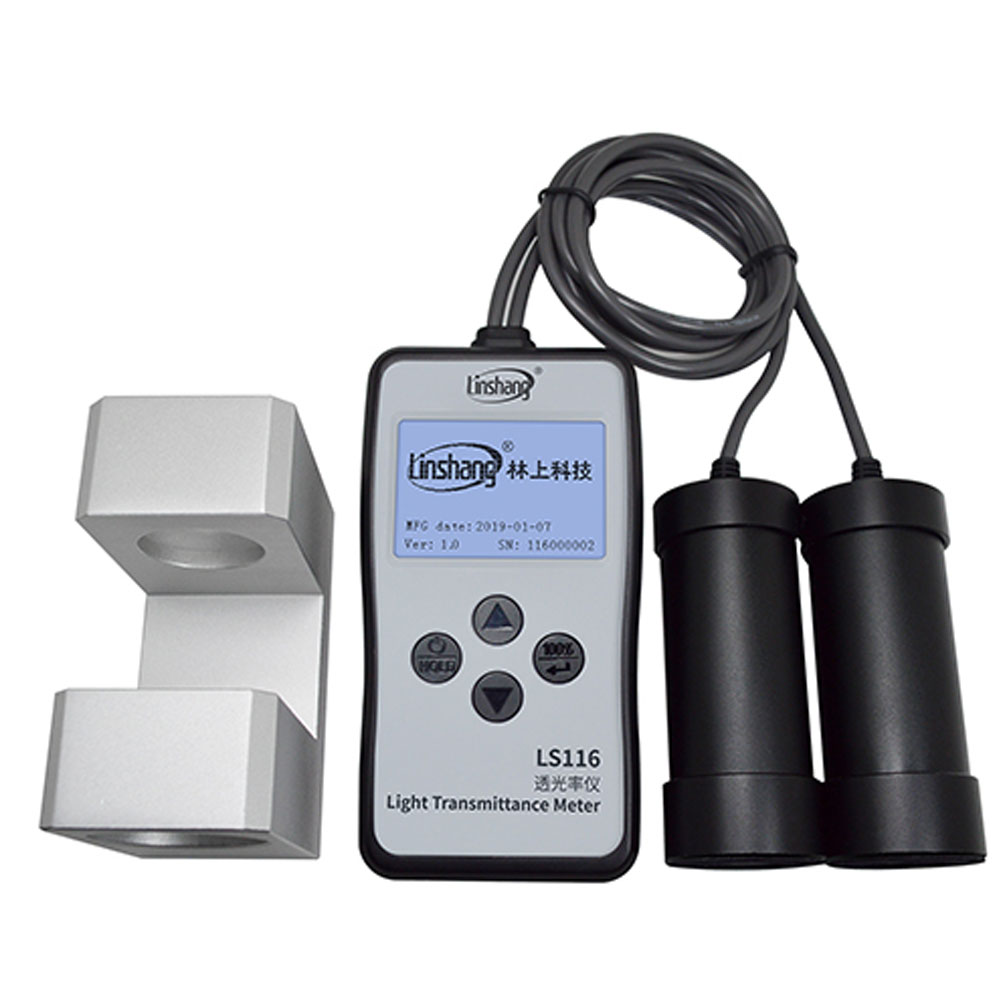

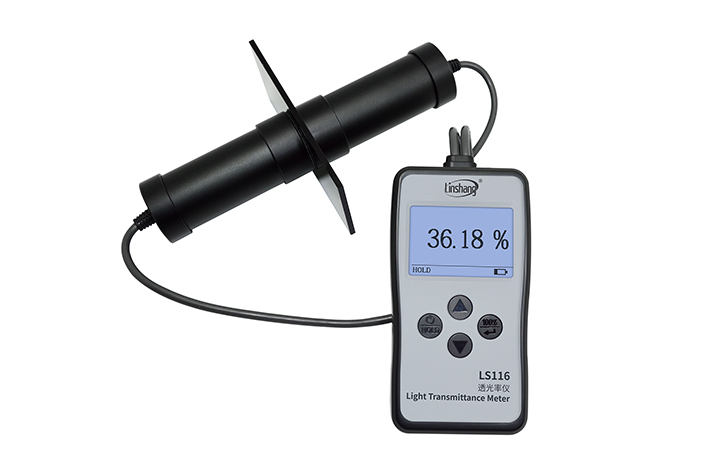

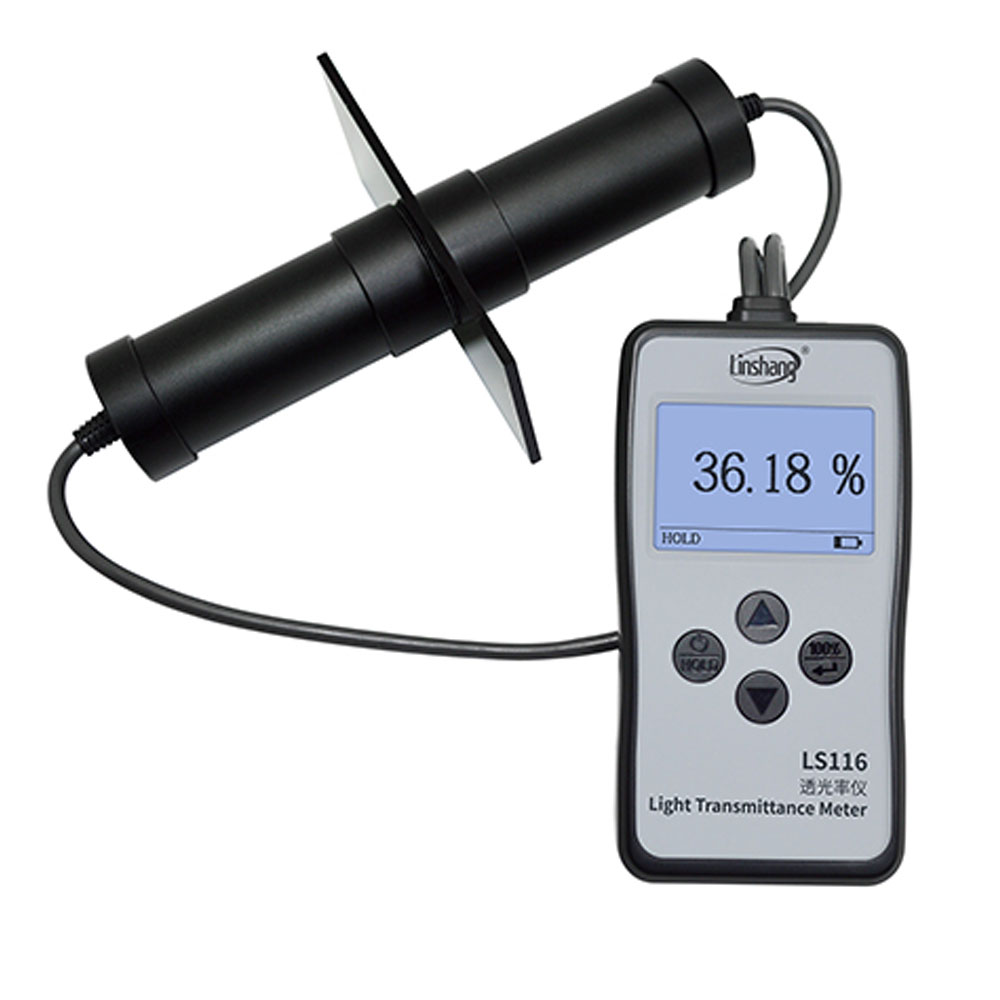

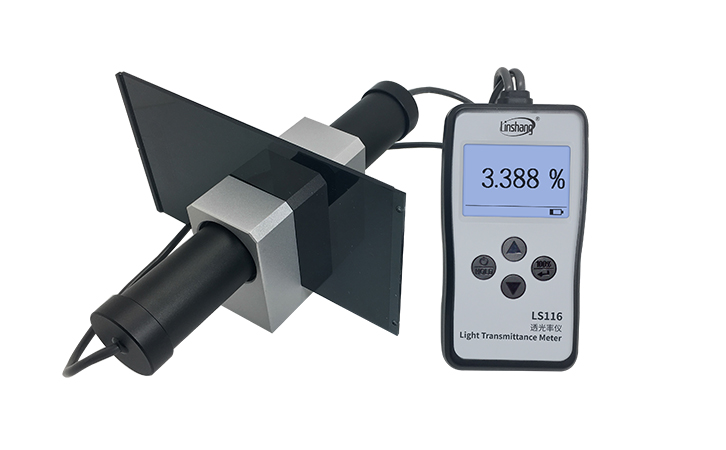

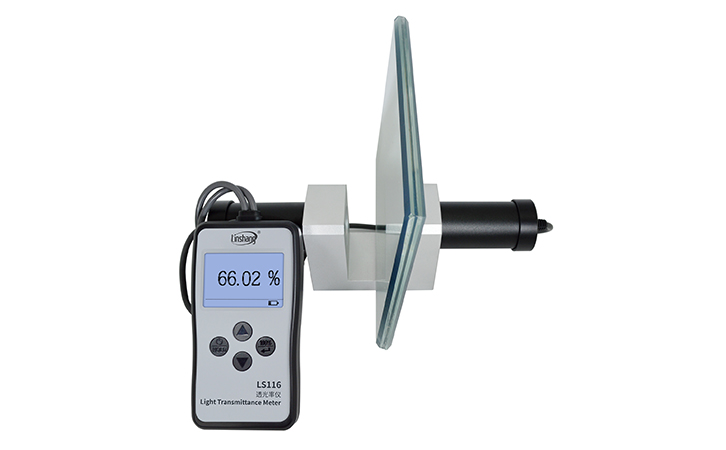

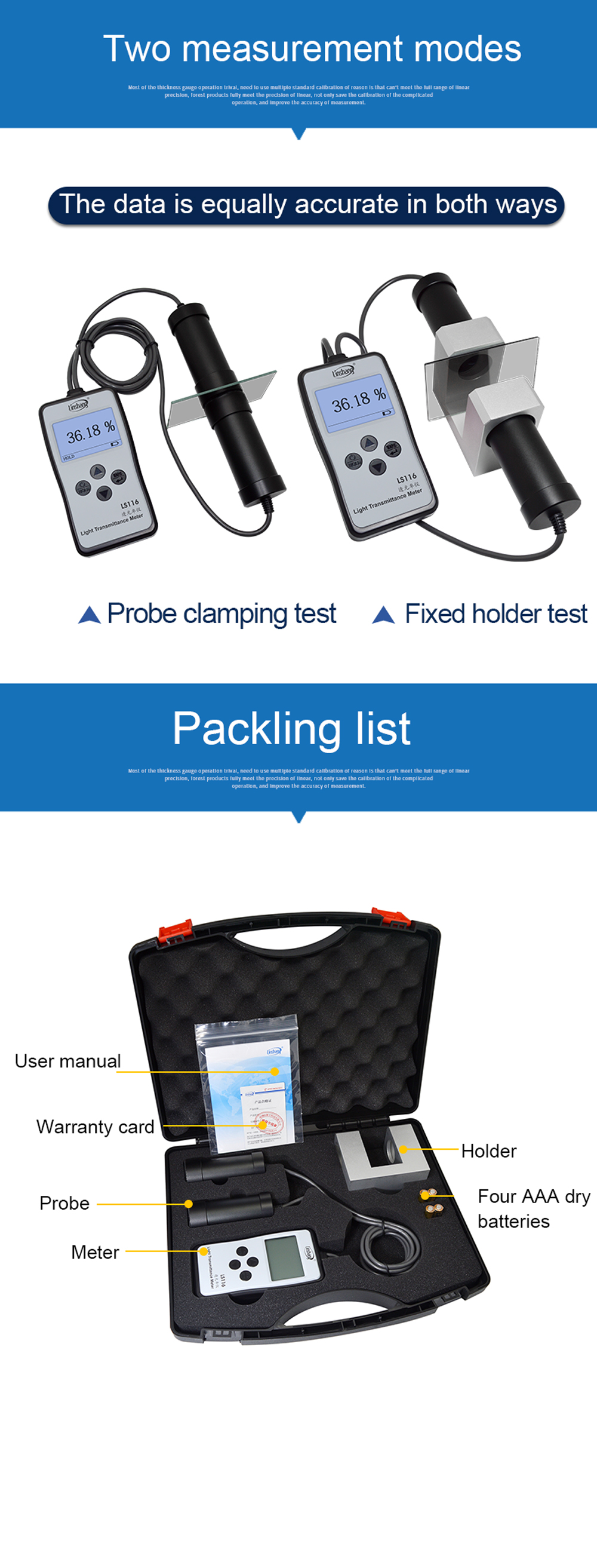

3. With the availability of the pedestal, it supports two measurement methods, which is suitable for testing such as field measurement of automobile front windshield, and the fixed-point measurement at factory fixed station.
4. With high-precision data acquisition technology, it boasts high measurement accuracy. It is fast and easy to operate.

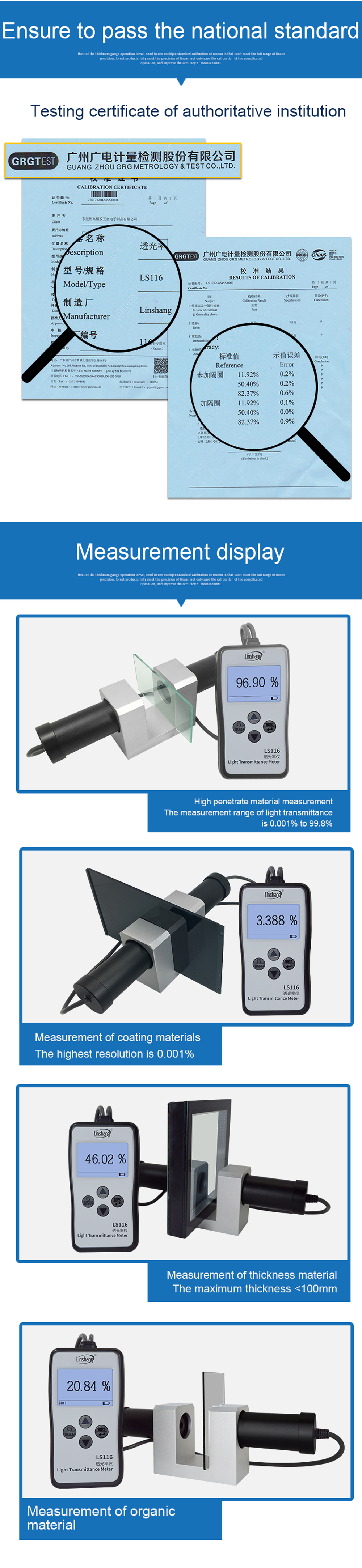

5. It fits to the light transmittance measurement of glass products, solar film, filmed glass, coating materials, and organic material panel, etc.
6. It is applicable for exhibitions, production, quality control, inspection and other occasions.
