LS108 Spectrum Transmission Meter Test Eye Glass Mobile Phone
Lens Dlue Ray UV Light Transmittance Linshang Direct Selling

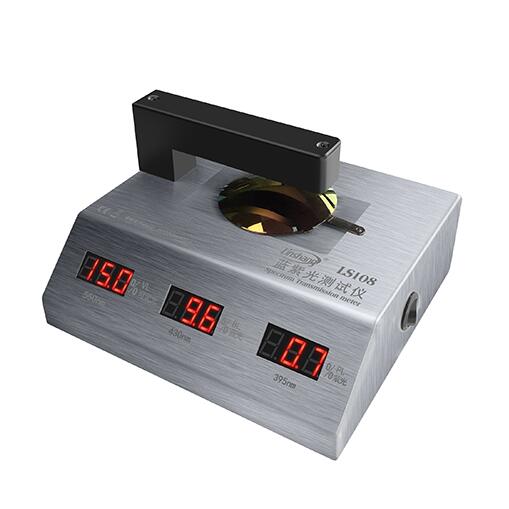

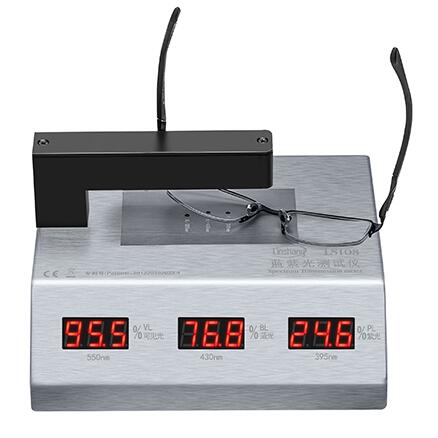

LS108 is able to simultaneously measure and display PL(Purple Light), BL(Blue light) and VL(Visible Light) transmission values. This meter is self-contained light sources and self-calibration. No adjustment is needed. The users only need plug the power supply, turn on the switch and put the sample in the testing position. The resulting performance data appear on the display.
I: LS108 parameter
1. Size: 200mm*180mm*106mm(L*W*H)
2. Size of Testing sample: > 3mm
3. Weigh: 1500g
4. Resolution: 0.1%
5. Accuracy: ±2%(Colorless and transparent material)
6.Purple light Peak wavelength: 395nm
7. Blue light Peak wavelength: 460nm
8. Visible light Peak wavelength: 550nm

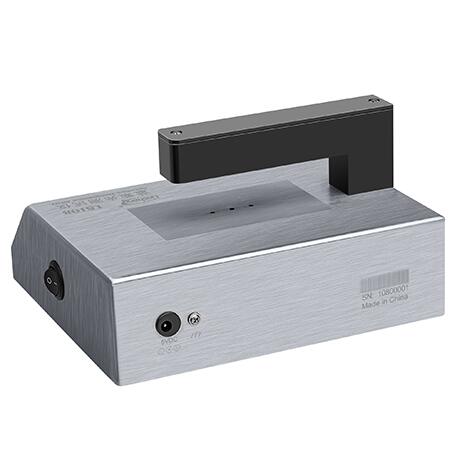

9. Power supply: 5V DC Adapter
II. Meter operation
1. Power on self test
Plug the power supply, keep the testing opening is empty, turn on the switch, waits for the meter to self-test, when self-test is successful, each of the displays will show 100%. If self-test failed,“EEE”,“88.8”or“000” displayed. The following reasons for failed “Self-test” :
a) Testing sample in the testing opening during Meter powering on.
b) Ambient Light too strong.
c) Too much dust in the testing hole , please clean the dust with air duster gun.
d) Equipment damage, need to send back to the factory repair
