Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving Machine With Rotary Cnc Router

$5,400.00

200 in stock

SKU: 1005003716982839 Category:

Description

  • Brand Name: NRKK
  • Origin: CN(Origin)

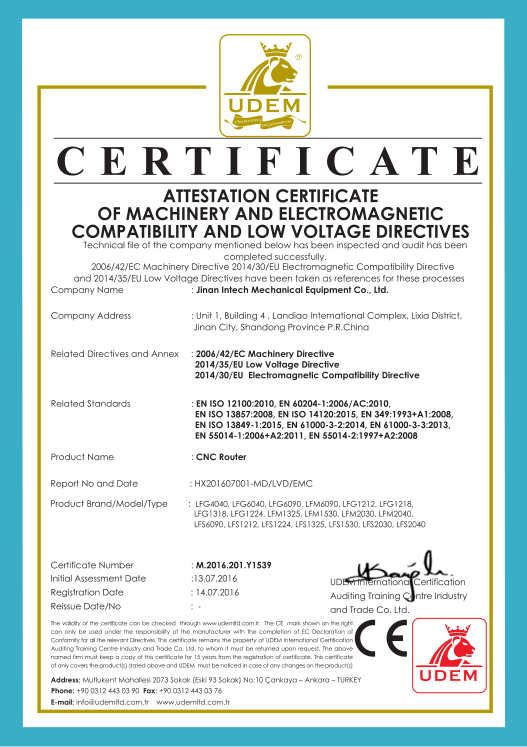

  • Certification: CE
  • Condition: New
  • Model Number: LFM1325R
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Name: Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving Machine With Rotary Cnc Router
  • Working area: 1300x2500x200mm
  • Table structure: T-slot Table
  • Spindle power motor: 3.2kw water cooling spindle
  • Inverter: Fuling Inverter
  • Spindle speed: 0-24000rmp
  • Guide rail: Taiwan Hiwin liner rail
  • Motor and driver: Stepper / SERVO
  • Tool calibration: automatic tool calibration
  • Warranty: 2 Years
  • Transmission: Gear Rack transmission

Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving Machine With Rotary Cnc Router

Product Description
2022 best CNC router machine with rotary axis (4th axis) is designed for 2D/3D CNC woodworking projects.
Now the rotary axis CNC router machine for sale at low price.

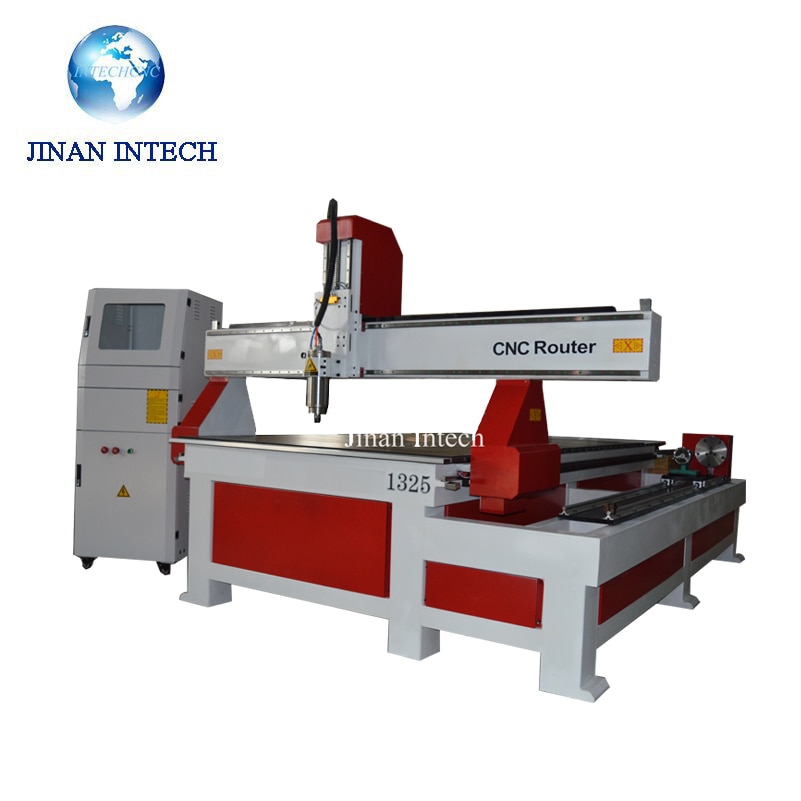

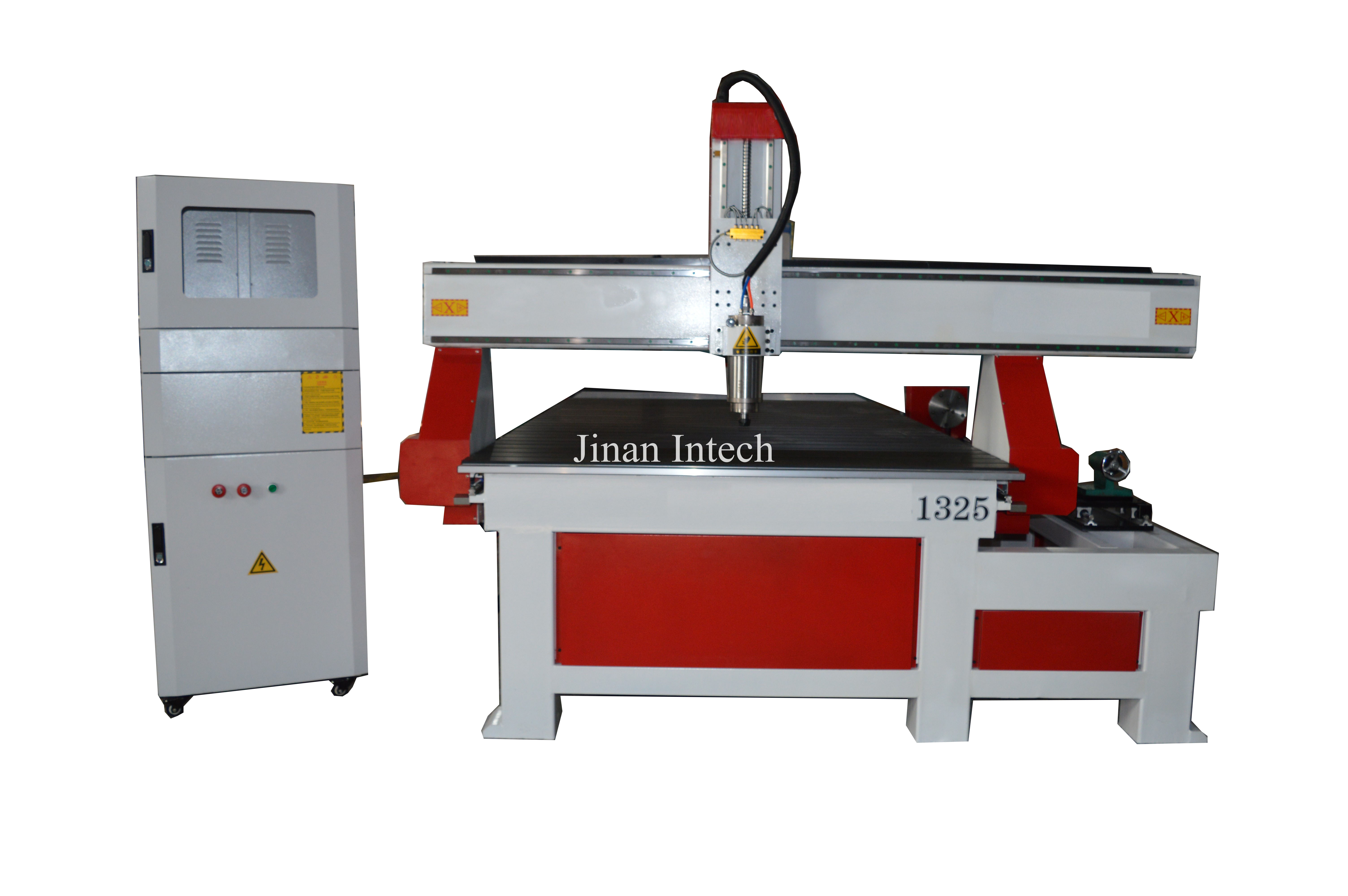

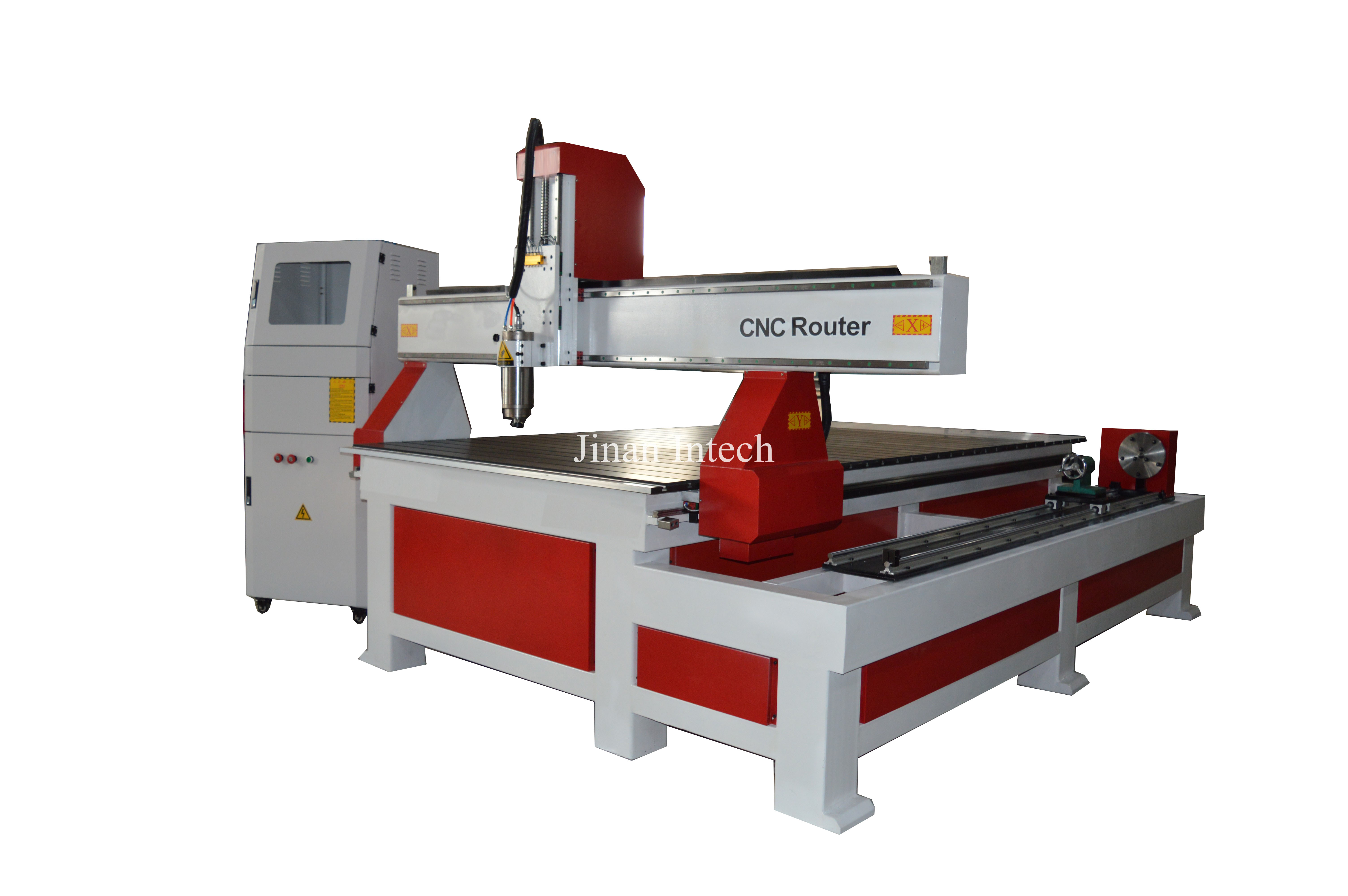

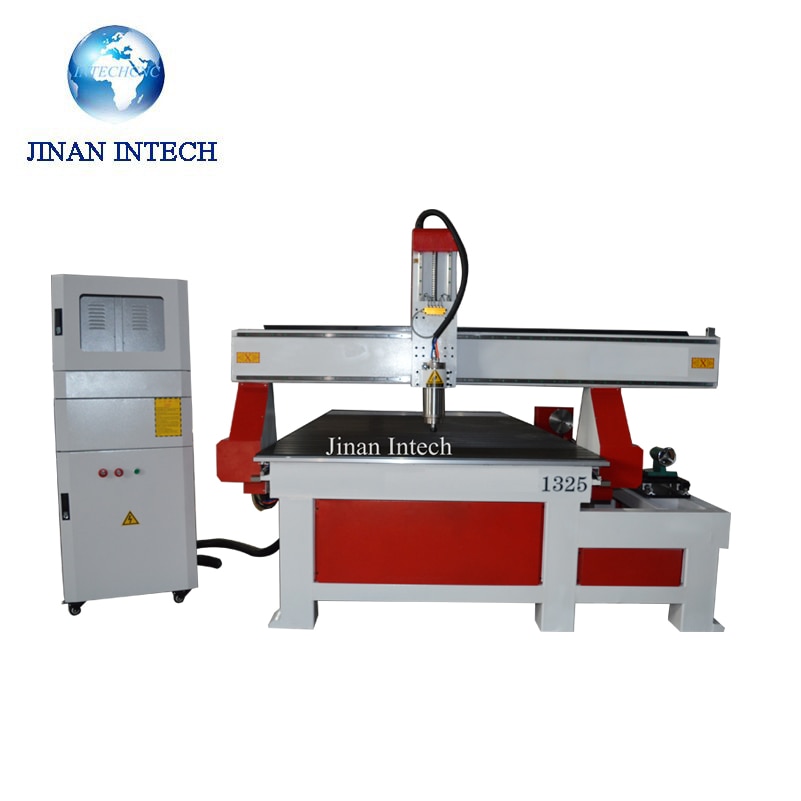

The Pictures of Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving Machine

With Rotary Cnc Router

What are the Functions of Rotary Axis?
1. Calculating the rotary cutting path does not need to expand the surface.
2. There is no need to rotate the workpiece repeatedly, the tool path calculation is completed at one time.
3. Reduce the finishing allowance, the tool path can be roughed in layers.
4. Realize partial rotation carving, the angle range and length range can be set.
5. Affected by the accuracy of the fixture, the machining of irregularly rotating workpieces usually adopts
multi-face rotation positioning machining. There are always seams between different machining directions.
6. Rotary machining without positioning joints adopts the integral method of rotating shaft, and the cylinder
engraving machine generates an automatically closed rotary cutting path.
The Features of Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving Machine
With Rotary Cnc Router

1.The rotary CNC router machine adopts 8mm steel machine welding bed, after hundred times’ special

vibrate experiment, we ensure that the lathe will not deform during their long-term working hours. With
enhanced welding technicals, we supply the best CNC machine kits with good stability, longer life span

and amazing accuracy rate.

2. 3200 Watts water cooling spindle with better cooling effect, almost no noise with long service life.

3.Taiwan Hiwin square rails has more higher precision, less wear and tear can maintain high accuracy.

It’s applied to high-speed move and greatly reduce the drive horsepower the machine required. What’s more,

it can bear the load from left and right, up and down at the same time.

4. Leadshine stepper motor and driver won’t lose step when it work, which can guarantee the positional accuracy of the motor.

5. DSP control system does not need to connect to PC, which is easy to operate and learn, especially for the beginner.

6. The 4th axis rotary device is conveniently for round materials working.

7. Software: compatible with Type3, Artcam, Castmate, Ucancam and other CAD/CAM design softwares.

8. Oil lubrication system: No oily odors, low noise and libration, maintenance-free. Note: It is recommended that

one pump of the oiler once a month will be sufficient to keep your machine lubricated.

The Configuration of Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving
Machine With Rotary Cnc Router

Model

LFM1325R

Working Area

1300*2500*200mm

Table Size

3200*2100*1700mm

Spindle Power Motor

3.2KW

Spindle Speed

0~24000rpm/min

Table Structure

T-slot Table / Aluminum table with good pvc

XYZ Structure

XY-Rack Pinion, Z-Ball Screw

Max Travelling Speed

50000mm/min

Max Working Speed

20000mm/min

Driving System

Stepper motor and driver

Command

G Code

Working Voltage

AC220V/380V—50HZ

Operating System

DSP control system/NC-studio control system

Net Weight

1200KG

Gross Weight

1400KG

Rotary Axis
80-300mm Diameter, 2000mm length

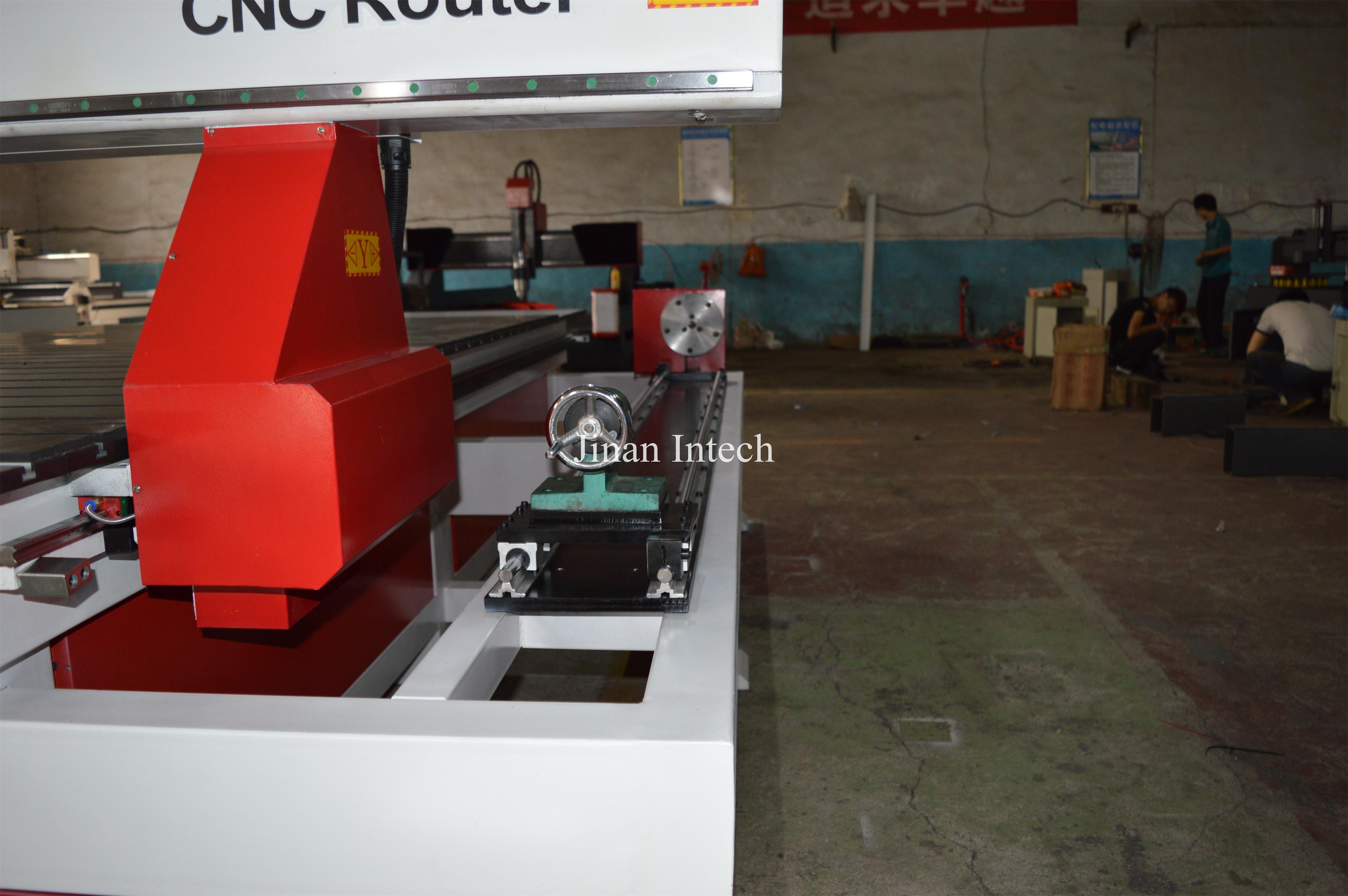

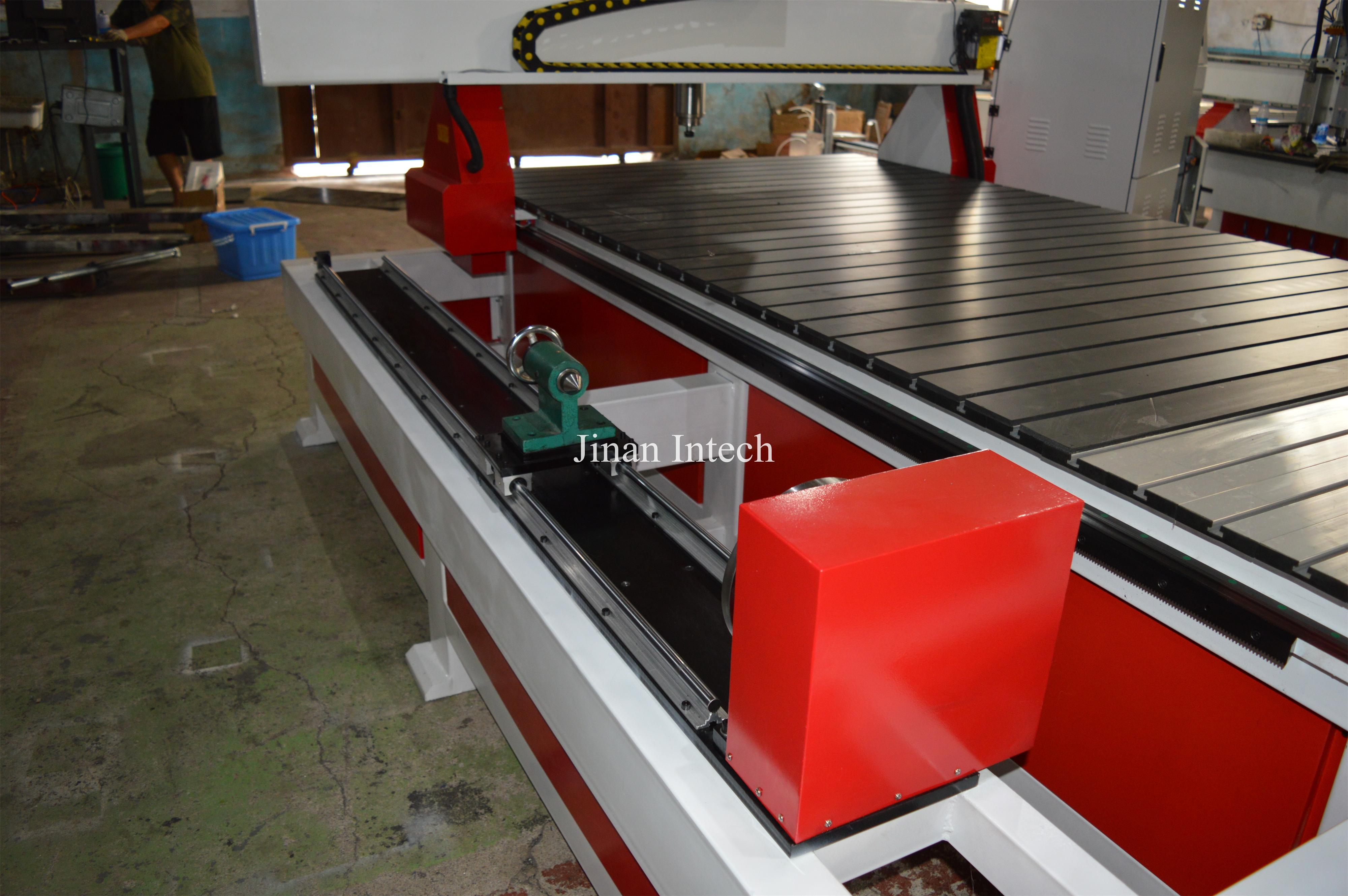

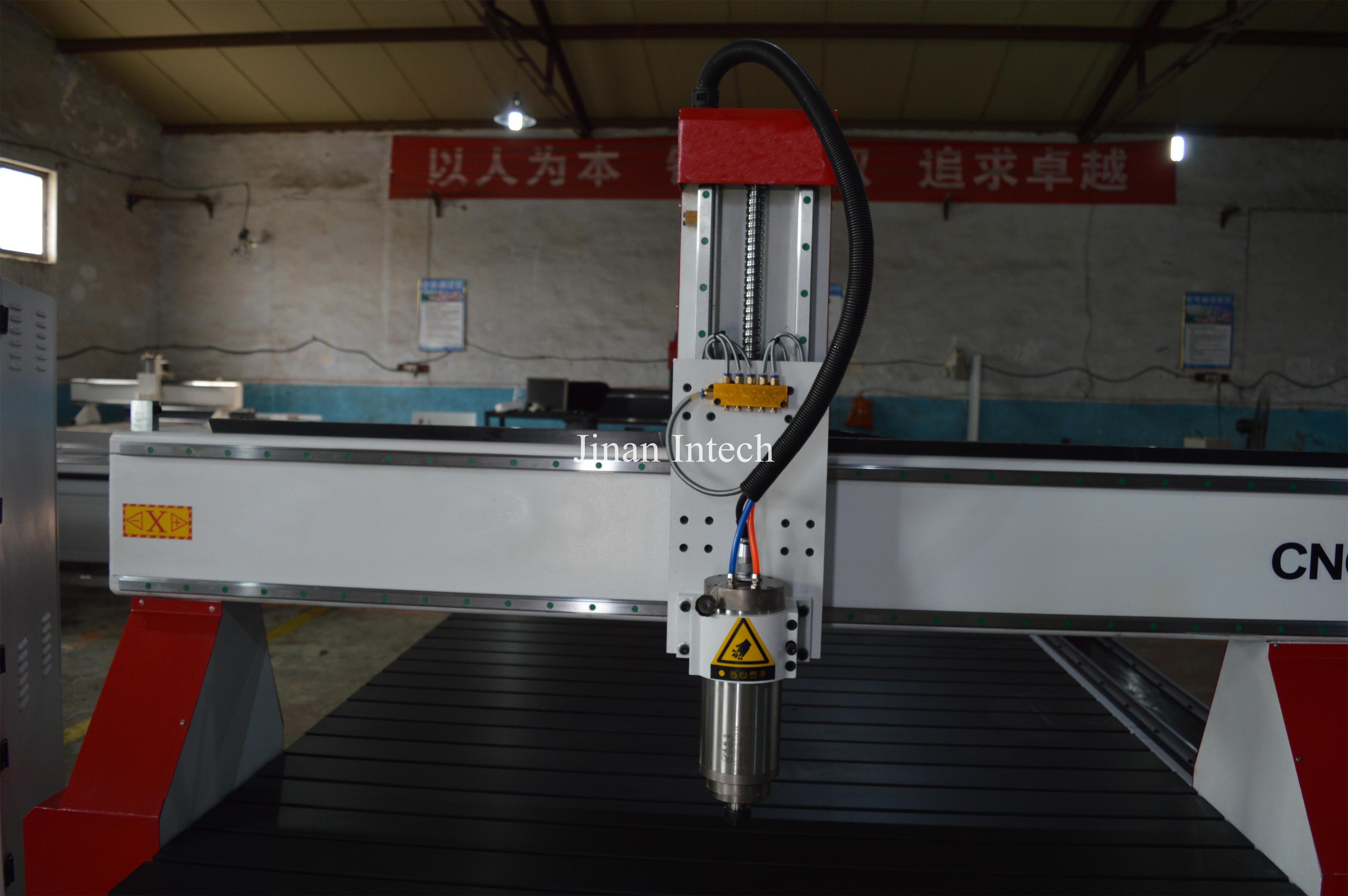

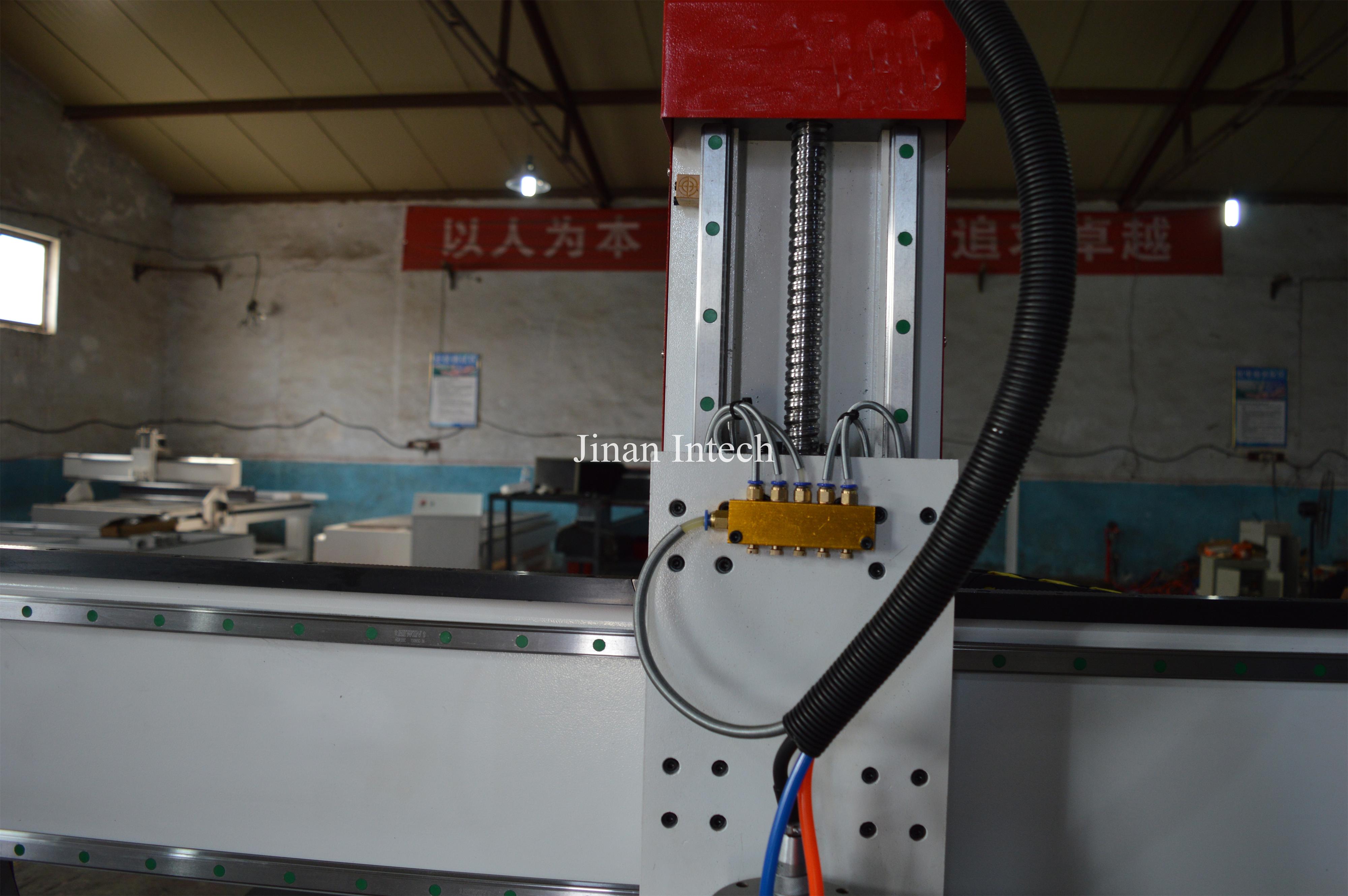

The Machine Parts of Lowest Price 1325 4th Axis Wood Cnc Router 3d Engraving
Machine With Rotary Cnc Router

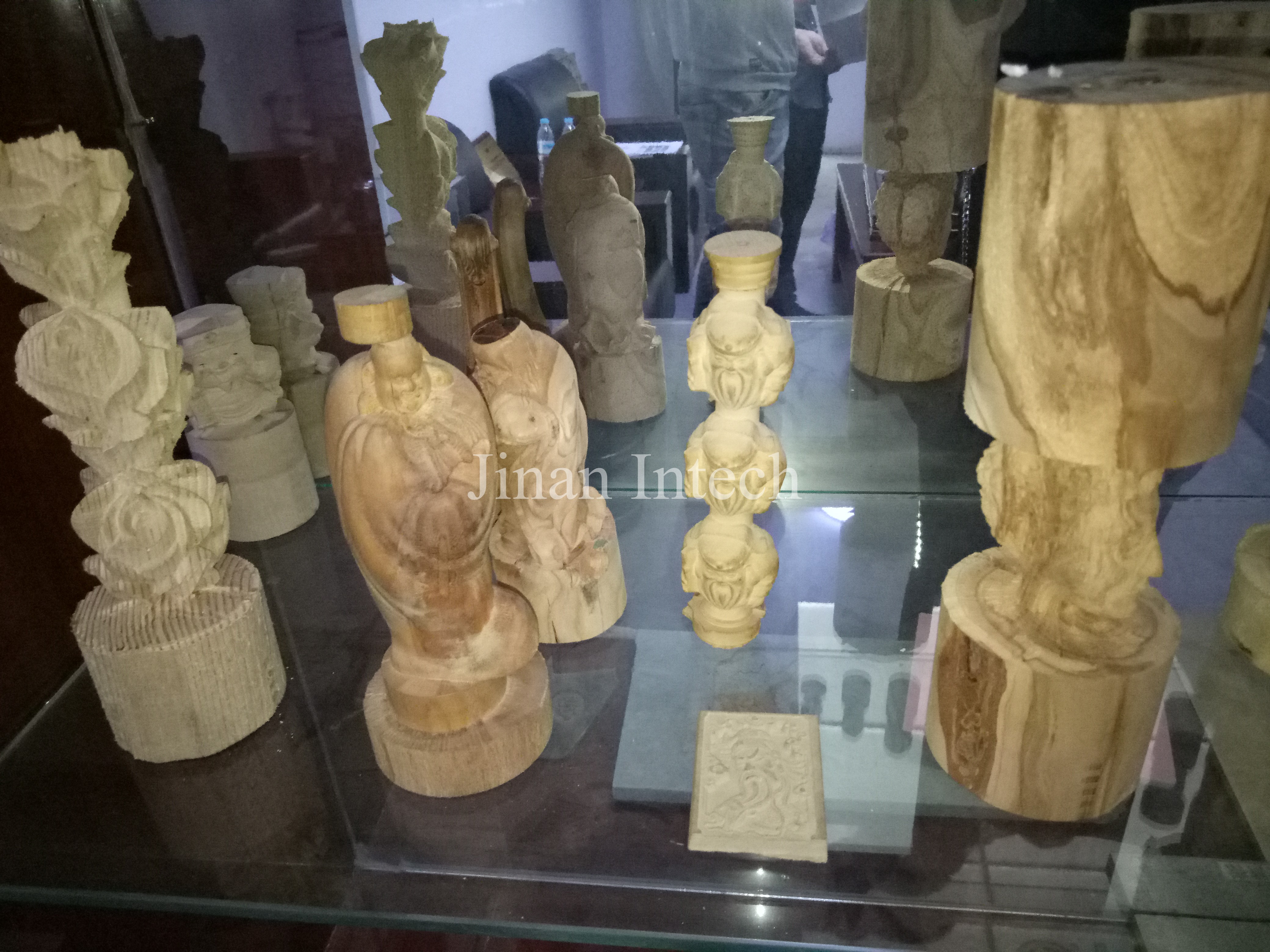

Samples

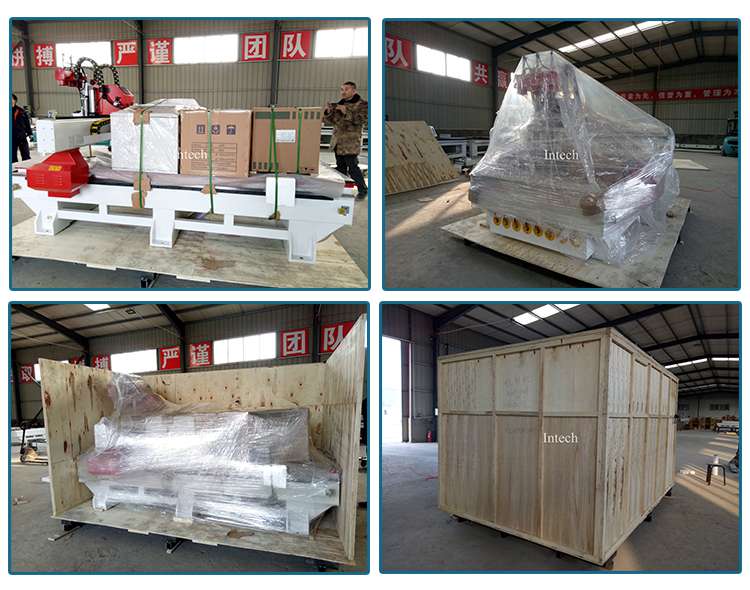

Packaging & Shipping

All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL,

FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed
address, product and requirements, we will shortly contact you with the full information including the most suitable

delivery method (fast, secure, discreet) and freight.
