Description
- Brand Name: ACCTEK
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: AK3F
- CNC or Not: CNC
- laser generator: 3W uv
- Power: 3w/5w/7w
- Table: three-dimensional work table
- Control Software: EZCAD
- Cooling system: air cooling system
- Red point: clear the working path
- Marking head: galvanometer/field lense
- Control system: PC control system
- Warranty: 2 years
- Optional parts: rotary device

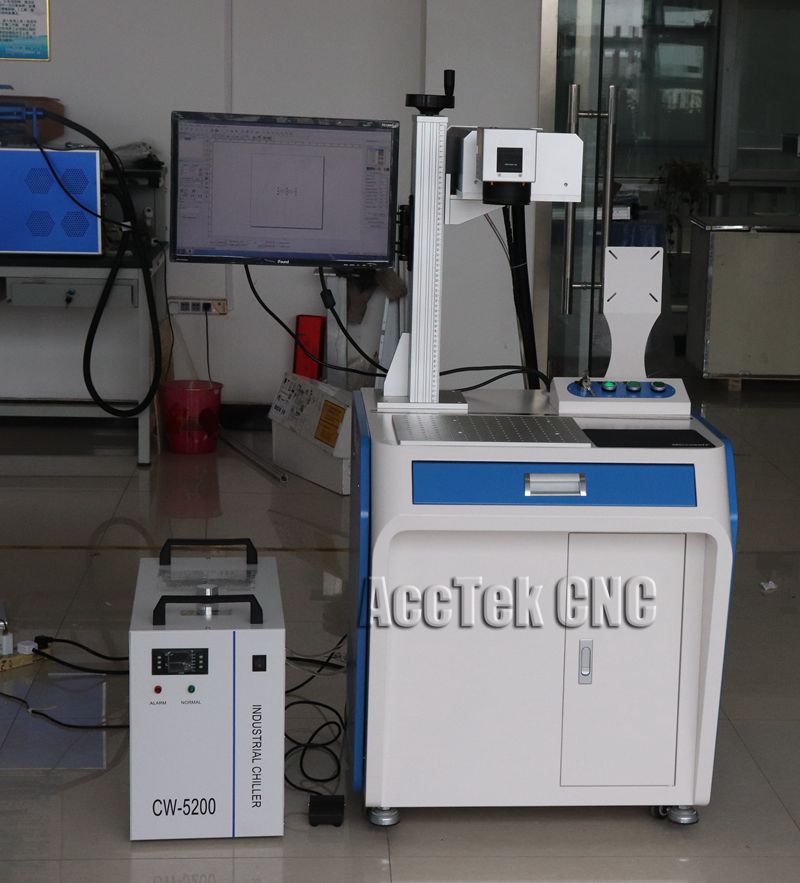

low price Laser marker 3W 5W 10W 15W portable mini UV laser marking machine
Low Power DPSS UV Lasers(3W/5W) is featured with compact structure with extremely convenient installation and debugging. They have adopted the built-in laser diode technology to avoid the effect of fiber shaking on output laser. Besides, the beam quality is excellent enough to ensure the stability and reliability for mass production, which can meet the special manufacturing and processing demand in harsh industrial working condition..
Want to know more model for our machine ,please check:
Laser Source |
UV Laser |
Output Power |
2W, 3W, 5W,7W |
Wavelength |
355nm |
Beam Quality |
<2 |
Repeat Frequency |
10khz— 100khz |
Pulse Energy |
2mJ |
Beam Divergence |
-0.3 to +0.3mrad |
Laser Class |
IV |
Resolution |
18μ |
Repeatablility |
50μ |
Marking Scope |
50*50mm 100x100mm |
Linear Speed |
800 character/ s |
Marking Linear Speed |
≤12,000mm/s |
Marking Depth |
Max. 1.0- 1.5mm (hard steel) |
Min. Line Width |
0.012mm |
Min. Character Size |
0.15mm |
Repeat Accuracy |
±0.003mm |
Input Power |
0.5kw |
Electrical Source |
220V / Single-Phase Circuit / 50/60Hz /4A |
1. German laser technology , independent research and development design ,Germany 100-class clean room ,full set of German production process .
2. UV laser source life over 5000 hours .
3. Laser source,control box ,dual -load connector connection ,separable ,unlimited extension
4. Excellent laser beam quality , High beam pointing stability
5. EZCAD/Marking mate marking software ,easy operate /powerful function
UV laser marking machine widely used in 3C industry marking, as well as industrial micro machining, including marking for a diversity of materials, plastic,glass, LED scribing, laser rapid prototyping, removal of metal and non-metal coating, silicon wafer processing and so on.
