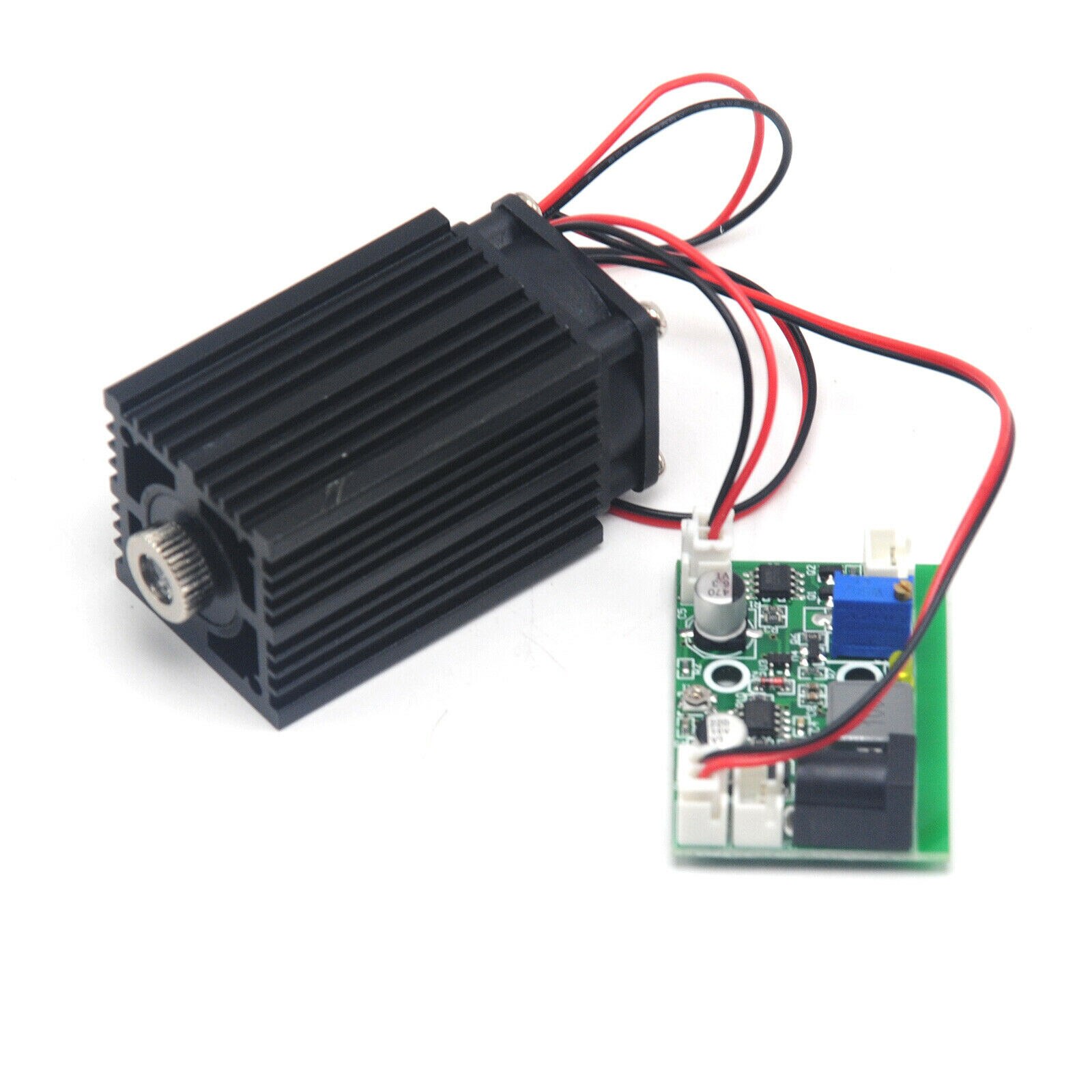

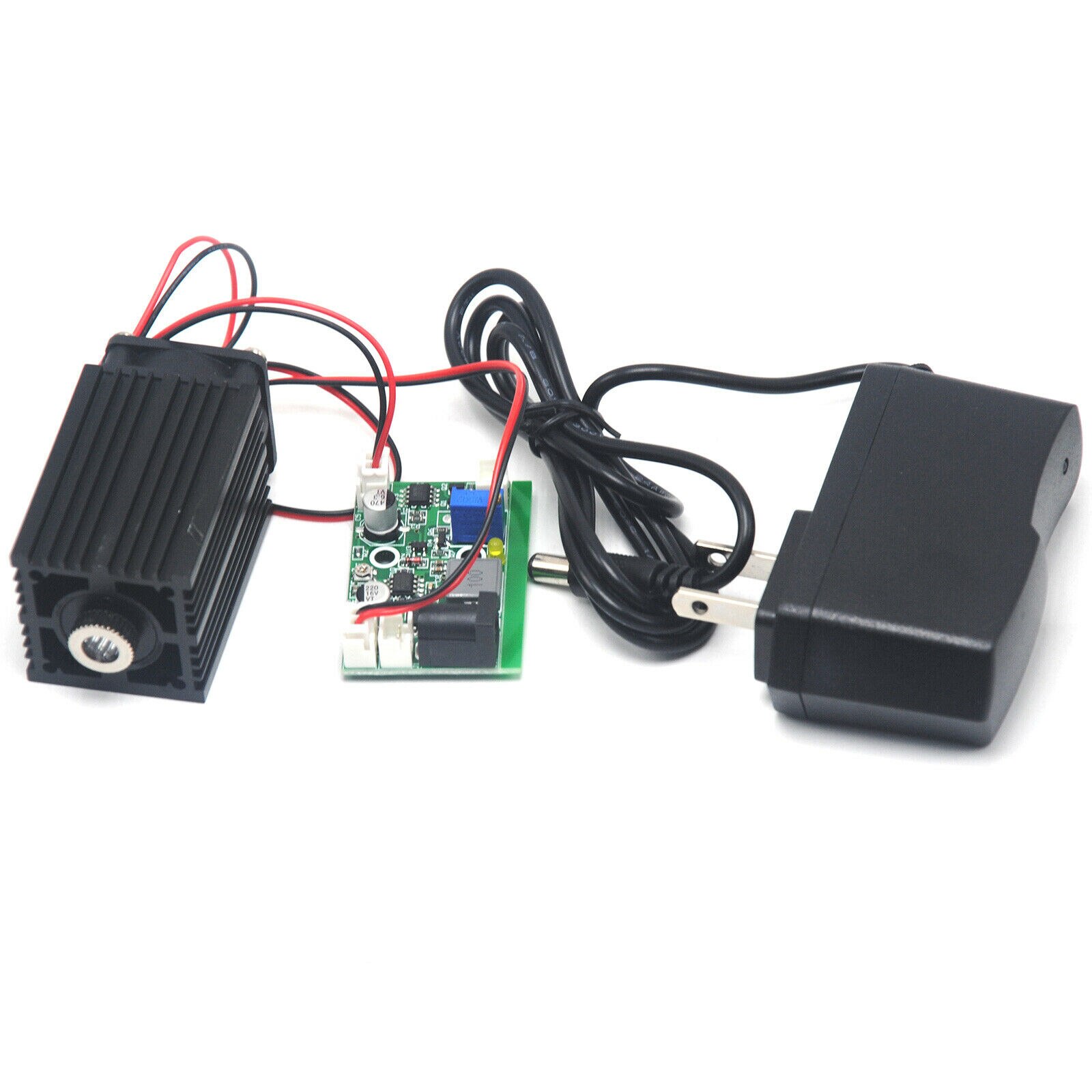

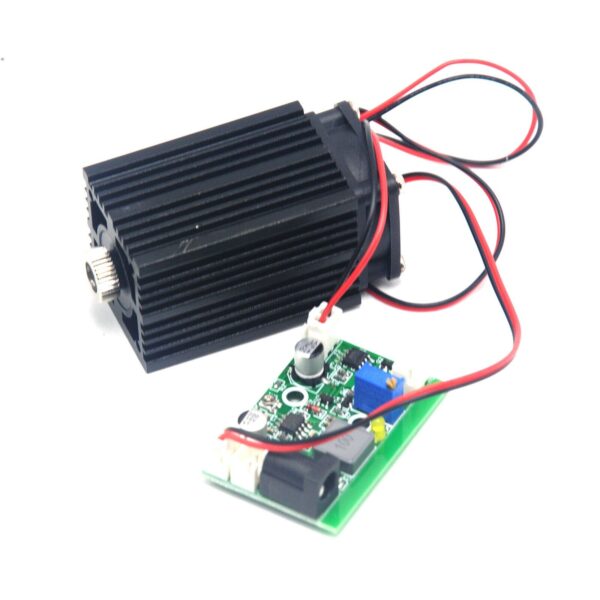

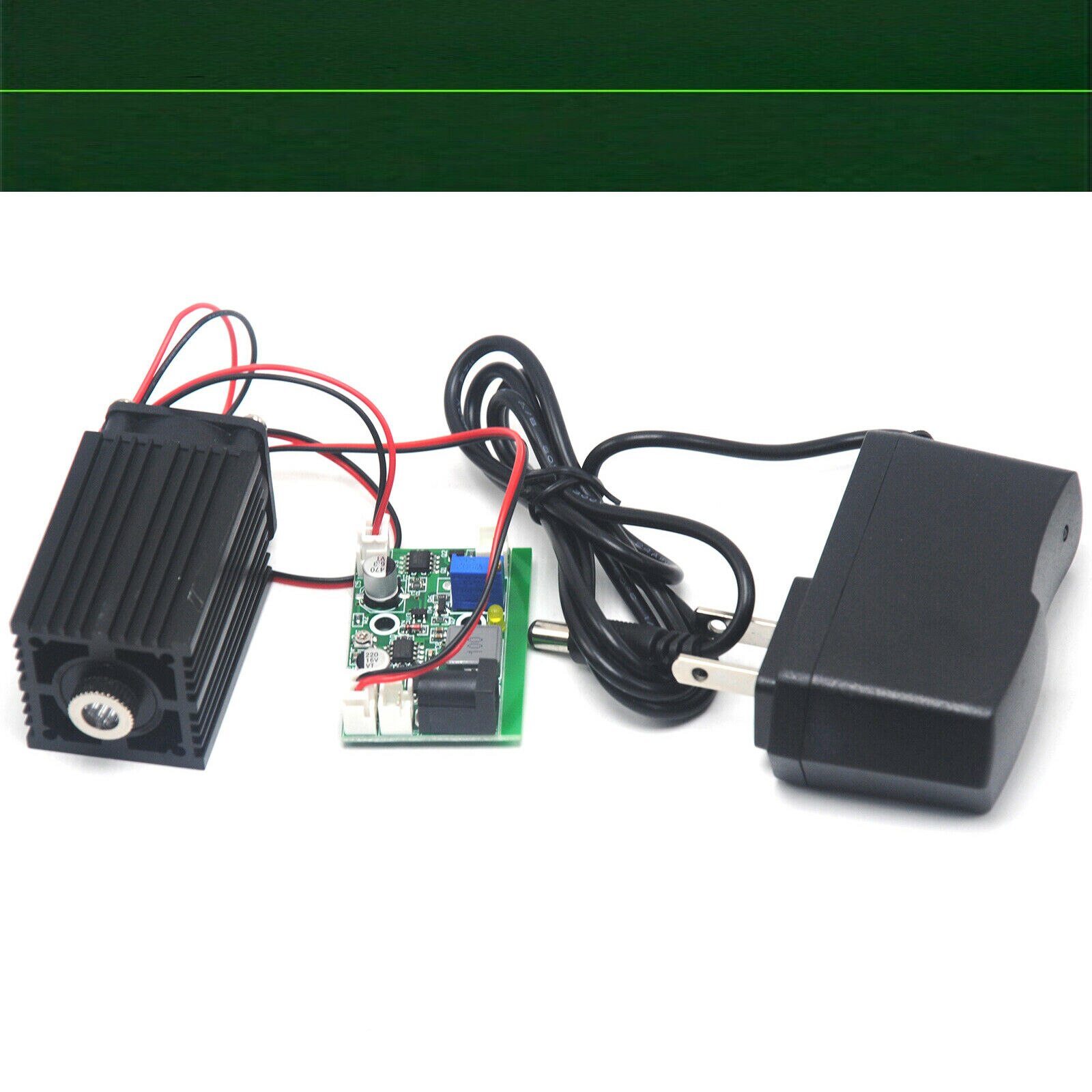

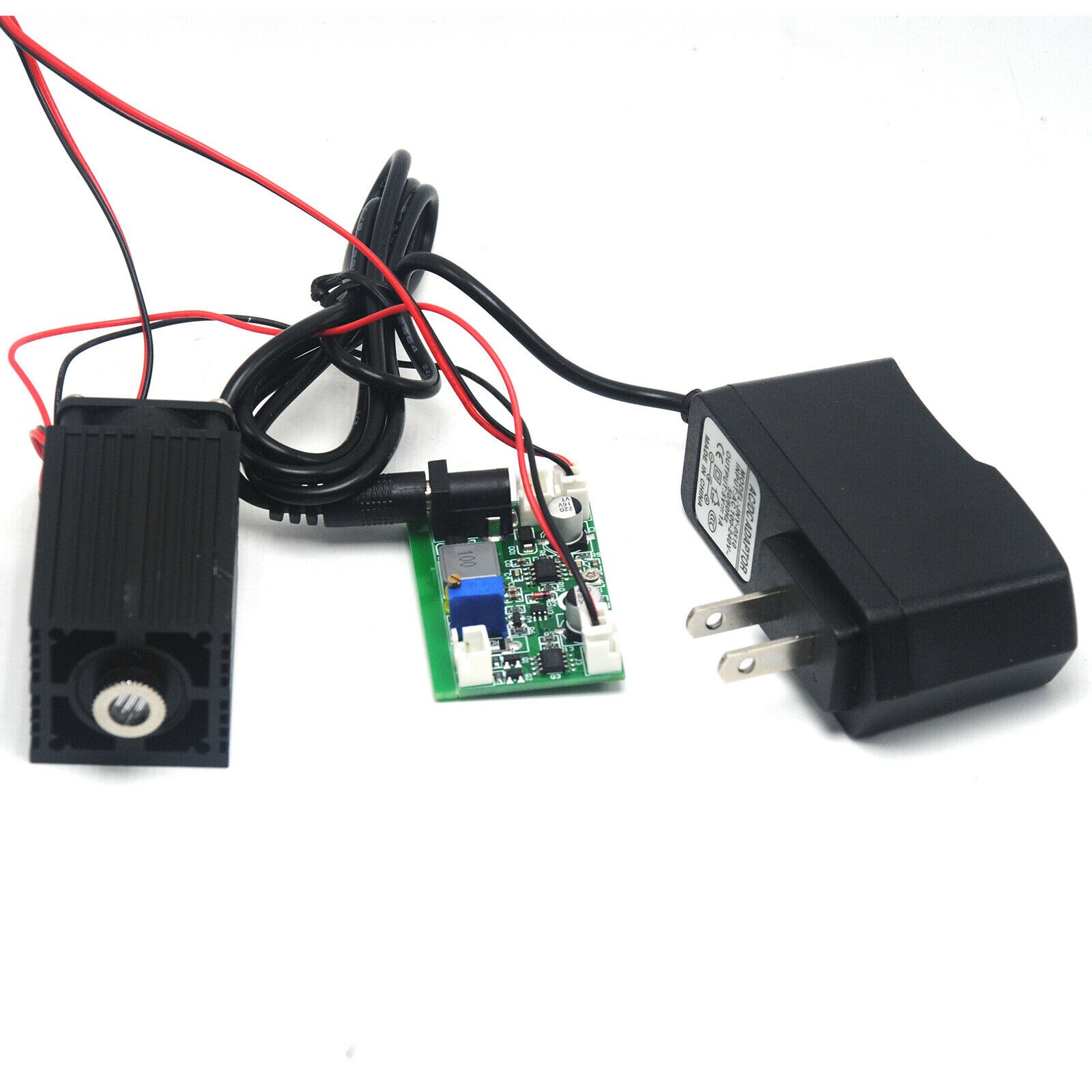

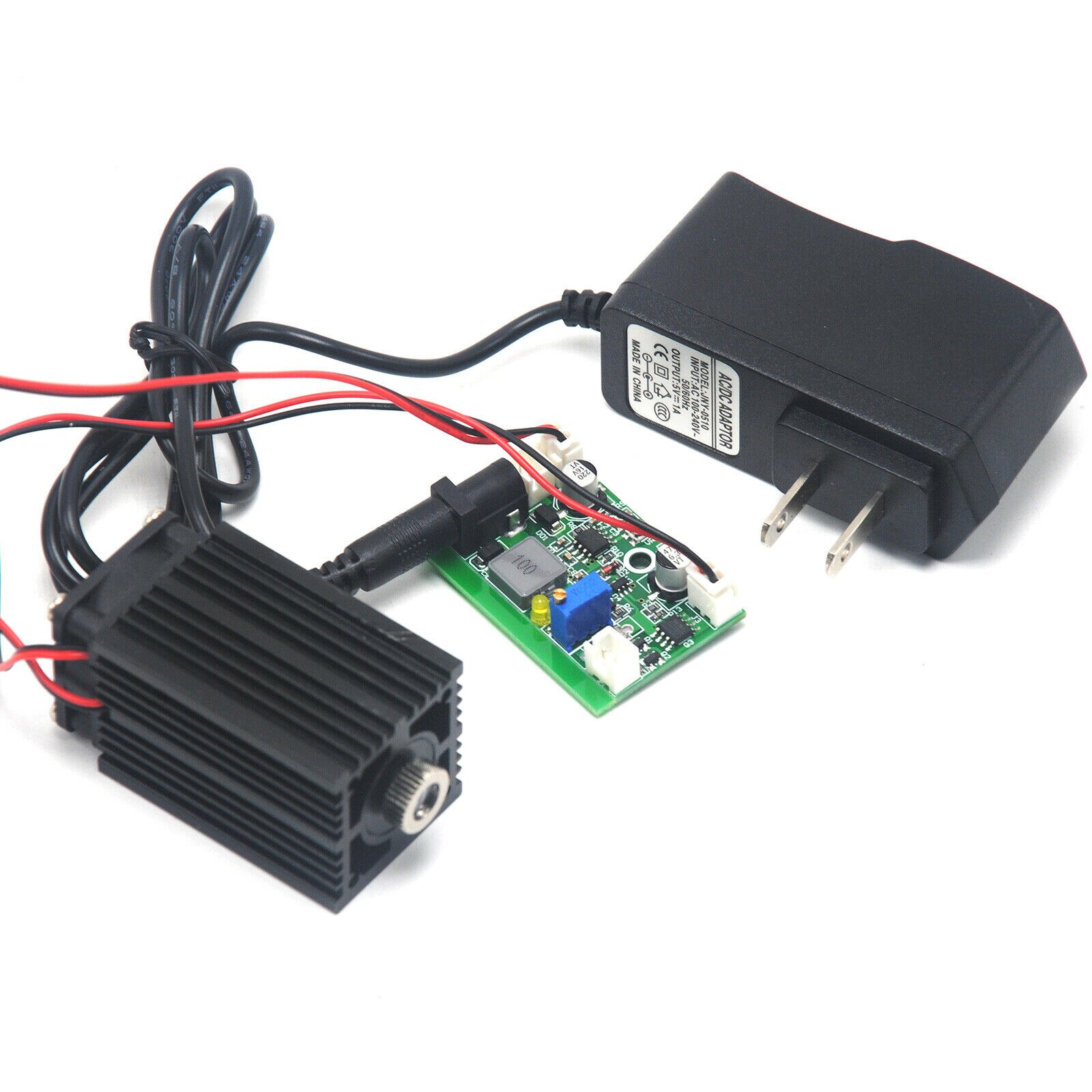

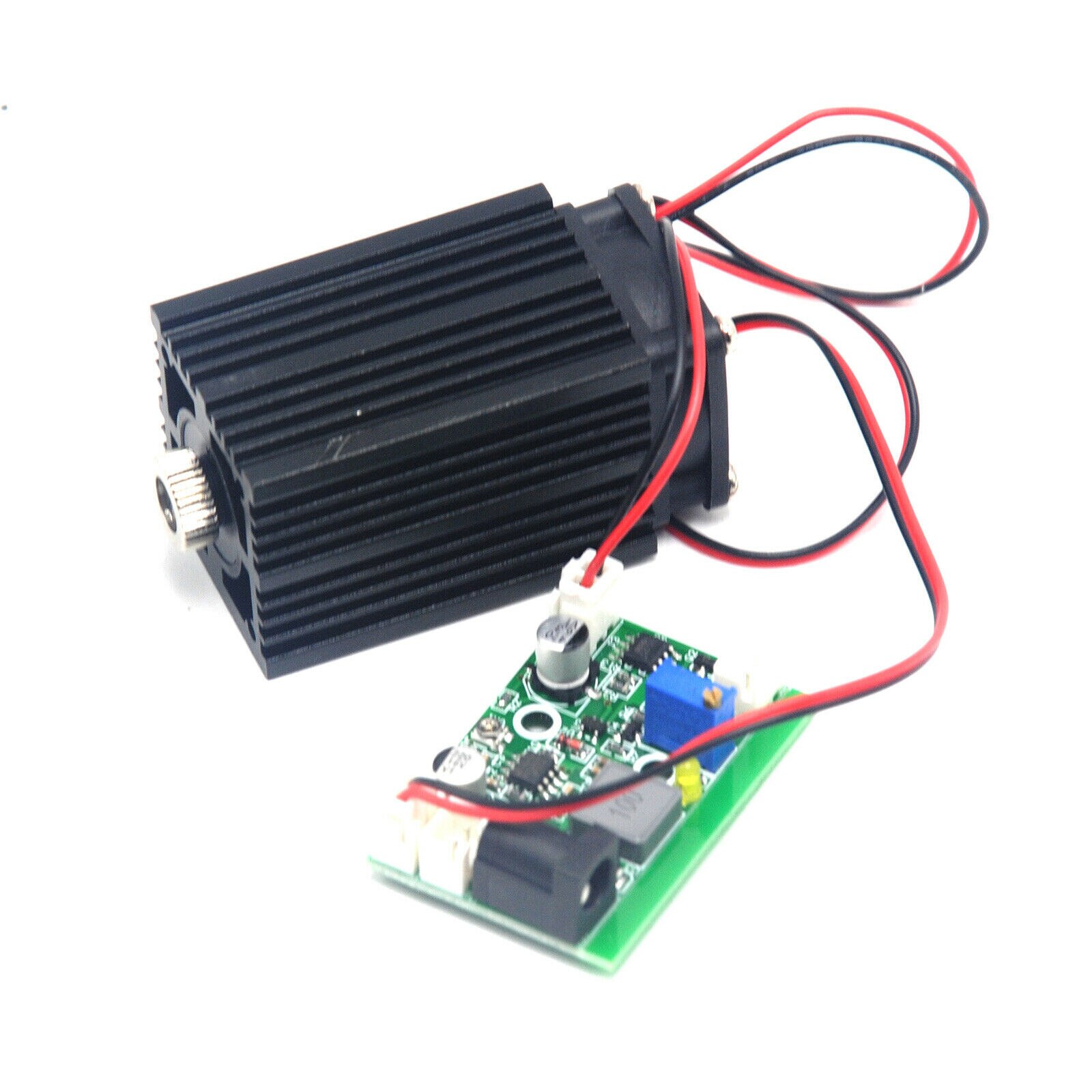

Line 532nm 80mW Green Laser Diode Module w/12V 1A Adapter &Fan Long time working

$84.15

100 in stock

SKU: 1005002542793880 Category:

Description

  • Brand Name: Q-LINE
  • Certification: NONE
  • Origin: CN(Origin)
  • Model Number: Line 532nm 80mW
  • Item Type: Laser Flashlight

Parameter

Wavelength: 532nm
Output power: 80mW
Operating voltage: DC = 12V
Operating Current: I<380mA Laser shape: Line Focusable: Yes Modulation frequency: Adujstable TTL modulation TTL modulation: 0-20KHz Operating Characteristics: continuous work Finish Color: Black Case Material: Aluminum The circuits control: constant current Warm-up time: None Operating Temperature: -10 ℃ ~ +40 ℃ Storage temperature: -10 ℃ ~ +40 ℃ Reverse polarity protection: with automatically identify the positive and negative Laser head size: 50x33x33mm Circuit Board size: 45*34mm Note: 1.The input voltage for this laser is 12V, working voltage >12v can cause damage to the circuit and laser instantly,
if you have any technical problems, please contact us in advance!
2.This laser module brings TTL modulation, can work long time, is really industry laser module!!
3. Please wear 600nm-780nm laser protection goggles to protect your eyes when working on this module.

Package

1pc 532nm 80mw Laser Line Module
1pc 12A 1A Adapter(US/UK/AU/EU plug,please leave us which one you need,or we will ship according to your country)
