Description
- Brand Name: AERMANDA
- Certification: CE
- Origin: CN(Origin)
- Size: 148mm *76mm *26mm (L*W*H)
- Model Number: LS116
- Weight: about 622 g (without battery)
- Wavelength Range: 380nm-760nm
- Type: Single Beam Spectrometers
- Measurement Range: 380nm-760nm
- Power supply: 4 AAA alkaline dry battery
Product Introduction

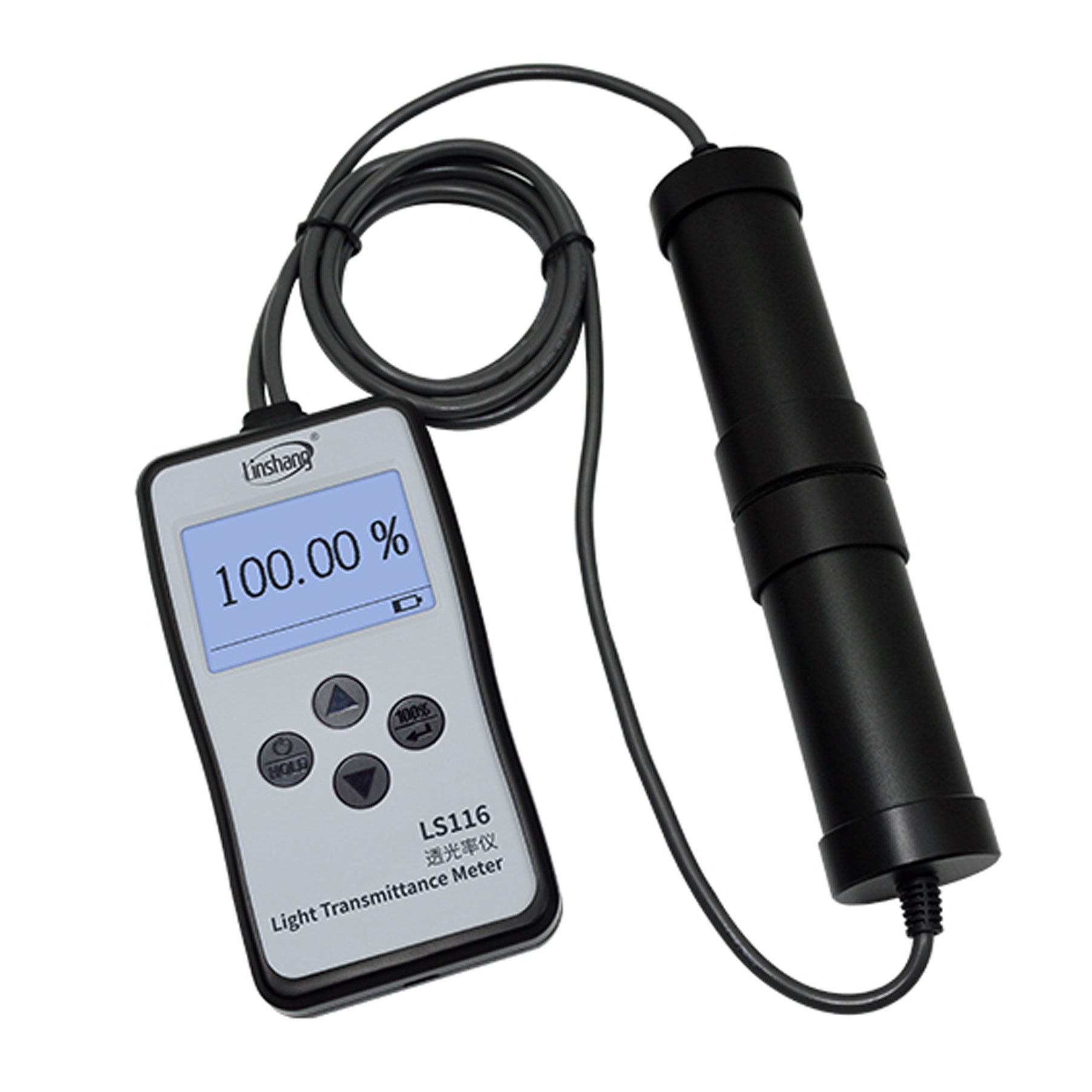

Linshang LS116 light transmittance tester is a professional instrument for testing the light transmittance of uniform light-transmitting materials. It uses a parallel light path design and can also be used to detect large thickness materials with an accuracy of ± 1%. Function standard to ensure the passing of testing by the Metrology Institute.
Light transmittance is an important technical indicator of many optical products, such as glass, solar film, laminated glass, PC plastic, etc. The test principle of the light transmittance meter is to use a visible light source to illuminate the measured substance. The sensor detects the incident light intensity of the light source and the light intensity after passing through the measured substance. The ratio of the transmitted light intensity to the incident light intensity is transmitted. Rate, expressed asa percentage.
Product Application
The LS116 light transmittance meter can be used to test the light transmittance of glass products, solar films, laminated glass, coating materials, organic material panels and other materials. Suitable for display, production, quality inspection, inspection and other occasions.
Product Characteristics
1. The light transmittance meter adopts the parallel light path of the light source and the light collecting design of the receiver, so that it can measure large thickness materials.

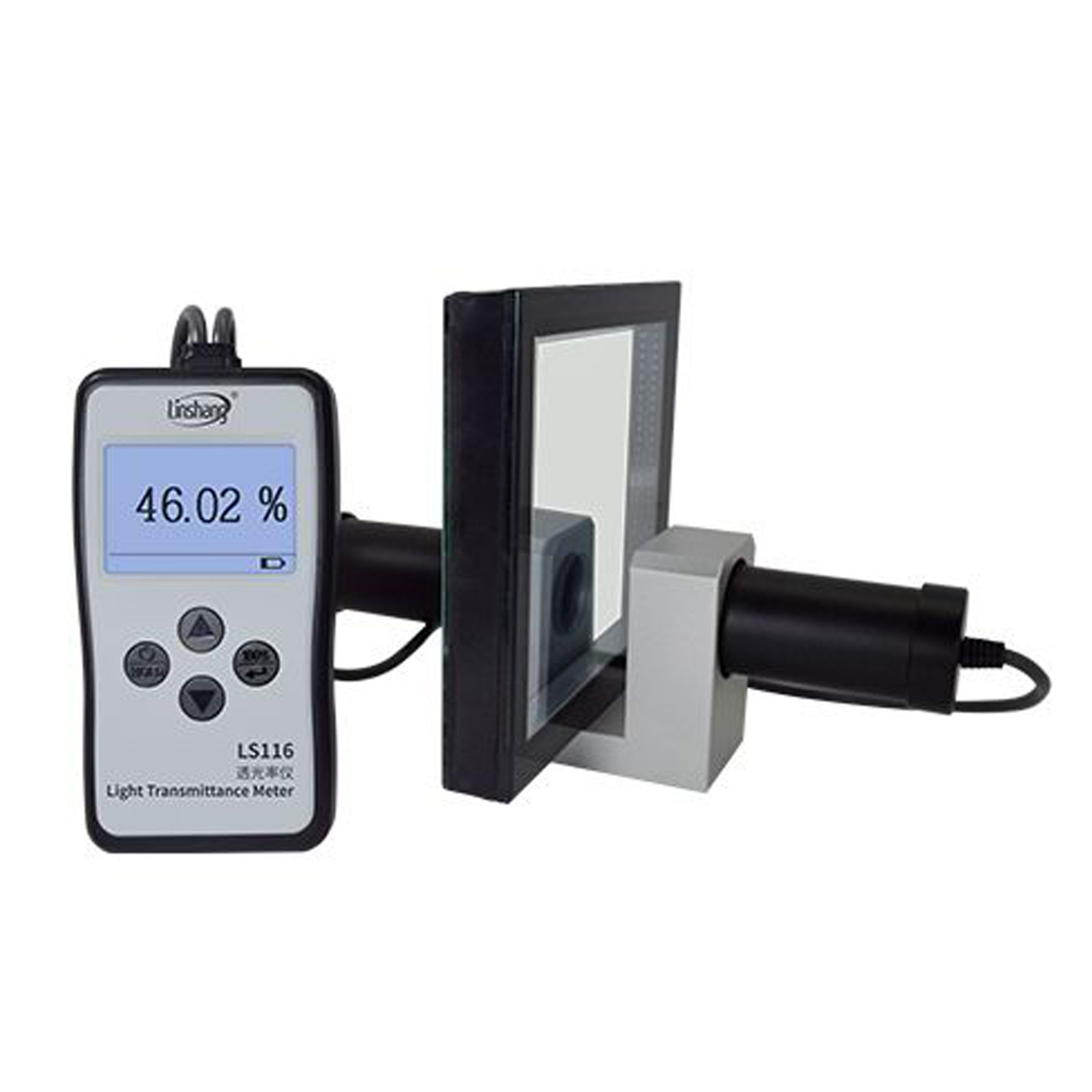

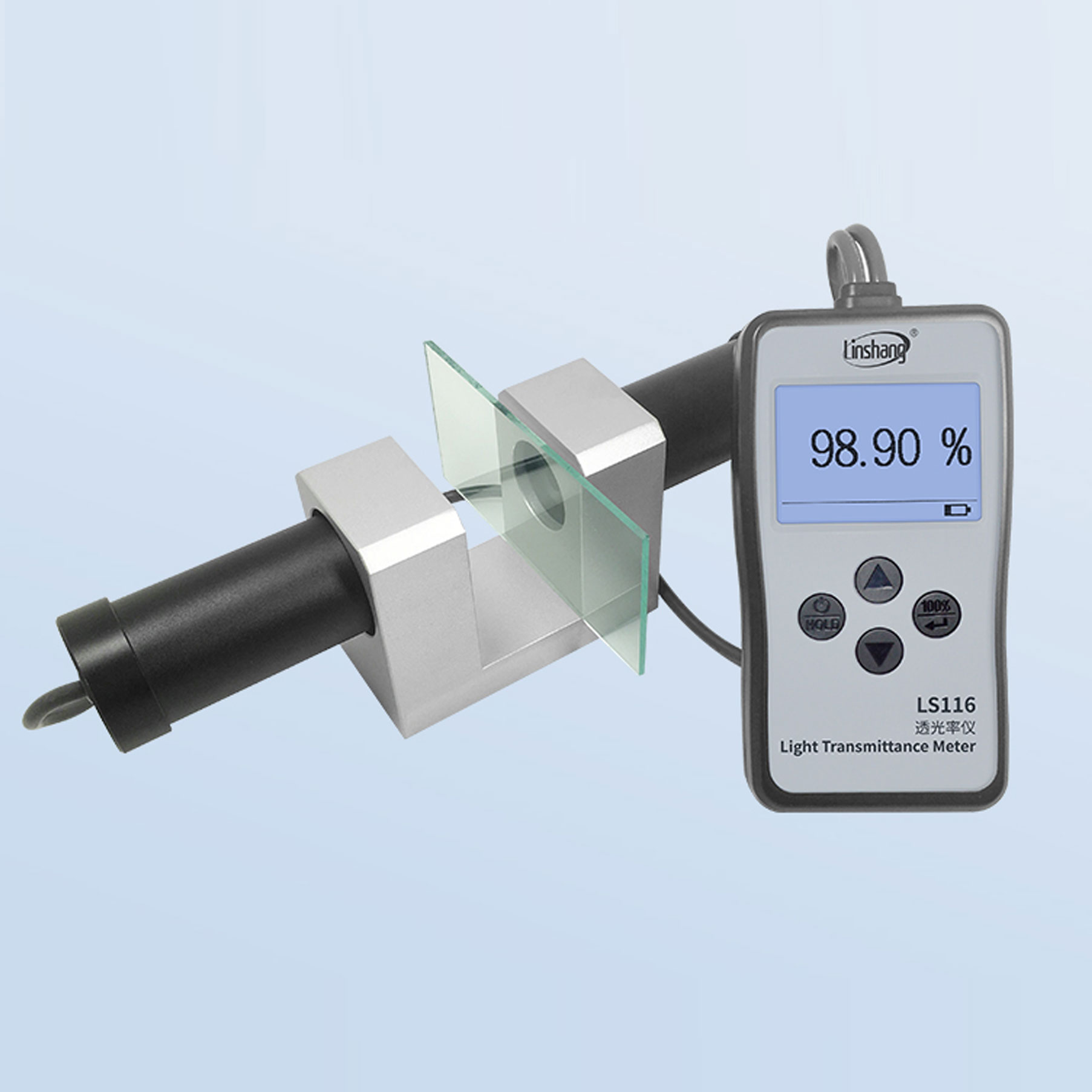

2. Equipped with a fixed base, with two measurement methods; that is, it is suitable for testing such as on-site measurement of automobile front glass, and it is also suitable for fixed-point light transmission measurement such as a fixed station in a factory.
3. Adopt high-resolution acquisition chip, which can realize high-precision data acquisition, fast response and real-time dynamic calibration, high measurement accuracy and fast test speed.

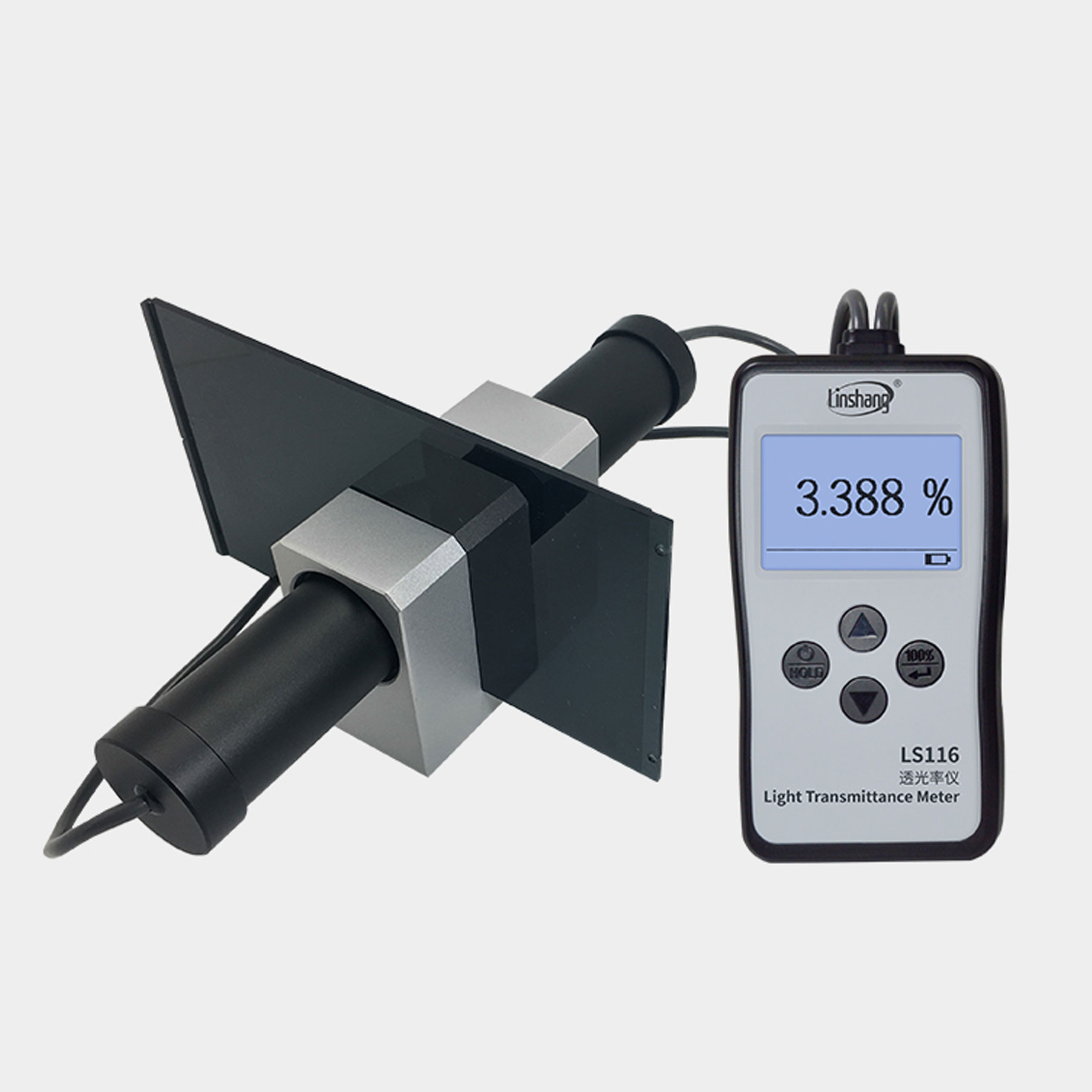

4. The instrument can measure high-transmittance samples. The transmittance measurement range is 0.001% -99.8%, and the highest resolution can reach 0.001%.
Technical Parameters
UV peak wavelength |
365nm |
||||||||||||||||
IR peak wavelength |
940nm |
||||||||||||||||
Visible light |
380-760nm, conform to CIE photopic luminosity function |
||||||||||||||||
Resolution |
When the measured value is resolution is 0.1%; |
||||||||||||||||
Measurement accuracy |
Better than ± 2% (colorless and uniform transparent materials)
|
||||||||||||||||
Test sample size |
Bigger than 40mm × 40mm |
||||||||||||||||
Weight |
630 g |
||||||||||||||||
Dimension |
130mm x 70mm x 84mm |
||||||||||||||||
Power supply |
Built-in lithium rechargeable battery |
No. |
Description |
Quantity |
Unit |
1 |
LS110A Split Transmission Meter |
1 |
pcs |
2 |
Charger |
1 |
pcs |
3 |
User Manual |
1 |
pcs |
4 |
Certificate / warranty card |
1 |
pcs |
5 |
Packing box dimension 25*21*7 cm(L*W*H) |
1 |
pcs |
