Description
- Brand Name: HKNA
- Origin: Mainland China
- DIY Supplies: Woodworking
- Certification: CE
- Model Number: LDS-40S-B20E44
- Type: lidar sensor laser
- Place of Origin: Zhejiang, China
- Brand Name: lanhai
- Usage: Sensing radar
- Theory: Acoustic sensing
- Output: N/A
- Description: radar

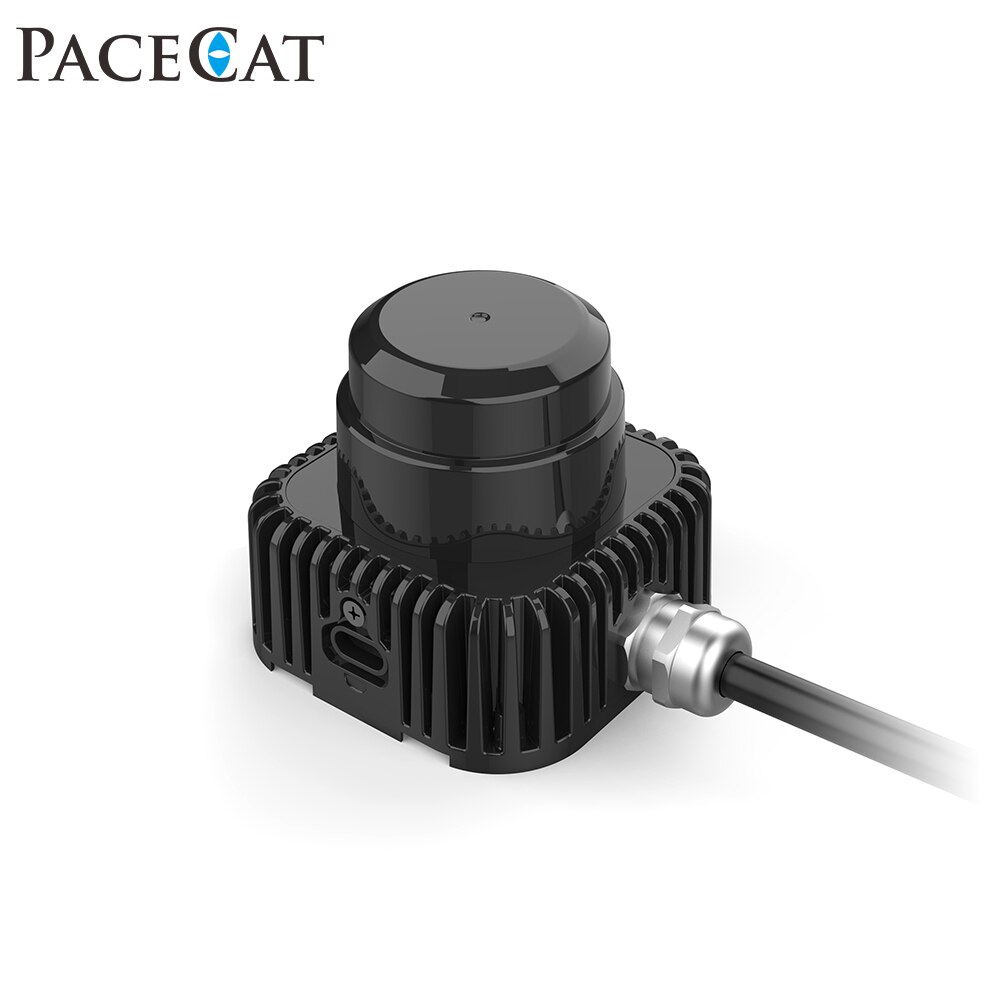

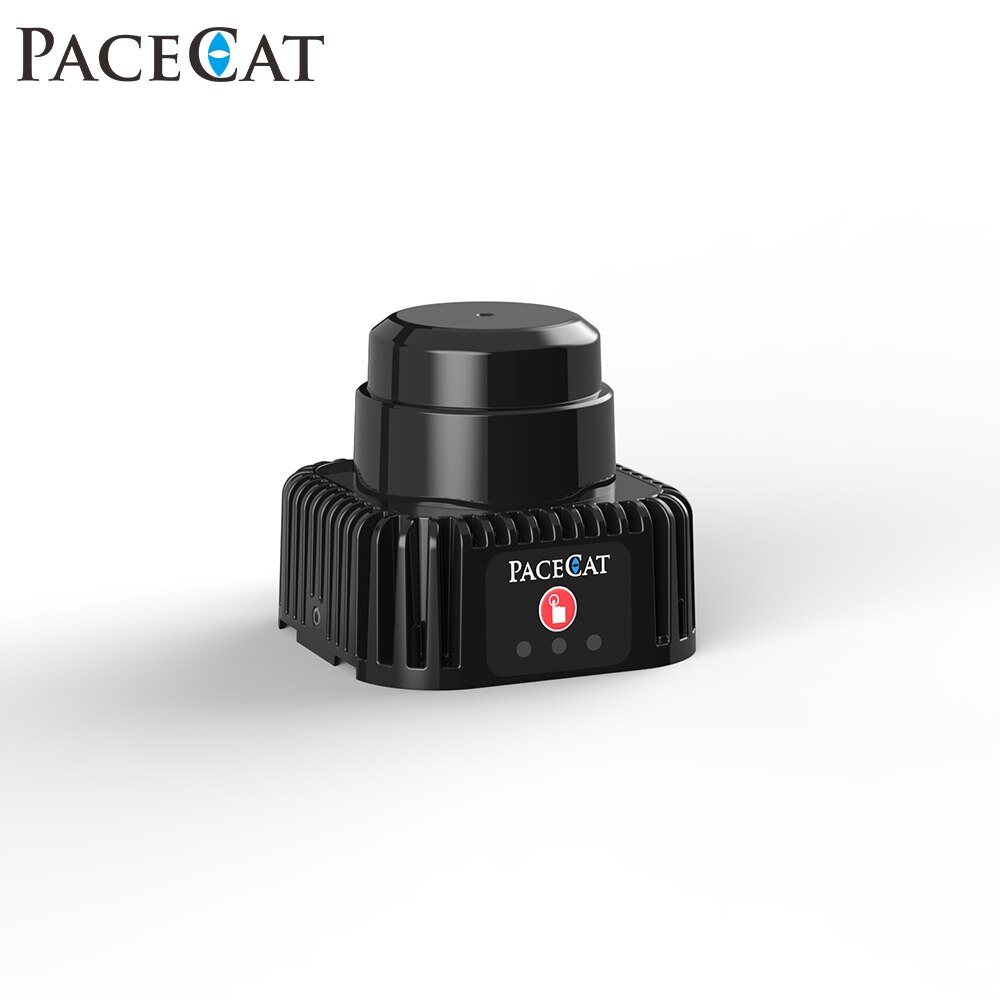

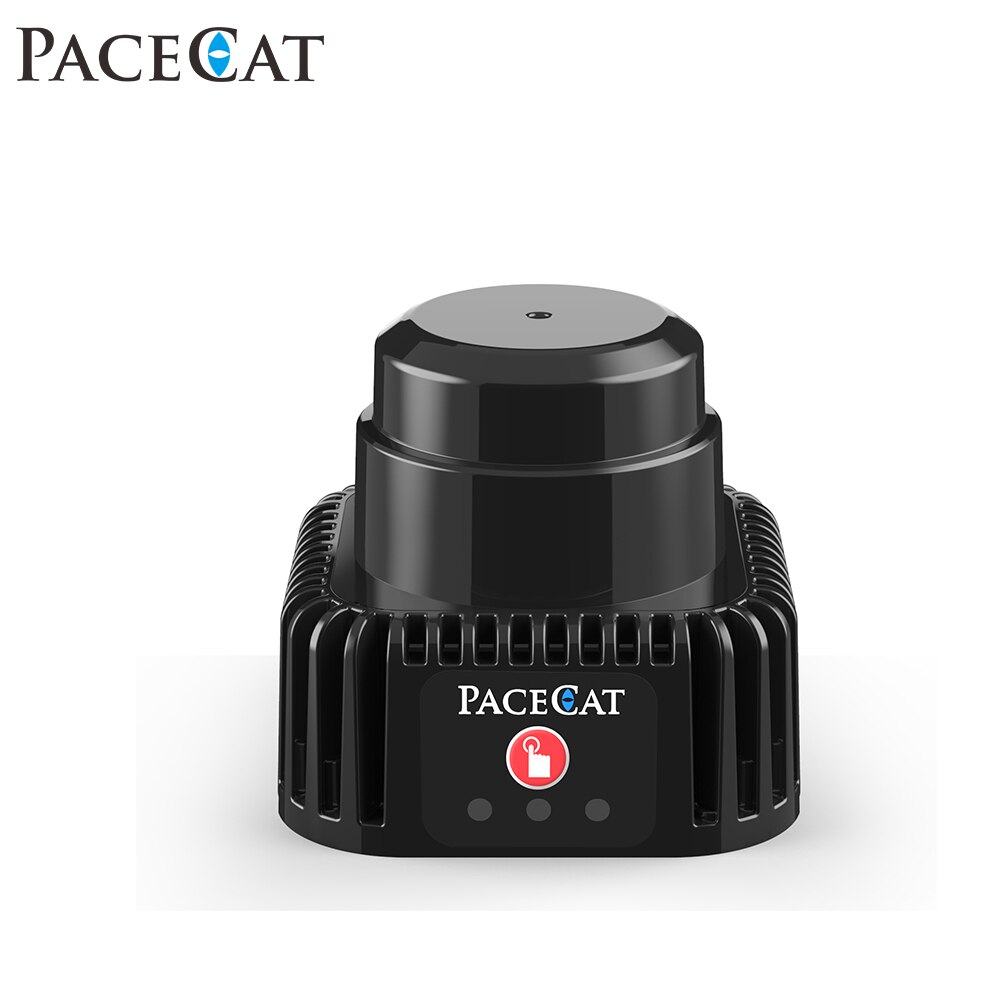

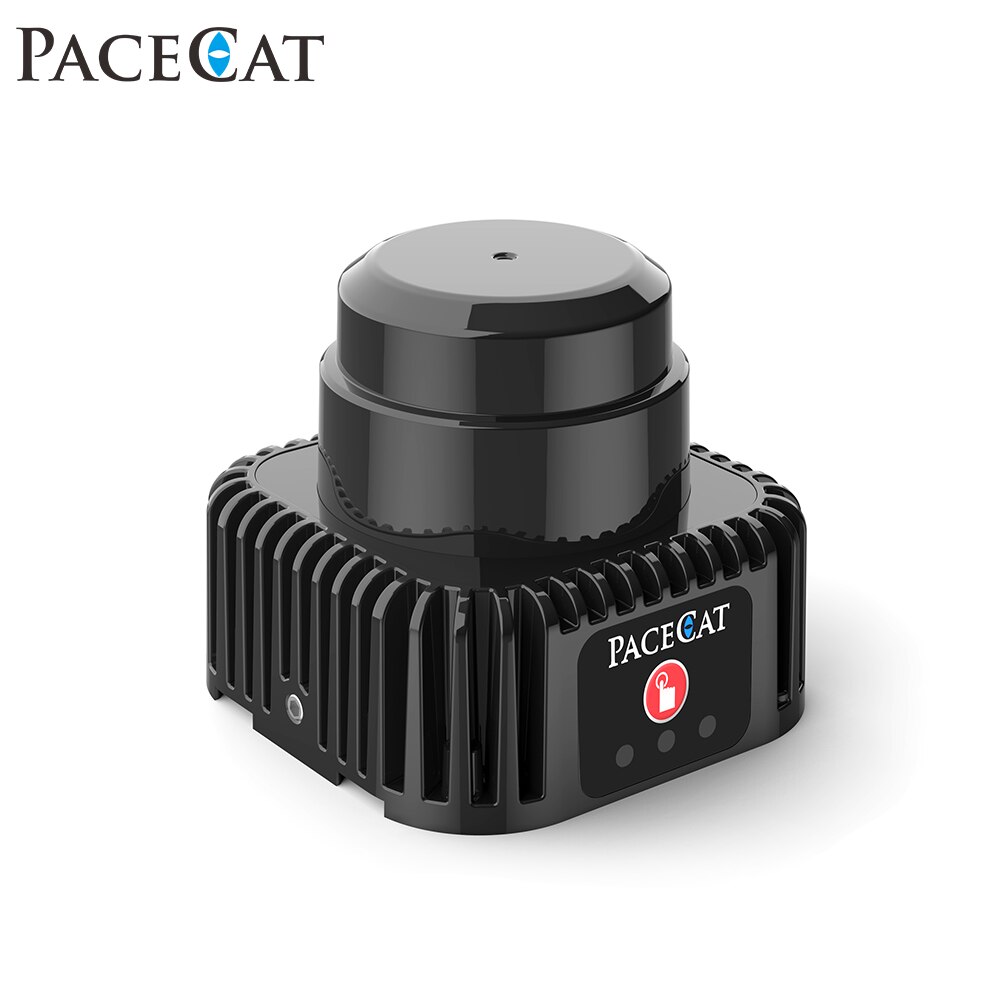

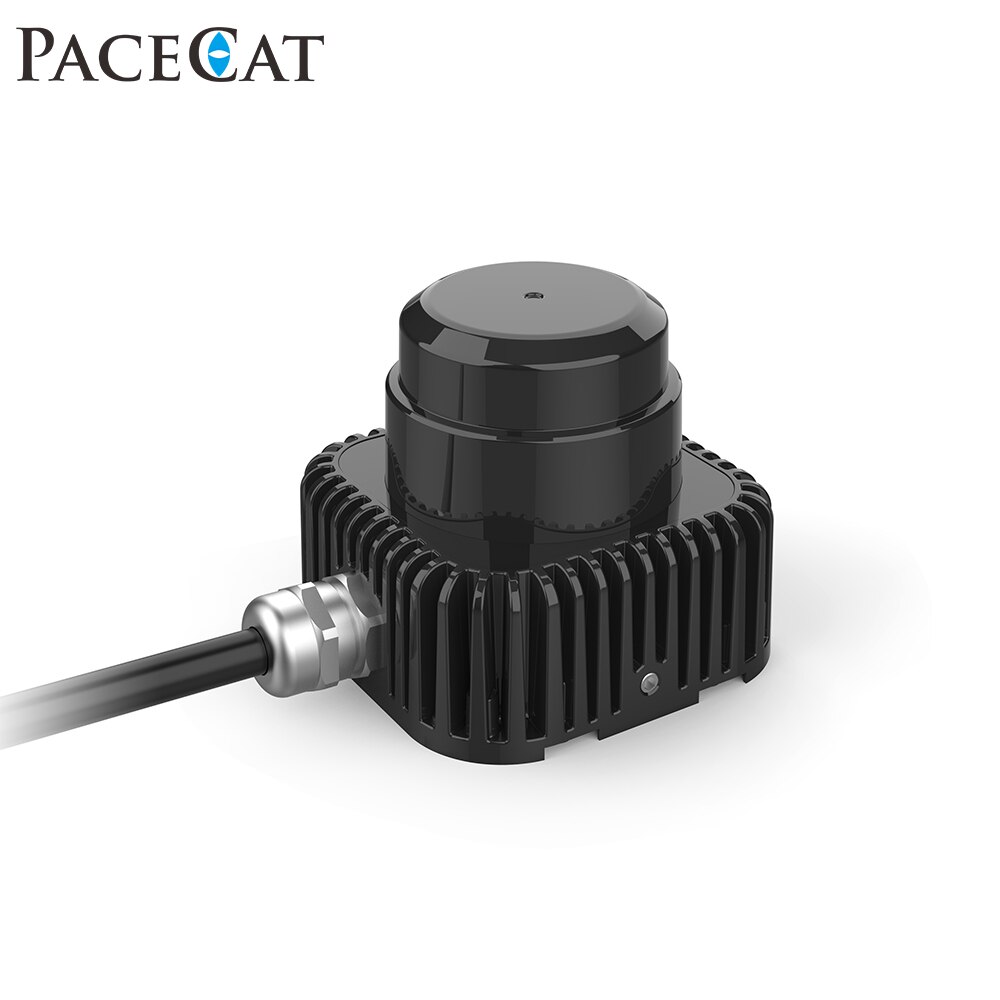

- Product name: lidar sensor laser
- size: 88(68)x68x59mm
- warranty period: 1 Year
- Distance: 0.1–40m
- Laser Wave Length: 905nm±15nm
- Ranging accuracy: ±30mm
- Weight: 330g
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:28px;padding:5px 10px;width:126px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-6{min-height:28px;padding:5px 10px;width:127px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-7{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-8{width:750px}#detail_decorate_root .magic-9{overflow:hidden;width:750px;height:512px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-10{margin-top:0;margin-left:0;width:750px;height:512px}#detail_decorate_root .magic-11{overflow:hidden;width:750px;height:410px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-12{margin-top:0;margin-left:0;width:750px;height:410px}#detail_decorate_root .magic-13{vertical-align:top}#detail_decorate_root .magic-14{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-15{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-16{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-17{padding:5px 10px;width:126px;box-sizing:content-box}#detail_decorate_root .magic-18{padding:5px 10px;width:127px;box-sizing:content-box}
Promotional information

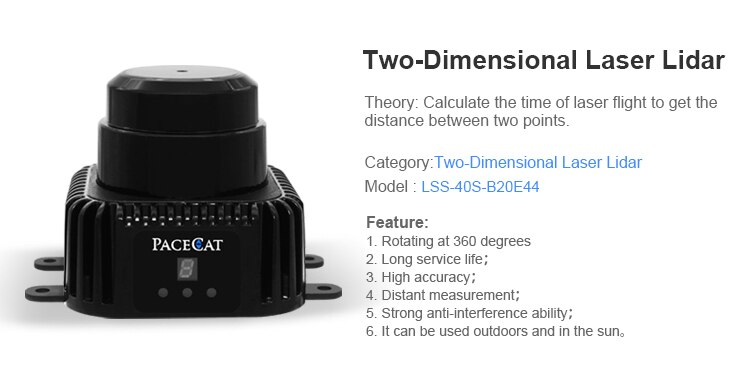

Products Description
Specification
|
Model
|
LSS-40S-B20E44
|
|
|
|
|
Laser Wave Length
|
905nm±15nm
|
|
|
|
|
Distance
|
0.1–40m
|
|
|
|
|
Ranging accuracy
|
±30mm
|
|
|
|
|
Range Resolution
|
mm
|
|
|
|
|
Echo Mode
|
Single Pulse
|
|
|
|
|
Measure Frequency
|
18KHZ
|
|
|
|
|
Measure Angle
|
360°
|
|
|
|
|
Angle Resolution
|
0.2°@10Hz
0.3°@15HZ |
|
|
|
|
Scan Frequency
|
10HZ,15HZ
|
|
|
|
|
Echo intensity
|
0-254
|
|
|
|
|
Drive
|
Built-in dc brushless motor
|
|
|
|
|
Communication Interface
|
USB/Ethernet 100Mbit/s
|
|
|
|
|
Optical Interference Resistance
|
＞80000LX
|
|
|
|
|
Weight
|
330g
|
|
|
|
|
Supply Voltage
|
DC10-26V
|
|
|
|
|
Working Temperture
|
﹣10~＋50℃
|
|
|
|
|
Power Dissipation
|
<5W
|
|
|
|
|
Waterproof
|
IP65/IP67
|
|
|
|
|
Size
|
88(68)x68x59mm
|
|
|
|
|
Output Mode
|
Four-way switch output
|
|
|
|
|
Input
|
Four-way digital input
|
|
|
|
|

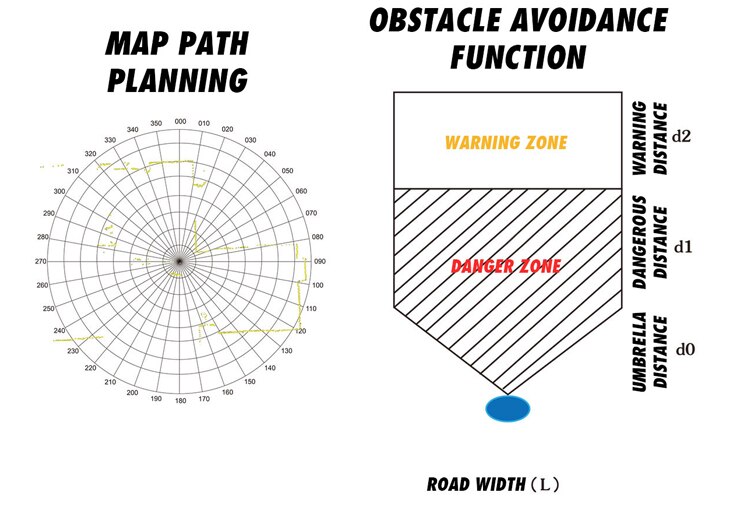

Programmable Alert Area
|
16 Area Groups (Each Area Group Contains 3 Areas)
|
|
|
|
|
Alert Area Support Shape
|
Supports Any Shape Such As ircle,Rectangle, Polygon,Etc
|
|
|
|
|
Warranty
|
1 Year
|
|
|
|
Recommend Products
Company Profile

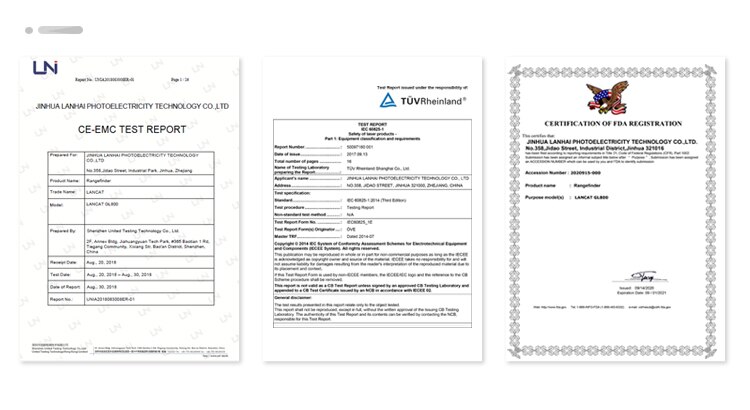

Certifications
