LEHO engraving module 5.5W blue laser module TTL module for wood marking and engraving tools, adjustable focus

$280.77

SKU: 1005002713188407 Category:

Description

  • Brand Name: Xinyuntong Intelligent Technology
  • Certification: CE
  • Origin: CN(Origin)
  • Model Number: 5.5W33 33 70

[Actual power] The power of this laser module is better than that of the 15W laser module on the market. This is calculated according to the actual power and international standards.

[Original diode] This laser module is manufactured and produced by high-tech equipment, which can cut 3mm plywood, high-quality original diodes, to ensure service life, smooth use, precise and long-lasting engraving, clear and obvious effects, high-efficiency light transmittance,

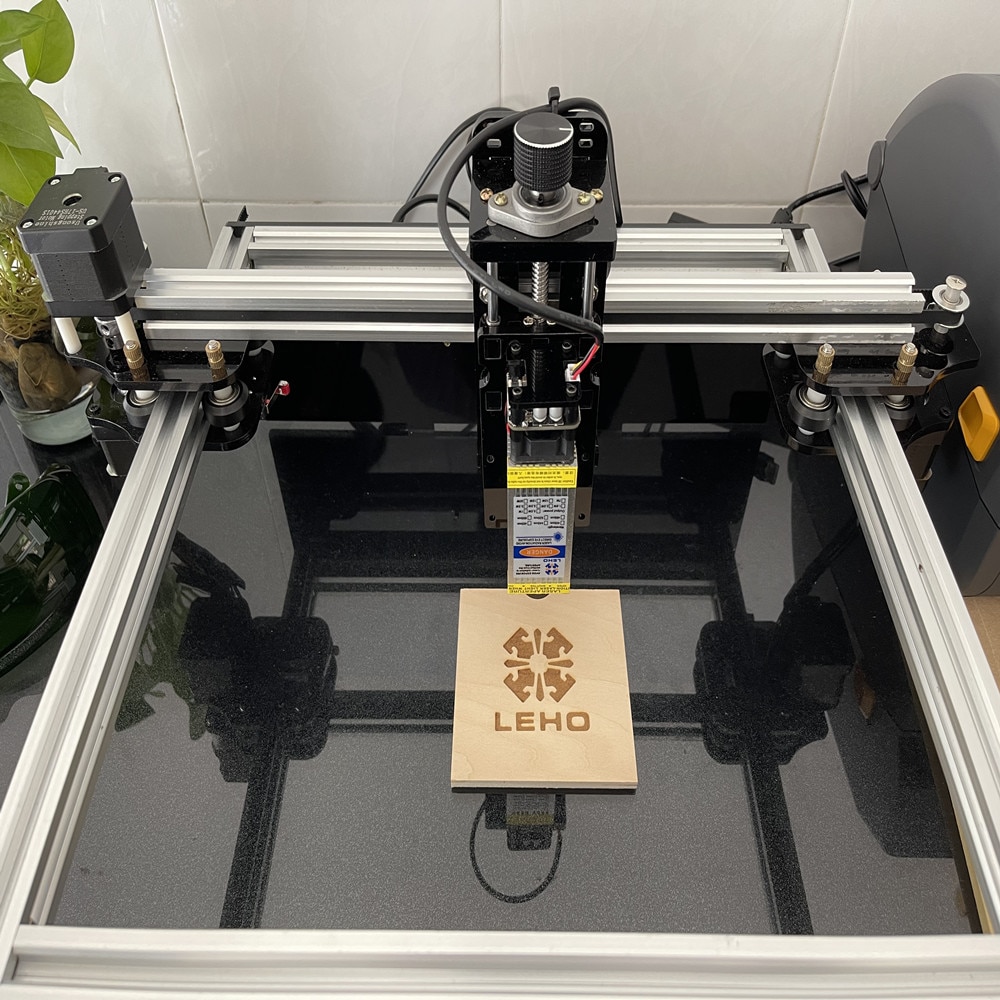

[Easy to use] No instructions required. This product is advanced technology and does not require an adapter board. Just connect the laser port wires in sequence and accurately insert them into the main board of the engraving machine.

[Widely used] Can be carved: wood, fabric, plastic, MDF, PCB, paper, bamboo, horns, leather, balsam, rubber, foam paper, sponge paper, etc. Not engravable: metal materials.

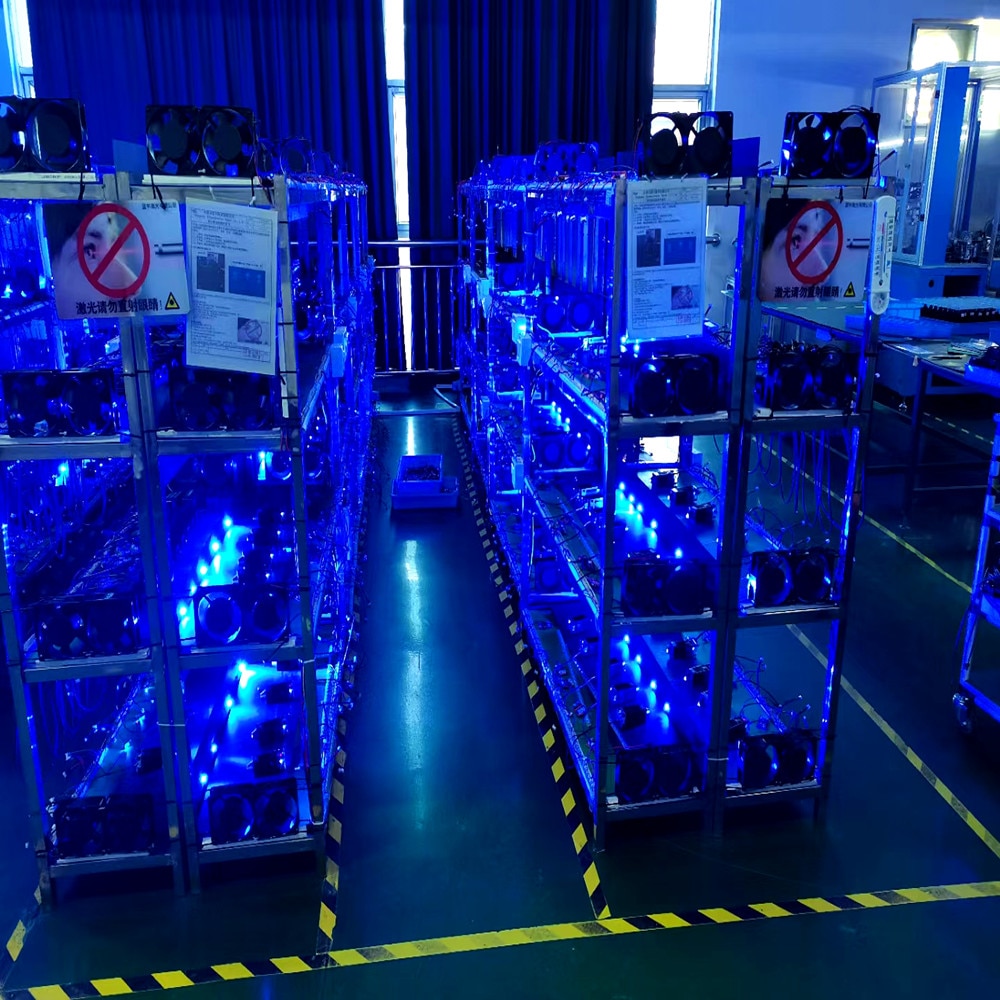

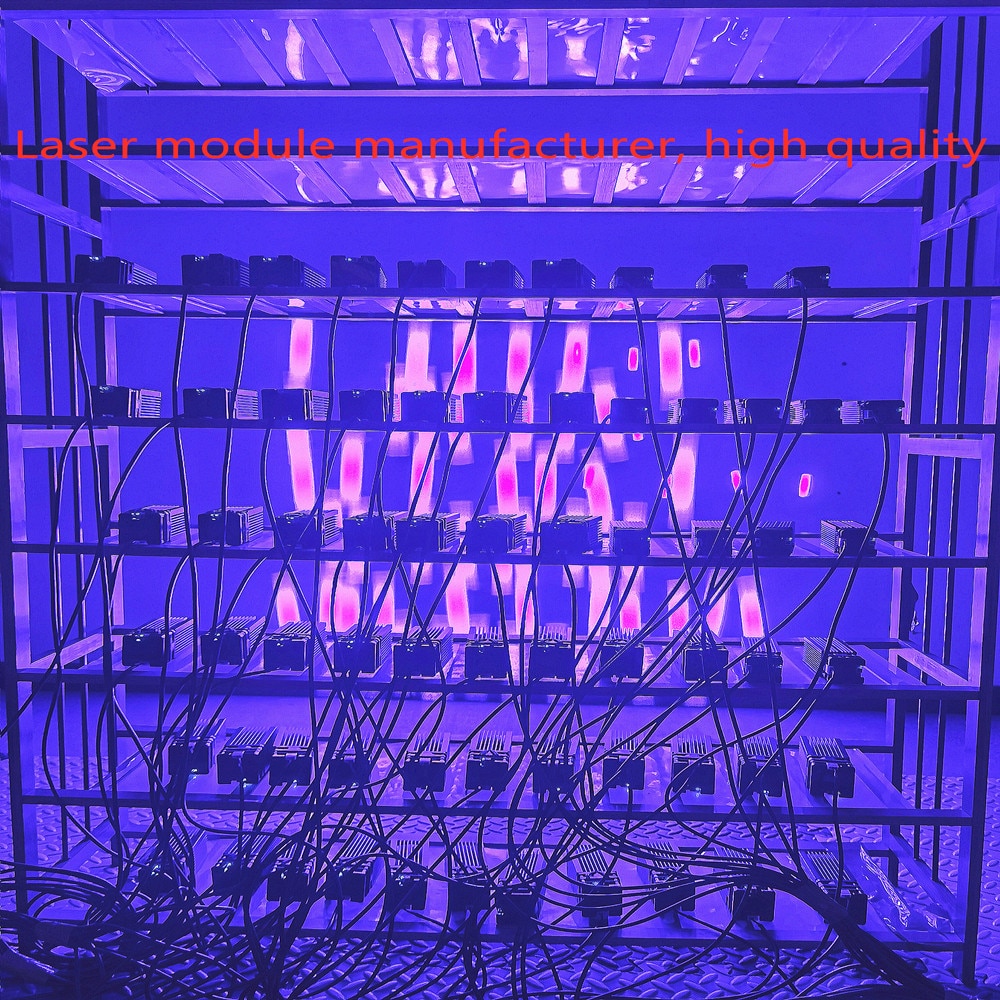

[Entity manufacturer] The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide enterprise customized solutions, accept customized types of laser modules, the product has high technical content, stable quality, and long service life.

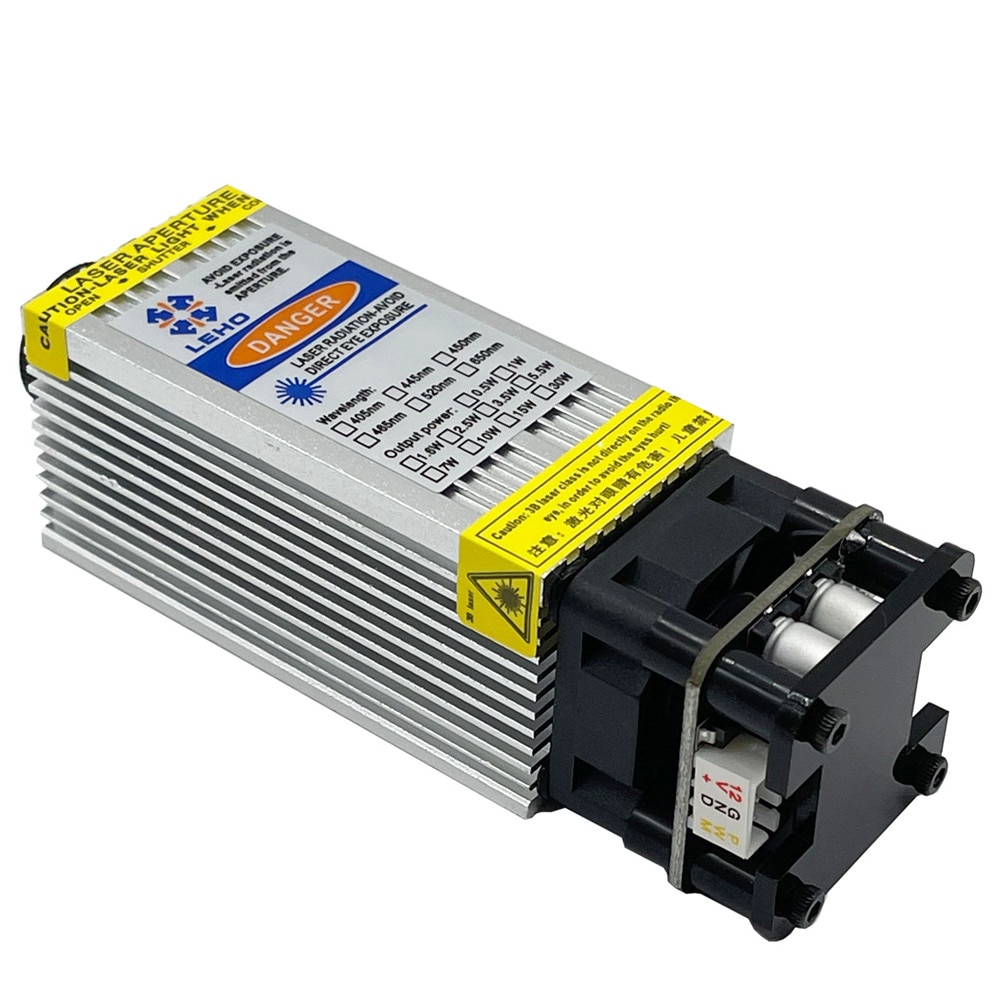

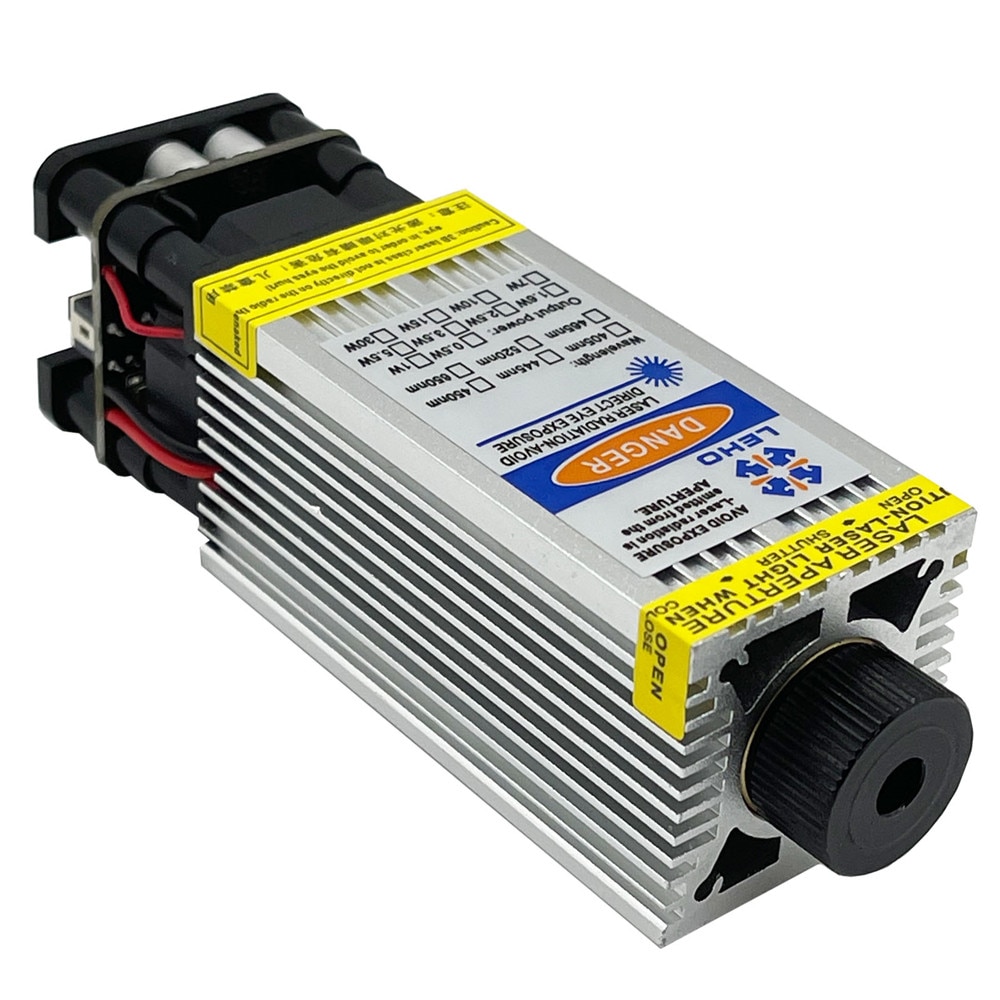

Technical Parameters

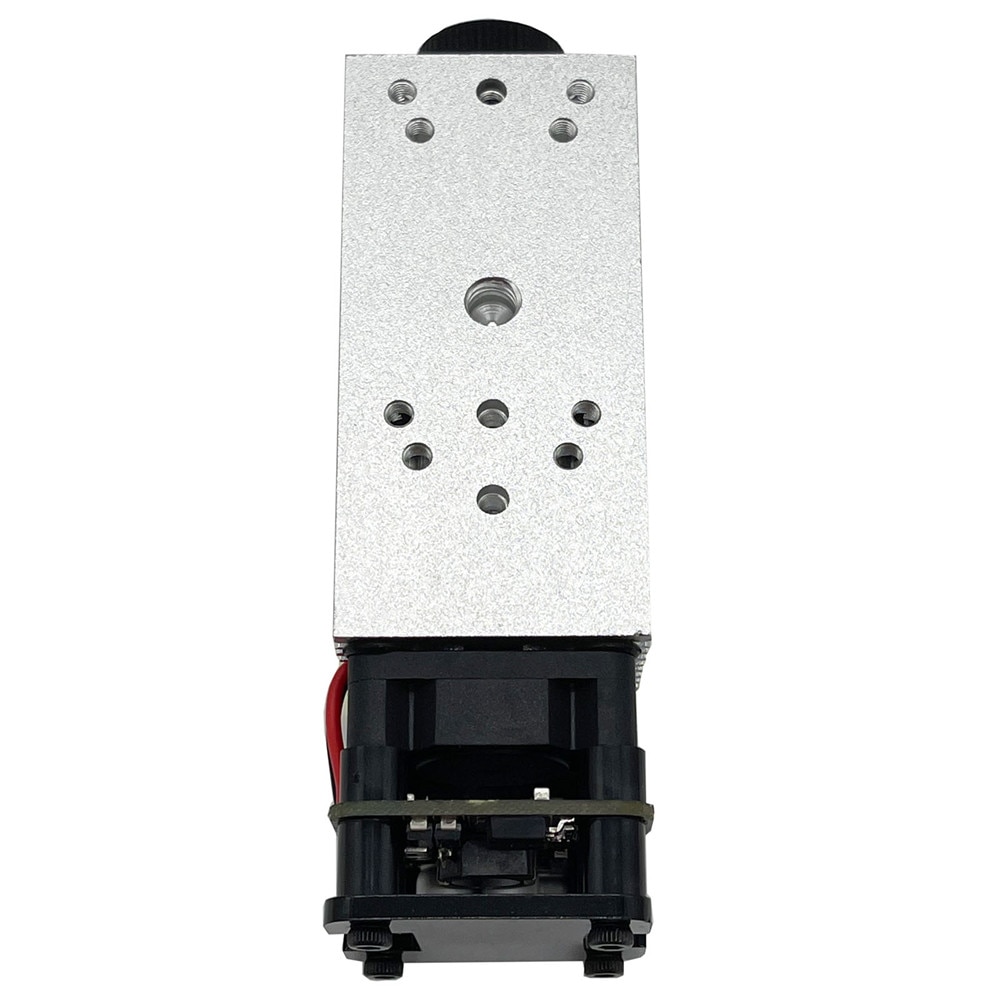

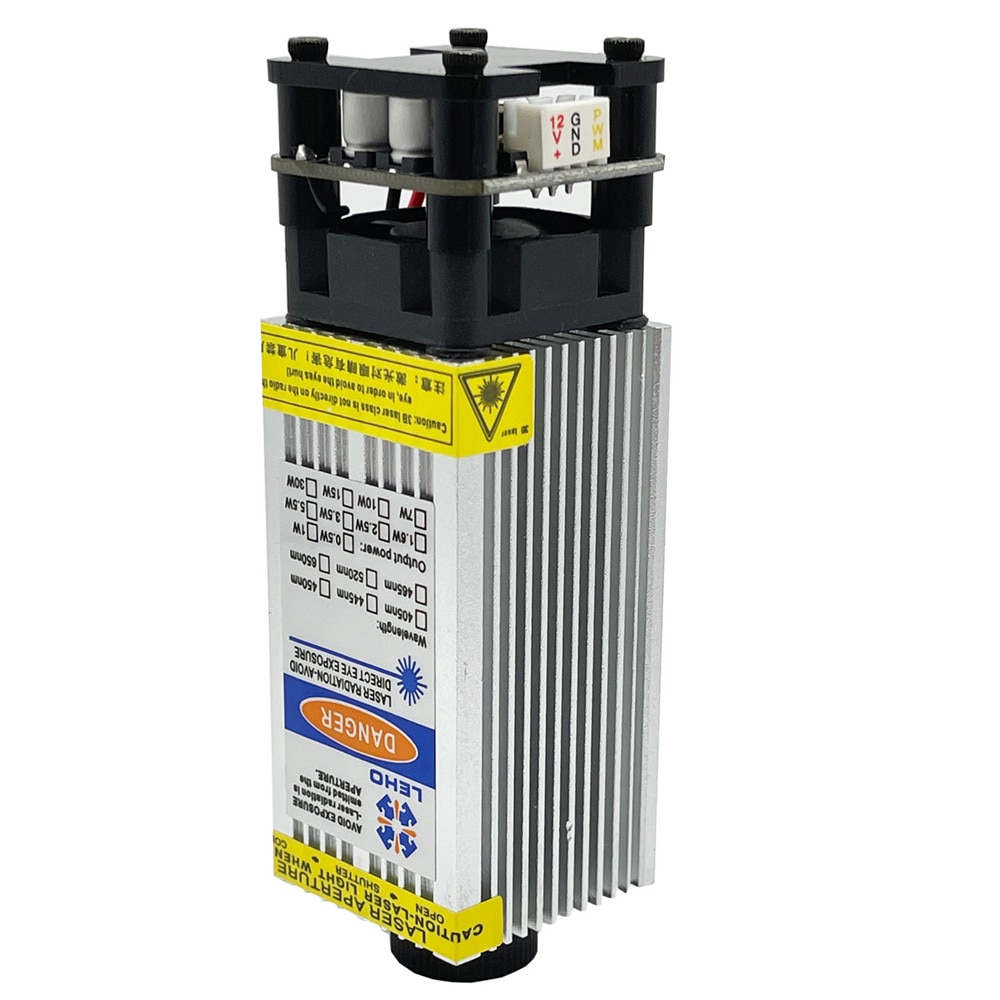

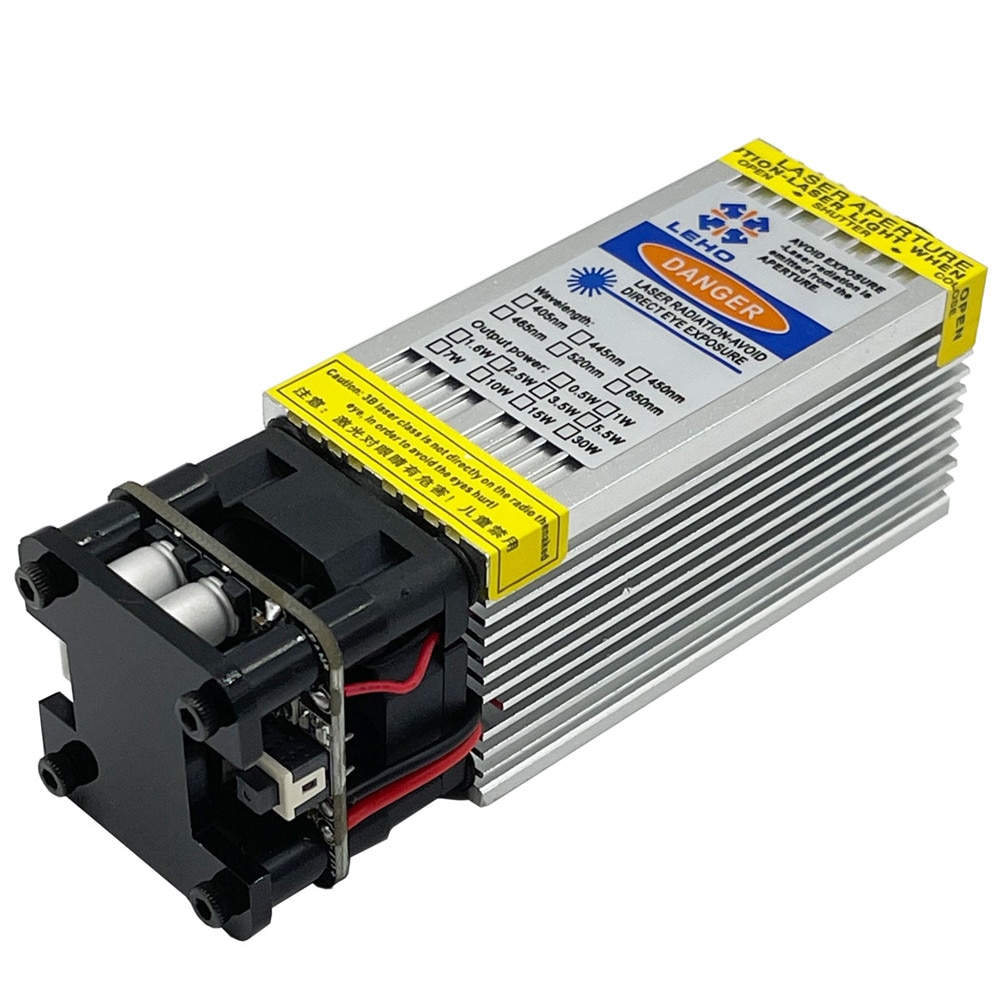

Total length of laser + fan: 100mm

Shell material: aviation aluminum

Laser light source: semiconductor blue light

Module center material: copper

Color: Oxygen silver

Shell size: 33×33×70mm

Optical power output: 5.5W

Laser wavelength: 450nm

Optical lens material: efficient light transmittance

Power supply voltage: 12V

Power control: PWM TTL (signal control voltage 0-5V)

Power supply current: 1.9A

Interface specifications: 3pin 2.54 /4pin 2.54

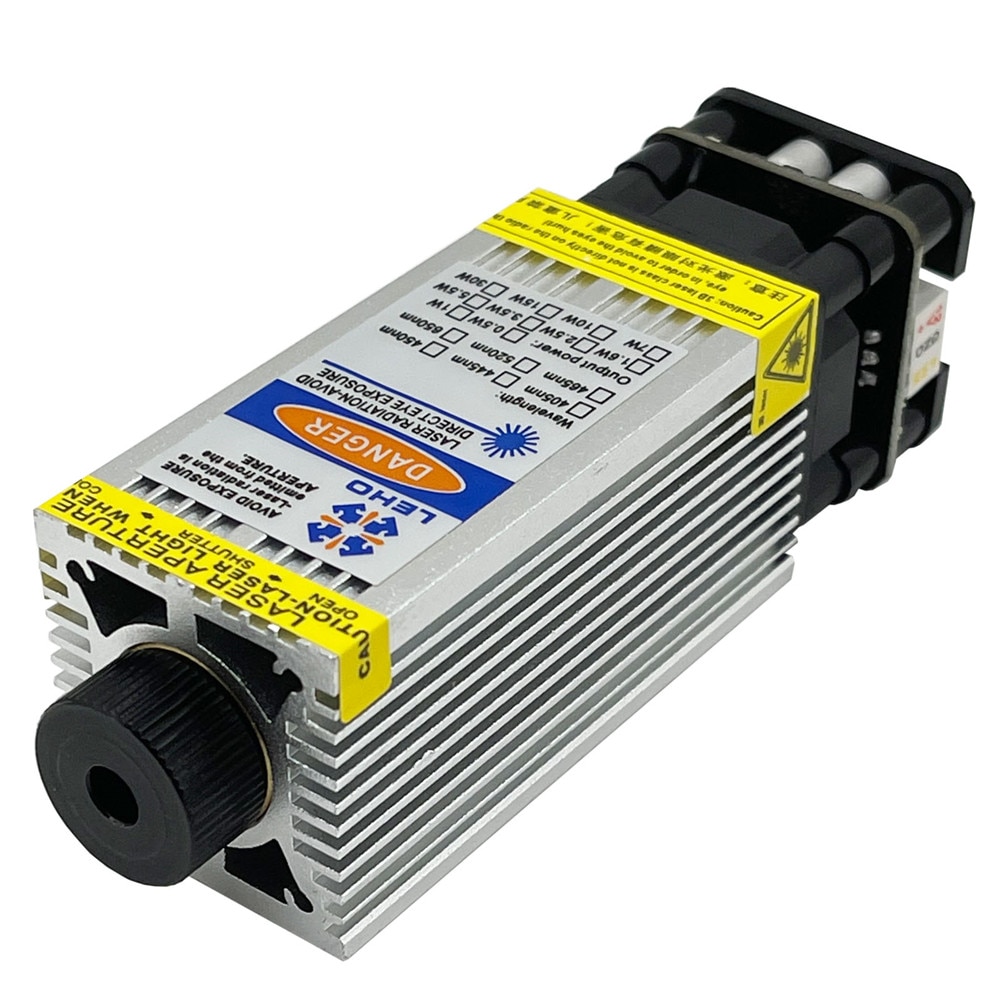

Light shape: dot, adjustable focal length

New heat dissipation method: high-speed double ball fan cooling at 13,000 revolutions per minute, safer and more durable

Packing list: laser module*1, glasses*1, 4P line*1, 3P line*1, short line DC*1,

Precautions:

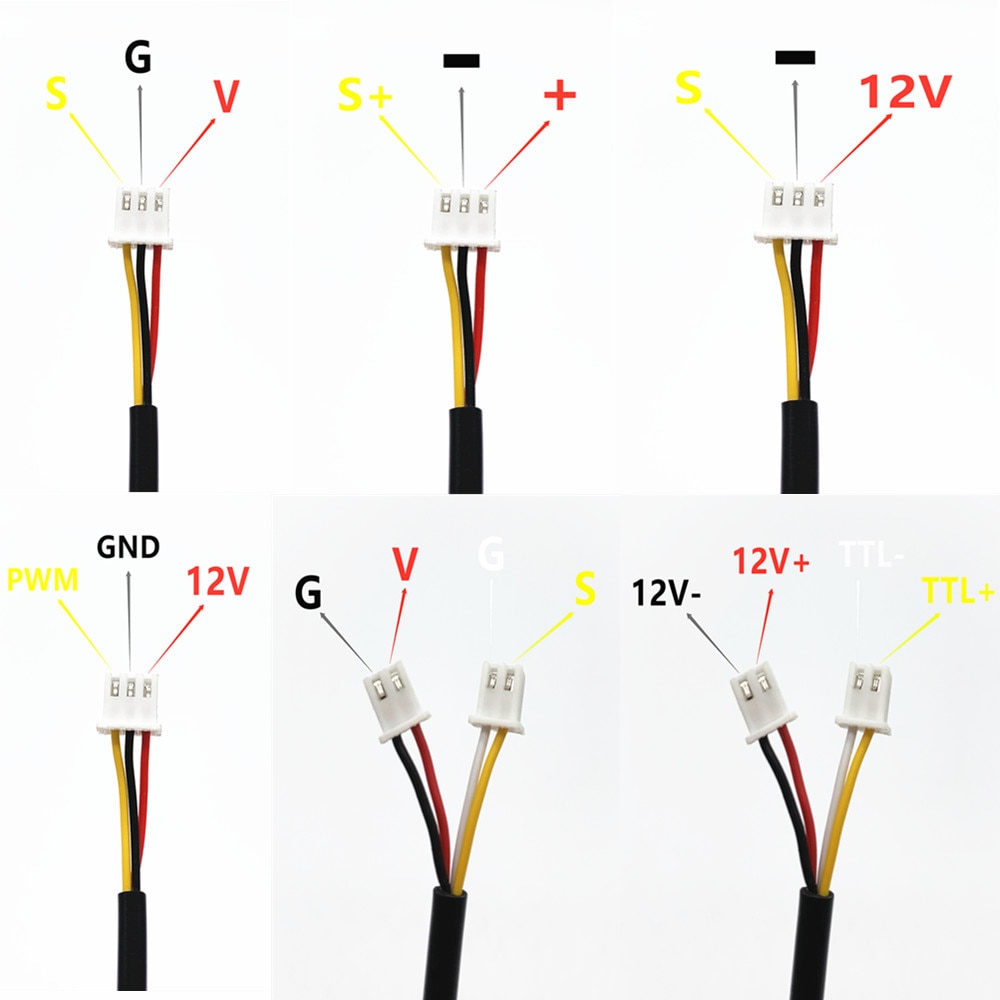

If you need to replace the wires, please pay attention to the wire sequence: 3P wire connection mode, red wire 12v+, black wire GND -, yellow wire pwm+,

4P line link mode, red line 12V+, black line 12V-, yellow line TTL+, white line TTL-

Please pay attention to the wire connection sequence, confirm the connection is correct and then power on, or you can contact us and we will guide you until the installation is complete.

If the smoke is blurred when the laser head is working, please add a fan when engraving or cutting,

Safety Precautions:

When the laser is working, please do not touch any part of your body with the laser head.

When working with laser, wear protective glasses and do not look directly at the laser exit.

Do not allow children and pets to come into contact with this laser product
