Description

[Actual power] The power of this laser module is better than the 30W laser module on the market. It can engrave stainless steel and oxidized metal, and can cut 2-3mm plywood.

[Original diode] This laser module is manufactured by high-tech equipment, high-quality original diode, to ensure the service life, smooth use process, precise and long-lasting engraving, clear and obvious effect, high-efficiency light transmittance,

[Easy to use] No instructions required. This product is advanced technology and does not require an adapter board. Just connect the laser port wires in sequence and accurately insert them into the main board of the engraving machine, plug and play, and the product meets international quality standards.

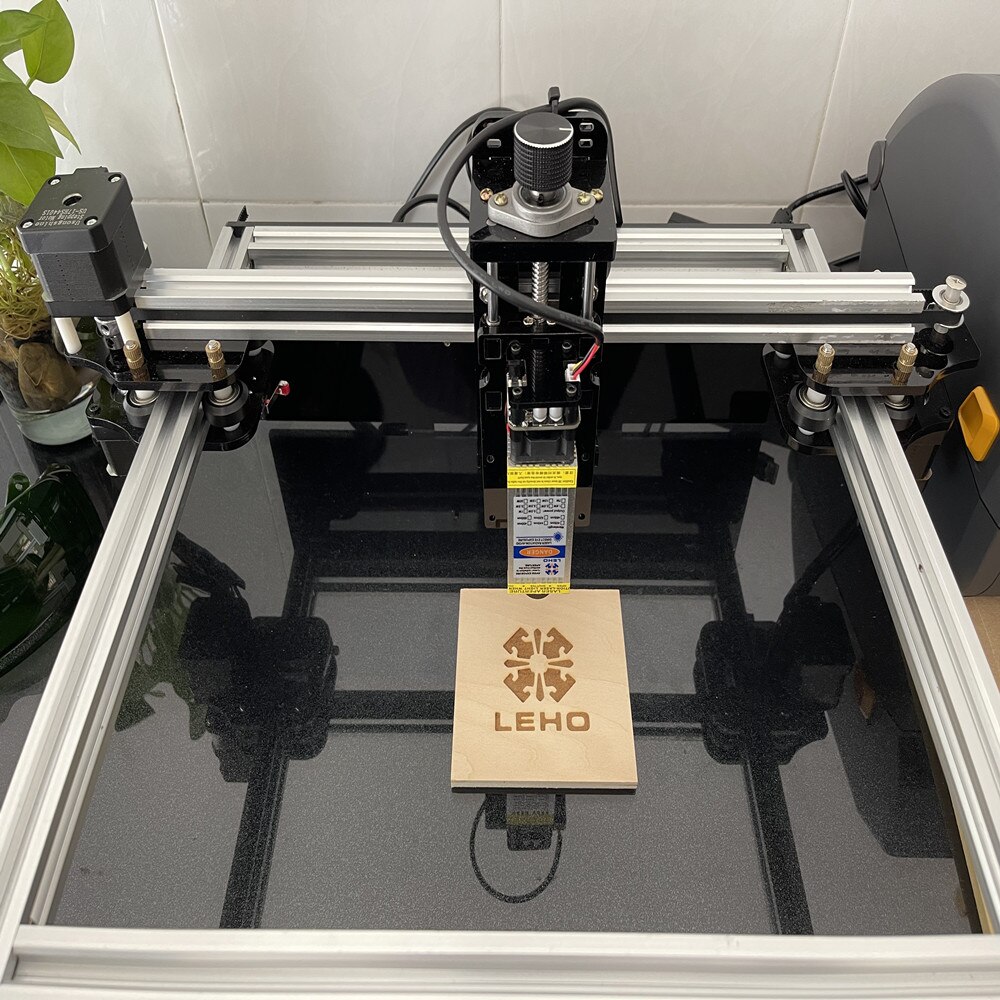

[Widely used] Can be carved: stainless steel, oxidized metal, wood, fabric, plastic, MDF, PCB, paper, bamboo, horns, leather, balsam, rubber, foam paper, sponge paper, etc. Not engravable: metal materials.

[Entity manufacturer] The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide customized solutions for enterprises, and accept customization of various types of laser modules, with high technical content, stable quality and long service life

Technical Parameters

Total length of laser + fan: 105mm

Shell material: aviation aluminum

Laser light source: semiconductor blue light

Module center material: copper

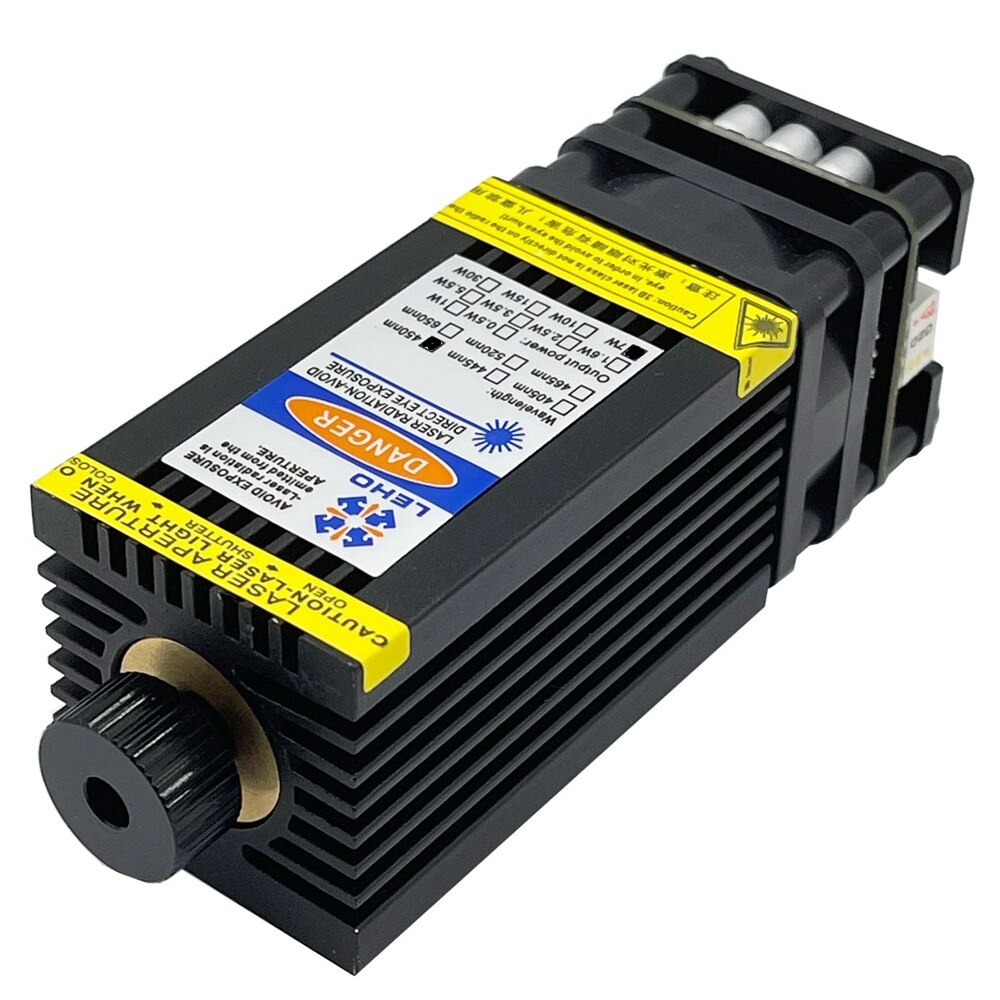

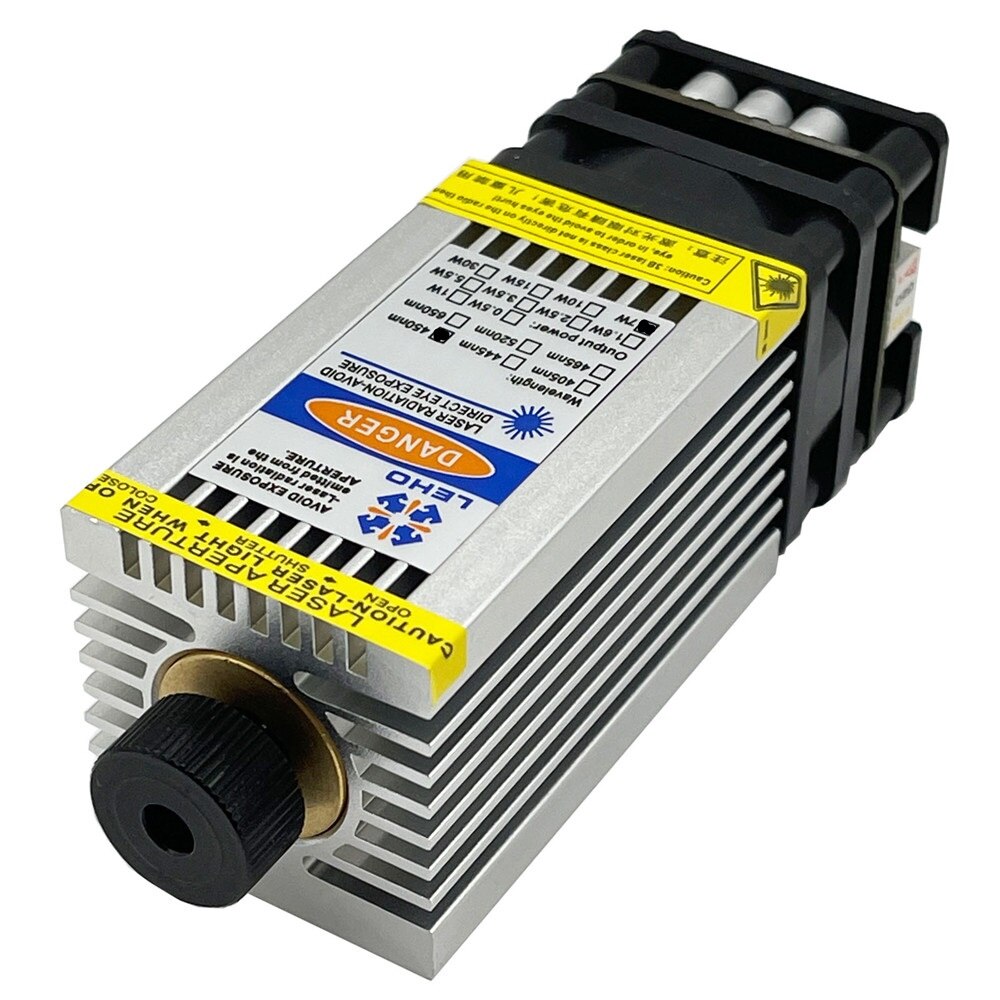

Color: Oxygen Silver Oxygen Black

Shell size: 40×40×70mm

Optical power output: 7W

Laser wavelength: 450nm

Optical lens material: high efficiency light transmittance

Power supply voltage: 12V (requires power adapter 12V 5A)

Power control: PWM TTL (signal control voltage 0-5V)

Power supply current: 1.9A

Interface specifications: 3pin 2.54 /4pin 2.54

Light shape: dot, adjustable focal length

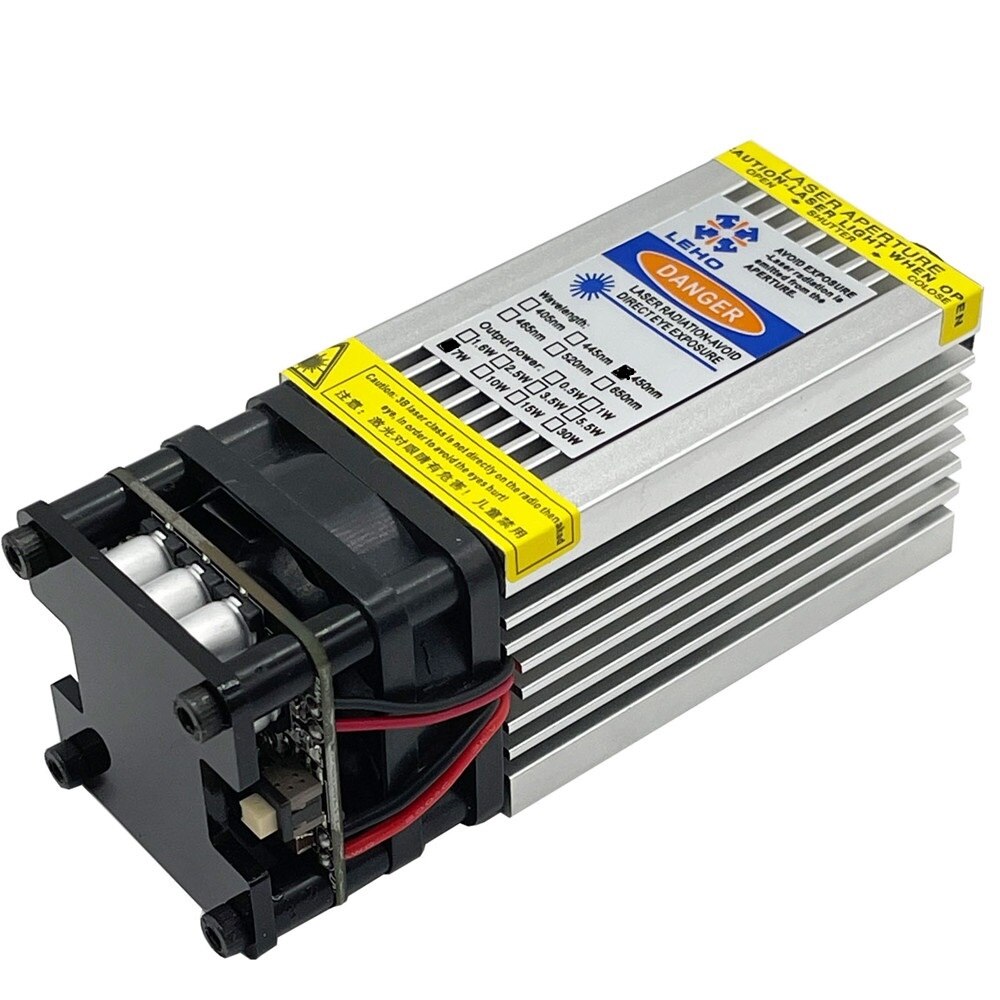

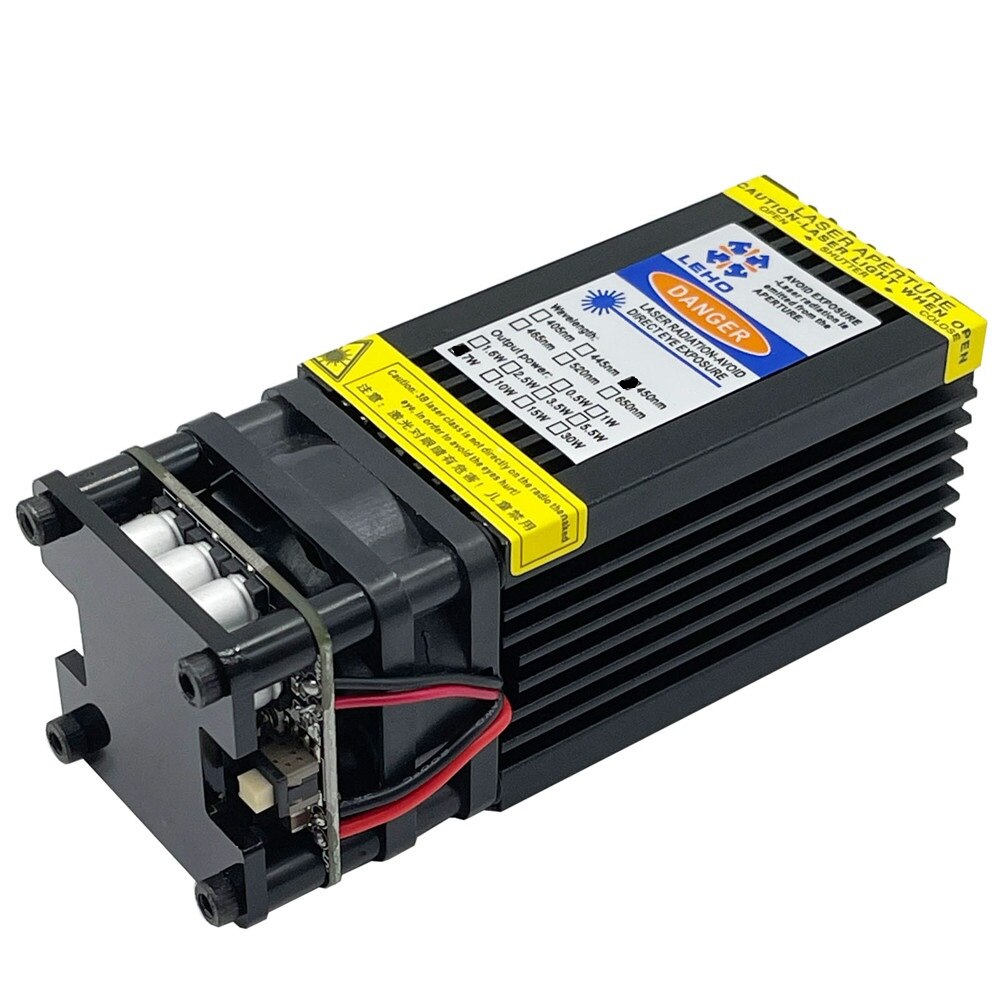

New heat dissipation method: high-speed double ball fan cooling at 13,000 revolutions per minute, safer and more durable

Packing list: laser module*1, glasses*1, 4P line*1, 3P line*1, short line DC*1,

Precautions:

If you need to replace the wires, please pay attention to the wire sequence: 3P wire connection mode, red wire 12v+, black wire GND -, yellow wire pwm+,

4P line link mode, red line 12V+, black line 12V-, yellow line TTL+, white line TTL-

Please pay attention to the wire connection sequence, confirm the connection is correct and then power on, or you can contact us and we will guide you until the installation is complete.

The engraving of reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens or the engraving will not be effective.

If the smoke is blurred when the laser head is working, please add a fan when engraving or cutting,

Safety Precautions:

When the laser is working, please do not touch any part of your body with the laser head.

When working with laser, wear protective glasses and do not look directly at the laser exit.

Do not allow children and pets to come into contact with this laser product
