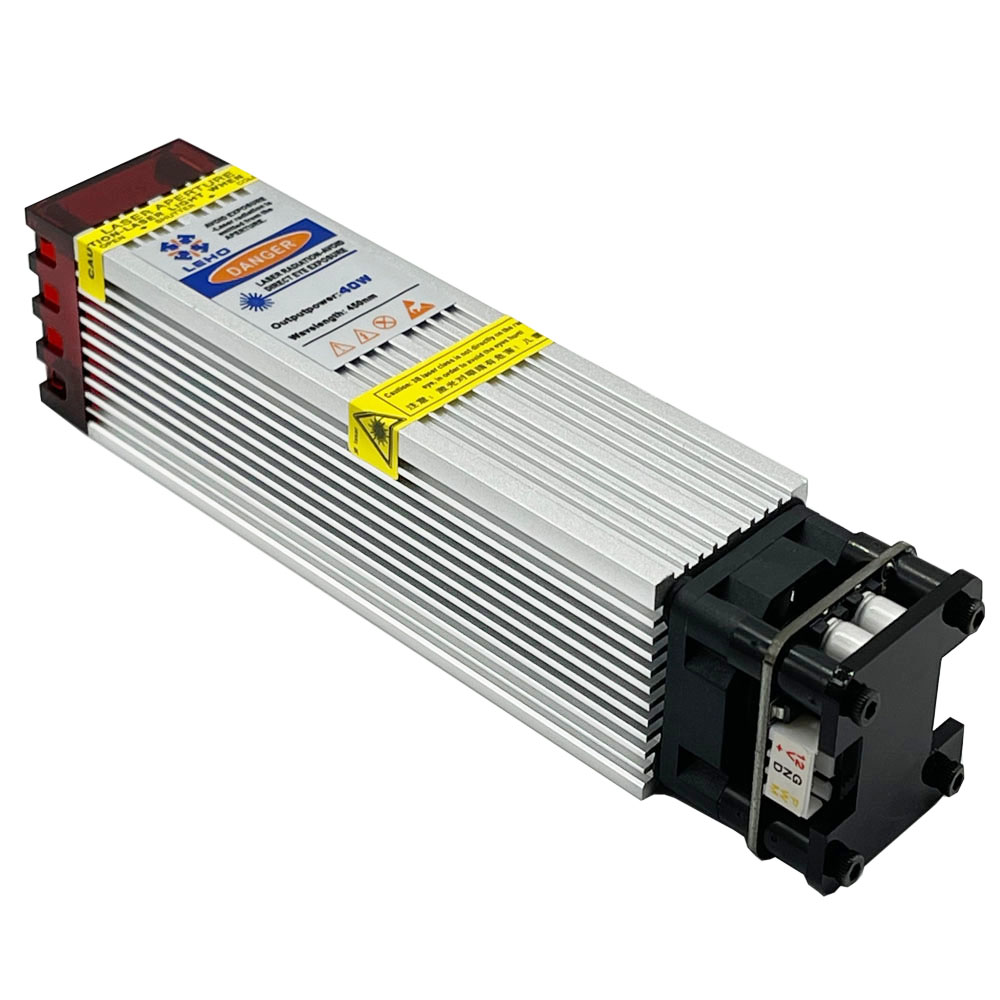

Description

Original diode: This CNC laser module is manufactured by high-tech equipment, high-quality original diode, to ensure the service life, the use process is smooth, the engraving is accurate and lasting, the effect is clear and obvious, the conversion speed is faster and more accurate.

New technology: The original divergence angle of the laser tube optical axis is 45 degrees. After FAC beam shaping, it is compressed to degrees, which greatly improves the light utilization rate, so that the laser can be focused to achieve an efficient 0.02-0.08 focus. The power density has been greatly improved.

Technical Parameters

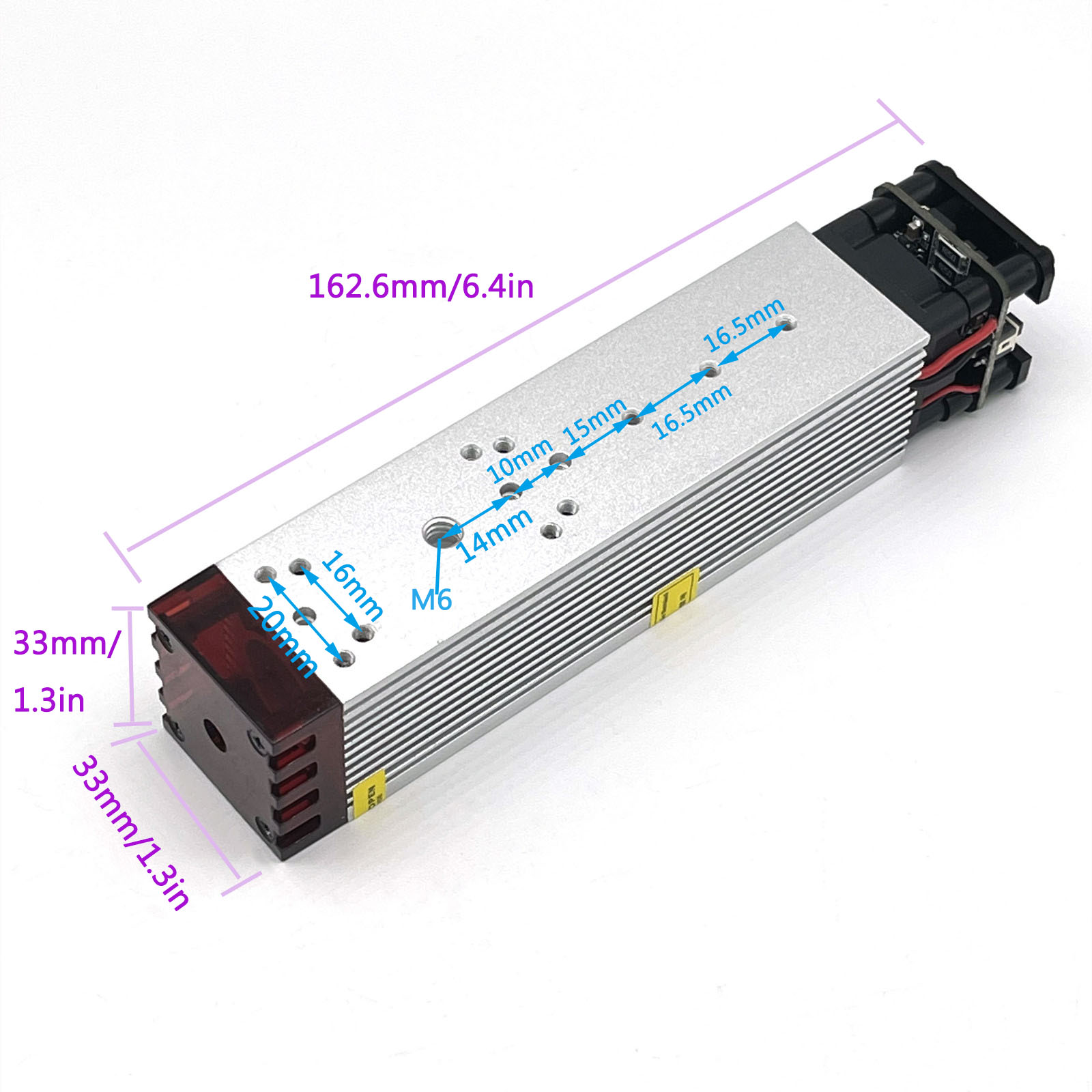

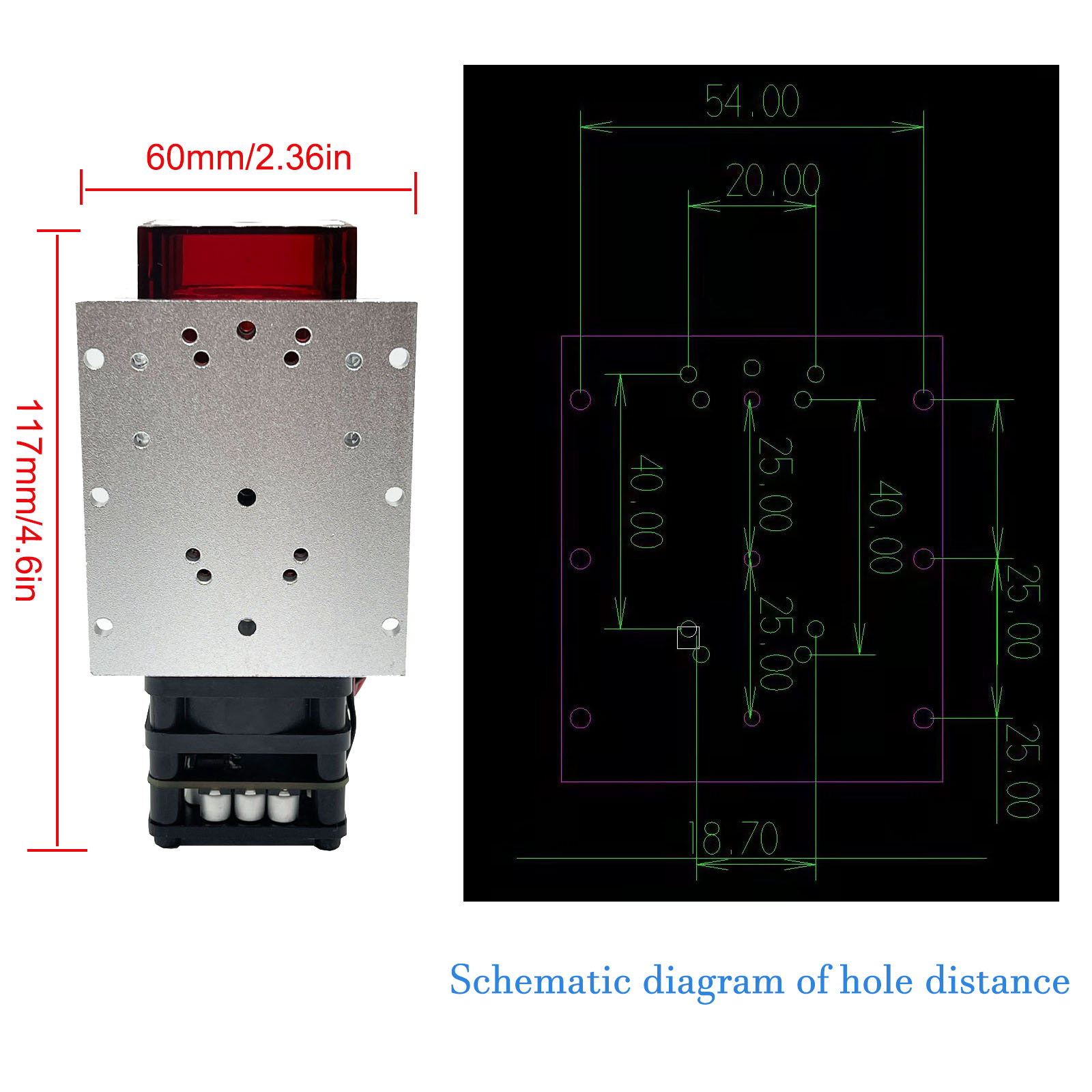

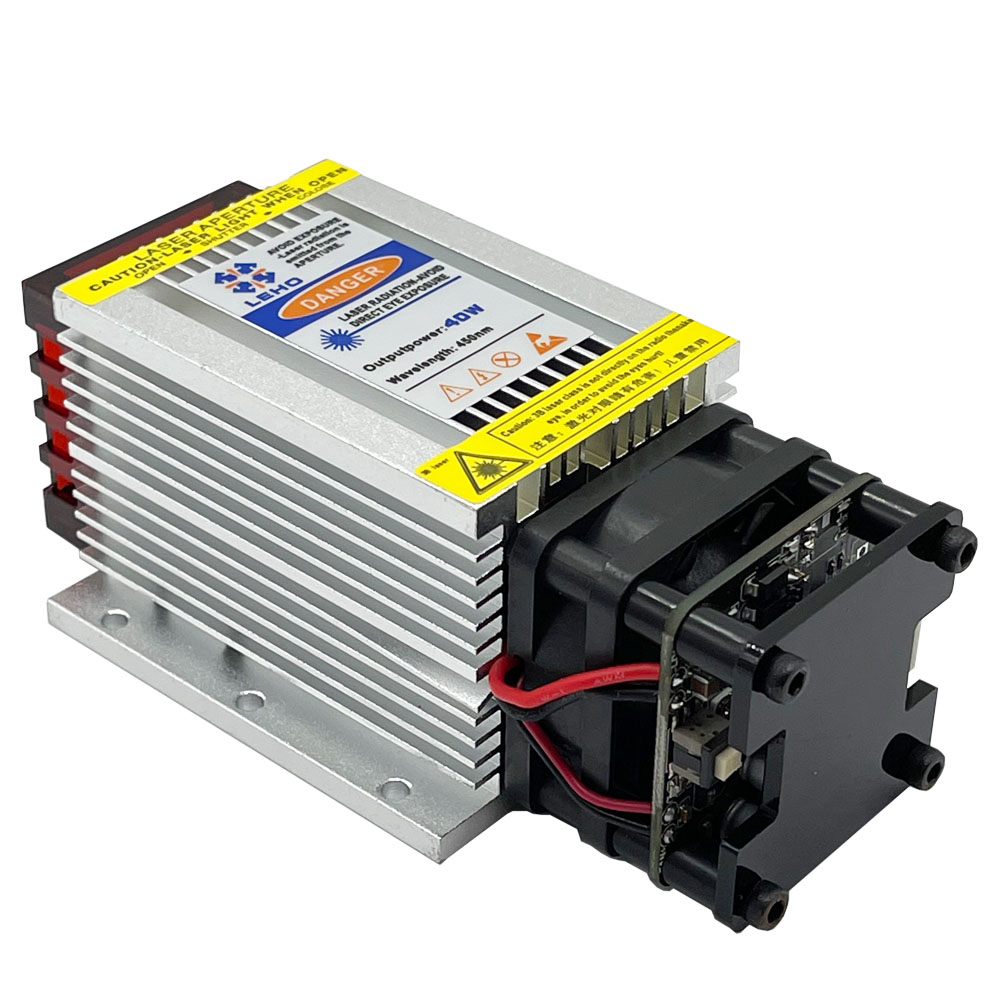

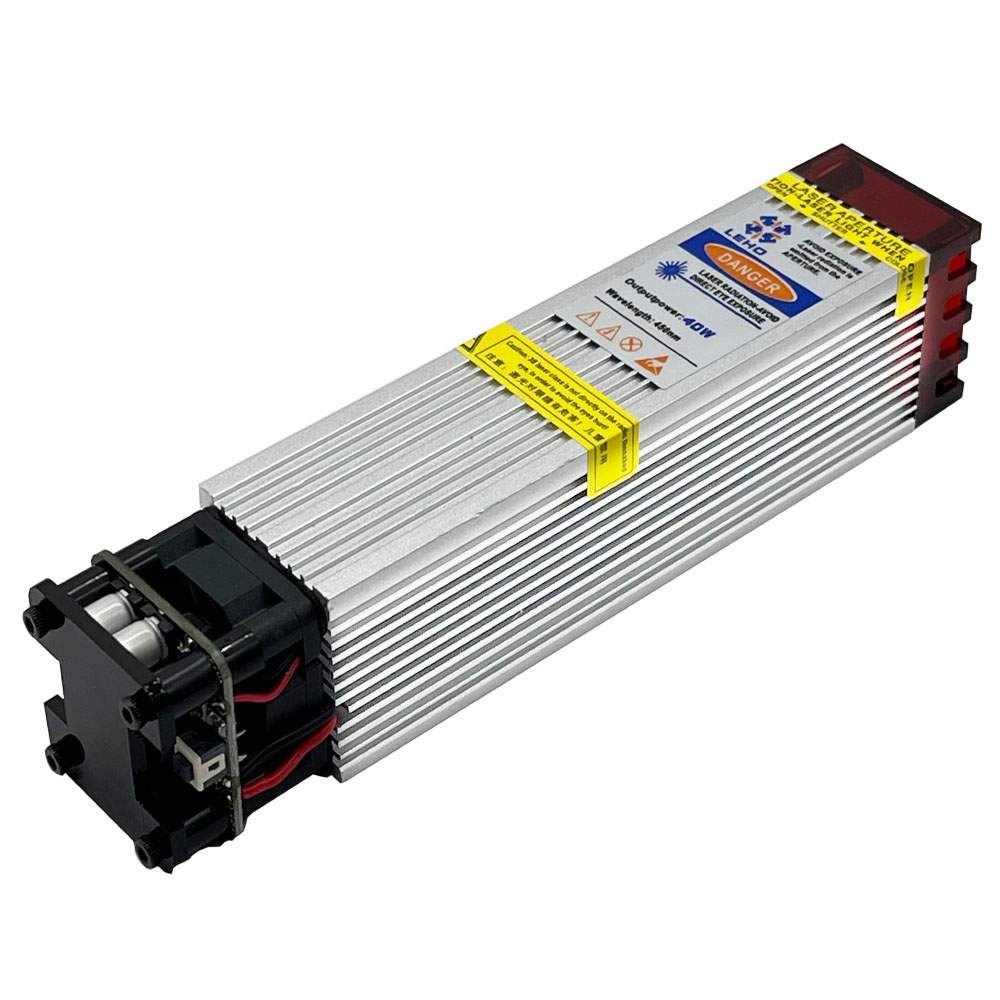

Shell size: 33×33×120mm 60×60×70mm

Shell material: aviation aluminum

Module center material: copper

Color: Oxygen silver

Power control: PWM TTL (signal control voltage 0-5V) (signal control voltage 0-12V)

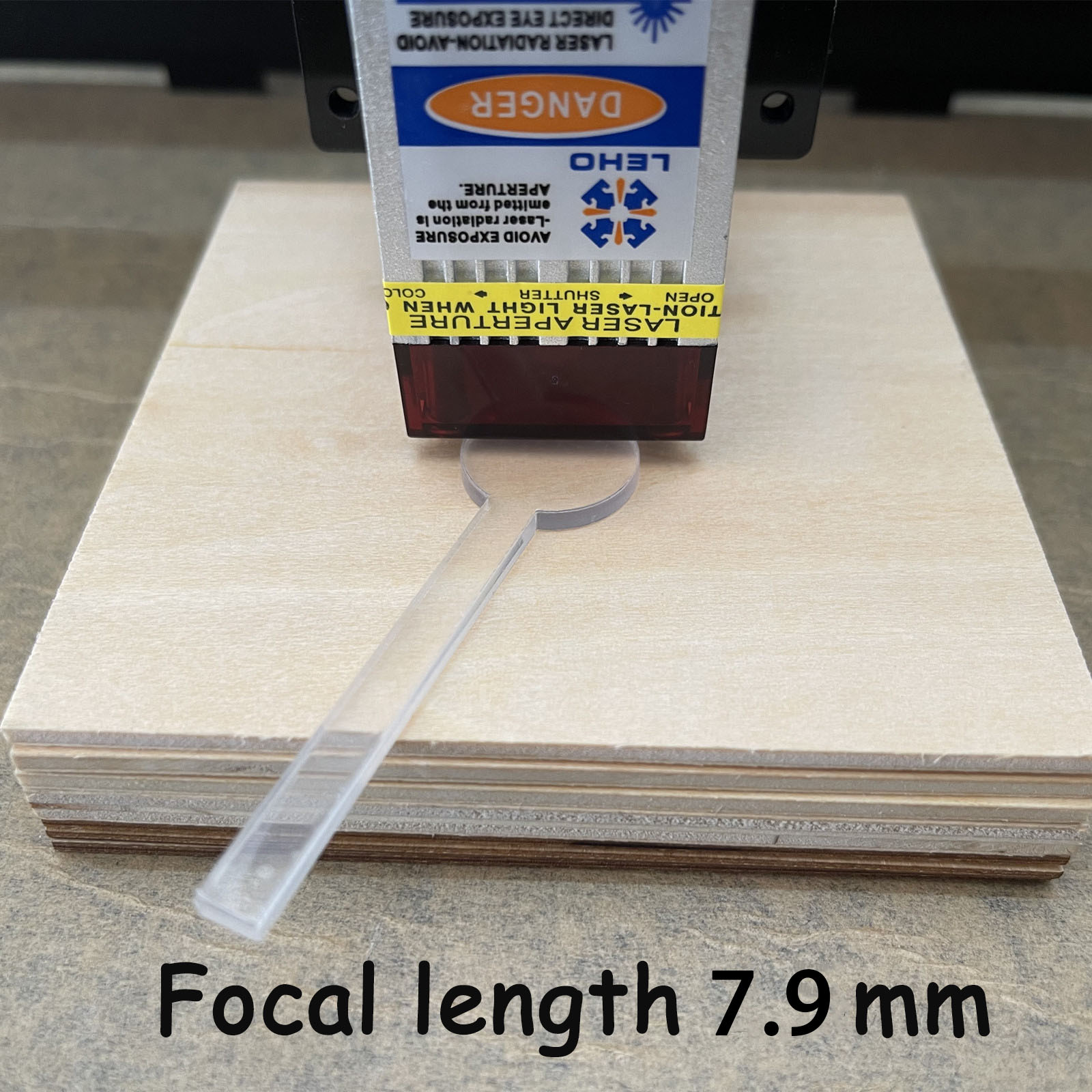

Light shape: point-like fixed focus (the focal length with the engraved object is 7.9mm)

Interface specifications: 3pin 2.54 /4pin 2.54

Power supply current: 4A (constant current)

Laser wavelength: 450nm

Module power: 40W

Focus power: 25W

Power supply voltage: 12V (requires power adapter 12V 5A)

Optical lens material: efficient light transmittance

Laser light source: semiconductor blue light

Working life: 18000-20000 hours

Applicable to: CNC3018 3018PRO 6550 5040 1810

Product Features

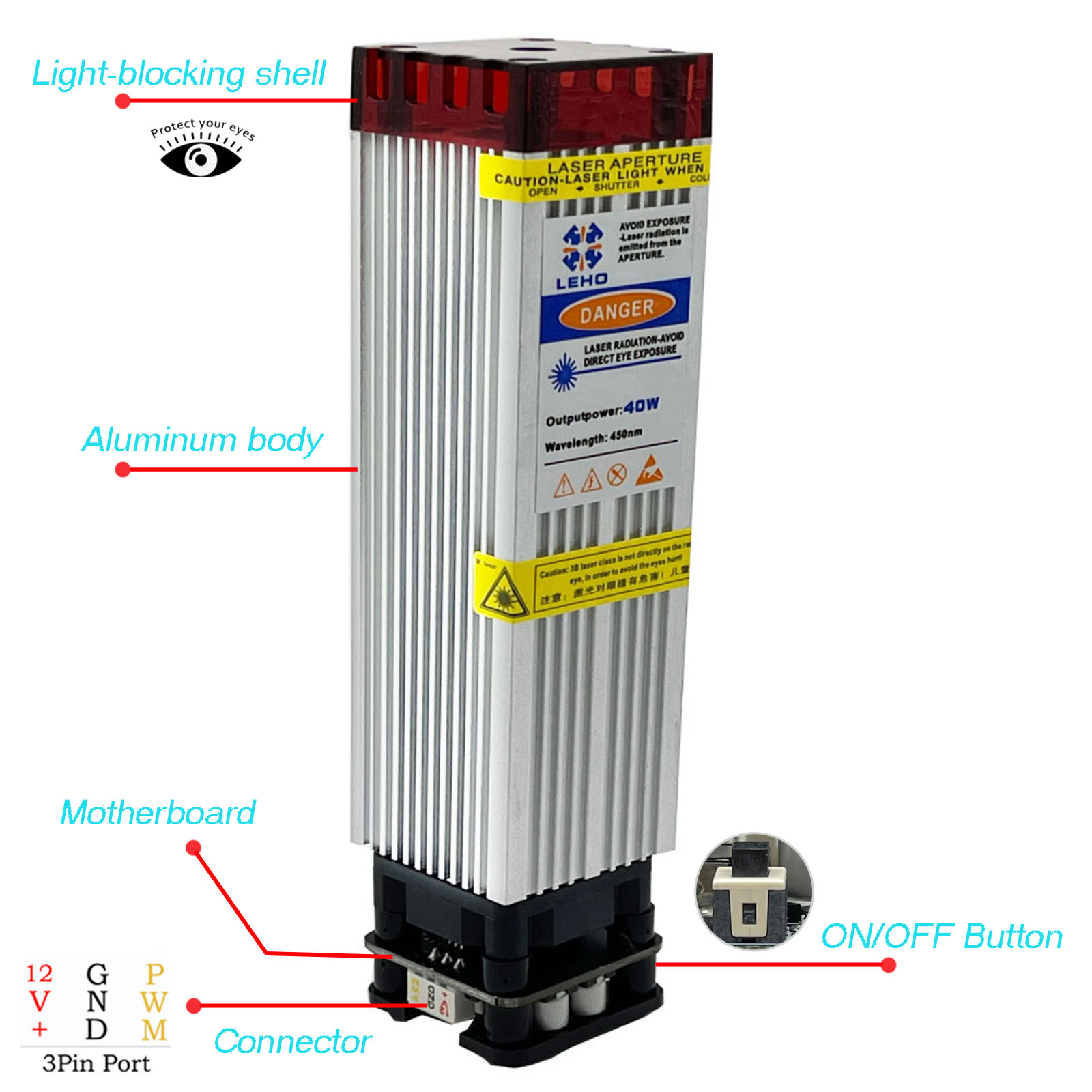

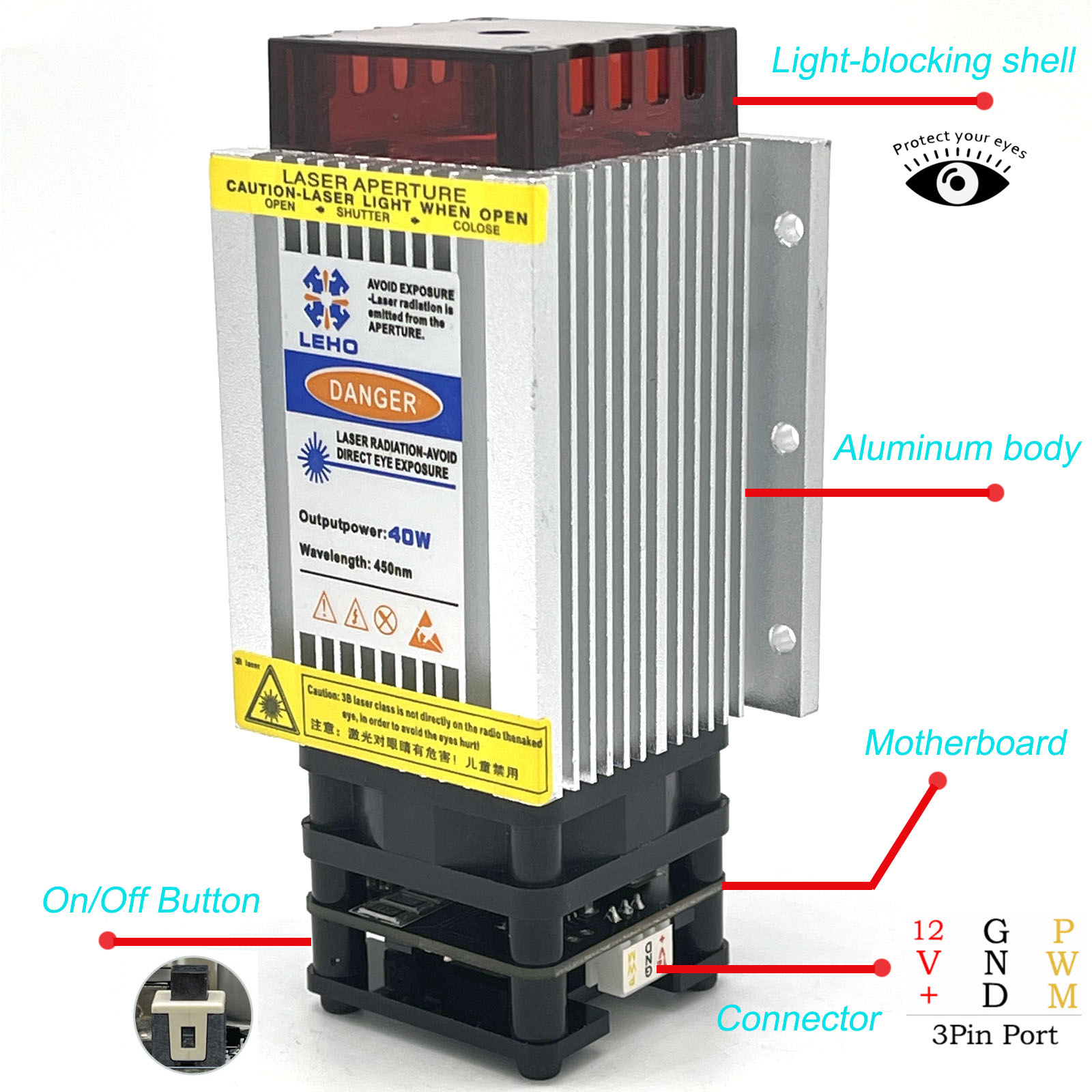

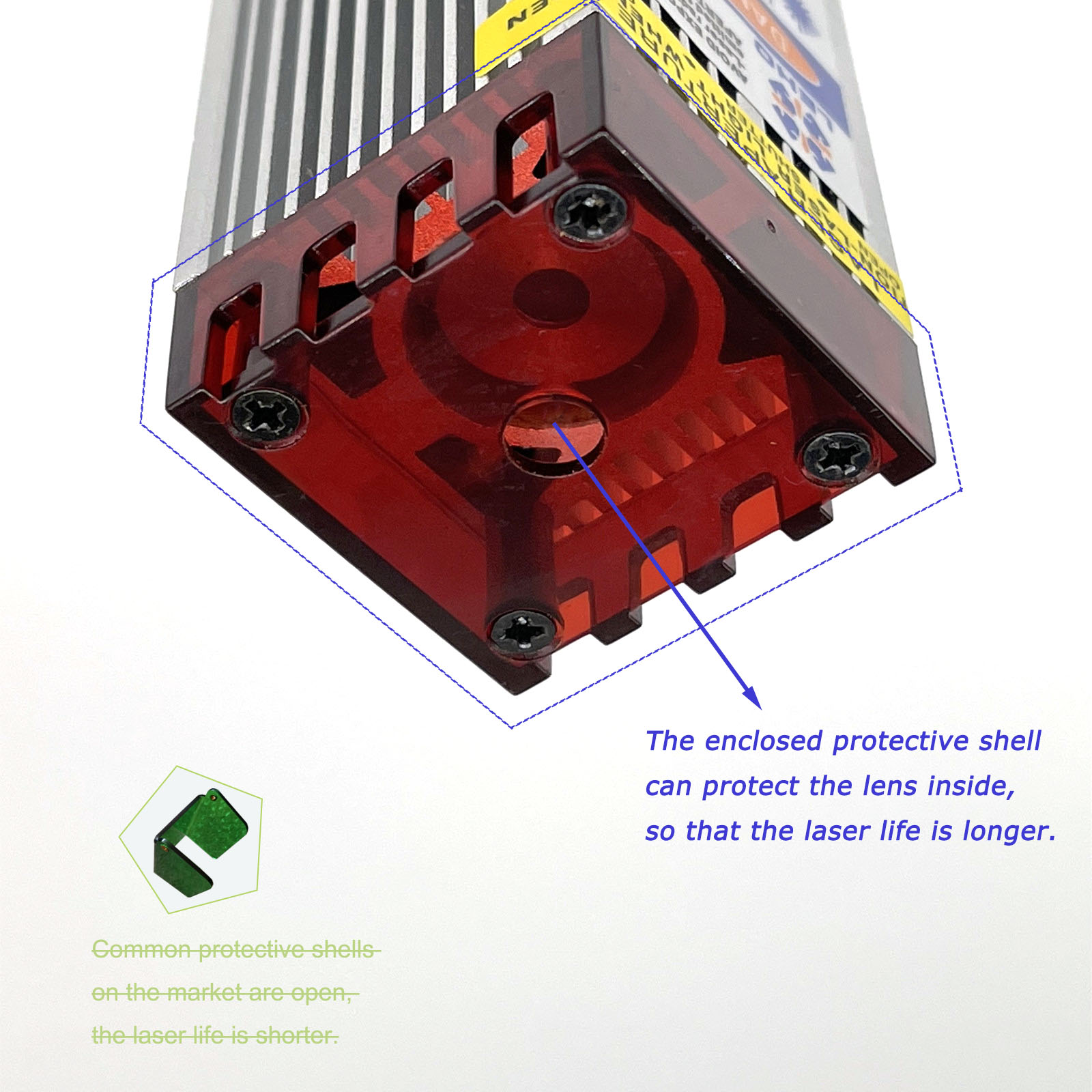

[Eye protection safety upgrade]

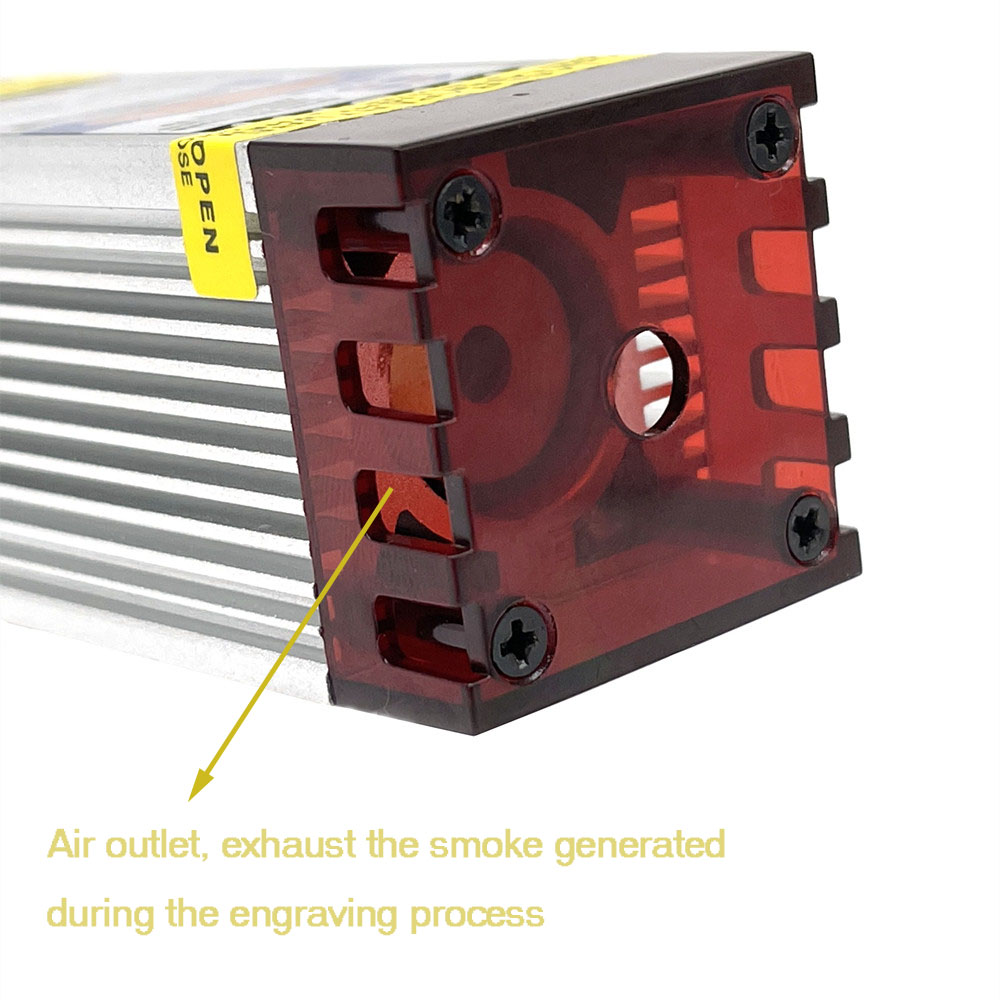

Increase the design of the laser module to block the light. You can watch the engraving process without wearing goggles. It can also prevent pets from touching the laser points. At the same time, there are vents on both sides of the protective shell so that the smoke generated during the engraving process will not damage the lens.

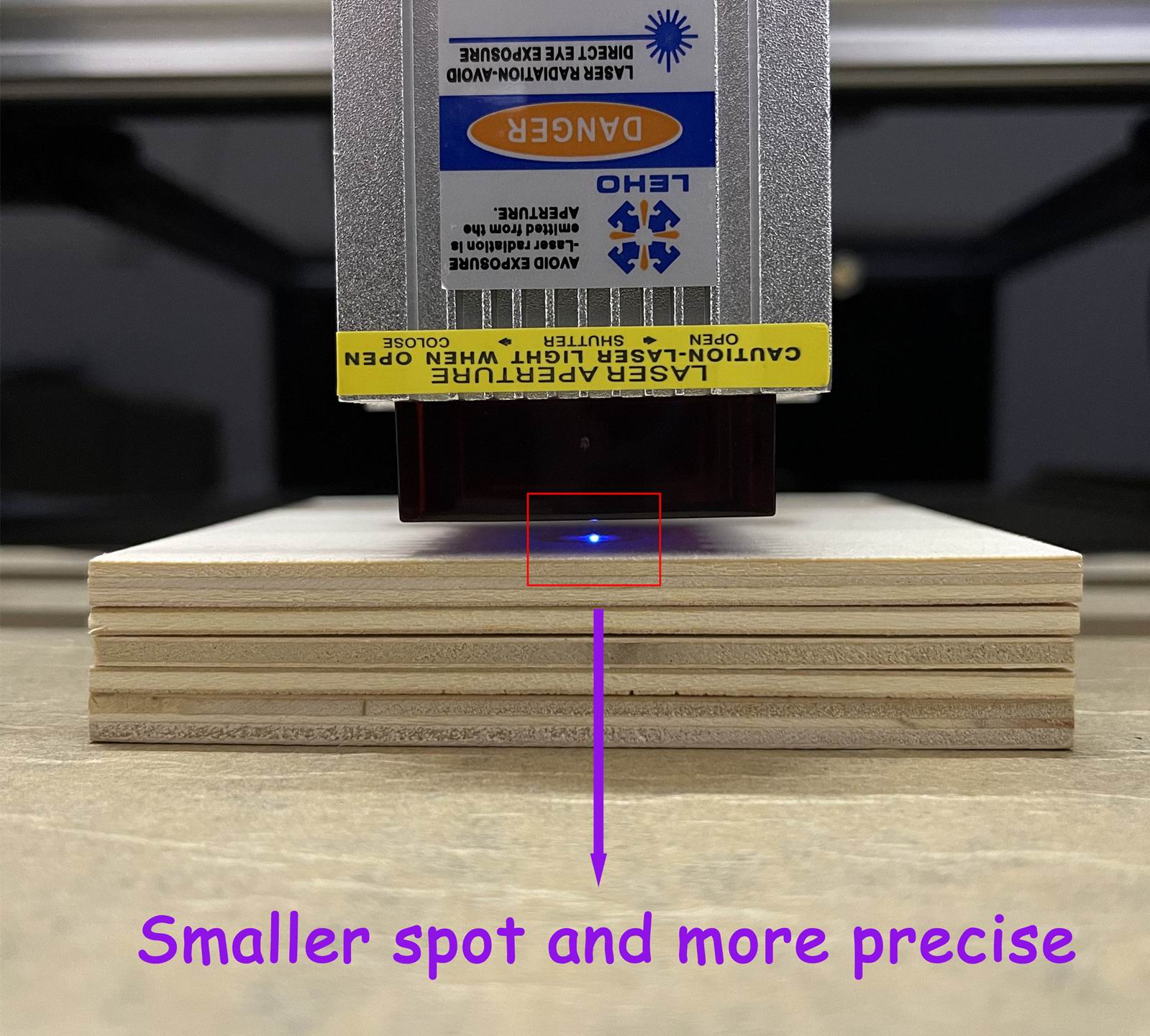

[True compression technology]

True FAC compression technology, faster engraving speed, higher precision, smaller focus, wood engraving speed can reach 6000mm per minute, stainless steel engraving speed 3000mm per minute.

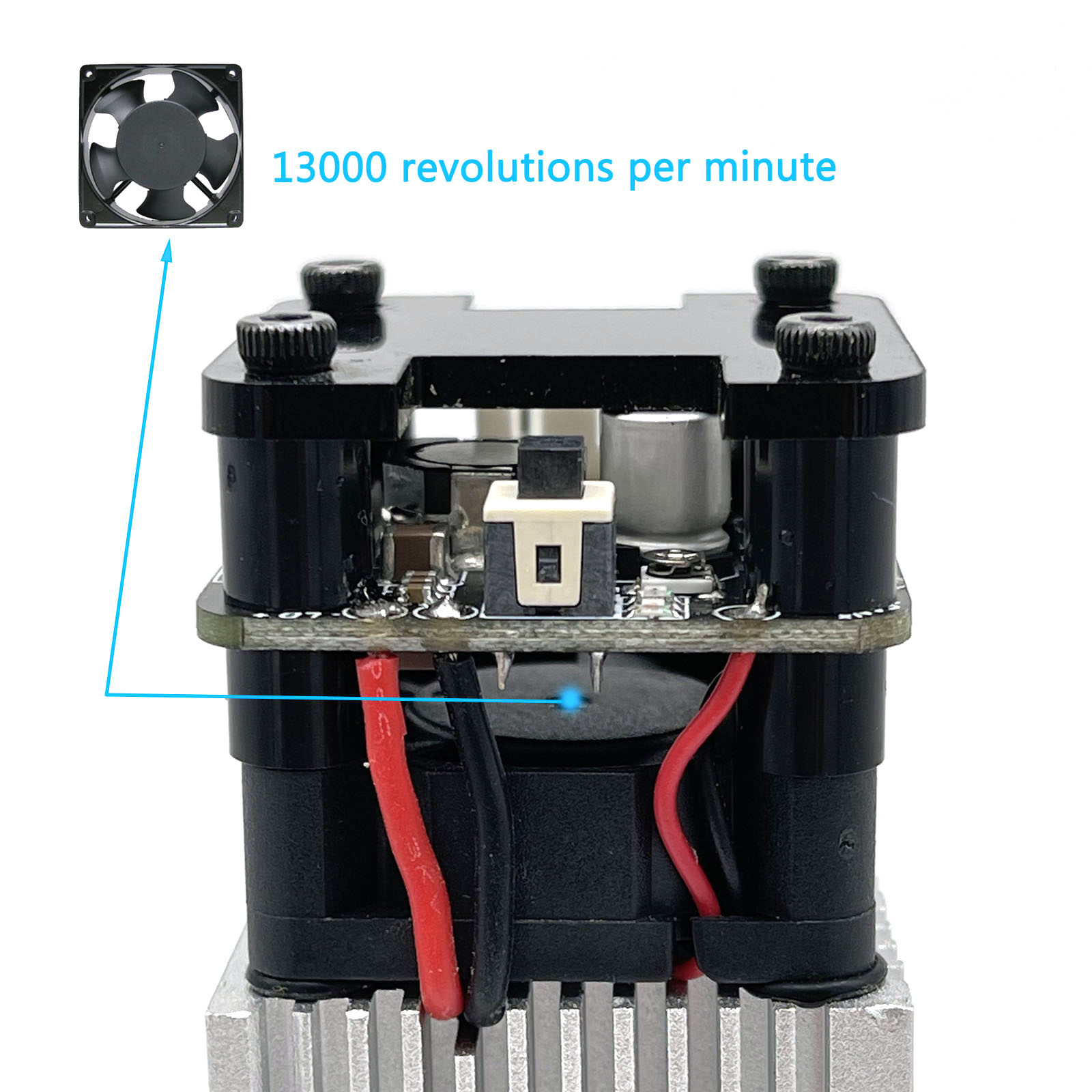

Heat dissipation method:

high-speed double ball fan cooling at 13,000 revolutions per minute, safer and more durable.

laser module

Can engrave:

wood, stainless steel, oxidized metal, fabric, plastic, MDF, PCB, paper, bamboo, horns, leather, balsam, rubber, etc.

laser module

Can not engrave: metal raw materials.

Cutting material: plywood, cut black acrylic board, leather, paper, etc.

laser module

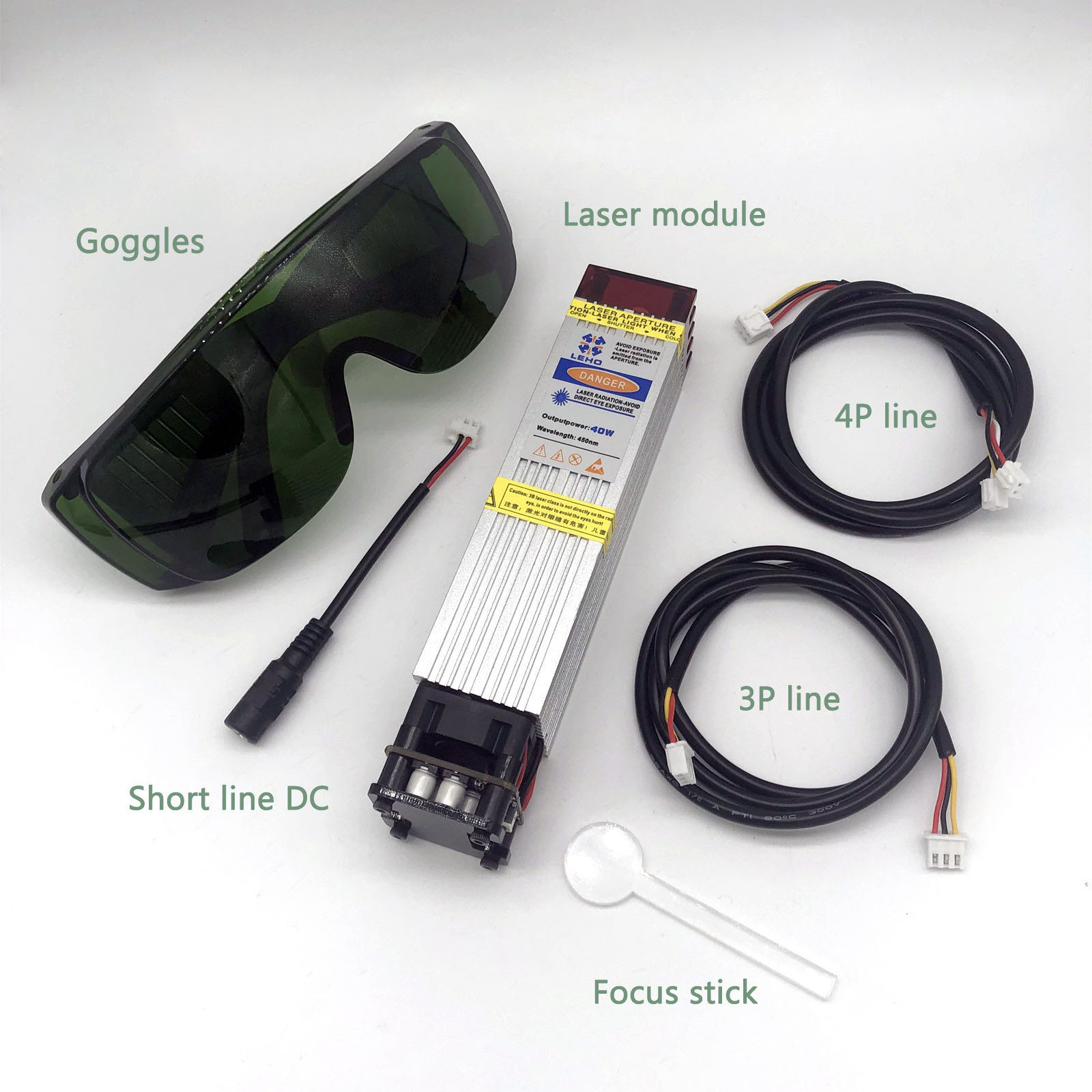

Packing list: 1×laser module, 1×protective glasses, 1×4P line, 1×3P line, 1×short-line DC, 1×focus stick.

laser module

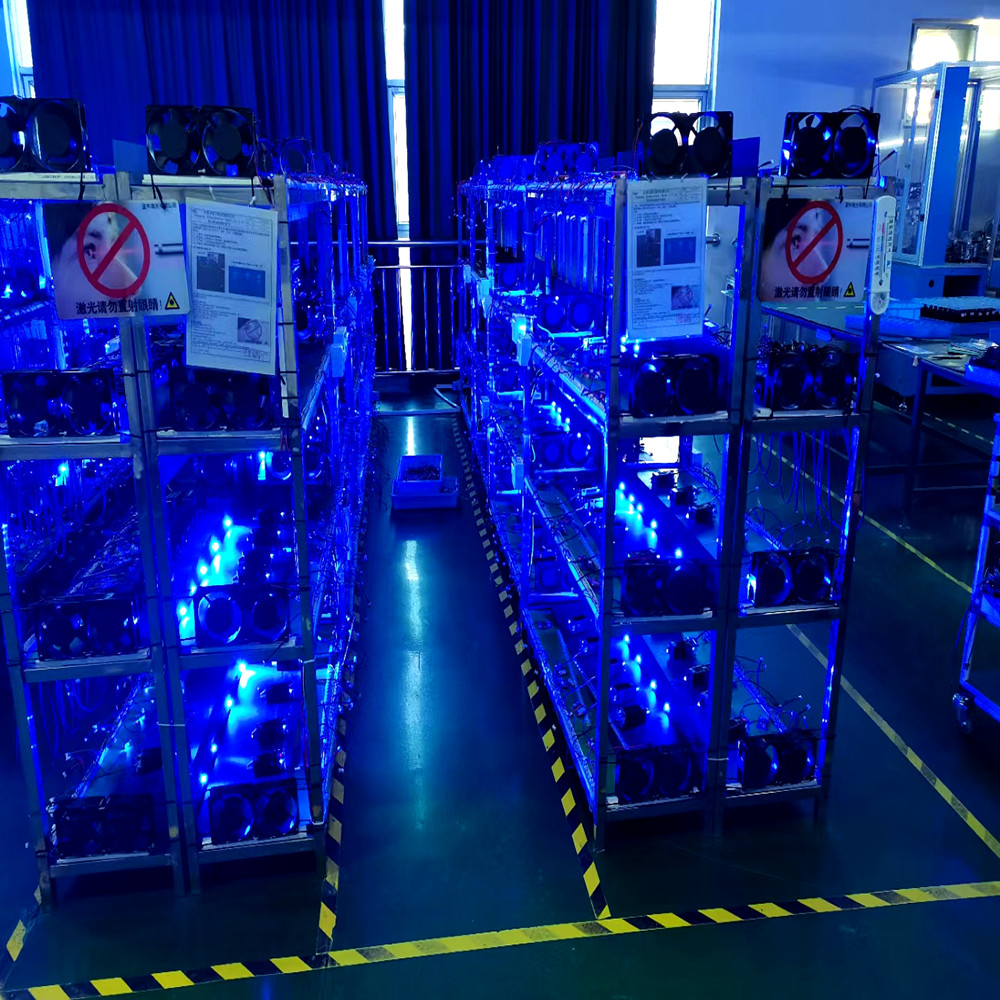

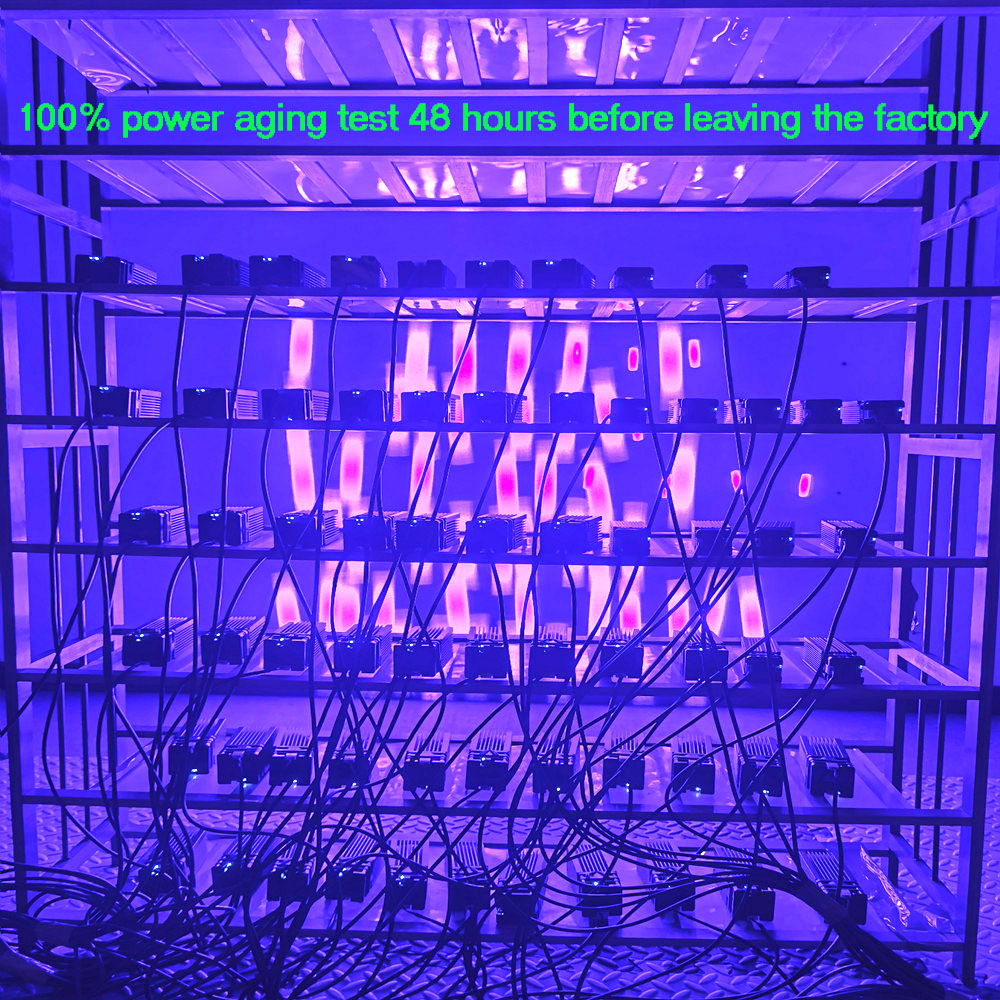

Stable quality, 100% power aging test 48 hours before leaving the factory.

laser module

laser head

Engraving picture display

[Entity manufacturer]

The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide enterprise customized solutions, accept customized types of laser modules, the product has high technical content,stable quality, and long service life.

laser module

Q&A

1 What is the difference between these two laser modules?

The only difference between them is the size, everything else is the same.

2 Is this laser module suitable for my engraving machine?

This laser module is compatible with more than 97% of CNC laser engraving machines. If you are not sure, you can take a picture of the connection port between your engraving motherboard and the laser module and ask customer service. (you need to take a picture of the letter of the connection port)

3 When will it be delivered?

Shipped on the same day during normal working hours. In case of holidays, it can be shipped on the first day of work.

4 Can I return it if I have quality problems or dislike it after receiving it?

Yes, we support unreasonable return and exchange within the specified time on the platform.

NOTE:

• If you have any product problems or use problems, you can consult customer service before/after sales, including technical guidance.

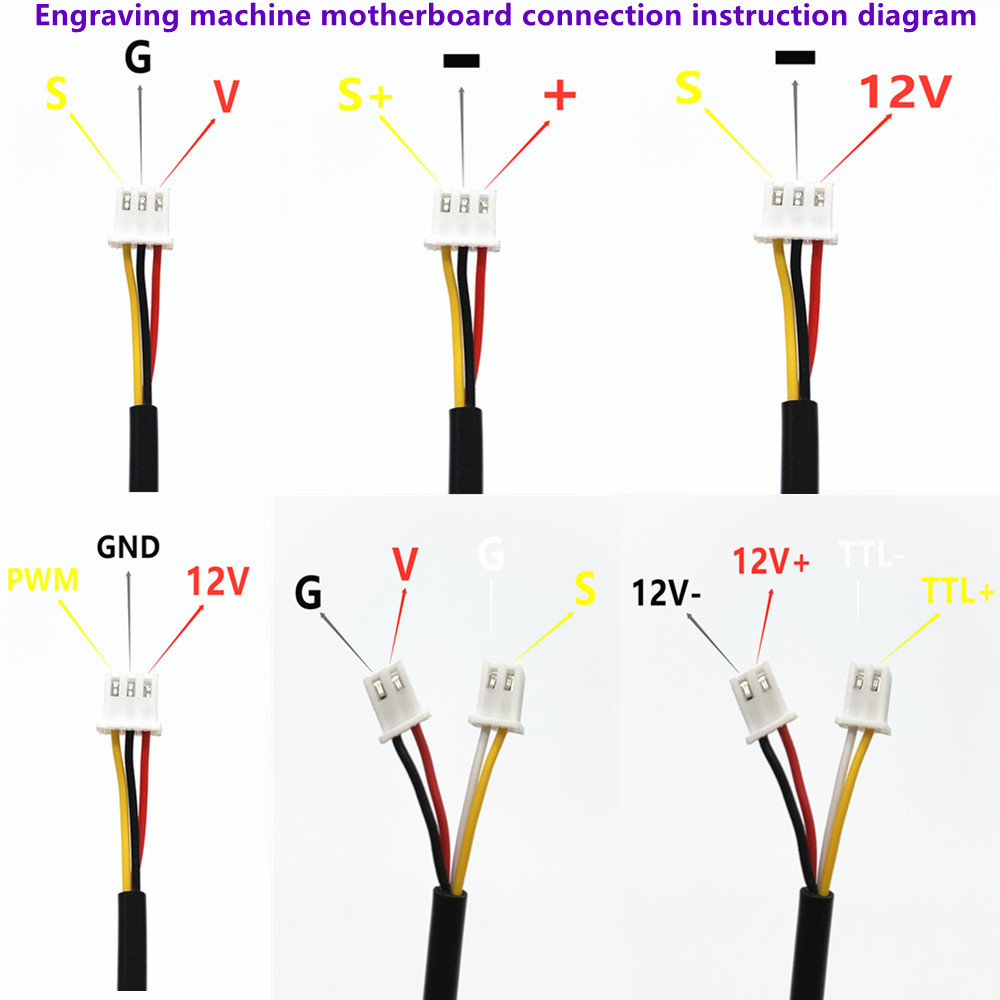

• If you need to replace the wires, please pay attention to the wire sequence: 3P wire connection mode, red wire 12V+, black wire GND -, yellow wire pwm+,
  4P line link mode, red line 12V+, black line 12V-, yellow line TTL+, white line TTL-

• Please pay attention to the wire connection sequence, confirm the connection is accurate and then power on, if you have any questions, please contact us before connecting!

     When the laser is working, please do not touch any part of your body with the laser module!
