[New technology] The original divergence angle of the laser tube’s optical axis is 45 degrees and compressed to 8 degrees after FAC beam shaping, which greatly improves the light utilization rate, so that the laser is focused to achieve an efficient focal point of 0.03-0.06. The density of the focus is greatly increased. Promote,
[True and false compression technology? 】How to identify true and false FAC compression technology, the simplest identification method, small focus, fast engraving speed, wood engraving can reach 5900mm per minute, stainless steel engraving speed is 2950mm per minute,
[Technical upgrade] The traditional 30W engraving stainless steel depth is 20%. The newly upgraded 30W engraving stainless steel depth is 55%. The laser engraving accuracy is 4-5 times that of the traditional laser module. Only the actual high power can achieve fast engraving
[Brand new original diode] This laser module is manufactured by high-tech equipment, high-quality original diode, to ensure the service life, smooth use process, precise and long-lasting engraving, clear and obvious effect, efficient light transmittance, faster and more accurate conversion speed
[Entity manufacturer] The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide customized solutions for enterprises, and accept customization of various types of laser modules. The products have high technical content, stable quality and long service life.
Technical Parameters;
Laser light source: semiconductor blue light
Shell material: aviation aluminum
Module center material: copper
Electro-optical power output: 30W
Focus power: 20W
Laser wavelength: 450nm
Power supply voltage: 12V (requires power adapter 12V 5A)
Power supply current: 4A (constant current)
Shell size: 40×40×70mm
Color: Polar Oxygen Black
Power control: PWM/TTL (signal control voltage 0-5V)
Interface specifications: 3pin 2.54 /4pin 2.54
Light shape: point-shaped fixed focus (the best focal length of the laser is 20mm according to the fixed focus column equipped)
New function: cross-positioning laser (adjustable)
The life span is 16000-17000 hours,
The list includes: laser module*1, glasses*1, 4P line*1, 3P line*1, short line DC*1, focal length column*1.
Can engrave: oxidized metal, 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horns, leather, sponge paper, etc.
Not engravable: metal raw materials
Engraving must know: Engraving reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.
Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.
Easy to use: No manual is required. This product is advanced technology and does not require an adapter board. Just connect the laser port wires in sequence and accurately insert them into the main board of the engraving machine, plug and play,

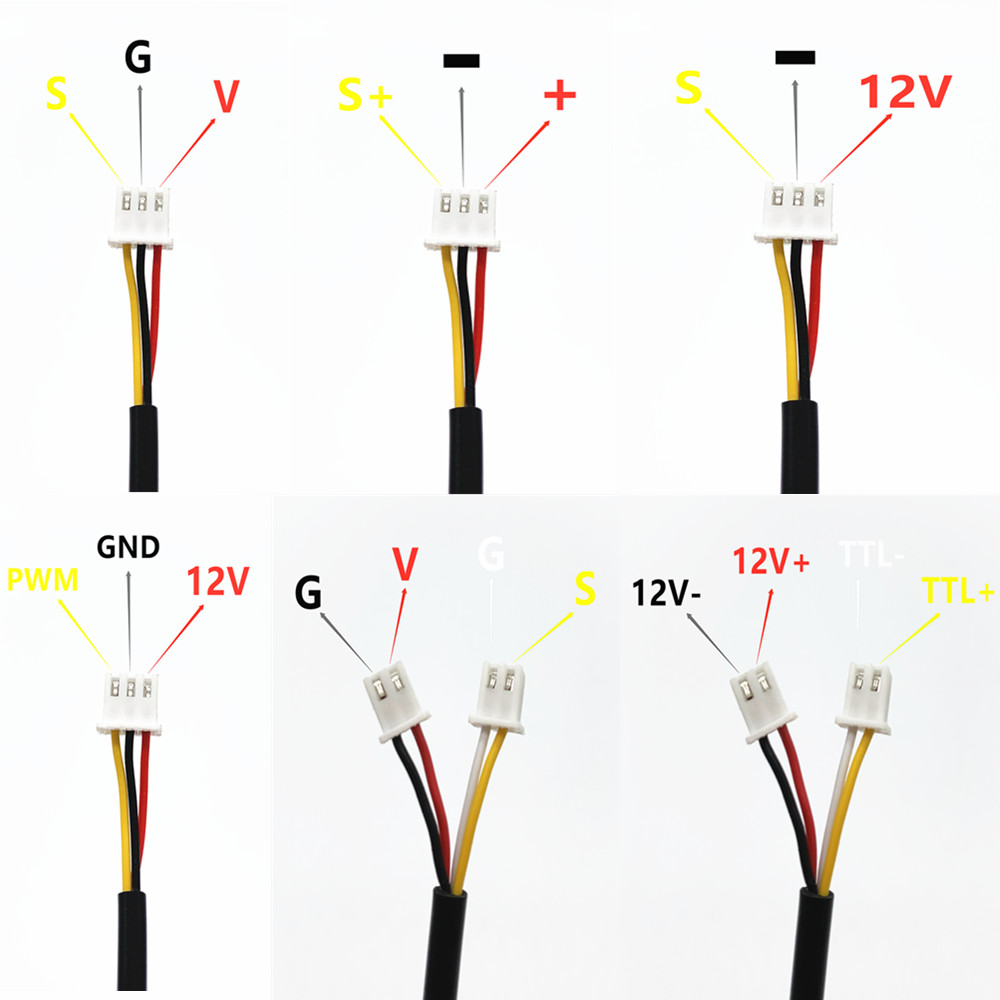

If you need to replace the wires, please pay attention to the wire sequence: 3P wire connection mode, red wire 12v+, black wire GND -, yellow wire pwm+,
4P line link mode, red line 12V+, black line 12V-, yellow line TTL+, white line TTL-
Please pay attention to the wire connection sequence, confirm the connection is accurate and then power on, if you have any questions, please contact us before connecting!
Precautions:
When working with the laser, please do not touch any part of your body with the laser head, wear protective glasses, and do not look directly at the laser exit.
When the laser is working normally, avoid direct contact with the laser with your hands to prevent the laser from being damaged by the static electricity of the human body.
If the smoke is blurred when the laser head is working, please add a fan when engraving or cutting,
If you don’t know whether this laser head can use your engraving machine, you can take a picture of your engraving motherboard and send it to me. If you take a picture, you can see the letters displayed on the connection port between the engraving motherboard and the laser module, or you can add Send me the link of your engraving machine.
