Description
- Brand Name: Xinyuntong Intelligent Technology
- Certification: CE
- Origin: CN(Origin)
- Model Number: 15W
[Actual power] The power and performance of this laser module is better than the 40W laser module on the market. It can engrave stainless steel and oxidized metal, cut plywood, and has high light transmittance.
[Original diode] This laser module is manufactured by high-tech equipment, high-quality original diode, to ensure the service life, smooth use process, precise and long-lasting engraving, clear and obvious effect, high-efficiency light transmittance,
[Easy to use] No instructions required. This product is advanced technology and does not require an adapter board. Just connect the laser port wires in sequence and accurately insert them into the main board of the engraving machine, plug and play, and the product meets international quality standards.

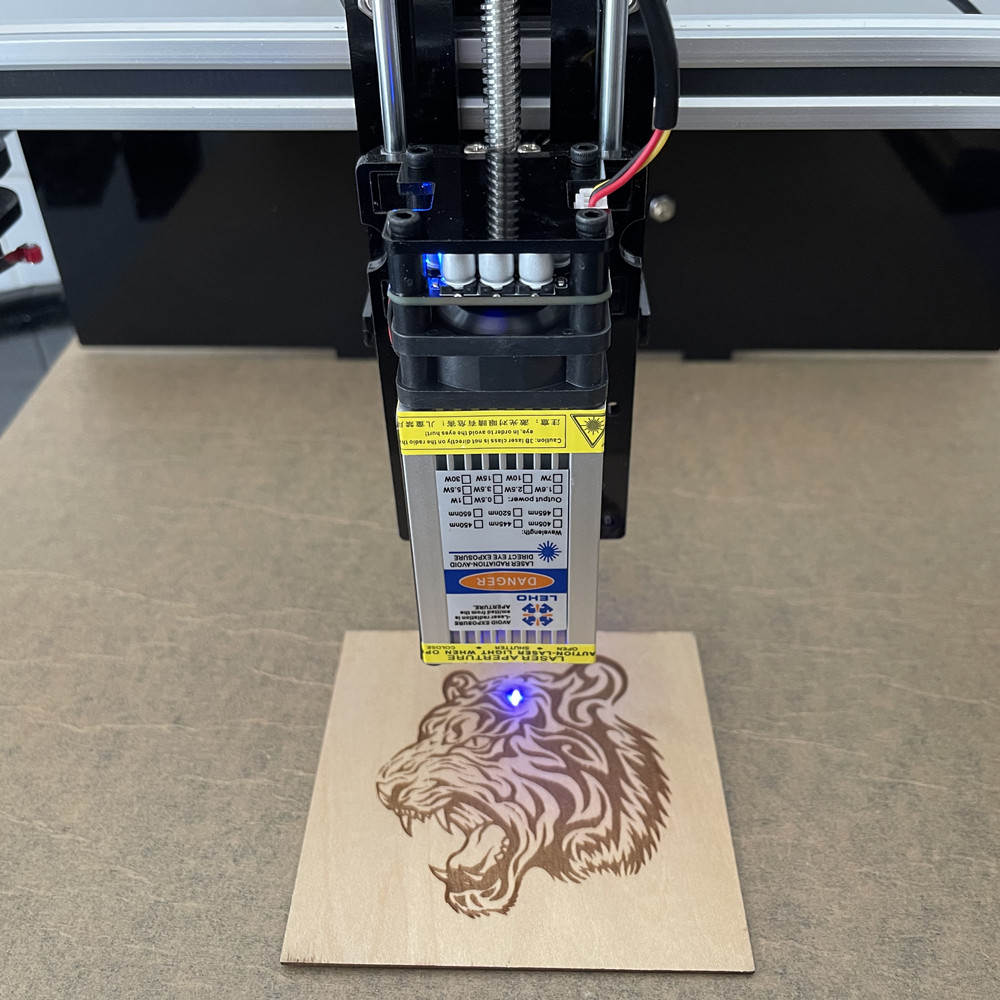

[Widely used] Can be carved: stainless steel, oxidized metal, wood, fabric, plastic, MDF, PCB, paper, bamboo, horns, leather, balsam, rubber, foam paper, sponge paper, etc. Not engravable: metal materials.

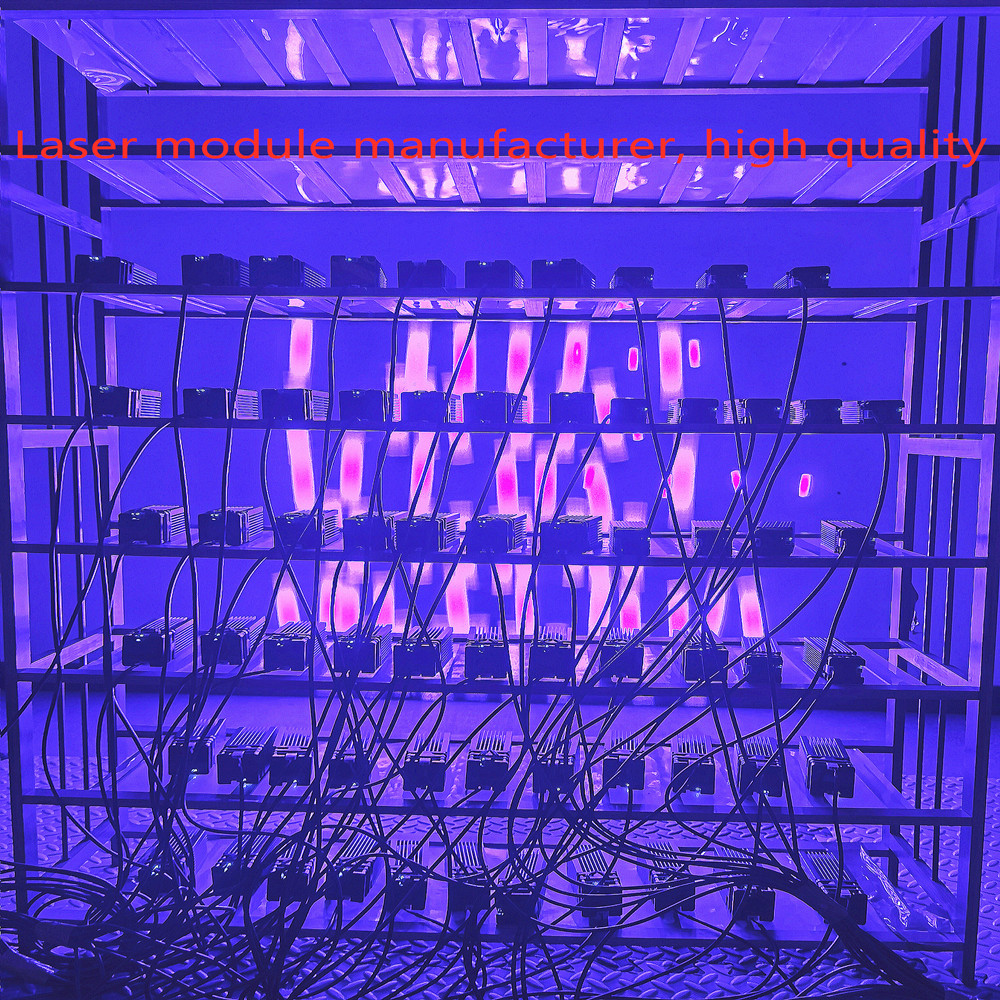

[Entity manufacturer] The company is a laser module manufacturer, specializing in the production and development of various types of lasers, can provide customized solutions for enterprises, and accept customization of various types of laser modules. The products have high technical content, stable quality and long service life.

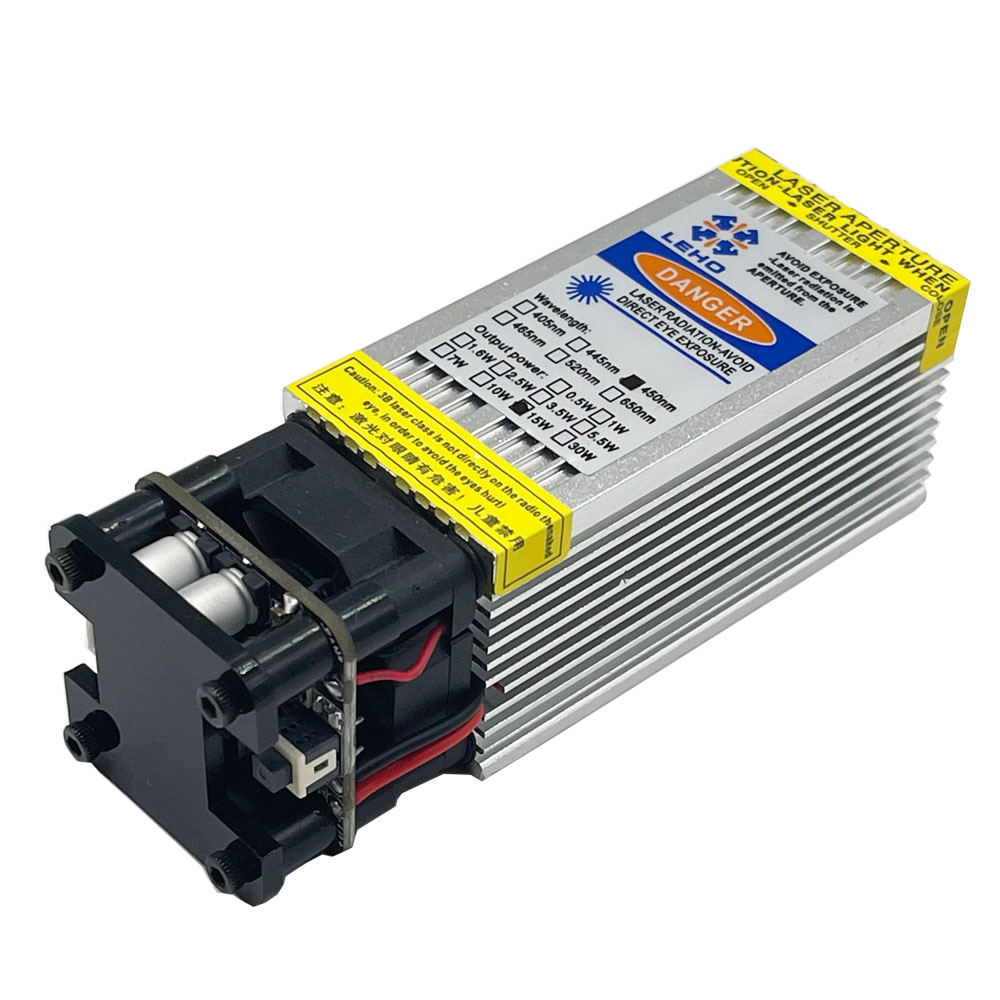

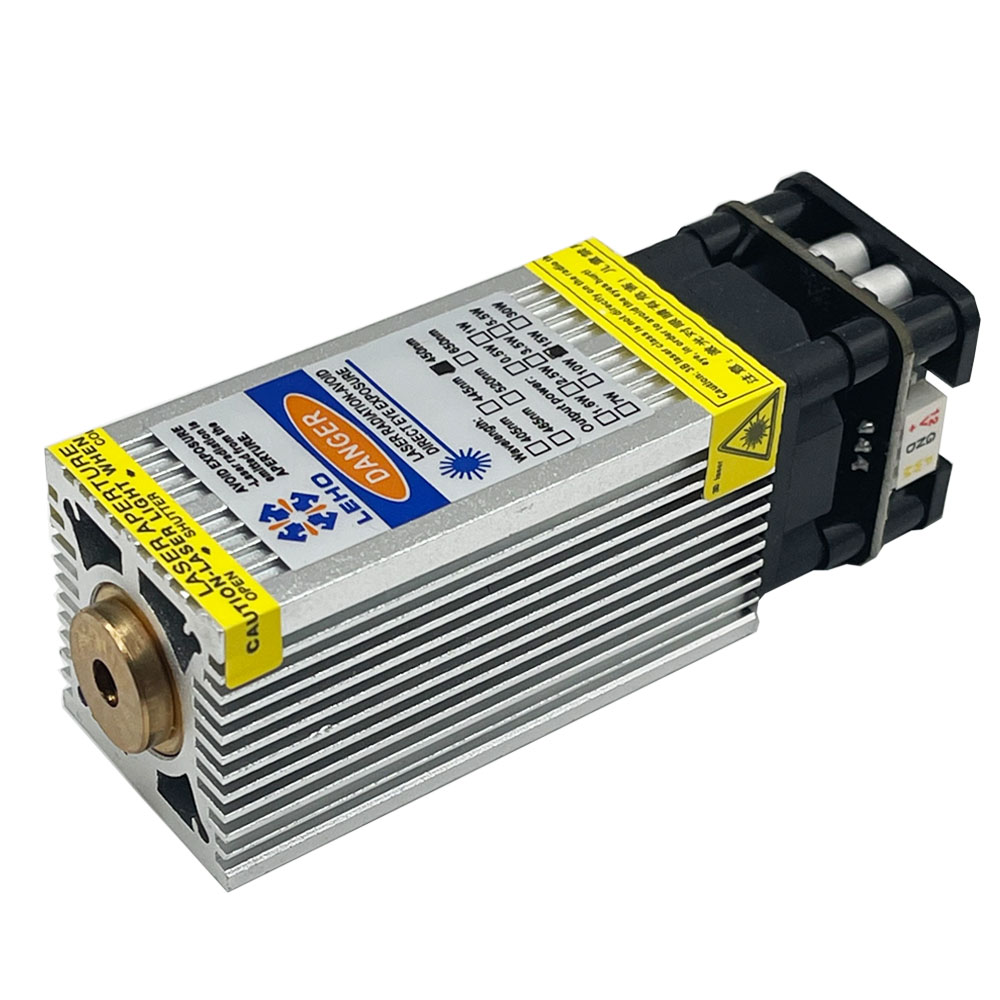

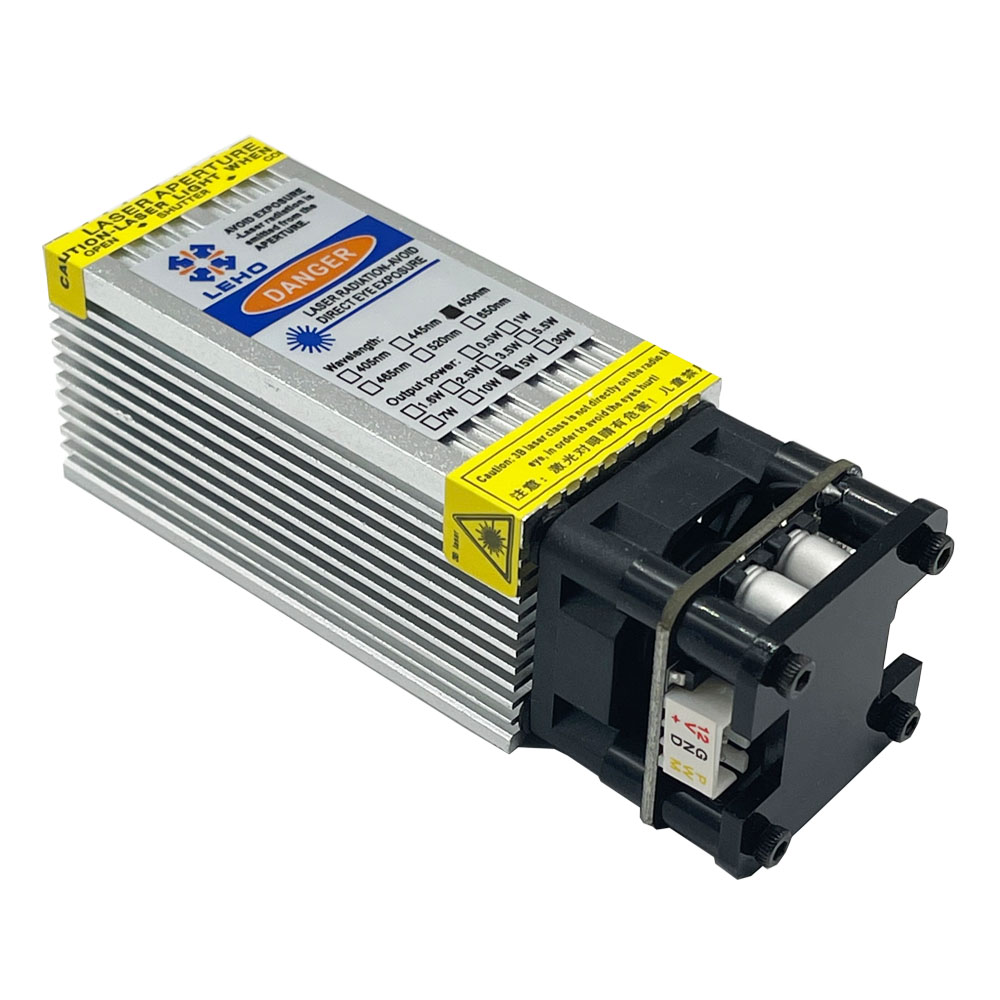

Technical Parameters

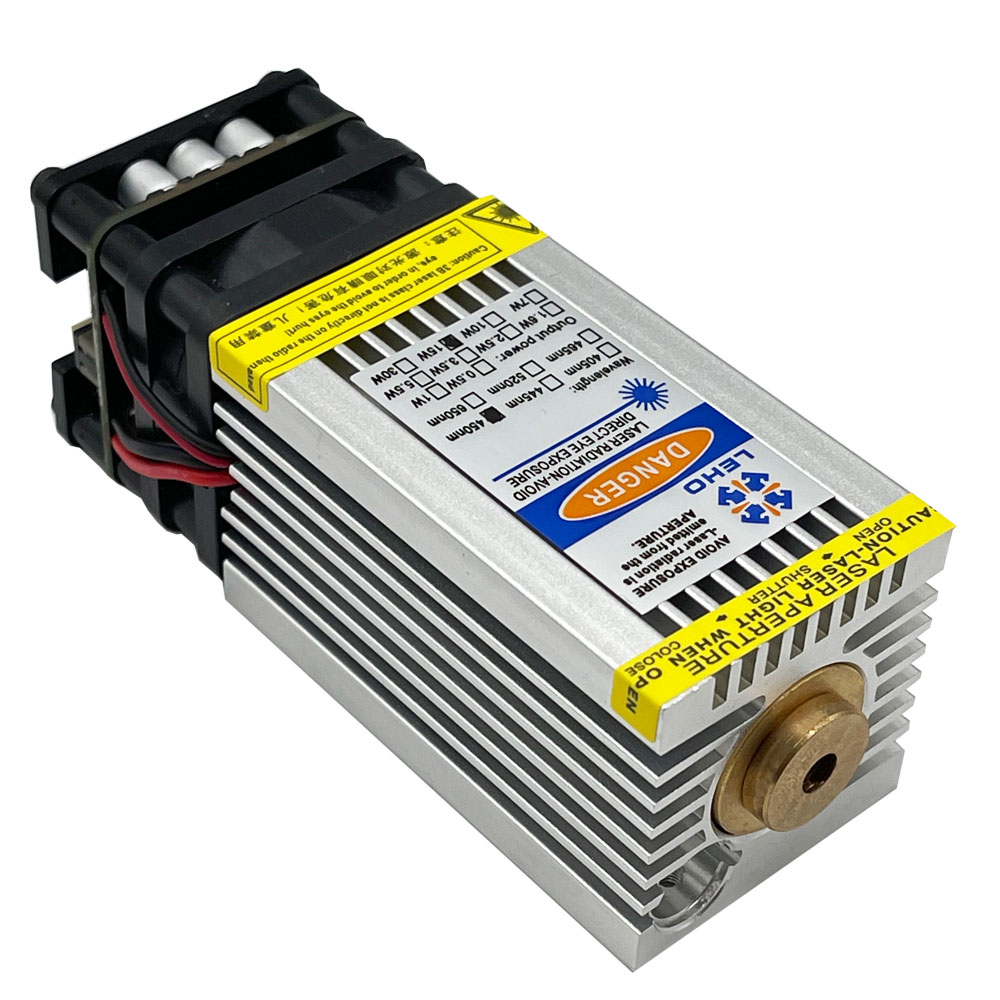

Total length of laser + fan: 100mm-105mm
Shell material: aviation aluminum
Laser light source: semiconductor blue light
Module center material: copper
Color: Oxygen silver

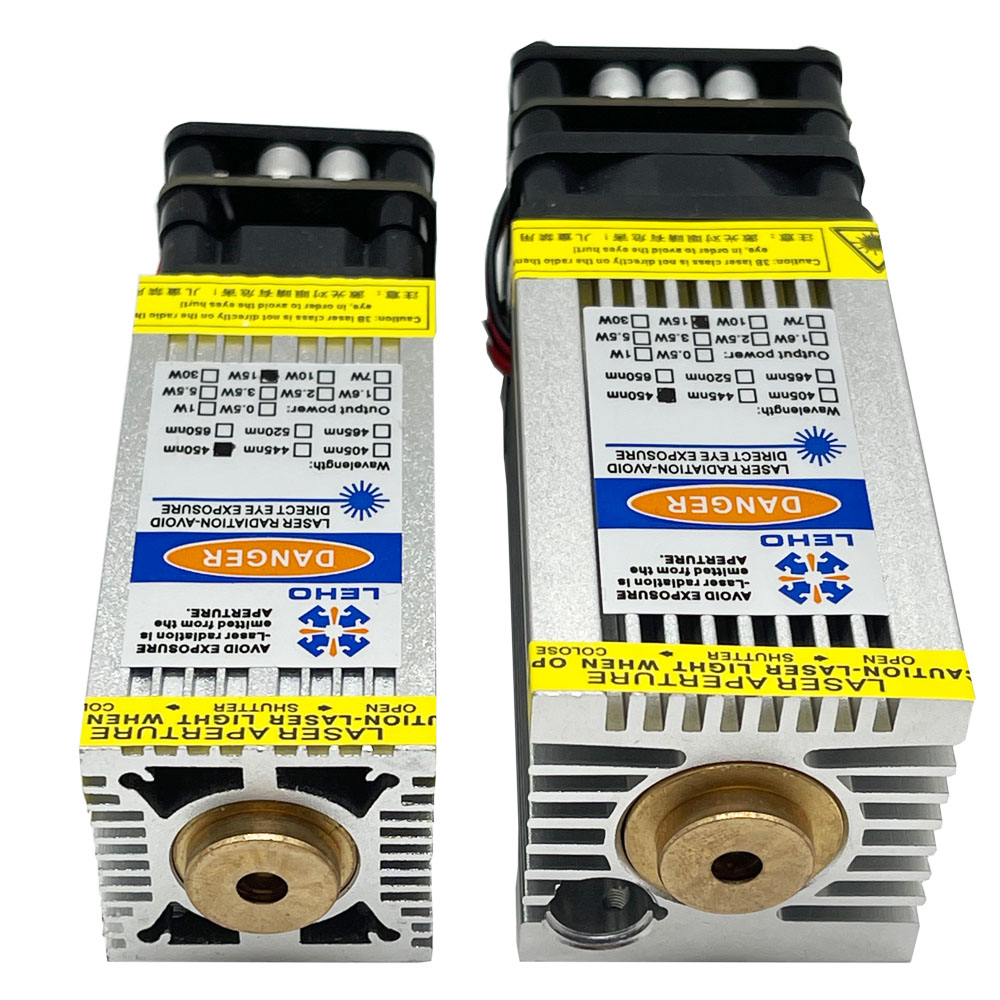

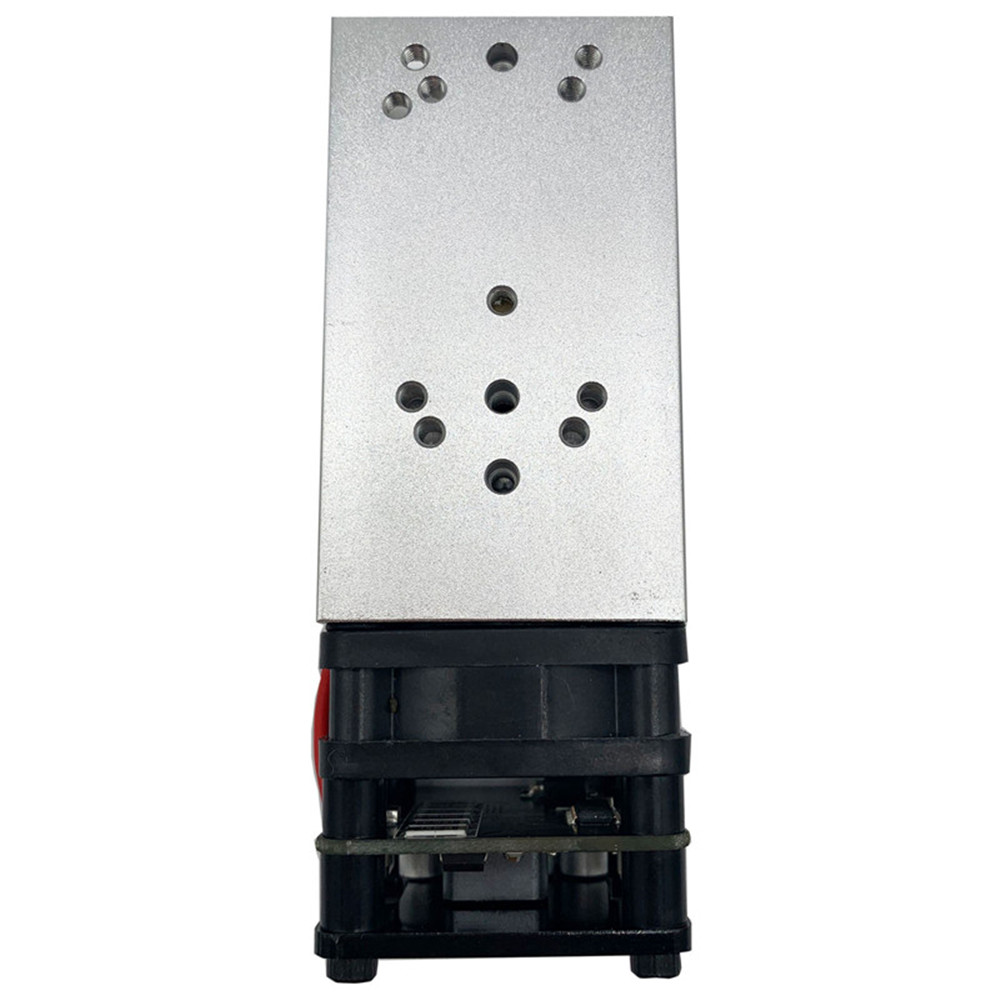

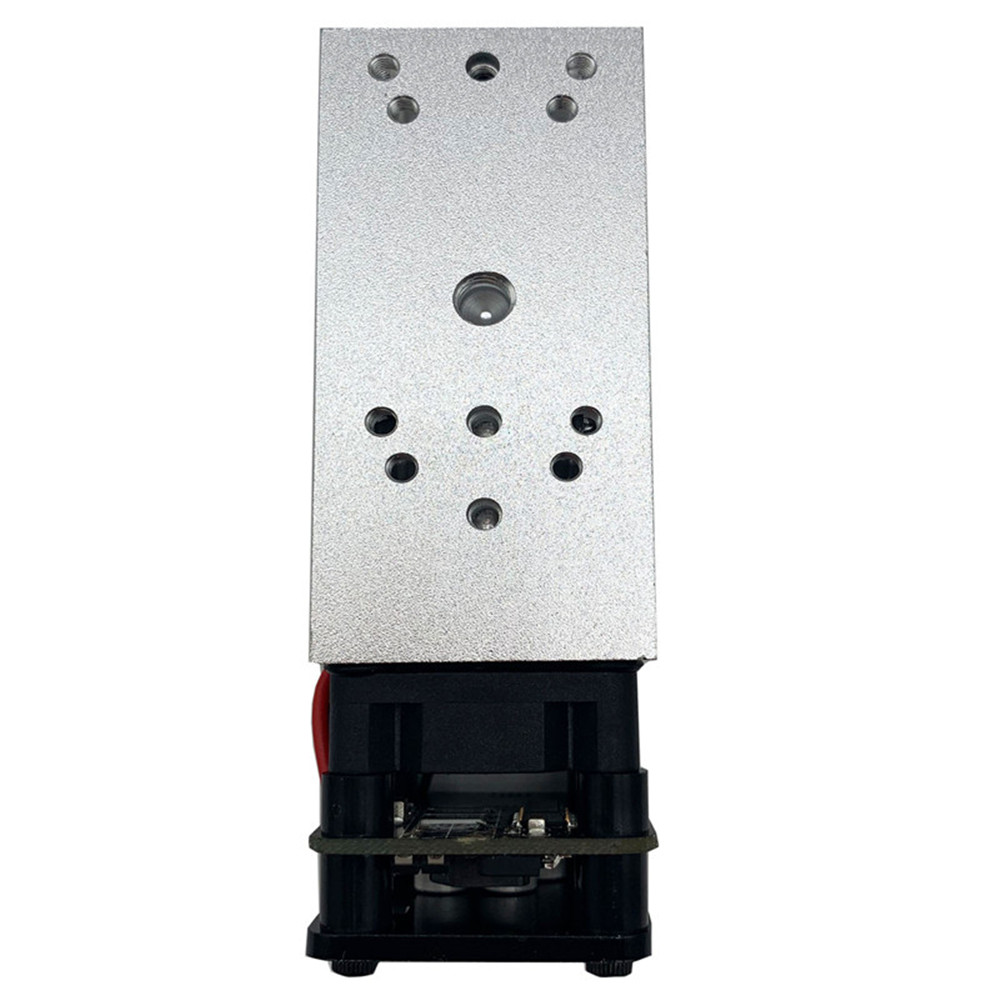

Shell size: 40×40×70mm 33×33×70mm
Electric power: 15W
Optical power output: 10W
Laser wavelength: 450nm
Optical lens material: high efficiency light transmittance
Power supply voltage: 12V (requires power adapter 12V 5A)
Power control: PWM TTL (signal control voltage 0-5V)
Power supply current: 1.9A

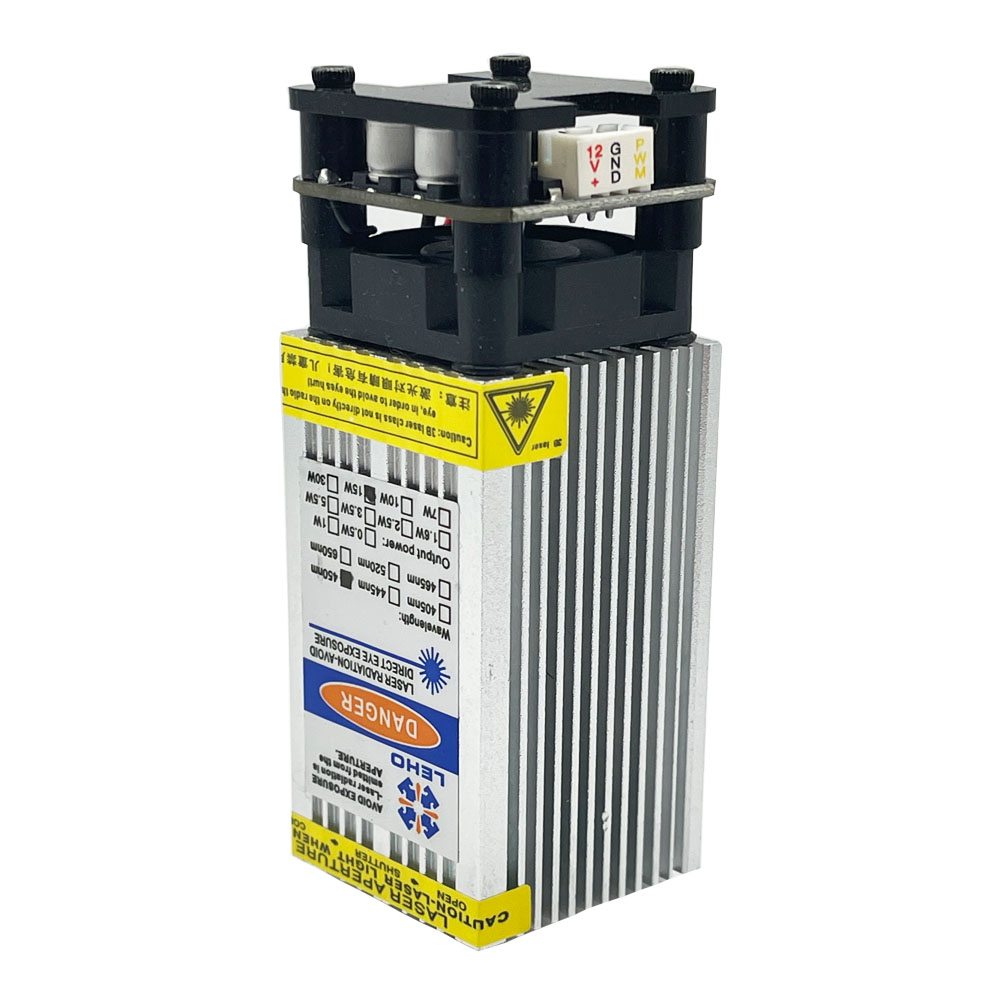

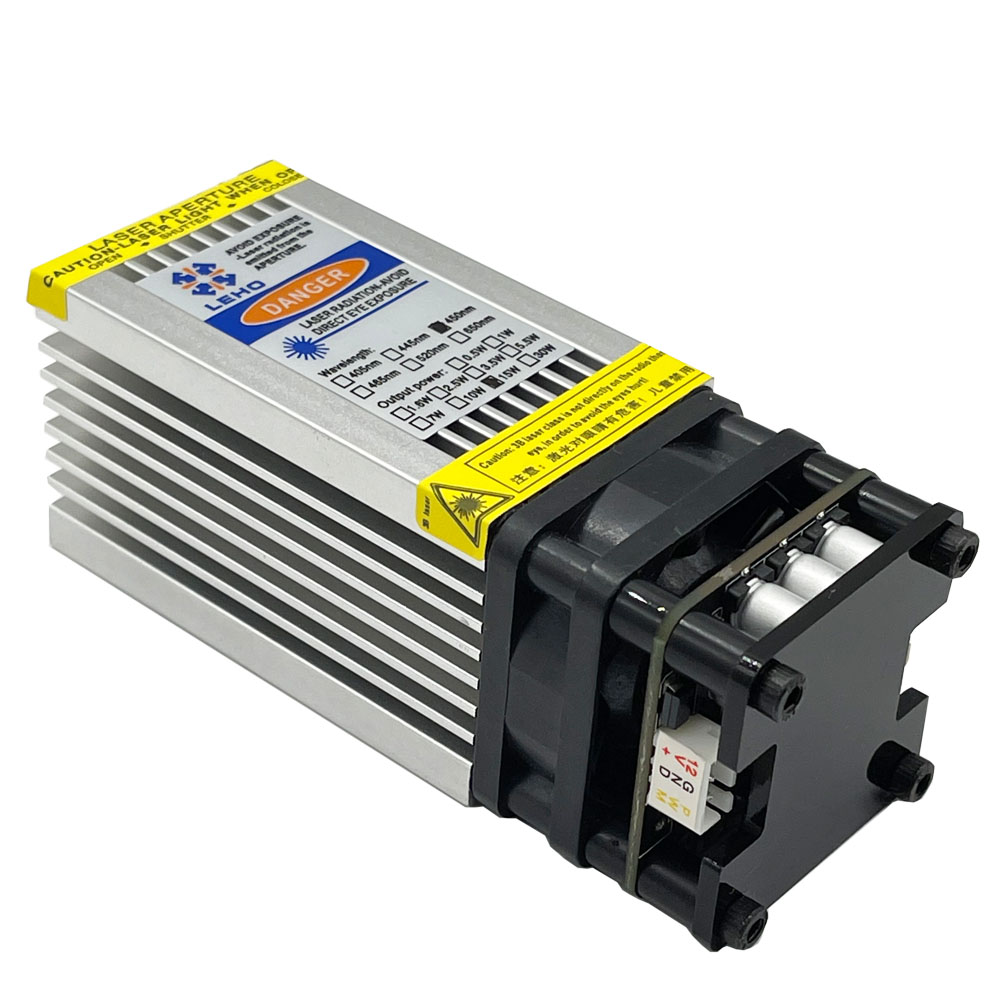

Interface specifications: 3pin 2.54 /4pin 2.54

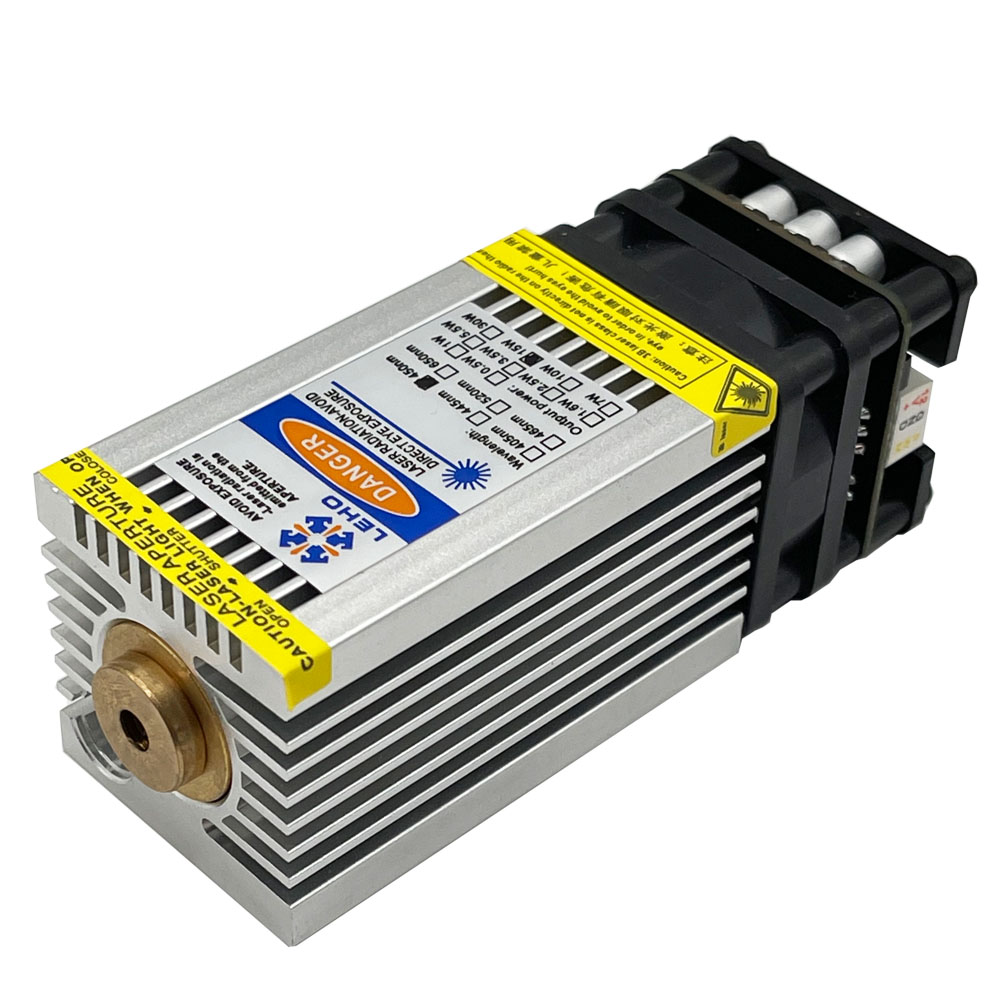

Light shape: point-shaped fixed focus (according to the fixed focus column equipped with the laser best focal length 20mm)
New heat dissipation method: high-speed double ball fan cooling at 13,000 revolutions per minute, safer and more durable
Packing list: laser module*1, glasses*1, 4P line*1, 3P line*1, short line DC*1, focal length column*1
Precautions:

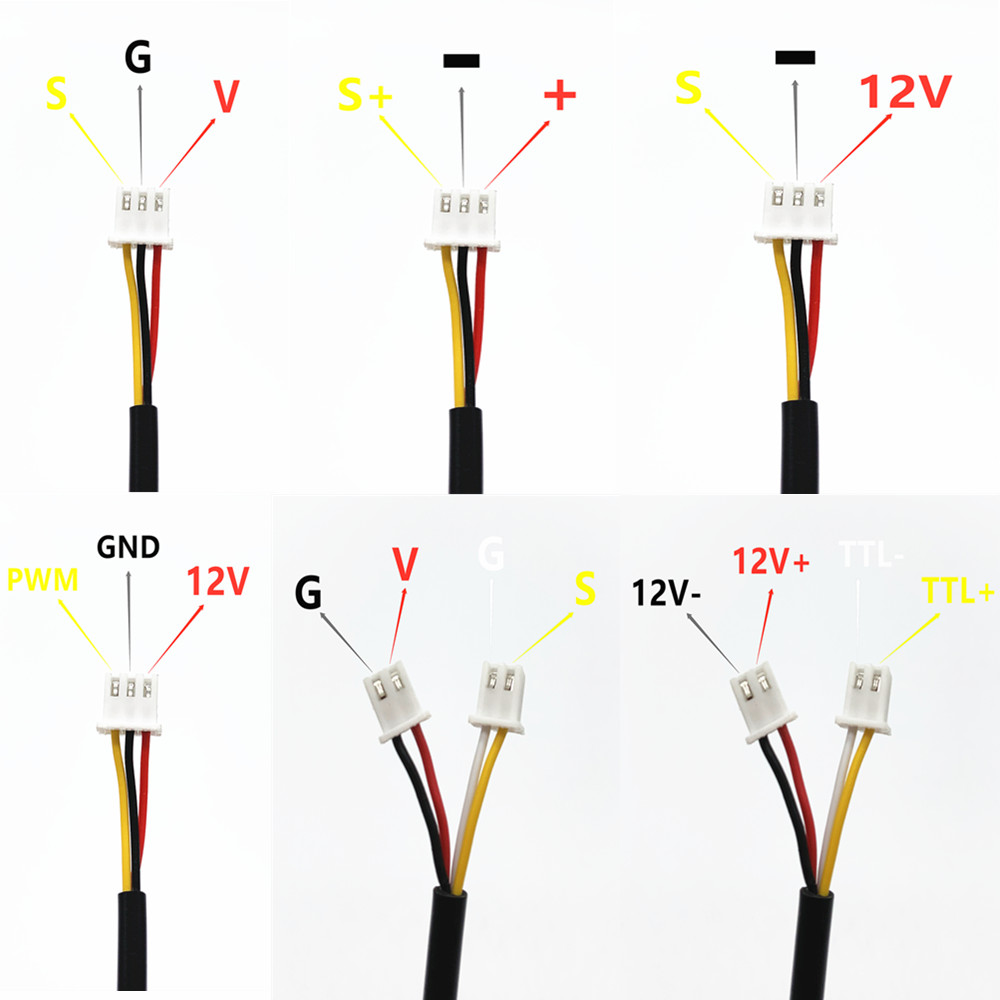

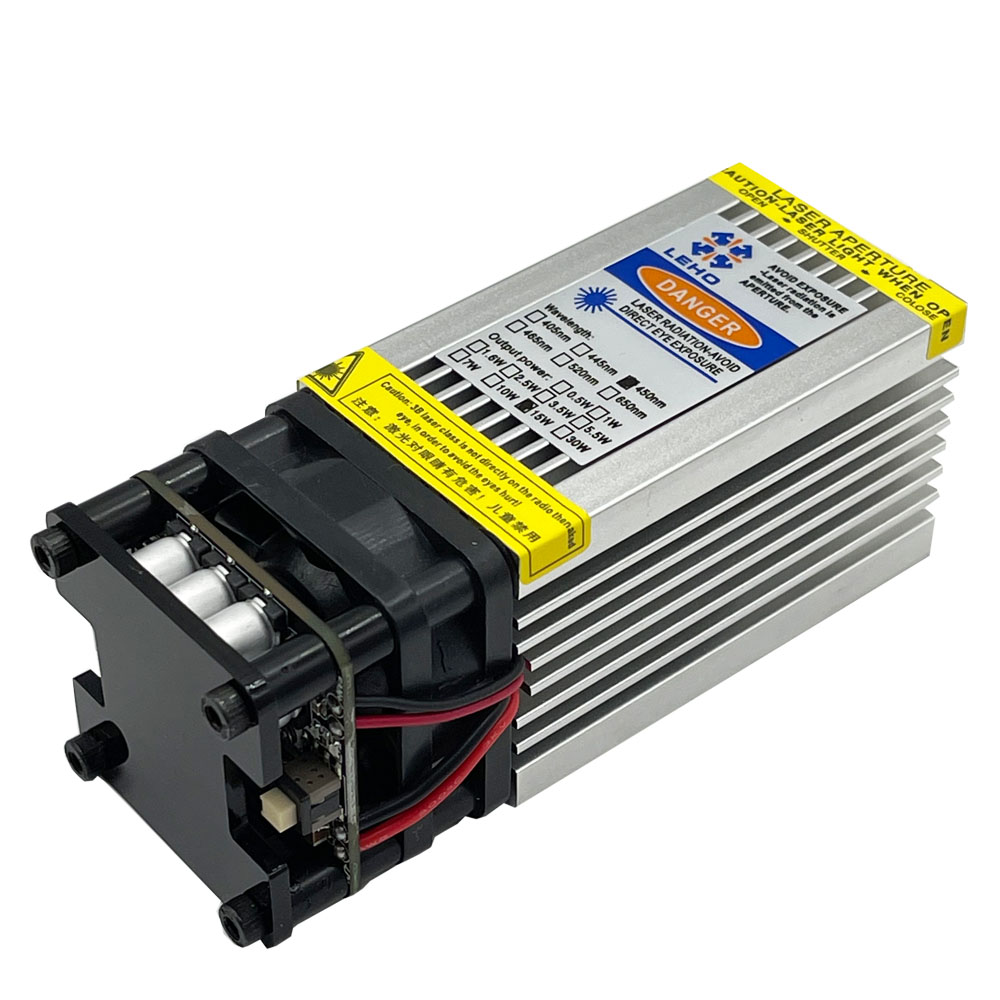

If you need to replace the wires, please pay attention to the wire sequence: 3P wire connection mode, red wire 12v+, black wire GND -, yellow wire pwm+,
4P line link mode, red line 12V+, black line 12V-, yellow line TTL+, white line TTL-
Please pay attention to the wire connection sequence, confirm the connection is accurate and then power on, if you have any questions, please contact us before connecting!
The engraving of reflective objects must be blacked out before engraving, otherwise the reflective light will easily damage the laser lens or the engraving will not be effective.
If the smoke is blurred when the laser head is working, please add a fan when engraving or cutting,
Safety Precautions:
When working with the laser, please do not touch any part of your body with the laser head and wear protective glasses
When the laser is working normally, avoid direct contact with the laser with your hands to prevent the laser from being damaged by the static electricity of the human body
If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a picture, you can see the letters displayed on the connection port between the engraving motherboard and the laser module.
