Led digital display screen industry laser equipment parts high power ir laser diode fiber coupled diode laser 808nm hair removal

$4,544.35$9,736.35

SKU: 3580495018651 Category:

Description

Product Description

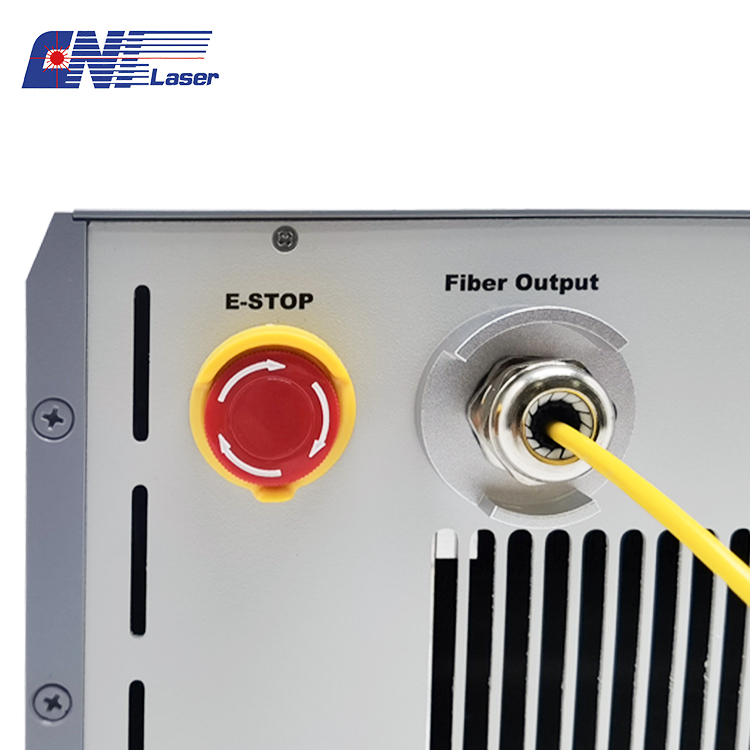

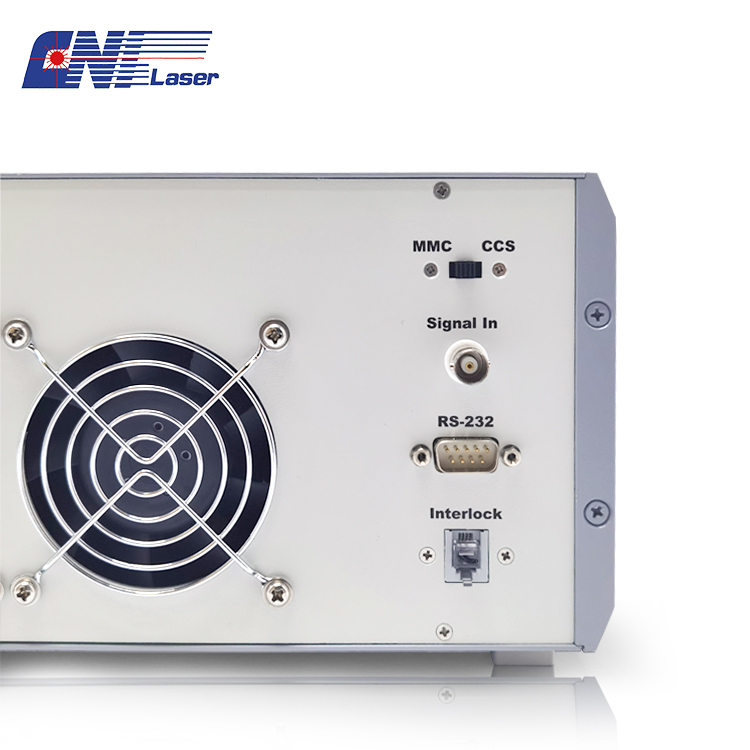

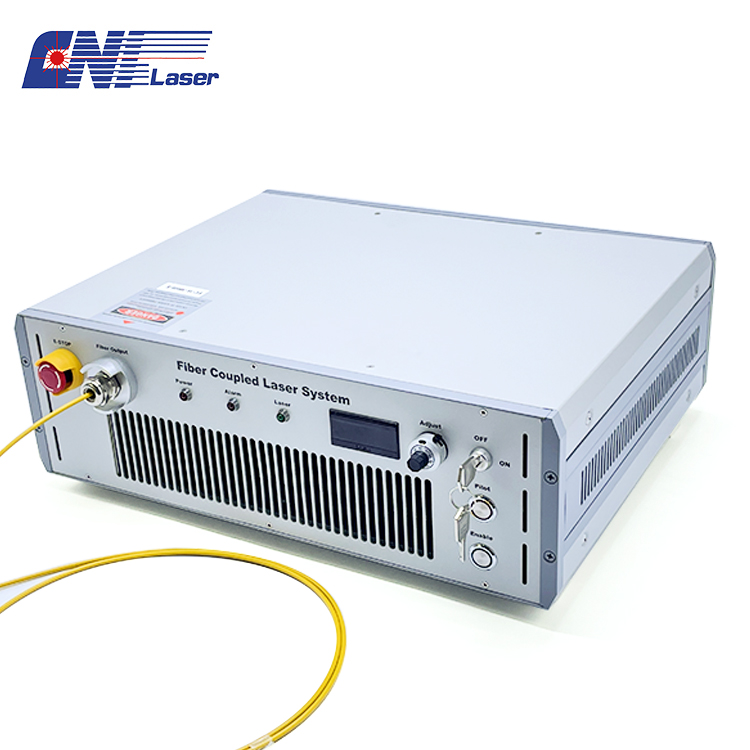

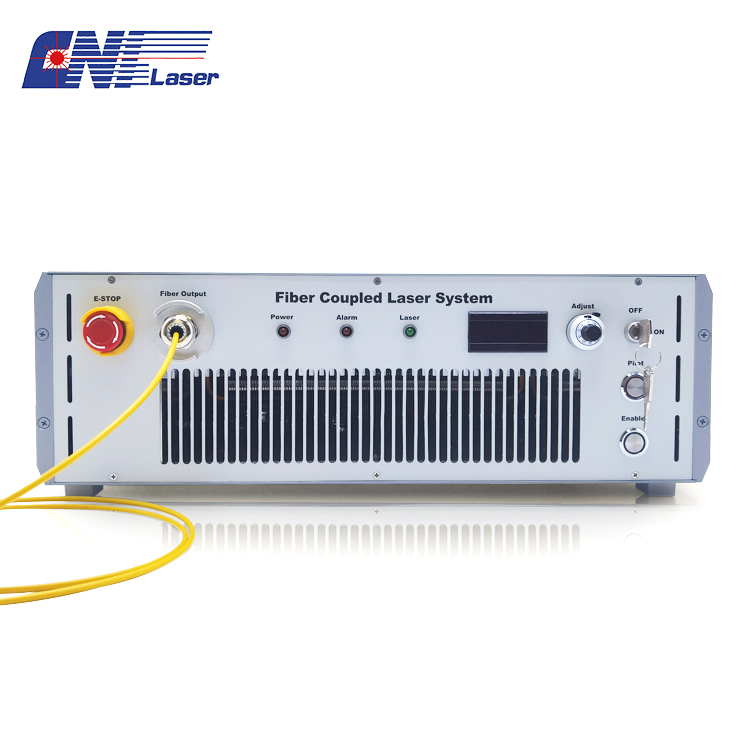

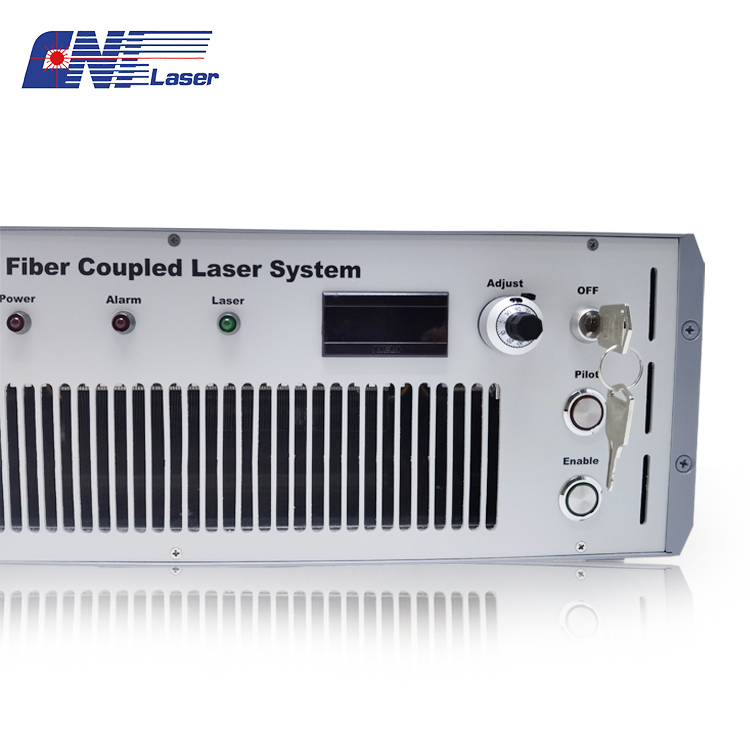

HIGH POWER FIBER COUPLING DIODE LASER SYSTEM AT 808 nm

The FC-W-808H series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

Specifications

Model
FC-W-808H
Wavelength (nm)
808±3
Operating mode
CW
After fiber output power (W)
>50, 60, … , 150
Power stability (rms, over 4 hours)
<0.5%, < 1%, <2%
Red pilot light
Available on request
Fiber core diameter (μm)
400
Fiber NA
0.22
Fiber connector
SMA905
Fiber length (m)
2
LED display
Diode current
Operating temperature (℃)
10~40
TTL / Analog modulation
TTL or Analog with 1Hz- 1kHz 1kHz- 10kHz, 10kHz-30kHz optional
Input power
100-240VAC, 50 to 60 Hz
Cooling Way
Air Cooled
Expected lifetime (hours)
10000
Warranty
1 year

Product Show

Applications

Certificate

Additional information

Model Number

FC-808H-E-100W-1% stability-include adjust power supply, FC-808H-E-150W-1% stability-include adjust power supply, FC-808H-E-50W-1% stability-include adjust power supply
