LED CREE 1-3W White High Power 3535 45mil LED Chip Emitter with 8mm 12mm 14mm 16mm 20mm Star PCB For DIY Flashlight Spotlight

$1.55$78.55

SKU: 4000076088313 Category:

Description

  • Brand Name: ASMTLED
  • Origin: CN(Origin)
  • Item Type: BALL
  • Model Number: XML T6
  • Certification: ce
  • Voltage: 3.0-3.4V
  • Current: 1A

LED CREE 1-3W White High Power 3535 45mil LED Chip Emitter with 8mm 12mm 14mm 16mm 20mm Star PCB For DIY Flashlight Spotlight

Technical Parameters:

Quantity:1/5/10/20/50/100 pcs
Model Type: Cree XML2-T6
Emitted Color :Cool White
Color Temperature: 6500K
DC Forward Voltage (VF): 3.2-3.4V
DC Forward Current (IF): 10A
Power: 1-3W
Low thermal resistance: 2.5°C/W
Maximum junction temperature: 150°C
Viewing angle: 125°

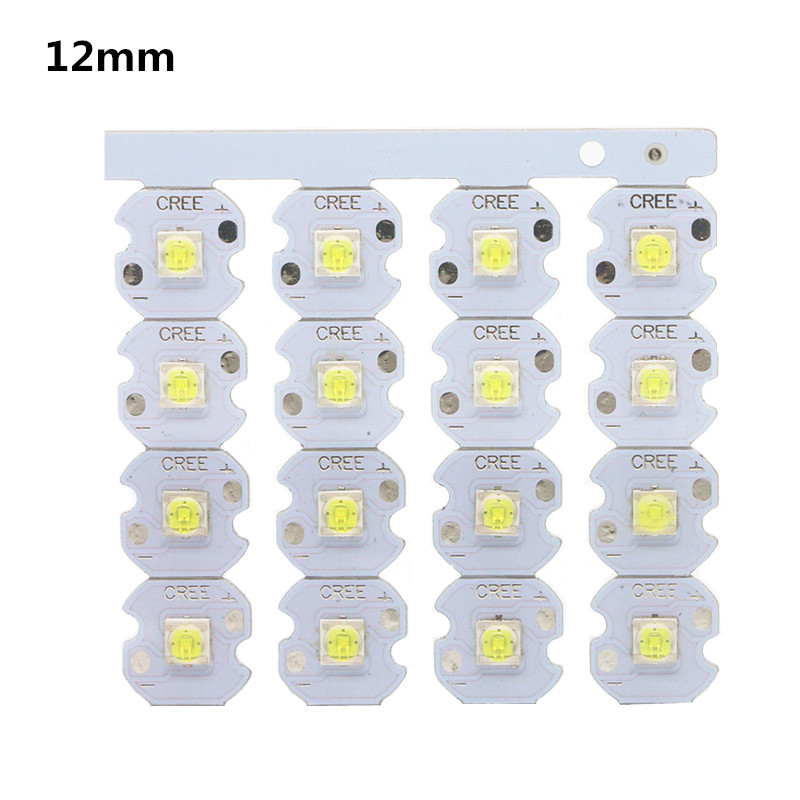

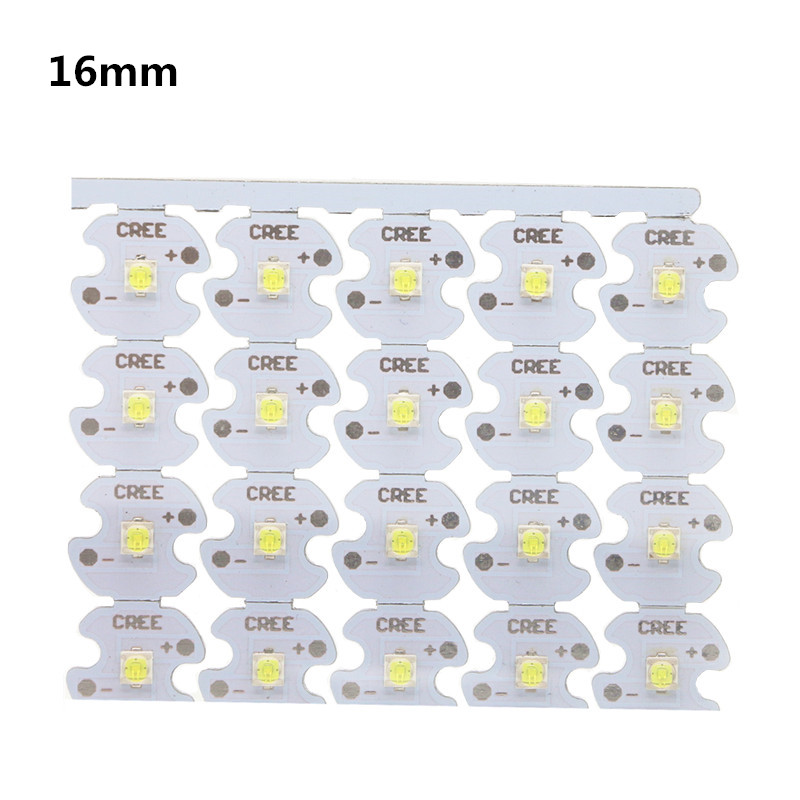

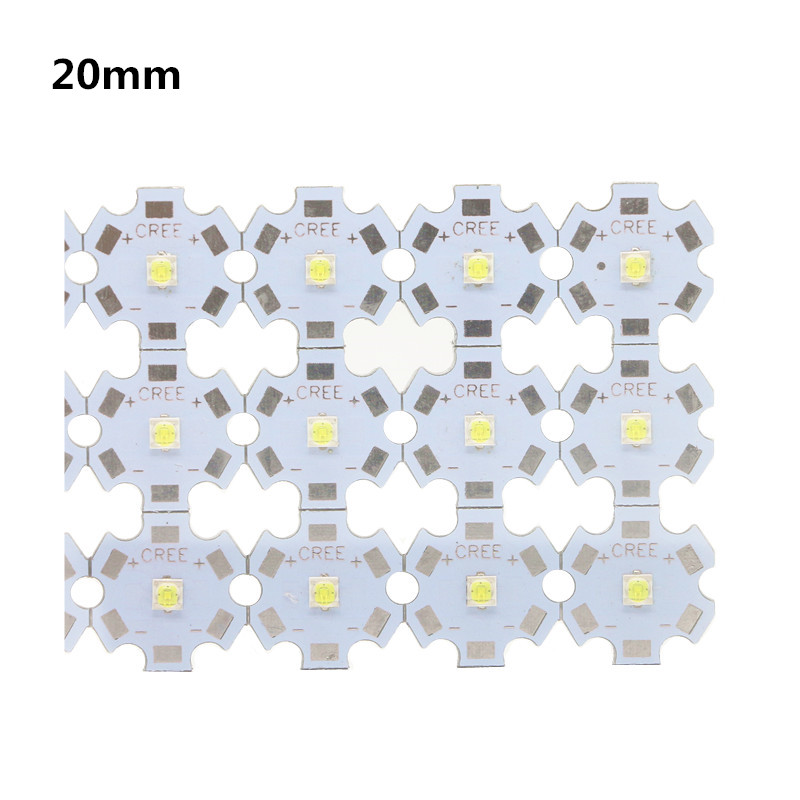

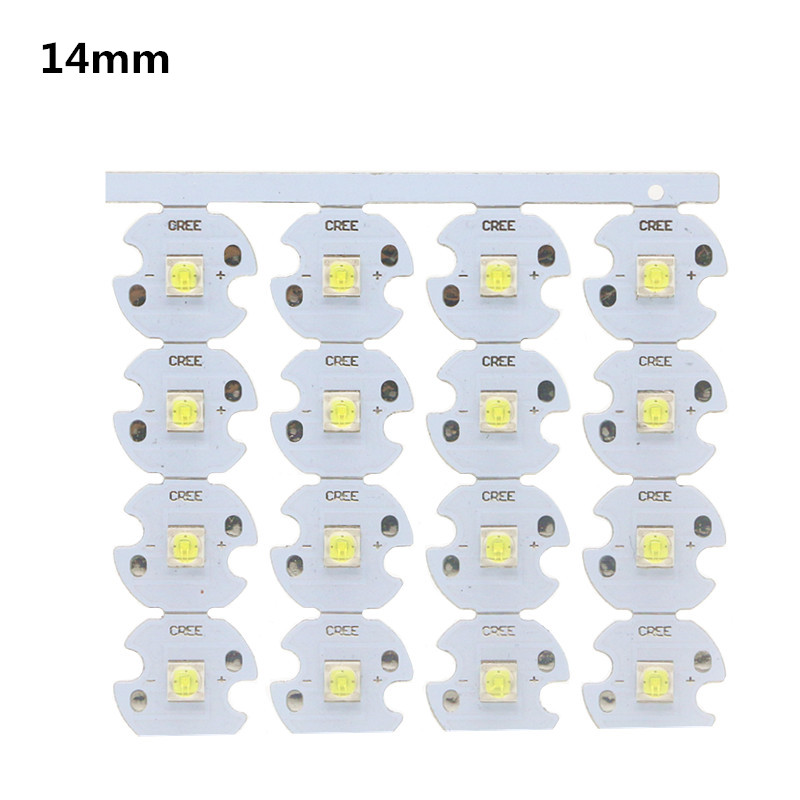

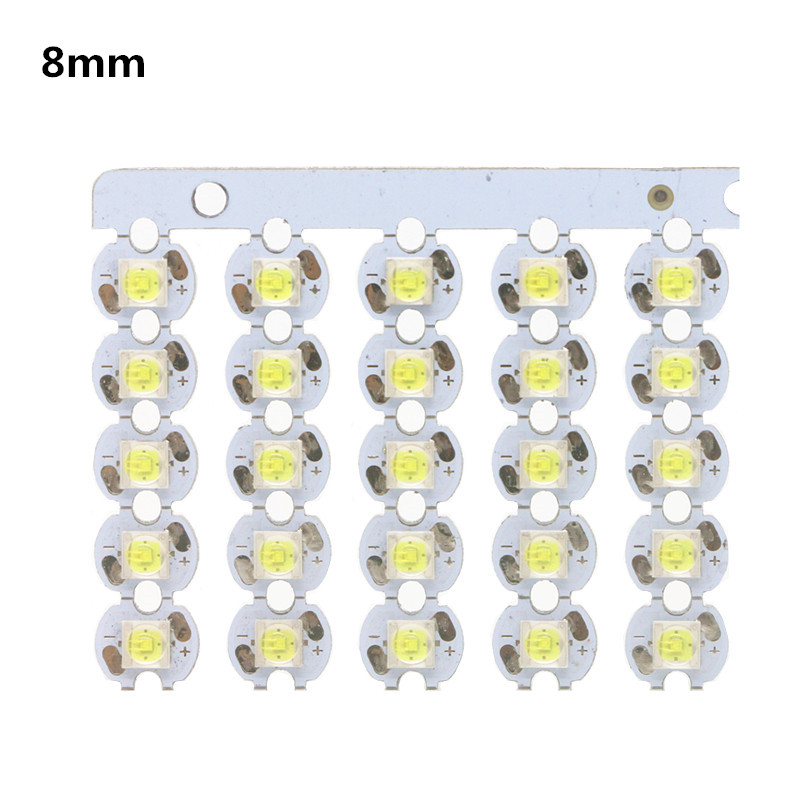

Diameter :8mm/12mm/14mm/16mm/20mm With Aluminum PCB
ANSI-compatible chromaticity bins
Unlimited floor life at ≤ 30oC/85% RH
Reflow solderable – JEDEC J-STD-020C
Electrically neutral thermal path
*****Proper driver & heatsink is required.
