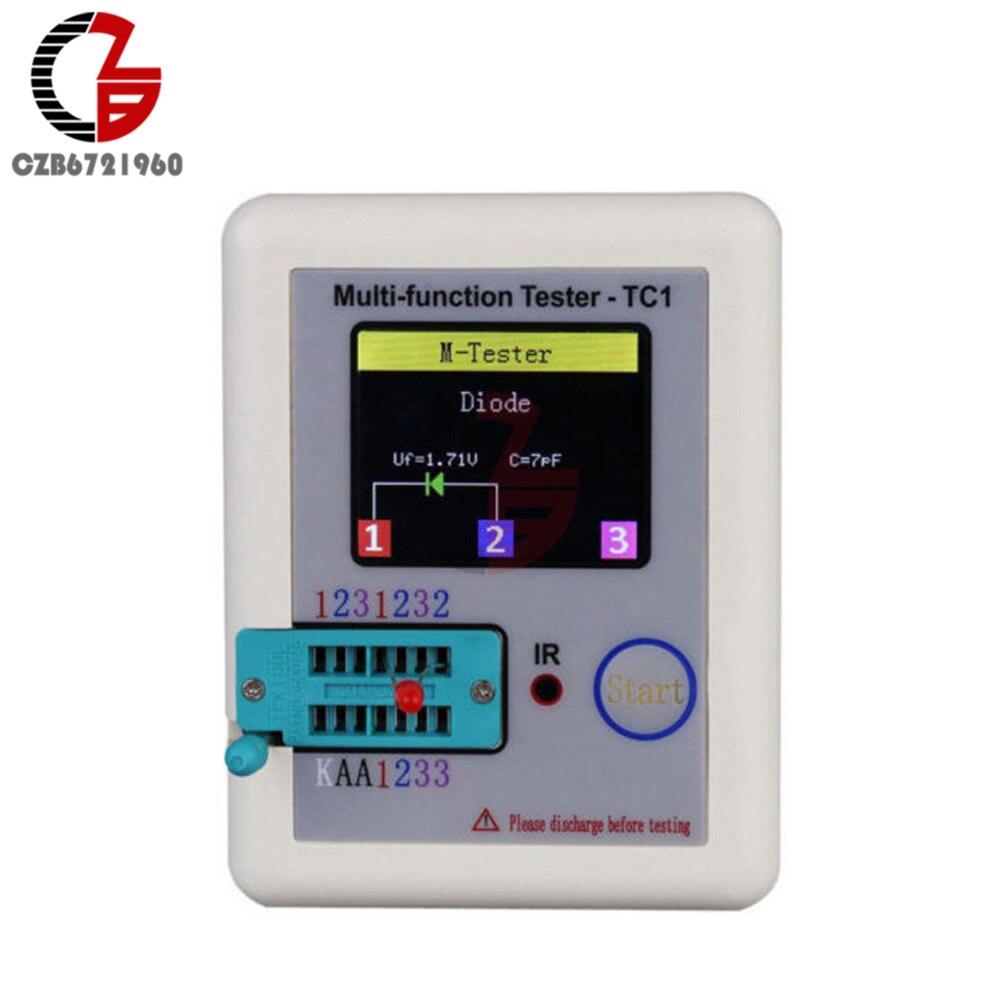

LCR-TC1 Transistor Tester TC1 TFT Diode Triode Capacitance Resistor Meter LCR-T6 TC1 NPN PNP MOSFET
Features
TC-V2.12k is a TFT graphic display Multifunction Tester.
Transistor Tester
Self test with automatic calibration
IR decoder
Support Hitachi IR coding
IR waveform display
Infrared receiving instruction
Other
Measurement results using TFT graphic display(160×128)
One key operation
Auto Power Off(Timeout Settable)
Built-in high capacity rechargeable Li-ion Battery
Li-ion Battery voltage detection
Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
Operating Instructions
Key operational definitions
Multi-function key has two actions:
Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
Long press: Press the key more than 1.5 seconds
Power on
In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
Power on & measurement interface

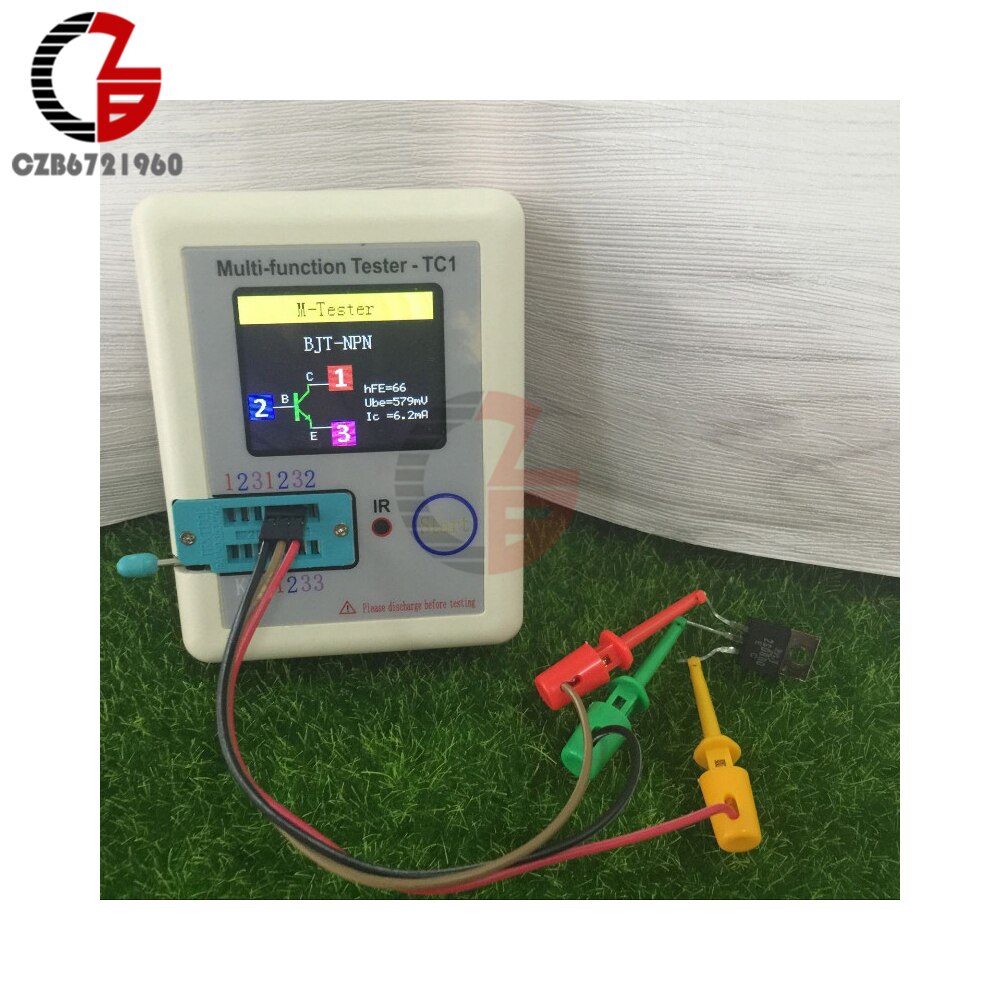

Detect transistor
In the power off state or the test is completed, put the test element into the transistor test area of test seat, and press the locking handle, short press the multifunction key, the tester automatically measure, graphical display of measurement results when testing is complete.
Warning: Always be sure to DISCHARGE capacitors before connecting them to the tester! The tester may be damaged before you have switched it on!
Warning: We do not recommend using the tester to measure the battery! The battery voltage must be less than 4.5V, otherwise the tester may be damaged!
Component placement
Test seat are divided into transistors and zener diode test area, detailed in 1.1 Description.
No, unknown, or damaged part
