Description：

1.Can simultaneously measure two resistors and resistor symbol is displayed. Displayed on the right with a decimal value of 4

2.Resistance symbol on both sides shows the pin number.So you can measure the potentiometer. If the potentiometer wiper is not transferred to an extreme position , we can distinguish the middle and both ends of the pin.

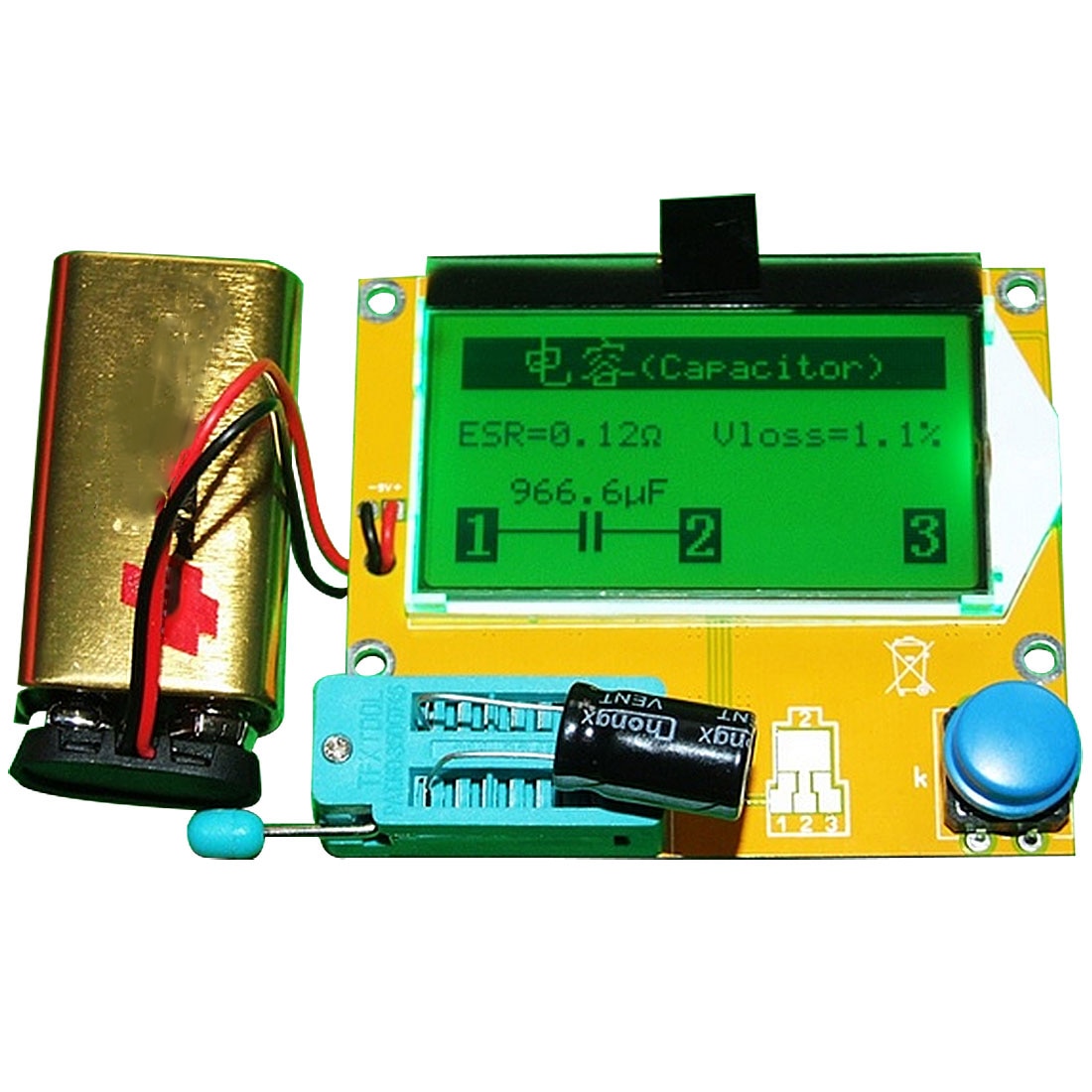

3.Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components. Automatic test the pin of a component, and display on the LCD.

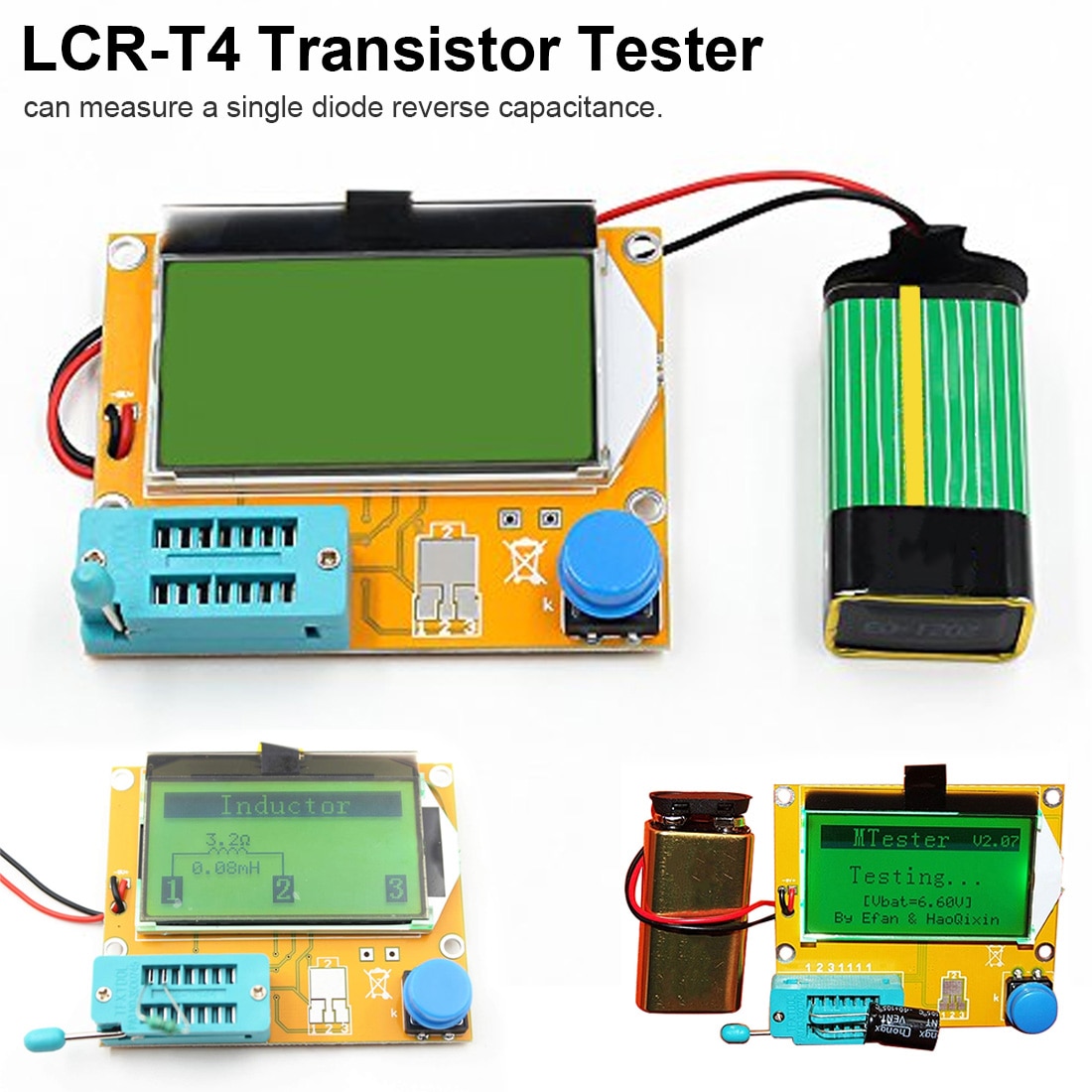

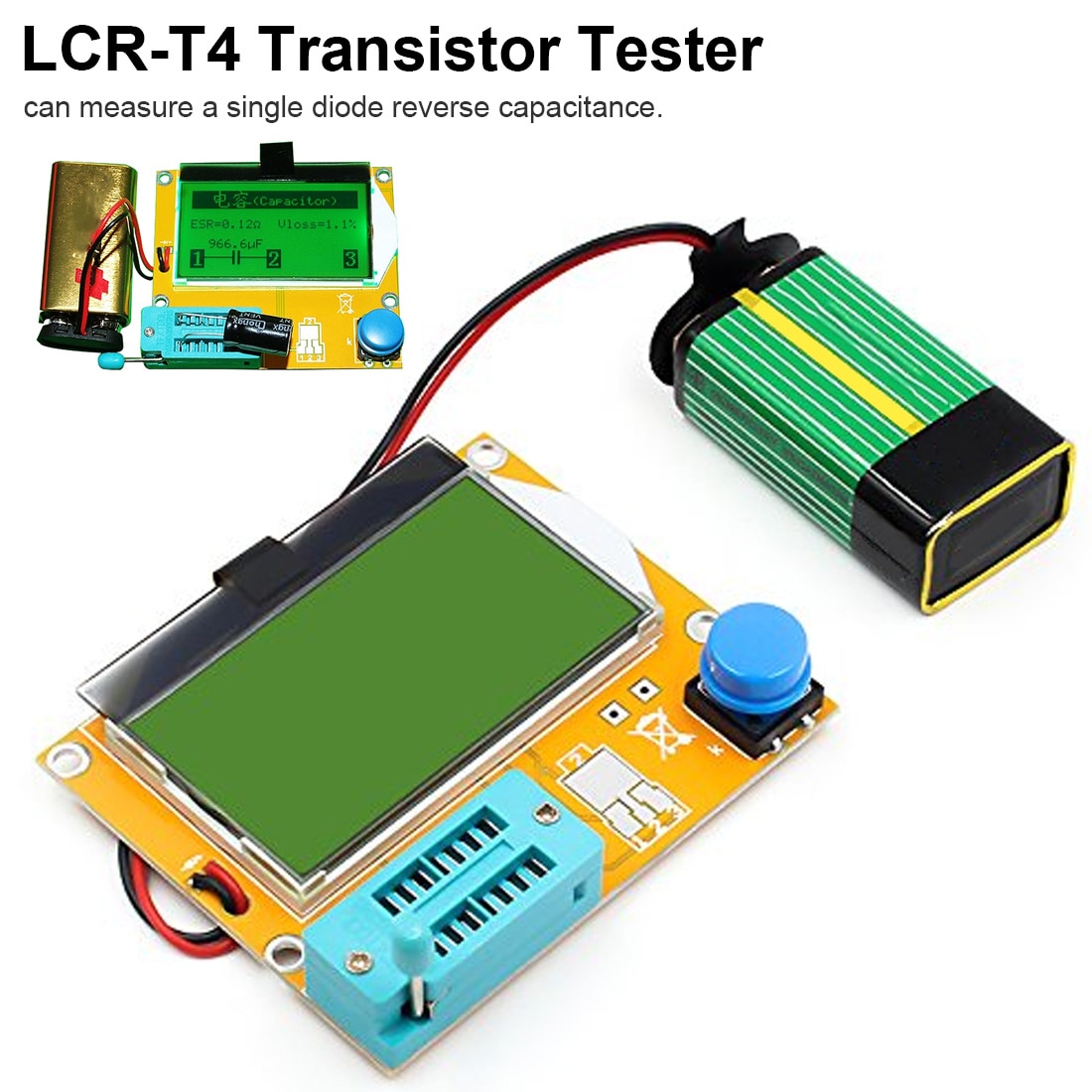

4.Can measure a single diode reverse capacitance. If the bipolar transistor connected to the base and collector or emitter of a pin. It can measure the collector or emitter junction reverse capacitance .

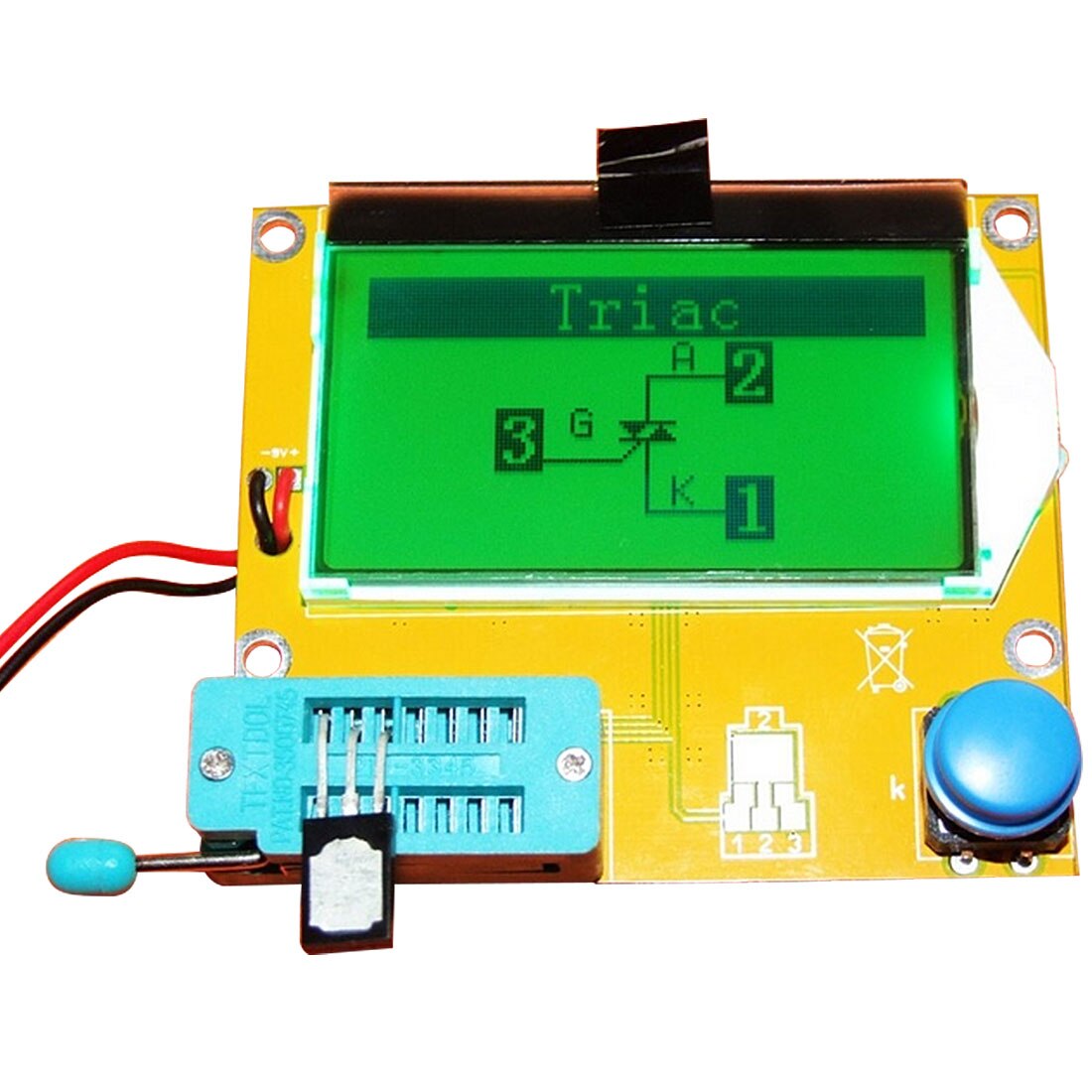

5.Automatically detect NPN, PNP bipolar transistors , N -channel and P -channel MOS FET, JFET , diodes , two diodes, thyristors small power unidirectional and bidirectional thyristor. Automatic identification components pin arrangement .

Features

Small size, easy to use.

Big Backlight LCD display,only 2mA when stand by.

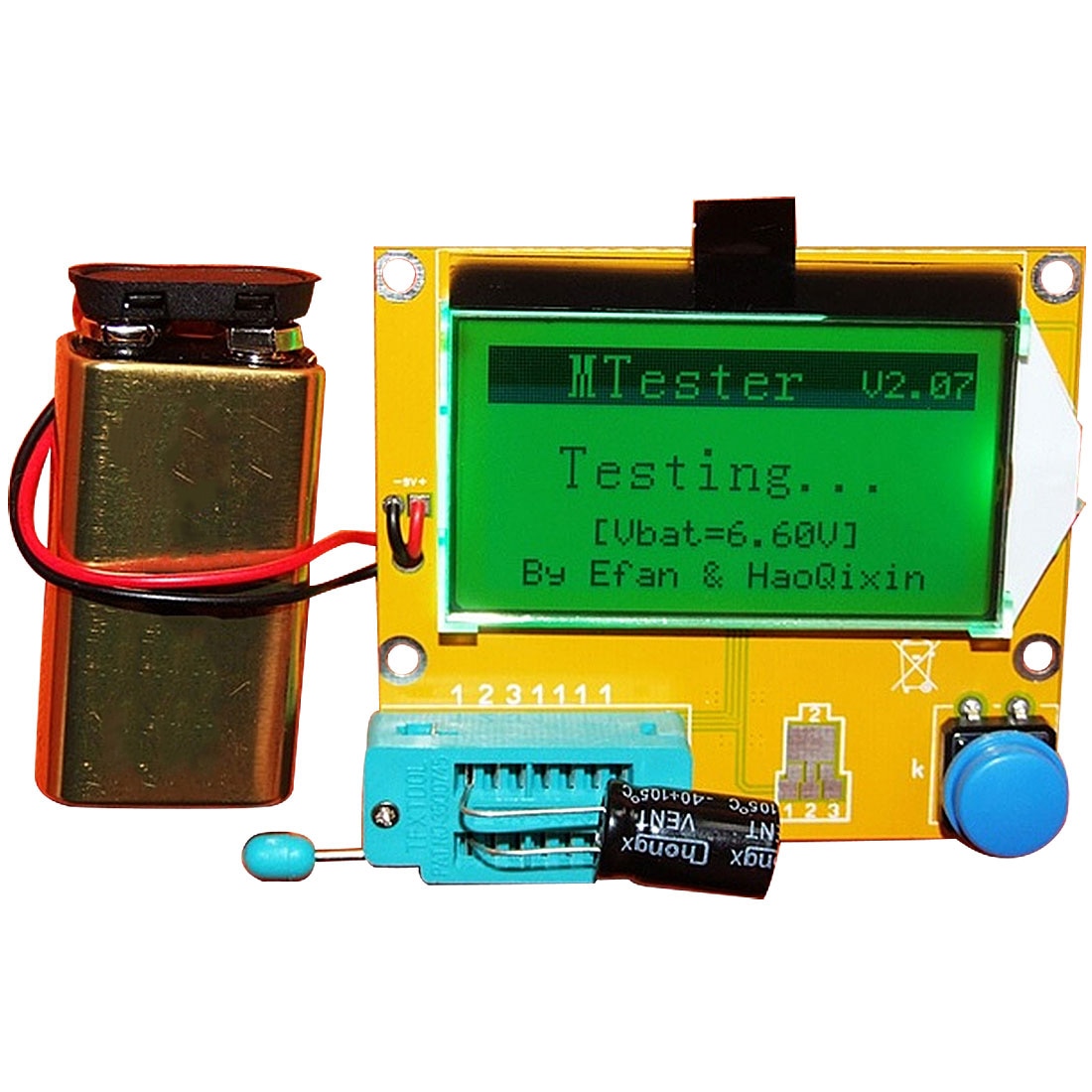

Boot voltage detection function. 4.

Auto Power Off(Timeout Settable).

Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.



Specification

Uses : Graphical, Transistor Tester

Type: LCR-T4 Transistor Tester

Package includes: 1*LCR-T4 Transistor Tester



Note

Please allow 1-2mm errors due to manual measurement.

Due to the difference between different monitors, there are color differences, please take the real product as the standard.
