LC-S400MN precision laser sensor 200-600mm sCMOS Laser distance sensor module displacement sensor

  • Home
  • LC-S400MN precision laser sensor 200-600mm sCMOS Laser distance sensor module displacement sensor
Sale!

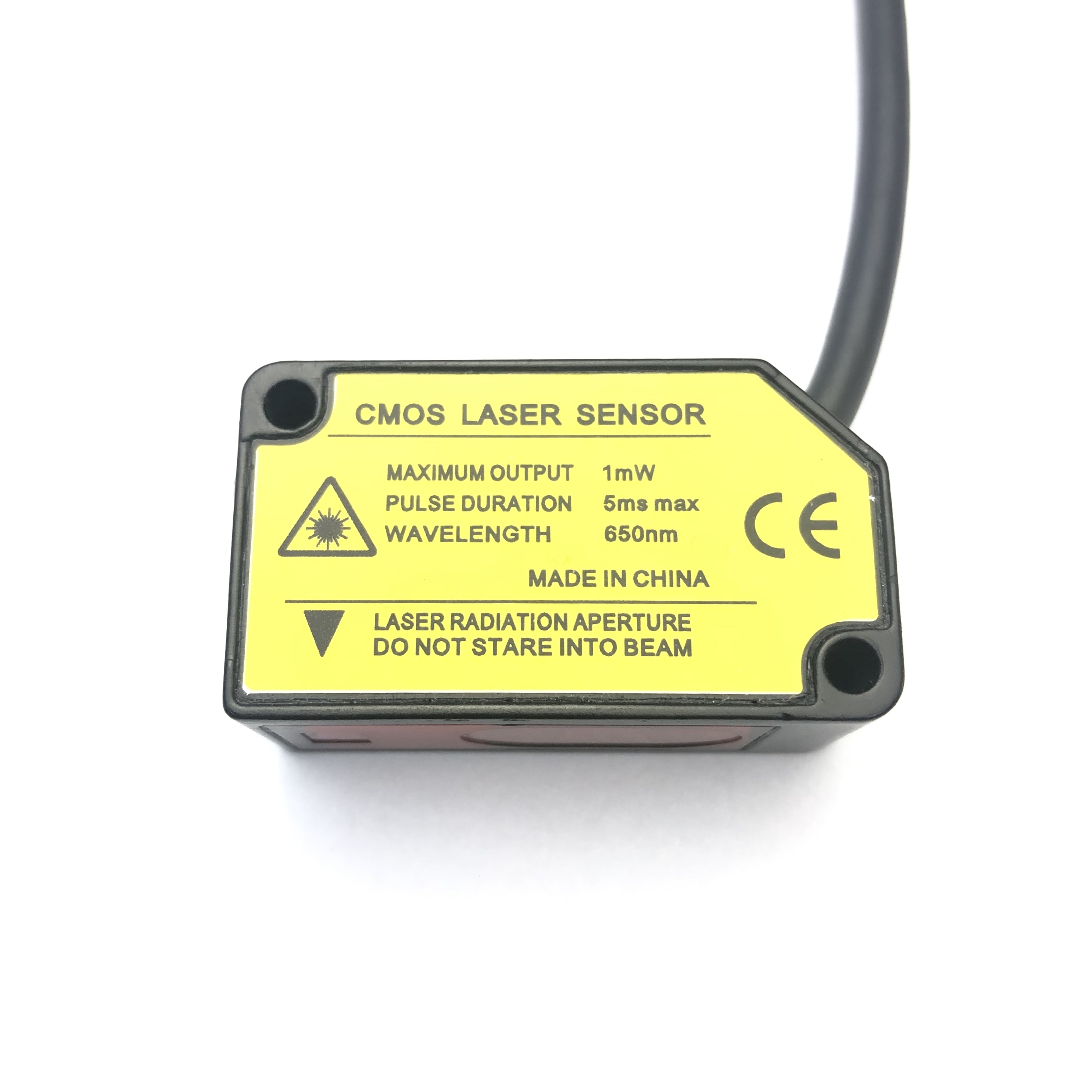

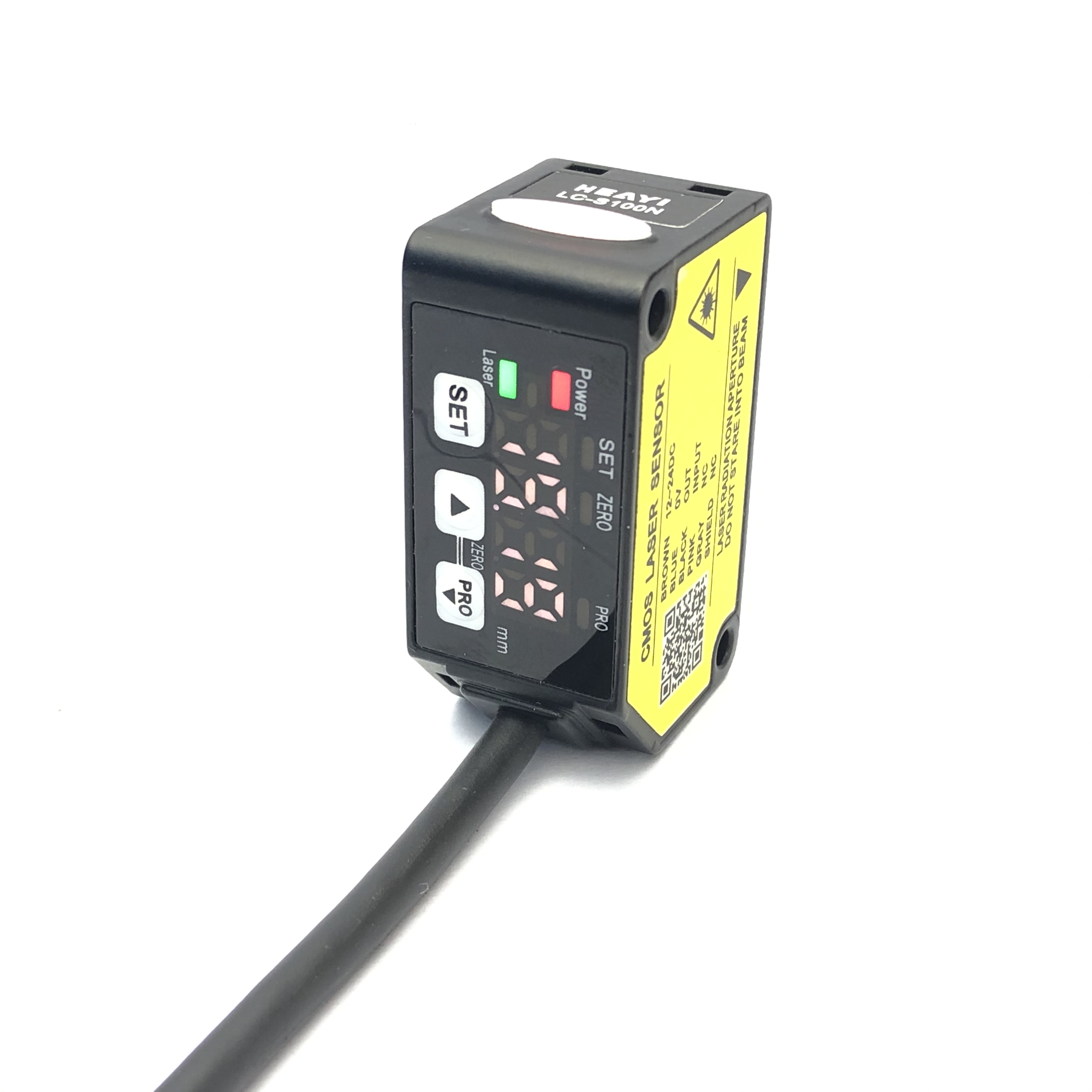

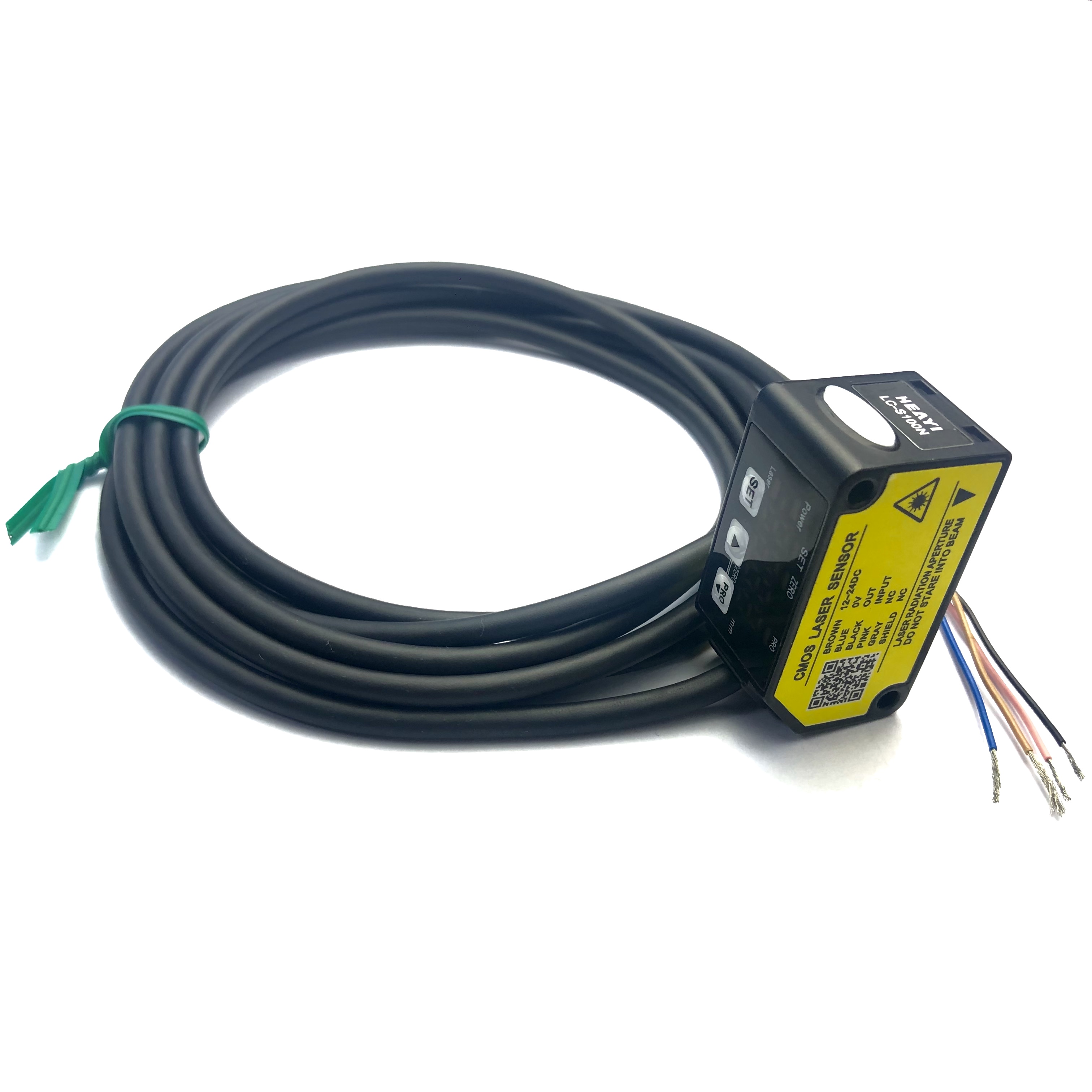

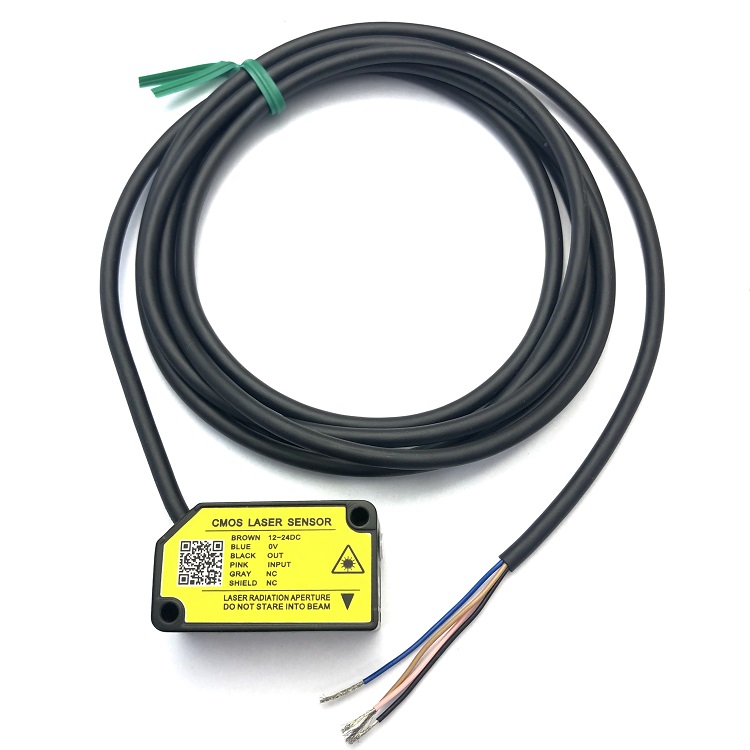

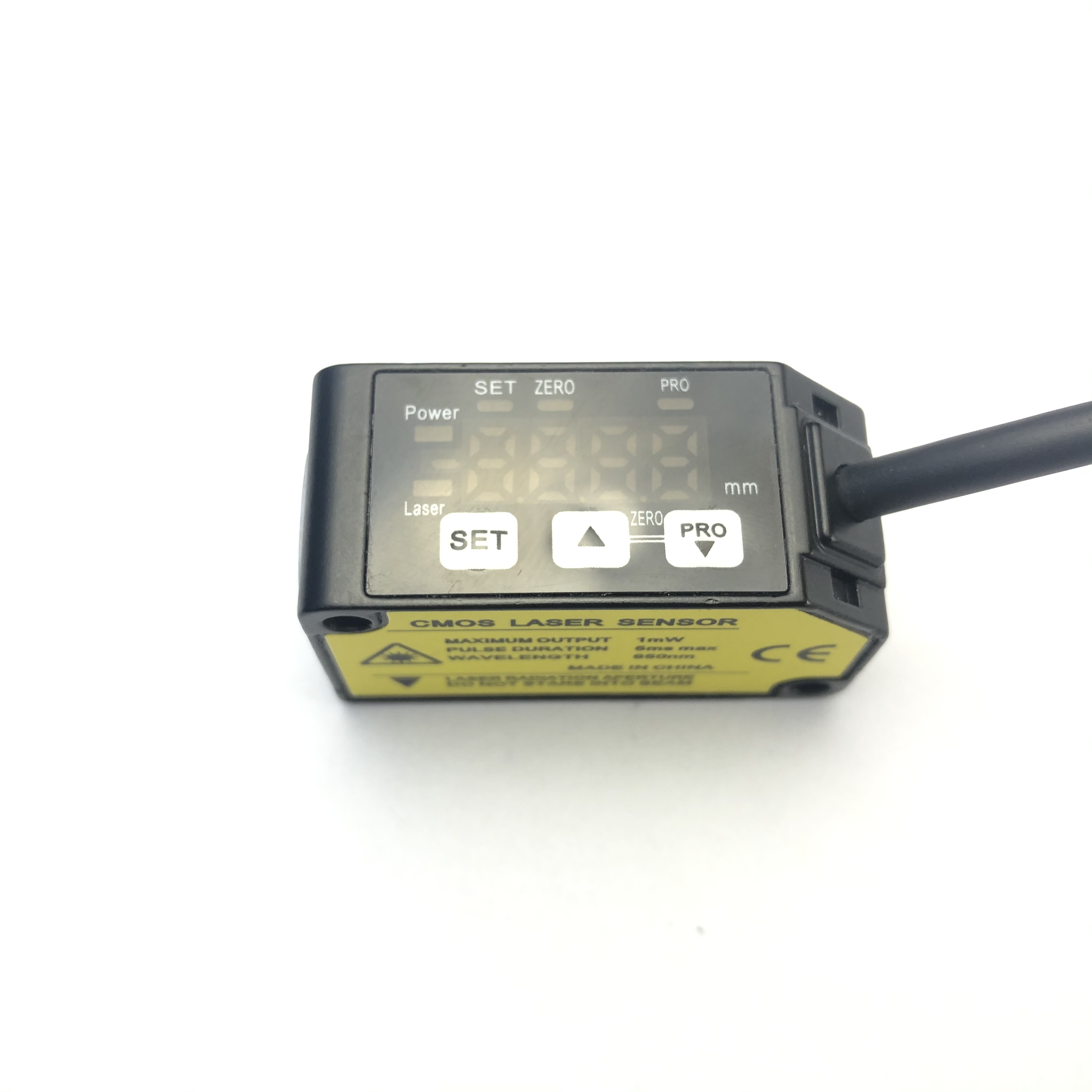

LC-S400MN precision laser sensor 200-600mm sCMOS Laser distance sensor module displacement sensor

$374.00

20 in stock

SKU: 1005004320819255 Category:

Description

  • Brand Name: LanYuXuan
  • Origin: CN(Origin)
  • Certification: CE
  • Place of Origin: Guangdong, China
  • Brand Name: Heyi
  • Model Number: LC-S400MN
  • Usage: laser displacement sensor
  • Theory: optical sensor
  • Output: switching output
  • Brand: laser displacement sensor
  • Voltage – Supply: 0-5VDC
  • Output Type: switching output
  • Mounting Type: build in
  • Resolution (Bits): Not Applicable
  • Features: Red semiconductor laser Class 2
  • Package / Case: Enclosure: Aluminum die-cast, Front cover: Acrylic
  • Packaging: nylon bag
  • Output Configuration: NPN
  • Voltage Rating: 0-5VDC
  • Size: 25*20*44
  • Size / Dimension: 25*20*44
  • Technology: Optical, Optical
  • Sensing Range: 200-600mm, 200-600mm
  • Function: fiber optic sensor
  • Sensitivity (mV/°/s): Switchable between 1.5ms/5ms/10ms
  • Power – Rated: 0-5VDC
  • Sensing Object: the color of object
  • Sensing Light: RGB
  • Current Rating – DC: 50mA
  • Application: Industrial Automation
  • Product name: Laser displacement sensor
  • output type: NPN
  • Response time: Switchable between 1.5ms/5ms/10ms
  • Certificate: CE,Rohs,Reach
  • Warranty: 12 Months reparing or replacing
  • Light source: Red semiconductor laser Class 2
  • Cable / connector: cable
  • output: 1mW, Emission peak

My friend, welcome to our store, if you need other models of this product, please contact me whatsapp+ 8618684585654, I will send the product link for you to buy!

LC-S400MP laser sensor 65-135mm sensing range laser distance sensor module for textile machinery industry

Product Description

Model

LC-S400MN

Brand

HEYI

Usage

High precision object detection sensor

Theory

optical sensor

Output

0-5VDC/4-20mA analog output and switching output

Sensing Range

200-600mm

Sensing Object

opaque object

Application

food/medical/chemical/robotics/electronics/industry/packaging/plastic machinery industry/textile machinery industry/lithium battery/semiconductor industry

Output mode

swithching output

Repeatability accuracy

300μm(Measuring distance 200mm – 400mm)
800μm(Measuring distance 400mm – 600mm)

Linearity

±0.2%F.S.(Measuring distance 200mm – 400mm)
±0.2%F.S.(Measuring distance 400mm – 600mm)

Temperature characteristic

0.03%F.S./°C

Light source

Red laser, calss 2, Max. output:1mW,Wavelength of light-emitting beam: 655nm
Beam diameter about φ500μm
Supply voltage 12V to 24V DC±10%  Ripple P – P10%
Consumption current Lower than 40mA (Power supply voltage 24V DC),  Lower than 60mA (Power supply voltage 12V DC)
Control output Max. load current: 50mA Light ON/, Dark ON, Switchable
Short circuit protection Provide with (automatic recovery type)
Analog output Output range: 0V-5V(Alarm 5.2V)      Output impedance:100Ω
Reaction time 1.5ms/5ms/10ms Switchable
External input NPN without contact input, valid: 0V to + 1.2V DC input impedance: 10KΩ
Enclosure rating IP67(IEC)

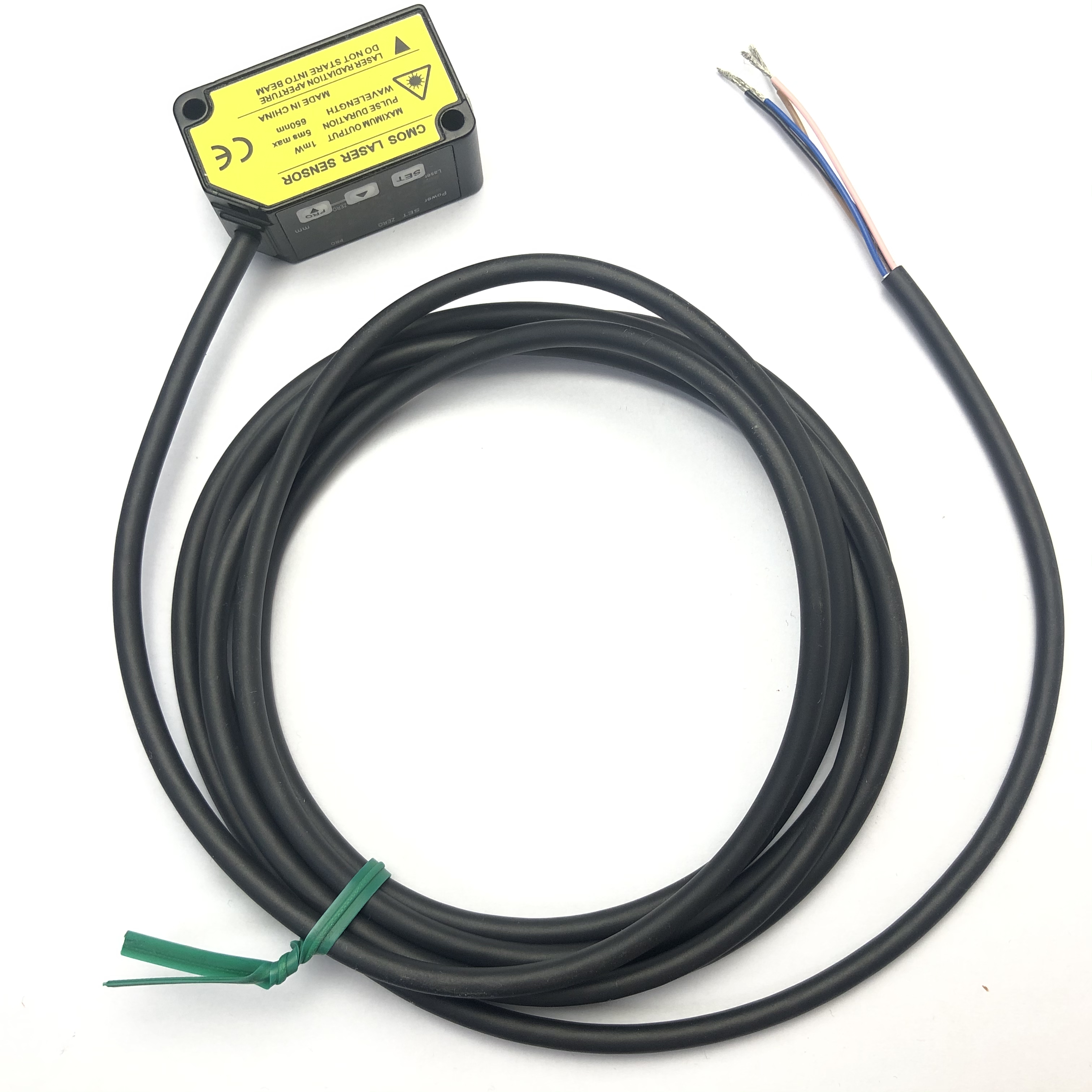

Cable 2M Composite Cable with 0.15mm*5 Core
Housing Body Shell: Aluminum Castings, Front Cover: Propylene

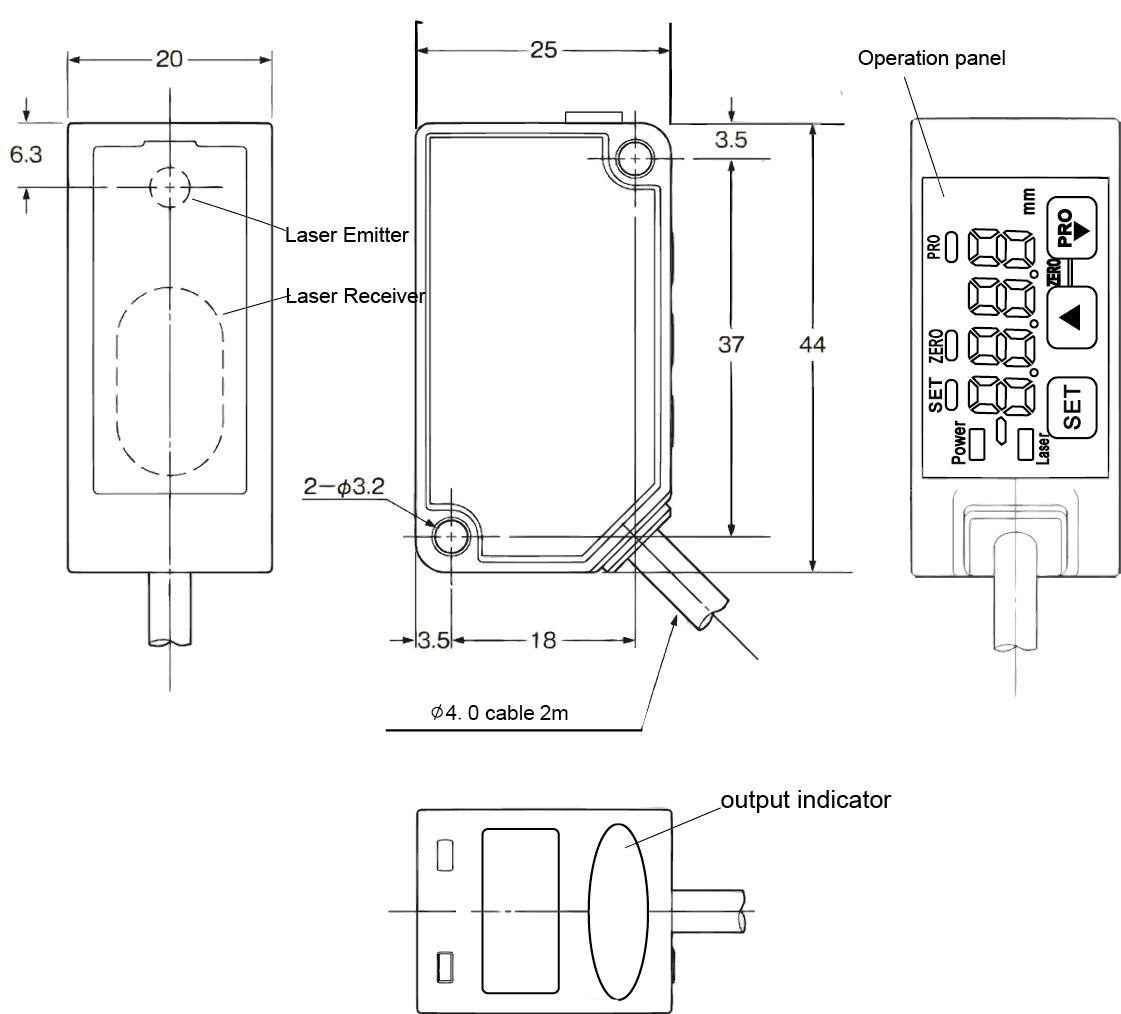

 SIZE DIAGRAM

Company Information

 OUR EXHIBITIONS

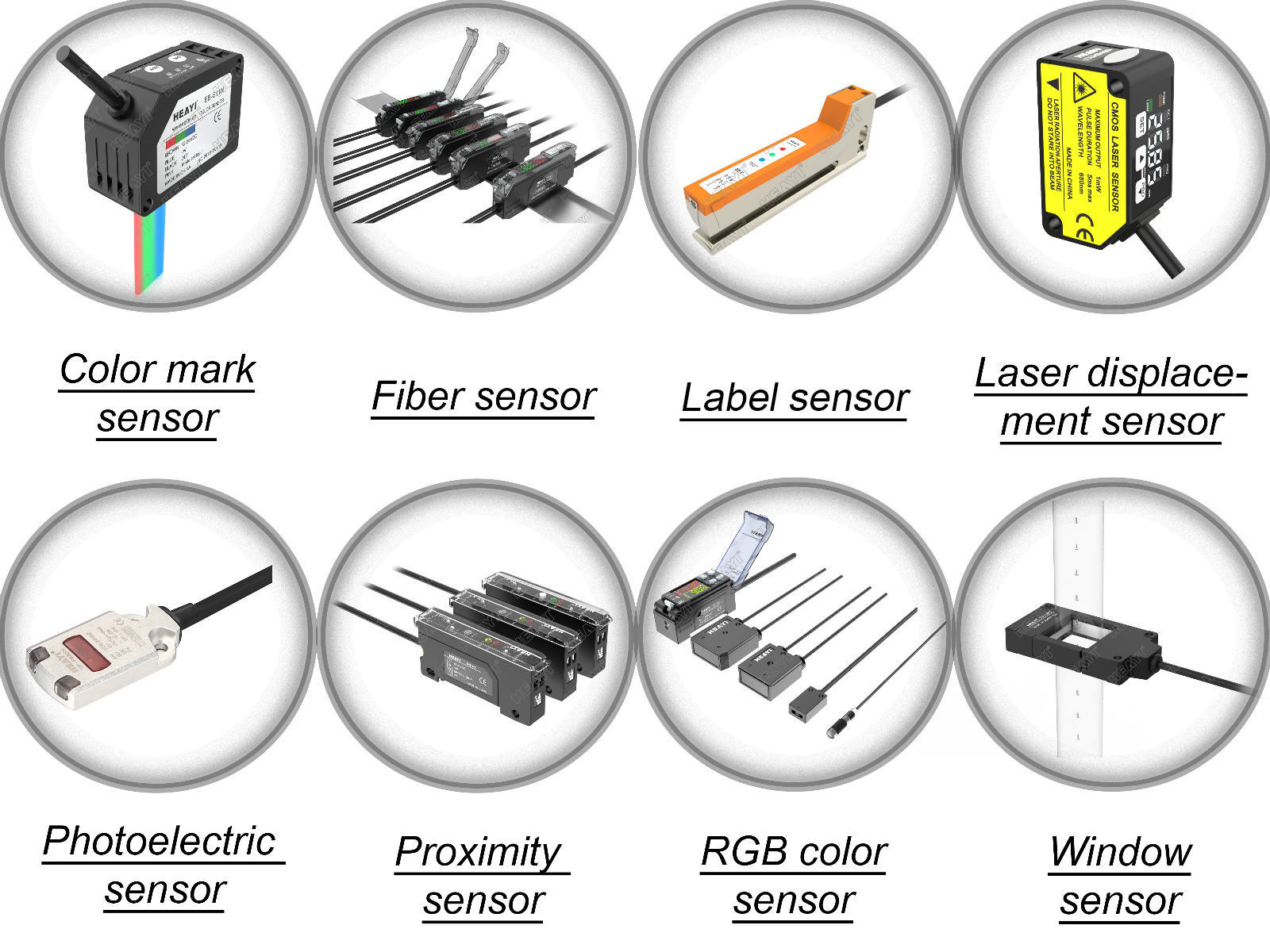

RELATED PRODUCTS
