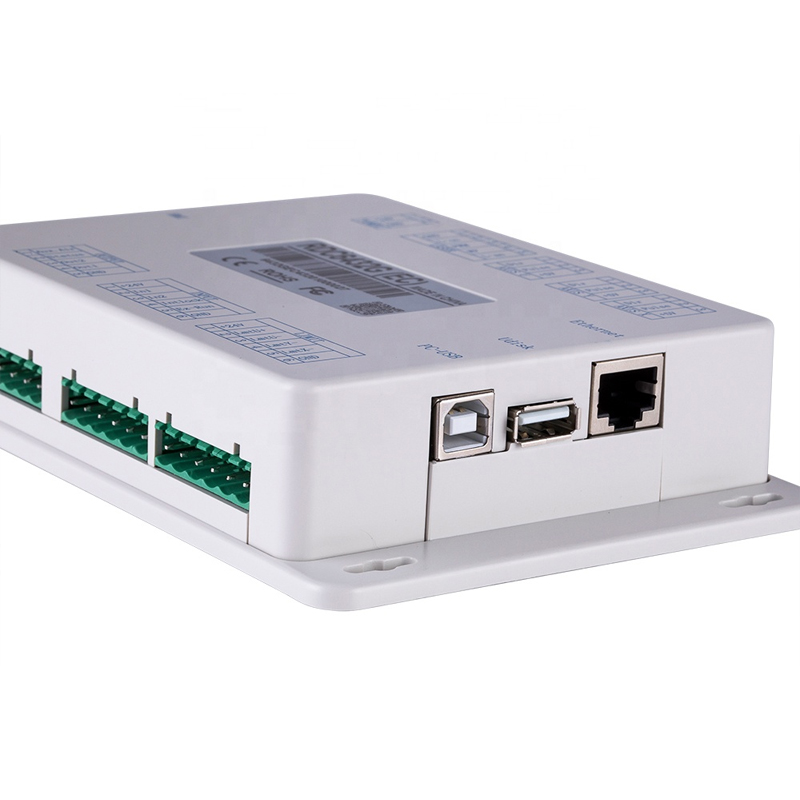

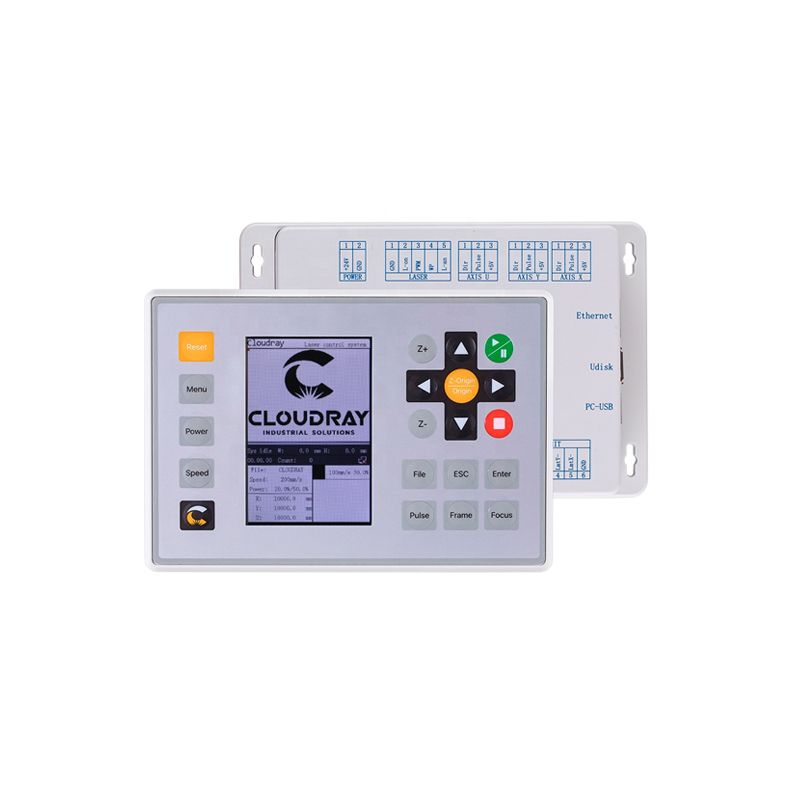

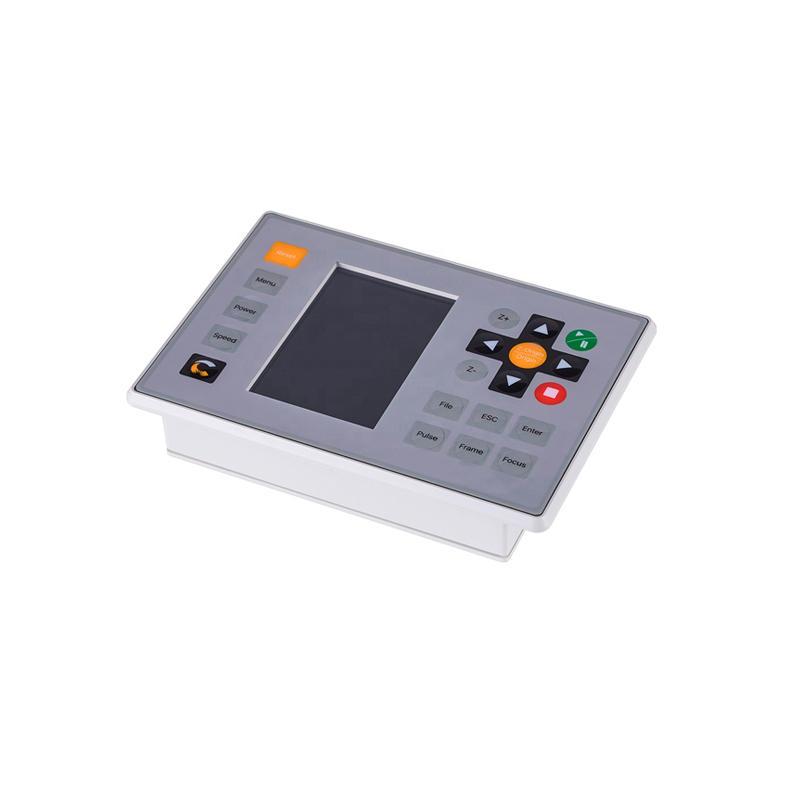

LASERPWR Ruida RDC6432G the latest Laser Cutting Machine Control System Laser Controller For CO2 Engraving and Cutting Machine
Product Description
Product features
1.The RDC6432G system is the latest laser engraving/cutting control system.
2.True color TFT screen, man-machine operating system.
3.1-way independent adjustable laser power control.
4.Multi-channel general/dedicated IO control.
5.Better and better motion control functions.
2.True color TFT screen, man-machine operating system.
3.1-way independent adjustable laser power control.
4.Multi-channel general/dedicated IO control.
5.Better and better motion control functions.
Product parameters
1. Digital laser control signal;
2. TTL level output, 50mA drive capability;
3. The PWM frequency is adjustable from 2.5K to 100K;
4, PWM duty cycle is adjustable from 2% to 98%;
5. Motor control signal OC output, 300mA drive capability;
6. Motor control pulse frequency is up to 500KHZ;
7, USB maximum transmission rate of 12M, the longest distance of 5 meters;
8. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
2. TTL level output, 50mA drive capability;
3. The PWM frequency is adjustable from 2.5K to 100K;
4, PWM duty cycle is adjustable from 2% to 98%;
5. Motor control signal OC output, 300mA drive capability;
6. Motor control pulse frequency is up to 500KHZ;
7, USB maximum transmission rate of 12M, the longest distance of 5 meters;
8. Linear / circular / B-spline interpolation accuracy +/- 0.5 pulse;
Connection Diagram
Application
