LASERPWR newest version laser source Z80 Co2 Laser Power Supply for Laser cutting/marking/engraving Machine

$149.33

SKU: 3576114018651 Category:

Description

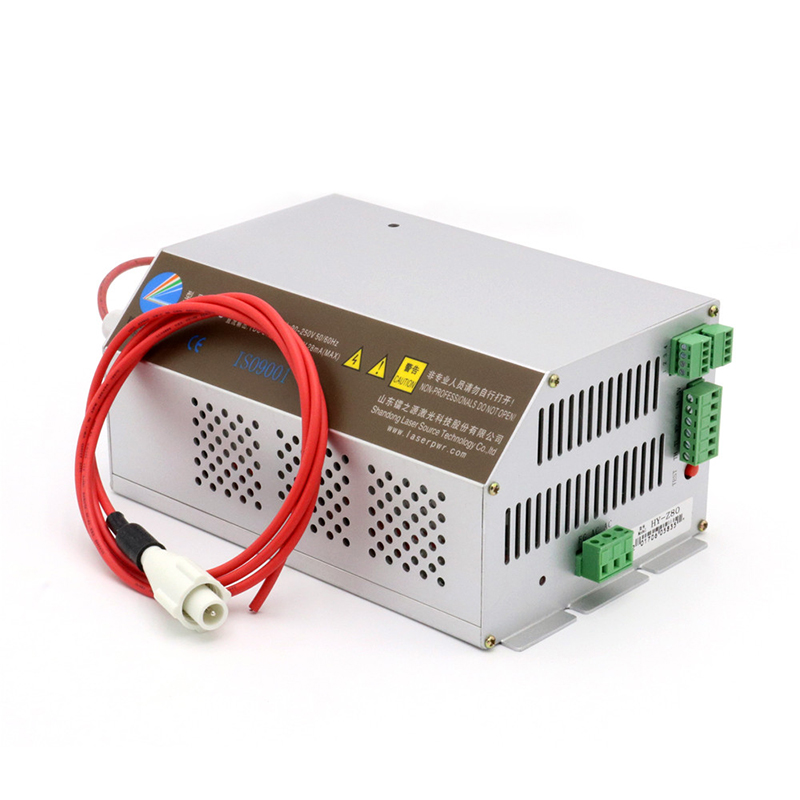

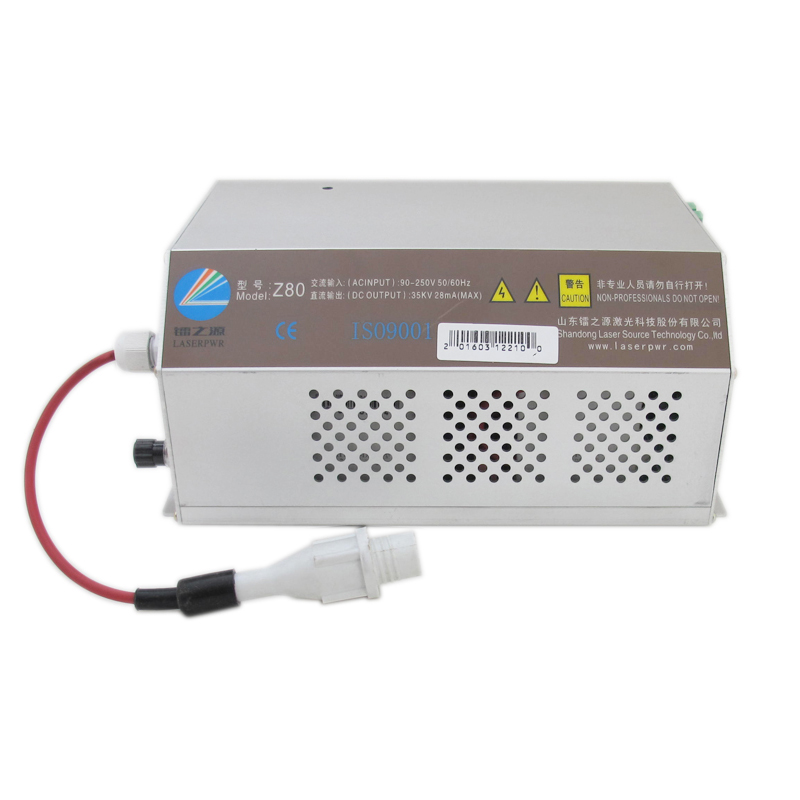

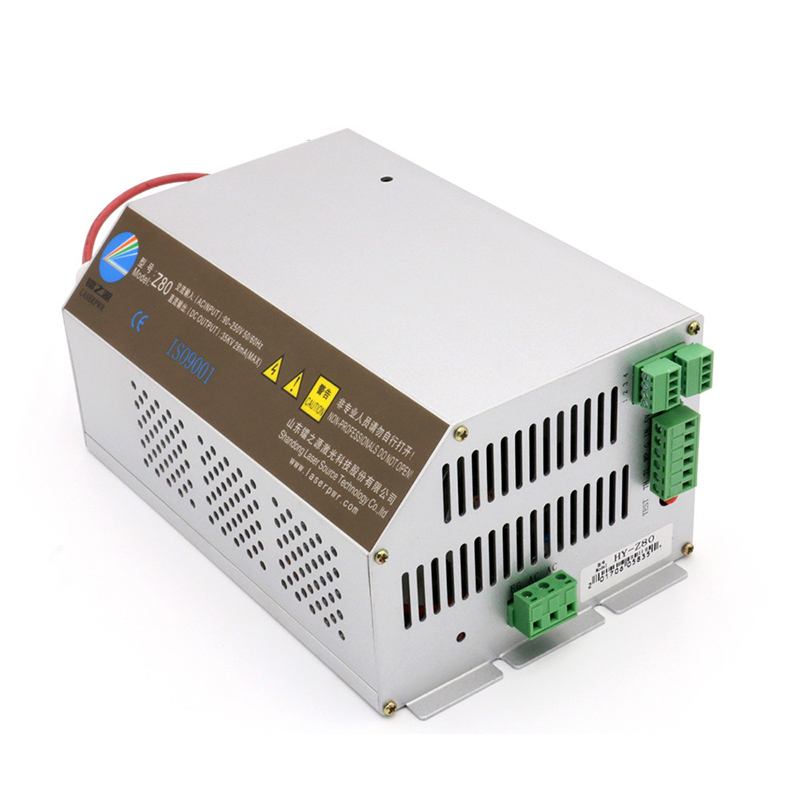

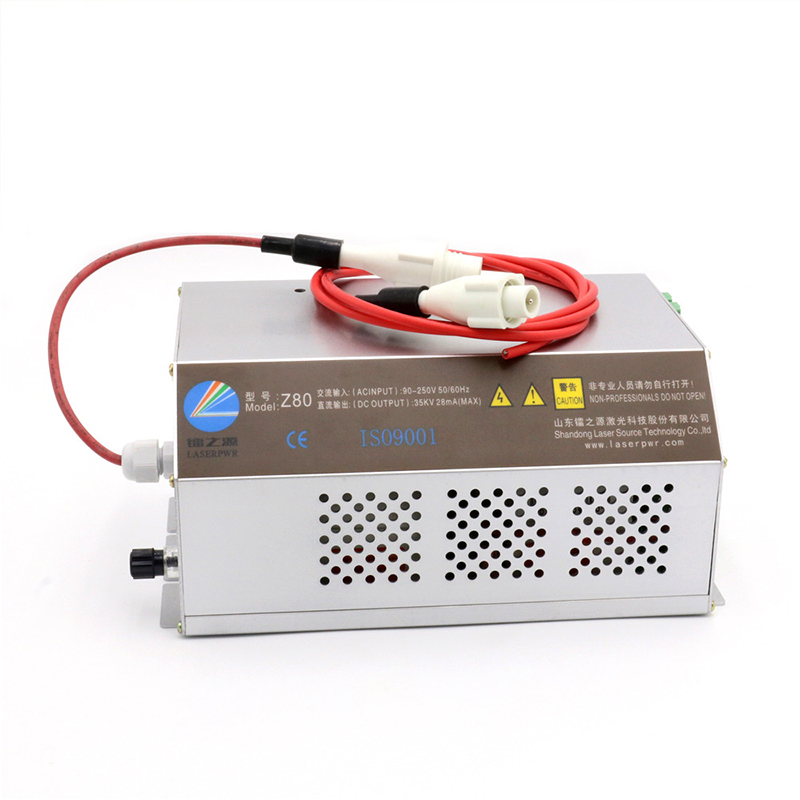

LASERPWR newest version laser source Z80 Co2 Laser Power Supply for Laser cutting/marking/engraving Machine

Applications:
Applied in high-grade CO2 laser engraving machine, laser cutting machine, laser marking machine, laser knife mold machine.

Main Feature:

1. Unique design with several patents

2. High intelligence: built-in control, can communicate with motion controller, and it can communicate with max 32pcs power supplies by cascade connecting, then the controller panel can display working condition of power supply, very easy for user to monitor and judge the fault.

3. Make the maintenance much easier: User can judge the problem by himself.

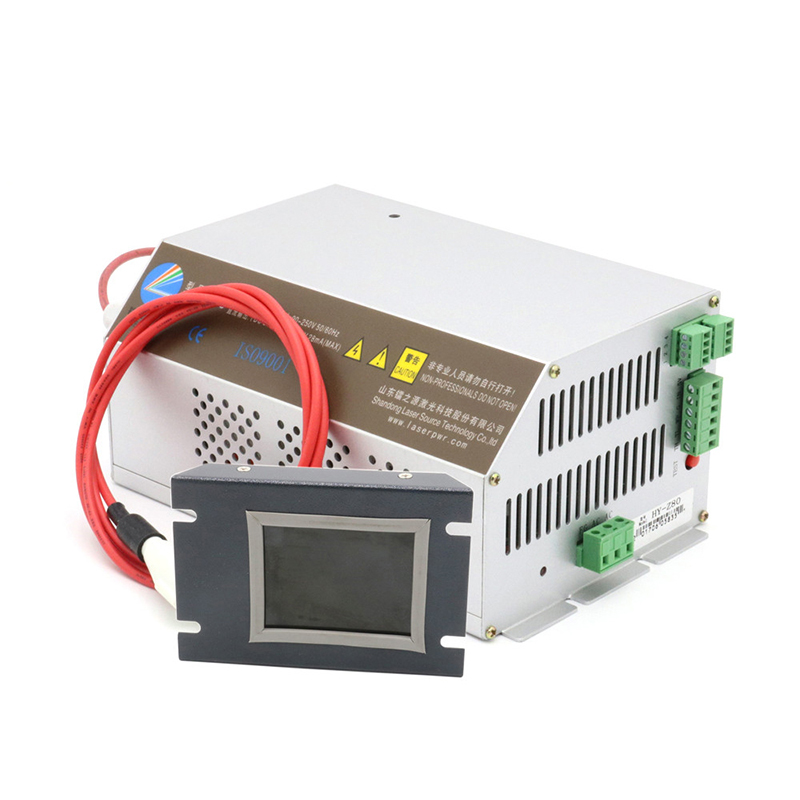

4. Multi-function LCD screen: One LCD screen can show the information of two power supplies, easy use for multi-head machine.

5. Universal: with PFC function, AC90-250V input voltage range, globally universal.

6. Open circuit protection: When the high voltage end is in open circuit or not connected well, the power supply will start automatic protection, to prevent high voltage arc effectively.

7. More safety: with high voltage discharge function, no residual voltage when turning off, safer for user.

8. Excellent cover with patent design: Good appearance, better heat dissipation.

9. Improved current control mode, more stable laser, better compatibility.

Specification

Item

Z80

Z100

Z150

Input voltage

AC90-264V

AC frequency

47—63Hz
Max Input power

600W

650W

900W

Max Input current
(when 90V input)

5.5A

6A

8A

Max output power

40KV

45KV

55KV

Max output current

28mA

32mA

38mA

efficiency

≥90%(when full load)

MTBF

≥10000 hours

Respond speed

≤1mS(the time from the signal is given to output current )
Switch control mode

TTL

Power control mode

PWM>20KHz or 0-5V or 0-3.3V analogue

Communication

Special serial port

Withstand voltage

Input – output ,input-shell:AC1500V 10mA 60s;

Working environment

Temperature(-10~40)℃ ,relative humidity:≤90%

cooling

Force air cooling

Supporting laser tube power

50-80W

90-120W

120-180W

Dimension L*W*H(mm)

235*144*104

278*144*104

330*144*104

Weight (KG)

2.15kg

2.45kg

3.2kg

Color

Silver

Product Parameters

Additional information

Model Number

HY-Z80
