Description
LASERPWR Newest version HY-DY13 for Co2 Laser Glass Tube reci dedicated 90-100w Laser power supply Factory direct accessories
Model：
DY13
Product Features
1.Flat Structure Design、Less Weight，Use Flat structure with all aluminum casing design，30% lighter than conventional power supplies.
2.Cutting and Engraving Compatible ：Stable Power，Well-adapted，fast response，suitable for cutting or engraving.
3.Simple control，High reliablity：High and low level control the laser start or stop.
4.Control the laser power is simple：can use 0~5V analog signal and 5V PWM signal to control power.
5.Power itself has open circuit protection：the use will be more secure，and can Prolong the life of power significantly.
6.Power has manual test button，can diagnose trouble on site quickly, easy to maintenance.
7.Power has working indicator light，remove the trouble easily .
8.Two install method，It can be installed horizontally or vertically to save space .
Application Area：
It can be applied to CO2 lase engraving machine, laser cutting machine and laser marking machine which has special requirement for install height and weight.

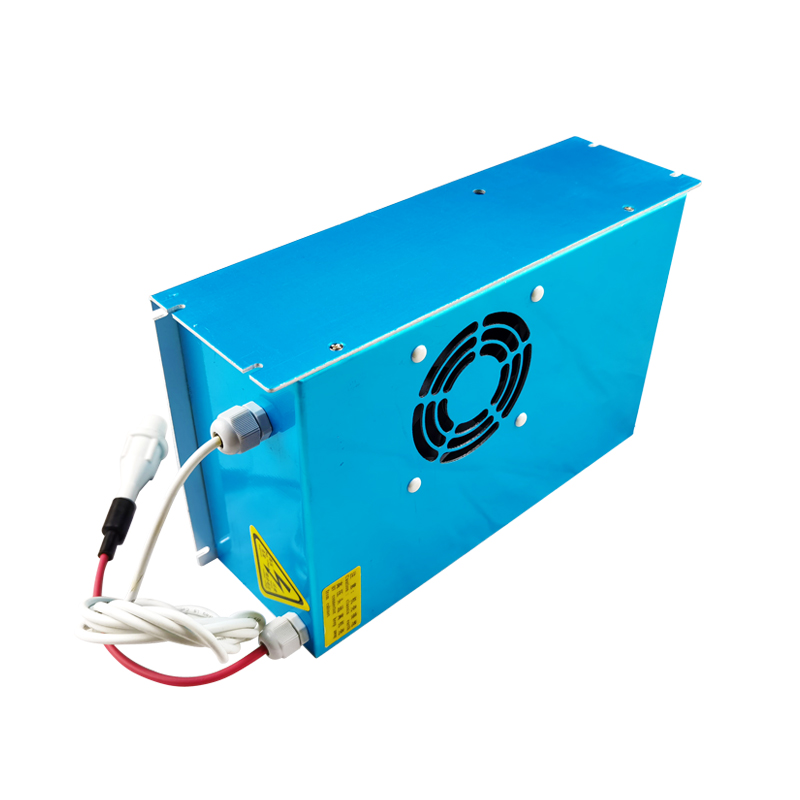

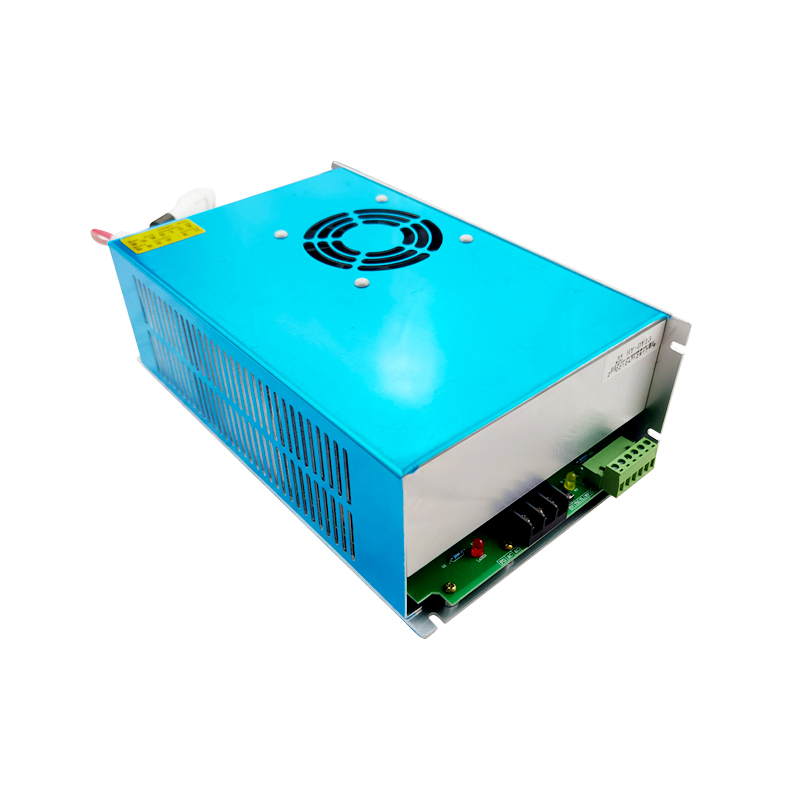

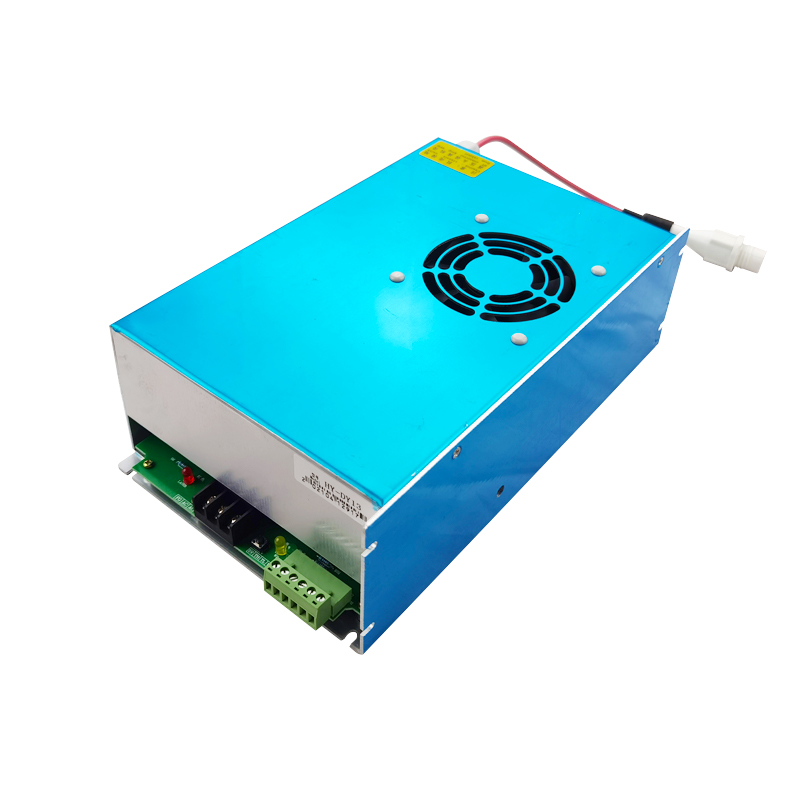

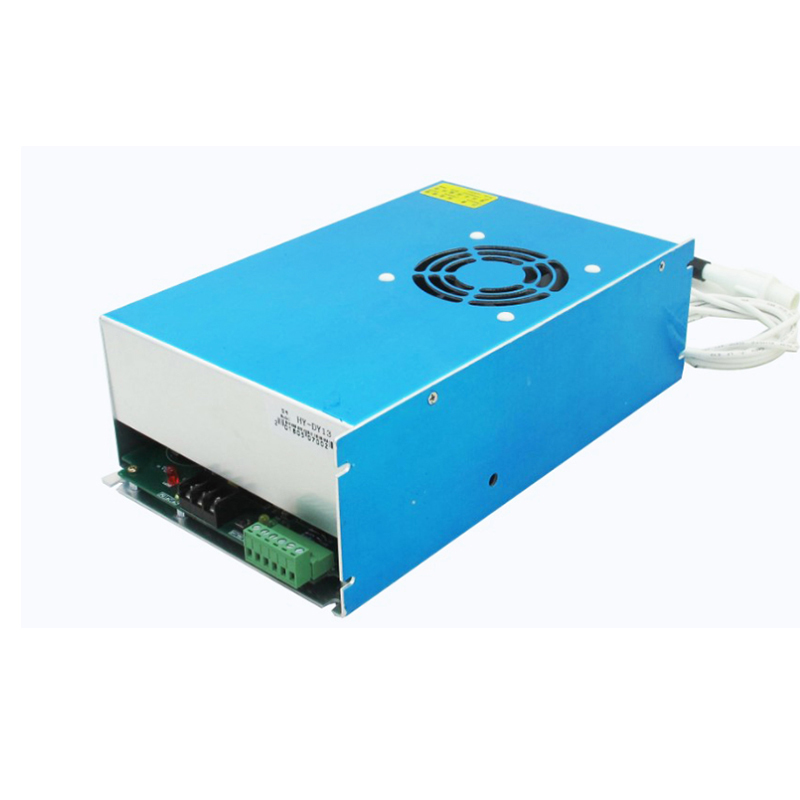

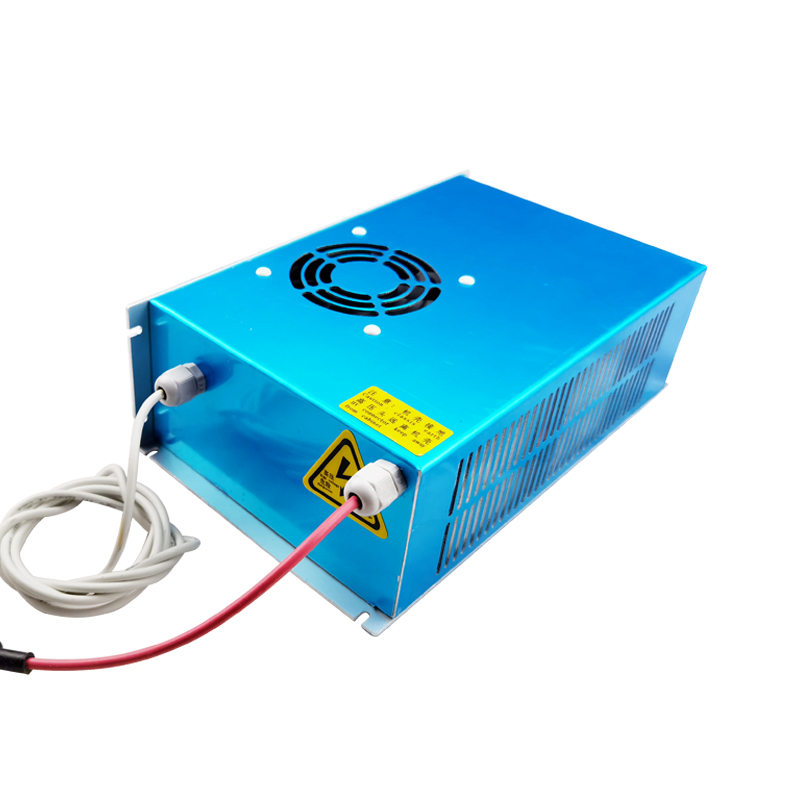

Product Pictures
Product Parameter
|
Item
|
DY10
|
DY13
|
DY20
|
||
|
Input Voltage
|
AC220V( 110 v can be customized )
|
||||
|
Frequency
|
47—440Hz
|
||||
|
Max Input Power
|
500W
|
600W
|
750W
|
||
|
Max Input Current
|
2.3A
|
2.7A
|
3.5A
|
||
|
Max Output Voltage
|
35KV
|
40KV
|
50KV
|
||
|
Max Output Current
|
25mA
|
32mA
|
38mA
|
||
|
Effenciency
|
≥90%（Full Load）
|
||||
|
MTBF
|
≥10000 hours
|
||||
|
Response time
|
≤1mS（The time from the switch signal given to the output current rising to 90% of the set current）
|
||||
|
Withstand Voltage
|
Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell.
|
||||
|
Control Interface
|
TTL level switch control, effective level can be selected high or low（details refer to control interface description）
|
||||
|
Operation Enviroment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||
|
Cooling Method
|
Forced Air Cooling
|
||||
|
Matched Laser Tube Power
|
50-80W
|
90-100W
|
100-150W
|
||
|
Overall Dimension L*W*H(mm)
|
198*159*85
|
270*163*85
|
313*200*82
|
||
|
Weight（KG）
|
1.75kg
|
2kg
|
3.14kg
|
||
|
Shell Color
|
Blue
|
||||
Outline Dimensional Drawing
DY13 Shell Dimension
