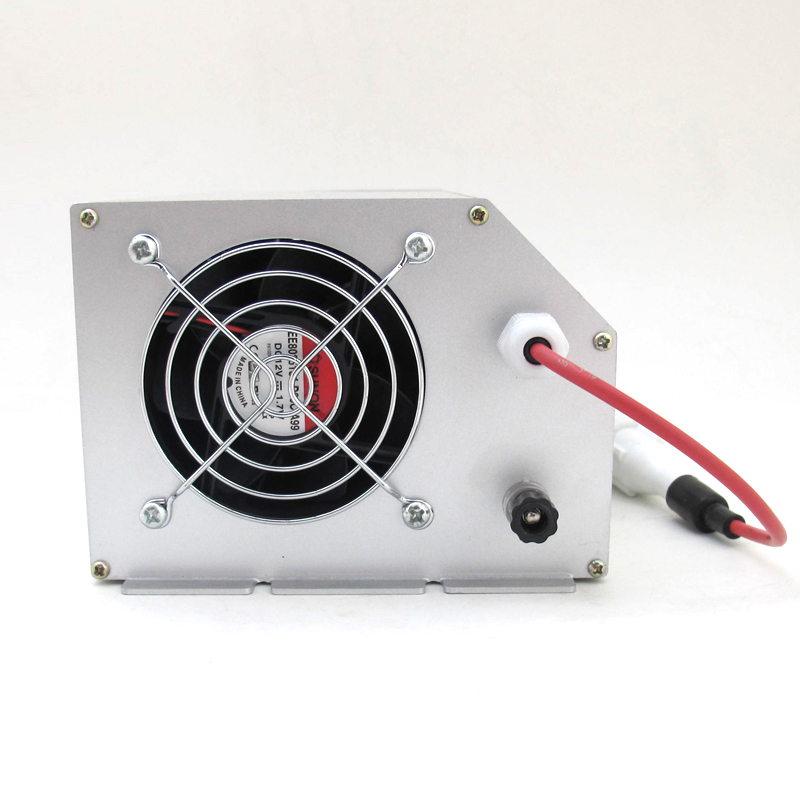

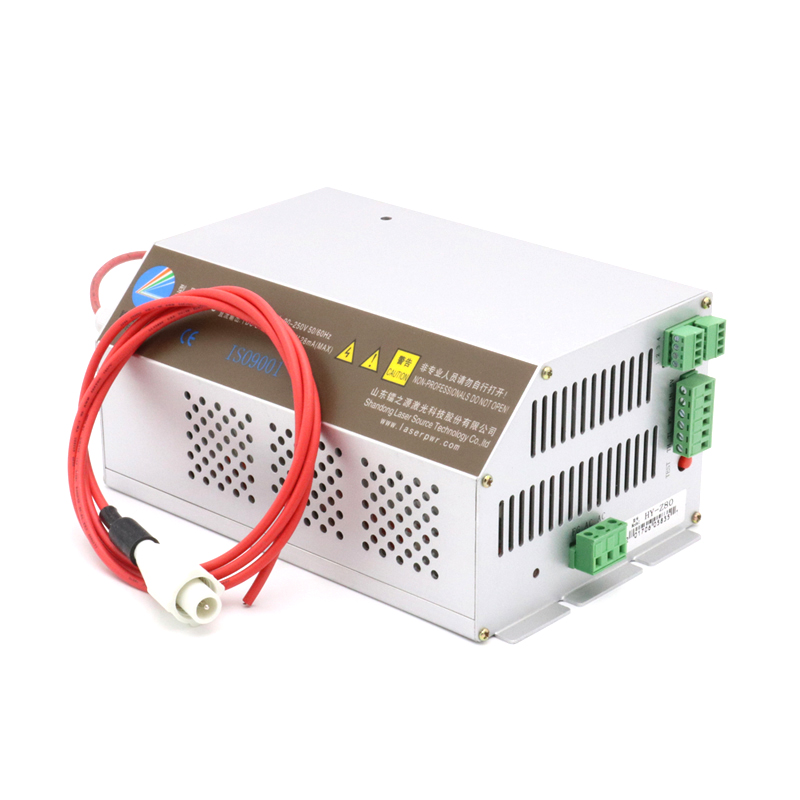

LASERPWR Laser Power Supply Z100 100W For 80W-100W Laser Cutter and Engraver
Product Description
Product feature：
◆Unique design of whole machine: this product has been carefully designed by the technical team, has declared and obtained a number of national technical development patents.
◆High degree of intelligence: built-in computer control can realize card communication with motion control board. Through cascade, communication with 32 power supplies at the same time, display the power related parameters in real time on the laser panel, and realize the ability to realize the upgrade of the whole machine.Convenient for user monitoring, improve user experience, increase the selling point of laser products.
◆Greatly simplifies the difficulty of site maintenance: it can realize the fault positioning of the laser system, greatly simplifies the difficulty of field fault judgment, and realizes that the user can judge the cause of the fault himself.

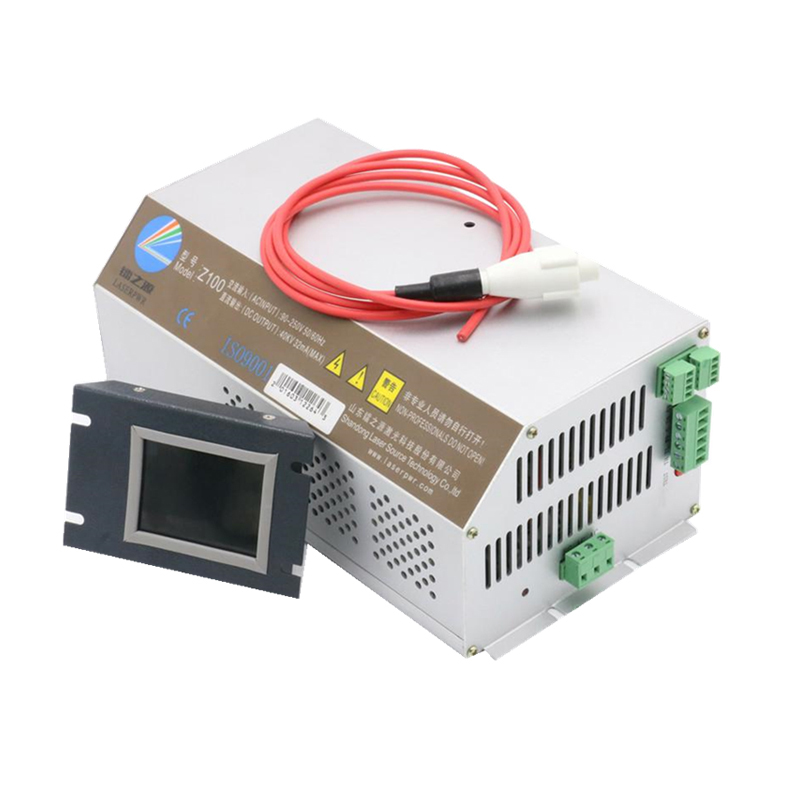

◆Multi-function LCD display (optional): an LCD display can display two laser power information at the same time, or can display one information, display screen automatically switch, convenient for the use of multi-laser head machine. Meanwhile, the display can be linked to the board card to display the board card information on the LCD display.
◆More versatile: active PFC function, AC90-264V ultra-wide input voltage range, global use, there is no need to worry about the input voltage mismatch problem.
◆Open circuit protection function, automatic protection of high voltage end open circuit or not connected power supply, effectively prevent the occurrence of high voltage fire fighting, and increase the safety and reliability of the whole laser.
◆Higher safety: this product has its own high voltage discharge function, no residual high voltage after shutdown, safer.
◆Shell adopts patent design: processed by special materials, making the appearance more stable, better heat dissipation, and can more reflect the characteristics of industrial products.
◆Improved current control mode, more stable light output, better compatibility, and more compatible with most lasers on the market
Applications:
Applied in high-grade CO2 laser engraving machine, laser cutting machine, laser marking machine, laser knife mold machine.

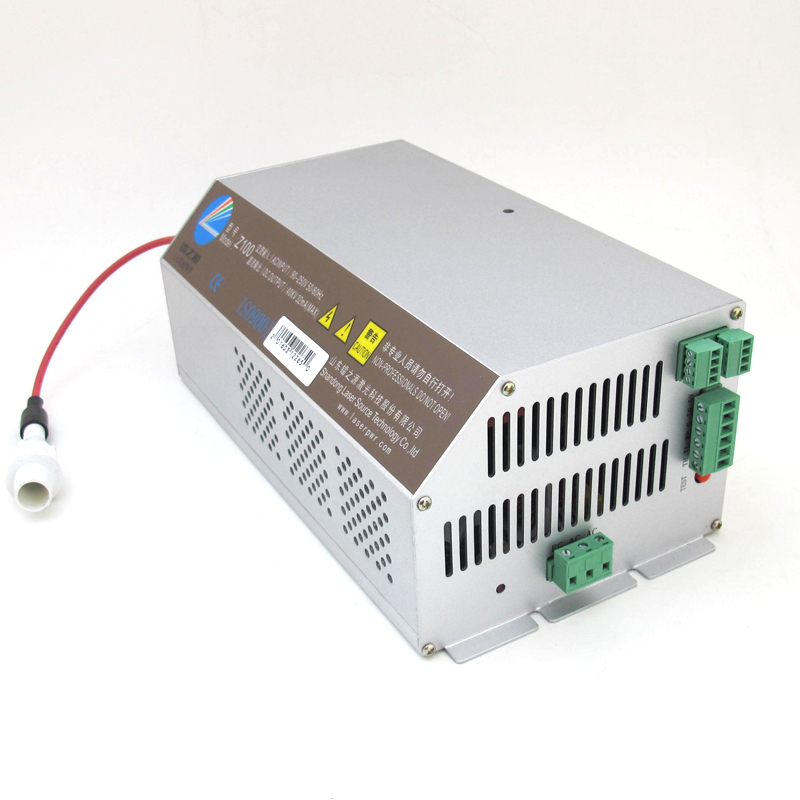

Connection Method Of P5 Terminal
P5 A connect with the second Psu P5 B connect with Ruida controller or LCD P4 and P2 are the terminals same as normal Power Supply
If P5 terminals connect with Ruida RDC6442G Controller
If there is only one PSU need to connect with one control board( like RT6224G).
Please connectP5 with RT6224G’s RT-link. Just like the methed shows in picture behind
P5 A can be empty if there is only one PSU.
1.Display when connecting Ruida controller
Specification
|
Item
|
Z80
|
Z100
|
Z150
|
||
|
Input voltage
|
AC90-264V
|
||||
|
AC frequency
|
47—63Hz
|
||||
|
Max Input power
|
600W
|
650W
|
900W
|
||
|
Max Input current
(when 90V input） |
5.5A
|
6A
|
8A
|
||
|
Max output power
|
40KV
|
45KV
|
55KV
|
||
|
Max output current
|
28mA
|
32mA
|
38mA
|
||
|
efficiency
|
≥90%（when full load）
|
||||
|
MTBF
|
≥10000 hours
|
||||
|
Respond speed
|
≤1mS（the time from the signal is given to output current ）
|
||||
|
Switch control mode
|
TTL
|
||||
|
Power control mode
|
PWM>20KHz or 0-5V or 0-3.3V analogue
|
||||
|
Communication
|
Special serial port
|
||||
|
Withstand voltage
|
Input – output ,input-shell:AC1500V 10mA 60s；
|
||||
|
Working environment
|
Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||
|
cooling
|
Force air cooling
|
||||
|
Supporting laser tube power
|
50-80W
|
90-120W
|
120-180W
|
||
|
Dimension L*W*H(mm)
|
235*144*104
|
278*144*104
|
330*144*104
|
||
|
Weight （KG）
|
2.15kg
|
2.45kg
|
3.2kg
|
||
|
Color
|
Silver
|
||||
