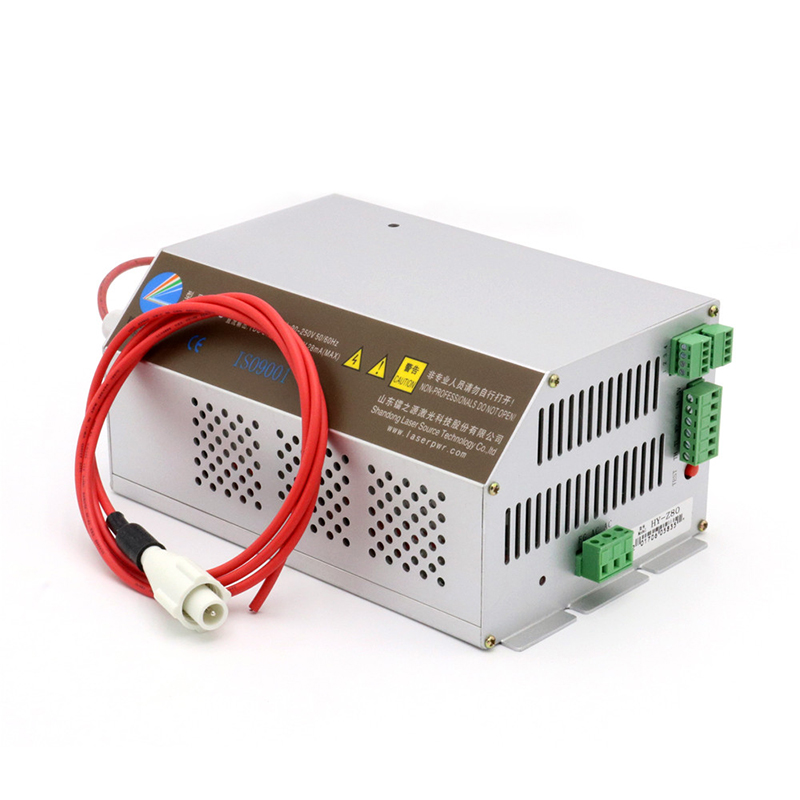

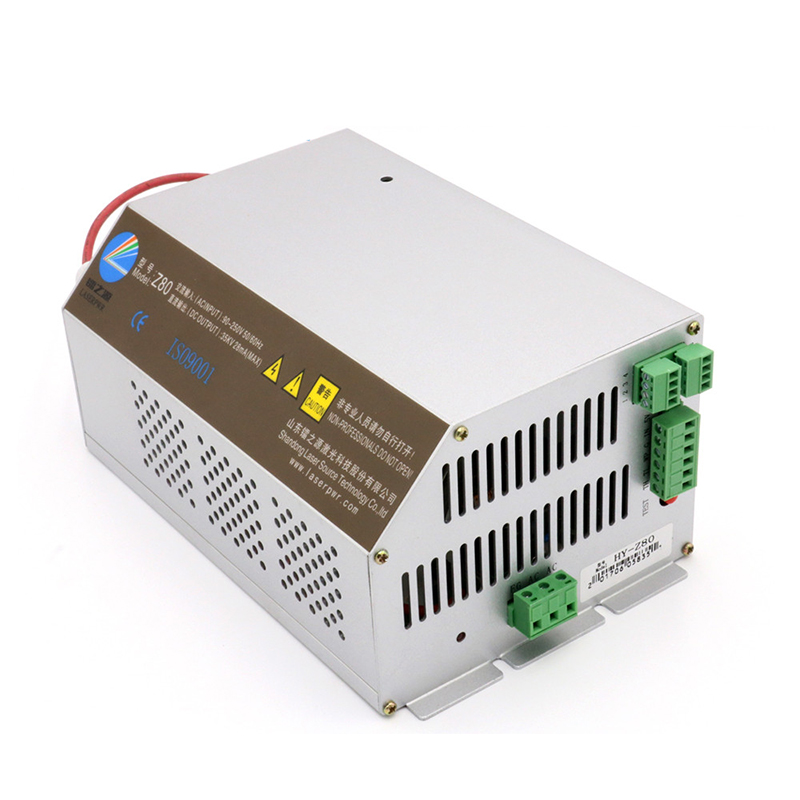

LASERPWR Laser power supply Z80 80W For 60W-80W laser tube
Product Description
Product feature:
◆Unique design of whole machine: this product has been carefully designed by the technical team, has declared and obtained a number of national technical development patents.
◆High degree of intelligence: built-in computer control can realize card communication with motion control board. Through cascade, communication with 32 power supplies at the same time, display the power related parameters in real time on the laser panel, and realize the ability to realize the upgrade of the whole machine.Convenient for user monitoring, improve user experience, increase the selling point of laser products.
◆Greatly simplifies the difficulty of site maintenance: it can realize the fault positioning of the laser system, greatly simplifies the difficulty of field fault judgment, and realizes that the user can judge the cause of the fault himself.

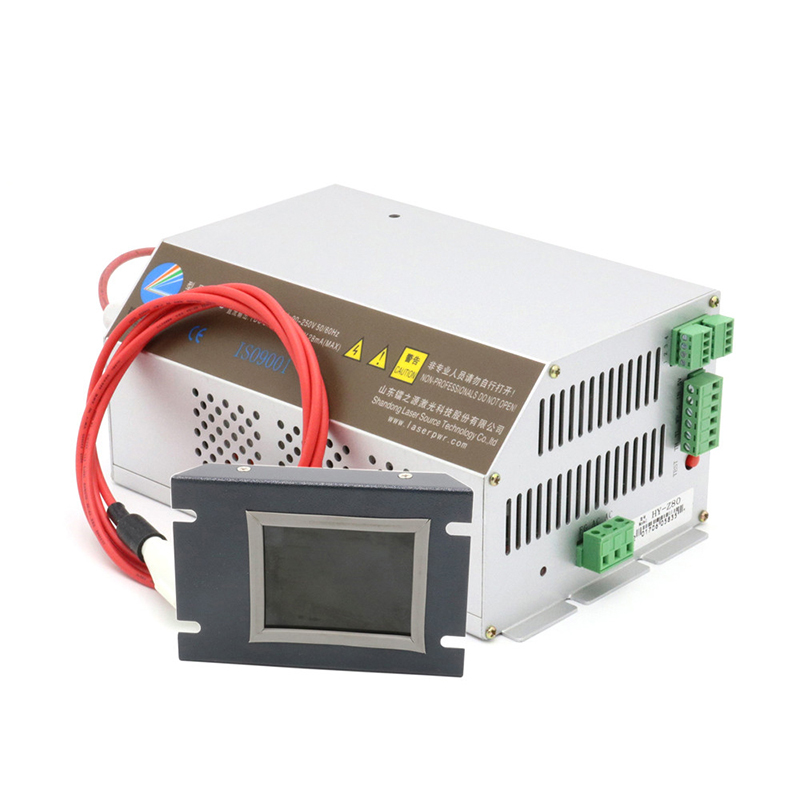

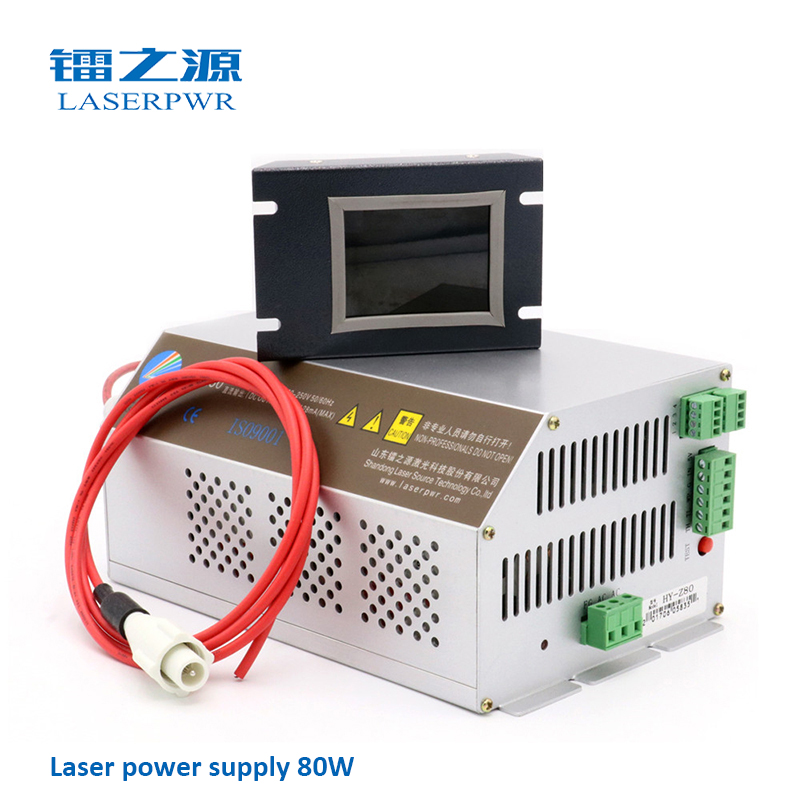

◆Multi-function LCD display (optional): an LCD display can display two laser power information at the same time, or can display one information, display screen automatically switch, convenient for the use of multi-laser head machine. Meanwhile, the display can be linked to the board card to display the board card information on the LCD display.
◆More versatile: active PFC function, AC90-264V ultra-wide input voltage range, global use, there is no need to worry about the input voltage mismatch problem.
◆Open circuit protection function, automatic protection of high voltage end open circuit or not connected power supply, effectively prevent the occurrence of high voltage fire fighting, and increase the safety and reliability of the whole laser.
◆Higher safety: this product has its own high voltage discharge function, no residual high voltage after shutdown, safer.
◆Shell adopts patent design: processed by special materials, making the appearance more stable, better heat dissipation, and can more reflect the characteristics of industrial products.
◆Improved current control mode, more stable light output, better compatibility, and more compatible with most lasers on the market
Applications:
Applied in high-grade CO2 laser engraving machine, laser cutting machine, laser marking machine, laser knife mold machine.
Specification
Item
|
Z80
|
Z100
|
Z150
|
||
Input voltage
|
AC90-264V
|
||||
AC frequency
|
47—63Hz
|
||||
Max Input power
|
600W
|
650W
|
900W
|
||
Max Input current
(when 90V input) |
5.5A
|
6A
|
8A
|
||
Max output power
|
40KV
|
45KV
|
55KV
|
||
Max output current
|
28mA
|
32mA
|
38mA
|
||
efficiency
|
≥90%(when full load)
|
||||
MTBF
|
≥10000 hours
|
||||
Respond speed
|
≤1mS(the time from the signal is given to output current )
|
||||
Switch control mode
|
TTL
|
||||
Power control mode
|
PWM>20KHz or 0-5V or 0-3.3V analogue
|
||||
Communication
|
Special serial port
|
||||
Withstand voltage
|
Input – output ,input-shell:AC1500V 10mA 60s;
|
||||
Working environment
|
Temperature(-10~40)℃ ,relative humidity:≤90%
|
||||
cooling
|
Force air cooling
|
||||
Supporting laser tube power
|
50-80W
|
90-120W
|
120-180W
|
||
Dimension L*W*H(mm)
|
235*144*104
|
278*144*104
|
330*144*104
|
||
Weight (KG)
|
2.15kg
|
2.45kg
|
3.2kg
|
||
Color
|
Silver
|

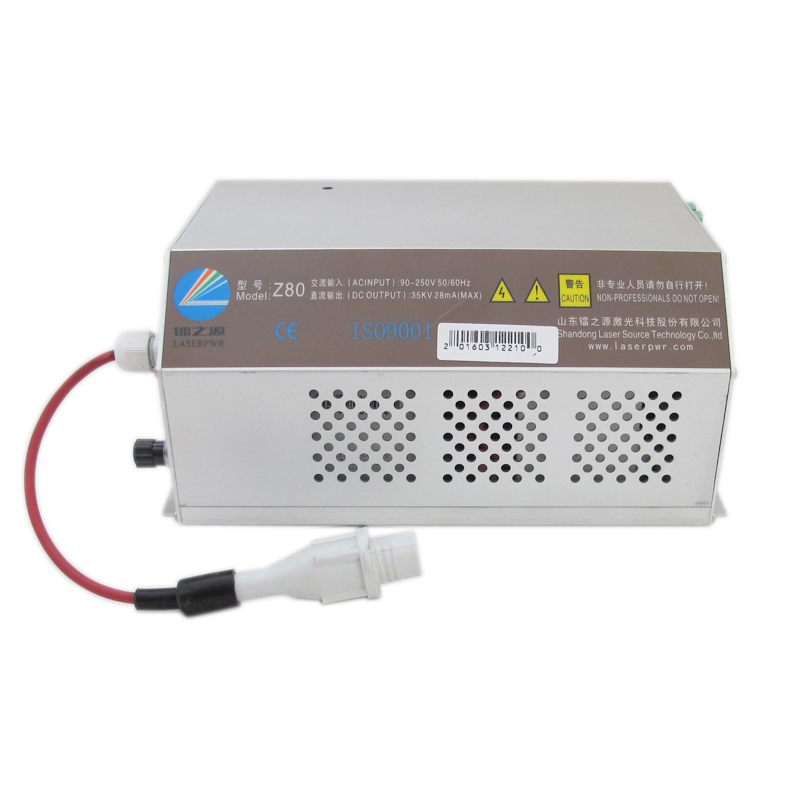

Product size information
P5 terminal definition
12V
|
Input signal
|
12V power anode
|
GND
|
Input signal
|
12V power ground
|
TX1
|
Input signal
|
Uplink signal sending end
|
RX1
|
Ground
|
Uplink signal receiving end
|
TX2
|
Power signal
|
Down link signal sending end
|
RX2
|
Output power
|
Down link signal receiving end
|
P5 terminal definition
TH
|
Input signal
|
Laser on/off control, laser on when high level(≥3V), laser off when low level(≤0.3V)
|
TL
|
Input signal
|
Laser on/off control, laser off when high level(≥3V), laser on when low level(≤0.3V)
|
WP
|
Input signal
|
Laser on/off control, laser off when high level(≥3V), laser on when low level(≤0.3V)
|
G
|
Signal ground
|
This terminal must be connected with outer shell and control board of machine properly.
|
IN
|
Power signal
|
Laser power control terminal, control with 0-5V analog signal or 5V PWM signal
|
5V
|
Output
|
5V output, max output current is 20mA
|
Connecting method of P5 terminals:
1.If P5 terminals connect with Ruida controller (please see sketch 1 and 2): Sketch 1:
In this step, the connecting method is like this:
1. of controller connects C of PSU. 2. of controller connects D of PSU. 3. of controller connects B of PSU.
