Description
LASERPWR Factory direct wholesale accessories RECI W4 Laser Tube Power Supply on Yueming Laser Cutter with DB9 control interface
Model:
C120
Product Features
1.compatibility：Can perfectly match vast most 50-150w CO2 Laser Machine at home and abroad.
2.Use DB9 Control Interface，European standard power plug in line with international standards.
3.It can be more effective and fast if used for cutting machine、has faster responce time and smooth ground if used for engraving marking machine;
4.Prolong the life of laser significantly：the accurate current control can prolong the life of laser machine significantly；
5.Simple control, current control：TTL signal controls the start and stop of the laser machine, WP enable switch is used to detect whether external water is accessible and ventilated;
6.Control the laser power is simple： can use 0~3.3V analog signal and 3.3V PWM signal to control power；
7.The power itself has detect feature：Can use power supplied detect switch and display tube to detect the reason why the machine does not produce light quickly, make it more convenient to maintenance on site.
Application Area:
It can be applied to DB9 interface CO2 lase engraving machine, laser cutting machine.

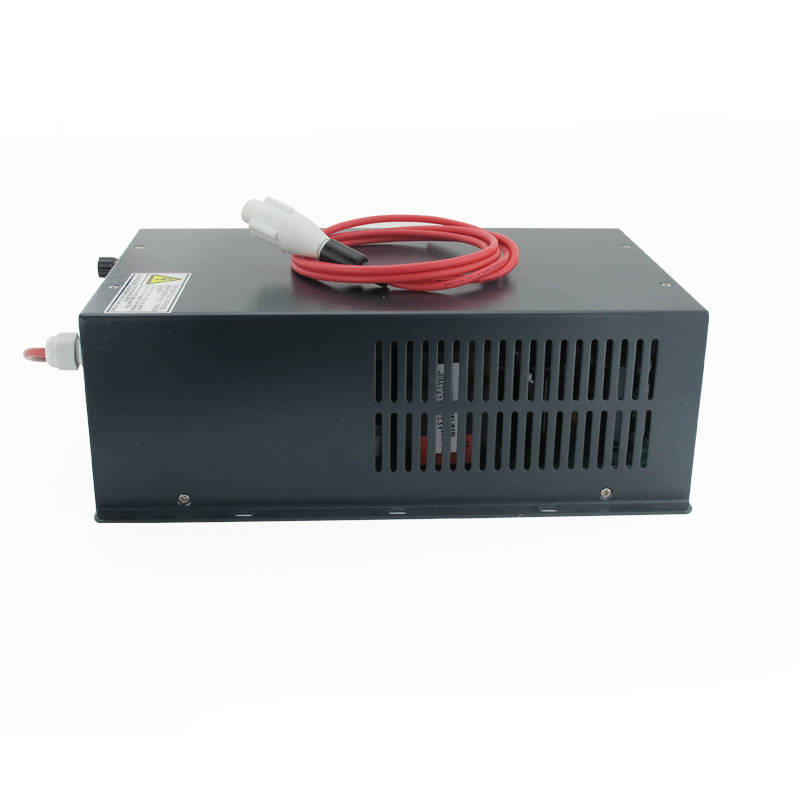

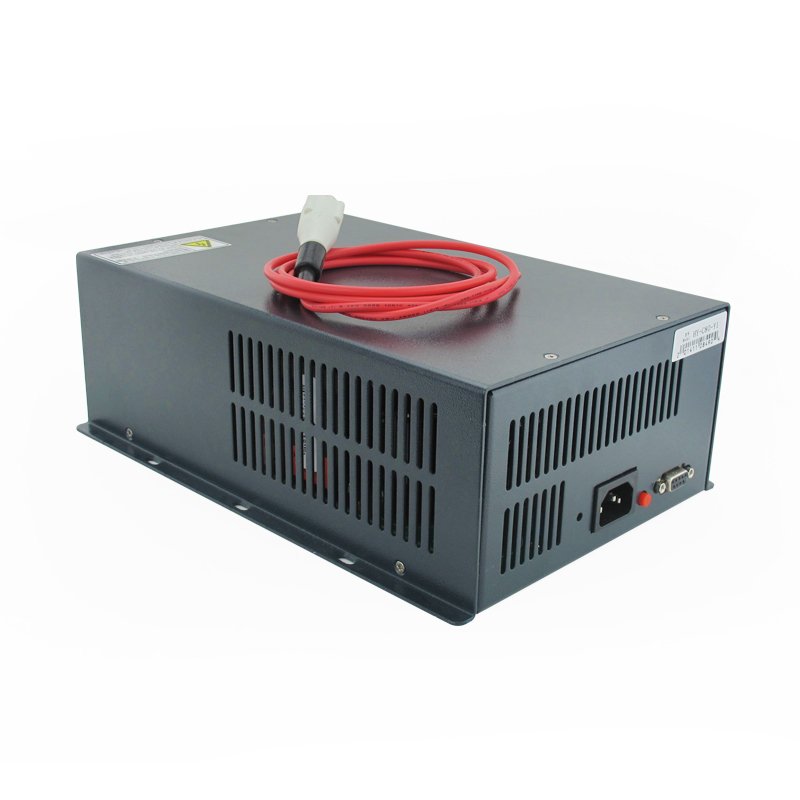

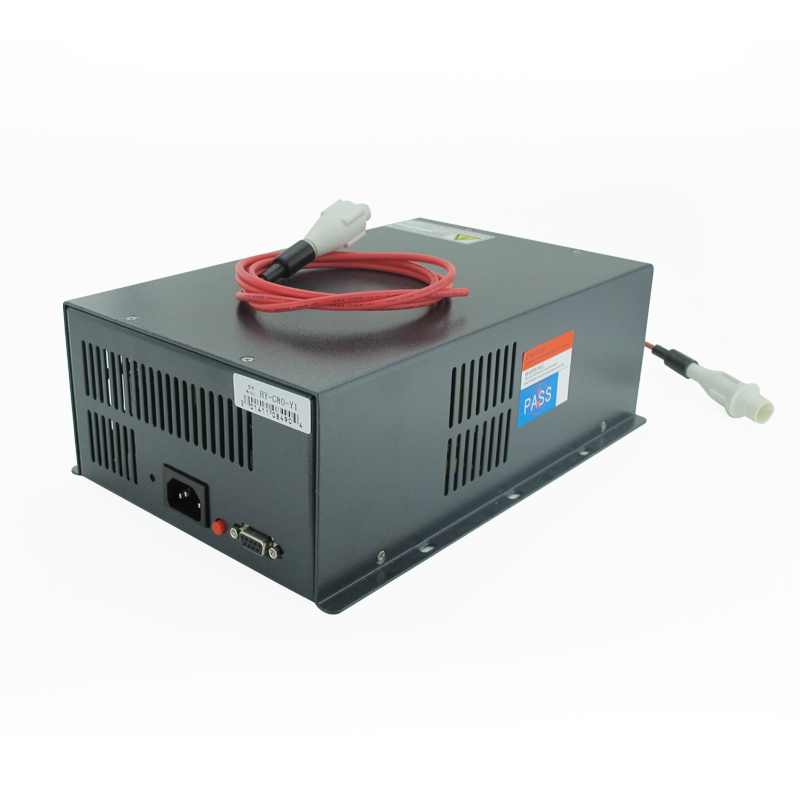

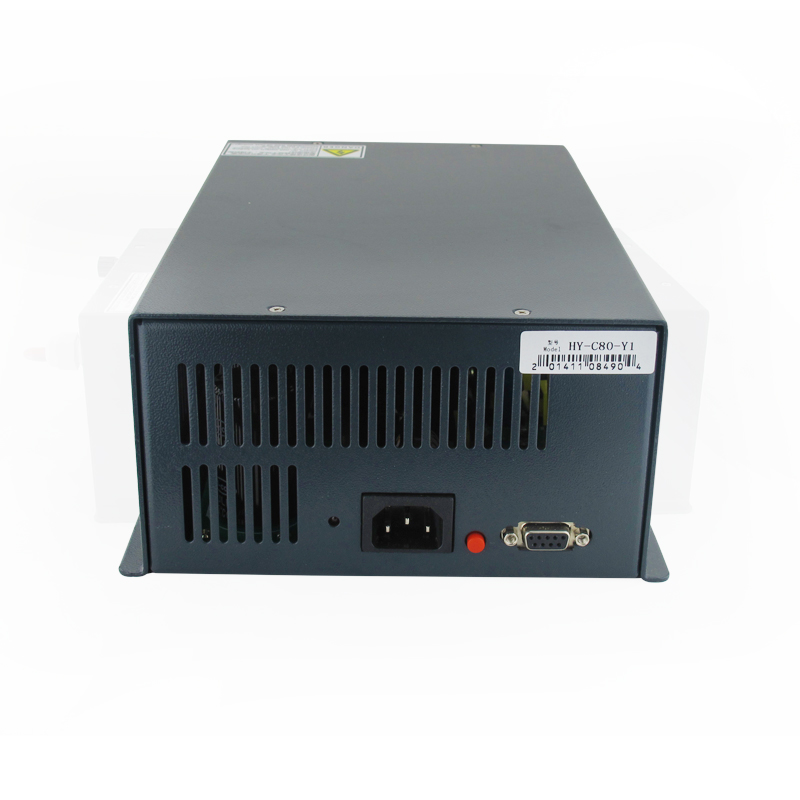

Product Pictures
Product Parameter
|
Item
|
C80
|
C120
|
C150
|
C180
|
|||
|
AC Input
|
220V
|
90-264V
|
220V
|
90-264V
|
|||
|
AC Frequency
|
47–63Hz
|
||||||
|
Max Input Power
|
550W
|
650W
|
750W
|
900W
|
|||
|
Max Input Current
|
2.5A
|
6A
|
3.5A
|
8A
|
|||
|
Max Output Voltage
|
40KV
|
45KV
|
50KV
|
55KV
|
|||
|
Max Output Current
|
28 mA
|
32mA
|
38 mA
|
38mA
|
|||
|
Effenciency
|
≥90%（Full Load）
|
||||||
|
MTBF
|
≥10000 hours
|
||||||
|
Response Time
|
≤1mS（The time from the switch signal given to the output current rising to 90% of the set current）
|
||||||
|
Withstand Voltage
|
Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell.
|
||||||
|
Operation Enviroment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||||
|
Cooling Method
|
Forced Cooling
|
||||||
|
Matched Laser Tube Power
|
40-80W
|
100-120W
|
120-150W
|
130-180W
|
|||
|
Product Weight（kg）
|
3kg
|
3.7kg
|
4.6kg
|
5.75kg
|
|||
|
Overall Dimension L*W*H(mm)
|
283*195*97
|
328*193*97
|
328*239*101
|
395*195*111
|
|||
|
Shell Color
|
Black
|
||||||
Outline Dimensional Drawing
All C series power supplies are controlled by DB9 terminal
HY-C120 Shell Dimension
