Description
LASERPWR 1500W Power Generator for Axis High Flow CO2 Laser Tube by China Factory Power Supply for High Power Co2 Laser Cutter
Model：
T1500
Product Features
1.High output voltage, high output current
AC220V input，the output current can reach 100mA.
2.Fast Response time
The time from the switch signal given to the output current rising to 90% of the set current will be lower than1mS.
3.
Multiple Units Work Together
Multiple Units Work Together
Can use 4, 8,12,16 parallel machines work to achieve greater laser power.
4.Simple control, can choose high or low level control
TTL signal controls the start and stop of the laser machine, WP enable switch is used to detect whether external water is accessible and ventilated.
5.Control the laser power is simple
Can use 0~5v analog signal and PWM signal to control power.
6.The power itself has open circuit protection
Under the condition of good protection grounding , the power can work in open circuit status for a short time， it can avoid the laser power supply damage caused by laser tube damage to prolong the life of power supply.
7.The Power Supply itself bas feedback interface.
can use to close-cycle control and verify the actual working current of laser machine.
8.Application
Axial fast low laser machine, high power knife mold machine, high power CO2 cutting machine.

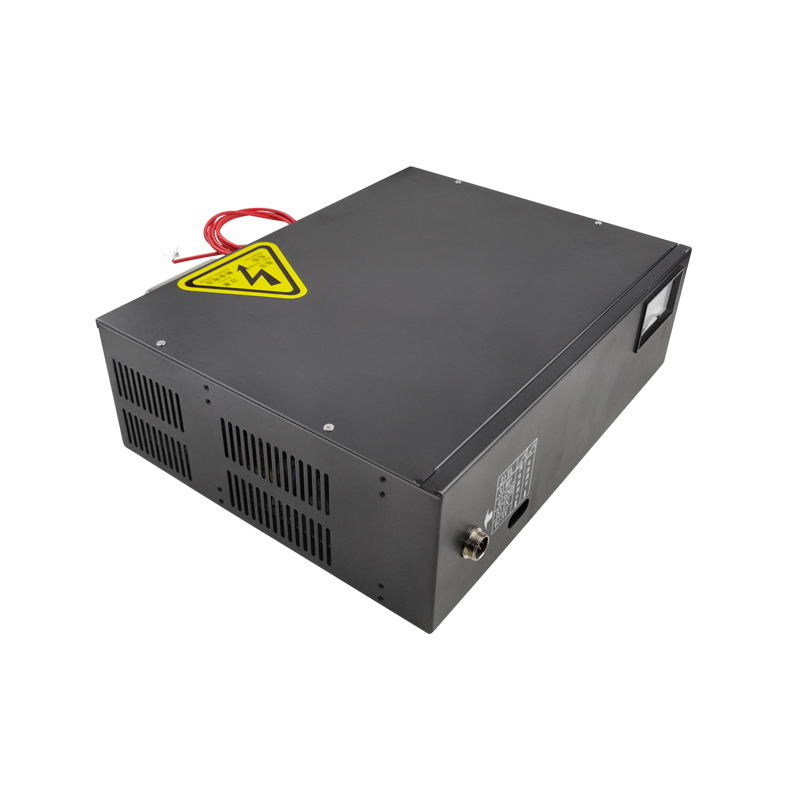

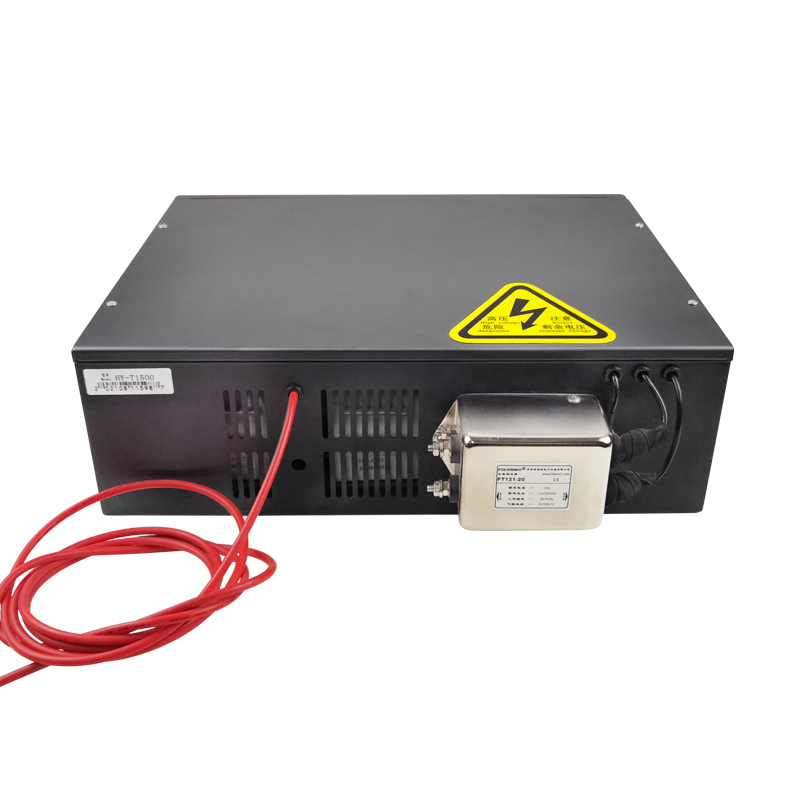

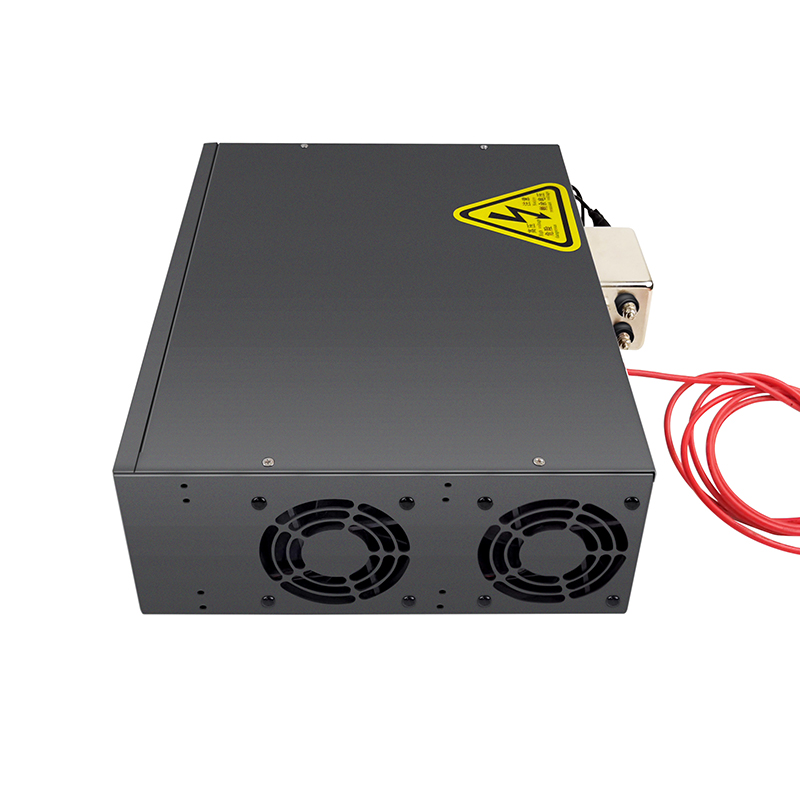

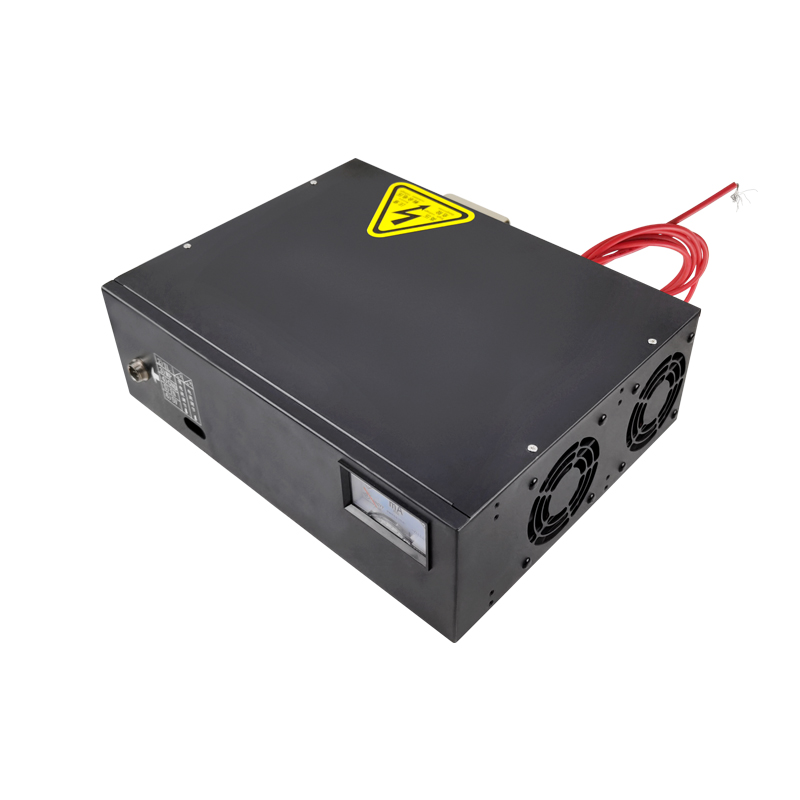

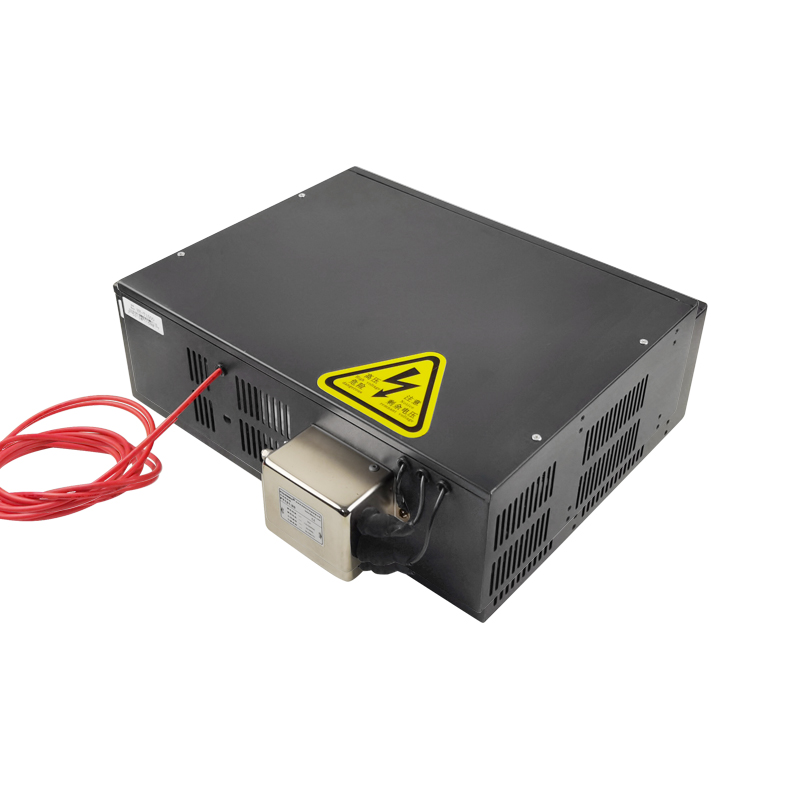

Product Pictures
Product Parameter
|
Input
|
Input Voltage
|
AC220V or AC110V(should give special instruciton when place order)
|
|||
|
Frequency
|
47—440Hz
|
||||
|
Cold surge current
|
≤60A(AC220V input)
|
≤30A(AC110V input)
|
|||
|
Leakage current
|
≤0.7mA(AC220V input)
|
≤0.4mA(AC110V input)
|
|||
|
Output
|
Max Output Voltage
|
DC 35KV
|
|||
|
Max Output Current
|
DC 100 mA
|
||||
|
Efficiency
|
≥90%（Full load）
|
||||
|
MTBF
|
≥10000 hours
|
||||
|
Response time
|
≤1mS（The time from the switch signal given to the output current rising to 90% of the set current）
|
||||
|
Control Interface
|
TTL level switch control, effective level can be selected high or low（details refer to control interface description
|
||||
|
Withstand Voltage
|
Input-Output ,Input-Shell:AC1500V 10mA 60s；The output negative electrode is connected to the Shell.
|
||||
|
Protection
|
Can work at open circuit for a short time（The power supply shell is required to be well grounded, while avoiding arc pulling
between the positive electrode and the shell）.
|
||||
|
Operation Enviroment
|
Working Temperature（-10~40）℃ ，relative humidity：≤90%
|
||||
|
Cooling Method
|
Forced Air Cooling
|
||||
|
Overall Dimension
|
L×W×H=340*265*95(mm)
|
||||
Install Dimension Drawing
T1500 Shell Dimension
