Description

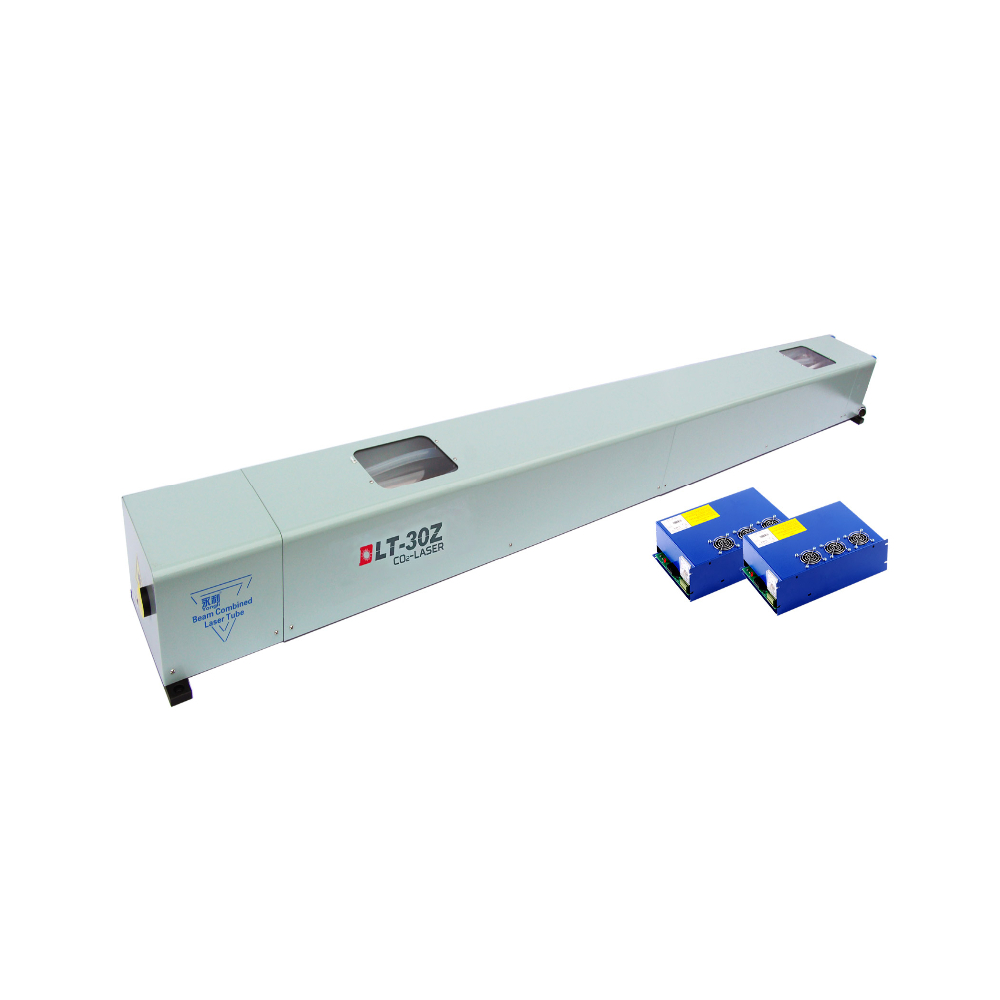

Yongli laser tube 200W 220w 260w 280w 300w 320w co2 laser tube for arcylic for wood for MDF cutting DLT-30Z DLT-40Z TUBE LASER
Using Yongli patented technology, it includes an integrated beam combiner. Concentrate the laser energy to improve the beam quality
Stable beam spot mode. (1+1≤1)
Single unit can be synchronous controlled and continually adjusted from 50-320W.
WEIGHT: DLT-30Z:16KG / DLT-40Z:26KG/
Full metal structure, full protection
With Kovar sealing technology and inner catalyst, lifetime is over 10000 Hrs

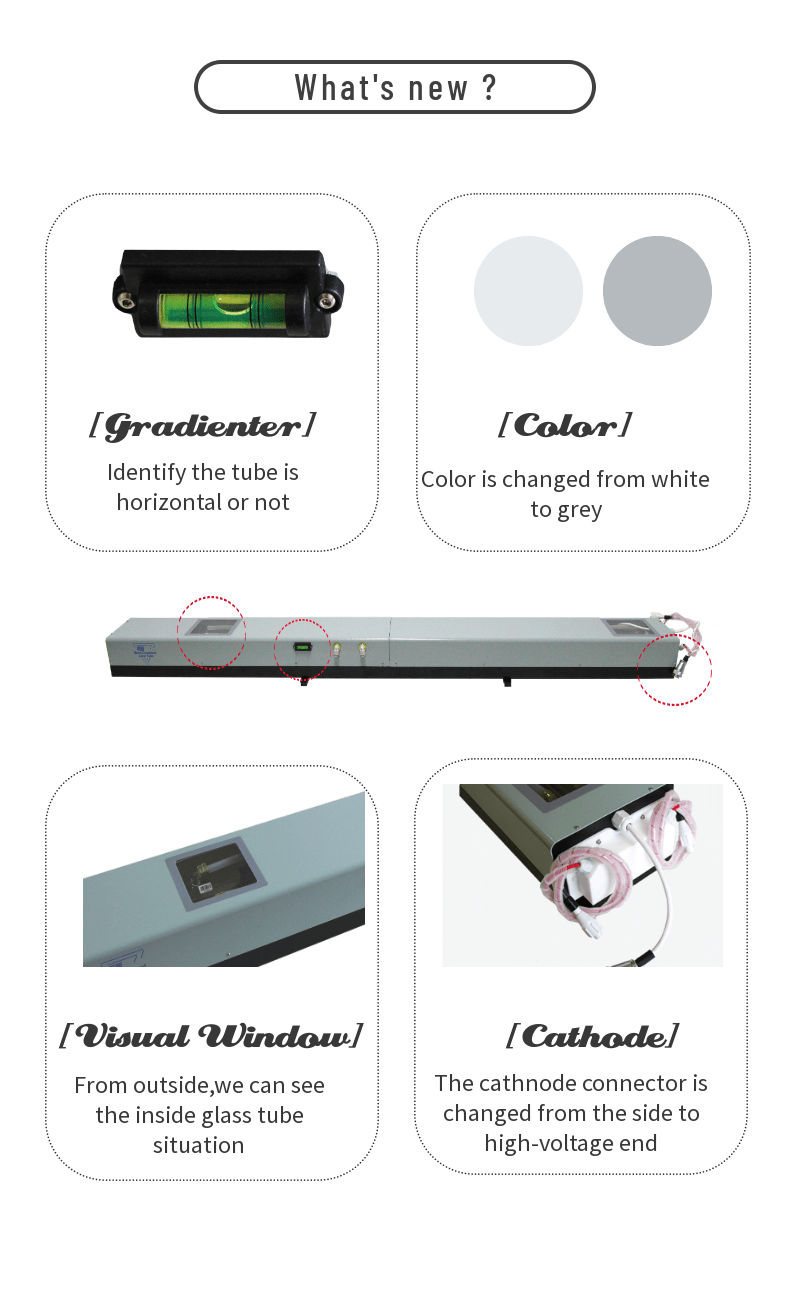

Newly added visual working window, With cover protected.

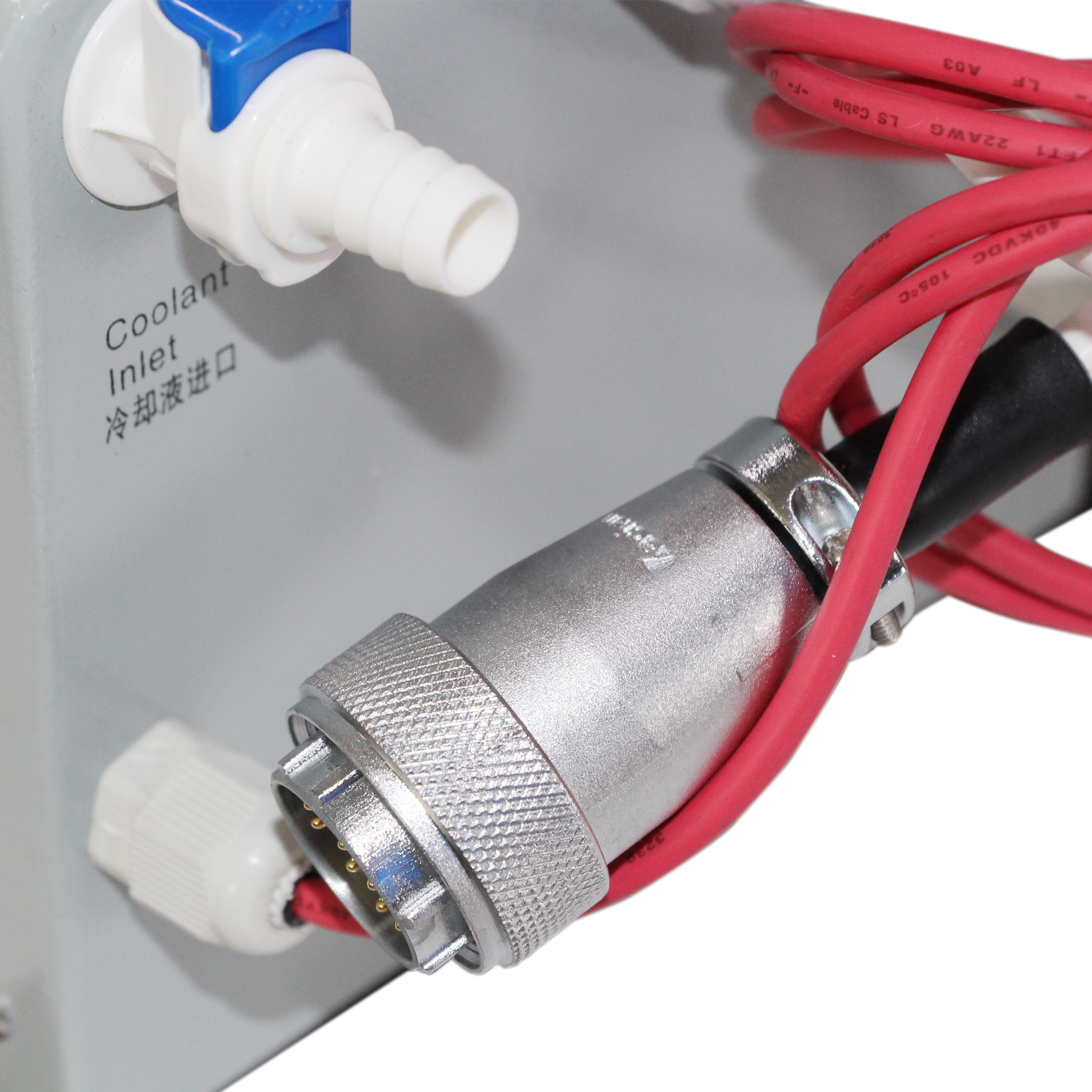

Equipped temperature and flow controller of water .
With power-off protection function while the temperature or water flow of the machine exceeds the allowable range.
Applicable advantage: Sheet metal (3mm stainless steel, 4mm steel.),Non-metallic thick plate.
Stable beam spot mode. (1+1≤1)
Single unit can be synchronous controlled and continually adjusted from 50-320W.
WEIGHT: DLT-30Z:16KG / DLT-40Z:26KG/
Full metal structure, full protection
With Kovar sealing technology and inner catalyst, lifetime is over 10000 Hrs
Newly added visual working window, With cover protected.
Equipped temperature and flow controller of water .
With power-off protection function while the temperature or water flow of the machine exceeds the allowable range.
Applicable advantage: Sheet metal (3mm stainless steel, 4mm steel.),Non-metallic thick plate.
Model No.
|
DLT-300
|

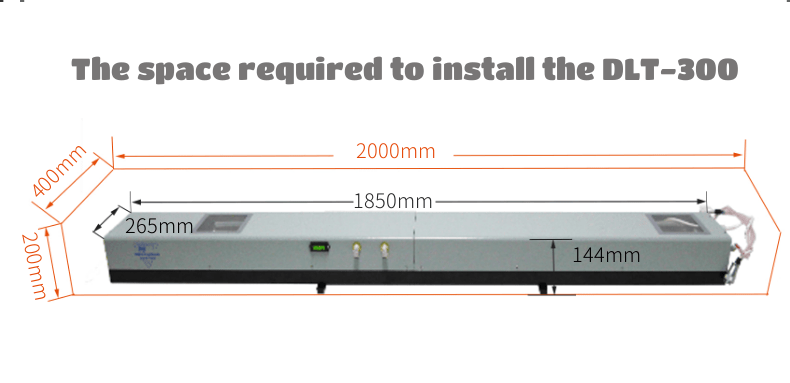

Product Dimension
|
1850*265*144mm
|
Recommend installation space
|
2000*400*200mm
|
Rated power
|
280w
|
Max Power
|
320w
|
Ignition Voltage
|
40kV
|
Working Votlage
|
26kV
|
Working Current
|
38mA
|
Recommend working current
|
30mA
|
Warranty
|
12 months
|
